Comprehensive Design Example for Prestressed Concrete (PSC) Girder Superstructure Bridge

3. Flow Charts

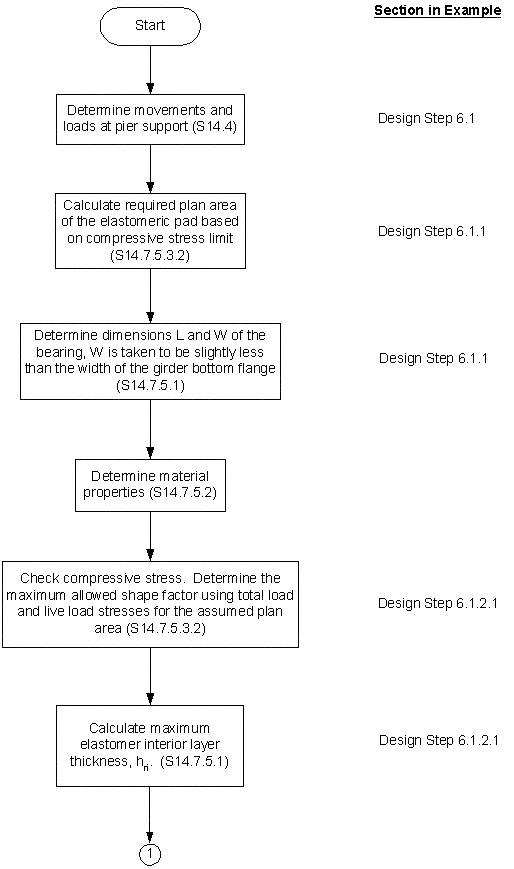

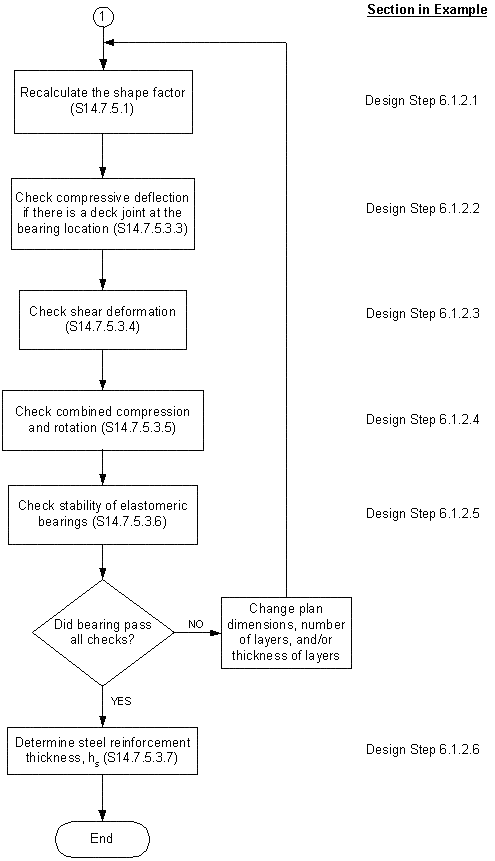

Steel-Reinforced Elastomeric Bearing Design Flow Chart - Method B

Steel-Reinforced Elastomeric Bearing Design Method B Flow Chart. Click for details.

Steel-Reinforced Elastomeric Bearing Design Method B Flow Chart Click for details.
