Comprehensive Design Example for Prestressed Concrete (PSC) Girder Superstructure Bridge

3. Flow Charts


Intermediate Bent Design Flow Chart

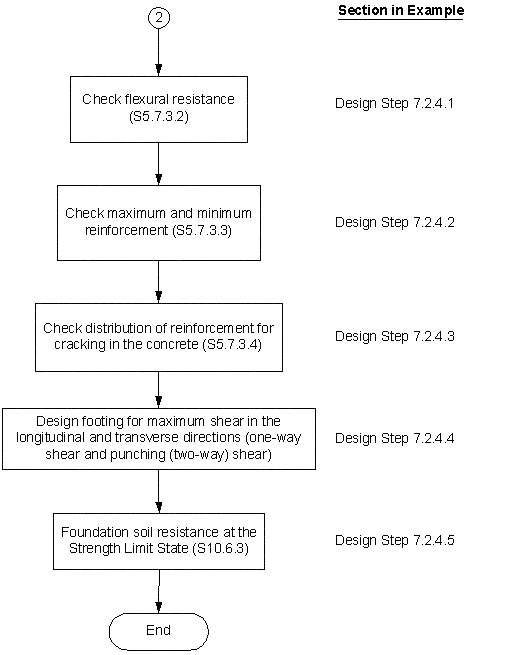

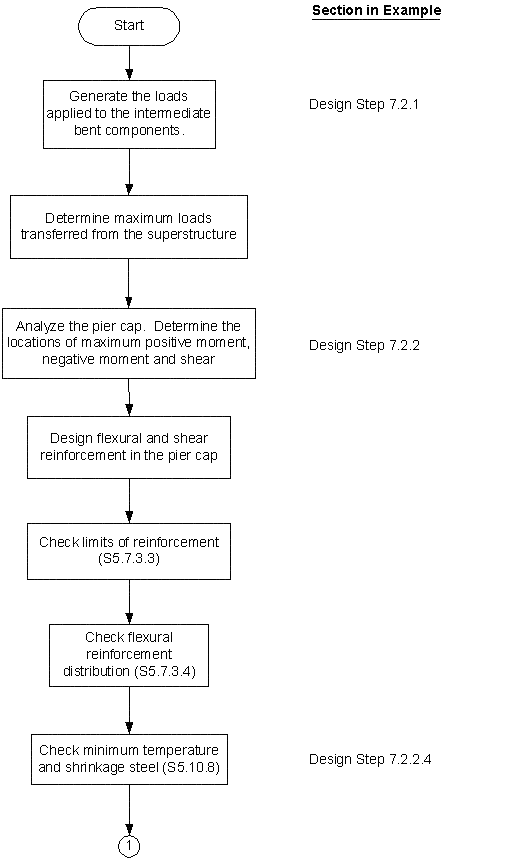

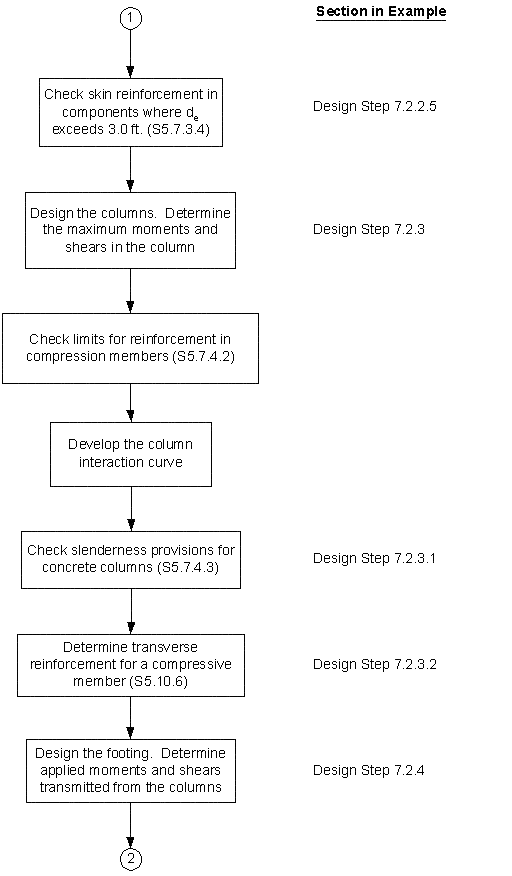

Intermediate Bent Design Flow Chart. Click for details.

Intermediate Bent Design Flow Chart. Click for details.

Intermediate Bent Design Flow Chart. Click for details.
