Real Time Monitoring of Subsidence Along Interstate I-77, Summit County, Ohio: Figure 9

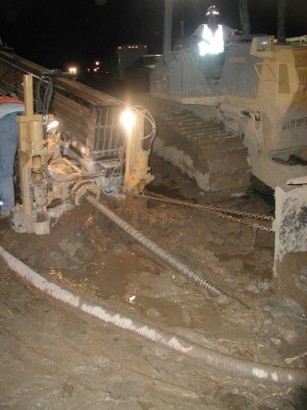

Figure 9a. Photo of cable installation

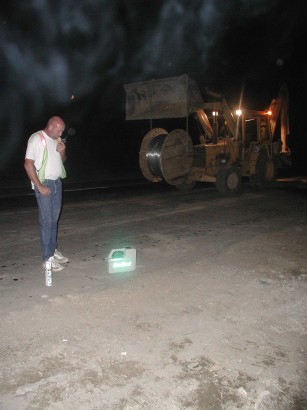

Figure 9b. Photo of monitoring installation - access to the pavement surface allows monitoring of direction and depth of drilling

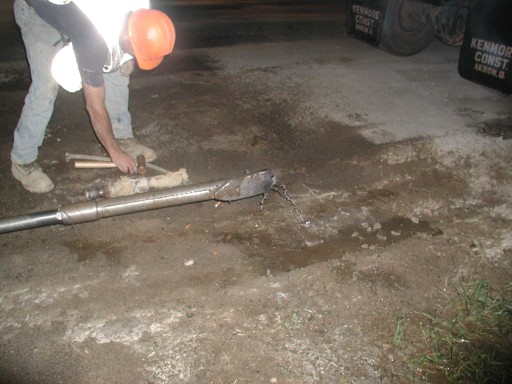

Figure 9c. Photo of angled boring head

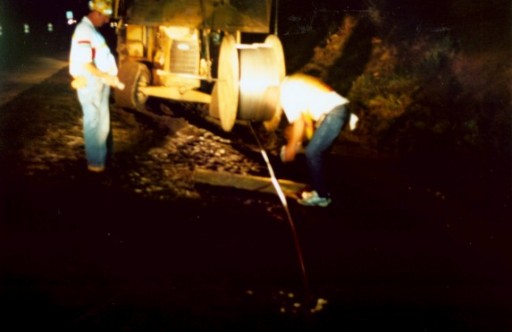

Figure 9d. Photo of monitoring installation - crimping cable
