Locating and Characterizing Abandoned Mines Using Microgravity: Figure 6


Return to Paper

Map of coal reserve area

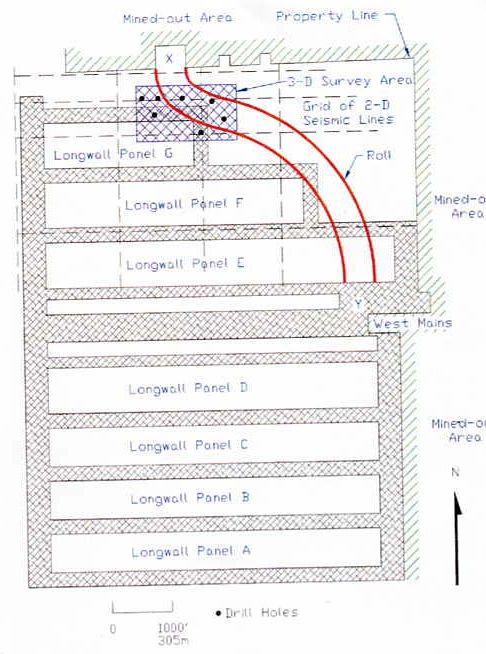

Figure 6. The interpreted trend of the roll (red). As a result of the interpretation, proposed longwall panels in this reserve block were reduced from four panels to three, and subsequently shortened and staggered along the western flank of the roll.
