CMAQ: Advancing Mobility and Air Quality

I-84 HOV Lanes-Hartford, Connecticut

Type of Project

Traffic Flow

Project Cost

CMAQ Cost: $11 million
Total Project Cost: $24 million

Context and Background

HOV lanes are available in the Hartford area on Interstate 384, Interstate 84 (east of Hartford), and Interstate 91 (north of Hartford). Often during peak commuter hours, mainline traffic on Interstates 84 and 91 is very heavy and congested. Traffic on the HOV lanes, on the other hand, usually moves at free-flow speed during peak hours, providing time savings for people who carpool, vanpool, and use transit.

The HOV lanes along I-84, however, were an incomplete system that did not serve commuter travel into downtown Hartford efficiently. Opened in 1989, the I-84 HOV lanes started in Vernon to the east and terminated in East Hartford about 1.5 miles short of the Founders Bridge into Hartford. Carpoolers, vanpoolers, and bus riders had to merge back into mainstream traffic and drive six more exits before reaching downtown Hartford. That segment of freeway into downtown Hartford had congested traffic levels, operating at Level of Service "F," indicating severe traffic delays, with an average speed of only 9.4 miles per hour during the morning peak hour period. This congestion made commutes downtown slow for even those who chose to rideshare.

The Project

This project involved extending HOV lanes on I-84 by 1.5 miles to downtown Hartford. Work began on the extension in the summer of 1999; the extension opened for service in June 2001. The new lanes extend to the Founders Bridge, enabling carpoolers destined for the downtown area to use the lanes all the way into Hartford. Only those HOV users crossing the Bulkeley Bridge to destinations farther west continue to merge with westbound main-line traffic. In addition, the I-84 HOV lanes were restriped to facilitate more flexible operation. Eastbound travelers now can enter the lanes from I-84 or Route 15, allowing carpoolers the option of using the HOV lane if the mainline becomes congested. The restriping also gives eastbound users of the Charter Oak Bridge the opportunity to enter the HOV lane.

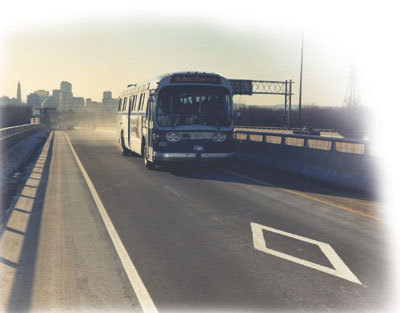

Photo of a bus on an HOV lane marked with a diamond

Results and Status

The project has increased the speed and reliability of travel time for people sharing rides into Hartford. According to Ravi Chandran, Supervising Engineer for the Connecticut Department of Transportation, traffic jams on I-84 westbound going into Hartford regularly add 10 minutes but can easily become half-hour delays, as compared to no delay at all in the HOV lane. Vanpoolers say the HOV lane extension has made their commutes much easier and faster. "The HOV lane is a godsend to the van," said Janet Grous, a business systems analyst at ING, who drives a vanpool from Vernon to Hartford.21

Downtown employers agree that the HOV lane extension has made the commute easier and faster for their workers. "We're located right where the Founders Bridge comes into downtown, so the HOV terminus is especially convenient for our workers," according to Jon Sandberg, spokesman for Phoenix Home Life Mutual Insurance Company. "The HOV lane has helped us encourage ridesharing among our employees and decrease the demand on highway usage."22

By increasing speeds for carpoolers and transit traveling into Hartford, the project improvements have enhanced the attractiveness of ridesharing to work. According to a traffic count study conducted annually by the Connecticut Department of Transportation, in the first year of operation, the improvements resulted in a 25-percent increase in HOV lane usage during the peak hour and a 34-percent increase in usage during the overall peak period. The use of the HOV lane translates into a more efficient highway system, and recently completed counts show that the I-84 westbound HOV lane is effective. Between 6 a.m. and 9 a.m. on an average day in September 2002, 1,095 vehicles carrying 3,660 people traveled in the HOV lane, compared to an average of just over one person per vehicle in the general-purpose lanes.

Estimated Emissions Benefits

8 kg/day VOC, 3 kg/day NOx

Contacts

Tom Maziarz
Capitol Region Council of Governments
860-522-2217

James Andrini
Connecticut Department of Transportation
860-594-2148

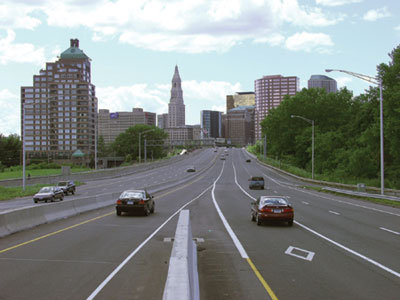

Drivers head west in the HOV lane from East Hartford toward the Founders Bridge
Drivers head west in the HOV lane from East Hartford toward the Founders Bridge.

21"HOV Lane Extension Provides Tremendous Benefit to Commuters." The Commuters Register, Connecticut, December 2002, page 23.
22Ibid, page 23.
