ArrowTRB 2005, Session 628: The Future is Now... Successes in Bridge Construction

by
Mary Lou Ralls, P.E.

TRB 2005 Annual Meeting
Highways for LIFE, Session 628
January 12, 2005

PDF Version (3.5 mb)


Presentation Outline

  • Prefabricated Bridges for Accelerated Construction
  • Example Projects
  • Related Issues
  • Future Directions
  • Your Role

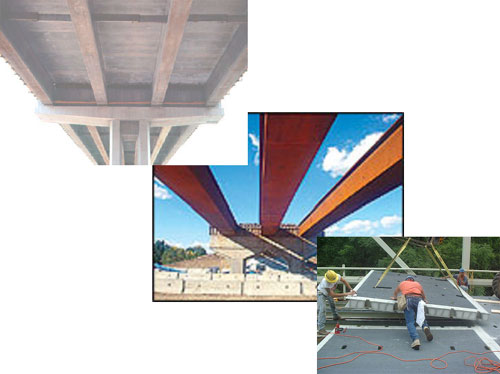

Prefabricated Bridge Elements & Systems

  • Bridge elements and systems constructed at a location other than the bridge's final location, then installed at the site
  • Emphasis on innovative elements and systems

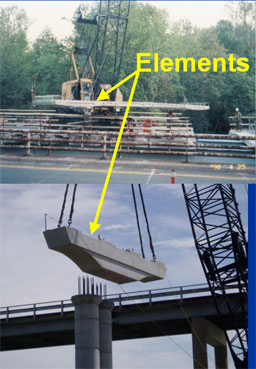

Prefabricated bridge elements

Prefabricated bridge elements examples

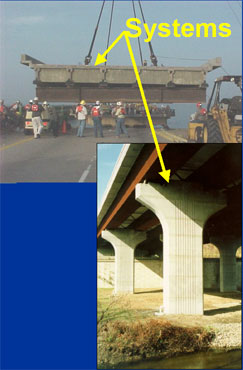

Prefabricated bridge systems

Prefabricated bridge systems examples


Why Change from Conventional Construction?

  • The focus has moved from building the infrastructure to upgrading and maintaining the infrastructure
    • Work must be done in congested areas while maintaining traffic flow
      • Need to minimize traffic disruption
      • Need to improve work-zone safety
  • The infrastructure is aging - needed now are innovative solutions that can be built quicker and that last longer
  • Goal:
    • A minimum 75-yr service life
  • Currently:
    • Average bridge age is 42 yrs
    • Average bridge deck life is 20-25 yrs

Moving more cast-in-place construction to offsite location

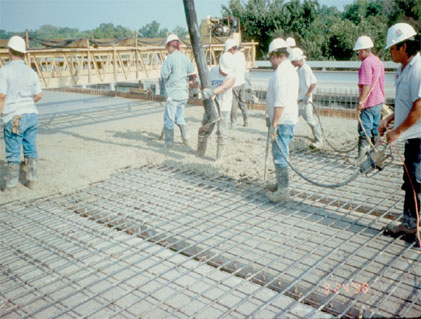

Concrete Pour


Prefabrication Improved Quality & Lower Life-Cycle Costs to "Stay Out"

  • Controlled environment
    • Reduced dependence on weather
    • Established materials suppliers for consistent quality of materials
    • Standardized plant operations for consistent quality of production
    • Optimum concrete curing

Potential Advantages of Prefabrication, depending on site constraints

  • Minimized traffic disruptions
  • Improved work-zone safety
  • Minimized environmental impact
  • Improved constructability
  • Improved quality
  • Lower life-cycle costs

Prefabrication Focus: Innovative Elements & Systems

  • Superstructures
    • Deck Panels: Full-Depth
    • Beams: More Efficient Shapes
    • Total Superstructure Systems: Composite Units, Truss Spans
  • Substructures
    • Caps
    • Total Substructure Systems: Abutments, Cap/Column(s), Pier(s)
  • Totally Prefabricated Bridges

Typical Prefabricated Elements

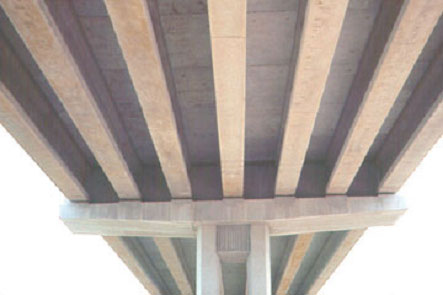

Beams

Typical Prefabricated Elements - Beams

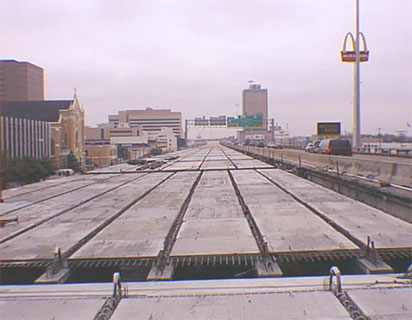

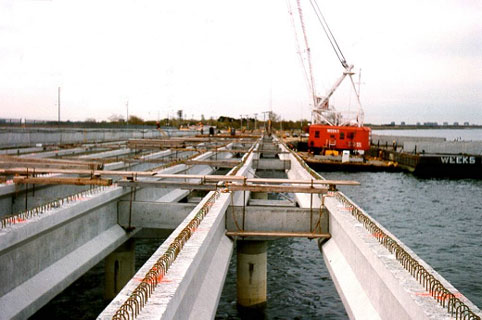

Partial-depth Deck Panels

Typical Prefabricated Elements - Partial-depth Deck Panels

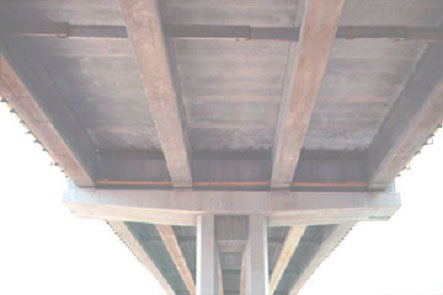

Reduced number of substructure supports by use of high performance materials

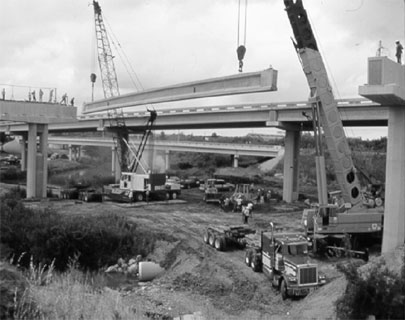

Bridge construction - placing beams


conventional 0.5-inch diameter strands & normal-strength concrete

seven beams

7 conventional beams
Span No. 1
North Concho Westbound Mainlanes
San Angelo, Texas

0.6-inch diameter strands & high-strength HPC concrete

four beams

4 HPC beams
Span No. 1
North Concho Eastbound Mainlanes
San Angelo, Texas


Preassembled Girders

Preassembled girders to minimize environmental impact

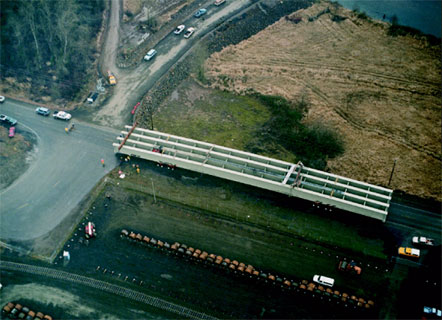

Preassembled Girders

Port of Kalama, Washington

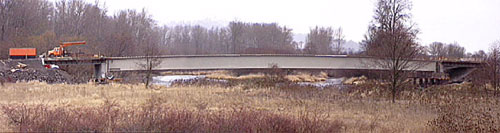

Preassembled Girders


Iowa River Bridge - 2003

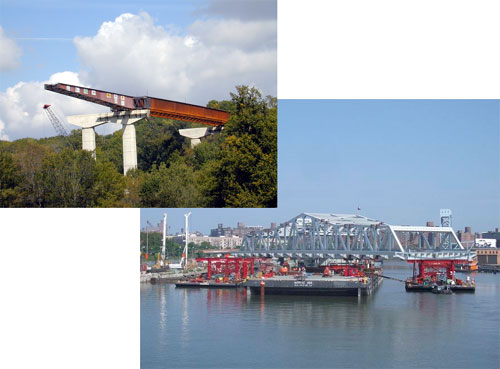

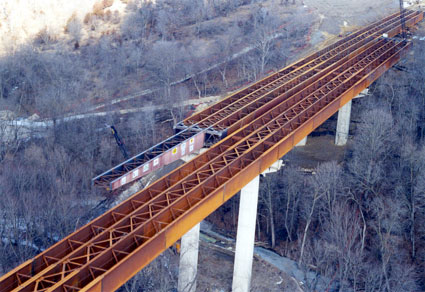

Incremental launching

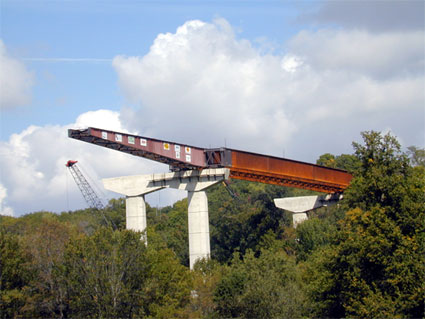

Incremental launching to minimize environmental impact

Incremental launching


Prefabricated Superstructures

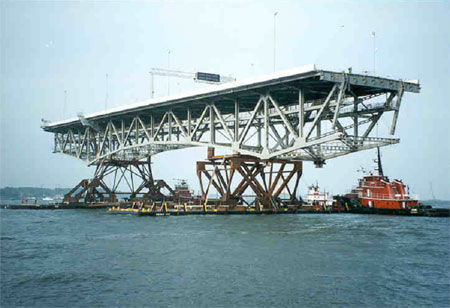

George P. Coleman Bridge, Virginia - 1995

section of George P. Coleman Bridge being moved into place

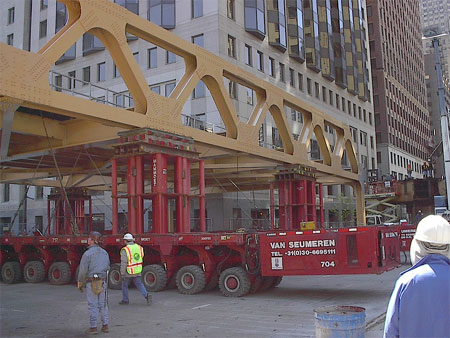

Wells Street Bridge, Chicago - 2002
111-ft long, 25-ft high, 425-ton truss span installed over a weekend

placing section of Wells Street Bridge, Chicago

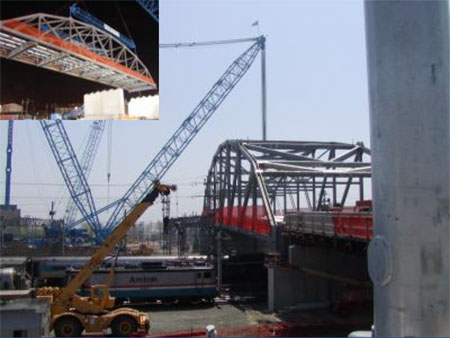

Church Street Bridge, Connecticut - 2003
Erection in hours over a weekend night minimized rail disruption

construction of Church St. Bridge

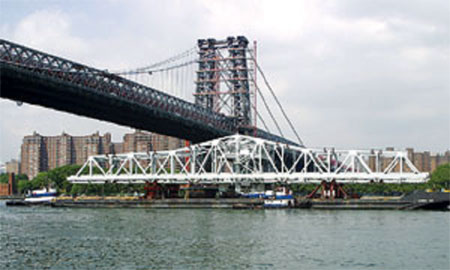

Third Avenue Bridge, New York - 2004
360-ft long truss was fabricated in Alabama and floated to the Bronx

placement of Third Avenue Bridge, New York

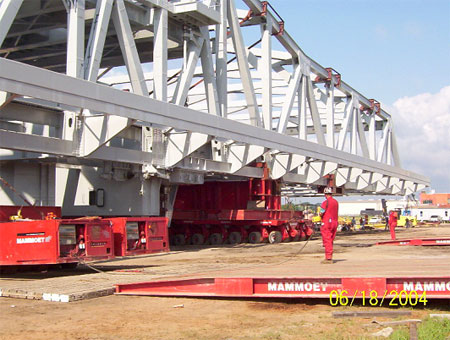

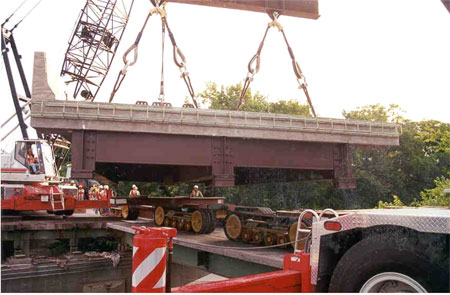

Self-Propelled Modular Transporters (SPMTs)

Third Avenue Bridge, NYC

Self-Propelled Modular Transporter

SPMTs - Top Implementation Recommendation from April 2004 Prefabricated Bridge Elements and Systems International Scan

Self-Propelled Modular Transporter


April 2004 Prefabricated Bridges International Scan

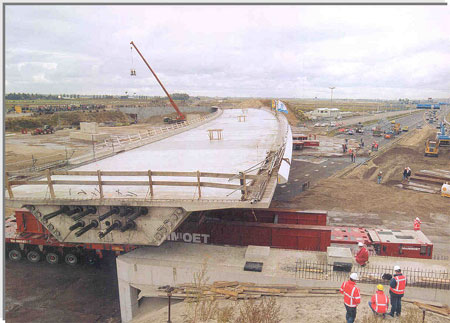

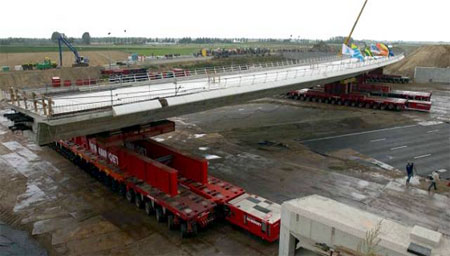

Self-Propelled Modular Transporters

Superstructure Roll-In:
390-ft Length,
3300 M Tons,
2 Hours to Move,
1 Weekend Road Closure

Self-Propelled Modular Transporters


Lavaca Bay Causeway between Port Lavaca and Point Comfort (Gulf of Mexico) - 1961

Repetitive construction over water: 63-ft wide and over 2 miles long

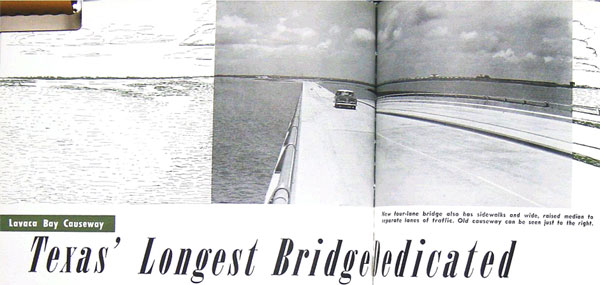

Lavaca Bay Causeway

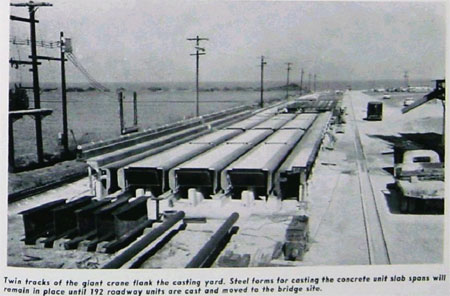

Lavaca Bay Causeway sections

Sections were cast in spans of 60-ft length and half superstructure widths of 32 ft

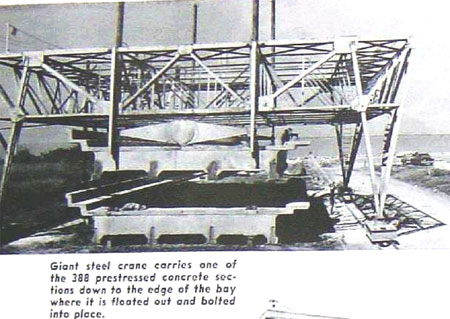

Lavaca Bay Causeway crane carrying section

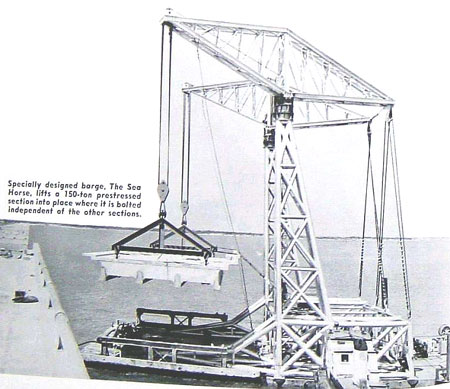

Lavaca Bay Causeway barge with crane to lift section in place

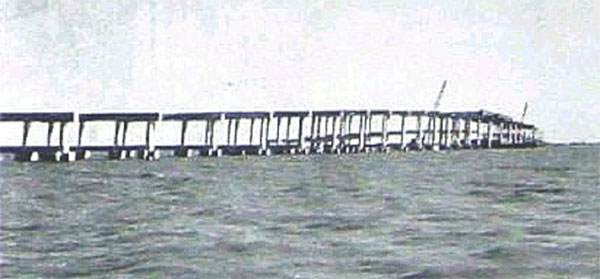

Lavaca Bay Causeway

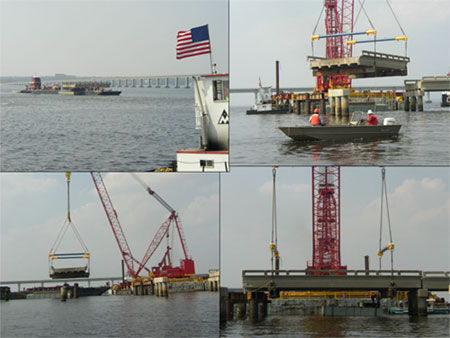

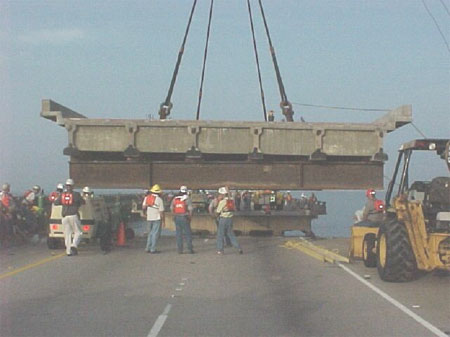

I-10 over Lake Ponchartrain, Louisiana - 2002

I-10 over Lake Ponchartrain section being placed

Replaced 65-ft x 46-ft 350-ton span in less than 24 hours


James River Bridge, Virginia - 2002

James River Bridge, Virginia

Approximately 100 superstructure spans replaced during night construction while maintaining traffic


Virginia's Superstructure Replacement of I-95 James River Bridge

James River Bridge construction

Partial lane closures, with no lane closures during rush-hour traffic


Virginia's Superstructure Replacement of I-95 James River Bridge

James River Bridge construction

Innovative systems and equipment to meet the needs

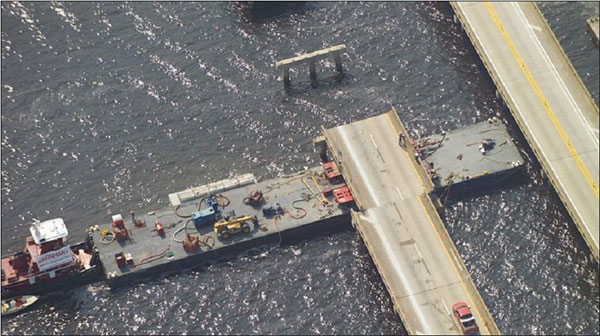

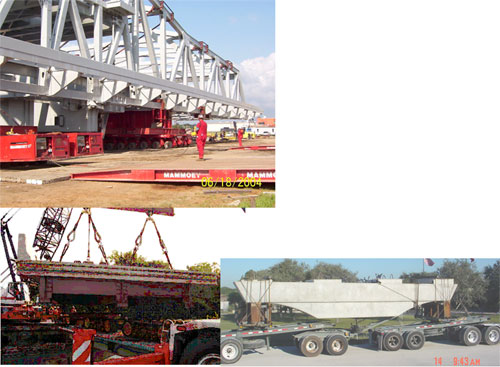

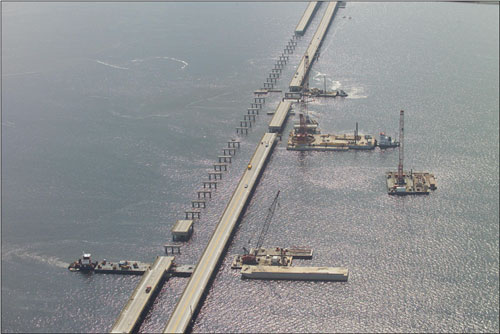

IH-10 Bridge over Escambia Bay, Florida - 2004

IH-10 Bridge over Escambia Bay, Florida construction

IH-10 Bridge over Escambia Bay, Florida construction

265-ton lifts to new pile bents


IH-10 Bridge over Escambia Bay, Florida - 2004

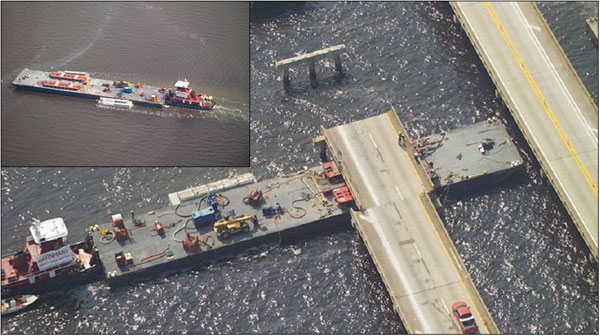

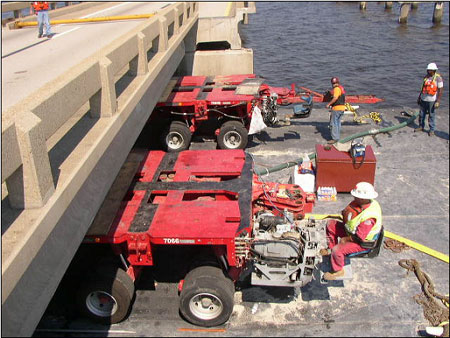

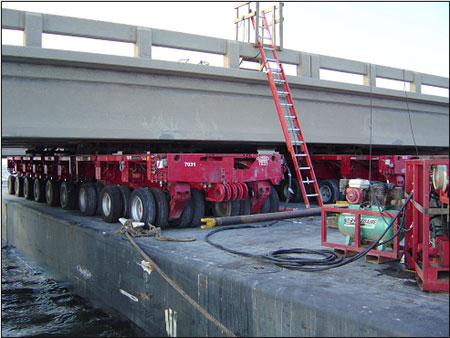

IH-10 Bridge over Escambia Bay, Florida SPMTs to realign bridge spans

IH-10 Bridge over Escambia Bay, Florida SPMTs to realign bridge spans

Used modular transporters and barges to realign bridge spans


$250,000/day Phase I incentive/disincentive
Contract completed 7 days early

IH-10 Bridge over Escambia Bay, Florida construction

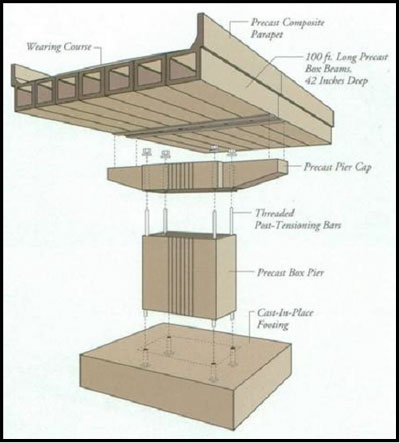

Totally Prefabricated Bridges


Baldorioty de Castro Avenue, San Juan, Puerto Rico

Baldorioty de Castro Avenue

Two 700-ft and two 900-ft bridges, each installed in 21-36 hrs

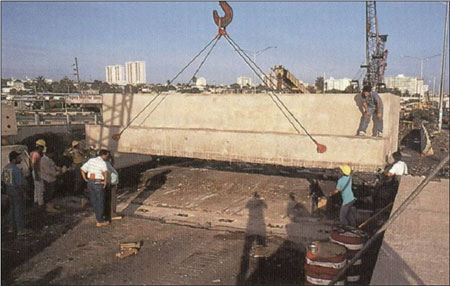

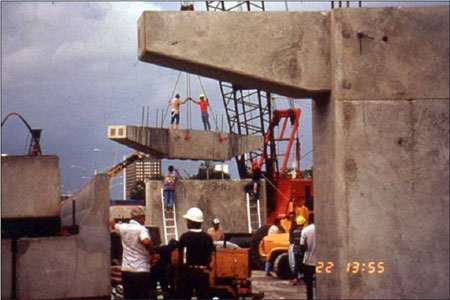

Baldorioty de Castro Avenue section

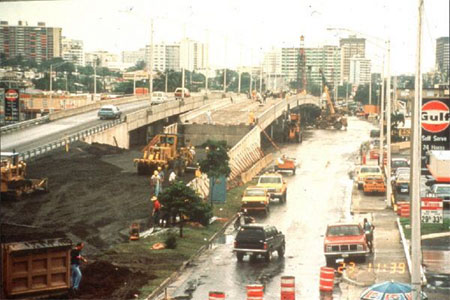

Baldorioty de Castro Avenue construction

Baldorioty de Castro Avenue construction

Baldorioty de Castro Avenue construction

Baldorioty de Castro Avenue construction

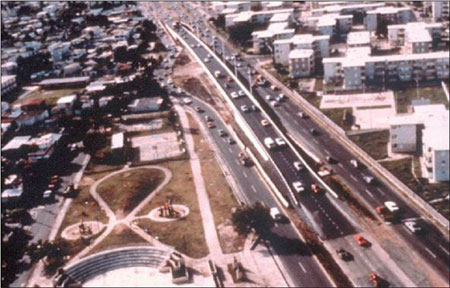

Baldorioty de Castro Avenue

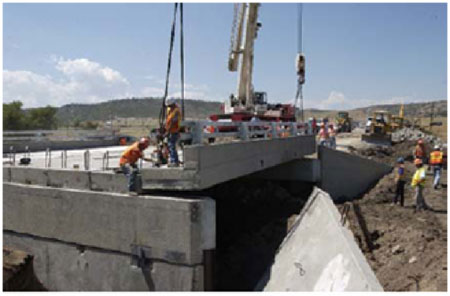

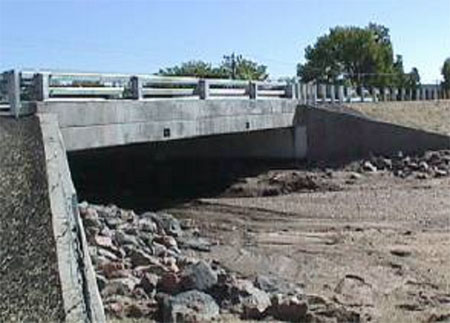

SH 66 over Mitchell Gulch, Colorado - 2002

SH 66 over Mitchell Gulch

Completed over a weekend

SH 66 over Mitchell Gulch construction


Prefabricated Decks

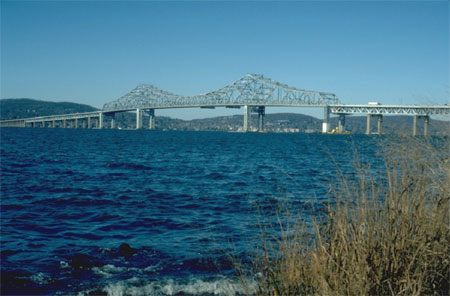

Tappan Zee Bridge, New York - 1998

Tappan Zee Bridge

Replaced 250,000 sq ft of deteriorated deck with innovative deck system, and no impact to rush-hour traffic

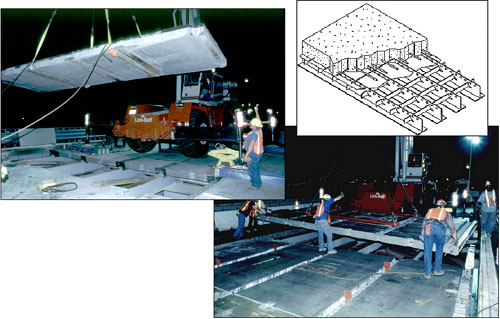

Tappan Zee Bridge Deck Replacement

Tappan Zee Bridge construction

1200 exodermic panels, each 7 ½ in. thick, typically 18-24 ft x 12-ft, each weighing 6-9 tons


Jacques Cartier Bridge over St. Lawrence River, Montreal - 2002

Jacques Cartier Bridge over St. Lawrence River, Montreal

Replaced 5-lane, 9000-ft long bridge deck, with no impact to rush-hour traffic

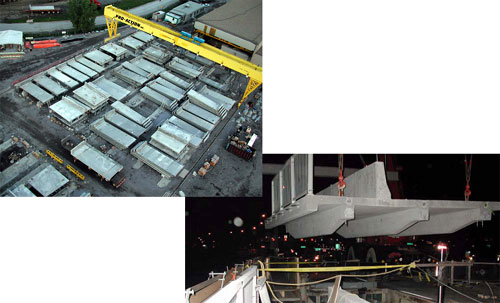

Jacques Cartier Bridge Deck Replacement

Jacques Cartier Bridge over St. Lawrence River, Montreal deck replacement

1680 prefabricated deck units placed at night and occasional weekend from April to October during 2001 and 2002

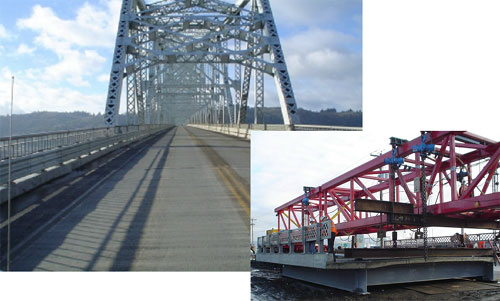

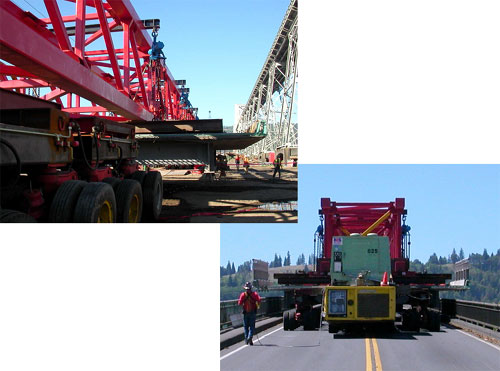

Lewis and Clark Bridge over Columbia River, Washington/Oregon - 2004

Lewis and Clark Bridge over Columbia River, Washington/Oregon

Replaced 3900 ft of deck using SPMTs during 120 nights plus four weekend closures, with no impact to rush-hour traffic

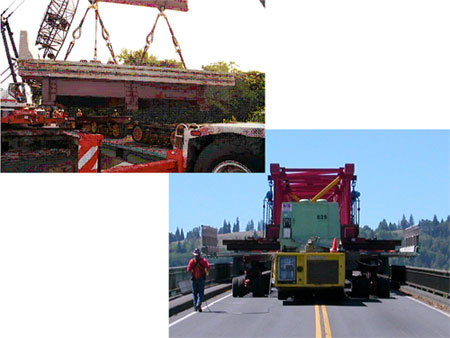

Lewis and Clark Bridge, SR 433 over Columbia River

Lewis and Clark Bridge over Columbia River, Washington/Oregon precast panesl

103 precast lightweight concrete panels, each 36-ft wide x 20-45 ft long

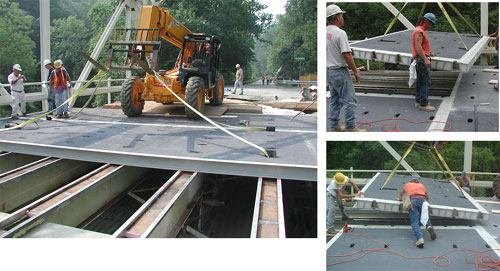

MD Rt. 24 over Deer Creek, Maryland - 2001

MD Rt. 24 over Deer Creek, Maryland construction

Innovative materials used to address site constraints

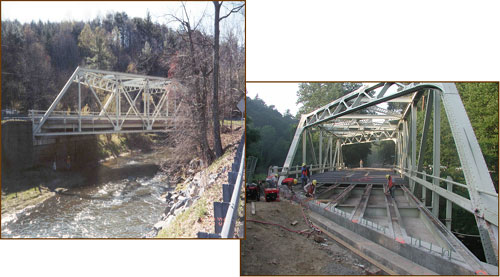

MD Deck Replacement with FRP Panels

MD Deck Replacement with FRP Panels

  • 122.5-ft span, 30-ft roadway
  • Lightweight FRP deck on steel through truss

Prefabricated Substructures

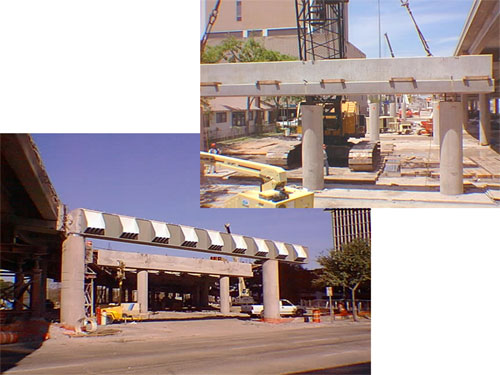

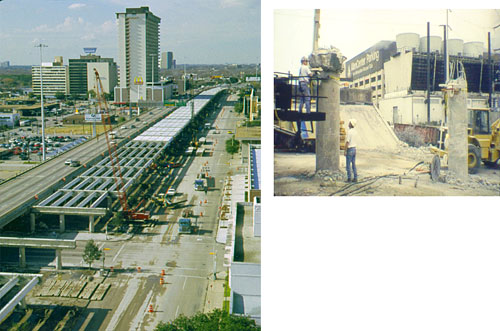

IH45 / Pierce Elevated, Texas - 1997

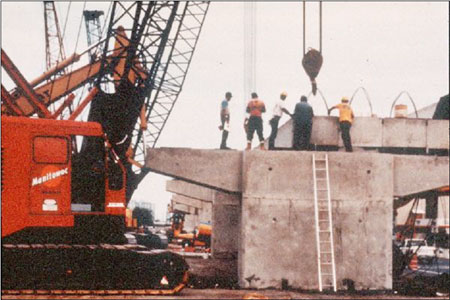

IH45 / Pierce Elevated, Texas construction

Use of prefabricated caps on existing columns resulted in 226 superstructure spans being replace in 190 days versus 1.5 yrs


IH 45 / Pierce Elevated in Houston

IH45 / Pierce Elevated, Texas construction

Both steel and concrete prefabricated caps

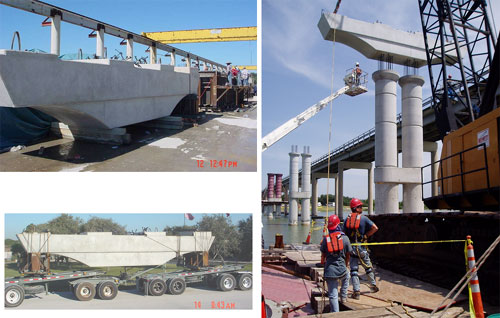

SH 36 over Lake Belton, Texas - 2004

SH 36 over Lake Belton, Texas construction

Repetitive construction over water

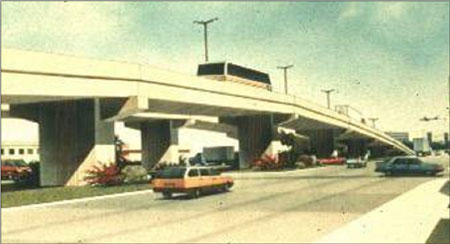

Newark International Airport Monorail, New Jersey - 2001

Newark International Airport Monorail, New Jersey

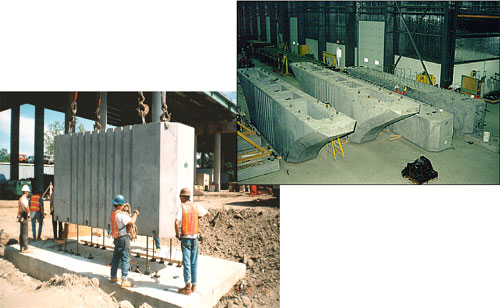

I-287 Cross Westchester Expressway Viaducts, New York - 1999

I-287 Cross Westchester Expressway Viaducts, New York construction

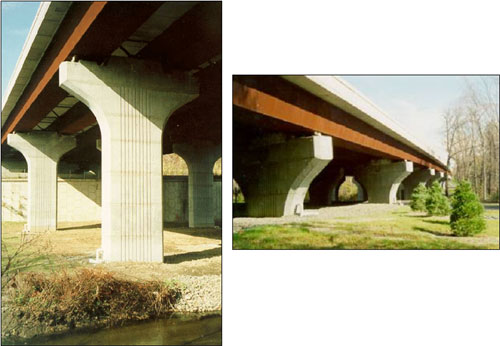

Segmental Precast Columns on I-287 Cross Westchester Expressway Viaducts

Segmental Precast Columns on I-287 Cross Westchester Expressway Viaducts


Accelerated Construction - A Systems Approach


ACTT Workshop = A good model to include all stakeholders

  • Multi-discipline team scopes out the corridor identified by the State
  • Focus is on the process
  • Systems approach
  • Time is collapsed for all disciplines
  • When this moves a bridge to the critical path, prefabrication is considered

ACTT Workshop - Team Skill Sets
(Disciplines for Systems Approach)

  • Innovative Financing/Innovative Contracting
  • Right-of-Way/Utilities/Railroads
  • Roadway/Geometric Design
  • Geotechnical/Materials
  • Structures
  • Long Life Pavements
  • Traffic Engineering/Safety/ITS
  • Environment
  • Construction
  • Public Relations

Contracting Strategies for Early Delivery

  • Liquidated damages - financial penalties for late delivery
  • A+B bidding - cost-plus-time bidding
  • Incentive/disincentive - financial bonus or penalty for delivery before or after a set time
  • No-excuse bonus - modified incentive with no time adjustment for problems
  • Lane rental
  • Calendar day - project schedule based on a number of days for completion

Failure To Restore All Traffic Lanes ByAmountCumulative
6:00 A.M.$5,000$ 5,000
6:15 A.M.$10,000$ 15,000
6:30 A.M.$35,000$ 50,000
6:45 A.M.$40,000$ 90,000
7:00 A.M.$25,000$115,000
7:15 A.M.$10,000$125,000
7:30 A.M.$10,000$135,000

3:00 P.M.$15,000$200,000
4:00 P.M.$20,000$220,000
5:00 P.M.$20,000$240,000
6:00 P.M.$10,000$250,000

$250,000/day Phase I incentive/disincentive
Contractor received $1.75M incentive

I-10 over Escambia Bay, Florida construction

I-10 over Escambia Bay, Florida - 2004


Future Directions


Future Directions

  • Widespread use of accelerated construction (e.g., prefabrication) for vehicular bridges (e.g., in urban areas)
  • In each case, engineering the solution to meet the unique constraints at that location, i.e.,
    • Reduced traffic disruption
    • Improved work-zone safety
    • Reduced environmental impact
    • Improved constructability
    • Improved quality
    • Lower life-cycle costs
  • More elements combined off-site
  • Development of more efficient, innovative prefabricated bridge systems that make use of the enhanced properties of high performance materials
  • More prefabricated substructures
  • Innovative methods of construction, for example, use of self-propelled modular transporters (SPMTs)
  • Increased focus on durability to extend bridge service life
  • More emphasis on rehabilitation of the existing infrastructure, with more public involvement
  • More owner / industry / consultant / academia / public partnerships to find optimum solutions

What's Your Role?

  • Insist on consideration of innovative technologies to accelerate construction
    • Be willing to specify the first use
    • Select a large project or multiple projects with repetitive sections for the first use
    • Use contracting strategies that are significant to the contractor
    • Include cost trade-offs in project estimate
  • Ensure that all stakeholders are included and their input considered, from initial planning through construction

Available Resources


FHWA National Prefabricated Bridge Elements & Systems Workshop

December 12-14, 2005
San Diego, California

Mark your calendars!


Federal Funding Programs

  • Innovative Bridge Research and Deployment (IBRD)
    • Accelerated construction techniques
    • High performance materials
  • Highways for LIFE
    • Long Lasting
    • Innovative
    • Faster Construction
    • Efficient and Safe
  • Federal Bridge Program

Larger systems are being installed ...

Superstructure segments
Full-width, full-depth decks

Superstructure segments

including entire spans ...

entire spans

new techniques and equipment are being used ...

incremental launching and section placement

... with advanced materials,

HS/HPC girders
100 ksi HPS girders
FRP Decks

steel and conrete beams, deck sections

... to obtain quality accelerated construction.


prefabricated bridge elements and systems

The Future is Now: Prefabricated Bridges

Thank You

More Information

Events

Contact

Kathleen Bergeron
Highways for LIFE
202-366-5508
kathleen.bergeron@dot.gov

PDF files can be viewed with the Acrobat® Reader®
Updated: 04/04/2011


FHWA
United States Department of Transportation - Federal Highway Administration
