HERS-ST Example - Working with the Highway Data

Objective: Use built-in tools for viewing, sorting, and editing highway data.

Tasks:

  1. viewing options;
  2. edit record;
  3. sorting records;
  4. set & replace functions;
  5. selecting records - mouse;
  6. selecting records - query.

Task 1: Viewing options


HERS-ST Screen Shot: Application Window - showing the different right-click locations on the Highway Data Window and New Highway pop-up menu. Step 1 double click on New Highway 1 or right click and select display. Step 2 select sections. Step 3a - right click on box next to comments. Step 4a right click on county header. Step 5a right click on comment
HERS-ST Screen Shot: upper left-hand corner pop-up menu. Step 3b select toggle. HERS-ST Screen Shot: column heading pop-up menu. Step 4b select hide. HERS-ST Screen Shot: highway section pop-up menu. Step 5b check HERS-ST Layout

Task 2: Edit record

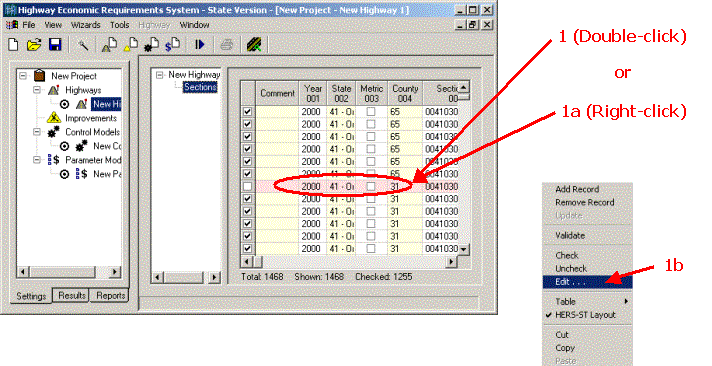

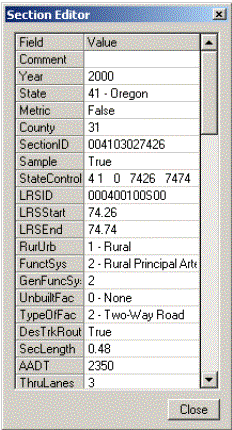

HERS-ST Screen Shot: Application Window - showing how to pull-up the Section Editor and highway section pop-up menu. Step 1 double click on a county record or right click edit. HERS-ST Screen Shot: Section Editor.

Task 3: Sorting records


HERS-ST Screen Shot: Application Window - showing how to sort columns. Step 3 One click ascending, two clicks descending or Step 3a right click on column header HERS-ST Screen Shot: column heading pop-up menu expanded to show sort options. Step 3b select sort - ascending

Task 4: Set & Replace functions

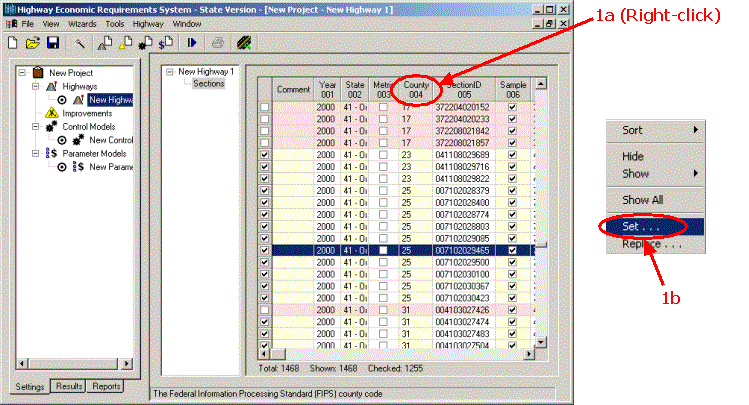

HERS-ST Screen Shot: Application Window - showing how to access and use the set and replace functions and column heading pop-up menu. Step 1a right click on county select set.

HERS-ST Screen Shot: Set Highway Data message. Select yes

HERS-ST Screen Shot: column heading pop-up menu. Select replace

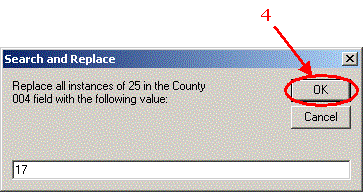

HERS-ST Screen Shot: Highway Data Search and Replace window. select ok

Task 5: Selecting records - mouse

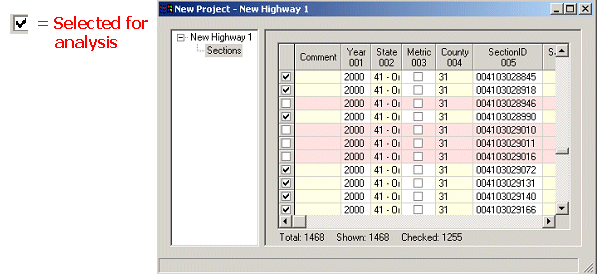

HERS-ST Screen Shot: Highway Data Window. Check box from Highway Data Window, which indicated that the section is selected for analysis.

Highway Data Window and highway section pop-up menu. Step 2 select record. Step 3a Right click. Step 3b select check

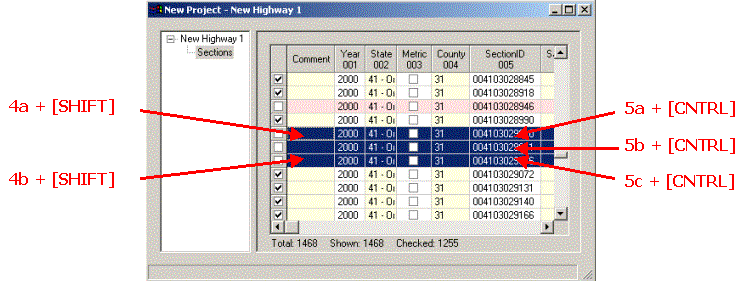

HERS-ST Screen Shot: Highway Data Window - showing how to highlight sections using shift and control keys.

Task 6: Selecting records - query

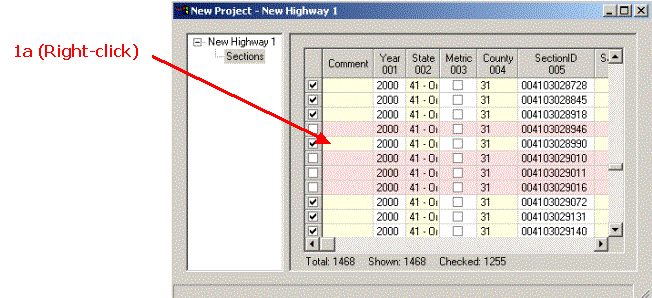

HERS-ST Screen Shot: Highway Data Window - showing how to query and select highway sections. Step 1a right click on record

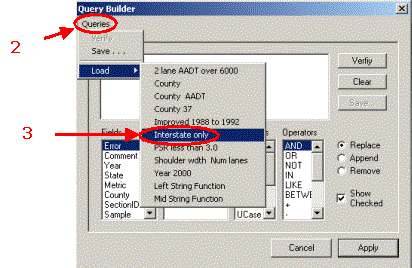

HERS-ST Screen Shot: highway section pop-up menu expanded to show the query option. Step 1b select table - query HERS-ST Screen Shot: Highway Data Query Builder - showing how to access the built-in queries. Step 2 select Queries Step 3 select Load - Interstate Only.

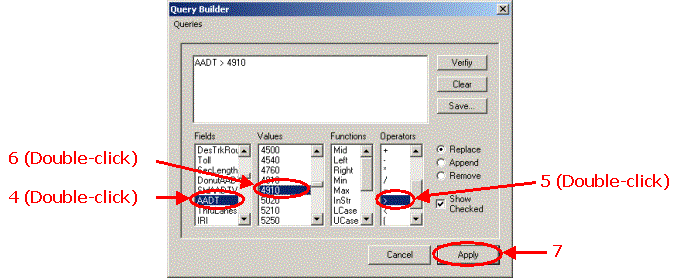

HERS-ST Screen Shot: Highway Data Query Builder - showing how to build a query. Step 4 double click on AADT. Step 5 double click on Operator. Step 6 double click on values. Step 7 select apply button.
