ARCHIVED: Chapter 2. Performance Data Of Recycled Mixtures

<< PreviousContentsNext >>

Introduction

Use of recycled asphalt pavements has increased appreciably since its inception in 1915 and revival in the mid-1970s, when Arab oil embargo caused inflation of construction costs. Experience gained over the years by different states has shown that asphalt pavement recycling is a technically viable rehabilitation technique. Properly designed recycled asphalt pavements have performed similar to and in many cases better than the conventional overlays. A literature search was conducted to collect the results of performance evaluation of recycled projects in the different states. The objective of this session is to present the laboratory and field performance data on recycled asphalt pavements.

Performance Of Hot Mix Asphalt Recycling

Hot mix asphalt recycling has been used extensively and routinely in the U.S. during the last several years. It is no longer considered an experimental operation because recycled HMA pavements have generally performed equal to or better than conventional HMA pavements. Therefore, very few experimental projects which have evaluated the relative performance of recycled and conventional HMA pavements, have been reported in the literature. A limited number of projects (mostly constructed in the 1970s) are reported here.

Florida

Florida has been using recycled HMA since 1978. Pavements constructed by milling and replacement by recycled HMA are reported to be performing better than pavements constructed of conventional overlay and leveling courses. Reflective cracks have been removed successfully by full-depth milling of cracked layers. Laboratory and in-place evaluation of recycled HMA has indicated similar or better performance compared to conventional HMA.(1) A comprehensive specification and sampling and testing program is used by Florida DOT for recycling HMA. The plans include monitoring all phases of mixture design including verification of the blending between the new asphalt cement and aged binder in the recycled asphalt pavement (RAP). Samples are taken during production routinely to recover asphalt cement and test its properties.

Georgia

An evaluation study consisted of performance evaluation of recycled and conventional HMA surface courses in each of five projects ranging in age between 1½ and 2¼ years. The RAP content in these mixes was mostly 25 percent with a range of 10 to 40 percent.(2) Both virgin and the recycled sections were reported to be performing satisfactorily after 1½ to 2¼ years of service with no significant rutting, raveling and weathering, and fatigue cracking. The recycled sections had an average rut depth of 2 mm (0.08 in), with no raveling or alligator cracking, and very few transverse and longitudinal cracks.(2) Statistical analysis revealed no significant difference in the properties of in-service HMA mix and recovered asphalt cement, and performance of recycled and conventional HMA test sections in these five projects.(2) Figures 2-1 and 2-2 show comparisons of air voids and resilient modulus of pavement cores, creep moduli of recompacted mixes, and properties of recovered asphalt binder from conventional (control) and recycled HMA sections. It was concluded rutting properties were similar based on creep moduli, and the extent of asphalt aging was equal for control and recycled mix based on the properties (both conventional as well as Superpave) of the recovered asphalt binder.

Figure 2-1. Comparison of air voids, resilient modulus, and creep modulus of in-place cores from control and recycled mixes.

Figure 2-1. Comparison of air voids, resilient modulus, and creep modulus of in-place cores from control and recycled mixes.

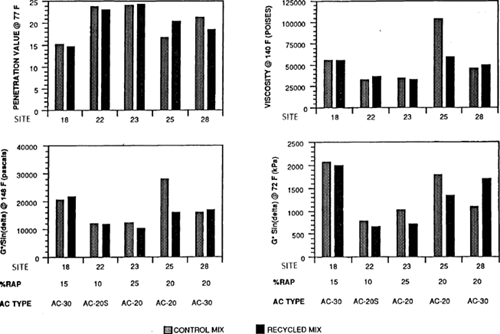

Figure 2-2. Comparison of binder properties of in-place cores from control and recycled mixes.

Figure 2-2. Comparison of binder properties of in-place cores from control and recycled mixes.

Kansas

In a project undertaken to evaluate performance of hot recycled mix, a 30-mm (1.2-in) HMA conventional surface course was constructed over a 125-mm (5-in) recycled HMA binder course, after cold milling 90 mm (3.5 in) of the existing pavement. A control section of 100 mm (4 in) conventional HMA overlay was also constructed. The Kansas DOT performed crack surveys each spring and fall after construction. Transverse crack and total crack evaluations were carried out for seven years after construction. Both with respect to transverse cracks and total cracks, the recycled HMA section had much better performance than the control section.(3)

Louisiana

A study(4) carried out to evaluate ten recycled pavements (about six to nine year old) constructed in the late seventies reported that both recycled binder and wearing courses performed similar to conventional pavements. The pavements, containing 20-50 percent RAP material, were compared to conventional HMA pavements in terms of pavement condition, serviceability, structural analysis, and mixture and binder properties. In general, no significant difference was observed between the pavement condition and serviceability ratings (from Mays Ridemeter and distress survey) of the recycled and conventional HMA pavements. Structural parameters (from deflection, subgrade modulus, surface curvature, and structural number) were found to be similar for the recycled and conventional HMA pavements. Penetration, viscosity, and ductility tests conducted on recovered binders showed no significant difference between the recycled and conventional HMA pavements.

Massachusetts

A rehabilitation project on a randomly cracked 8.6 km (5.3 mile) stretch of I-290 comprised of removing 50 mm (2 in) of existing pavement for the easterly two thirds of the project and replacing it with 120-mm (4¾-in) recycled HMA binder course and a 20-mm (¾-in) open-graded friction course (OGFC). The top 75 mm (3 in) in the western part of the pavement was removed and was replaced with a 95-mm (3¾-in) recycled HMA binder and a 20-mm (¾-in) OGFC. The recycled HMA had 35 percent RAP and was produced in a batch plant. During production, the original mix design of 60 percent AC-5 and 40 percent AC-20 was modified to 80 percent AC-5 and 20 percent AC-20 to conform to the asphalt cement ductility and penetration specifications.(5) Evaluations after 11 years of construction showed no signs of cracking or rutting in the pavement sections. The Massachusetts Department of Public Works concluded that it is quite possible to use RAP to produce HMA which conforms to specifications.(1)

Minnesota

The first recycled HMA project was constructed in 1976 on a 4-lane urban highway, in which the original pavement was recycled and replaced with a 175-mm (6.9-in) recycled HMA base, a 40 mm (1.6-in) recycled HMA binder and a 20-mm (¾-in) surface wearing course. The recycled HMA contained 50 percent RAP material. The recycled HMA base on the eastbound roadway was placed in three lifts, and the recycled HMA base in the westbound roadway was placed in one lift. A control section of full-depth conventional HMA section was also placed.(6) Benkelman beam deflections taken after one year of service showed similar measurements in the test sections with recycled and conventional HMA.(7) This indicates that the structural strengths of recycled and conventional HMA are comparable. The pavement with recycled HMA base placed on one lift had a higher average deflection than the pavement with the recycled HMA base placed in three lifts. Visual examination of testing of cores taken in 1991 showed that the recycled mix had a service life comparable to the life of conventional HMA.(7)

Washington

In a 1977 rehabilitation project, 45 mm (1¾ in) of an existing pavement was removed and replaced with recycled HMA. A 20-mm (¾-in) open-graded friction course was placed over the recycled HMA. A test section using the recycled HMA as the surface course was also constructed.(8) The mix consisted of about 72 percent RAP material, 0.75 percent recycling agent and no new asphalt cement. The recycling agent application rate was selected to provide a recycled binder comparable to an AR-4000W asphalt cement. Asphalt cement was extracted from field cores obtained after each of eight years after construction. It was reported that the binder in the recycled HMA did not age very much over time, and that the average properties of the recycled binder would have met specification requirements for absolute viscosity and penetration for an AR-4000W graded asphalt cement up to the fifth year. The Washington DOT also sampled the recycled HMA over time and tested those samples for mix strength in terms of resilient modulus. It was concluded that resilient modulus values for recycled HMA were comparable initially and over time to those of conventional HMA.(9) The recycled pavement had a 16 year actual service life as compared to 10 years of service life for the original HMA.

The second recycled HMA pavement constructed in 1978 consisted of milling 45 mm (1.8 in) of the existing pavement and replacing it with a recycled HMA. It was overlaid by an 18-mm (0.7-in) open graded friction course.(9) The RAP content was approximately 70 percent. The recycled HMA contained 25 to 30 percent of recycling agent, designed to meet the AR-4000W grade asphalt cement specification. A test section on the eastbound roadway was placed using only the recycled HMA as the wearing course. Performance evaluations were made for a period of six years. Data from recovered asphalt cement showed that the asphalt cement would have met specification requirements for AR-4000W grade initially and over time. Resilient modulus data indicated that the recycled HMA did not age significantly over the evaluation period.(9) The improved HMA after recycling provided actual 15 years of service as compared to 6 years for the original HMA.(1)

Wyoming

The first two recycled HMA projects were constructed on two sections of I-80 in the late seventies. In the first project the existing mix on the pavement was removed and replaced with recycled HMA containing 85 percent of RAP.(10) The mix contained 0.5 percent new asphalt binder and 1.0 percent lime. The pavement performed for 12 years before rehabilitation. The second recycled mix used on I-80 had 70 percent RAP material(11) and 1.0 percent new asphalt binder. The project was performing satisfactorily as reported in June, 1992.(1)

Performance Of Hot In-Place Recycling (HIR)

Performance of HIR pavements is generally satisfactory based on the reports by most of the states where it has been used. It should be noted, however, that the HIR technology and associated equipment have significantly improved during the last several years resulting in further improvement in pavement performance. Both good and poor performing pavements have been constructed in some states. The projects rated poor in performance have generally been considered as bad candidates for HIR. The performance of some HIR pavements in Canada and in New York is discussed below followed by the general performance based on a nationwide survey.

Canada

A recent reference(12) described the results of a study carried out in 1996 to evaluate the performance of ten HIR test sections constructed in Alberta since 1990. All of these sections were constructed using the two stage hot in-place recycling (HIR) processes in which the top 50 mm (2 in) was removed by heating and milling in two stages - the top 25 mm (1 in) in the first step and the bottom 25 mm (1 in) in the next step. The recycled mix was laid down as a single course with one pass of a recycling train. The field work for performance evaluation consisted of obtaining randomly located in-place cores and visual condition survey. The material properties determined in the laboratory included density, asphalt content, gradation of aggregate, penetration and absolute viscosity of recovered asphalt cement, binder film thickness and asphalt absorption. In general, the observations for all of the sections were as follows:

  1. The intensity of full lane width transverse cracks in all but one section was slight. Severe cracking was observed in one section only, and the authors observed that the cracks were related to the full depth HMA pavement and were not related to the HIR process. The slight transverse cracks were considered as reflected cracks and not related to the HIR process.
  2. Crack deterioration or spalling along cracks were not evident at any of the sites.
  3. The average 1996 rut depths were reported to be between 3 mm (0.1 in) and 7 mm (0.3 in). Pavements with greater traffic loadings were found to have higher rut depth. The authors indicate the causes of relatively greater amounts of rutting in one section to be high asphalt content and increased thickness.
  4. No significant in-place aging of binder was observed for the test sections in the six-year performance period. In most of the cases, the recovered binder penetration values were found to have remained unchanged (or increased) over the six-year performance period.
  5. The air voids were found to have stabilized after four years of service.

Figures 2-3 and 2-4 show before and after recycling photographs of a pavement in Canada.

Figure 2-3. Pavement before recycling.

Figure 2-3. Pavement before recycling.

Figure 2-4. Pavement after HIR.

Figure 2-4. Pavement after HIR.

New York

Eight hot in-place recycled projects were completed in New York from 1987 to 1992. All of these projects were reported to be performing satisfactorily in 1992.(13) Of the eight projects, six were on Interstates with average daily traffic volumes of 9,000 to 62,000 vehicles.

A nationwide survey(14) has indicated excellent to good performance of hot in-place recycled pavements in 22 states as listed in table 2-1. Most states which reported fair to poor performance could identify an assignable cause such as poor project selection. Some specific HIR projects which have been reported to give satisfactory pavement performance are listed in table 2-2.(14)

Table 2-1. Results of U.S. survey on hot in-place recycling (HIPR).(modified from 14)
S
t
a
t
e
Methods Used Milling Depth Range, mm (in.) Class of Highways for HIPR Surface Seal
or Overlay
Commonly Placed Over HIPR Pavement
Performance of HIPR Pavements
Heater Scarification Repave Remix Major Secondary Low Volume Excellent Good Fair Poor
AL xx50 (2)x x x (remix)
AKx   x    x
AZx  25 (1)xx x   x
AK  x25-32 (1-1¼) x   x x
CAx x(19-38) ¾-1½xxx  x x
COxx 38-50 (1½-2)xxx  x
CT x 38-50 (1½-2)x
DE
FLxxx38 (1½)xx x x
GA  x
HI
IDx x50 (2)x
IL x 25-38 (1-1½)  xx xxx
IN
IAx  <25 (< 1)  xx   x
KSx  25 (1)xxxx x
KY
LAxxx19-38 (¾-1½)xx x (for heater scar) x x
ME
MA
MD  x38-50 (1½-2)xx   x
MI x   x   x
MN x  x  x x x
MS xx38 (1½)x  x x
MO
MT x 25-44 (1-1¾)xxxx (interstate)  x
NE
NV x 32 (1¼)   x x
NH x  x  x x
NJ
NM
NY  x25-38 (1-1½)x    x
NC
ND
OHx x38 (1½)x (remix)x (heater scar.) x (with heat scar) x (heater scar)
OK x 25 (1)x  x
OR
PA  x xx    x
RI
SC  x25 (1)x   x
SD
TN xx xx x x
TXxxx25-38 (1-1½)xx   x
UT x 25 (1)xx x x
VT  x x  x   x
VAx  38 (1½)  xx  x
WAx    x   x
WY
Table 2-2. Summary of selected case histories of hot in-place recycled pavement.(modified from 14)
Agency / Date Recycled Description of Job Condition of Old Pavement HIPR Process Used Milling Depth / Overlay Depth Rejuvenating Agent Performance / Remarks
Mix Temperature
Repaving Process
FAA Carrabelle, FL 1990 Thompson Field Airport. 30 m x 212m (98.4 ft x 695.6 ft) runway Unknown Repaver 25 mm/25 mm
(1 in/1 in)
Unknown Officials pleased that job met specs and appeared cost effective and had short down time.
Unknown
Florida DOT 1979 US41, Ft. Myers, FL 3.9 km (2.4 mi), 6-lane ADT-39,000 Rutting, cracking, low friction; pavement structure was OK. Cutler Repaver 25 mm/19 mm
(1 in/0.75 in)
EA-SS-1
0.27 1/m2(0.06 gal/yd)
PSI** increased from 3.43 to 3.89. After 14 years pavement has 12 mm ruts, hairline cracking, and fair ride quality. Overall performance good.
79.4°C to 121°C
(175° F to 250°F)
Louisiana DOT 1980 Metairie RD from US 61-IH-10 5.8 Km (3.6 mi) curb and gutter section Cracking, rutting Cutler Repaver 25 mm/20 mm
(1 in/0.8 in)
CSS-1, 0.45 1/m2 (0.09 gal/yd2) Eliminated cracks, and restored cross slope, and minor improvement of longitudinal undulations. Began raveling in 6 mo. Generally, satisfactory after 5 years.
Unknown
Louisiana DOT 1986 11.4 km (7.1 mi) of US 71 Overlay on PCCP*** had reflection cracks with severe spalling which gave poor ride quality. Cutler Repaver 25 mm/38 mm
(1 in/1½ in)
ARA-1, 0.63 1/m2
(0.13 gal/yd2)
Difficult to achieve density. Low mat temp. Recycled section performing about equivalent to control section.
Mat 65°C to 129°C (150 - 265°F) with 102°C (215°F) avg. behind paver
City of Phoenix 1990 City collector street. 8000 m2 (10,000 yd2) Severe alligator cracking with longitudinal cracking distortions, bleeding and raveling Cutler Repaver 19 mm/25 mm
(0.75 in/1 in)
Yes, Type and quantity Unknown Early performance good. Low pollution favorable to city officials.
Unknown
Lee County, Iowa 1990 Rural roads. X-38 and X-48 Oxidized surface, cracking, 13 mm (0.5 in) ruts Cutler Repaver 19 mm/25 mm
(0.75 in/1 in)
Elf ETR-1 at 0.36 1/m2
(0.08 gal/yd2)
Early performance good. Officials pleased with relatively little traffic disruption.

FAA Texarkana, TX 1986 Airport. 2011 m (6598 ft2) and 25 yr old Aged, brittle mix. Low friction. Cutler Repaver 25 mm/25 mm
(1 in/1 in)
Type unknown. 0.54 1/m2
(0.11 gal/yd2)
After 6 yrs a few surface cracks have appeared in isolated places. Otherwise, performance is excellent.
110°C (230°F)
Connecticut DOT 1981 Rt. 15 at Westport, CT. 4.7 km (2.9 mi), 4-lane divided Rutting. Otherwise fairly good condition Cutler Repaver 25 mm/25 mm
(1 in/1 in)
AE-300R 0.36 1/m2 (0.07 gal/yd2) Some reflection cracking. HIPR same as control. Recycling cost about 16% more than conventional.
121°C ± 22°C (250°F ± 30°F) by spec.
Transport Canada 1988 Prince George Airport, British Columbia Extensive longitudinal, transverse, and random cracking w/ raveling. Annual crack sealing no longer cost effective. Taisei Rotec Remixer 50 mm/50 mm -(2 in/2 in).
No new aggregate added to RAP.
Cyclogen-L at 0.36 1/m2 (0.08 gal/yd2) Varied based on observing flushing during heating Extraction tests verified excellent control of rejuvenator application rate. Asphaltenes decreased by 24%; polar compounds increased 143%, which indicates improved durability.
110°C-150°C (230°F 302°F) was specified. Maintained at low end.
Defence Construction Canada 1989 Airfield pavements at Canadian Forces Base, Edmonton, Alberta, 330,000 m2 (412,500 yd2) Severe raveling and thermal cracking. Badly weathered, oxidized appearance Artec Remixer
Only a small area was remixed
40 mm/50 mm (1.6 in/2 in) overlaid later;
or 40 mm/19 mm (1.6 in/0.75 in) repave
RJO #3 at 0.4 1/m2 (0.08 gal/yd2) Equipment was capable of heater-scarification, repaving, and remixing. Early performance of pavement has been good. Author states that pavement flushing is a concern, and that more inspection and testing will be required for all HIPR.
120°C (248°F) behind paver was targeted value
Texas DOT 1991 IH-10 and SH-87 near Beaumont Severe rutting, age-hardened mix. Raising elevation by overlaying was impractical Wirtgen Remixer 25 mm to 31mm
(1 in/1.2 in)
ARA-1 No drop off during construction enhances safety. Early performance satisfactory.
About 116°C (240°F)
Tennessee DOT 1990 Northern-most 9.7 km (6 miles) of IH-75 in Tennessee Severe rutting and other forms of distress Wirtgen Remixer 75 mm + 24 kg/m2 of new mix AES-300RP (polymer) at 0.63 1/m2 (0.13 gal/yd2) Officials pleased with density, stability, asphalt content, and gradation. Overall early performance very good.
107°C (225°F)
Alabama DOT 1989 6.4 km (4 mile) stretch of US 78 near Fruithurst Cracking and rutting. Unsightly. Wirtgen Remixer 38 mm + 14 Kg/m2 (1.5 in + 24.6 lb/yd2 ) of new mix Unknown Minimal traffic disruption was important. Early performance OK.
Near 148°C (300°F)
Mississippi SHD 1990 55 lane-km (34 lane-mi) of IH-59 in Lauderdale County Highly polished with some rutting. Wirtgen Remixer 38 mm + 15 kg/m2 (1.5 in + 26.4 lb/yd2 ) of new mix Yes, unknown Early performance OK. DOT pleased with project.
110°C (230°F)
Texas DOT 1990 IH-35 in La Salle County near Cotulla Surface was severely age-hardened with cracking and rutting. Wirtgen Remixer 50 mm + 8 kg/m2 (1.5 in + 26.4 lb/yd2) of new mix None used. Asphalt was in new mix. Officials believe process is promising. Early performance is OK.
Unknown
Canadian Dept. Of National Defense* 1989 Lancaster Park Airfield near Edmonton 4250m (13944 ft) Unknown Artec Repaver and Remixer 38 mm + 19-50 mm (1.5 in + 0.75-2 in) overlay; 38 mm + 41 kg/m2 (1.5 in + 72.2 lb/yd2) new mix Shell RJO-3 at 0.19 1/m2 (0.04 gal/yd2) Specs on density, temperature, penetration, scar, depth and smoothness of surface were met. An acceptable economic alternative.
Unknown
British Columbia Ministry of Highways* 1989 Trans-Canada Highway (Rt 1) near Vancouver, 126 lane-km (78 lane-mi) Rutting, surface cracking and other age-related distress Artec and Taisei Remixers 38 mm to 63 mm (1.5 in + 52.8 lb/yd2) (no new material added) Unknown All specs were met. Ministry was satisfied with final results. Appears to be an acceptable economic alternative. Reduced traffic disruption.
105°C (221°F) minimum
Texas DOT 1989 IH-20 from Louisiana, border to FM450, 51 km (32 mi), ADT-18,000 20% trucks Poor ride quality and some raveling. An other portion was overasphalted. Wirtgen Remixer 38 mm + 30 kg/m2 (1.5 in + 52.8 lb/yd2) new mix ARA-1 at 0 to 0.71 1/m2 (0 to 0.15 gal/yd2) Officials pleases with early performance. Pleased with safety aspects of process. Good ride quality.
110°C (230°F)
Texas DOT 1987 US 259 in Lone Star. Major arterial carrying heavy trucks Oxidized, Block cracking. 25 mm (1inch) ruts at intersections Cutler Remixer 38 mm + 17 kg/m2 (1.5 in + 29.9 lb/yd2) new mix AC-5 used with new mix Early performance OK. Pleased with economics.
93°C (200°F) behind screed
Oregon DOT 1987 82nd Ave from N.E. Wasco to S.E. Division a 5-lane major arterial Rutting, Cracking, very poor drainage Taisei Remixer Up to 50 mm (2 in) + various mew mix Non-emulsified product Officials very happy with project outcome. Ride quality and early performance good.
Unknown
South Carolina DOT 1983 SC 291 from US 29 to N. St. in Greenville, 1.2 km (0.74 mi), 6lane, ADT-37,300 Unknown Wirtgen Remixer 41 kg/m2 (72.2 lb/yd2) surface mixed with 18 kg/m2 (31.7 lb/yd2) virgin mat Exxon AC-2.5 used in virgin mix Stability, density and workability compare well with virgin mix. Durability of mix is a concern.
Mat behind screed 110°C (230°F)
Louisiana DOT 1990 US 90 from LA 99 to Jennings Poor ride quality due to cracks reflected form underlying PCCP*** Wirtgen Remixer 38 mm + 30 kg/m2 (1.5 in + 52.8 lb/yd2) new mix ARA-1 at 0.9 1/m2. (0.19 gal/yd2) AES-300RP used in a short section Initial economic benefit realized. Early performance OK.
107°C - 148°C (225°F - 300°F)

Performance Of Cold Mix And Cold In-Place Asphalt Recycling

A comprehensive nationwide information on performance of cold mix asphalt recycling is not available. Some reports which contain performance evaluation of cold recycled asphalt pavements, are available in the literature. However, these reports do not use a common method of defining performance. The general performance data reported by states that have constructed a number of projects indicate that performance has been mostly good or very good, particularly with respect to cracking.(15)

California

In an evaluation study of thirteen cold recycled asphalt pavements constructed between 1979 and 1983, about 70 percent of the projects were found to have good performance.(16) The poor performance of the rest of the projects was attributed to incomplete mix design and nonuniform distribution of the binder.

Indiana

Roughness, deflection, and visual evaluation made after one year of construction (1986) indicated better performance for a cold in-place recycled mix section compared to a conventional resurfaced pavement.(17) Transverse reflection cracks and longitudinal cracks were found in the conventional HMA pavement but not in the cold recycled mix section.

Maine

A three-year performance evaluation indicated that reflective cracking and frost problems had been minimized by the use of full depth reclamation procedure.(18)

Nevada

Examination of cores and visual condition surveys done after seven years of service revealed areas of bleeding and minor cracking in one cold recycled project.(15) A large portion of the project was found to have no distress. The authors mention that the bleeding was probably caused by improper seal coat quality control or design. Examination of another three year old project showed no distress other than joint raveling.(15)

New Mexico

A total of 120 cold in-place asphalt recycling projects have been constructed in New Mexico since 1984. A recent performance evaluation of 45 projects located throughout New Mexico(19) shows that all of the pavements are providing acceptable performance levels. The projects evaluated were from 4 to 12 years old jobs. The traffic levels ranged from about 3,000 to 10,000 AADT and average daily load in terms of 80 KN ESALS ranged from about 8 to 4,000. Both condition rating by visual inspection and evaluation of cores were made for the projects. Pavement condition surveys have indicated that these pavements will far exceed their assumed service life of 10 years. More than 90 percent of the projects were found to be in excellent condition, and the rest were in fair to good condition. Comparison of density of cores obtained at the time of construction and at the time of evaluation indicated no significant change in air voids.

New York

A total of four cold in-place asphalt recycling projects were constructed in New York from 1990 to 1992. The four rural road projects total 57 lane miles, with an average traffic volume range of 500 to 4300 vehicles per day. All the projects were reported to be performing extremely well in 1992.(13) Figures 2-5 through 2-8 show before and after recycling photographs of two pavements in rural New York.

Figure 2-5. Pavement before recycling.

Figure 2-5. Pavement before recycling.

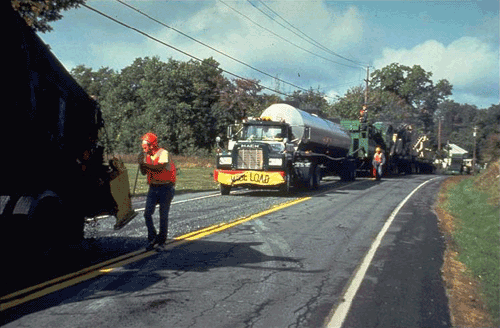

Figure 2-6. Pavement after CIR.

Figure 2-6. Pavement after CIR.

Figure 2-7. Pavement before recycling.

Figure 2-7. Pavement before recycling.

Figure 2-8. Pavement after CIR.

Figure 2-8. Pavement after CIR.

Oregon

Results from evaluation of 52 cold in-place recycled pavements indicated that 47 of the projects had good or very good performance, and only five had poor performance.(20,21,22,23) The traffic volume in these pavements varied from low to high. Three different types of treatments have been used in the Oregon projects: 1) Recycling performed on a uniform pavement built to specifications, 2) Recycling performed on pavement with significant maintenance patches over a uniform pavement, 3) Recycling performed on low-volume highways where considerable variation in pavement structure exists.

The performance data obtained from these projects have been used by Oregon DOT to revise its mixture design and construction operations as well as selection of binder for cold in-place recycling operation. By 1990, more than 450 miles of recycled mix have been placed in Oregon.(15) The following causes were responsible for the poor performance of the five pavements:

  1. Too high a recycle agent content in the early years. Contents more than 2 percent with 7 to 10 percent diluent were shown to create excessive softening.
  2. Placing a tight seal or dense wearing course too soon, resulting in trapping of water and diluent, followed by stripping and rutting.
  3. Depth of recycle stopped at a delaminated layer of old pavement, resulting in loss of bond.
  4. Failure to provide some type of seal before freeze/thaw conditions.

A comparison of ride quality data obtained from pavement prior to recycling, and recycled pavement showed that major improvement can be achieved with cold in-place recycling. This ride quality comparison is shown in figure 2-9.

Figure 2-9. Pre- and post-construction ride data from 1986 Oregon project.(21)

Figure 2-9. Pre- and post-construction ride data from 1986 Oregon project.(21)

Pennsylvania

Details of construction and performance data for some cold in-place recycled pavements have been presented in literature.(24) The first recycling job was on a pavement with a poor base showing considerable amount of patches and alligator cracking. The existing road was milled to a depth of 75 mm (3 in), and the resulting RAP was transferred to a mobile mixer-paver (Motopaver) by a truck. The RAP was mixed with 2 percent MS-2 emulsion (approximately 0.02 liter per kg (5 gallon per ton) of the RAP by weight) in the pugmill and laid through a screed. The recycled mix was laid to give a compacted base course of 125 mm (5 in) thickness. This base course was overlaid with a 40-mm (1.5-in) thick HMA surface course after remaining open to the traffic for a couple of weeks. The road, which carried a lot of truck traffic, was reported to be performing well.(24,25) Photographs of the pavement before and after recycling are shown in figures 2-10 and 2-11. Another cold in-place recycling project was completed on a narrow, badly cracked, heavily patched road in 1983. The existing roadway (figure 2-12) was milled and recycled to a depth of 75 mm (3 in). A CSS -1h emulsion was used in this project. The recycled pavement was provided with a single seal coat only, and was reported to be in very good condition after the 1983-84 winter (figure 2-13). However, inspection in 1986 revealed a loss of seal coat and developing potholes(25) (figure 2-14). The section in which 100 percent RAP was used was found to have more potholes than the section in which a 50/50 blend of RAP and virgin aggregate was used. The authors have also reported five other cold in-place recycling projects in northeast Pennsylvania. About two-three percent CMS-2 emulsion by weight of the RAP was used. The compacted recycled base course appeared quite dense and was covered with a single seal coat. The authors mention that since a cold recycled mix is not adequately water and abrasion resistant, a single coat may not be adequate to protect it. Potholes developed on these projects after the loss of the first seal coat. The authors have recommended the use of at least a double seal coat in cold recycled jobs. After two years of service, three projects were patched and a double surface treatment was applied. The condition of the pavements were reported to be good in 1986.(25)

Figure 2-10. Pavement before recycling.

Figure 2-10. Pavement before recycling.

Figure 2-11. Pavement after CIR.

Figure 2-11. Pavement after CIR.

Figure 2-12. Pavement before recycling.

Figure 2-12. Pavement before recycling.

Figure 2-13. Pavement in good condition after CIR.

Figure 2-13. Pavement in good condition after CIR.

Figure 2-14. Pavement in poor condition after CIR.

Figure 2-14. Pavement in poor condition after CIR.

Performance Of Full Depth Reclamation

Since in most of the cases full depth reclaimed bases are covered with HMA courses, it is very difficult to obtain long term performance data for these layers. However, the experience of several state and local agencies regarding full depth reclamation have been favorable. Depending on the type of additive used in full depth reclamation, strong and durable bases have been obtained and in many cases occurrence of pot holes and related deterioration have been avoided. With the help of falling weight deflector meter tests, full depth reclamation has been shown to increase the material strength (resilient modules), and capability to distribute loads.(26,27) Figures 15 and 16 show two photographs of before and after recycling pavements in New Hampshire.

Figure 2-15. View before recycling.

Figure 2-15. View before recycling.

Figure 2-16. View after FDR.

Figure 2-16. View after FDR.

Summary

The experience of the different states indicates that in most cases the performance of the recycled asphalt pavements has been superior to or comparable to conventional asphalt pavements. However, it was also observed that recycled pavements performed well only when good project selection criteria were followed, and they were designed properly and constructed under good quality control and acceptance conditions. Hence, the conclusion from this literature review is that, as in the case of conventional asphalt pavements, recycled asphalt mixtures must be designed to meet proper specifications, produced with good quality control, and placed properly with no defects or irregularities.

References

  1. Pavement Recycling Executive Summary and Report, Report FHWA-SA-95-060, FHWA, U.S. Department of Transportation, 1995.
  2. P.S. Kandhal, S.S. Rao, and B. Young. Performance of Recycled Mixtures in State of Georgia, Report FHWA-GA-94-9209, FHWA, U.S. Department of Transportation, 1994.
  3. R.G. Maag and G.A. Fager. Hot and Cold Recycling of K-96 Scott County, Kansas, Report FHWA-KS-90/1, FHWA, U.S. Department of Transportation, 1990.
  4. H.R. Paul. Evaluation of Recycled Projects for Performance, In Proceedings, Association of Asphalt Paving Technologists, Vol. 65, 1996.
  5. Hot Mix Recycling In Massachusetts, Project IR 290-5 (054) 101 Shewsbury-Boylston-Northboro, Project Report. Undated.
  6. R.C. Ingberg. Specifications Related to Project Selection, Proceedings of the National Seminar on Asphalt Pavement Recycling. In Transportation Research Record 780, TRB, National Research Council, Washington, DC, 1980.
  7. R.C. Ingberg, R.M. Morchinek, and R.H. Carsellius. Minnesota Heat Transfer Method of Recycling Bituminous Pavement, In Transportation Research Record 695, TRB, National Research Council, Washington, DC, 1978.
  8. R.V. LeClerc, R.L. Shermerhorn, and J.P Walter. Washington State Department of Transportation First Asphalt Concrete Recycling Project - Renslow to Ryegrass, FHWA DP-39-3, FHWA, U.S. Department of Transportation, Washington, DC, 1978.
  9. A.J. Peters, R.H. Gietz, and J.P. Walter. Hot-Mix Recycling Evaluation in Washington State, Report WA-RD-98.1, Washington State Department of Transportation, 1986.
  10. F.M. Harvey. Initial Report on Experimental Project Recycling of Asphaltic Concrete Pavements, Report FHWA-DP-39-9, FHWA, U.S. Department of Transportation, Washington, DC, 1979.
  11. F.M. Harvey. Hot Recycling of Bituminous Concrete Pavements, FHWA-TS-80-234, FHWA, U.S. Department of Transportation, Washington, DC, 1980.
  12. AGRA Earth & Environmental Limited. Development of Guidelines for the Design of Hot-In-Place Recycled Asphalt Concrete Mixtures, EA-13746, Edmonton, Alberta, 1996.
  13. T.E. Wohlscheid. In-Place Pavement Recycling in New York State, Paper prepared for the 19th Annual Meeting of the Asphalt Emulsion Manufacturers Association and the 16th Annual Meeting of the Asphalt Recycling & Reclaiming Association, 1992.
  14. J.W. Button, D.N. Little, and C.K. Estakhri. Hot In-Place Recycling of Asphalt Concrete, In Synthesis of Highway Practice 193, TRB, National Research Council, Washington, DC, 1994.
  15. J.A. Epps. Cold-Recycled Bituminous Concrete Using Bituminous Materials, NCHRP Synthesis of Highway Practice 160, TRB, 1990.
  16. R. Forsyth. Caltrans AC Pavement Recycling Program, Memo to District Materials Engineers. California Department of Transportation, Sacramento, CA, 1985.
  17. R.S. McDaniel. Cold In-Place Recycling of Indiana State Road 38, In Transportation Research Record 1196, TRB, National Research Council, Washington, DC, 1988.
  18. D.W. Rand. Cold Recycling of Pavement Using the Hammermill Process, Report No. FHWA-ME-TP-78-14, Federal Highway Administration, FHWA, U.S. Department of Transportation, Washington, DC, 1978.
  19. R.G. McKeen, D.I. Hanson, and J.H. Stokes. New Mexico's Experience with Cold In-Situ Recycling, Paper prepared for presentation at the 1997 Annual Meeting of the Transportation Research Board, Washington, DC, 1997.
  20. D.D. Allen, R. Nelson, D. Thirston, J. Wilson, and G. Boyle. Cold Recycling - Oregon 1985, Draft of technical report for Oregon State Highway Division, 1986.
  21. D.D. Allen. Cold In-Place Recycling - Design Guidelines and Solutions, Paper presented at 1988 Regional Recycling Seminar, Portland, OR, 1988.
  22. T. Scholz, R.G. Hicks, and D. Allen. Mix Design Practices for Cold-In-Place Recycled Pavements, Paper prepared for presentation at ASTM, 1988.
  23. R.G. Hicks, D. Allen, T. Oguara, R. Davis, and D. Foster. Development of Improved Mix Design and Construction Procedures for Cold In-Place Recycled Pavements-1984-1986 Construction Projects. Vol. I, Oregon State Department of Transportation, April, 1987.
  24. P.S. Kandhal. Asphalt Cold Recycling Technology In Pennsylvania, In Proceedings, Association of Asphalt Paving Technologists, Vol. 53, 1984.
  25. P.S. Kandhal and W. Koehler. Cold Recycling of Asphalt Pavements on Low-Volume Roads, Fourth International Conference on Low Volume Roads, In Transportation Research Record 1106, TRB, National Research Council, Washington, DC, 1987.
  26. J.B. Pickett. A Report on the Long Term Performance of Route 108, West Peru, Maine, on Soil Cement Base, Asphalt Stabilized Base, and Crushed Gravel with Calcium Chloride Base, Paper presented to the U.S. Corps of Engineers Geotechnical Engineering Branch, 1987.
  27. B. Massa. "CaCl Base Stabilization Prolongs Life, Study Shows," Roads and Bridges, October, 1990.
<< PreviousContentsNext >>
Updated: 10/21/2022
Federal Highway Administration | 1200 New Jersey Avenue, SE | Washington, DC 20590 | 202-366-4000
