Techbrief
This techbrief is an archived publication and may contain dated technical, contact, and link information
Publication Number: FHWA-HRT-08-058
Date: February 2009

High-Performance Materials for Substructures, Foundations, and Earth Retaining Systems Workshop

PDF Version (665 KB)

PDF files can be viewed with the Acrobat® Reader®



FHWA Contact: Mike Adams, Bridge Design and Construction HRDI-06, (202) 493-3025

This document is a technical summary of a workshop held at the Turner-Fairbank Highway Research Center on the extended use of high-performance materials on highway structures.



Introduction

High-performance materials (HPM) are being applied to many areas of highway construction and maintenance. These materials range from engineered concrete and composite materials to specialty steels and recycled materials. Currently, most applications of these materials are in pavements and bridge superstructures. With the constant pressure on our stakeholders to manage the existing highway infrastructure with tighter budgets, higher costs, and continuing
environmental concerns, the extended use of HPMs to other elements of the highway system, specifically substructures, foundations, and retaining structures, warrants investigation.
To facilitate discussion on the above, a workshop was held at the Turner-Fairbank Highway Research Center (TFHRC) on August 28-29, 2006. This tech brief is a summary of the
workshop proceedings.

Summary

On August 28 and 29, 2006, a workshop was held at TFHRC on the application of HPMs to the design and construction of substructures, foundations, and retaining systems. The purpose of the workshop was to identify pertinent HPMs, discuss the pros and cons of applicability, and develop a plan to address the research and implementation issues. The attendees included representatives from the construction industry, academia, professional organizations, the Transportation Research Board (TRB), and the Federal Highway Administration (FHWA), as listed below.

  • Dan Brown, Auburn University.
  • Chris Dumas, Consultant.
  • George Goble, Bridge Diagnostic, Inc.
  • Sanjeev Kumar, Southern Illinois University Carbondale.
  • Florence Sanchez, Vanderbilt University.
  • Anton Schindler, Auburn University.
  • Lou Triandafilou, FHWA.
  • John Turner, University of Wyoming.
  • Tom Witherspoon, S&W Foundation.
  • Bill Wright, FHWA.

Definition and Desirable Characteristics

During the workshop, HPMs were defined as materials reliably exhibiting performance characteristics that cannot always be obtained by standard practices. Desirable enhanced-performance characteristics include the following:

  • Constructability.
    • Resistance to high construction stresses, hydration temperatures, and other construction/fabrication processes without detriment.
    • High strength to weight ratio (allows easier, faster, and cheaper handling).
    • Rapid construction needs (by being installed, fabricated, or deployed rapidly without detriment).
    • Increased tensile strength (minimizes handling and driving problems for concrete piles).
    • Long duration flow characteristics for concrete (8+ hours).
    • Rapid placement of concrete for large diameter drilled shafts through multitremie pumping.
  • Sustainability. Will not deteriorate with time.
    • Strength.
    • Ductility.
    • Modulus.
    • Fatigue resistance.
  • Durability.
    • Delayed ettringite formation (DEF) (elimination or reduction of DEF may reduce the risk of secondary forms of deterioration such as freeze/thaw attack or reinforcement corrosion).
    • Alkali-silica reactivity.
    • Thermal cracking.
    • Sulfate attack.
    • Corrosion resistance.
    • Frost action resistance.
    • Scaling resistance.
  • Environmentally inert. Will not leach detrimental materials out or let detrimental materials in.
  • High early strength. Has great application to rapid construction goals particularly for driven concrete piles.
  • Volume stability.
    • Creep.
    • Shrinkage.
  • Uniformity of high performance materials. Consistent reproducibility from specs of above properties. Full confidence in uniformity of properties will speed up construction process by reducing QA testing and reduce costs through reduced need to compensate in design for statistical variability of properties.
  • Damage tolerance. Maintains noncatastrophic failure modes.
  • Smart properties. Includes self-sensing of condition and automatic notification, as needed, and self healing.

The materials considered under this definition ranged from high performance steel to nanofiber-modified concrete and included the following:

  • High-performance concrete derived through modification of conventional concrete mixes and or fabrication processes to produce the following:
    • High-strength concrete (greater than 10,000 psi).
    • Self-compacting/self-consolidating concrete.
    • Concrete utilizing bottom ash, slag, and other boiler waste materials instead of natural aggregates.
  • Micro/nanofiber reinforced concrete and derivatives.
  • High-performance fiber reinforced cementitious concrete (HPFRCC).
    • Engineered cementitious composites (ECC).
    • Slurry infiltrated fiber concrete (SIFCON).
    • Slurry infiltrated mat concrete (SIMCON). Possibly can use self-stressing properties to prestress anchors and nails.
    • Reactive powder concrete (RPC).
    • Ductile fiber reinforced cementitious concrete (DFRCC).
  • High-strengthsteel (greater than 70,000 psi).
  • Fiber reinforced polymer (FRP) and carbon fiber reinforced polymer (CFRP).
  • Welded grid reinforcement.
  • Steel.
  • CFRP.
  • Other.

Discussion

Presentations were made on current research and deployment of various materials that currently exhibit or have the potential to attain the above properties. A discussion of potential applications, specific research needs, impediments to research, and implementation and related issues followed the presentations. Potential applications discussed included the following:

  • Concrete piles. Reduce or eliminate reinforcement, reduce amount of material, increase ductility and durability, and reduce maintenance.
  • Drilled shafts. Provide all of the above, as well as reduce mass concrete effects and improve constructability.
  • Voided/hollow drilled shafts. Eliminate material and eliminate mass effects.
  • Shallow foundations/caps. Use CFRP reinforcement, has high strength steel and yield thinner foundations with smaller footprint.
  • Hybrid drilled shaft/micropile. Use high-strength steel tendons instead of rock socketing.
  • High-performance steel piles.
  • High-performance composite piles.
  • Earth retaining systems. Use high-performance soil nails, tendons, anchors, etc.

The pros and cons and value proposition of the potential applications were discussed, and as a result, the following research projects were suggested.

High-Performance Concrete Piles

Problem

Driving piles is a brutal process often controlling design. Concrete piles (see figure 1) are particularly vulnerable, especially with respect to breaking during handling and/or installation due to excess tension/bending stresses. Moreover, the extent and significance of microcracking is largely unknown as it does not show up with routine dynamic monitoring, and while not significant from a load bearing standpoint, it can be very significant with respect to durability and eventually could affect structural integrity. Research to date on micro/nanofiber and HPFRCC indicates that these materials may mitigate these problems through increased tensile strength, ductility, and self-healing properties. Additionally, the corrosion of reinforcing elements is a major design and maintenance expense and can cause early obsolescence of bridges in coastal States and regions with significant corrosive soils. Research on these materials also indicates that they are very effective in mitigating this problem. However, in addition to the constructability, sustainability, and durability outlined above, other concerns include the following:

  • Establishment of repeatable mix designs based on performance specifications.
  • Short- and long-term load transfer behavior. (Any deleterious long-term effects on structural capacity?)
  • Behavior of enhanced piles under lateral impact loads, i.e., ship impact, debris, ice flows, flooding, hurricanes, etc.
  • Identification and mitigation of potential production problems.

Objective

The objective of this study is to produce high tensile strength and ductile concrete piles with minimum or no reinforcement that exhibit superior durability for severe environments.

Scope

A review of current and recent pertinent research including but not limited to high-
strength concrete, micro/nanofiber methodologies, all variations of ECC, and HPFRCC will be completed to identify promising materials. New and/or modified design and fabrication

technologies that are necessary to produce the desired end product will be investigated, the technical and economic feasibility and implementation impediments will be identified, and solutions will be tendered. Materials and technologies selected for further study will be investigated through analytical, laboratory, and field studies to optimize the fabrication, engineering performance, and cost. Full-scale field testing will include instrumentation to evaluate driveability, load transfer behavior, in situ durability, and other environmental issues.

Anticipated Products

The anticipated products will include design, construction, and quality control guidelines
that will permit a significant reduction or elimination of steel reinforcing and/or a reduction in concrete, thereby yielding significant savings in construction costs.

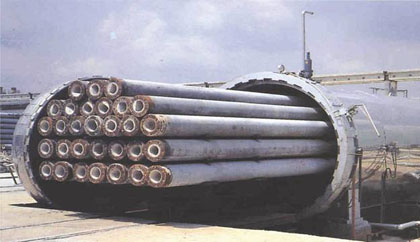

Photo. This photo shows a group of long concrete cylinder piles (hollow core) that are housed within a large tube canister.

Figure 1. High-performance concrete piles.

Performance-Based Characteristics for Self-Compacting Concrete Drilled Shafts

Problem

While self-compacting concrete (SCC) (see figure 2) has long been used under different names, a lack of a performance classification system has hampered communication between designers, contractors, and concrete suppliers, often resulting in designs not compatible with construction methods. This study will greatly improve communications among all parties involved by developing systematic standards and tests to quantify critical design parameters.

Objectives

The objectives for this study include the following:

  • To use current mechanical properties performance grades.
  • To develop fresh properties performance specifications for batching grades and placement.
  • To develop performance specs for mass concrete to lower heat of hydration of large diameter shafts.

Scope

To overcome construction problems during the preliminary lab testing phase and with
fresh property and existing construction projects, survey users develop and evaluate
test methods to quantify the following:

  • Workability and workability retention.
  • Passing ability.
  • Segregation resistance.
  • Bleeding.

Anticipated Products

The anticipated products for this study will include the following:

  • Recommendations for performance grade concrete.
  • A site-specific implementation guideline.
  • Reliable and repeatable lab and field test methods such as the following:
    • Bleeding test.
    • Passing ability test.
    • Segregation test.

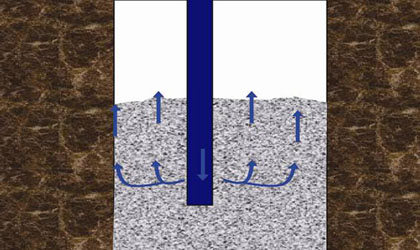

Illustration. This graphic shows how concrete self compacts (concrete level rising within shaft indicated by upward-pointing arrows) within a shaft.

Figure 2. Performance-based characteristics for self-compacting concrete drilled shafts.

High-Performance Steel for a Drilled Shaft/Micropile/High-Strength Tendons Hybrid

Problem

Drilled shafts often are socketed into rock to provide adequate bearing and lateral load capacity. Typically, the hole is advanced to the rock layer, and then 3.05 m (10 ft) or more of strong rock is excavated to achieve a full moment structural connection between the shaft and the rock. Thus, a situation is created where highly competent rock (sometimes 20,000 psi or greater) is replaced with less competent material (4,000 psi concrete) at a great expenditure of cost and time. Through the use of high-performance steel and concrete, a hybrid shaft consisting of high-strength tendons or micropiles installed at the rock face to the required depth could be utilized, resulting in shafts being built faster at less cost and with reduced risk of delays or claims (see figure 3).

Objectives

The objectives for this study include the following:

  • To produce full structural capacity of a rock socketed drilled shaft with increased constructability, flexural capacity, and ductility.
  • To minimize risk of delays and cost overruns.

Scope

Analytical studies will be completed to theoretically support the concept. Small-scale lab tests will be conducted to verify the analytical predictions, followed by a smaller number of large-scale model tests. Experimental field studies at one or more shallow rock sites will be performed to include dynamic lateral and axial load testing.

Anticipated Products

The products of this study will include design and construction guidelines for a drilled shaft hybrid for rock socket applications.

Illustration. This graphic shows the durability and strength of the steel used for a drilled shaft, micropile, and/or high-strength tendons hybrid.

Figure 3. Hybrid shaft consisting of high-strength tendons or micropiles installed at the rock face.

Feasibility Study to Identify Nonmetallic High-Strength Reinforcements for Substructures, Foundations, and Earth-Retaining Systems

Problem

The protection of steel reinforcement in soil anchors, nails, micropiles, and other foundation types (see figure 4) is a major concern from both a cost and durability standpoint. Nonmetallic reinforcements could provide an economical solution.

Objective

The objective of this study is to identify and select anchored geosupport systems that incorporate nonmetallic reinforcing materials with performance characteristics equal to or greater than steel.

Scope

This study will evaluate various nonmetallic systems for use as high-strength tendons and high-strength bars. Geosupport systems utilizing high-performance composite materials are well developed in other countries such as Japan; therefore, this study will also include a review of Japanese experience on projects involving slope stabilization, temp-rary shoring, bridge anchorage, permanent retaining walls, and others. Research will also explore other fields that use geosupport systems, such as aerospace, defense, medical, marine, etc.

Anticipated Products

The anticipated products for this study will be a feasibility report documenting promising systems and recommendations for further study.

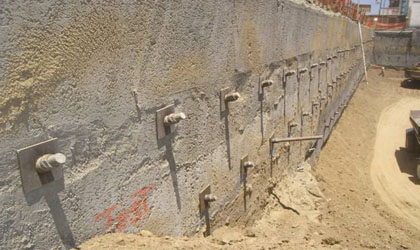

Photo. This photo shows an excavation utilizing nonmetallic tiebacks on the sidewalls.

Figure 4. Soil anchors, nails, and other foundation types that require protection of steel reinforcement.

Cost-Effective Modified Concrete for Aggressive Geotechnical Environments

Problem

The coastal areas of the United States are a particularly hard environment for substructures and foundations, resulting in hundreds of millions of dollars spent each year on maintenance and new construction to correct the corrosion and deterioration from environmental conditions. Thus, finding an inexpensive solution to this problem will save millions of dollars in affected States. Composite cement-based materials including but not limited to micro/nanofiber reinforced cement-based materials (see figure 5) provide an effective alternative for amelioration, protection, and deterioration prevention of civil infrastructure because of their demonstrated resistance to corrosion and control of crack propagation. They have the potential to lower the total life-cycle cost of the application.

Objective

The objective of this study is to develop cost-effective modified cementitious materials that will yield performance-specific properties for substructures, foundations, and retaining systems with superior durability in severe geotechnical environments.

Scope

A review of current research will be performed to identify materials that are pertinent to the study's objective. Selected materials will be subjected to laboratory studies to simulate environmental conditions and evaluate the long-term material durability performance. Field studies will be conducted in aggressive environments and compared with the laboratory studies.

Anticipated Products

The anticipated products of this study will include new cost-effective composite cement-based materials with documented enhanced durability characteristics.

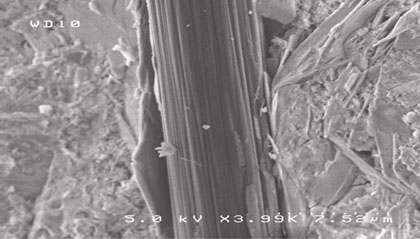

Photo. This photo shows concrete at a microscopic level.

Figure 5. Cost-effective modified concrete for aggressive geotechnical environments.

High-Performance Steel as Permanent Casing for Drilled Shaft Foundations

Problem

A common procedure used by many State transportation departments is to specify permanent steel casing for portions of drilled shafts that are potentially subject to exposure by scour. However, the additional structural resistance provided by the steel casing is often neglected in design. Nevertheless, there are many performance-based reasons for applying steel casing on drilled shafts and bridges, including better concrete confinement, improved ductility, higher structural capacity, as well as possibly more rapid construction by allowing for integral construction of foundations and columns (see figure 6). An additional advantage may be cage reinforcement reduction, preventing overly congested shafts, which have been a constructability problem in seismic designs. Several issues need to be addressed to provide design engineers with a suitable approach. These include (a) applicable analytical models that account for axial, flexural, and shear resistance of reinforced concrete shafts completely or partially enclosed in steel casing; (b) experimental verification of composite action; (c) cost issues associated with the use of high-strength steel as permanent casing; and (d) constructability of drilled shafts with permanent casing.

Objectives

The objectives for this study include the following:

  • To perform research that supports a rational approach for incorporating permanent
    steel casing into design and construction of drilled shafts for highway bridge structures.
  • To propose design procedures for incorporation into the American Association of State Highway and Transportation Officials Load and Resistance Factor Design (AASHTO LRFD) Bridge Design Specifications.

Scope

Existing analytical models will be reviewed and assessed for applicability to drilled shafts with permanent casing. For example, CalTrans, the California Department of Transportation, currently uses a type of deep foundation referred to as cast-in-steel-shell (CISS) pile. The pile is constructed by driving a steel pipe using conventional pile driving methods. The inside of the pipe is excavated and filled with reinforced concrete. Also, steel-encased reinforced concrete columns are common in seismic areas for their higher ductility and concrete confinement characteristics. A field load testing program will be carried out on instrumented drilled shafts to verify analytical models and to evaluate the effects of concrete-to-steel bonding on shear and flexural response (composite action). The practical and engineering aspects of utilizing high-performance steel as permanent casing, including costs, corrosion issues, and integral construction of drilled shafts and superstructure columns, will be evaluated.

Anticipated Product

The product of this study will include a standardized method for inclusion in AASHTO LRFD Bridge Design Specifications that allows design engineers to account for permanent steel casing and its effect on foundation capacity, load-displacement response, and superstructure response.

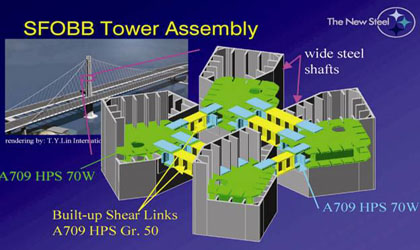

Illustration. This graphic shows a blow-out of the casing for a bridge. The casing divides into four quadrants that contain A709 HPS 70W, which are connected to built-up shear links, A709 HPS Gr. 50, by A709 HPS. These components are housed within wide steel shafts.

Figure 6. High-performance steel as permanent casing for drilled shaft foundations.

Carbon Fiber Reinforced Polymer Shells/Tubes

Problem

Recent research on the use of FRP composite piles and recycled plastic for highway substructures revealed that recycled plastic piles are not suitable for heavily loaded highway substructures. While FRP concrete filled shells (see figure 7) were found more than adequate for lightly loaded structures, some questions remain as to their use for more heavily loaded structures without adequate steel reinforcement. Thus, CFRP shells, which are stronger than steel, may be viable if an economical design (considering installed and long-term costs) can be developed.

Objective

The objective of this study is to evaluate the use of CFRP shells for producing highly
loaded composite piles.

Scope

Analytical studies for structural and driving performance will be completed. Based on the analytical studies, shell manufacturers will be solicited to provide shells designed to specification. Prototype piles will be fabricated from shells filled with concrete prior to driving and from shells driven first then filled with concrete. It is anticipated that the driving and testing evaluation will be completed on U.S. Department of Transportation (DOT) projects.

Anticipated Products

The products for this study will include the following:

  • Synthesis report/performance feasibility report.
  • Design and construction guidelines.

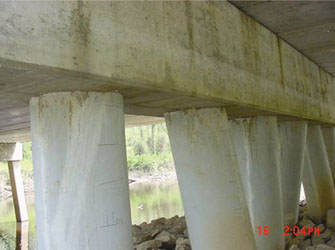

Photo. This photo shows approximately five FRP concrete filled shells that are foundations for a bridge. The bridge is near water, which is seen in the background of the picture.

Figure 7. Fiber reinforced polymer concrete filled shells used for lightly loaded structures.

Utilization of Recycled Materials/Coal Combustion (Fly and Bottom Ash) and Industrial Byproducts in Development of High-Performance Concrete

Problem

There is an under utilization of industrial byproducts to develop high-performance concrete.

Objective

The objective of this study is to maximize the use of bottom ash and other byproducts when developing high-performance concrete designs (see figure 8) to minimize costs.

Scope

There will be a review of current and recently completed research relating to cases in which bottom ash and other byproducts were used in infrastructure products to identify gaps in knowledge pertinent to the study's objective. A laboratory and field testing program will be designed to evaluate various mix designs with emphasis on cost effectiveness. Consideration will be given to regional variations and availability of materials, impediments to
writing standard specs for using waste materials, etc.

Anticipated Products

Anticipated products for this study will include the following:

  • Synthesis report/performance feasibility report.
  • Design and construction guidelines.

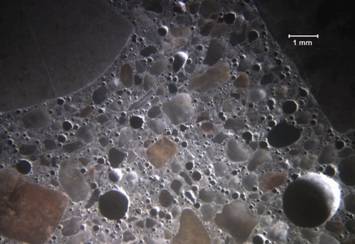

Photo. This photo shows the internal composition of concrete, which includes recycled elements.

Figure 8. Recycled materials and industrial byproducts in high-performance concrete designs.

High-Strength Steel Piles and Tire Bales

High-strength steel piles (greater than 70 ksi) were also discussed. The consensus of the workgroup was that there are no impediments to use other than designer awareness and possible limitations of available installation systems.

Other topics not discussed in the workshop but that were suggested by stakeholders and FHWA Resource Center personnel included the use of tire bales. Tire bales are a new and very promising technology for the use of scrap tires as fill materials in civil engineering applications (see figure 9). Around 100 whole tires are mechanically compressed and then tied to form large "bales" that could be easily transported and stacked to form a fill material. Major properties of tire bales are light weight (40 pcf), permeability, and low cost. This application was thoroughly investigated in a recent Colorado Department of Transportation (CDOT) research study and was found to offer a viable cost-effective alternative to conventional soil fill material and lightweight fills (including tire derived aggregate (TDA) and geofoam). Detailed recommendations for development of design and construction specifications for the use of tire bales in embankments were furnished in CDOT Research Report 2005-2, entitled "Tire Bales in Highway Applications: Feasibility and Properties Evaluation."

Illustration. This graphic shows how tire bales can be used in highway structures. The tire bales are immediately below the soil cover and pavement structure and conceal the granular base and drainage blanket, all of which are above the soft foundation soil.

Figure 9. Application of tire bales.






Additional Information

For more information about this research, contact Mike Adams, HRDI-06 at (202) 493-3025, mike.adams@fhwa.dot.gov.

Distribution—This TechBrief is being distributed according to a standard distribution. Direct distribution is being made to the Divisions and Resource Center.

Availability—This TechBrief may be obtained from the FHWA Product Distribution Center by e-mail to report.center@fhwa.dot.gov, fax to (301) 577-1421, phone to (301) 577-0818, or online at http://www.fhwa.dot.gov/research/topics/safety/intersections/index.cfm.

Key Words—High-Performance Materials, Substructures, Foundations, and Earth Retaining Systems.

Notice—This document is disseminated under the sponsorship of the U.S. Department of Transportation in the interest of information exchange. The U.S. Government assumes no liability for the use of the information contained in this document. The U.S. Government does not endorse products or manufacturers. Trademarks or manufacturers' names appear in this report only because they are considered essential to the objective of the document.

Quality Assurance Statement—The Federal Highway Administration (FHWA) provides high-quality information to serve the Government, industry, and public in a manner that promotes public understanding. Standards and policies are used to ensure and maximize the quality, objectivity, utility, and integrity of its information. FHWA periodically reviews quality issues and adjusts its programs and processes to ensure continuous quality improvement.
