Effects of Inlet Geometry on Hydraulic Performance of Box Culverts

APPENDIX B. INLET CONTROL COMPARISON CHARTS

This appendix includes all of the comparison charts used to evaluate the performance curves for various inlets tested under inlet control conditions. Charts from this appendix were selectively pulled into the text of the main body of this report to explain the analysis of data, but some of the charts included in this appendix showed such subtle differences that the authors chose not to overcomplicate the body of the report. Figures 94 through 100 are comparison graphs from experiments on the effects of fillets and bevels. Figures 101 through 122 are comparison graphs from experiments on the effects of multiple barrels. Figures 123 through 129 are comparison graphs from experiments on the effects of the span-to-rise ratio. Figures 130 and 131 are comparison graphs from experiments on the effects of skewed headwalls.

The following charts, figures 94 through 100, show the effects of fillets and bevel.

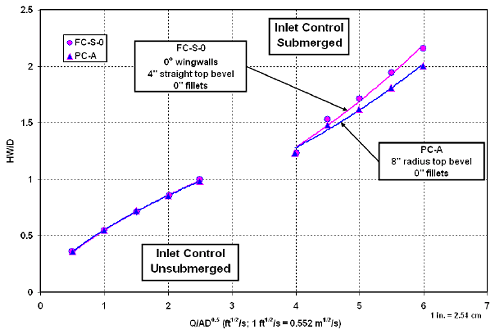

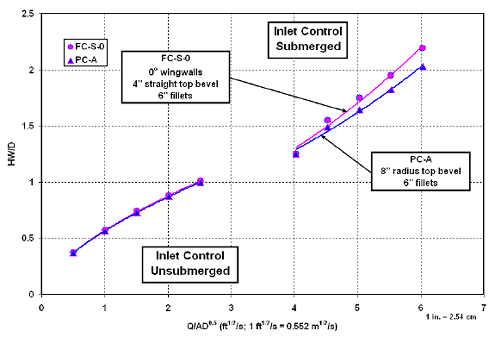

Figure 94. Graph. Inlet control, FC-S-0 and PC-A, no corner fillets.

View Alternate Text

Figure 95. Graph. Inlet control, FC-S-0 and PC-A, 15.24-cm (6-inch) corner fillets.

View Alternate Text

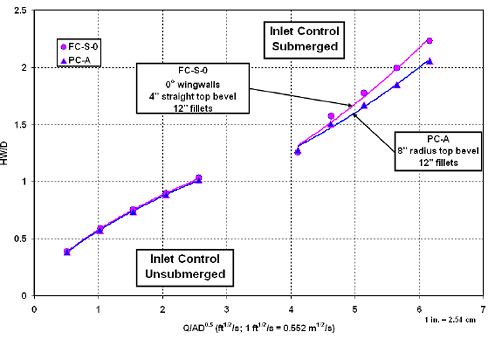

Figure 96. Graph. Inlet control, FC-S-0 and PC-A, 30.48-cm (12-inch) corner fillets.

View Alternate Text

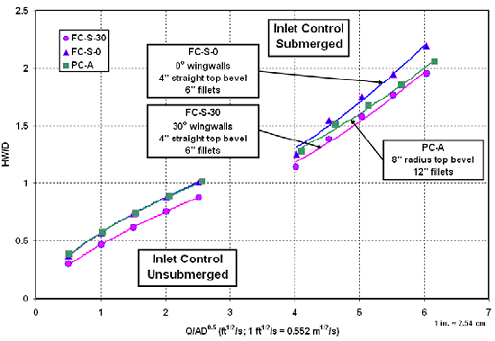

Figure 97. Graph. Inlet control, FC-S-30, FC-S-0, and PC-A.

View Alternate Text

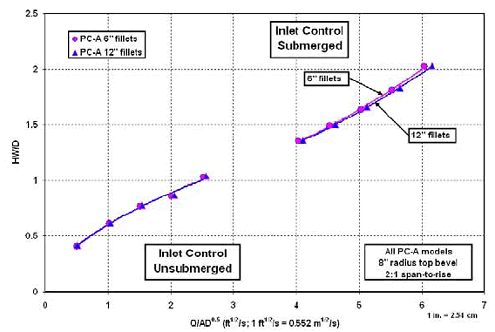

Figure 98. Graph. Inlet control, PC-A, 15.24- and 30.48-cm (6- and 12-inch) corner fillets.

View Alternate Text

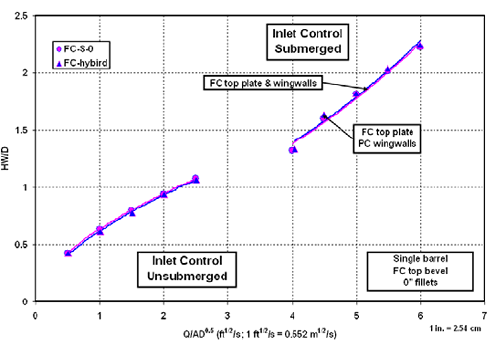

Figure 99. Graph. Inlet control, field cast hybrid inlet with 10.16-cm- (4-inch-)radius bevel on wingwalls.

View Alternate Text

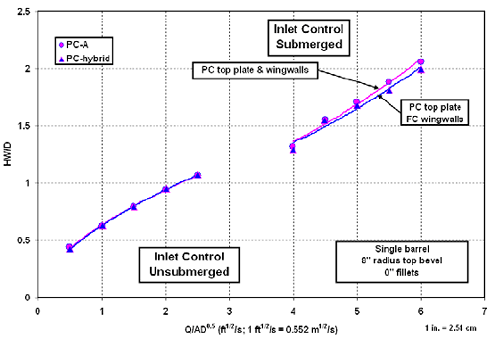

Figure 100. Graph. Inlet control, precast hybrid inlet with no bevel on wingwalls.

View Alternate Text

The following charts, figures 101 through 122 show the effects of multiple barrels.

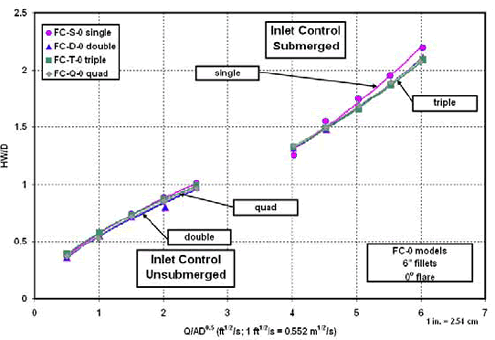

Figure 101. Graph. Inlet control, FC-S-0, FC-D-0, FC-T-0, and FC-Q-0.

View Alternate Text

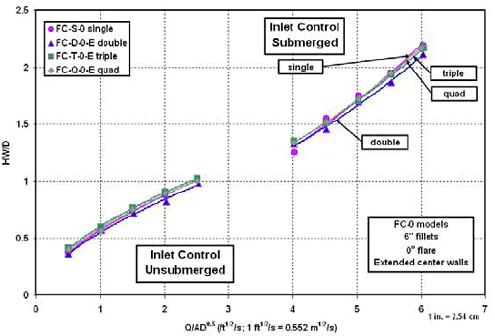

Figure 102. Graph. Inlet control, FC-S-0, FC-D-0-E, FC-T-0-E, and FC-Q-0-E.

View Alternate Text

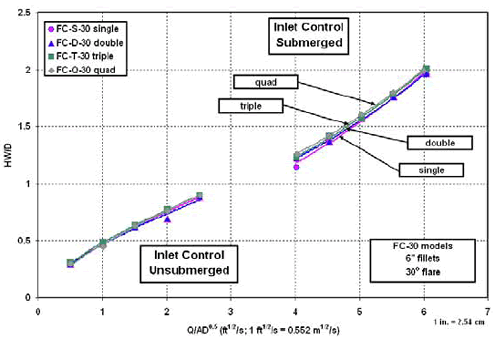

Figure 103. Graph. Inlet control, FC-S-30, FC-D-30, FC-T-30, and FC-Q-30.

View Alternate Text

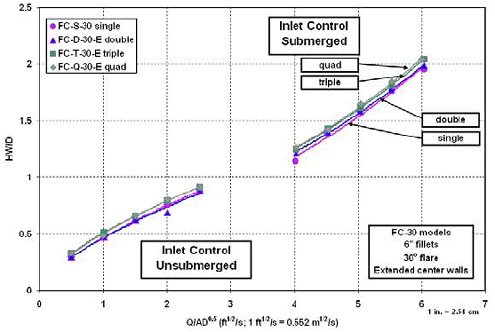

Figure 104. Graph. Inlet control, FC-S-30, FC-D-30-E, FC-T-30-E, and FC-Q-30-E.

View Alternate Text

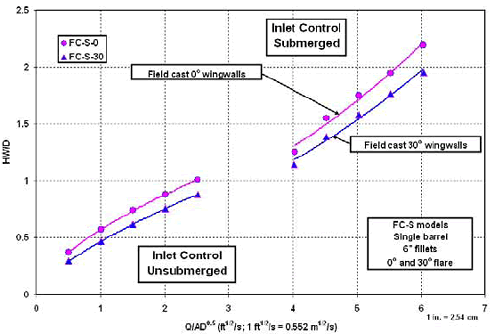

Figure 105. Graph. Inlet control, FC-S-0 and FC-S-30.

View Alternate Text

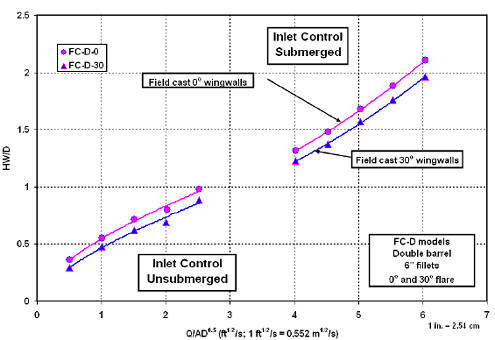

Figure 106. Graph. Inlet control, FC-D-0 and FC-D-30.

View Alternate Text

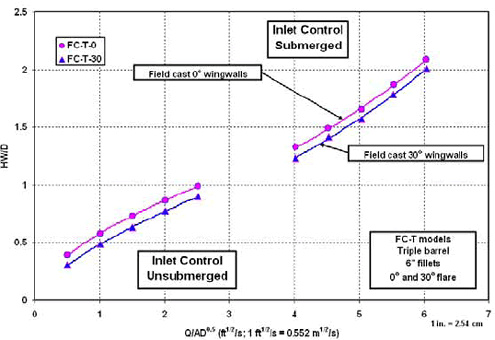

Figure 107. Graph. Inlet control, FC-T-0 and FC-T-30.

View Alternate Text

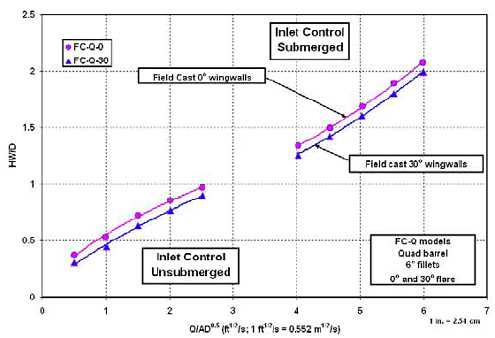

Figure 108. Graph. Inlet control, FC-Q-0 and FC-Q-30.

View Alternate Text

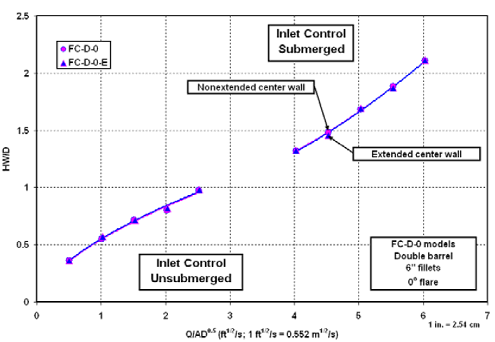

Figure 109. Graph. Inlet control, FC-D-0 and FC-D-0-E.

View Alternate Text

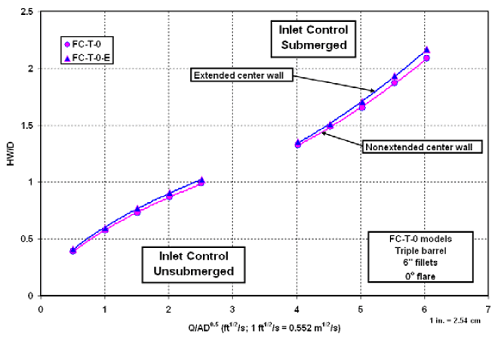

Figure 110. Graph. Inlet control, FC-T-0 and FC-T-0-E.

View Alternate Text

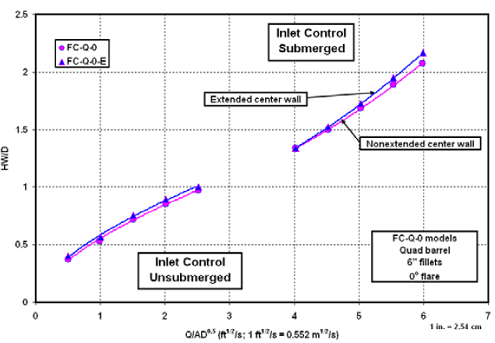

Figure 111. Graph. Inlet control, FC-Q-0 and FC-Q-0-E.

View Alternate Text

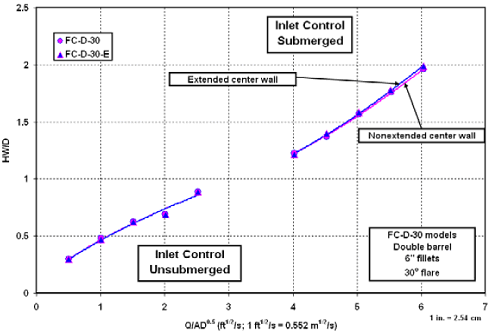

Figure 112. Graph. Inlet control, FC-D-30 and FC-D-30-E.

View Alternate Text

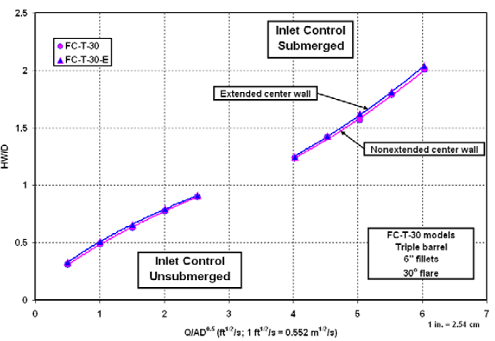

Figure 113. Graph. Inlet control, FC-T-30 and FC-T-30-E.

View Alternate Text

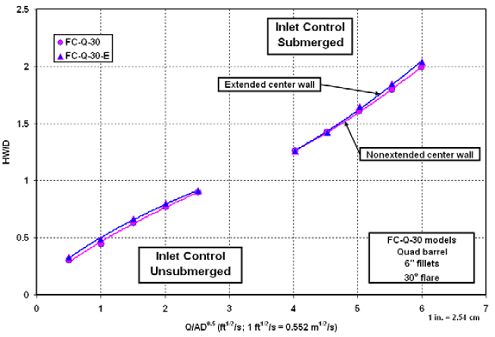

Figure 114. Graph. Inlet control, FC-Q-30 and FC-Q-30-E.

View Alternate Text

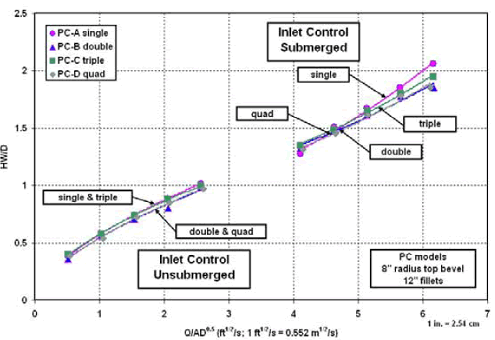

Figure 115. Graph. Inlet control, PC-A, PC-B, PC-C, and PC-D.

View Alternate Text

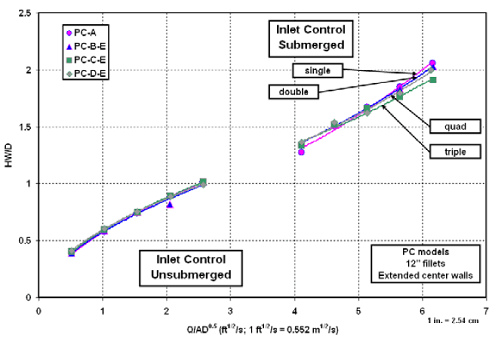

Figure 116. Graph. Inlet control, PC-A, PC-B-E, PC-C-E, and PC-D-E.

View Alternate Text

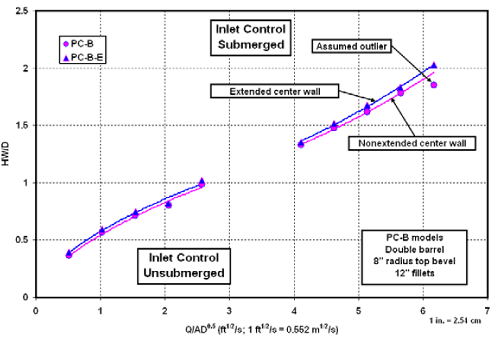

Figure 117. Graph. Inlet control, PC-B and PC-B-E.

View Alternate Text

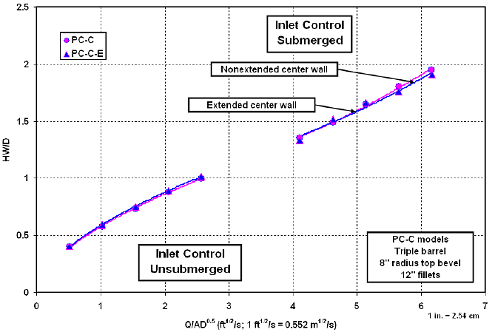

Figure 118. Graph. Inlet control, PC-C and PC-C-E.

View Alternate Text

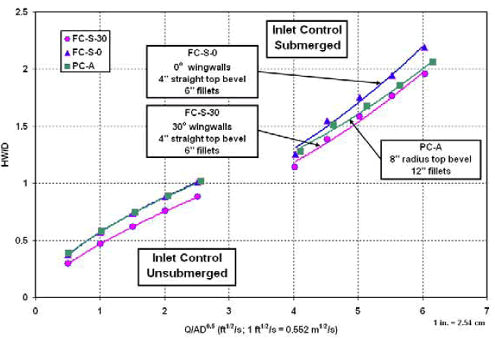

Figure 119. Graph. Inlet control, FC-S-30, FC-S-0, and PC-A.

View Alternate Text

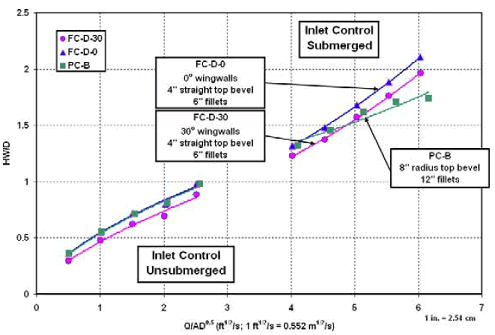

Figure 120. Graph. Inlet control, FC-D-30, FC-D-0, and PC-B.

View Alternate Text

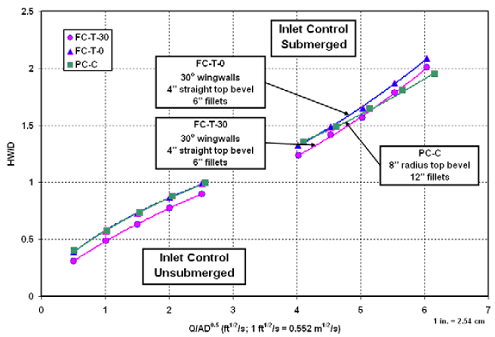

Figure 121. Graph. Inlet control, FC-T-30, FC-T-0, and PC-C.

View Alternate Text

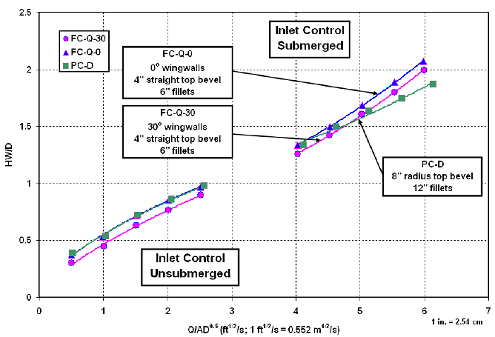

Figure 122. Graph. Inlet control, FC-Q-30, FC-Q-0, and PC-D.

View Alternate Text

The following charts, figures 123 through 129 show the effects of the span-to-rise ratio.

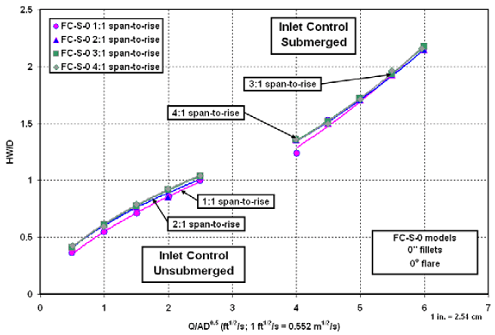

Figure 123. Graph. Inlet control, FC-S-0, various span-to-rise ratios.

View Alternate Text

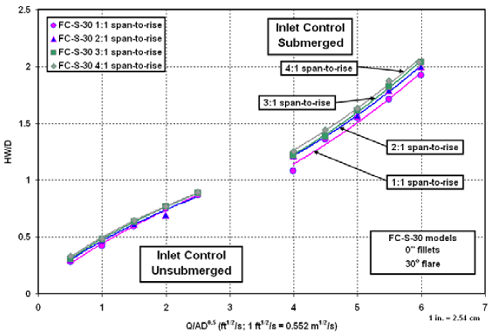

Figure 124. Graph. Inlet control, FC-S-30, various span-to-rise ratios.

View Alternate Text

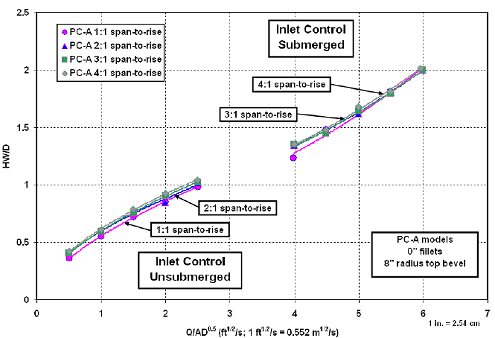

Figure 125. Graph. Inlet control, PC-A, various span-to-rise ratios.

View Alternate Text

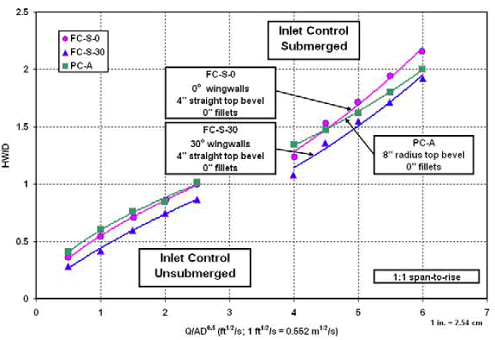

Figure 126. Graph. Inlet control, FC-S-0, FC-S-30, and PC-A, 1:1 span-to-rise ratio.

View Alternate Text

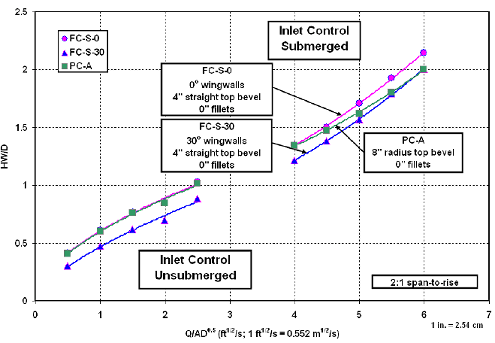

Figure 127. Graph. Inlet control, FC-S-0, FC-S-30, and PC-A, 2:1 span-to-rise ratio.

View Alternate Text

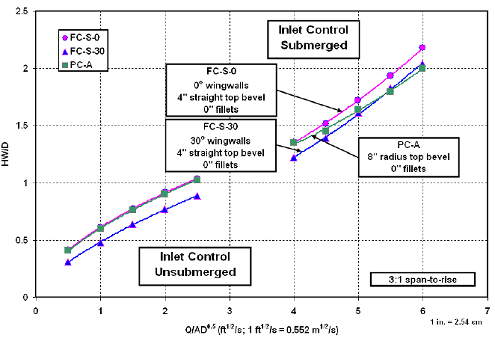

Figure 128. Graph. Inlet control, FC-S-0, FC-S-30, and PC-A, 3:1 span-to-rise ratio.

View Alternate Text

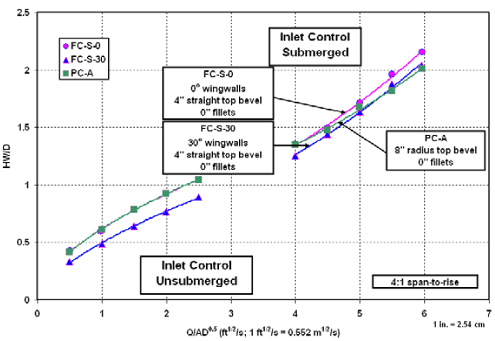

Figure 129. Graph. Inlet control, FC-S-0, FC-S-30, and PC-A, 4:1 span-to-rise ratio.

View Alternate Text

The following charts, figures 130 and 131, show the effects of skewed headwalls.

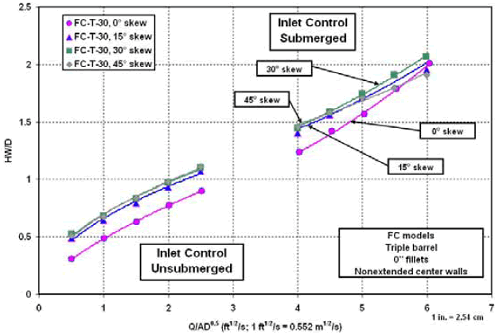

Figure 130. Graph. Inlet control, FC-T-30 at various headwall skews.

View Alternate Text

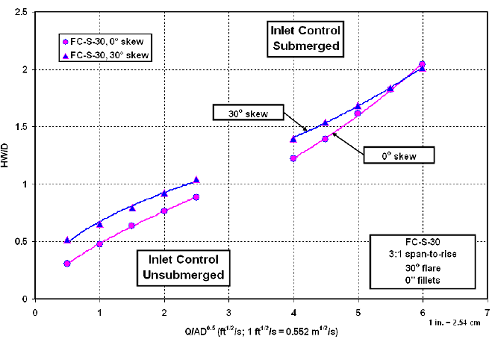

Figure 131. Graph. Inlet control, FC-S-30, 0- and 30-degree skews.

View Alternate Text
