Effects of Inlet Geometry on Hydraulic Performance of Box Culverts



APPENDIX D. EXAMPLE PROBLEM

The 25-year and 100-year floods at a 34.97-square-kilometer (km2) (13.5-square-mile (mi2)) design site in South Dakota have peak flows of 21.6 m3/s (773 ft3/s)(Q25) and 44.9 m3/s (1602 ft3/s) (Q100).

REQUIREMENT: Design and compare the headwater elevations for the Q25 and Q100 peak flows using a twin 2.7- by 2.4-m (9- by 8-ft) cast-in-place (field cast) culvert and a twin 2.7- by 2.4-m (9- by 8-ft) precast box culvert.

The low roadway grade has an elevation of 27.51 m (90.20 ft).

Given:

Elevation of inlet invert: 24.04 m (78.81 ft)
Elevation of outlet invert: 24.03 m (78.79 ft)
Culvert length: 25.62 m (84 ft)
Stream bed slope: 0.02 percent

The downstream cross section ground point coordinates are given in table 20.

Table 20. Example problem, downstream cross section ground point coordinates.
X (ft)Y-Elevation (ft) Comment
64 86.0
130 84.0
152 83.5
197 83.0
245 82.5
277 82.0
293 81.0 Edge of channel
300 78.7
305 81.0
329 82.0
406 82.5 Edge of channel
470 83.0
500 86.0
1 ft = 0.305 m

The tailwater rating information is given in table 21.

Table 21. Example problem, tailwater rating information.
Flow (ft3/s) Tailwater elevation (ft)
68.7 82.77
222.0 83.49
375.4 83.93
528.7 84.30
682.0 84.61
773.0 84.78
988.7 85.15
1142.0 85.38
1295.3 85.61
1448.7 85.82
1602.0 86.00
1 ft = 0.305 m; 1 ft3/s = 0.028 m3/s

STEP 1:Plot the downstream discharge rating curve and flow area curves based on ground point coordinates.

Figure 133. Graph. Discharge, tailwater variation.

View Alternate Text

Figure 134. Graph. Downstream cross section.

View Alternate Text

Figure 135. Graph. Cross section area versus tailwater elevation.

View Alternate Text

Based on a regression of the area versus the tailwater elevation curve in figure 135, the downstream flow area for tailwater elevation is given by the equation in figure 136.

Figure 136. Equation. Downstream flow area for tailwater elevation.

View Alternate Text

Assuming the upstream section is a vertical shift of the downstream section according to the 0.02 percent channel slope, the flow area under the headwater elevation can be computed by the equation in figure 137.

Figure 137. Equation. Flow area under headwater elevation.

View Alternate Text

STEP 2:Compute downstream channel velocity, VTW.

Figure 138. Equation. Downstream channel velocity for Q25.

View Alternate Text

Figure 139. Equation. Downstream channel velocity for Q100.

View Alternate Text

STEP 3:Compute critical depth using the equation in figure 140.

Figure 140. Equation. Critical depth, below top corner fillets.

View Alternate Text
Where:

Bis total culvert width; NB times span of each barrel.
dcis flow depth measured from the invert.
a is the corner fillet height; 0.153 m (0.5 ft) for the FC culvert, and 0.305 m (1 ft) for the PC culvert.
NBis the number of barrels.

The equation in figure 140 applies if the critical depth is below the top corner fillets. If the critical depth does partially submerge the top fillets, the relationship becomes the equation in figure 141.

Figure 141. Equation. Critical depth, partially submerged top corner fillets.

View Alternate Text
Where:
atis the submergence of top corner fillets; dc-(D-a).

Solving this equation would be a trial and error procedure, but it can be solved using the goal seek tool of Microsoft® Excel.

Table 22. Example problem, step 3 solutions.
Culvert
(ft by ft)
a
(inches)
dc for Q25
(ft)
dc for Q100
(ft)
Critical depth
elevation at
outlet for Q25
(ft)
Critical depth
elevation at
outlet for Q100(ft)
FC-D-30
9 by 8
6 3.88 6.29 82.67 85.09
FC-D-0
9 by 8
6 3.88 6.29 82.67 85.09
PC-B
9 by 8
12 3.96 6.37 82.75 85.16
PC-B
9 by 8
0 3.86 6.26 82.65 85.05
1 inch = 2.54 cm; 1 ft = 0.305 m

STEP 4:Determine normal depths in the culvert from Manning's equation (figure 142).

Figure 142. Equation. Normal culvert depth.

View Alternate Text

If the normal depth is below the top corner fillet, the flow area, A, and the hydraulic radius, Rh, can be computed from the equations in figure 143.

Figure 143. Equations. Flow area and hydraulic radius, depth below top corner fillet.

View Alternate Text

If the normal depth partially submerges the top corner fillets, the flow area, A, and the hydraulic radius, Rh, can be computed from the equations in figure 144.

Figure 144. Equations. Flow area and hydraulic radius, top fillets partially submerged.

View Alternate Text
Where:

atis the submergence of top corner fillets; dc-(D-a).

If the normal depth exceeds the rise, D, of the culvert, set at equal to a and compute the normal depth that would occur if the culvert did not have a crown.

The normal depth can be determined by trial and error or by using the goal seek tool from Excel.

Table 23. Example problem, step 4 solutions.
Culvert
(ft by ft)
a
(inches)
dn for Q25
(ft)
dn for Q100
(ft)
FC-D-30
9 by 8
6 10.49 19.61
FC-D-0
9 by 8
6 10.49 19.61
PC-B
9 by 8
12 10.69 19.82
PC-B
9 by 8
0 10.44 19.57
1 inch = 2.54 cm; 1 ft = 0.305 m

STEP 5:Determine initial depth do at barrel exit to start backwater calculation.

The normal depths are greater than critical depths; therefore, the culverts will be outlet control whether or not the barrels flow full at the inlet. The tailwater elevations are greater than the critical depth elevations and are below the crown elevations at the outlet; therefore, the depth at the culvert outlet will be between the critical depth and the culvert crown and can be computed from the equation in figure 145.

Figure 145. Equation. Initial depth.

View Alternate Text

Assume Ko = 1.0 (see HDS-5, p. 35).

The outlet is unsubmerged, and the footnote below table 6 of the research report warns that the unsubmerged Ko values are unreliable. Nevertheless, the unsubmerged value for a twin box culvert happens to be the traditional value that is recommended for the outlet loss. The exit coefficients derived for this study neglect the tailwater velocity head.

Figure 146. Equation. For Ko equals 1.0.

View Alternate Text

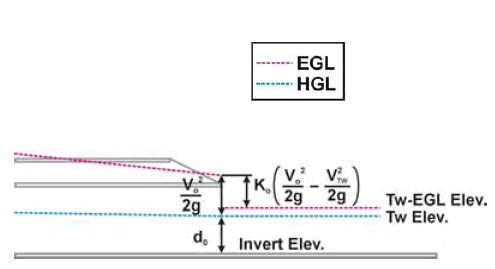

Figure 147. Diagram. Definition sketch for exit loss.

View Alternate Text

Figure 148. Equation. Initial depth, ignoring tailwater velocity head.

View Alternate Text
Table 24. Example problem, step 5 solutions.
Culvert
(ft by ft)
TW HGL
elevation
for Q25
(ft)
do for Q25
(ft)
EGL elevation
at culvert
outlet for Q25
(ft)
TW HGL
elevation
for Q100
(ft)
do for Q100
(ft)
EGL elevation at
culvert outlet
for Q100
(ft)
FC-D-30
9 by 8
84.78 5.99 85.58 86.00 7.21 88.38
PC-B
9 by 8
84.78 5.99 85.61 86.00 7.21 88.46
1 ft = 0.305 m

STEP 6:Use standard step backwater calculations to determine the EGL in the culvert for free surface flow.

This step can be done fairly easily on a spreadsheet by increasing the depth by increments between do at the outlet and the full culvert depth, D. Compute the step length, ΔL, from the equation in figure 153. Figures 149-152 contain equations for preliminary calculations for the equation in figure 153.

Figure 149. Equations. For d less than (D-a).

View Alternate Text

Figure 150. Equations. For d less than D but greater than (D-a).

View Alternate Text

Figure 151. Equations. For d equal to D (the last iteration).

View Alternate Text
Where:

subscript "i"is a line in the step-backward computation.
atis the partially submerged top fillet.
d is the flow depth in the barrel.
Dis the rise of the culvert.

The friction slope, SF, for any step is computed from Manning's equation.

Figure 152. Equation. Friction slope.

View Alternate Text
Where:

Amis (Ai + Ai-1)/2.
Rhmis (Rhi + Rhi-1)/2.
n is the Manning roughness coefficient: 0.008 m-1/3 (0.012 ft-1/3).
Qis discharge.

The results of the equations in figures 149-152 enable the calculation of the step length, ΔL. The step length may also be viewed as calculated from the energy balance.

Figure 153. Equation. Step length.

View Alternate Text
Where:

Vis flow velocity in barrel.
Sbis barrel slope.

After each step length calculation, the ΔL's are summed to give L, which is compared with the length of the culvert (25.62 m (84 ft)) to determine when computations are complete. Since the corner fillets affect the backwater computations, the calculations should be done in two stages.

If the culvert fills to the crown before the computations reach the entrance, the EGL at the entrance, or upstream end, is given by the equation in figure 154.

Figure 154. Equation. EGL at upstream culvert end (the entrance).

View Alternate Text
Where:

VFULLis Q/AFULL.
AFULLis NB((span)D-a2).
RhFULL is AFULL/(NB(span + 2D-2.343a)).
LFULLis the length of a culvert flowing full.

STEP 7:Determine entrance loss.

HGL is greater then critical depth throughout the barrel, indicating outlet control. Use table 11 (in chapter 7) to find entrance loss coefficients. The sketches in figure 155 are from figure 93 in chapter 7.

Figure 155. Sketches. Entrance loss coefficients (Ke) of culverts in example problem.

View Alternate Text
1 inch = 2.54 cm

Figure 156. Equation. Entrance loss.

View Alternate Text
Where:

VUSis velocity at the upstream end of the culvert from the step backwater or the full flow computations.

STEP 8:Compute headwater elevation.

Figure 157. Equation. Headwater energy grade line.

View Alternate Text
Where:

EGL elevationUSis the EGL elevation at the upstream end of the culvert from the backwater calculations

The HWEGL’s are energy grade line elevations and include the velocity head, which is usually negligible in the headwater pool. To get the actual water surface elevations, HWHGL in the headwater pool, use the relationships in figure 158.

Figure 158. Equation. Headwater hydraulic grade line.

View Alternate Text
Where:

Ais computed from the equation in figure 137.

The water surface elevation, HWelevation, in the headwater pool can be determined by trial and error or by using the goal seek tool of Excel.

Tables 25 and 26 summarize the results of the step backwater computations, the headwater EGL computations, and the headwater HGL computations.

Table 25. Example problem, step backwater and entrance loss results for Q25.
CulvertSpan,RiseFillet Size
(inches)
HGL ElevationUS (ft) EGL ElevationUS
(ft)
KeHWEGL(ft)Area in HW Pool
(ft2)
Velocity in HW Pool
(ft/s)
Water Surface Elevation HWelevation
(ft)
FC-D-309, 8 6 84.877 85.662 0.32 85.913 1265 0.65 85.907
FC-D-0 9, 8 6 84.877 85.662 0.52 86.071 1335 0.58 86.065
PC-B9, 8 12 84.879 85.686 0.54 86.121 1358 0.57 86.116
PC-B9, 8 0 84.879 85.656 0.54 86.076 1228 0.63 85.823
1 inch = 2.54 cm; 1 ft = 0.305 m
Table 26. Example problem, step backwater and entrance loss results for Q100.
CulvertSpan,RiseFillet Size
(inches)
HGL ElevationUS (ft) EGL ElevationUS
(ft)
KeHWEGL(ft)Area in HW Pool
(ft2)
Velocity in HW Pool
(ft/s)
Water Surface Elevation HWelevation
(ft)
FC-D-30 9, 8 6 86.458 88.578 0.32 89.256 3028 0.53 89.251
FC-D-0 9, 8 6 86.458 88.578 0.52 89.680 3294 0.48 89.676
PC-B 9, 8 12 86.471 88.657 0.54 89.837 3394 0.47 89.834
PC-B 9, 8 0 86.463 88.563 0.54 89.697 3305 0.48 89.693
1 inch = 2.54 cm; 1 ft = 0.305 m

For the four culvert configurations, results of the step backwater and entrance loss computations for the Q100 discharge only are illustrated in figures 159 through 162.

Figure 159. Diagram. FC-D-30 model, Q100 elevations.

View Alternate Text

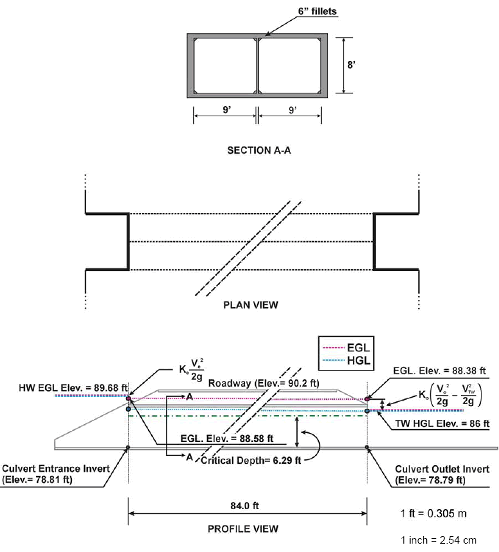

Figure 160. Diagram. FC-D-0 model, Q100 elevations.

View Alternate Text

Figure 161. Diagram. PC-B model, 30.48-cm (12-inch) corner fillets, Q100 elevations.

View Alternate Text

Figure 162. Diagram. PC-B model, no corner fillets, Q100 elevations.

View Alternate Text

SUMMARY

This example is included to illustrate how to apply the entrance loss coefficients from the laboratory results. SDDOT provided site data and culvert options. The example was divided into eight basic steps for spreadsheet computations because no design program accounted for the corner fillets, which were a consideration in the laboratory study.

The first step was to plot the channel cross section and derive expressions for channel area versus water surface elevations. The tailwater channel velocities and EGL elevations were then computed from the downstream rating data that were provided. The critical depth and normal depth in the culvert were computed to determine if inlet control was a possibility. The normal depth computation is a tedious trial and error process, especially when corner fillets are included in the computation, but the goal seek tool from Excel makes the task easier. Because normal depths were greater than critical depths, inlet control was eliminated as a possibility. The brink depth at the culvert outlet was computed from the equations in figure 163.

Figure 163. Equations. Brink depth at culvert outlet.

View Alternate Text
Where:

Kois the outlet loss coefficient, assumed to be 1.0.

Since the brink depth was below the crown of the culvert, a spreadsheet was developed for step backwater computations through the culvert by increasing the depth by increments and computing the corresponding step length. Spreadsheets were analyzed to determine where either the cumulative step lengths equaled the culvert length or the culvert flowed full. None of the culverts flowed full for either Q25 or Q100 before the cumulative step lengths equaled the culvert length of 25.62 m (84 ft); thus free surface flow occurred in each case. From the step backwater computations, the velocity and energy grade line elevation at the upstream end were used to compute the headwater energy grade line elevation from the equation in figure 164.

Figure 164. Equation. Headwater EGL.

View Alternate Text
Where:

EGLUS and VUSare energy grade line elevation and velocity at the upstream end of the culvert from the step backwater computations.
Keis the entrance loss coefficient from the laboratory results: 0.32 for the field cast inlet with 30-degree-flared wingwalls; 0.52 for the field cast inlet with 0-degree-flared wingwalls; and 0.54 for the precast inlet.

Finally, the hydraulic grade line elevation (water surface elevation) was computed by subtracting the velocity head in the headwater pool from the energy grade line elevation. Because of the irregular channel geometry, this was also a trial and error computation and was accomplished with the Excel goal seek tool. There was very little difference between the energy grade line and water surface elevations in the headwater pool.

The net area (with the areas of fillets removed) was used for the step backwater computations and for velocity computations. The research showed that the coefficients were not affected by the fillet sizes tested as long as the net area was used in the computations. Figure 165 is a sketch showing the procedure for calculating the net area. The current version of the FHWA HY-8 program does not account for corner fillets.

Figure 165. Diagram. Net area used for backwater computations.

View Alternate Text

To show the sensitivity of including or not including the corner fillets, the headwater elevation for the PC-B, 2.7- by 2.4-m (9- by 8-ft) culverts was computed with no fillets. The error derived by not accounting for the 30.48-cm (12-inch) fillets was more than 0.0305 m (0.10 ft) for the Q100 discharge. These errors would increase as the size of the culvert decreases and would decrease as the size of the culvert increases. A design program such as HY-8 could certainly account for the corner fillets, but significant additional computer coding would be required.

At the Q100 discharge, the HW elevations for the precast culverts were approximately 0.183 m (0.6 ft) higher than the elevations for the field cast culverts with the 30-degree-flared wingwalls.
