Computer-Based Guidelines for Concrete Pavements: HIPERPAV IIIUser Manual

Table of Contents

HIPERPAV® III User manual

In this user manual, guidance is given on how to use the new HIPERPAV® III software program for the analysis of early–age Portland cement concrete pavement (PCCP) behavior. HIPERPAV® III includes several improvements from previous versions (i.e., HIPERPAV® and HIPERPAV® II). This user manual describes the following features in detail:

  • The incorporation of an enhanced moisture model that improves the accuracy of the software's predictions.
  • An improved interface that allows users to navigate through the software with more ease.
  • The ability to characterize heat evolution of a particular cement paste that improves the precision of the software's models.
  • A batch mode that allows users to analyze several strategies at once.
  • A comparisons module that includes sensitivity analysis tools to offer users an opportunity to quickly discern differences in the effects of environmental, design, and construction variables on strength gain, stress development, and early–stage strength–to–stress relationships.

Basic Inputs

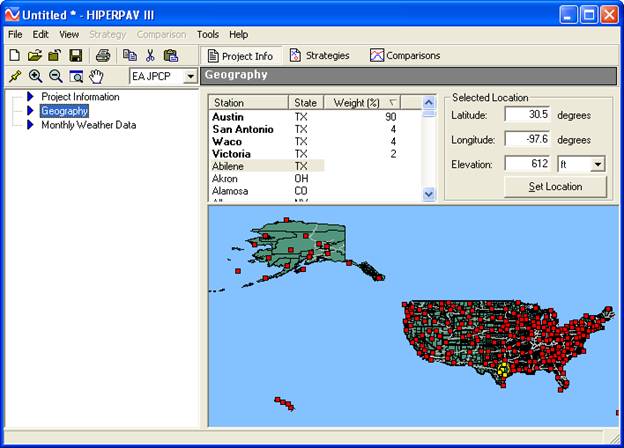

As in HIPERPAV® II, analysis in HIPERPAV® III begins by entering basic inputs including a description of the project and location. Figure 1 shows a map on which users pinpoint the location of the project. The next step in the analysis process is creating strategies based on structural design, mix design, construction condition, and climate information. Additional details can be found in the accompanying report Computer–Based Guidelines for Concrete Pavements, Volume II: Design and Construction Guidelines and HIPERPAV II User's Manual (FHWA–HRT–04–122).

 This screenshot depicts the
  HIPERPAV® III interface of geography. There is a map of the United  States, and Austin, TX, is marked by a yellow circle. Toward the top of the  screen, there are several option buttons which include "Project Info,"  "Strategies," and "Comparisons." There are also text boxes for users to define  project locations and get information about a location's latitude, longitude,  and elevation.
Figure 1. Screenshot. Project location (Austin, TX).

Enhanced Moisture Model

An enhanced moisture model was incorporated into HIPERPAV® to increase the accuracy of early–age behavior predictions. In previous versions of HIPERPAV®, mathematical models used to calculate early–age behavior focused primarily on temperature effects. However, moisture in Portland cement concrete (PCC) and its migration through the concrete's pore structure has a great influence on PCCP early–age behavior, and it needs to be accounted for.

Moisture content in concrete is influenced by factors such as type of base, water–to–cement ratio, type of cement, admixtures, supplementary cementitious material, aggregates, temperature, wind speed, relative humidity of air, and type of curing. Changes in moisture content are the result of drying due to hydration, evaporation, or moisture transport into the base. As the concrete dries, it shrinks. This shrinkage, coupled with temperature gradients, causes axial, curling, and warping movements. These movements create tensile stresses in the concrete and ultimately create the potential for early–age cracking.

The potential for early–age cracking due to moisture content is calculated in HIPERPAV® III by a one–dimensional finite–difference model that relates materials, environmental effects, and curing procedures for PCCP.

Effect of Base Moisture

A large effect on stresses as a function of the base moisture was identified during the development of the moisture model. As a result, an input to identify the moisture state of the base/subbase was included. Under construction inputs, users are asked whether the subbase is moist or dry (see figure 2).

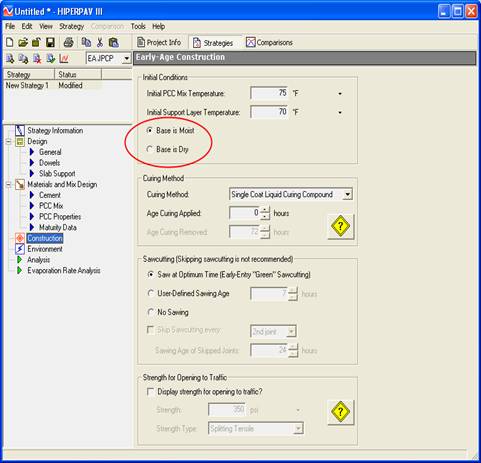

This screenshot depicts the HIPERPAV®  III interface of strategies for construction inputs. There are several option  buttons and text boxes displayed in the screen for users to define initial construction  conditions like the initial Portland cement concrete mix temperature and base  moisture, curing method, curing time and age, and saw–cutting time. Two option  buttons for base moisture definition are provided and circled
  in red: "Base is Moist" and "Base is Dry." On the left side of the screen, there  are several
  boxes representing the strategy information, developer inputs, mix design,  construction,
  climate, and analysis.
Figure 2 . Screenshot. Construction input screen.

The effect of moisture loss to the base layer depends on the permeability of the base (the effect is more critical for a permeable base). The effect also depends on the slab thickness. For simplicity, the base moisture conditions in HIPERPAV® III represent only the two extremes: critical moisture loss to the base (dry permeable base) and low moisture loss (moist nonpermeable base). Therefore, base moisture content is defaulted as 0.3 and 0.9 at the dry and wet conditions, respectively. Future research is recommended to study this effect in more detail.

Although the selection of base moisture in HIPERPAV® III is rather subjective, if users believe that there is the potential for excess moisture loss from the slab to the base, an analysis for the dry base condition should be run to evaluate the cracking risk. Given the large effect of the base moisture condition, this input is available in both the simple and advanced strategy views.

Moisture Loss due to Evaporation

The new moisture model work focuses on characterizing the effect of moisture on drying shrinkage and warping stresses as well as its effect on strength gain. The evaporation rate analysis in HIPERPAV® III takes into account environmental conditions and concrete temperature to estimate evaporation loss from the surface of the concrete based on Menzel's equation.(1) The new moisture model does not impact the evaporation rate analysis. The goal of this project was not focused on developing the required models to properly characterize this effect; however, future work could be conducted to achieve this goal. The current moisture model would be a good start for that effort.

It should also be noted that other material parameters including the initial diffusivity and surface factor are computed by the HIPERPAV® III software program using the empirical equations.

Improved Interface

It has always been a goal for HIPERPAV® III to be as user friendly as possible. However, not all users have the same level of concrete knowledge or expertise. To help less experienced users understand what inputs are required and why, previous versions of HIPERPAV® included a help icon that linked users to more information. It became apparent that a link was not enough to help the most inexperienced users navigate through the software easily or intuitively. Therefore, HIPERPAV® III offers two views to help users: a simple view for the novice users and an advanced view for those with more experience. Users can choose which level best suits their needs by selecting accordingly from the "View" drop–down menu (see figure 3).

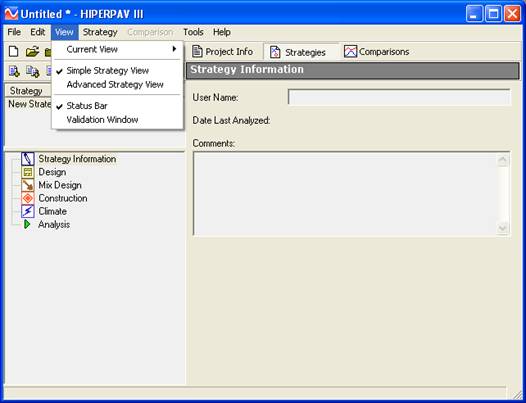

This screenshot depicts the improved HIPERPAV®  III interface. Toward the top of the screen, there are several drop–down menus  including "File," "Edit," "View," "Strategy," "Comparison," "Tools," and "Help."  Under the "View" drop–down menu, there are five options: "Current View," "Simple  Strategy View," "Advanced Strategy View," "Status Bar," and "Validation Window."  There are six buttons on the left side of the screen showing several major  actions including "Strategy Information," "Design," "Design Mix," "Construction,"  "Climate," and "Analysis."
Figure 3 . Screenshot. Simple strategy view.

The simple view requires limited input data and estimates variables that are otherwise inputs for an advanced level user. As a result, users navigate through fewer screens ("Design," "Mix Design," "Construction," and "Climate") arranged in a descending order on the left side of the screen. The analysis screen is the final screen in the list showing the stress and strength development once the analysis is run.

Like the simple view, the advanced view lists screens in a descending view. However, as seen in figure 4, users are required to supply more detailed information for the advanced level HIPERPAV® III interface. Default values are supplied in the advanced view for various inputs, but users are encouraged to supply job–specific information for optimal accuracy.

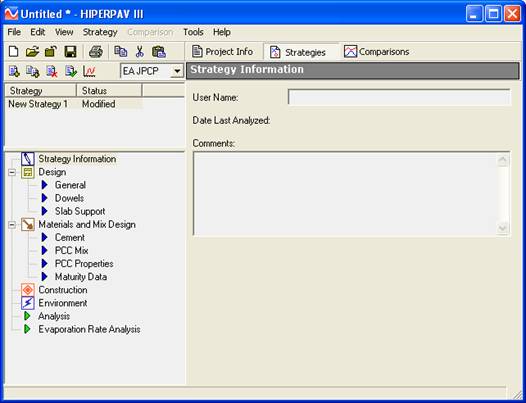

This screenshot depicts the HIPERPAV®  III interface of strategy information. Toward the top of the screen, there are  several drop–down menus including "File," "Edit," "View," "Strategy,"  "Comparison," "Tools," and "Help." On the left side of the screen under the button  "Strategy Information," there are four major buttons including "Design," "Materials  and Mix Design," "Construction," and "Environment." The "Design" button includes  the following three options: "General," "Dowels," and "Slab Support." The "Materials  and Mix Design" button includes the following four options: "Cement," "PCC Mix,"  "PCC Properties," and "Maturity Data."
Figure 4 . Screenshot. Advanced strategy view.

Both the simple and advanced views predict early–age behavior of PCCP. The simple strategy view requires fewer inputs and estimates some variables based on built–in default values.However, the advanced strategy view provides more accurate predictions of PCCP early–age behavior as long as some default values are replaced with job–specific values.

For simplicity, both the evaporation rate analysis during the plastic state and the analysis results for tensile stress and strength during the first 72 hours after construction are presented on a single screen in the simple strategy view (see figure 5).

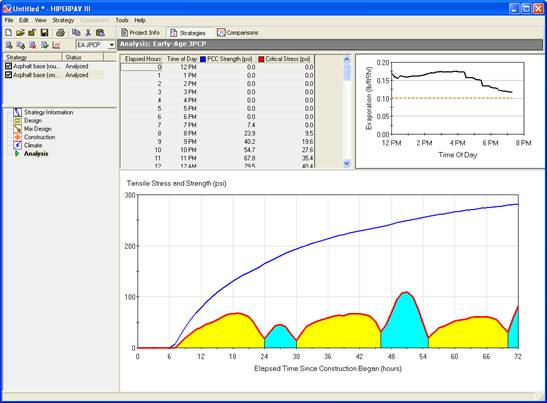

This screenshot depicts the HIPERPAV®  III simple result interface. On the top left of the screen, there are four  columns of data showing elapsed hours, time of day, PCC strength, and critical  stress. On the right corner of the screen, there is a small graph with a curve that  depicts evaporation rate on the y–axis and time of day on the x–axis. The lower  portion of the screen shows a larger graph which depicts stress and strength on  the y–axis and elapsed time since construction began on the x–axis. There are  two curves in this graph: a blue one on the top that increases from left to  right, and a red one on the bottom that propagates in a waveform from left to  right. The area under the red line is shaded yellow followed by blue. It  switches off in this pattern to follow the waveform.
Figure 5 . Screenshot. Simple strategy view analysis results.

Heat Evolution Characterization

The ability to characterize the heat evolution of cement paste from semiadiabatic calorimetry testing improves precision of the HIPERPAV® III's mathematical models in predicting thermal stress and strength development.

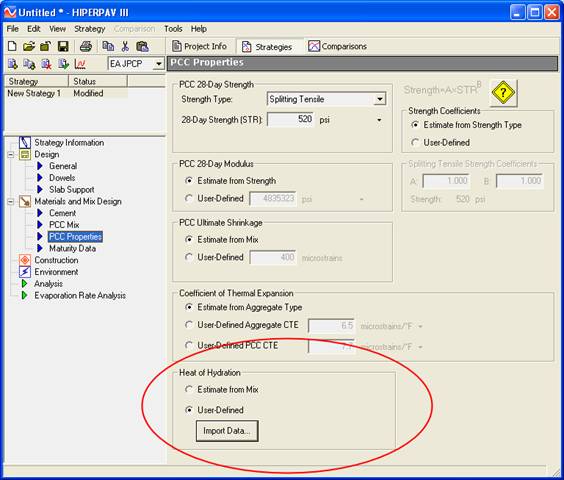

Previous versions of HIPERPAV® modeled heat evolution based on linear regression models related to cementitious materials chemistry. Heat of hydration influences thermal gradients and affects tensile stresses in early–age concrete. When available, these values can be entered directly into HIPERPAV® III in the advanced strategy view. Figure 6 shows where the heat evolution data can be entered. Figure 7 shows what information is required to calculate the heat of hydration based on semiadiabatic calorimetric test data.

This screenshot depicts the
  HIPERPAV® III interface of Portland cement concrete (PCC)  properties. There are a several option buttons and text boxes for user  definitions which include "PCC 28–Day Strength," PCC 28–Day Modulus," "PCC Ultimate  Shrinkage," "Coefficient of Thermal Expansion," and "Heat of Hydration," the  last of which is circled in red.
Figure 6 . Screenshot. Heat of hydration input data.

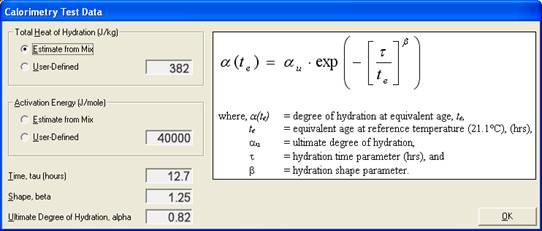

 This screenshot depicts the HIPERPAV®  III interface of hydration parameter inputs. On the left side of the screen, there  are three items for user definitions: "Total Heat of Hydration (J/kg)," "Activation  Energy (J/mole)," and several hydration curve parameter inputs. The first two  items have two options: "Estimate from Mix," and "User–Defined." The third item  has three boxes for user inputs: "Time, tau (hours)," "Shape, beta," and "Ultimate  Degree of Hydration, alpha." On the right side of the screen, there is an equation  for degree of hydration.
Figure 7 . Screenshot. Semiadiabatic calorimetry input data required for heat of hydration calculations.

 Batch Mode Analysis

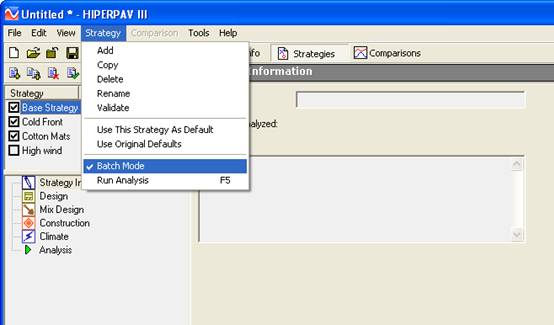

A batch mode for analyzing multiple strategies at once has also been included in HIPERPAV® III. If users have multiple strategies that require analysis, all of the strategies can be run at once by selecting "Batch Mode" from the "Strategy" drop–down menu (see figure 8). A check box appears to the left of each strategy to show it has been selected for analysis. Users should check only the strategies to be analyzed. All strategies are automatically analyzed instead of having to run them one by one.

This screenshot depicts the HIPERPAV® III  interface of batch mode. Toward the top of the screen, there are several drop–down  menus which include "File," "Edit," "View," "Strategy," "Comparison," "Tools,"  and "Help." Under the "Strategy" drop–down menu, there are nine options which  include "Add," "Copy," "Delete," "Rename," "Validate," "Use This Strategy As Default,"  "Use Original Defaults," "Batch Mode," and "Run Analysis." On the left portion  of the screen below the drop–down menus, there are four boxes under the heading  "Strategy" with the following labels: "Base Strategy," "Cold Front," "Cotton Mats,"  and "High Wind." The first three have checkmarks in the boxes. Below these  labels, there are six option buttons: "Strategy," "Design," "Mix Design," "Construction,"  "Climate," and "Analysis."
Figure 8 . Screenshot. Batch mode analysis.

Comparisons Module

New sensitivity analysis tools can be found under the "Comparisons" tab (see figure 9). Two types of comparison analyses are available in HIPERPAV® III: "Quick Compare" and "Sensitivity Comparisons."

The "Quick Compare" screen offers users a chance to quickly discern differences between strategies in terms of design, materials, environmental inputs, and construction inputs as well as the resulting differences in strength gain, stress development, and cracking risk. The differences are presented in a side–by–side comparison. Previous versions of HIPERPAV® did not offer a side–by–side strategy comparison. Instead, users had to toggle back and forth between analysis screens of individual strategies to make comparisons.

One advantage of the "Quick Compare" tool is the ability to compare up to four individual strategies, reviewing how their differences affect concrete properties in a side–by–side comparison for each property. Users check which strategies are of interest (limit of four) and click the "Compare" button. A chart that lists the date and any input differences is generated. Users can toggle between the chart and graphs to provide a visual comparison between strategies and their properties including strength, critical stresses, strength–to–stress differences, and stress–to–strength ratios for each of the chosen strategies.

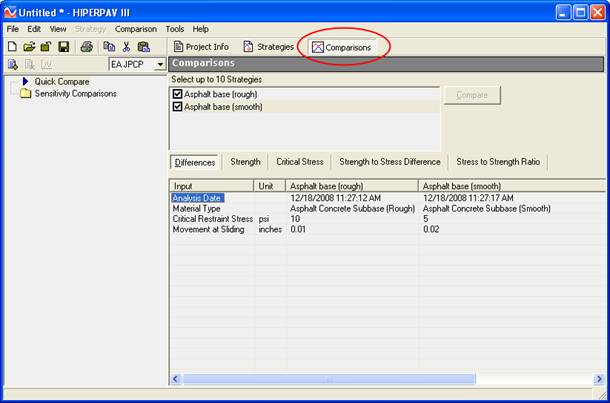

This screenshot depicts the HIPERPAV®  III interface of comparison mode. On the top left of the screen, there are  several toolbars to open a new document, open an existing document, save,  print, cut, and paste. Next to these, there are three buttons: "Project Info," "Strategies,"  and "Comparisons," the last of which has a red circle around it. On the left portion  of the screen below the toolbar, there are two items to select: "Quick Compare"  and "Sensitivity Comparisons." To the right of these options, there are two  boxes checked under the heading "Select up to 10 Strategies": "Asphalt base  (rough)" and "Asphalt base (smooth)." Below these boxes, there are several buttons:  "Differences," "Strength," "Critical Stress," "Strength to Stress Difference,"  and "Stress to Strength Ratio." Underneath the buttons, there are several  columns of data under the headings "Input," "Unit," "Asphalt base (rough)," and  "Asphalt base (smooth)."
Figure 9 . Screenshot. Quick compare chart of differences.

Similar to the quick compare option, the "Sensitivity Comparisons" tool also generates a chart and graphs through which users can toggle to compare. However, instead of comparing strategies, this tool compares the effects of changing input variables by selecting an existing strategy as a base case scenario. The advantage of the "Sensitivity Comparisons" tool is the ability to evaluate the effect of any input variable on strength and stress development for a single strategy and to see that effect in a side–by–side comparison.

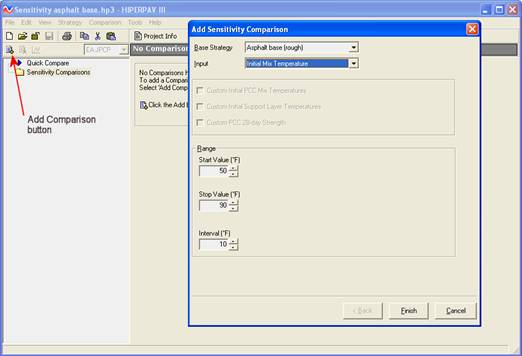

To use this tool, users should click on "Sensitivity Comparisons" and add a comparison with the "Add" button on the upper left corner of the screen (see figure 10). A wizard screen pops up to select the strategy of interest. The input variable to be evaluated is then selected along with a range for that variable (if applicable) and an analysis interval. Figure 10 shows a sensitivity comparison for "Initial Mix Temperature." For this example, a range from 50 to 90 ºF is used. Also, an interval of 10 ºF is selected so that the wizard runs an analysis with an initial mix temperature from 50 to 90 ºF at every 10 ºF for a total of five runs. HIPERPAV® III then calculates the strength, critical stresses, strength–to–stress differences, and stress–to–strength ratios for the range of the input variable.

This screenshot depicts the  HIPERPAV® III interface of sensitivity comparison mode. On the top  left of the screen, there is a red arrow pointing toward the location of the  "Add Comparison button" to help users find it. On the right side, there is a  pop–up window overlapping the first one showing the HIPERPAV® III  interface. In this pop–up window, there are several items displayed as follows  (from top to bottom): "Base Strategy," "Input," and "Range." The range item  includes text boxes for the start, stop, and interval values, all shown in  degrees Fahrenheit.
Figure 10 . Screenshot. Sensitivity comparison wizard.

Figure 11 presents the results from this sensitivity analysis in terms of stress–to–strength ratio. A summary tab is also available in this analysis to show the maximum stress–to–strength ratio for each analysis run in a bar graph as seen in figure 12. The bars are plotted in a color gradient from green (low cracking risk) to red (high cracking risk) to show the proximity to the critical stress–to–strength ratio of 100 percent (cracking risk threshold).

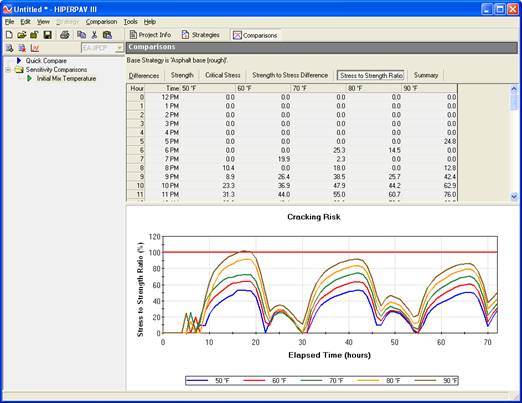

This screenshot depicts the  HIPERPAV® III interface of stress and strength results. Toward the  top of the screen, there is a table showing the stress–to–strength values with  time at five different temperatures: 50, 60, 70, 80, and 90 degrees Fahrenheit.  The table headings include "Differences," "Strength," "Critical Stress," "Strength  to Stress Difference," "Stress to Strength Ratio," and "Summary." Under the  table, there is a graph that depicts stress–to–strength ratio in percent on the  y–axis and elapsed time in hours on the x–axis. There are five curves that  represent stress–to–strength ratios at five temperatures: 50, 60, 70, 80, and  90 degrees Fahrenheit, respectively. These curves all propagate in a waveform  from left to right. The curve for 90 degrees Fahrenheit is highest followed by the  curves for 80, 70, 60, and 50 degrees Fahrenheit.
Figure 11 . Screenshot. Stress–to–strength ratio screen.

This screenshot  depicts the HIPERPAV® III interface of stress–to–strength ratios for  different construction time in a bar graph. This graph depicts stress–to–strength  ratio on the y–axis in percent and construction time in hours on the x–axis.  There are nine columns that represent stress–to–strength ratios which include  "8AM," "11AM," "2PM," "5PM," "8PM," "11PM," "2AM," "5AM," and "8AM,"  respectively. From left to right, the column height of stress–to–strength ratio  increases, decreases, and then increases again as time increases. The column  for "11AM" has the greatest height, and the stress–to–strength ratio is over  100 percent.
Figure 12 . Screenshot.Sensitivity summary screen for PCC mix temperature.

Most often, users of previous HIPERPAV® versions requested the ability to compare the effect of different times of construction without having to do individual strategies for each interval of time. The "Sensitivity Comparisons" tool gives users that ability users identify a base strategy, select "Construction Time" as the variable to evaluate, and choose a range from 1 to 6 hours.

For this sensitivity analysis, users also have the option to use custom initial PCC mix and support layer temperatures for each analysis interval. If this information is not available, HIPERPAV® III can estimate these temperatures based on current environmental conditions for each construction time. This is done when users leave the check boxes under each of these inputs unchecked.

HIPERPAV® III calculates and generates charts and graphs accordingly. Similar to the previous example, users can see the effect that time of construction has on the stress–to–strength ratio. Figure 13 shows a summary of the stress–to–strength ratio for a time of construction sensitivity analysis. Users can easily see that in some morning hours, there is a higher probability of exceeding the cracking risk line.

This screenshot  depicts the HIPERPAV® III interface of stress–to–strength ratios for  different construction time in a bar graph. This graph depicts stress–to–strength  ratio on the y–axis in percent and construction time in hours on the x–axis.  There are nine columns that represent stress–to–strength ratios which include  "8AM," "11AM," "2PM," "5PM," "8PM," "11PM," "2AM," "5AM," and "8AM,"  respectively. From left to right, the column height of stress–to–strength ratio  increases, decreases, and then increases again as time increases. The column  for "11AM" has the greatest height, and the stress–to–strength ratio is over  100 percent.
Figure 13 . Screenshot. Sensitivity summary screen for construction time.
