Report
This report is an archived publication and may contain dated technical, contact, and link information
Publication Number: FHWA-RD-02-074
Date: October 2000

Understanding The Performance of Modified Asphalt Binders in Mixtures: Low-Temperature Properties

FOREWORD

This report documents the effects of polymer-modified asphalt binders on the low-temperature cracking resistances of asphalt mixtures. An emphasis was placed on evaluating the performances of mixtures containing polymer-modified asphalt binders with identical Superpave performance grades, but varied modification chemistries. This study is part of a larger study titled "Understanding the Performance of Modified Asphalt Binders in Mixtures," which is partially funded through the National Cooperative Highway Research Program (NCHRP) Project 90-07. The objective of NCHRP Project 90-07 is to determine if asphalt binder performance is correctly captured by the Superpave asphalt binder specification developed under the 1987 through 1993 Strategic Highway Research Program and modified under subsequent studies. This report will be of interest to highway personnel who use polymer-modified asphalt binders and Superpave.

The recently developed Superpave critical cracking temperature (Tcr) for asphalt binders agreed with mixture performance, except for one asphalt binder that is currently not used in practice. Several aggregate types were included in the study. The addition of hydrated lime to one of the aggregates significantly affected the low-temperature properties of the mixture. The mechanism for this is not clearly understood and will be investigated.

T. Paul Teng, P.E.
Director, Office of Infrastructure
Research and Development

Notice

This document is disseminated under the sponsorship of the U.S. Department of Transportation in the interest of information exchange. The U.S. Government assumes no liability for the use of the information contained in this document.

The U.S. Government does not endorse products or manufacturers. Trademarks or manufacturers' names appear in this report only because they are considered essential to the objective of the document.

Quality Assurance Statement

The Federal Highway Administration (FHWA) provides high-quality information to serve Government, industry, and the public in a manner that promotes public understanding. Standards and policies are used to ensure and maximize the quality, objectivity, utility, and integrity of its information. FHWA periodically reviews quality issues and adjusts its programs and processes to ensure continuous quality improvement.

Technical Report Documentation Page

1. Report No.

FHWA-RD-02-074

2. Government Accession No. 3 Recipient's Catalog No.
4. Title and Subtitle

UNDERSTANDING THE PERFORMANCE OF MODIFIED ASPHALT BINDERS IN MIXTURES: LOW-TEMPERATURE CHARACTERIZATION

5. Report Date



6. Performing Organization Code
7. Author(s)

Kevin D. Stuart and John S. Youtcheff

8. Performing Organization Report No.



9. Performing Organization Name and Address

Office of Infrastructure Research and Development
Federal Highway Administration
6300 Georgetown Pike
McLean, VA 22101-2296

10. Work Unit No. (TRAIS)

11. Contract or Grant No.

In-House Report

12. Sponsoring Agency Name and Address

Office of Infrastructure Research and Development
Federal Highway Administration
6300 Georgetown Pike
McLean, Virginia 22101-2296

13. Type of Report and Period Covered

Final Report
October 2000 - December 2001

14. Sponsoring Agency Code



15. Supplementary Notes

FHWA Contact: Kevin D. Stuart, HRDI-11. Contractor personnel that worked on this study were Frank Davis, Susan Needham, Scott Parobeck, Naga Shashidhar, and Aroon Shenoy, SaLUT, Turner-Fairbank Highway Research Center, 6300 Georgetown Pike, McLean, VA 22101-2296.

16. Abstract

The objective of this study was to determine if the Superpave low-temperature rheological properties of polymer-modified asphalt binders correlate to asphalt mixture low-temperature resistance as measured by the Thermal Stress Restrained Specimen Test (TSRST). An emphasis was placed on evaluating polymer-modified asphalt binders with identical (as close as possible) low-temperature grades. This would indicate what types of modification provide properties that are, or are not, correctly captured by the current Superpave asphalt binder specification. Eleven asphalt binders were obtained for this study: two unmodified asphalt binders, an air-blown asphalt binder, and eight polymer-modified asphalt binders. All asphalt binders were tested with a diabase aggregate. Four asphalt binders were also tested using a limestone aggregate, a granite aggregate, and the granite aggregate treated with hydrated lime. Four asphalt binders were used in a study to determine the effect of the mixture short-term oven aging (STOA) period on low-temperature cracking resistance.

The correlations between the TSRST fracture temperatures and asphalt binder cracking resistance based on the critical cracking temperature (Tcr), bending beam rheometer (BBR) creep stiffness, BBR m-value, and the BBR limiting temperature, were poor to weak. However, the correlation using Tcr was good after eliminating the data for ESI. The r-squared increased from 0.54 to 0.85.

Aggregate type generally had no significant effect on the average TSRST fracture temperature. The effect was only significant in three cases involving hydrated lime. Elvaloy with granite had a significantly higher (poorer) fracture temperature compared to Elvaloy with diabase, limestone, and the granite aggregate treated with hydrated lime. This means that adding hydrated lime to the granite aggregate was beneficial. Based on the average fracture temperatures, the inclusion of lime provided no benefit for the mixtures with the three other asphalt binders used in this part of the study. In fact, it increased the average fracture temperatures of two mixtures. The variability of the TSRST fracture temperatures from replicate to replicate specimen was generally higher for the granite aggregate compared to diabase and limestone, but the addition of hydrated lime to the granite aggregate tended to reduce this variability.

Initially, mixtures with ESI, Elvaloy, and SBS Radial Grafted had lower TSRST fracture temperatures than the mixture with the unmodified PG 70-22 asphalt binder. However, increasing the STOA period from 2 hours to 24 hours aged the polymer-modified asphalt binders, but not the PG 70-22 asphalt binder. After 24 hours, all four mixtures had fracture temperatures that were not significantly different. The use of softer asphalt binders when formulating the polymer-modified asphalt binders may have led to hardening from a loss of volatiles during STOA, while volatilization for the PG 70-22 asphalt binder was low.

17. Key Words

Superpave, asphalt binder specification, TSRST, critical cracking temperature, polymer-modified asphalt binders, creep stiffness, m-value, STOA, LTOA, hydrated lime.

18. Distribution Statement

No restrictions. This document is available to the public through the National Technical Information Service, Springfield, Virginia 22161.

19. Security Classification
(of this report)

Unclassified

20. Security Classification
(of this page)

Unclassified

21. No. of Pages

23

22. Price
Form DOT F 1700.7 Reproduction of completed page authorized

Objective

The objective of this study was to evaluate the cracking temperatures for asphalt binders provided by the Bending Beam Rheometer (BBR) and Thermal Stress Analysis Routine (TSARTM). Low-temperature mixture properties provided by the Thermal Stress Restrained Specimen Test (TSRST) were used to validate these asphalt binder tests. An emphasis was placed on evaluating the performances of mixtures containing polymer-modified asphalt binders with identical Superpave performance grades (PG's) and similar base asphalts, but varied modification chemistries. This would indicate what types of modification provide properties that are, or are not, correctly captured by the current Superpave asphalt binder specification.

BBR and TSARTM

The BBR provides two cracking temperatures. One temperature is based on creep stiffness (S); the other temperature is based on the m-value. The BBR test is performed in accordance with American Association of State Highway and Transportation Officials (AASHTO) TP1, titled "Method for Determining the Flexural Creep Stiffness of Asphalt Binders Using the Bending Beam Rheometer (BBR)."(1) TSARTM is a computer program from Abatech, Inc., Doylestown, PA, that performs AASHTO PP42-01, "Standard Practice for Determination of Low-Temperature Performance Grade (PG) of Asphalt Binders."(2) A critical cracking temperature (Tcr) is computed using data from both the BBR and the direct tension. The standard test method for the direct tension is AASHTO TP3, titled "Determining the Fracture Properties of Asphalt Binder in Direct Tension (DT)."(2)

TSRST

The TSRST cools a beam of asphalt mixture at a rate of 10°Celsius/hour (C/h) while restraining it from contracting. Stress builds up in the beam until it breaks. The resistance to low-temperature cracking increases as the temperature needed for fracture decreases. The stress at failure can also be analyzed. Additional information on the TSRST is given in AASHTO TP10-93, titled "Method for Thermal Stress Restrained Specimen Tensile Strength."(2) (Note: This test is commonly called the "Thermal Stress Restrained Specimen Test.")

Asphalt Binders

Eleven asphalt binders were tested. This included one air-blown asphalt and eight polymer-modified asphalt binders: (1) styrene-butadiene-styrene [SBS] Linear, (2) SBS Linear Grafted, (3) SBS Radial Grafted, (4) ethylene vinyl acetate [EVA], (5) EVA Grafted, (6) Elvaloy, (7) ethylene styrene interpolymer [ESI], and (8) chemically modified crumb rubber asphalt [CMCRA]. There were two control asphalt binders: an unmodified PG 70-22 and an unmodified PG 64-28. The eight polymer-modified asphalt binders include elastomeric and plastomeric modifiers, some with the same modifier but different geometries (linear vs. radial geometries). The term "grafted" includes any mode of chemically reacting a polymer with an asphalt binder, for example, vulcanization. The target PG for the polymer-modified asphalt binders was PG 73-28. The PG 64-28 asphalt binder, and a PG 52-34 asphalt binder from the same crude source, were modified. The air-blown asphalt was originally the PG 52-34 asphalt binder.

Experiment Using Diabase Aggregate

The mixtures consisted of diabase aggregate and the 11 asphalt binders. A minimum of three replicate beams at 7.0 ± 0.5-percent air voids were tested by the TSRST. The mixtures were subjected to 2 h of short-term oven aging (STOA) at 135°C before compaction. Two hours of STOA was found to provide the average amount of aging for pavements constructed in 1993 for a Federal Highway Administration (FHWA) Superpave validation study.(3) It was based on pavement samples taken 3 months after construction. Mixture tests that measure low-temperature cracking resistance are often performed on specimens that have been subjected to long-term oven aging (LTOA), such as at 85°C for 120 h.(4) In this study, it was decided to use 2 h of STOA and then determine from the data whether LTOA was needed. The asphalt binders were subjected to both rolling thin-film oven (RTFO) aging and pressure aging vessel (PAV) aging before testing, which is considered LTOA.

The data are given in tables 1 and 2. These tables provide the same data. The mixtures in table 1 are ranked according to the average TSRST fracture temperature, while the mixtures in table 2 are ranked according to the average TSRST fracture stress. An analysis of variance and Fisher's least squares difference (LSD) were used to rank the mixtures at a 5-percent level of significance. The capital letters in the tables are the statistical rankings. All mixtures with the same letter have averages that are not significantly different from one another. They are in the same group. All groups are designated by a single letter. However, the groups can overlap. An average with more than one letter indicates that it falls into more than one group. For example, if an average has the designation "A B," it falls into two groups, both A and B.

Fisher's LSD showed that the average TSRST fracture temperatures for the mixtures in table 1 must differ by at least 4.0°C for them to be significantly different at a 5-percent level of significance. The average TSRST fracture stresses must differ by approximately 500 kilopascals (kPa) for them to be significantly different. The data for individual beams are given in tables 3 and 4. (Note: The standard deviation [s] and coefficient of variation [CV] for fracture temperature depend on what unit is used [Celsius, Fahrenheit, or Kelvin]. Celsius was used in this study.)

Table 1. Low-temperature asphalt binder properties vs. TSRST
with the materials ranked according to mixture fracture temperature.

Asphalt Binder and Mixture Designation
Asphalt Binder Cracking Temperature After RTFO/PAV (°C)   Mixture Property After 2 h of STOA at 135°C
TSRST Fracture Temperature and Ranking (°C)  TSRST Fracture Stress (kPa)
Tcr  BBR
S

BBR
m

ESI -29 -31 -31 -33 A           2320
Elvaloy -34 -31 -34 -33 A B         2240
SBS Linear Grafted -34 -33 -34 -33 A B C       2310
EVA Grafted -33 -32 -31 -31 A B C D     1860
SBS Linear -33 -32 -31 -30 A B C D E   2110
SBS Radial Grafted -34 -32 -32 -30 A B C D E   2300
EVA -31 -31 -31 -29   B C D E   2790
CMCRA -29 -29 -29 -29     C D E   1095
Air-Blown -28 -30 -28 -27       D E F 1960
PG 64-28 -28 -28 -30 -26         E F 1680
PG 70-22 -27 -28 -29 -24           F 2120

Tcr = Critical Cracking Temperature.
S = Creep Stiffness.
m = m-value.



Table 2. Low-temperature asphalt binder properties vs. TSRST
with the materials ranked according to mixture fracture stress.

Asphalt Binder and Mixture Designation
Asphalt Binder Cracking Temperature After RTFO/PAV (°C)   Mixture Property
After 2 h of STOA at 135°C
TSRST Fracture Temperature (°C)   TSRST Fracture Stress and Ranking (kPa)
Tcr  BBR
S
BBR
m

EVA -31 -31 -31 -29 2790 A
ESI -29 -31 -31 -33 2320 A B
SBS Linear Grafted -34 -33 -34 -33 2310 A B
SBS Radial Grafted -34 -32 -32 -30 2300 A B
Elvaloy -34 -31 -34 -33 2240 A B
PG 70-22 -27 -28 -29 -24 2120   B
SBS Linear -33 -32 -31 -30 2110   B C
Air-Blown -28 -30 -28 -27 1960   B C
EVA Grafted -33 -32 -31 -31 1860   B C
PG 64-28 -28 -28 -30 -26 1680     C
CMCRA -29 -29 -29 -29 1095       D

Tcr = Critical Cracking Temperature.
S = Creep Stiffness.
m = m-value.



Table 3. TSRST fracture temperatures for individual beams with diabase.

Asphalt Mixture Designation  TSRST Fracture Temperature (°C)
Test #1  Test #2  Test #3  Test #4  s CV

STOA = 2 h

ESI -32.7 -31.9 -33.2 -37.3 2.4 7.3
Elvaloy -31.3 -35.4 -34.3   2.1 6.4
SBS Linear Grafted -29.6 -34.0 -35.5   3.1 9.4
EVA Grafted -31.1 -25.8 -36.3 -31.2 4.3 13.9
SBS Linear -32.2 -30.1 -29.1   1.6 5.3
SBS Radial Grafted -31.3 -26.1 -33.0   3.6 12.0
EVA -29.6 -29.0 -30.4   0.7 2.4
CMCRA -28.6 -29.7 -28.4   0.7 2.4
Air-Blown -26.3 -27.8 -27.3   0.8 3.0
PG 64-28 -25.0 -27.1 -27.0   1.2 4.6
PG 70-22 -24.0 -24.0 -26.7 -23.0 1.6 6.7

STOA = 8 h

ESI -35.0 -30.7 -32.5   2.2 6.9
Elvaloy -29.0 -27.6 -30.2   1.3 4.6
SBS Radial Grafted -28.3 -30.9 -28.4   1.5 5.0
PG 70-22 -20.4 -20.2 -22.4   1.2 5.7

STOA = 24 h

ESI -23.4 -23.7 -24.5   0.7 2.3
Elvaloy -25.8 -27.1 -26.8   0.7 2.6
SBS Radial Grafted -22.9 -23.5 -25.1   1.1 4.8
PG 70-22 -19.3 -26.7 -21.4   3.8 16.9

s = Standard Deviation of Fracture Temperature, C.
CV = Coefficient of Variation, percent = (s ÷ average)*100.

Table 4. TSRST fracture stresses for individual beams with diabase.

Asphalt Mixture Designation  TSRST Fracture Stress (kPa) (STOA = 2 h)
Test #1  Test #2  Test #3  Test #4  s CV
EVA 2830 2650 2890   120 4.3
ESI 2260 2370 2480 2170 130 5.6
SBS Linear Grafted 2450 2210 2270   120 5.2
SBS Radial Grafted 2940 2080 1870   570 24.8
Elvaloy 2670 2000 2050   370 16.5
PG 70-22 2070 1910 2470 2030 240 11.3
SBS Linear 8401  2020 2210   120 5.7
Air-Blown 1770 1920 2190   210 10.7
EVA Grafted 1920 2440 1220   610 32.9
PG 64-28 1540 1940 1560   230 13.7
CMCRA 1290 1050 940   180 16.4

1Outlier.
s = Standard Deviation of Fracture Temperature, C.
CV = Coefficient of Variation, percent = (s ÷ average)*100.

Tables 1 and 2 show that the ranges in the TSRST fracture temperatures and stresses provided by the polymer-modified asphalt binders were narrow. Table 1 shows that most of the polymer-modified binders provided relatively close fracture temperatures, and six of these binders fell into group A. Furthermore, the fracture temperature for SBS Linear and SBS Radial Grafted are not significantly different from the temperature for any other mixture except for the mixture with the unmodified PG 70-22 asphalt binder. The closeness of the fracture temperatures was expected because the asphalt binders were produced to have close low-temperature PG's. Table 2 shows that the TSRST fracture stresses for 8 of the 11 mixtures were not significantly different. Most mixtures fell into group B. The TSRST tests on the mixtures with EVA and SBS showed that grafting and polymer geometry generally had no significant effect on fracture temperature or stress. The only exception is that the mixture with EVA Grafted had a significantly lower fracture stress than the mixture with EVA.

The correlation between TSRST fracture temperature and Tcr is shown in figure 1. The r-squared (r2) was low at 0.54, but it increased to 0.85 after eliminating the data from ESI. Table 3 shows that the individual TSRST fracture temperatures for ESI were not highly variable. High variability could decrease the confidence in the average temperature. Tables 3 and 4 show that EVA Grafted and SBS Radial Grafted provided the highest variability using 2 h of STOA. The slope for the regression line without ESI is 0.96 and the offset is 2°C, with Tcr providing the lower temperature. Therefore, the TSRST fracture temperature is equal to Tcr plus 2°C when the mixture STOA period is 2 h. This difference in temperature may be related to differences in age-hardening or to the absorption of asphalt light ends into the aggregate. LTOA would increase the fracture temperatures of the mixtures, which would increase the offset.

Figure 2 shows that the correlation between the TSRST fracture temperatures and the cracking temperatures provided by creep stiffness was poor, although the trend is correct. The r2 was 0.66. The slope is 1.5. The data point for ESI is not an obvious outlier as in figure 1. Therefore, creep stiffness alone cannot explain why ESI is an outlier based on Tcr. Furthermore, the polymer in ESI is not prone to separate from the base asphalt during use.

Figure 3 shows that the correlation between the TSRST fracture temperatures and the cracking temperatures provided by the m-value was poor, although the trend is correct. The r2 was 0.59. The slope is 1.2.

For a given asphalt binder, the BBR provides two temperatures. One temperature is based on creep stiffness while the other temperature is based on the m-value. The higher of the two temperatures is the limiting cracking temperature. Figure 4 shows that the correlation between the TSRST fracture temperatures and the limiting cracking temperatures was weak. The r2 was 0.71. The slope is 1.5, which means that when the temperature based on the BBR changes by 6°C (one PG), the change in TSRST fracture temperature is 9°C. A 9°C change in fracture temperature is large. This suggests that the increment between PG's should be less than 6°C.

Figure 5 shows that the relationship between Tcr and the limiting cracking temperature from the BBR was fair. The r2's were 0.77 and 0.89, with and without ESI, respectively. Although the two tests may correlate to each other, they are not identical. They provided different slopes when correlated to the TSRST fracture temperature.

There was no correlation between the TSRST fracture temperature and the TSRST fracture stress. A linear regression provided an r2 of 0.09. There was no correlation between the TSRST fracture stress and Tcr, creep stiffness, m-value, or the limiting cracking temperature based on both creep stiffness and m-value. The r2's were 0.13, 0.24, 0.23, and 0.23, respectively. The relationship using creep stiffness is shown in figure 6.

Experiment Using Diabase, Granite, and Limestone Aggregates

The ESI, Elvaloy, SBS Radial Grafted, and air-blown asphalt binders were tested with granite and limestone aggregates to determine the effect of aggregate type on TSRST fracture temperature. Table 5 shows that the effect of aggregate type was relatively small, except for the mixtures with Elvaloy. The fracture temperature of -24°C for Elvaloy with granite is high compared to the temperature of -33°C for Elvaloy with either diabase or limestone. It was hypothesized that the adhesive strength between Elvaloy and granite may be relatively poor. Therefore, 1.0-percent hydrated lime was added to the granite aggregate to determine if this would decrease (improve) the fracture temperature. The average temperature did decrease from -24°C to -36°C, although the fractured surfaces of the beams showed no visual differences. Granite with hydrated lime was then evaluated as a fourth aggregate type.

Table 5 shows that creep stiffness provided cracking temperatures closest to the average TSRST fracture temperatures. However, most of the temperatures are very close to each other, so a firm conclusion regarding which asphalt binder test correlates the best with TSRST fracture temperature cannot be made. Note that 2 h of STOA were used for the mixtures.

The effect of aggregate type on the fracture temperature of each asphalt binder is shown in table 6. Aggregate type had no significant effect on the mixture with the air-blown asphalt binder. Although the hydrated lime decreased the fracture temperature for Elvaloy with granite, it did not decrease the fracture temperatures for the other three asphalt binders. In fact, the hydrated lime significantly increased the fracture temperatures for ESI and SBS Radial Grafted with granite.

Table 7 presents the same data grouped to show the effect of asphalt binder. Elvaloy provided a significantly higher fracture temperature of -24°C in combination with granite and a significantly lower fracture temperature of -36°C in combination with granite and hydrated lime. The air-blown asphalt binder provided the highest fracture temperature using diabase and limestone.

Figure 1 plots the TSRST fracture temperature on the vertical axis versus the critical cracking temperature from TSAR on the horizontal axis.  As the critical cracking temperature increases, the TSRST fracture temperature increases.  The r-squared for the trend line is 0.83 without the data for ESI, which is an obvious outlier.  ESI has a relatively high critical cracking temperature of -29 degrees Celsius compared to the TSRST fracture temperature of -33 degrees Celsius.  Based on the trend line, the critical cracking temperature should be -35 degrees Celsius instead of -29 degrees Celsius.

Figure 1. TSRST vs. Tcr.

Figure 2 plots the TSRST fracture temperature on the vertical axis versus BBR creep stiffness on the horizontal axis.  As the temperature based on creep stiffness increases, the TSRST fracture temperature increases.  The r-squared for the trend line is 0.54.  The data are randomly dispersed about the trend line with no obvious outliers.  The slope is 1.5.

Figure 2. TSRST vs. BBR creep stiffness.

Figure 3 plots the TSRST fracture temperature on the vertical axis versus the BBR m?value on the horizontal axis.  As the temperature based on the m-value increases, the TSRST fracture temperature increases.  The r-squared for the trend line is 0.58.  The data are randomly dispersed about the trend line with no obvious outliers.  The slope is 1.2.

Figure 3. TSRST vs. BBR m-value.

Figure 4 plots the TSRST fracture temperature on the vertical axis versus the limiting cracking temperature based on both the BBR creep stiffness and BBR m?value on the horizontal axis.  As the temperature based on the limiting cracking temperature increases, the TSRST fracture temperature increases.  The r-squared for the trend line is 0.71.  The data are randomly dispersed about the trend line with no obvious outliers.  The slope is 1.5.

Figure 4. TSRST vs. limiting cracking temperature
based on both BBR creep stiffness and BBR m-value.

Figure 5 plots the TSAR critical cracking temperature on the vertical axis versus the BBR limiting cracking temperature on the horizontal axis.  As the temperature based on the TSAR critical cracking temperature increases, the BBR limiting cracking temperature increases.  The r-squared for the trend line is 0.77 with the data point for ESI and 0.89 without ESI.

Figure 5. Tcr vs. limiting cracking temperature from BBR.

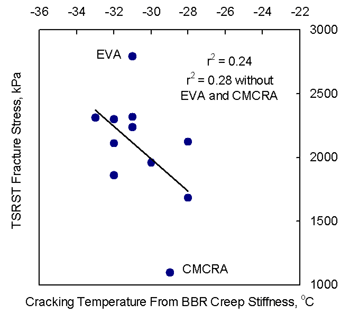

Figure 6 plots the TSRST fracture stress on the vertical axis versus BBR creep stiffness on the horizontal axis.  As the temperature based on creep stiffness increases, the TSRST fracture stress decreases.  The r-squared for the trend line is 0.24.  The data are highly scattered about the trend line.

Figure 6. TSRST fracture stress vs. BBR creep stiffness.



Table 5. Low-temperature binder properties vs. TSRST using four aggregates.

Asphalt Binder  Asphalt Binder
Cracking
Temperature
After RTFO/PAV (°C)
TSRST Fracture Temperature
After 2 h of STOA at 135°C
(°C)
Tcr  BBR
S
BBR
m
Average
of Four
Mixes
Granite Granite With
Lime
Diabase Limestone
ESI -29 -32 -31 -33 -34 -29 -33 -36
Elvaloy -34 -32 -34 -31 -24 -36 -33 -33
SBS Radial Grafted -34 -32 -32 -30 -34 -26 -30 -32
Air-Blown -28 -30 -29 -28 -29 -28 -27 -30

Tcr = Critical Cracking Temperature.
S = Creep Stiffness.
m = m-value.

Table 6. Effect of aggregate type on TSRST fracture temperature after 2 h of STOA at 135°C.

Aggregate Type  Fracture Temperatures for Each Asphalt Binder (°C)
ESI
Elvaloy
SBS Radial Grafted
Air-Blown
Granite
-34 A   -24   B -34 A   -29 A
Granite With Lime
-29   B -36 A   -26   B -28 A
Diabase
-33 A   -33 A   -30 A B -27 A
Limestone
-36 A   -33 A   -32 A   -30 A
Range in Temperature
7     12     8     3

Table 7. Effect of asphalt binder on TSRST fracture temperature after 2 h of STOA at 135°C.

Aggregate Binder  Fracture Temperatures for Each Aggregate Type (°C)
Granite  Granite With Lime  Diabase  Limestone
ESI -34 A   -29   B -33 A   -36 A
Elvaloy -24   B -36 A   -33 A   -33 A
SBS Radial Grafted -34 A   -26   B -30 A B -32 A B
Air-Blown -29 A   -28   B -27   B -30   B
Range in Temperature 10     10     6     6

The replicate data for the granite and limestone mixtures are given in table 8, while the replicate data for the diabase mixtures are given in table 3. The fracture temperatures were generally more variable using the granite aggregate. The addition of hydrated lime decreased the variability of the temperatures for the mixtures with Elvaloy, SBS Radial Grafted, and the air-blown asphalt binder.

Experiment Using 2, 8, and 24 h of STOA

Table 9 provides the data for the ESI, Elvaloy, SBS Radial Grafted, and PG 70-22 asphalt binders in combination with the diabase aggregate where STOA periods of 2, 8, and 24 h were used. The STOA temperature was fixed at 135°C. These tests were conducted to determine how aging time affects the TSRST fracture temperatures of asphalt binders having the same crude source. The replicate data are given in table 3. Table 9 shows that a STOA period of 2 h provided TSRST fracture temperatures that were closest to the temperatures for the asphalt binders. If it is desirable to have the binder and mixture tests provide cracking temperatures that are close to each other, either LTOA is not needed for these mixtures, or the asphalt binders need to be aged to a greater degree. (Note: It is possible that the binder and mixture data would correlate better to each other if LTOA were to be applied to both materials, and the resulting cracking temperatures from the binder and mixture tests are not close to each other. This was not checked in this study.)

The effect of the STOA period on TSRST fracture temperature is shown in table 10. The STOA period had no effect on the fracture temperature of the mixture with the unmodified PG 70-22 asphalt binder. It did increase the fracture temperatures of the mixtures with the polymer-modified asphalt binders, although an aging period greater than 8 h was needed to show a significant effect for ESI and SBS Radial Grafted.

Table 11 presents the same data grouped according to asphalt mixture. The mixture with the PG 70-22 asphalt binder had the highest (poorest) fracture temperatures at 2 h and 8 h, but not at 24 h. The fracture temperature for this mixture was not affected by the length of the STOA period. The other mixtures performed similarly after each STOA period.

Anomaly Concerning the Definition of Fracture Temperature

Usually, the stress builds up in the TSRST beam until it breaks in half. Typical relationships between load and temperature are shown by the data for beams #2 and #3 in figure 7. However, the data from some tests have shown that the beam did not fail at the highest stress level. Data provided for beam #1 were obtained. The TSRST uses the readings from two linear variable differential transformers (LVDT) to keep the beam from contracting. The average of the two readings is kept constant over time. Quite often, the readings indicate that the beam is bending even though the average length of the beam does not change. The readings from one LVDT go in the positive direction, while the readings from the other LVDT go in the negative direction. A reason for this bending is not known, but it is probably related to the variability in mixture composition. It is also not clear why the stress in some beams starts to decrease after the peak stress is reached, but it could be due to eccentricities in bending when the beam is failing. All replicate specimens for a particular mixture generally do not show this phenomenon, so it is not related to the type of mixture alone. Because all replicates generally do not exhibit this phenomenon, the average temperatures based on complete fracture and on peak stress are usually very close to each other. The temperature based on complete fracture is rarely more than 1°C lower than the temperature based on peak stress. However, this phenomenon provided a difference of 4°C for the mixture with SBS Radial Grafted after 8 h of STOA, and a difference of 3°C for the mixture with PG 70-22 after 24 h of STOA. (See table 9.) The higher average temperatures based on peak stress are more reasonable than those based on complete failure when compared against the other TSRST fracture temperatures in table 9.

Conclusions: Diabase Mixture Study

The correlations between the TSRST fracture temperatures and the asphalt binder cracking temperatures based on Tcr, BBR creep stiffness, BBR m-value, and the BBR limiting temperature, were poor to weak. However, the correlation using Tcr was good after eliminating the data for ESI. The r2 increased from 0.54 to 0.85.

The relationship between the TSRST fracture temperature and Tcr had a slope of 1.0 and an offset is 2°C after excluding the data for ESI. Tcr provided the lower temperature. These two tests agreed with each other very well except for ESI.

The relationship between the TSRST fracture temperature and BBR limiting temperature provided a slope of 1.5. This means that a 6°C change in limiting temperature (1 PG) would provide a relatively large change of 9°C in TSRST fracture temperature. This suggests that the specification increment between the low-temperature PG's should be less than 6°C.

Grafting and polymer geometry of the EVA and SBS asphalt binders had no significant effect on their TSRST fracture temperature.

TSRST fracture stress did not correlate to TSRST fracture temperature, Tcr , creep stiffness, m-value, or the limiting temperature. A higher TSRST fracture stress does not necessarily lead to a lower TSRST fracture temperature.

Table 8. TSRST fracture temperatures for individual beams with granite and limestone.

Asphalt Mixture Designation  TSRST Fracture Temperature (°C)
Test #1  Test #2  Test #3  Test #4  s CV

Granite Aggregate

ESI -33.1 -33.8 -36.0   1.5 4.4
Elvaloy (nine tests)1  -33.0 -21.0 -23.7 -22.2 5.4 22.5
-28.3 -21.7 -16.5 -23.0
-31.8
SBS Radial Grafted2  -36.9 -23.6 -34.0 -31.8 5.7 18.4
Air-Blown (six tests)3  -43.8 -35.1 -25.9 -30.2 6.6 21.3
-27.1 -29.4

Granite Aggregate With Hydrated Lime

ESI -28.8 -26.8 -32.8   3.1 10.4
Elvaloy -34.2 -39.4 -35.9   2.6 7.3
SBS Radial Grafted -26.7 -26.0 -25.3   0.7 2.4
Air-Blown -28.2 -27.8 -27.6   0.3 1.2

Limestone Aggregate

ESI -36.8 -35.2 -36.0   0.8 2.2
Elvaloy -30.6 -34.2 -34.1   2.1 6.4
SBS Radial Grafted -32.1 -33.4 -32.1   0.8 2.5
Air-Blown -30.0 -29.2 -30.8   0.8 2.7

1If the highest and lowest temperatures are eliminated, the CV is 16.3 percent.
2If the high temperature of -23.6°C is eliminated, the CV is 12.2 percent.
3If the low temperature of -43.8°C is eliminated, the CV is 7.4 percent.

s = Standard Deviation of Fracture Temperature, °C.
CV = Coefficient of Variation, percent = (s ÷ average)*100.

Table 9. Low-temperature binder properties vs. TSRST using three STOA periods.

Asphalt Binder and Mixture Designation  Asphalt Binder Cracking Temperature After RTFO/PAV (°C)   Mixture Property
TSRST Fracture Temperature (°C)

Temp.

Tcr  BBR
S

BBR
m

2-h
STOA
8-h
STOA
24-h STOA  2 h to
24 h
ESI -29 -32 -31 -33 -32 -24 +9
Elvaloy -34 -32 -34 -33 -28 -26 +7
SBS Radial Grafted -34 -32 -32 -30 -29a  -24 +6
PG 70-22 -27 -29 -30 -24 -21 -22b  +2

aBased on peak stress. The temperature based on complete fracture was -33°C.
bBased on peak stress. The temperature based on complete fracture was -25°C.

Tcr = Critical Cracking Temperature.
S = Creep Stiffness.
m = m-value.

Table 10. Effect of STOA period on the TSRST fracture temperature of each mixture.

STOA Period at 135°C  Fracture Temperatures for Each Asphalt Mixture (°C)
ESI
Elvaloy
SBS Radial Grafted  PG 70-22
2 h -33 A   -33 A   -30 A   -24 A
8 h -32 A   -28   B -29 A   -21 A
24 h -24   B -26   B -24   B -22 A

Table 11. Effect of asphalt mixture on TSRST fracture temperature.

Asphalt Mixture  Fracture Temperatures at Each STOA Period (°C)
2 h, 135°C  8 h, 135°C  24 h, 135°C
ESI -33 A   -32 A   -24 A
Elvaloy -33 A   -28 A   -26 A
SBS Radial Grafted -30 A   -29 A   -24 A
PG 70-22 -24   B -21   B -22 A

Figure 7 plots the TSRST fracture stress on the vertical axis versus the TSRST fracture temperature on the horizontal axis for three replicate beams of the same mixture.   As the temperature decreases, the stress generally increases until failure.  Figure 4 shows that beam #2 and beam #3 broke at their peak stress.  However, the stress for beam #1 peaked at 5500 Newtons and -31 degrees Celsius, but the beam did not break in half until the stress went back to 4900 Newtons.  The temperature at complete fracture was -35 degrees Celsius.

Figure 7. Sample of data from the TSRST.



Conclusions: Aggregate Type Study

Aggregate type, and the associated changes in mixture composition, generally had no effect on the TSRST fracture temperature. The effect was only significant in three cases involving hydrated lime. Four asphalt binders were used in this part of the study: Elvaloy, ESI, SBS Radial Grafted, and an air-blown asphalt. Elvaloy with granite had a significantly higher (poorer) fracture temperature compared to the same Elvaloy asphalt binder with diabase, limestone, and granite treated with hydrated lime. This means that adding hydrated lime to the granite aggregate was beneficial. No benefit was obtained for the other three asphalt binders. The fracture temperatures of the granite mixture with and without hydrated lime were not significantly different when combined with the air-blown asphalt binder. The addition of hydrated lime increased the fracture temperatures of the mixtures with ESI and SBS Radial Grafted.

The TSRST fracture temperatures for three of the four asphalt binders used in combination with the granite aggregate were more variable from replicate to replicate specimen compared to the other aggregates. Adding hydrated lime to the granite aggregate decreased the variability of the data.

Conclusions: STOA Study

Initially, mixtures with ESI, Elvaloy, and SBS Radial Grafted had lower TSRST fracture temperatures than the mixture with the unmodified PG 70-22 asphalt binder. However, increasing the STOA period from 2 h to 24 h aged the polymer-modified asphalt binders, but not the PG 70-22 asphalt binder. The length of the STOA period had no significant effect on the latter binder. After 24 h, all four mixtures had fracture temperatures that were not significantly different. The base asphalt for each polymer-modified asphalt binder was a blend of PG 67-28 and PG 54-33. The use of these softer asphalt binders may have led to more hardening from a loss of volatiles and/or and the absorption of asphalt light ends during STOA compared to the PG 70-22 asphalt binder.

The data suggested that LTOA was not needed for the mixtures even though the asphalt binders were subjected to LTOA. A STOA period of 2 h was sufficient.

Recommendations

Determine why ESI was an outlier for the correlation between TSRST fracture temperature and Tcr. This asphalt binder was retested several times, but it remained an outlier. ESI is not currently used in practice; however, an evaluation of it may provide some insight that can be applied to other modified asphalt binders.

Evaluate the effect of hydrated lime on low-temperature mixture properties and the repeatability of the TSRST fracture temperature.

CMCRA provided one of the higher TSRST fracture temperatures. Determine whether this is related to the properties of the base asphalt. CMCRA was the only modified asphalt binder where the base asphalt was 100 percent PG 67-28. The base asphalt for all other modified asphalt binders consisted of at least 50 percent PG 54-33 asphalt binder, with the remainder being PG 67-28.

References

  1. AASHTO Provisional Standards, American Association of State Highway and Transportation Officials, Washington, D.C., April 2000 Edition.

  2. AASHTO Provisional Standards, American Association of State Highway and Transportation Officials, Washington, D.C., April 2001 Interim Edition.

  3. K. D. Stuart, W. S. Mogawer, and P. Romero, Validation of Asphalt Binder and Mixture Tests That Measure Rutting Susceptibility Using the Accelerated Loading Facility, Final Report, Publication No. FHWA-RD-99-204, Federal Highway Administration, McLean, VA, December 1999, 348 pp.

  4. "AASHTO PP2-01, Standard Practice for Mixture Conditioning of Hot-Mix Asphalt (HMA)," AASHTO Provisional Standards, American Association of State Highway and Transportation Officials, Washington, D.C., April 2001 Interim Edition.



ResearchFHWA
FHWA
United States Department of Transportation - Federal Highway Administration
