TECHBRIEF
This techbrief is an archived publication and may contain dated technical, contact, and link information
Publication Number: FHWA-HRT-06-082
Date: July 2006



Protocol to Identify Incompatible Combinations of Concrete Materials

PDF Version (334 KB)

PDF files can be viewed with the Acrobat® Reader®

Concrete Pavement Technology Program: The Concrete Pavement Technology Program (CPTP) is an integrated, national effort to improve the long-term performance and cost-effectiveness of concrete pavements. Managed by the Federal Highway Administration through partnerships with State highway agencies, industry, and academia, the CPTP's primary goals are to reduce congestion, reduce costs, improve performance, and foster innovation. The program is designed to produce user-friendly software, procedures, methods, guidelines, and other tools for use in materials selection, mix design, pavement design, construction, and rehabilitation of concrete pavements.

FHWA Contact: P eter Kopac, 202-493-3151 peter.kopac@fhwa.dot.gov

This TechBrief summarizes the findings in FHWA-HRT-06-080 Identifying Incompatible Combinations of Concrete Materials, Volume II–Test Protocol.

What Is Incompatibility?

For this project, "incompatibility" of concrete materials is defined as interactions between acceptable materials that result in unexpected or unacceptable performance. The most common problems are associated with premature stiffening (rapid slump loss) and erratic setting of concrete mixtures (flash set, false set, or delayed setting and strength gain), along with increased risk of cracking and unacceptable air void systems. Proper consolidation, finishing, texturing, and curing can also be disrupted.

Uncontrolled stiffening and setting of concrete can cause serious problems with concrete pavement construction and with other types of flatwork and structures (bridge decks, for example) where timing of finishing and texturing is critical to performance. These problems may not be noticed with formed concrete structural elements as long as the concrete is workable enough to be consolidated in place; however, for both pavements and structures, rapid stiffening may lead to honeycombing and incomplete consolidation.

The aim of this project was to develop a protocol that enables users to assess whether a given combination of materials used to make concrete for pavements is likely to exhibit such incompatibility in a given environment.

Many mechanisms and effects contribute to incompatibility. The mechanisms are complex and interrelated, and often they are temperature related. This means there is no simple method of reliably measuring the risk of incompatibility. Some test methods are suitable for indicating the risk of problems in the first 30 minutes because of aluminate and sulfate balance issues. Other tests are suitable for detecting later silicate hydration problems, while still other tests are useful for assessing other signs of distress. No test method is ideal for everything.

This protocol has been developed to provide as much information as possible during the preconstruction phase, including calibration of the more sensitive central laboratory tests with the equivalent field tests using materials likely to be used in the field and under environmental conditions likely to be experienced in the field. The work may also include preparing alternative mix proportions and practices to accommodate changes in either the environment or in the source of the materials. Field tests could be based on the more rugged tests that are regularly conducted, primarily to monitor the uniformity of the materials and the final mixture.

Most of the tests conducted in this work have some value; the extent of preconstruction and field testing need to be based on equipment availability and the relative cost of testing compared to the cost from the risk of failures. A typical example is with determining the setting time, which can be measured by up to six different techniques, any of which are acceptable. Selecting from among these different techniques should be based on other project requirements and conditions.

A relatively simple suite of field tests, conducted regularly, can provide reassurance that the concrete mixture is performing satisfactorily or warn of undesirable variability or potential incompatibility. The following tests make up this protocol:

What Has Changed?

Concrete systems, those used for paving mixtures as well as structural concrete, are progressively more complex and capable of greater performance. More types of materials, more complex material combinations, and tighter deadlines and tolerances, all at extremes of temperature, can mean that concrete mixtures are less forgiving.

What Is Happening?

The chemistry of concrete systems is complex, and a basic understanding of the reactions occurring in the systems is essential in applying the protocol. Hydraulic cementitious systems stiffen, set, and harden by a process called hydration, which is a series of nonreversible chemical reactions with water.

Two aluminate compounds, C3A and C4AF, are present in portland cement. C4AF does not contribute significantly to system performance; however, C3A reacts rapidly when mixed with water and generates a large amount of heat (figure 1) unless the reaction is controlled by the presence of sulfate. If the reaction of C3A with water is uncontrolled because there is insufficient sulfate in solution for the amount of C3A involved, then flash (or permanent) set can occur.

Calcium sulfate is added to cement as gypsum (CSH2) during grinding to control the initial reaction of C3A. During grinding, some of the gypsum is dehydrated to form plaster (CSH½). The amount of dehydration is controlled by the manufacturer to provide optimum performance of the cement; however, if the amount of dehydration is incorrect, then false (temporary) set can occur.

Use of a fly ash containing C3A may result in flash set or rapid stiffening because of insufficient sulfate to control its hydration.

Some type A water-reducing admixtures also may influence the balance between C3A and sulfates because they tend to accelerate C3A hydration. Likewise, increasing temperatures accelerate the chemical reactions and also increase the risk of uncontrolled stiffening if marginally balanced materials are in use. Other contributors to potential risks are very finely ground cements, high alkali content in the system, and very low water-to-cementitious materials ratios.

All of these reactions and changes occur within the first 15 to 30 minutes after mixing, which has implications for concrete paving that uses nonagitating transporters. Even when agitators or truck mixers carry the concrete to the paver, the delivery time may be so short that there may not be an opportunity to work through a false set if it occurs. On longer deliveries for structures or flatwork, early stiffening may be less evident, but it may cause the addition of excessive water to the concrete delivered in a truck mixer.

One of the hydration products of the silicates (C2S and C3S) in cement is calcium silicate hydrate (CSH), which is the primary contributor to concrete strength, durability, and the heat of hydration (figure 1). The silicates start to react 2 to 4 hours after mixing, when calcium reaches supersaturation in the mix solution. These reactions lead to setting and strength gain. If too much calcium has been consumed during earlier, uncontrolled C3A reactions, then setting may be delayed. In addition, the same type A water-reducing admixtures that accelerate C3A reactions may retard silicate reactions, also potentially adding to the delay. Low temperatures also will slow the hydration process.

Figure 1. Graph. Reactions that occur in hydrating cement, the times they occur, the heat they generate, and the effects on stiffening and setting. The upper half of the figure is a grid chart marked to demonstrate the growth in strength development. Four vertical lines across the graph indicate working time, point of initial set, point of the final set, and point of sulfate depletion (ettringite to monosulfate conversion). A timeline marked in segments from zero to 24 hours represents the time of hydration in hours. the Y-axis, labeled joules per gram per hour, is numbered from zero to 25. The horizontal axis refers to the time of hydration. A wavy line across the graph indicates that working time starts at approximately 20 joules per gram per hour and drops quickly to 0 after about 1 hour. The temperature remains there until approximately 5 hours later when it begins a gradual rise to nearly 10 joules per gram per hour. The initial set is marked at 7 hours. The final set takes place just before the temperature peaks at about 12 hours. Temperature slowly decreases and the line leaves the chart at 4 joules per gram per hour at 24 hours. The point of sulfate depletion occurs between 16 and 18 hours.

It is possible that both accelerated C3A (uncontrolled stiffening) and delayed silicate reactions (delayed setting) can occur in the same mix.

The effects of rapid stiffening on paving will be a mixture that may be delivered with an acceptable workability, but will stiffen up in the paving machine, leading to poor consolidation and difficulties with finishing and texturing.

Delayed setting significantly increases the risk of plastic shrinkage cracking, and makes it difficult to get the saw-cutting of joints completed at the right time. For concrete delivered in truck mixers, more water may have to be added before discharge for either paving or structural applications.

How Do I Prevent These Problems?

Although there is no silver bullet for preventing these problems, careful evaluation of the materials before construction starts will indicate potential problems and help develop guidelines on what to change if problems occur. The evaluation tests should be conducted over the range of likely temperatures and using the range of likely materials quantities and dosage rates of admixtures.

The aim of conducting preconstruction tests is to evaluate the sensitivity of the proposed system to variations in materials composition and in the environment. This will allow for selection of alternative materials in advance or for preparation of action plans to be implemented if such changes are observed in the field. The work also will provide calibration between field- and laboratory-based tests, and give guidance on the limits appropriate for the materials likely to be used and conditions likely to be encountered.

Before any physical tests are conducted, a review of the chemistry of the reactive materials is recommended. Fine cementitious materials with high C3A or low sulfate contents, or both, may be at risk, as will fly ashes with high calcium oxide contents. Sugar and triethanolamine-based water-reducing admixtures may increase the risk of problems, especially if the concrete is to be placed at elevated temperatures.

Paste– and mortar–based laboratory tests, including the minislump test and the American Society for Testing and Materials (ASTM) C 359 mortar stiffening test, indicate whether aluminate-based incompatibilities are occurring. Tests flagging silicate reaction problems in paste and mortar include parallel-plate rheology, setting time, and isothermal calorimetry. If the paste and mortar tests indicate potential problems, then concrete mixtures should be made and tested for slump loss, semiadiabatic temperature curve, and setting time.

If problems are still likely in the field, then adjust any of the following: supplementary cementitious material (SCM) type, source, or quantity; chemical admixture type or dosage; batching sequence; and mix temperature. If time and budget allow, a series of mixtures can be run to indicate the range of variability that can be accommodated. The best corrective action can then be implemented when field problems occur or appear likely.

Field tests during construction should aim to confirm that the materials being delivered are uniform and similar to those used in the preconstruction tests. Significant variations as indicated by control charts should flag that the mixture is performing in the same way that it has previously, and that changes to mix proportions or construction practices may be necessary.

Field tests would include monitoring chemical reports for the delivered reactive materials, measuring and tracking for concrete slump, slump loss at different times after mixing, semiadiabatic temperature curve, and setting time. These results then can be compared with the preconstruction data and monitored for drift.

Not all of these tests are available in all laboratories, and some are more expensive than others. The decision about which suite of tests to run is largely governed by the balance of costs and risks. A large, high-profile project with significant penalties is going to require more tests than a small urban repair.

The protocol is summarized in the following flow charts (figures 2 and 3). The charts also address potential incompatibilities that may be exhibited as excessive cracking, or problems with the air void system.

Figure 2. Flow chart. Protocol flow chart, preconstruction stage. The title box of this flow chart for the preconstruction stage says: Review chemistry of reactive materials: Cement: C 3 A and alkali content, fineness; S C M: calcium and alkali content, loss-on-ignition (L O I); Chemical admixtures: composition. This flows to a box called potential problems. Three areas potential problems areas are identified: stiffening, cracking, and air void system. Under stiffening, five select tests are listed: Setting time, temperature development, minislump/concrete slump loss, rheology, and stiffening (A S T M C 359). Four select tests are listed under cracking: setting time, strength development, ring test, and temperature development. Five select tests are listed under air void system: foam index, foam drainage, air void analyzer (A V A), hardened air, and clustering. These tests lead to the next step, which is to vary the following to assess risks of problems and potential mitigation methods. For stiffening, the lists of things to vary reads: change fly ash (source, type or dosage), change chemical admixture (type or dosage), change batching sequence, change concrete temperature (e.g., through planning to work at night), use a set retarder, contact the cement supplier regarding the sulfate form in the system. Under air void system, the list is: change supplementary cementitious material (type or source), change SCM proportions, use retarding/accelerating admixtures; dosage may have to be optimized, change concrete temperature, select a cement with a different chemistry. Under cracking, the list states: change air-entraining admixture (type or dosage), change chemical admixture (type, formulation, or dosage), change batching sequence, refrain from adding water after initial mixing, change supplementary cementitious material, change SCM dosage, select a cement with a different chemistry, change concrete temperature. The last box in the flow chart is the final step. It states: provide guidelines on actions to take if temperature changes, materials change, or problems occur.
Figure 2: Protocl flow chart, preconstruction stage.

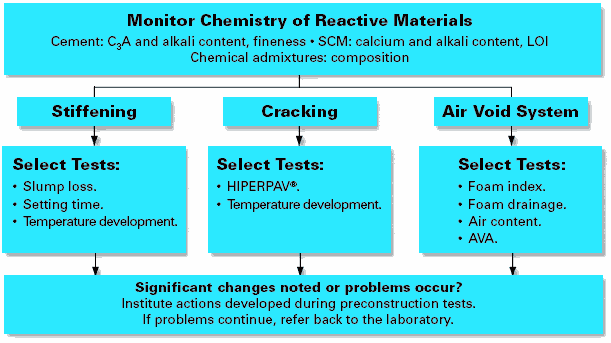

Figure 3. Flow chart. Protocol flow chart, construction stage. The title box for this construction stage flow chart says: Monitor chemistry of reactive materials: Cement: C subscript 3 A and alkali content, fineness; S C M: calcium and alkali content, L O I; Chemical admixtures: composition. The first row of boxes are the same as in figure 3: stiffening, cracking, and air void system. Under stiffening there are three select tests: slump lost, setting time, and temperature development. Under cracking, the test are Hiperpav and temperature development. Under air void systems, the tests are foam index, foam drainage, air content and A V A. The arrows from all these boxes lead to the last box noting what to do if significant changes are noted or problems occur. Institute actions developed during preconstruction tests. If problems continue, refer back to the laboratory.
Figure 3: Protocol flow chart, construction stage.

Notes:

Researchers–This study was performed by CTLGroup, Skokie, IL.

Distribution–This TechBrief is printed with direct distribution being made to the Divisions and Resource Center. Printed copies can be obtained from the FHWA Product Distribution Center by e-mail to report.center@fhwa.dot.gov, by fax to 301-577-1421, or by phone to 301-577-0818. Electronic copies are available on the Turner-Fairbank Highway Research Center Web site. To download this TechBrief, go to www.tfhrc.gov.

Availability–The report Identifying Incompatible Combinations of Concrete Materials, Volume II–Test Protocol (FHWA-HRT-06-080), which is the subject of this TechBrief, will be available in July 2006. A printed copy of the report is available at the FHWA Product Distribution Center by e-mail to report.center@fhwa.dot.gov, by fax to 301-577-1421, or by phone to 301-577-0818. An electronic copy is available at the Turner-Fairbank Highway Research Center Web site. To download the report, go to www.tfhrc.gov.

Key Words–Cement, fly ash, slag, incompatibility, admixture, early stiffening, cracking, air void system.
