Review of The Long-Term Pavement Performance (LTPP) Backcalculation Results

Appendix A

This appendix consists of charts showing the screening results of the section average backcalculation data.

Click for text description.

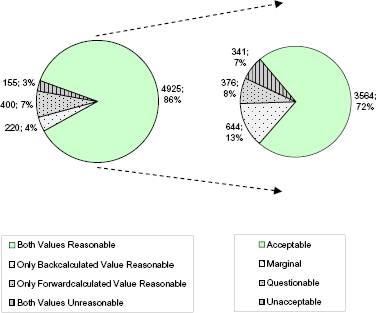

Figure 55. Charts. Screening results of section average elastic moduli of the asphalt concrete layer for the flexible sections in the MON_DEFL_FLX_BAKCALC_SECT table based on the linear elastic model.

Click for text description.

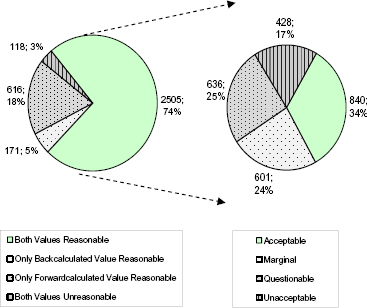

Figure 56. Charts. Screening results of section average elastic moduli of the base layer for the flexible sections in the MON_DEFL_FLX_BAKCALC_SECT table based on the linear elastic model.

Click for text description.

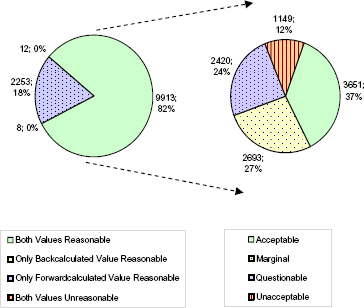

Figure 57. Charts. Screening results of section average elastic moduli of the subgrade for the flexible sections in the MON_DEFL_FLX_BAKCALC_SECT table based on the linear elastic model.

Click for text description.

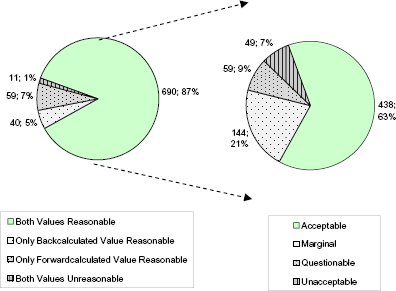

Figure 58. Charts. Screening results of section average elastic moduli of the asphalt concrete layer for the flexible sections in the MON_DEFL_FLX_BAKCALC_SECT table based on the nonlinear elastic model.

Click for text description.

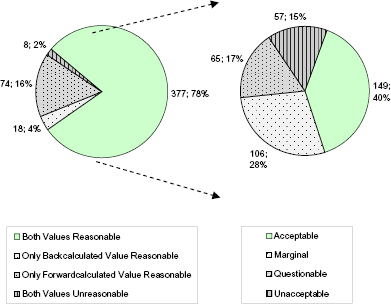

Figure 59. Charts. Screening results of the section average elastic moduli of the base layer for the flexible sections in the MON_DEFL_FLX_BAKCALC_SECT table based on the nonlinear elastic model.

Click for text description.

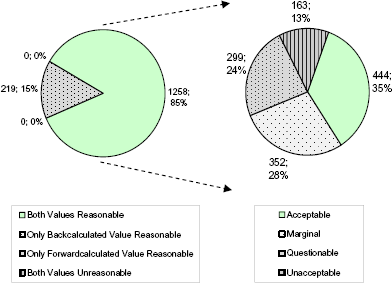

Figure 60. Charts. Screening results of the section average elastic moduli of the subgrade for the flexible sections in the MON_DEFL_FLX_BAKCALC_SECT table based on the nonlinear elastic model.

Click for text description.

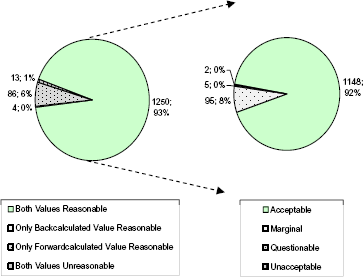

Figure 61. Charts. Screening results of the section average elastic moduli of the PCC slab for the rigid sections in the MON_DEFL_FLX_BAKCALC_SECT table based on the linear elastic model using MODCOMP.

Click for text description.

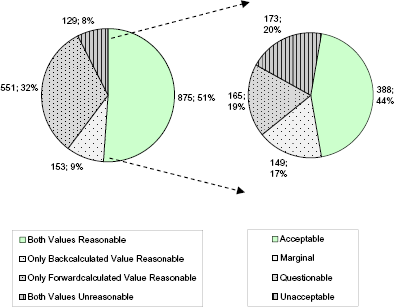

Figure 62. Charts. Screening results of the section average elastic moduli of the base layer for the rigid sections in the MON_DEFL_FLX_BAKCALC_SECT table based on the linear elastic model using MODCOMP.

Click for text description.

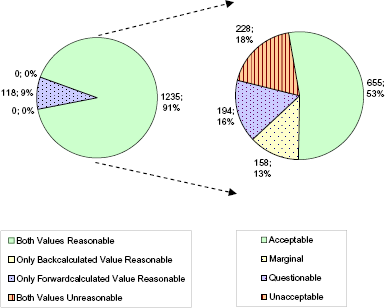

Figure 63. Charts. Screening results of the section average elastic moduli of the subgrade for the rigid sections in the MON_DEFL_FLX_BAKCALC_SECT table based on the linear elastic model using MODCOMP.

Click for text description.

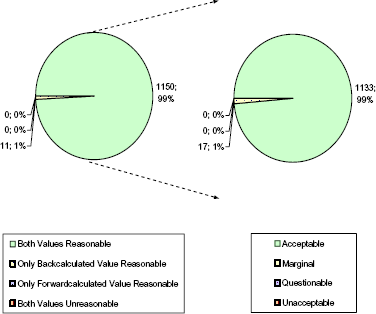

Figure 64. Charts. Screening results of the section average elastic moduli of the PCC slab for the rigid sections in the MON_DEFL_RGD_BAKCALC_SECT table based on the slab-on-elastic-solid model.

Click for text description.

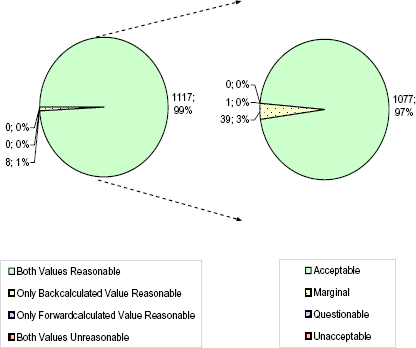

Figure 65. Charts. Screening results of the section average elastic moduli of the PCC slab for the rigid sections in the MON_DEFL_RGD_BAKCALC_SECT table based on the slab-on-dense-liquid model.

Click for text description.

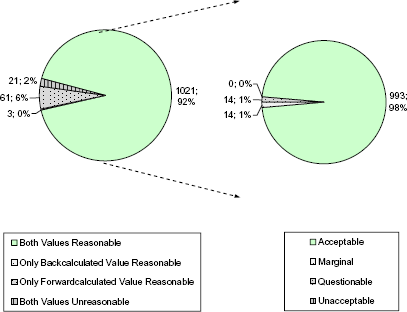

Figure 66. Charts. Screening results of the section average elastic moduli of the base layer for the rigid sections in the MON_DEFL_RGD_BAKCALC_SECT table based on the slab-on-elastic-solid model.

Click for text description.

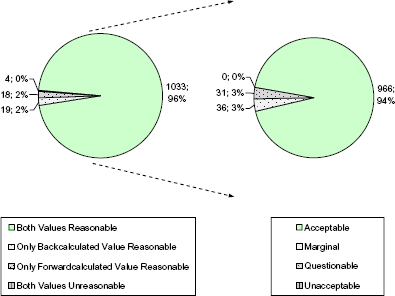

Figure 67. Charts. Screening results of the section average elastic moduli of the base layer for the rigid sections in the MON_DEFL_RGD_BAKCALC_SECT table based on the slab-on-dense-liquid model.

Click for text description.

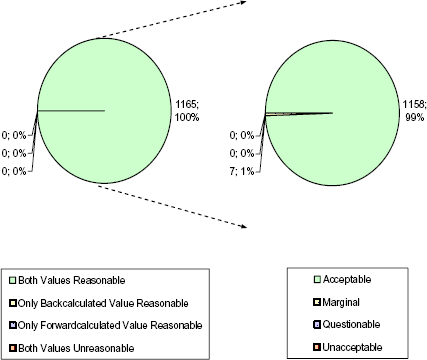

Figure 68. Charts. Screening results of the section average elastic moduli of the subgrade for the rigid sections in the MON_DEFL_RGD_BAKCALC_SECT table based on the slab-on-elastic-solid model.

Click for text description.

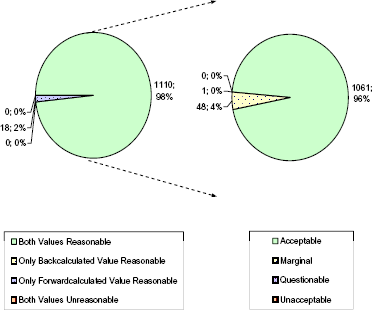

Figure 69. Charts. Screening results of the section average k-values of the subgrade for the rigid sections in the MON_DEFL_RGD_BAKCALC_SECT table based on the slab-on-dense-liquid model.
