Rehabilitation of Asphalt Concrete Pavements: Initial Evaluation of The SPS-5 Experiment-Final Report

Chapter 5. Analysis of Early Performance Observations

This chapter provides an evaluation of early observations based on initial performance data and identifies performance differences both within and between the SPS-5 projects, but it is not intended to be a comprehensive analysis of the experiment. Appendix A includes a summary of the amount of distress and performance data that had been collected at each of the 18 SPS-5 sites as of the time of this report.

GRAPHIC COMPARISON FROM TIME-SERIES DATA

Six performance indicators were reviewed initially to evaluate potential differences between the test sections (both within and between projects) and to identify performance trends from the early observations. These performance and structural response indicators included fatigue cracking, rutting, longitudinal cracking in and outside the wheel path, transverse cracking, IRI, and deflections measured by sensors 1 and 7.

The time-series data were plotted to observe trends for each of the monitoring data elements. The examples in figures 10 through13 compare the performance of the test sections for the different experimental factors for all of the SPS-5 projects (between-project differences). Figure 10 compares the total fatigue cracking for those sections with and without RAP in the HMA overlay mixture; figures 11 and 12 compare the total length of transverse cracks and rut depths for those sections with different surface preparations (defined as minimum and intensive). Figure 13 compares the IRI values for all SPS-5 projects for the existing pavements in different categories (fair and poor). As shown, a wide range of the performance indicators existed within the projects, making it difficult to identify any effect of the key experimental factors on performance. There also was extensive variability between the replicate projects within the same cell, making any graphic comparison difficult to interpret.

Time-series data were also plotted for individual projects to observe and evaluate trends between test sections of the same project and identify possible anomalies in performance data. Examples of the time-series distress data plots are shown in figures 14 through 19 for the Manitoba project. As shown, the data were variable and, more important, many of the distresses abruptly increased and decreased with time. Similar graphic comparisons of the individual test sections within a project were prepared for all other SPS-5 projects.

Examples of these inconsistent time-series data are provided in figures 20 through 24. Figures 20 and 21 show a significant decrease in fatigue cracking for the California and Colorado projects. For the California project (figure 20), the areas of fatigue cracking did not decrease for all test sections, whereas in Colorado (figure 21), the area of fatigue cracking for all test sections significantly decreased, suggesting that some type of maintenance may have been performed.

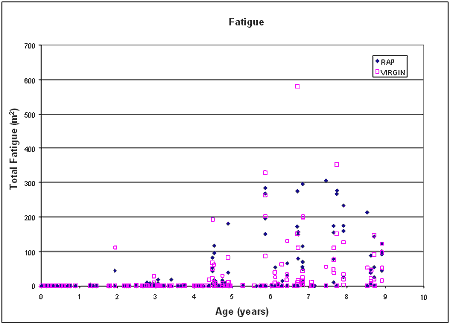

Figure 10. Graph. Fatigue cracking measured over time for the SPS-5 projects for those sections with HMA overlay mixtures with and without RAP.

Graph. Fatigue cracking measured over time for the S P S-5 projects for those sections with H M A overlay mixtures with and without R A P. This figure is a time plot of the fatigue cracking in virgin parenthesis square dots close parenthesis and recycled parenthesis diamond dots close parenthesis asphalt overlays in the S P S-5 sections. The Y axis is fatigue cracking in square meters, while the X axis is the age of the section in years. Both the square and diamond dots appear to be right-skewed normally distributed with peaks close to 7 years old. The square dot distribution has a higher peak than the diamond dot distribution does.

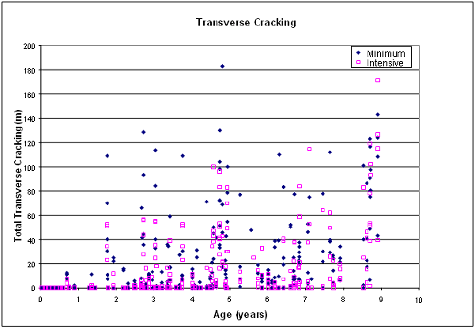

Figure 11. Graph. Total transverse cracking measured along the SPS-5 projects over time or age for those sections with minimum and intensive surface preparation.

Graph. Total transverse cracking measured along the S P S-5 projects over time or age for those sections with minimum and intensive surface preparation. This figure is a time plot of the transverse cracking in the S P S-5 sections with minimum parenthesis diamond dots close parenthesis and intensive parenthesis square dots close parenthesis surface preparation. The Y axis is transverse cracking in meters, while the X axis is the age of the section in years. Both the diamond and square dots appear to be undulating with increasing trends. The diamond dot distribution appears to be higher than the square dot distribution in the first five years, but the position is switched for the last five years.

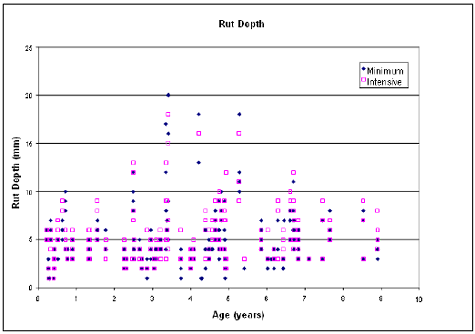

Figure 12. Graph. Rut depths measured over time for the SPS-5 projects for those sections with minimum and intensive surface preparation.

Graph. Rut depths measured over time for the S P S-5 projects for those sections with minimum and intensive surface preparation. This figure is a time plot of the rut depth in the S P S-5 sections with minimum parenthesis diamond dots close parenthesis and intensive parenthesis square dots close parenthesis surface preparation. The Y axis is rut depth in millimeters, while the X axis is the age of the section in years. Both the diamond and square dots appear to be normally distributed with means close to 4 years. The diamond dot distribution appears to be higher than the square dot distribution.

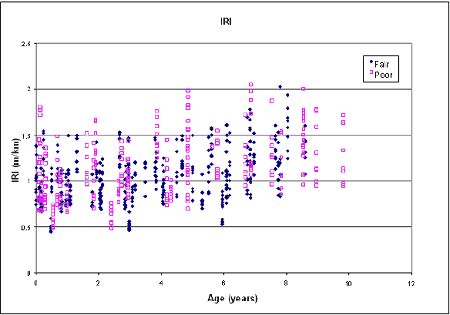

Figure 13. Graph. IRI measured over time for the SPS-5 projects for existing pavements in the fair and poor categories.

Graph. I R I measured over time for the S P S-5 projects for those existing pavements in the fair and poor categories. This figure is a time plot of the International Roughness Index parenthesis I R I close parenthesis measured in the S P S-5 sections with pre-overlay existing pavements in the fair parenthesis diamond dots close parenthesis and poor parenthesis square dots close parenthesis categories. The Y axis is I R I in meters per kilometer, while the X axis is the age of the section in years. Both the diamond and square dots appear to be undulating with increasing trends. The square dot distribution appears to be higher than the diamond dot distribution as aging increases.

Figure 14. Graphs. Longitudinal cracking outside the wheel path time-series for the Manitoba project.

Graphs. Longitudinal cracking outside the wheel path time-series for the Manitoba project. This figure contains two graphs showing the time-plot of longitudinal non-wheel path cracking for the Manitoba, Canada, S P S-5 non-milled and milled sections constructed on September 12, 1989. The Y axis is the longitudinal non-wheel path cracking in meters. The X axis is the survey date. The top graph is for the non-milled sections, while the bottom graph is for the milled sections. In both graphs, five time series go up in the middle time range and go down in the end time range.

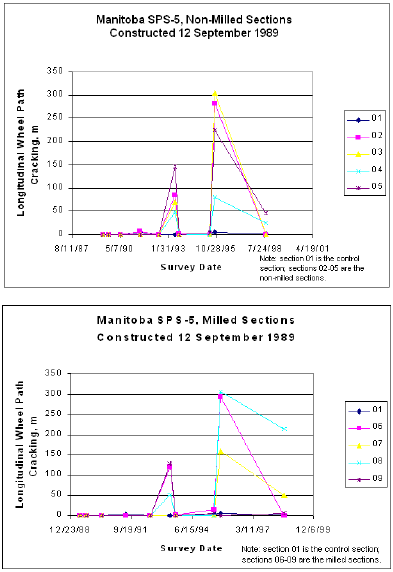

Figure 15. Graphs. Longitudinal cracking within the wheel path time-series data for the Manitoba project.

Graphs. Longitudinal cracking within the wheel path time-series data for the Manitoba project. This figure contains two graphs showing the time-plot of longitudinal within wheel path cracking for the Manitoba, Canada, S P S-5 non-milled and milled sections constructed on September 12, 1989. The Y axis is the longitudinal within wheel path cracking in meters. The X axis is the survey date. The top graph is for the non-milled sections while the bottom graph is for the milled sections. In both graphs, five time series appear to be bimodal.

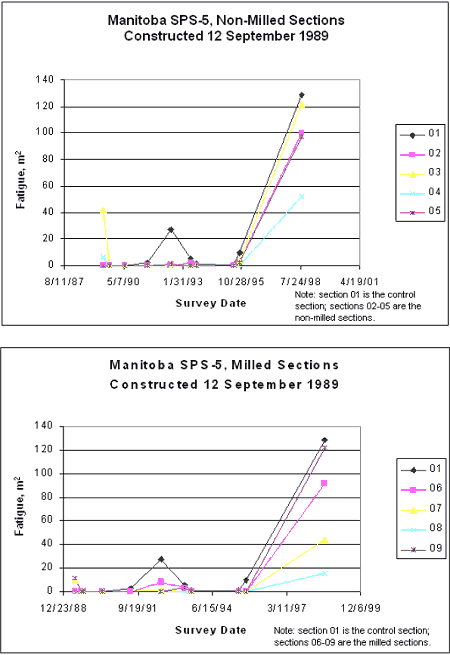

Figure 16. Graphs. Fatigue cracking time-series for the Manitoba project.

Graphs. Fatigue cracking time-series for the Manitoba project. This figure contains two graphs showing the time-plot of fatigue cracking for the Manitoba, Canada, S P S-5 non-milled and milled sections constructed on September 12, 1989. The Y axis is the fatigue cracking in square meters. The X axis is the survey date. The top graph is for the non-milled sections, while the bottom graph is for the milled sections. In both graphs, five time series go flat in the beginning and go up after certain time point.

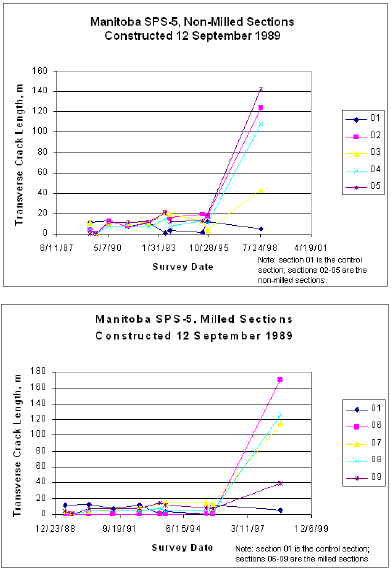

Figure 17. Graphs. Transverse crack length time-series data for the Manitoba project.

Graphs. Transverse crack length time-series data for the Manitoba project. This figure contains two graphs showing the time-plot of transverse crack length for the Manitoba, Canada, S P S-5 non-milled and milled sections constructed on September 12, 1989. The Y axis is the transverse crack in meters. The X axis is the survey date. The top graph is for the non-milled sections, while the bottom graph is for the milled sections. In both graphs, five time series go flat in the beginning and go up after certain time point.

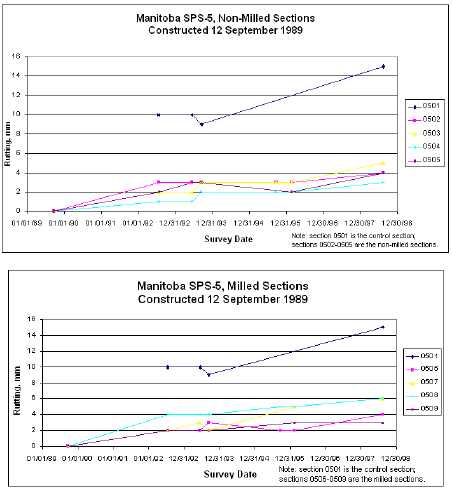

Figure 18. Graphs. Rut depths for the Manitoba project.

Graphs. Rut depths for the Manitoba project. This figure contains two graphs showing the time-plot of rut depth for the Manitoba, Canada, S P S-5 non-milled and milled sections constructed on September 12, 1989. The Y axis is the rut depth in meters. The X axis is the survey date. The top graph is for the non-milled sections, while the bottom graph is for the milled sections. In both graphs, five time series go flat in the beginning and go up after certain time point.

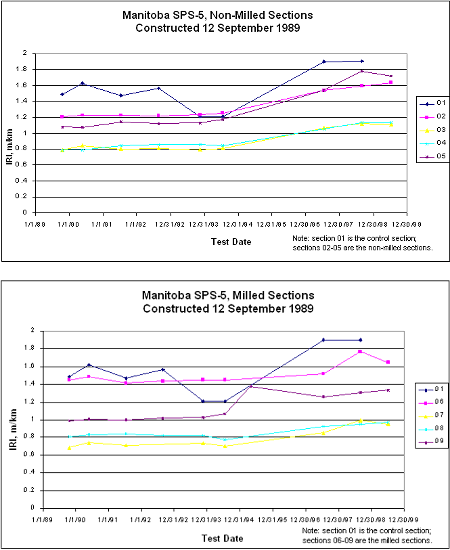

Figure 19. Graphs. IRI values for the Manitoba project.

Graphs. I R I values for the Manitoba project. This figure contains two graphs showing the time-plot of I R I for the Manitoba, Canada, S P S-5 non-milled and milled sections constructed on September 12, 1989. The Y axis is the I R I in meters per kilometer. The X axis is the survey date. The top graph is for the non-milled sections, while the bottom graph is for the milled sections. In both graphs, five time series go flat in the beginning and go up after certain time point.

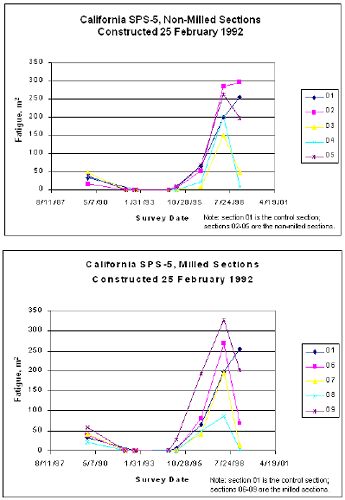

Figure 20. Graphs. Fatigue cracking time-series data for the California project.

Graphs. Fatigue cracking time-series data for the California project. This figure contains two graphs showing the time-plot of fatigue cracking for the California S P S-5 non-milled and milled sections constructed on February 25, 1992. The Y axis is the fatigue cracking in square meters. The X axis is the survey date. The top graph is for the non-milled sections, while the bottom graph is for the milled sections. In both graphs, five time series go flat in the beginning, go up after certain time point, and then drop off.

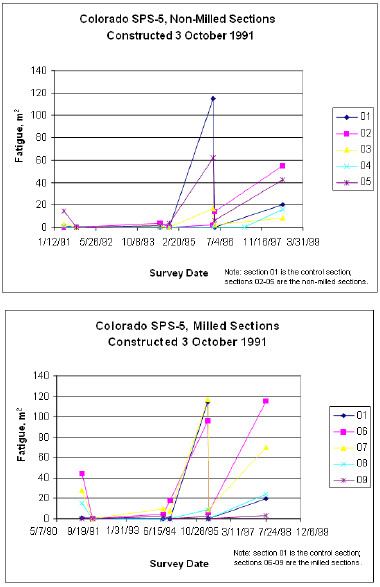

Figure 21. Graphs. Fatigue cracking time-series data for the Colorado project.

Graphs. Fatigue cracking time-series data for the Colorado project. This figure contains two graphs showing the time-plot of fatigue cracking for the Colorado S P S-5 non-milled and milled sections constructed on October 3, 1991. The Y axis is the fatigue cracking in square meters. The X axis is the survey date. The top graph is for the non-milled sections, while the bottom graph is for the milled sections. In both graphs, five time series go flat in the beginning and go up after certain time point.

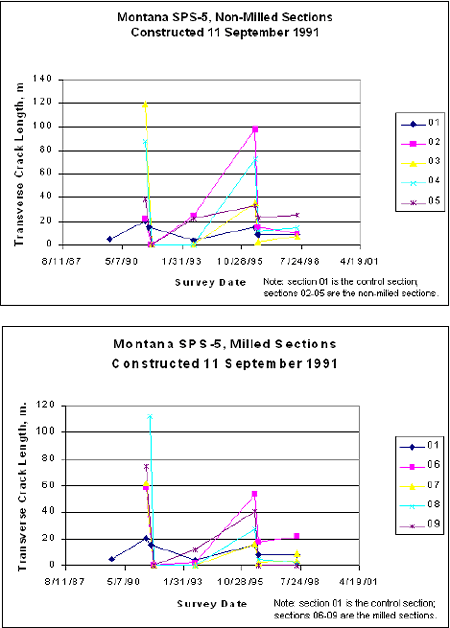

Figure 22. Graphs. Transverse crack length time-series data for the Montana project.

Graphs. Transverse crack length time-series data for the Montana project. This figure contains two graphs showing the time-plot of transverse crack length for the Montana S P S-5 non-milled and milled sections constructed on September 11, 1991. The Y axis is the transverse crack in meters. The X axis is the survey date. The top graph is for the non-milled sections, while the bottom graph is for the milled sections. In both graphs, five time series go flat in the beginning and go up after certain time point.

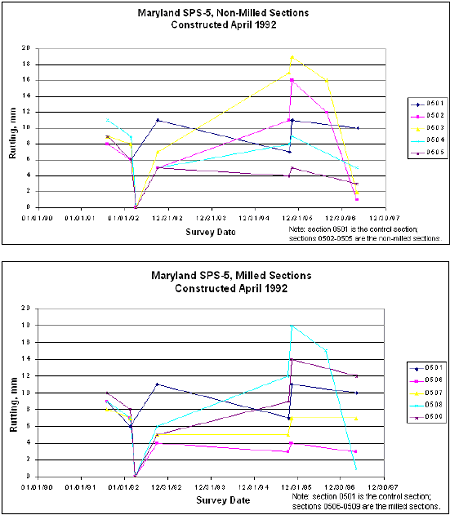

Figure 23. Graphs. Rut-depth time-series data for the Maryland projects.

Graphs. Rut-depth time-series data for the Maryland projects. This figure contains two graphs showing the time-plot of rut depth for the Maryland S P S-5 non-milled and milled sections constructed in April 1992. The Y axis is the rut depth in meters. The X axis is the survey date. The top graph is for the milled sections, while the bottom graph is for the non-milled sections. In both graphs, five time series undulate as time increases.

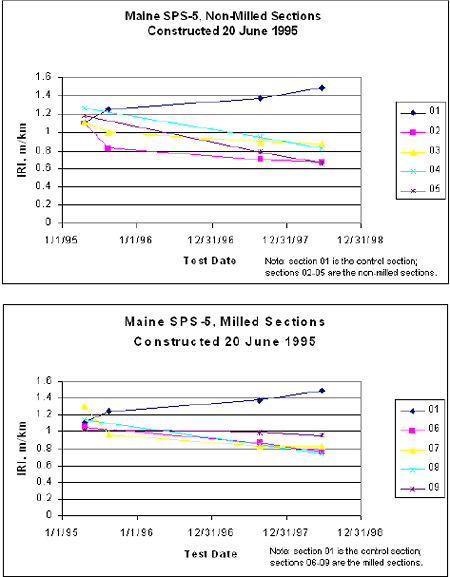

Figure 24. Graphs. IRI value time-series data for the Maine project.

Graphs. I R I value time-series data for the Maine project. This figure contains two graphs showing the time-plot of I R I for the Maine S P S-5 non-milled and milled sections constructed on June 20, 1995. The Y axis is the I R I in meters per kilometer. The X axis is the survey date. The top graph is for the non-milled sections, while the bottom graph is for the milled sections. In both graphs, five time series fan out as time increases.

Figure 22 also shows a substantial decrease in the total length of transverse cracks for all test sections in Montana. Figure 23 shows a slight but abrupt increase in the rut depths for all test sections in Maryland, and then a substantial decrease in rut depth for selected test sections of that project. Figure 24 shows a continual decrease in the IRI values for all test sections in Maine except the control section.

This decrease in the magnitudes of the individual distresses (or inconsistent time-series data) is probably related to differences in the distress interpretation between different surveyors and measurement error, or possible maintenance applications that were not recorded in the database. In either case, these inconsistent trends severely complicate graphical comparisons and other analyses based on early distress observations. Thus, four specific distresses were used to evaluate early performance trends from the experiment: fatigue cracking, transverse cracking, rut depths, and IRI.

Table 19 tabulates the percentage of core test sections with distress magnitudes that can be used in comparative studies and in future calibration and validation studies of distress prediction models. About 25 percent of the core test sections exhibited distress magnitudes that exceed the "minimum value" for each of the four distresses. The following discussion provides a brief overview of the four major distress types or performance indicators.

Table 19. Percentage of the SPS-5 test sections with distress magnitudes exceeding the value noted.
Performance Indicator Distress Magnitude
Minimal Value
Core Test Sections Exceeding Minimal Value
Percentage of Sections Number of Sections
Fatigue cracking >25 m2 25.735
Transverse cracking> 9 m43.459
Rut depth >7 mm22.831
IRI>1.4 m/km25.034

Note: The above table excludes all of the control test sections.

Fatigue Cracking

Fatigue cracking occurred on many test sections, but more frequently at older projects. In fact, projects less than 7.3 years old had little to no fatigue cracking, while those in service for more than 7.3 years had extensive fatigue cracking. Table 20 lists the average area of fatigue cracking observed at each project and the age of that project. Figure 25 is a graphic illustration of that data—the average area of fatigue cracking and the total number of test sections with fatigue cracking at a project. The average area of fatigue cracking was consistently less for younger projects. In general, all negative performance indicators increased with age.

Table 20. Summary of the average area of fatigue cracking observed at each project.
ProjectAge, years Fatigue Cracking of the Control Section, m2 Average Area of Fatigue Cracking, m2 Number of Sections with Fatigue Cracking
Missouri 0.00.00.00
Oklahoma 2.10.00.00
New Mexico 2.90.00.00
Maine 4.10.00.00
Florida 4.30.00.00
Georgia 6.20.00.00
New Jersey 7.0193.71.73
Maryland 7.270.01.52
California 7.3254.7104.68
Alabama 7.7248.616.14
Texas 7.85.10.00
Colorado 7.919.997.18
Montana 8.00.0131.06
Minnesota 8.90.00.00
Mississippi 8.929.260.17
Alberta 8.91.833.88
Arizona 9.266.645.02
Manitoba 10.0129.080.88

Figure 26 shows the average area of fatigue cracking for each project over time. The area of fatigue cracking increased with age (or traffic), as expected. The California, Colorado, and Montana projects had the greatest areas of fatigue cracking, while the Texas and Minnesota projects had no fatigue cracking at about the same age. To explain the differences between these projects requires that the traffic and materials data be available.

Transverse Cracking

Transverse cracking occurred on all but four of the SPS-5 projects—Florida, Georgia, Maine,and Missouri—all of which were less than 7 years old. Most projects that were older than 7 years exhibited at least moderate levels of transverse cracking, even including those in a no-freeze climate. For example, the Arizona, Mississippi, and Texas projects had extensive lengths of transverse cracking.

Table 21 lists the average length of transverse cracks for each project. Figure 27 is a graphic illustration of that data—the average length of transverse cracks and the total number of test sections with transverse cracks at a project. The length of transverse cracks increased with age.

Figure 28 shows the average length of transverse cracks with time for each project (time-series data). The average length of transverse cracks significantly increased and decreased with time for some projects. This extensive variability complicates any interpretation of the graphic comparisons. Materials data for each mixture are needed to determine the reasons for the extensive cracking in some warmer climates.

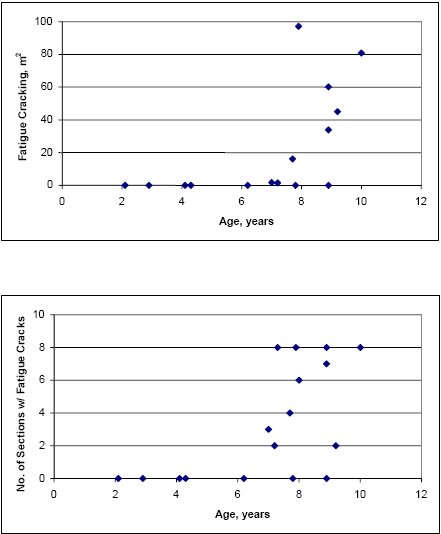

Figure 25. Graphs. Fatigue cracking observed on each project as of January 2000.

Graphs. Fatigue cracking observed on each project as of January 2000. This figure contains two graphs showing the time-plot of fatigue cracking for the S P S-5 sections constructed as of January 2000. In the top graph, the Y axis is the fatigue cracking in square meters. In the bottom graph, the Y axis is the number of sections with fatigue cracks. In each graph, the X axis is age in years. In both graphs, data points peak and concentrate in the age between 6 and 10 years.

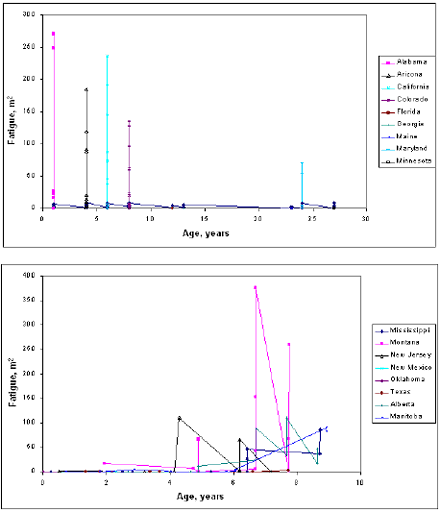

Figure 26. Graphs. Average area of fatigue cracking for each project over time.

Graphs. Average area of fatigue cracking for each project over time. This figure contains two graphs showing the time-plot of fatigue cracking for the S P S-5 sections constructed. The top graph shows the fatigue cracking in square meters versus age, in years, for the sections in Alabama, Arizona, California, Colorado, Florida, Georgia, Maine, Maryland, and Minnesota. The bottom graph shows the fatigue cracking in square meters versus age, in years, for the sections in Mississippi, Montana, New Jersey, New Mexico, Oklahoma, Texas, Alberta, and Manitoba. In both graphs, data points undulate as time increases.

Table 21. Summary of the average length of transverse cracks observed at each project.
ProjectAge, yearsAverage Length of Transverse Cracks, mNumber of Sections with Transverse Cracks
Missouri0.00.00
Oklahoma2.13.90
New Mexico2.90.51
Maine4.10.00
Florida4.30.00
Georgia6.20.00
New Jersey7.011.46
Maryland7.219.87
California7.334.08
Alabama7.71.32
Texas7.815.16
Colorado7.917.18
Montana8.012.37
Minnesota8.992.08
Mississippi8.955.18
Alberta8.934.38
Arizona9.224.45
Manitoba10.0108.78

Rut Depths

Rut depths exceeding 7 mm were measured on eight projects: Arizona, Alberta, Manitoba, Maryland, Mississippi, Montana, Oklahoma, and Texas. However, on half of these projects only one or two of the test sections had rut depths exceeding 7 mm. The four projects where most of the test sections exceeded rut depths of 7 mm were Maryland, Mississippi, Montana, and Oklahoma. In all probability, rut depths measured along these four projects were more related to the HMA mixture characteristics and properties than to any key factor included in the experiment. Table 22 lists the average rutting measured on each project. All projects were in extremely different climates.

Smoothness—IRI Values

Table 22 lists the average IRI values for each project and the percentage of test sections within each project that exceeded an IRI value of 1.2 m/km. Most projects with IRI values exceeding 1.2 m/km were older than 7 years, with the exception of the Alabama project. These were the same test sections that had extensive transverse and fatigue cracking. Transverse and fatigue cracking probably caused the increased roughness (increased IRI values) at these sites. In fact, the authors found in previous studies that the IRI is related to the standard deviation of the rut depth, transverse cracking, fatigue cracking, and other distresses.(10) Thus, there are interactions among the performance measures that should be considered in future studies using data from this experiment.

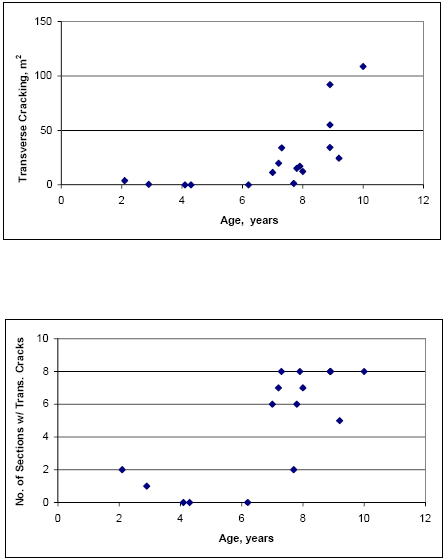

Figure 27. Graphs. Length of transverse cracks observed on each project as a function of time.

Graphs. Length of transverse cracks observed on each project as a function of time. This figure contains two graphs showing the time-plot of transverse cracking for the S P S-5 sections. In the top graph, the Y axis is the transverse cracking in meters. In the bottom graph, the Y axis is the number of sections with transverse cracks. In each graph, the X axis is age in years. In both graphs, data points peak and concentrate in the age between 6 and 10 years.

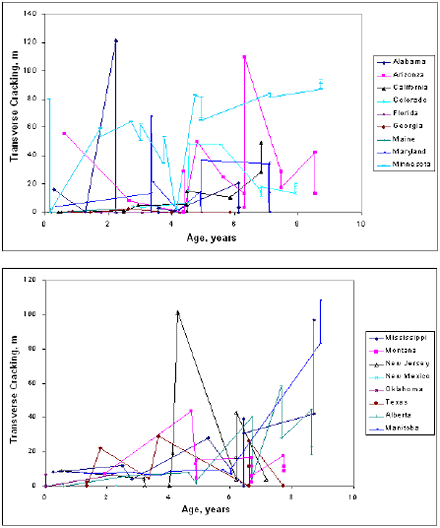

Figure 28. Graphs. Average length of transverse cracking for each project over time.

Graphs. Average length of transverse cracking for each project over time. This figure contains two graphs showing the time-plot of transverse cracking for the S P S-5 sections constructed. The top graph shows the fatigue cracking in meters versus age, in years, for the sections in Alabama, Arizona, California, Colorado, Florida, Georgia, Maine, Maryland, and Minnesota. The bottom graph shows the fatigue cracking in meters versus age for the sections in Mississippi, Montana, New Jersey, New Mexico, Oklahoma, Texas, Alberta, and Manitoba. In the top graph, data points have no evident pattern. In the bottom graph, the peaks increase somewhat at the age in years increases

Table 22. Average rut depths and IRI values measured on each project.
Project Age, years Rut Depths, mm IRI, m/km
Control Section Average Rutting on Project Percentage of Test Sections Exceeding 7 mm Control Section Average IRI on Project Percentage of Test Sections Exceeding 1.2 m/km
Missouri0.000
Oklahoma2.1107251.321.000
New Mexico2.93300.450.490
Maine4.114501.490.790
Florida4.3300.620
Georgia6.211300.570
New Jersey7.093131.541.1425
Maryland7.293131.541.1425
California7.36501.731.4538
Alabama7.7300.790.890
Texas7.8502.381.3963
Colorado7.911401.201.1113
Montana8.08501.021.1625
Minnesota8.98303.471.5988
Mississippi8.914121001.671.6288
Alberta8.98501.941.3550
Arizona9.28401.341.3350
Manitoba10.013401.901.3150

ANALYSIS OF VARIANCE

An analysis of variance (ANOVA) was completed for each of the four major distress types to determine if the main factors of the experiment had an effect on those distresses from these early observations. The major factors included in the ANOVA are listed below:

Results from this one-way ANOVA are summarized in table 23, which indicates that surface preparation and climatic conditions had an effect on the pavement distress (the p-values are low, indicating a low probability of a chance event). However, the overriding factor that had a significant effect on all of the distresses was age. In fact, the age of the overlay was so important that it probably reduced the effect of some of the other key experimental factors. Age represents both aging effects on materials (i.e., stiffness increases) and of temperature and moisture. Age also was correlated with traffic loadings over time, although different SPS-5 experiments had different traffic levels.

Table 23. Effect of experimental factors on selected performance indicators, p-values from
Experimental Factor Performance Indicator/Surface Distress
Fatigue CrackingTransverse CrackingRut DepthsIRI
Nominal HMA overlay thickness0.5140.8470.9420.865
HMA overlay mixture0.3040.5290.3540.110
Existing pavement condition0.6000.1260.1330.0003
Nominal milling depth0/7620.00070.8320.0060
Precipitation<0.00010.185<0.00010.687
Freeze index0.0005<0.00010.1280.0607
Age of overlay<0.0001<0.0001<0.0001<0.0001

The following summarizes the effect of the key factors of the experiment on individual distresses using data extracted from the IMS in January 2000. A description of the effects and possible reasons for those effects are discussed in the next section of this chapter.

Fatigue Cracking—Age of the overlay and the climatic factors, temperature and moisture, were important and had an effect on the fatigue cracking at each project. The thickness of the overlay was much less important than these two factors, based on these early observations. More fatigue cracking occurred on those test sections placed in a climate with less precipitation but higher freeze indices.

Transverse Cracking—Age of the overlay, milling depth, and freeze index were found to have an important effect on the length of transverse cracks along each test section. Longer transverse cracks occurred on the older pavements in areas with higher freeze indices. In addition, fewer or shorter transverse cracks occurred on sections that had been milled.

Rut Depths—Age of the overlay and precipitation were the two factors found to have an important effect on rut depths. The rut depth increased as the age of the overlay increased, as expected. Sections with increased precipitation had larger rut depths. However, increased precipitation may not have been the primary factor related to increased rut depths. The HMA mixture properties were probably more important, but they were unavailable for the ANOVA. The precipitation may have been a biased effect, simply because those projects with the higher rut depths were located in climates with higher precipitation. This topic needs further study using the materials testing data.

IRI—The age of the overlay, condition of the pavement before overlay placement, and surface preparation or milling depth were factors found to be important relative to the IRI values. The IRI values of the overlay were found to be lower for the overlays placed over pavements in the fair category and when the existing surface was milled before overlay.

EFFECT OF KEY EXPERIMENTAL FACTORS ON PERFORMANCE

The remaining sections of this chapter discuss the effect of each key factor of the experiment in relation to the magnitude and relative occurrence of observed distresses. Tables 24 through 27 summarize the differences on the average performance measures between the key factors of the experiment.

Table 24. Average performance differences of the test sections for different types of surface preparation in the SPS-5 experiment.
Distress or Performance IndicatorSurface Preparation—Milled or Non-milled Surfaces
ControlMinimal (Non-Milled)Intensive (Milled)
Fatigue crackingMean, m2 37.517.116.1
 Std. deviation, m2 73.451.455.4
 COV*, % 196301344
Transverse crackingMean, m 36.818.5 12.7
 Std. deviation, m 50.830.824.8
 COV, % 37166195
Rut depthMean, mm 1055
 Std. deviation, mm 3.73.02.9
 COV, % 386256
IRIMean,k/km 1.481.101.05
  Std. deviation, m/km 0.530.320.29
 COV, % 362928

* COV = coefficient of variance

Table 25. Average performance differences of the test sections for different categories of the existing pavement surface in the SPS-5 experiment.
Distress or Performance IndicatorExisting Pavement Condition
ControlPoorFair
Fatigue crackingMean, m2 37.518.715.5
 Std. deviation, m2 73.454.353.7
 COV*, % 196290347
Transverse crackingMean, m 36.812.7 17.8
 Std. deviation, m 50.828.428.1
 COV, % 37223158
Rut depthMean, mm 1055
 Std. deviation, mm 3.72.73.2
 COV, % 385660
IRIMean,k/km 1.481.131.04
  Std. deviation, m/km 0.530.3410.283
 COV, % 363027



Table 26. Average performance differences of the test sections for different HMA overlay thickness in the SPS-5 experiment.
Distress or Performance IndicatorOverlay Thickness
ControlThin (51 mm)Thick (127 mm)
Fatigue crackingMean, m2 37.515.317.9
 Std. deviation, m2 73.448.258.2
 COV*, % 196314326
Transverse crackingMean, m 36.816.0 15.3
 Std. deviation, m 50.829.326.9
 COV, % 37183176
Rut depthMean, mm 1055
 Std. deviation, mm 3.72.93.0
 COV, % 385958
IRIMean,k/km 1.481.071.08
  Std. deviation, m/km 0.530.3140.304
 COV, % 362928



Table 27. Average performance differences of the test sections for different HMA overlay mixtures in the SPS-5 experiment .
Distress or Performance IndicatorOverlay Mixture
ControlWith RAPWithout RAP,Virgin Mix
Fatigue crackingMean, m2 37.518.617.9
 Std. deviation, m2 73.454.452.3
 COV*, % 196292360
Transverse crackingMean, m 36.816.2 15.0
 Std. deviation, m 50.829.227.0
 COV, % 37180179
Rut depthMean, mm 1055
 Std. deviation, mm 3.73.02.9
 COV, % 385859
IRIMean,k/km 1.481.091.06
  Std. deviation, m/km 0.530.3140.304
 COV, % 362929

Surface Preparation

The amount of transverse cracking of sections with intensive surface preparation before overlay was much lower than for sections with minimal surface preparation (table 24). Figure 29 illustrates that the percentage of test sections with more than 9 m of transverse cracking was much larger for those sections with minimal surface preparation, regardless of the freeze environment.

The IRI was slightly larger for sections with minimal surface preparation. The difference in the values in table 24 is small. However, figure 30 illustrates that the percentage of test sections with an IRI value greater than 1.2 m/km was much larger for sections with minimal surface preparation.

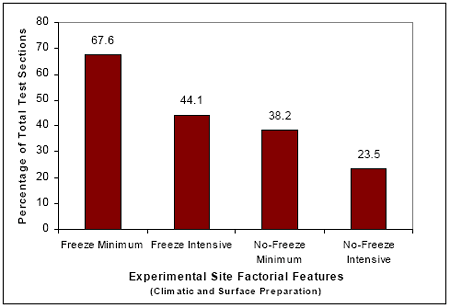

Figure 29. Graph. Percentage of test sections that have more than 9 m of transverse cracking.

Graph. Percentage of test sections that have more than 9 meters of transverse cracking. This graph is a bar chart that shows the climatic and surface preparation-plot of transverse cracking for the S P S-5 sections constructed. The Y axis is the percentage of total test sections with transverse cracking greater than 9 meters. The X axis charts the four climatic and surface preparation conditions: freeze minimum, freeze intensive, no-freeze minimum, and no-freeze intensive. It appears that the freeze minimum zone has the highest percentage, followed by freeze intensive, no-freeze minimum, and no-freeze intensive.

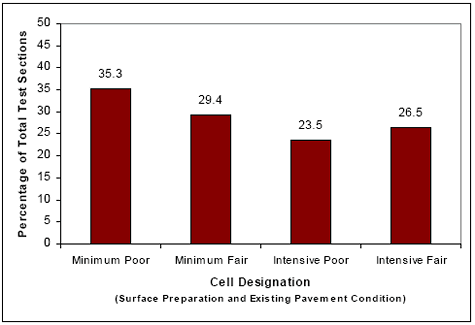

Figure 30. Graph. Percentage of test sections that have an IRI value greater than 1.2 m/km.

Graph. Percentage of test sections that have an I R I value greater than 1.2 meters per kilometer. This graph is a bar chart that shows the surface preparation and existing pavement condition-plot of I R I for the S P S-5 sections constructed. The Y axis is the percentage of total test sections with I R I greater than 1.2 meters per kilometer. The X axis charts the four surface preparation and existing pavement conditions: minimum poor, minimum fair, intensive poor, and intensive fair. It appears that the minimum poor has the highest percentage, followed by minimum fair, intensive fair, and intensive poor.

Neither the amount of fatigue cracking nor the amount of rutting observed on the sections after overlay appeared to be affected by the surface preparation before overlay.

Pavement Condition

The amount of transverse cracking observed on sections that were in fair condition before overlay was higher than in sections that were in poor condition before overlay (table 25). A bias may have influenced this result: in some cases, the surveyors classified the cracking as reflective cracking while other surveyors classified it as transverse cracking.

Sections in fair condition before overlay were rougher than those in poor condition before overlay. Figure 30 illustrates that this conclusion was not consistent among the different surface preparation conditions. The percentage of sections with more than 1.2 m/km of IRI was larger for sections in poor condition with minimal surface preparation than any of the other categories. However, the sections that were in poor condition with intensive surface preparation had the least number of sections with an IRI greater than 1.2 m/km. This observation indicates that the early pavement condition can be overcome by the amount of surface preparation before overlay.

HMAC Overlay Thickness and Material

Very little difference was observed between the distresses for either the overlay thicknesses or the virgin/RAP mixtures (tables 26 and 27, respectively). While little difference was observed, the oldest of these projects was 10 years old. Hence, it is possible that the amount of distress was not affected by these factors in the short term, but these factors might be very important to the amount of distress in the long term. Only long-term monitoring will answer this question and many similar questions for other design features.

SUMMARY

It should be noted that some of these observations were not new findings (for example, condition of the pavement before overlay affects the roughness of the overlay), but they demonstrate that results from the SPS-5 experiment are consistent with previous experience. Early observations from the SPS-5 experiment clearly demonstrate its potential value and that the experimental objectives can be met over the long term. Clearly, findings from the SPS-5 experiment will affect highway agency designs and standards.

The construction and deviation reports were also found to be extremely valuable and important to explain possible anomalies in the experiment and performance differences from the other projects and test sections. Use of these reports should limit or reduce the possibility of having biased conclusions from the data related solely to construction. However, to extract the full benefit of SPS-5, the materials testing program planned for this experiment must be completed and the truck traffic data must be collected on projects that had no data at the time of this report.
