Report
This report is an archived publication and may contain dated technical, contact, and link information
Publication Number: FHWA-RD-03-047
Date: July 2003

Chapter 2 Alkali-Silica Reaction

Previous | Table of Contents | Next

2.1 INTRODUCTION

This chapter provides an overview of the fundamentals of ASR in concrete. The basic mechanisms of ASR are summarized, followed by discussions on ASR manifestations and symptoms in field structures, relevant test methods, methods of preventing ASR, and specifications. The use of lithium compounds to control ASR is covered only to a limited extent in this chapter but is discussed in detail in chapter 3.

Alkali-aggregate reaction was first identified as a cause of concrete deterioration more than 60 years ago (Stanton, 1940). Since this initial discovery, there have been reported cases throughout the world. Of the two types of alkali-aggregate reaction, ASR and alkali-carbonate reaction (ACR), ASR is considerably more widespread and is of more significance in the United States. Incidences of ACR are relatively scarce and generally restricted to a few isolated regions; ACR will not be considered in this report. Figure 1 shows the distribution of some of the reported ASR cases in the United States. Each star in the figure represents a reported case of ASR.

Figure 1. Map. A Sample of Reported Cases of ASR in the United States. This map of the U.S. shows a geographic sampling of the distribution of reported cases of alkali-silica reaction. Cases have been reported in nearly all States in the United States, with some clustering in the mid-Atlantic States.
Figure 1. A Sample of Reported Cases of ASR in the United States.



ASR has been implicated in the deterioration of various types of concrete structures, including dams, pavements, bridges, and other structures. The manifestation of ASR in such structures is discussed later in this chapter. The impact of ASR on field structures is best understood in the context of its underlying mechanisms, which are presented below.

2.2 ALKALI-SILICA REACTION

2.2.1Essential Components of ASR

The mechanisms governing ASR and expansion are quite complex; moreover, there are several schools of thought on which mechanisms are most important in field structures. This section starts with the well-documented and agreed-upon fundamentals of ASR and continues with a mechanistic discussion of the process.

It is widely accepted that the three essential components necessary for ASR-induced damage in concrete structures (as shown in figure 2) are: (1) reactive silica (from aggregates); (2) sufficient alkalies (mainly from portland cement, but also from other constituent materials); and (3) sufficient moisture. Eliminating any one of the above components effectively will prevent damage due to ASR, as discussed next.

Figure 2. Diagram. The Three Necessary Components for ASR-Induced Damage in Concrete. An equilateral triangle shows that the three necessary components are reactive silica, sufficient alkali, and sufficient moisture.
Figure 2. The Three Necessary Components for ASR-Induced Damage in Concrete.



Rocks Reactive Minerals
Arenite Crisobalite
Argillite Cryptocrystalline (or microcrystalline) quartz opal
Arkose Strained quartz tridymite
Chert Volcanic glass
Flint
Gneiss
Granite
Greywacke
Hornfels
Quartz-arenite
Quartzite
Sandstone
Shale
Silicified carbonate
Siltstone
Table 1. Rock Types and Reactive Minerals Susceptible to ASR (after CSA, 2000b).

Reactive Silica

The use of reactive aggregates in concrete is necessary for ASR to occur. The term reactive refers to aggregates that tend to breakdown under exposure to the highly alkaline pore solution in concrete and subsequently react with the alkali-hydroxides (sodium and potassium) to form ASR gel. More detailed information on the specific mechanisms governing aggregate breakdown and subsequent gel formation is provided later in this section. Based on years of laboratory and field experience, lists of reactive minerals and typical rock types that are susceptible to ASR have been compiled, as summarized in table 1. It is important to note that not all siliceous aggregates are prone to ASR. The inherent reactivity of aggregates depends on several factors, including aggregate mineralogy, degree of crystallinity, and solubility (of the silica in pore solution). The rocks and minerals shown in table 1 represent those that are most prone to ASR, but it does not suggest that these are always prone to ASR, or that other rocks or minerals not listed in table 1 are completely immune from ASR.

Sufficient Alkalies

The presence of sufficient alkalies is another required ingredient for ASR. The source of alkalies can be from any of the following:

Of the above materials, portland cement is the main contributor of alkalies. The alkalies present in portland cement are in the form of potassium oxide (K2O) and sodium oxide (Na2O). The quantity of alkalies in portland cement is typically expressed as follows:

Equation 1: Na2Oe = Na2O + 0.658K2O
Equation 1. Total sodium oxide equivalent (or equivalent soda) in percent by mass is equal to the sodium oxide content in percent plus 0.658 times the potassium oxide content in percent.

Where: Na2Oe = Total sodium oxide equivalent (or equivalent soda), in percent
    by mass
    Na2O = sodium oxide content, in percent
    K2O = potassium oxide content, in percent

Although the percentage of alkalies in portland cement is relatively low (in the range of 0.2 to 1.1 percent), in comparison to other oxides or compounds, the bulk of the alkalies ultimately resides in the pore solution of concrete, and it is the associated hydroxyl (OH-) concentration (necessary to maintain charge balance) that produces the inherent high pH in the pore solution (i.e., 13.2 to 14.0). Based on Stanton's early work (1940), it was proposed for many years that expansion due to ASR reaction is unlikely to occur when the alkali content of the cement is below 0.6 percent Na2Oe. This rule-of-thumb value has been cited in various specification limits and was adopted as part of the American Society for Testing and Materials (ASTM) standard ASTM C 150. However, it is now recognized that limiting the alkali content of portland cement is not, by itself, an effective way of preventing ASR-induced damage, because this approach does not control the total alkali content of the concrete mixture. Therefore, limiting the maximum alkali content of concrete is the preferred approach when specifying alkali levels. Nixon and Sims (1992) reported that maximum permissible alkali contents between 2.5 and 4.5 kilograms per cubic meter (kg/m3) Na2Oe have been specified by various countries and agencies, with the allowable alkali content sometimes varying depending on aggregate reactivity.

Figure 3 illustrates the effects of the alkali content of concrete on expansion, using ASTM C 1293 (this and other tests are described later in this chapter). Using an expansion limit of 0.04 percent, the graph shows that laboratory concrete containing less than 3.0 kg/m3 Na2Oe was generally resistant to excess expansion, even after 2 years of testing. Although laboratory tests have shown that keeping the total alkali content below 3.0 kg/m3 Na2Oe is an effective method of limiting expansion, field structures have exhibited damage with even lower alkali loadings, especially when alkalies have also been contributed by the aggregates in the mixture or by external sources, such as deicing salts. Thus, when considering imposing a limit on the alkali content for a given concrete mixture, consideration should be given to the aggregate type and reactivity, exposure conditions, and nature of the structure (i.e., design life or relative importance).

Figure 3. Chart. Effect of Alkali Content on Expansion Using ASTM C 1293 (after Thomas, 2002). The X-axis is alkali content of concrete, in sodium oxide equivalent. The Y-axis is expansion at 2 years, in percent. For alkali content of concrete between 1 and 3 kilograms per cubic meter, expansion at 2 years is below 0.03 percent. As alkali content of concrete exceeds 3 kilograms per cubic meter, the expansion at 2 years exceeds the Canadian Standards Association limit of 0.04 percent. The expansion continues to increase until leveling off at about 0.25 percent expansion with 5.5 kilograms per cubic meter alkali content.
Figure 3. Effect of Alkali Content on Expansion Using ASTM C 1293 (after Thomas, 2002).



There has been significant debate regarding the impact of alkalies from supplementary cementing materials (SCMs) on ASR. Specifically, different countries and agencies vary in how they treat SCMs when calculating the total alkali content of a given concrete mixture. Although an advanced discussion of this issue is beyond the scope of this report, readers are directed to the comprehensive review of current practice compiled by Nixon and Sims (1992). Some countries ignore the contribution of alkalies from SCMs, whereas others use the available alkali content (ASTM C 311) or a percentage of the total alkali content in calculating the total alkali loading of the mixture. Perhaps the most recent advice regarding the contribution of alkalies from fly ash and slag is included in the latest Canadian Standards Association (CSA) guidelines, where it is assumed that SCMs do not contribute any alkalies to concrete when computing total alkali loading. However, limits are placed on the total alkali content of the SCMs, and replacement levels (by mass of cement) are specified, based on the chemistry of the SCMs. Additional information on the mitigation of ASR with SCMs is provided later in this chapter, including information on relevant test methods.

As previously mentioned, alkalies also can be released from certain aggregates within concrete, thereby increasing the alkali content of the mixture (Thomas et al., 1992; Stark and Bhatty, 1986). Stark and Bhatty (1986) reported that certain aggregates can release alkalies equivalent to 10 percent of the portland cement content under extreme conditions.

The total alkali content within a given concrete mixture may also be increased by the penetration of alkalies from external sources, such as seawater, ground water (containing sulfates), deicing salts, and brackish water. For example, Nixon et al. (1982) demonstrated that seawater (used as part of the batch water) increased the OH- concentration in the pore solution and resulted in higher concrete expansion values.

Sufficient Moisture

Available moisture is important when considering the potential for ASR-induced damage in field structures. Concrete mixtures comprised of highly reactive aggregates and high-alkali cements have shown little or no expansion in certain very dry environments. Likewise, local differences in moisture availability within the same structure have resulted in vastly different performance within that structure. Specifically, portions of the structure exposed to a constant or steady source of moisture (e.g., due to poor drainage or poor detailing) have exhibited significant ASR-induced damage, while other portions of the structure that remain essentially dry have shown little or no damage. Therefore, the exposure conditions, in general, and the availability of moisture, specifically, play key roles in the durability of field structures.

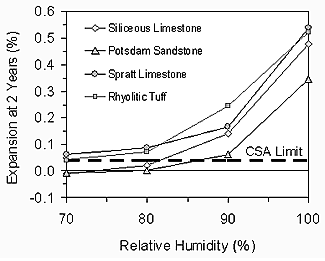

Figure 4. Chart. Effect of Relative Humidity on Expansion Using ASTM C 1293 (Pedneault, 1996). The X-axis is relative humidity, in percent, and the Y-axis is expansion at 2 years, in percent. Using siliceous limestone, potsdam sandstone, spratt limestone, and rhyolitic tuff, all trends are similar, with rhyolitic tuff having the greatest expansion for all relative humidity, and potsdam sandstone having the least. Expansion is relatively constant from 70 to 80 percent relative humidity, in no case exceeding 0.1 percent, and increases somewhat as relative humidity increases to 90 percent. It increases even more in all cases as relative humidity rises to 100 percent, for expansion values of 0.35 percent for potsdam sandstone to 0.55 percent for spratt limestone.
Figure 4. Effect of Relative Humidity on Expansion Using ASTM C 1293 (Pedneault, 1996).



After ASR gel forms, the subsequent water imbibing causes expansion within concrete, which ultimately can lead to tensile stresses and cracking. It generally is believed that a minimum relative humidity of 80 percent is required to cause significant expansion due to ASR. Data supporting the importance of moisture on expansion are shown in figure 4, where 5 different reactive aggregates were stored under different moisture conditions, and the expansion of concrete prisms (ASTM C 1293) was assessed (Pedneault, 1996). In this experiment, concrete that was maintained in an environment with less than 80 percent relative humidity did not undergo significant expansion (e.g., expansion was less than 0.04 percent after 2 years).

Limiting the availability of external moisture in field structures is an effective way of reducing ASR-induced damage, but it is often not feasible to reduce the moisture content below the critical threshold value (i.e., 80 percent relative humidity). However, any attempt at reducing available moisture, whether through proper detailing and design of drainage or through the use of low-permeability concrete, will improve the long-term durability of concrete.

2.2.2 Mechanisms of ASR

The previous sections described the major contributors to ASR in concrete, namely reactive silica, sufficient alkalies, and sufficient moisture. This section provides more detailed information on the specific mechanisms involved, including the chemical reaction that leads to the breakdown of reactive silica, the formation of the ASR gel, and the proposed mechanisms for subsequent expansion.

The term alkali-silica reaction is somewhat misleading- the reaction itself is actually between the OH- ions in the pore solution and certain siliceous components of the aggregates. The alkalies, specifically sodium and potassium, do not actually attack the reactive silica. The importance of the alkalies is that their presence in high concentrations in the pore solution results in an equally high concentration of OH- ions (to maintain charge equilibrium). It is this high OH- concentration, and thus high pH, that leads to the initial breakdown of reactive silica components in the aggregates. The alkalies also ultimately contribute to the expansive ASR gel formation, as discussed later in this section.

There is general agreement by researchers regarding the specific chemical process governing the breakdown of reactive silica components by a highly alkaline solution, such as pore water inside concrete. When poorly crystalline hydrous silica is exposed to a highly alkaline solution, there is an acid-base reaction between the OH- ions in solution and the acidic silanol (Si-OH) groups (Dent Glasser and Kataoka, 1981), as shown in equation 2. As additional OH- ions penetrate into the structure, some of the siloxane (Si-O-Si) linkages are also attacked, as shown in equation 3.

Equation 2: Equation 2. Acidic silanol groups react with hydroxide ions to form an alkaline silicate solution and water.
Equation 3: Equation 3. Siloxane linkages react with hydroxide ions to form an alkaline silicate solution and water.

To maintain charge equilibrium, cations (Na+ and K+) diffuse into the structure to balance the negative charges present on the terminal oxygen atoms. The disruption of the siloxane linkages ultimately weakens the structure. Provided that sufficient amounts of alkali-hydroxides are available, this process continues, producing an alkaline-silicate solution.

Figure 5. Chart. Effect of PH on Dissolution of Amorphous Silica (Tang and Su-fen, 1980). The X-axis is the PH of the solution, and the Y-axis is the amount of dissolved silica in millimoles per liter. Dissolved silica is relatively low (less than 10 millimoles per liter) for PH ranging up to approximately 12.5, and then increases rapidly, up to 70 millimoles per liter at a PH of approximately 13.
Figure 5. Effect of pH on Dissolution of Amorphous Silica (Tang and Su-fen, 1980).



The chemical process described above results in the dissolution of the reactive silica components; the alkalinity of the pore solution and the structure of the silica governs the rate and/or amount of dissolution. Poorly crystalline or amorphous silica is much more prone to ASR than well-crystallized or dense forms of silica. One reason for this difference in behavior is that the solubility of amorphous silica increases significantly with pH, as illustrated in figure 5. Thus, aggregates composed of amorphous or poorly crystalline silica will tend to dissolve more readily in the inherently high pH pore solution in concrete. Well-crystallized or dense forms of silica, such as quartz, are relatively inaccessible to alkaline-hydroxide solution, and dissolution only occurs at the surface, at a very slow rate.

As previously mentioned, there is general acceptance of the chemical reactions governing ASR; however, there are several schools of thought regarding ASR gel expansion mechanisms. It is beyond the scope of this publication to examine thoroughly the various proposed mechanisms, but a basic overview of these mechanisms is provided.

Hansen (1944) proposed an osmotic theory, in which the cement paste surrounding reactive grains behaves like a semipermeable membrane through which water (or pore solution) may pass but not the larger complex silicate ions. The water is drawn into the reacting grain, where its chemical potential is lowest. An osmotic pressure cell is formed, and increasing hydrostatic pressure is exerted on the cement paste, inevitably leading to cracking of the surrounding mortar.

McGowan and Vivian (1952) disputed the osmotic theory proposed by Hansen, on the basis that cracking of the surrounding cement paste membrane due to ASR would relieve hydraulic pressure and prevent further expansion. They proposed an alternative mechanism, in which water is absorbed physically into the alkali-silica gel, resulting in swelling of the gel. Tang (1981) later concurred with this water imbibition and swelling theory.

Other researchers, including Powers and Steinour (1955), proposed a compromise, in which pressures due to both osmotic pressure and water absorption may be generated, depending on the nature of the alkali-silicate complex, specifically whether it is a fluid or solid. Despite these theories' differences, the fundamental cause of expansion is essentially the same-the entry of water into a region where the effects of absorption or a solute reduces its free energy (Diamond, 1989).

One aspect involving ASR and expansion that has received renewed interest in recent years is the important role of calcium. Although early proposed mechanisms (Hansen, 1944; McGowan and Vivian, 1952) did not recognize calcium's role in ASR, later studies have identified the presence of calcium in the reactive system as being essential to the expansion process. Diamond (1989) proposed that, in the absence of calcium, silica simply dissolves in alkali-hydroxide solution and does not form alkali-silicate gel. Kilgour (1988) supported this theory and showed that a low-calcium fly ash exposed to an alkali-hydroxide solution without the presence of calcium was partially soluble, losing up to 20 percent of its mass in 6 months. However, the same test performed in the presence of calcium hydroxide (CaOH) resulted in an increase in mass, and formed a reaction product similar in structure to ASR gel.

Further support of the solubility of silica in the absence of calcium is found in the work of Kilgour (1988). She found low-calcium ashes to be partially soluble (losing 20 percent soluble mass in 6 months) when exposed to alkali-hydroxide solution (1 gram (g) ash in 100 milliliters (ml) of 0.7 molar (M) sodium hydroxide (NaOH)-potassium hydroxide (KOH)) in the absence of calcium. The principal soluble phase was analyzed as silica, which remained in solution (no evidence of gel formation). Under the same conditions, except with addition of CaOH, an increase in mass was observed and attributed to the formation of a reaction product analogous to ASR gel. Thomas et al. (1991) found that gels that are low in calcium and high in alkali are relatively fluid and readily dispersed into cement paste, whereas gels higher in calcium are more viscous and less able to dissipate when they swell on contact with water.

2.2.3 Symptoms of ASR

This section briefly describes the symptoms of ASR in concrete, beginning first with the impact on the microstructure of concrete and concluding with the manifestation in concrete structures. Figure 6 shows a thin-section cut from concrete affected by ASR, which is viewed under transmitted-light microscopy. The reaction product of ASR gel is shown, as is a crack forming through the aggregate and extending into the surrounding cement paste. The crack itself also is filled with ASR gel in some locations. This type of damage is typical of ASR-induced deterioration at the microstructural level of concrete.

Figure 6. Enlarged Photo. Thin-Section Cut of ASR-Damaged Concrete, Showing ASR Gel and Typical Crack Pattern (Through Aggregate and into Surrounding Matrix). This photo shows cement paste, a particle of reactive aggregate (in this case, flint), and a ribbon of reaction product (alkali-silica reaction gel) running through both of them. A crack runs from a point where the gel meets the cement paste and continues parallel to the gel.
Figure 6. Thin-Section Cut of ASR-Damaged Concrete, Showing ASR Gel and Typical Crack Pattern (Through Aggregate and into Surrounding Matrix)
.



Figure 7. Photo. ASR-Induced Damage in Unrestrained Concrete Element. Uniform Expansion in all Directions Results in Classic Map-Cracking. This photo shows a series of interlocking, jagged-shaped cracks on the surface of a concrete barrier.
Figure 7. ASR-Induced Damage in Unrestrained Concrete Element. Uniform Expansion in all Directions Results in Classic Map-Cracking.

The outward manifestation of ASR distress in actual concrete structures varies, depending on the severity of the attack, exposure conditions, type of structure, amount and direction of restraint (internal or external), and other factors. Perhaps the most important of these factors in determining the physical manifestation of ASR-induced damage in field structures is the role of restraint on subsequent crack patterns. Restraint may originate either from external sources, such as adjacent structural elements or applied loads, or internal sources, such as reinforcing steel (conventional, prestressed, or posttensioned). Figure 7 shows typical ASR-induced damage in unrestrained concrete, resulting in classic map-cracking. Figure 8 shows similar damage in restrained concrete structures, where cracking tends to align itself in the direction of the main reinforcement (i.e., principal stress direction).

Figure 8. Photos. ASR-Induced Damage in Restrained Concrete Elements, Including A) Reinforced Concrete Column and B) Prestressed Concrete Girder. Photo A shows several vertical cracks, with smaller cracks branching off diagonally. Photo B shows several horizontal cracks along the length of the girder, with smaller cracks branching off vertically.

Figure 8. ASR-Induced Damage in Restrained Concrete Elements, Including (a) Reinforced Concrete Column, and (b) Prestressed Concrete Girder.



When field structures suffer from excessive expansion due to ASR, significant misalignment (with respect to adjacent elements) may result, as shown in figure 9. For pavements suffering from ASR, the subsequent expansion can lead to extrusion of joint-sealing material or even joint failure, as shown in figure 10.

Figure 9. Photo. Misalignment of Adjacent Sections of a Parapet Wall on a Highway Bridge Due to ASR-Induced Expansion (SHRP-315, 1994). This figure shows the misalignment of adjacent sections of a parapet wall on a highway bridge. Although there is no scale, the lateral misalignment could be on the order of several centimeters. Both sections contain horizontal and vertical cracks
Figure 9. Misalignment of Adjacent Sections of a Parapet Wall on a Highway Bridge Due to ASR-Induced Expansion (SHRP-315, 1994).



Figure 10. Photo. Extrusion of Joint-Sealing Material Triggered by Excessive Expansion from ASR. This photo shows patches of joint-sealing material along either side of the joint. One side of the joint also contains numerous interlocking cracks.
Figure 10. Extrusion of Joint-Sealing Material Triggered by Excessive Expansion from ASR.



2.3 LABORATORY TEST METHODS FOR ASSESSING ASR

This section provides an overview of available laboratory test methods to assess ASR of aggregates and measure the effectiveness of various methods to mitigate ASR in new concrete, including SCMs. Limited information about testing lithium compounds in laboratory mixtures is also provided, but more information is provided in chapter 3.

Table 2 lists several of the most commonly used standard test methods to assess ASR. The table also provides some basic information on each test, including pros and cons of using the test to predict field performance. Of the laboratory tests described, only two are recommended as suitable tests for assessing ASR: ASTM C 1260 ("Accelerated Detection of Potentially Deleterious Expansion of Mortar Bars Due to Alkali-Silica Reaction") and ASTM C 1293 ("Test Method for Concrete Aggregates by Determination of Length Change of Concrete due to Alkali-Silica Reaction").

ASTM C 1260 is based on the method developed by Oberholster and Davies (1986) at the National Building Research Institute in South Africa. The test, often referred to as the accelerated mortar bar test, has been adopted by various countries and agencies, including the United States (ASTM and the American Association of State Highway and Transportation Officials (AASHTO)) and Canada. The test entails casting mortar bars that contain the subject aggregate (either coarse or fine), which is processed to a standard gradation. The mortar bars are then removed from their molds after 24 hours and placed in water at room temperature. The temperature of the water is then raised to 80 °C in an oven, and the mortar bars are stored in this condition for the next 24 hours. After the bars are removed from the water, they are measured for initial length and then submersed in a 1 normal (N) NaOH solution at 80 °C, where they are then stored for 14 days. Length change measurements are made periodically during this storage period. The total expansion at the end of the 14-day soaking period typically is used in specifications, although the expansion limits specified by different agencies vary. For example, the expansion criteria established by ASTM and CSA are as follows:

ASTM C 1260 expansion criteria:
< 0.10 percent is considered innocuous0.10 to 0.20 percent is considered potentially reactive
> 0.20 percent is considered reactive
CSA A23.2-25A expansion criteria:
> 0.15 percent is considered reactive (all aggregates except limestones)
> 0.10 percent is considered reactive (limestone aggregates only)



Test Method Comments
ASTM C 227: Standard Test Method for Potential Alkali Reactivity of Cement-Aggregate Combinations (Mortar Bar Method)
  • Mortar bar test (aggregate/cement = 2.25), intended to study cement-aggregate combinations.
  • Specimens stored in high-humidity containers at 38 °C.
  • Several reported problems with test, including excessive leaching of alkalies from specimens.
ASTM C 289: Standard Test Method for Potential Alkali-Silica Reactivity of Aggregates (Chemical Method)
  • Aggregate test in which crushed aggregate is immersed in 1M NaOH solution for 24 hours-solution is then analyzed for amount of dissolved silica and alkalinity.
  • Poor reliability.
  • Problems with test include:
    • Other phases present in aggregate may affect dissolution of silica (Bérubé and Fournier, 1992).
    • Test is overly severe, leading aggregates with good field performance to fail the test.
    • Some reactive phases may be lost during pretest processing.
ASTM C 295: Standard Guide for Petrographic Examination of Aggregates for Concrete
  • Useful evaluation to identify many (but not all) potentially reactive components in aggregates.
  • Reliability of examination depends on experience and skill of individual petrographer.
  • Results should not be used exclusively to accept or reject aggregate source-findings best used in conjunction with other laboratory tests (e.g., ASTM C 1260 and/or ASTM C 1293).
ASTM C 856: Practice for Petrographic Analysis of Hardened Concrete
  • Useful for analyzing concrete (from laboratory or field) and for identifying presence of reactive aggregates or reaction products.
  • Reliability of examination depends on experience and skill of individual petrographer.
  • Essential for relating aggregate reactivity to field performance.
ASTM C441: Standard Test Method for Effectiveness of Mineral Admixtures or Ground Blast Furnace Slag in Preventing Excessive Expansion of Concrete Due to the Alkali-Silica Reaction
  • Mortar bar test, intended to assess effectiveness of SCMs in reducing ASR expansion.
  • Test uses high-alkali cement and PyrexTM glass.
  • Test not very reliable because of the use of Pyrex glass, which is sensitive to test conditions and contains alkalies that may be released during the test. Test does not correlate well with data from concrete mixtures containing natural aggregates (Bérubé and Duchesne, 1992).
ASTM C 1260: Standard Test Method for Potential Alkali Reactivity of Aggregates (Mortar Bar Method)
  • Recommended Test
  • Mortar bar test, originally designed to assess aggregate reactivity.
  • Bars are soaked in 1N NaOH solution for 14 days.
  • Accelerated test suitable as screening test, but because of severity of test, it should not be used, by itself, to reject a given aggregate. If aggregate is tested using both ASTM C 1260 and ASTM C 1293, the results of ASTM C 1293 should govern.
  • Test has shown promise in testing SCMs and lithium compounds, but the soak solution must be modified when testing lithium compounds (as discussed in chapter 3).
ASTM C 1293: Standard Test Method for Concrete Aggregates by Determination of Length Change of Concrete Due to Alkali-Silica Reaction
  • Recommended Test
  • Concrete prism test, generally regarded as best indicator of field performance, is conducted at high humidity (close to 100%) at 38 °C.
  • Uses high-alkali cement (raised to 1.25% Na20e), with a cement content of 420 kg/m3.
  • Originally intended as aggregate test (using nonreactive fine aggregate to test reactivity of coarse aggregate, and vice-versa); test requires 1 year for completion.
  • Also can be used to test effectiveness of SCMs and lithium compounds, but then test typically is run for 2 years.
  • Widely accepted test method, but long duration of test is major drawback.

Table 2. Available Standard Tests for Assessing ASR.

In ASTM C 1260, these expansion limits are proposed in an appendix to the standard test method and are not a mandatory part of the standard, whereas in CSA, the limits form part of a standard practice for assessing reactivity and evaluating the effectiveness of preventive measures (e.g. the use of SCMs). Draft guidelines developed by the AASHTO Lead States Program recommend an expansion limit of 0.10 percent for all aggregates, except metamorphic aggregates, for which an expansion limit of 0.08 percent is recommended (AASHTO, 2000).

ASTM C 1260 is recognized as a very severe test method because of the extreme test conditions, specifically the use of a highly alkaline storage solution and high temperature. Because of this inherent severity, the test has been shown to identify some aggregates as being reactive, even though they have performed well in concrete prism testing (ASTM C 1293) and in field applications (Bérubé and Fournier, 1992). Therefore, an aggregate should not be rejected solely based on ASTM C 1260 results unless the reactivity is confirmed using ASTM C 1293. Whenever data are available from both ASTM C 1260 and ASTM C 1293, the ASTM C 1293 results should govern.

Although ASTM C 1260 was developed initially only to test aggregate reactivity, the test has been found to be a suitable method for assessing the efficacy of SCMs in reducing ASR expansion (Thomas and Innis, 1999), where an expansion limit of 0.10 percent typically is used. The test is not, however, suitable for assessing cement alkalinity, because the highly alkaline soak solution masks any cement alkalinity effect. In addition, ASTM C 1260 is not suitable for testing lithium compounds unless the soak solution is modified by adding lithium directly to the soak solution. Without this modification, significant lithium leaching would result. More specific information on proposed ASTM C 1260 modifications to assess lithium compounds is provided in chapter 3.

ASTM C 1293, commonly referred to as the concrete prism test, is generally considered the most accurate and effective test in predicting the field performance of aggregates. In this test, concrete is cast with a cement content of 420 kg/m3. The cement is required to have an equivalent alkali content between 0.8 percent and 1.0 percent, and additional alkalies (NaOH) then are added to the mixing water to obtain a total alkali content of 1.25 percent (by mass of cement), which equates to a total alkali content in the concrete mixture of 5.25 kg/m3. Concrete prisms are cast, cured for 24 hours at 23 °C, and then stored over water at 38 °C. Expansion measurements are taken at regular intervals, and when testing plain concrete (without SCMs or chemical admixtures), the test typically is run for 1 year. When testing SCMs or lithium compounds, the test typically is carried out for 2 years. This relatively long period for conducting ASTM C 1293, either 1 or 2 years, has been the major drawback for the test and has limited its use somewhat.

In recent years, more countries and agencies have adopted the concrete prism test as a standard method. An expansion limit of 0.04 percent (at the end of the 1- or 2-year test) typically is specified, as this value has been reported to correlate well with cracking of test prisms. This expansion limit (0.04 percent) is referenced in the appendix to ASTM C 1293. As part of the most recent guidance provided by CSA (2000a), the expansion limits for the concrete prism test (CSA A23.2-14A) were delineated further to assess aggregate reactivity as follows:

CSA A23.2-14A expansion criteria:
   < 0.04 percent is considered nonreactive
   0.04 percent to 0.12 percent is considered marginally reactive
   > 0.12 percent is considered highly reactive

ASTM C 1260 and ASTM C 1293 are the two recommended tests for ASR-ASTM C 1293 generally is considered to be more representative of field performance. To supplement these tests, a petrographic evaluation of a given aggregate (ASTM C 295) is also suggested, but not required. A thorough petrographic evaluation, performed by a skilled petrographer, provides useful information about the types and amounts of minerals present in an aggregate, and can be used to identify a wide range of reactive components. However, because of inherent difficulties in identifying all potentially reactive phases within an aggregate, petrographic analysis findings alone should not be used to accept or reject a given aggregate, but rather to supplement the findings of other laboratory evaluations. Field performance histories of aggregates, supplemented with petrographic analysis of field concrete (ASTM C 856) containing the subject aggregate, also can provide useful information when considering future use of selected aggregates in new construction. However, as in the case of petrographic analysis of aggregates (ASTM C 295), field performance evaluations should not be used solely to accept or reject a given aggregate for use in new structures.

2.4 METHODS OF MITIGATING ASR

This section briefly describes common methods of mitigating or preventing ASR in new and existing concrete structures. The main focus is on minimizing ASR expansion in new concrete, with less emphasis on methods of extending the service life of structures already affected by ASR.

2.4.1 Minimizing or Preventing ASR in New Concrete

The most common methods of minimizing the risk of expansion due to ASR are discussed next, including:

Using Nonreactive Aggregates

Using nonreactive aggregates is certainly a viable method of preventing ASR-induced damage. However, to use this approach, one must have a very high level of confidence that the subject aggregates to be used are, in fact, nonreactive. To confirm nonreactivity, the aggregates must be tested strictly (e.g., using ASTM C 1260 and ASTM C 1293), good quality control ensured, and, preferably, field performance well-documented. If the above conditions are met, such aggregates may be used without special precautions. However, given that these conditions often are not met, and given that some aggregates that were believed to be nonreactive (based on testing methodologies available at the time of construction) have caused damaging ASR expansion in field structures, further precautions should be taken in some situations. Instances that warrant such extra caution, even when using aggregates believed to be nonreactive, include the design of critical structures (e.g., prestigious structures or those with an extended design life) and the construction of structural elements exposed to a very aggressive environment (e.g., structures exposed to seawater or deicing salts, which may provide an external source of alkalies). The use of a suitable SCM is an example of taking special precautions with aggregates presumed to be nonreactive.

Limiting the Alkali Content of Concrete

Limiting the alkali content of concrete mixtures below some threshold value is generally effective in preventing ASR-induced damage, but this approach is not always effective by itself. For example, aggregates that are durable at relatively low alkali contents may become more reactive when exposed to higher alkali contents under field conditions, where unanticipated high concentrations of alkalies may result from exposure to deicing salts, alkali release from aggregates, drying gradients (resulting in alkali migration), and other field effects. For example, Stark (1978) reported increases in soluble alkalies from 1.1 to 3.6 kg/m3 Na2Oe close to the surface of some highway structures. Additional information on limiting the alkali content of concrete is provided in section 2.2.1.

Using Supplementary Cementing Materials

The use of SCMs to control ASR in concrete is the most common mitigation measure used in concrete construction. The benefits of properly using SCMs include not only ASR mitigation, but also improved resistance to other durability problems, including sulfate attack, corrosion of reinforcing steel, and freezing and thawing. The benefits related to ASR mitigation are both physical in nature, specifically by reducing permeability, and chemical, where SCMs affect pore solution alkalinity, alkali binding, and other parameters. This section briefly discusses minimizing the risk for ASR-induced damage by the prudent use of SCMs, including fly ash, ground-granulated blast furnace slag, silica fume, and combinations of SCMs (ternary blends).

Fly ash is one of the most commonly used SCMs in the world, partly because it offers both economic and technical benefits. To control ASR, the following issues affect the efficacy of a given fly ash:

Perhaps the most important parameter affecting the ability of fly ash to control ASR expansion is the CaO content of the ash (Shehata and Thomas, 2000). Generally, lower-lime ashes are more effective than higher-lime ashes in controlling ASR, mainly due to the higher alkali-binding capacity of concretes containing lower-lime ashes (Shehata et al., 1999). Specifically, fly ash lower in CaO produces a calcium silicate hydrate (C-S-H) structure with a lower calcium to silicon ratio, which imparts a negative surface charge, leading to the absorption of cations, especially alkalies (Glasser, 1992). In addition, low-calcium ashes are more effective in controlling ASR because the alkalies contained in the ash generally are not available to the pore solution (Diamond, 1981), whereas high-calcium ashes tend to make their alkalies more readily available. Although higher-lime ashes can still be used to combat ASR, significantly higher dosages may be needed, especially when using highly reactive aggregates.

Slag also is used commonly to mitigate ASR and typically is used in higher dosages than fly ash, generally 35 to 50 percent (by mass of cement) and in some cases, in even higher dosages. The specific dosage needed to mitigate ASR in a given concrete mixture depends on the reactivity of the aggregate and the total alkali content of the concrete. Slag appears to increase the alkali-binding capacity of concrete (similar to low-calcium fly ash), but only limited research has been performed on this topic (Uchikawa et al., 1989).

Silica fume has not been used as frequently as fly ash and slag to control ASR. Although the efficacy of silica fume in minimizing the risk of ASR-induced damage depends on the reactivity of the aggregate, it appears to depend more on the total amount of alkalies available within the concrete. Thus, dosing silica fume based on the total alkalies within a given concrete mixture has been proposed in recent years (Thomas and Bleszynski, 2000; CSA, 2000a), with the required silica fume dosage ranging between the lower and upper limits shown below (based on required levels of prevention):

Equation 4: Lower limit: Minimum % SF = 2 x (alkali contributed by portland cement)

Equation 5: Upper limit: Minimum % SF = 3 x (alkali contributed by portland cement)

Where: % SF is the percentage of silica fume (by total mass of cementitious material) alkali contributed by portland cement is expressed as kg of Na2Oe per m3 of concrete

For highly reactive aggregates, the amount of silica fume required to control ASR (e.g., 10 percent) may be in excess of the typical dosage used in concrete construction, making it difficult for use in field applications (mainly due to workability concerns, high water and superplasticizer demand, and shrinkage problems). For such cases, it generally is more effective to use silica fume in conjunction with another SCM, such as fly ash or slag, to reduce the required amount of silica fume and to improve constructibility attributes. The use of these combinations of SCMs, known as ternary blends, is discussed next.

Ternary blends of cementitious materials have gained in popularity in recent years, either through the use of a blended cement (Type IP or IS) in conjunction with another SCM or through the use of plain cement with two SCMs. The benefits of such combinations may improve the economic situation, workability, early strength development, and durability properties. When considering ternary blends to control ASR, combining two or more SCMs may reduce the quantities that otherwise would be used individually, because the combined effects work together to control ASR. For example, concrete mixtures with relatively low quantities of silica fume (4 to 6 percent), combined with moderate levels of slag (20 to 35 percent) or fly ash (Class F or Class C), were found to be very effective in controlling the expansion of highly reactive aggregates (Bleszynski et al., 2000; Shehata and Thomas, 2002), as illustrated in figure 11.

Using Lithium Compounds

Using lithium compounds, especially lithium nitrate (LiNO3), is a viable approach to controlling ASR-induced damage. Because chapter 3 provides a comprehensive review of research performed on using lithium compounds to mitigate ASR, no additional discussion is provided in this section. Chapter 4 provides an overview of selected case histories where lithium compounds have been used for both new and existing concrete structures.

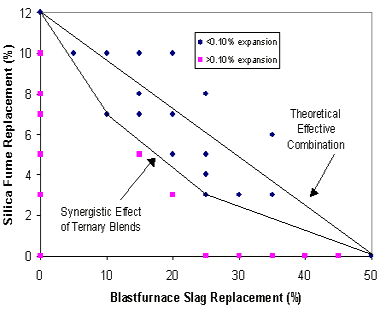

Figure 11. Chart. Synergistic Effects of Ternary Blends in Controlling ASR Expansion Using ASTM C 1260 (after Bleszynski and others, 2000). The X-axis in this graph is the percent of blastfurnace slab replacement (replacement of cement), and the Y-axis is the percent of cement replacement with silica fume. One straight line, sloping downward at approximately 45 degrees, indicates the theoretical effective combination, and a second bent line below it indicates the synergistic effect of ternary blends. Concrete mixtures with relatively low quantities of silica fume (4 to 6 percent) combined with moderate levels of slag (20 to 35 percent) were found to be very effective in controlling the expansion of highly reactive aggregates. All of the observations between the two lines show less than 10 percent expansion, while others both above and below the line show more than 10 percent expansion.

Figure 11. Synergistic Effects of Ternary Blends in Controlling ASR Expansion Using ASTM C 1260 (after Bleszynski et al., 2000).

2.4.2 Mitigating ASR in Existing Concrete

When ASR-induced expansion and damage already has manifested itself in a field structure, there are some available techniques that can help extend the service life of the structure, as described in detail in CSA A684-00, Guide to the Evaluation and Management of Concrete Structures Affected by Alkali-Aggregate Reaction. To minimize future damage to such structures:

2.5 SPECIFICATIONS

There are numerous specifications, recommendations, and guidelines for avoiding ASR in new construction or managing it in existing structures, including national specifications from Canada, Australia, the Republic of South Africa, France, the United Kingdom, and many other European nations. Within the United States, there are guidelines from the American Concrete Institute, a guide specification from the Portland Cement Association, and individual specifications from state highway agencies and other government bodies. A summary of all the above specifications is beyond the scope of this report, but the overall approach to specifying preventive measures to control ASR in new concrete structures can be placed in two categories: performance-based specifications and prescriptive specifications.

Performance-based specifications dictate what tests should be conducted on a given aggregate to determine its potential reactivity and usually what tests should be run to assess methods of mitigating aggregate reactivity, if needed. An example is a specification that states that aggregates must pass ASTM C 1260, ASTM C 1293, or both, where the term "passing" would be linked to specific expansion limits (e.g., 0.10 percent in ASTM C 1260 or 0.04 percent in ASTM C 1293). Many State highway agencies and other agencies and organizations use these types of specifications for ASR, although not all currently specify the use of ASTM C 1260 and ASTM C 1293.

Prescriptive specifications actually dictate what materials (and mixture proportions) must be used to control ASR. For example, specifications of this type limit the alkali content of the cement or concrete mixture and specify minimum required dosages of SCMs or lithium compounds.

Various agencies and organizations use different combinations of performance and prescriptive specifications. Perhaps the most progressive and comprehensive specifications for ASR are those recently adopted by CSA, where the aggregates are categorized first according to their reactivity based on either ASTM C 1293 or C 1260. The size of the structure and the environment to which it will be exposed are then considered, and the structure is placed within specified risk levels. The level of prevention and the preventive measures (if required) are determined based on the desired design life of the structure. The guidelines are shown in table 3, which includes minimum dosages of SCMs required for specific risk levels. This approach considers key parameters previously described in this chapter, such as the CaO content of fly ash and the total alkali content of the mixture when dosing silica fume. The approach also allows for the use of natural pozzolans and ternary blends. Although lithium compounds are not included in the current CSA guidelines, it is expected that the next version of the specifications will allow for the use of lithium salts and will provide specific guidelines on prescribed dosages.

2.6 CONCLUSIONS

This chapter provided an overview of ASR in concrete, including basic mechanisms, relevant test methods, mitigation methods, and specifications. It provides the necessary background and technical basis for better understanding the role of lithium compounds in controlling ASR, as described in the remainder of this report.

Type of SCM Total Alkali Content of SCM (% Na2Oe)* Chemical Composition Requirement (% oxides) Cement Replacement Level (% by mass)a
Prevention Level W Prevention Level X Prevention Levels Y & Z
Fly Ash < 3.0 CaO < 8% ³ 15 ³ 20 ³ 25
CaO =8%-20% ³ 20 ³ 25 ³ 30
CaO > 20% See Note b See Note b See Note b
3.0-4.5 CaO < 8% ³ 20 ³ 25 ³ 30
CaO = 8%-20% ³ 25 ³ 30 ³ 35
CaO > 20% See Note b See Note b See Note b
> 4.5 - - See Note b -
Blast Furnace Slag < 1.0b None ³ 25 ³ 35 ³ 50
Silica Fume < 1.0b SiO2 2.0 x alkali contentc 2.5 x alkali contentc 3.0 x alkali contentc
Natural Pozzolans Natural pozzolans that meet CSA A23.5 requirements may be used, provided that their effectiveness in controlling expansion due to ASR is demonstrated according to CSA Recommended Practice.
Ternary Blends When two or more SCMs are used together to control ASR, the minimum replacement levels given in table 5 of the CSA Guidelines (CSA, 2000a) for the individual SCMs may be reduced partially, provided that the sum of the parts of each SCM is 1. For example, when silica fume and slag are combined, the silica fume level may be reduced to one-third of the minimum silica fume level given in this table, provided that the slag level is at least two-thirds of the minimum slag level given in the table.
Table 3. CSA Guidelines for Controlling ASR in New Concrete (CSA, 2000a).

* Na2Oe = sodium oxide content = Na2O + 0.658 * K2O
a. To control the total alkali content of the concrete mixture, the maximum alkali content of the cement used in combination with any SCMs should be < 1.0% Na2Oe.
b. In the presence of reactive or potentially reactive aggregates, blast furnace slag and silica fumes with alkali contents > 1.0% Na2Oe, and fly ash with alkali contents > 4.5% Na2Oe and/or with CaO contents > 20% may be used when their effectiveness in reducing expansion due to ASR is demonstrated in accordance with CSA Recommended Practice. In this respect, test results have indicated that higher alkali fly ashes (but not high CaO ashes), when used in large quantities (e.g. > 50% as cement replacement by mass), can significantly reduce expansion due to ASR.
c. The minimum level of silica fume (as a percentage of material content) is calculated on the basis of the alkali content of the concrete (expressed as kg/m3 Na2Oe), but in cases where silica fume is the only SCM to be used, the silica fume content should be 7.0% by mass.



Previous | Table of Contents | Next

Federal Highway Administration | 1200 New Jersey Avenue, SE | Washington, DC 20590 | 202-366-4000
Turner-Fairbank Highway Research Center | 6300 Georgetown Pike | McLean, VA | 22101
