Publication Number:  FHWA-HRT-13-068    Date:  July 2013
Publication Number: FHWA-HRT-13-068
Date: July 2013



Friction Angles of Open-Graded Aggregates From Large-Scale Direct Shear Testing

PDF Version (410 KB)

PDF files can be viewed with the Acrobat® Reader®



FHWA Publication No. of this TechBrief: FHWA-HRT-13-068
FHWA Contact: Jennifer Nicks, HRDI-40, (202) 493-3075, jennifer.nicks@dot.gov.



Introduction

State and local transportation agencies frequently use open-graded aggregates for wall, roadway, and bridge construction. The primary advantages of using this type of material in wall and abutment applications are ease of constructability, lighter in-place density than well-graded materials, very low fine content, free-draining characteristics, and simpler quality assurance testing, using a method specification for field density. The American Association of State Highway and Transportation Officials (AASHTO) classifies open-graded aggregates according to the M43 gradation based on standard sizes for processed aggregates.(1) Despite common use of these aggregates, their strength characteristics have not been systematically measured or used in design. Instead, engineers frequently use a default friction angle of 34°, leading to potential conservatism in retaining wall and foundation design. The primary purpose of this TechBrief is to present research results on the strength properties of standard open aggregates tested in a large-scale direct shear (LSDS) device to improve the state of practice for the design of structures using these materials.

Background

The most commonly used laboratory devices available to measure the strength of aggregates are the direct shear (DS) and triaxial (TX) tests, with DS being the simplest and most regularly used test. Based on the American Association of Testing Materials (ASTM) standards, the maximum particle sizes for DS and TX testing are 1/10th and 1/6th of the width or diameter of the device, respectively. Standard DS devices are typically either circular, with a 2.5-inch diameter, or square, with 4-inch sides; therefore, the largest aggregates that can be tested are 0.25 or 0.4 inches, respectively. Similarly, standard TX devices are made for samples that are smaller than 2 inches in size; therefore, the maximum aggregate size that can be tested is about 0.3 inches. Because the AASHTO M43 aggregates are relatively large, with maximum aggregate sizes ranging from 0.375 to 4 inches, standard DS and TX devices are often not suitable.

One option in current practice is to test these aggregates in standard test devices with a scalped sample from which the larger particles have been removed by passing the aggregate sample through the appropriate sieves to meet the ASTM standards. Considering the open-graded nature of these materials, scalping may significantly alter the characteristics and not produce a representative sample. Another option is to perform parallel gradation in a standard shear device.(2) Parallel gradation involves scaling down a material to the desired size while ensuring the grain size distribution is parallel to the original sample. The accuracy of this method depends on several factors related to the particle shape and composition, fine content, and aggregate strength.(3) Because of the caveats associated with scalping and parallel gradation, the best option is to use large-scale devices for the accurate measurement of the strength properties for a representative sample; however, the use of LSDS devices is not a common practice at this time.

TEST PROGRAM

At the Turner-Fairbank Highway Research Center (TFHRC), a 12- by 12- by 8-inch DS box is available to perform LSDS testing on aggregates of up to 1.2-inch maximum particle size (see figure 1). This device was used to measure the strength of 12 classifications of AASHTO aggregates, from No. 10 up to No. 5 (see table 1), under both dry and saturated conditions. The manufactured aggregates came from a variety of sources at locations across the country. In addition, four different No. 8 samples were tested from various quarries to determine the repeatability of the test based simply on the AASHTO gradation. Figure 2 illustrates the results of a sieve analysis that was also performed on each sample to ensure it met the gradation specifications.

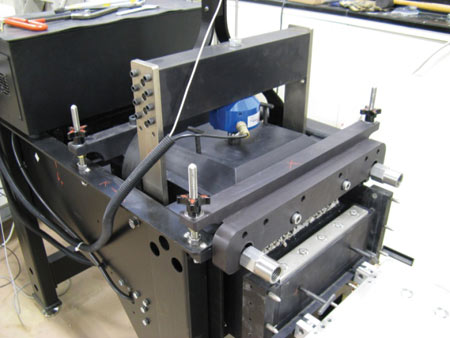

Figure 1. Photo. Large-scale DS device at TFHRC. The photo shows a large-scale direct shear device that has been set up for testing. Some of the open-graded aggregate sample in the bottom shear box, which moves relative to the top shear box, is visible in the picture.

Figure 1. Photo. Large-scale DS device at TFHRC.

Table 1. Selected AASHTO M43-05 (ASTM D448) aggregate designations.

Sieve No.

Percent Passing Through Sieve

No. 5 No. 56 No. 57 No. 6No. 67 No. 68 No. 7 No. 78 No. 8 No. 89 No. 9 No. 10

1.5 inches

100

100

100



1 inch

90–100

90–100

95–100

100

100

100



0.75 inches

20–55

40–85



90–100

90–100

90–100

100

100



0.50 inches

0–10

10–40

25–60

20–55



90–100

90–100

100

100



0.375 inches

0–5

0–15



0–15

20–55

30–65

40–70

40–75

8–100

90–100

100

100

4



0–5

0–10

0–5

0–10

5–25

0–15

5–25

10–30

20–55

85–100

85–100

8



0–5



0–5

0–10

0–5

0–10

0–10

5–30

10–40



16



0–5



0–5

0–5

0–10

0–10



50



0–5

0–5



100



10–30



Figure 2. Illustration. Sieve analysis results of tested aggregates. The chart shows the sieve analysis results for each American Association of State Highway and Transportation Officials aggregate tested, including the Nos. 5, 56, 57, 6, 67, 68, 7, 78, 78, 8A, 8B, 8C, 8D, 89, 9, and 10. The y axis shows the percentage passing through the sieve, and the x-axis shows aggregate size (in inches).

Figure 2. Graph. Sieve analysis results of tested aggregates.

The ASTM D3080 test method was followed for LSDS testing with the exception of the gap size between the top and bottom shear boxes. ASTM D3080 was originally developed for standard DS testing, which designated the gap size as 0.025 inches.(4) Because the LSDS device and the aggregates tested in this research are considerably larger, the gap size was instead set to D85, or the aggregate size in which 85 percent of the material is smaller, for each sample based on the sieve analysis. This was determined from review of test methods outlined in ASTM D5321 and to avoid frictional interference from either the two shear boxes or larger particles within the gap during testing.(5)

The shear strain displacement rate was set at 0.015 inch/min for the open-graded aggregates based on the results obtained during the compression phase of testing. The samples were sheared to a maximum of 20 percent of the device length for a total shear displacement of 2.4 inches. Because the friction angle increases with relative density for sands and gravels, an assumed worst-case condition was used by placing the samples with no compactive effort into the shear box.(6) Each aggregate was tested at normal stresses of 5, 10, 20, and 30 psi, which is a typical stress range for wall and bridge applications, to determine the friction angle. Note that before testing, the LSDS device was calibrated for displacement and shear resistance; the load cells measuring normal and shear force were also calibrated.

RESULTS

For each applied normal stress, the shear stress was measured as a function of shear displacement. The peak shear stress typically occurred at a lateral strain of 5 to 10 percent of the sample length. The resulting friction angle was then determined based on (1) a best-fit linear Mohr-Coulomb (MC) envelope, which is the current standard of practice, and (2) a Zero Dilation Angle (ZDA) approach proposed by the authors (see table 2). The MC and ZDA methods of determining the friction angle are illustrated in figure 3 and figure 4, respectively, for the No. 8A sample as an example.

Table 2. Friction angle results using the linear MC envelope and ZDA approaches.

AASHTO Gradation

Friction Angle (°)

Mohr-Coulomb (MC)

Zero Dilation Angle (ZDA)

Dry

Saturated

Dry

Saturated

5

51

59

52

49

56

59

57

53

56

57

52

56

47

56

6

59

60

50

54

67

55

60

53

57

68

50

52

51

51

7

57

52

54

52

78

53

48

51

49

8A

54

50

52

50

8B

47

45

50

50

8C

43

43

50

48

8D

52

46

53

50

89

47

45

48

49

9

53

45

52

48

10

46

41

46

44

Note: For the MC approach, the peak friction angle reported is with the corresponding cohesion values omitted; for the ZDA approach, the critical state, or constant volume, friction angle is reported.

Note that using a linear MC interpretation results in a cohesion value for each test because the y‑intercept of the best-fit approximation is not zero (figure 3, for example); however, these aggregates are cohesionless. This inconsistency is attributed to the fact that the failure envelope is actually nonlinear (figure 5); there is also aggregate interlocking and dilation that occurs during shearing, depending on the applied normal stress. In reality, the friction angle decreases with increased applied normal stress in a logarithmic function. For the range of stresses tested, the secant friction angle corresponding to the peak for each applied normal stress was larger than that approximated from the MC approach. Because of these issues, the authors propose the use of an alternative ZDA method to determine the design friction angle, which is based on the critical state or constant volume concept.(7)

Figure 3. Illustration. Linear MC failure envelopes for No. 8A. The chart shows the linear Mohr-Coulomb failure envelopes for the No. 8A aggregate. The y-axis shows peak shear stress (in psi), and the x-axis shows normal stress (in psi). Envelopes for both dry and saturated conditions are shown, with the dry envelope above the saturated envelope. The best-fit line for the dry conditions gives a peak shear stress equal to 1.4 times the normal stress plus 3.38 psi, with an R squared value of 0.99; the corresponding friction angle is equal to the arctan of 1.40, which is 54.46°. The best-fit line for the saturated conditions gives a peak shear stress equal to 1.19 times the normal stress plus 3.31 psi, with an R squared value of 0.99; the corresponding friction angle is equal to the arctan of 1.19, which is 49.96°.

Figure 3. Graph. Linear MC failure envelopes for No. 8A.

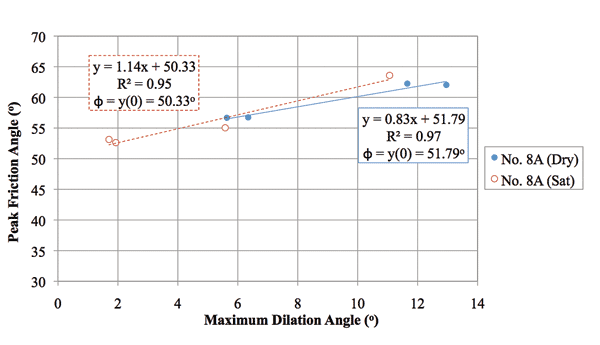

Figure 4. Illustration. ZDA approach for No. 8A. The chart shows the zero dilation angle approach for the No. 8A aggregate. The y-axis shows peak friction angle (in degrees), and the x-axis shows maximum dilation angle (in degrees). Best-fit lines for both dry and saturated conditions are shown, with the saturated envelope above the dry envelope. The best-fit line for the dry conditions gives a peak friction angle equal to 0.83 times the dilation angle plus 51.79?, with an R squared value of 0.97; the corresponding friction angle is equal to the peak friction angle at a zero maximum dilation angle, which is equal to 51.79°. The best-fit line for the saturated conditions gives a peak friction angle equal to 1.14 times the dilation angle plus 50.33°, with an R squared value of 0.95; the corresponding friction angle is equal to the peak friction angle at a zero maximum dilation angle, which is equal to 50.33°.

Figure 4. Graph. ZDA approach for No. 8A.

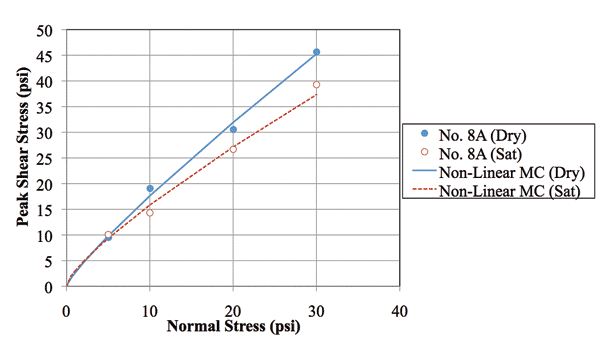

Figure 5. Illustration. Nonlinear MC failure envelopes for No. 8A. The chart shows the four data points and non-linear Mohr-Coulomb (MC) failure envelopes for the No. 8A aggregate for both dry and saturated conditions. The y-axis shows peak shear stress in psi, and the x-axis shows the normal stress in psi.

Figure 5. Graph. Nonlinear MC failure envelopes for No. 8A.

In the case of the LSDS, the dilation angle (Ψ) is the ratio of the incremental vertical displacement of the sample (Δ γ) to the incremental horizontal displacement (Δχ) measured during testing, where tan(Ψ) = Δ γ/Δχ.(7) At a dilation angle of zero, the change in incremental vertical height of the sample during shearing is zero. As with the friction angle, the dilation angle decreases with increasing applied normal stress in a logarithmic function. The relationship between friction angle and dilation angle is linear (figure 4, for example).(8)The y-intercept of the best-fit linear envelope in the ZDA approach is the proposed design friction angle at peak conditions for a particular aggregate (table 2), which corresponds to the constant volume or critical state friction angle.

Figure 6 shows a general trend of the friction angle decreasing with smaller aggregate size, regardless of the method used to determine strength. Although there is scatter in the results, there is no significant difference in the results between dry and saturated conditions for the open-graded aggregates tested. The scatter is largely attributed to variations and uncertainties inherent in laboratory testing; typical coefficients of variation for friction angles measured in laboratory tests are up to 10 percent.(9)

The difference in friction angles for the AASHTO No. 8 aggregates was apparent when using a linear MC failure envelope, with the highest and lowest peak friction angle measured at 54° and 43° respectively, for dry conditions. Although both are angular, the weakest No. 8 aggregate had flat, elongated particles while the strongest No. 8 aggregate was not flat. Therefore, the resulting dilation angles were different, with the weakest No. 8 having lower dilation angles than the strongest, as expected based on the visual observations of the aggregate shape. Based on the ZDA approach, however, the friction angles were more similar for the No. 8 aggregates. This is because the ZDA approach reduces the friction angle to the critical state, thereby negating the effect of dilation from peak conditions.

Figure 6. Illustration. Summary of peak friction angle results. The chart shows the summary of peak friction angle results for the series of aggregates tested, including the Nos. 5, 56, 57, 6, 67, 68, 7, 78, 78, 8A, 8B, 8C, 8D, 89, 9, and 10. The y-axis shows the friction angle, and the x-axis shows the American Association of State Highway and Transportation Officials M43 gradation. Four different types of data points are plotted: Mohr-Coulomb (MC) dry, MC saturated, Zero Dilation Angle (ZDA) dry, and ZDA saturated. There is some scatter in the results, but the general trend is the highest friction angle corresponds to the largest aggregates, the No. 5s; and the smallest friction angle corresponds to the smallest aggregates, the No. 10s. The highest measured friction angle is 60°, and the smallest is 41°.

Figure 6. Graph. Summary of peak friction angle results.

RECOMMENDATIONS AND Conclusions

LSDS testing of the AASHTO open-graded aggregates resulted in measured friction angles well above the 34° default friction angle typically used in design. Two approaches were investigated: (1) measuring the friction angle as the slope of the conventional, best-fit linear MC failure envelope and (2) measuring the friction angle corresponding to a ZDA approach. The linear MC approach resulted in more scatter within the data and measured cohesion values, but the resulting peak friction angle is conservative for open-graded aggregates and familiar to designers. The ZDA approach resulted in less scatter and provided a more accurate basis for obtaining the critical state friction angle, but requires an extra step in the analysis of DS results. Based on the samples tested in this program to date, the lowest friction angle measured was for the No. 10 aggregates (the smallest aggregate tested) under saturated conditions – 41° and 45° for the MC and ZDA approaches, respectively.

LSDS testing is recommended to quantify the actual friction angle and take advantage of the strength of these engineered aggregates to produce more cost-effective designs. The authors propose the ZDA approach to define the friction angle for design when using AASHTO open-graded aggregates. If preliminary analysis is needed before testing, then a default friction angle of 39° is recommended. This recommendation is based on the relationship between friction angle and dilation angle for all aggregates tested in this program and assumes a 95-percent confidence interval; the proposed new default of 39° corresponds to the peak friction angle of 49° (see figure 7), less two standard deviations. Note that this default angle is still conservative with respect to the actual strength properties of the open-graded aggregates tested (see table 2).

Figure 7. Illustration. Relationship between friction and dilation angles. The chart shows the relationship between the friction and dilation angles for all aggregates tested, broken into dry and saturated conditions for applied normal stresses of 5, 10, 20, and 30 psi. The y-axis is the peak friction angle in degrees and the x-axis is the maximum dilation angle in degrees. There is some scatter in the results, but the general trend is that the higher friction and dilation angles correspond to an applied stress of 5 psi and the lowest peak friction angles and dilation angles correspond to an applied stress of 30 psi. A best-fit linear envelope is shown with the trend line having an R squared value of 0.77 and an equation of peak friction angle equal to 1.10 times the maximum dilation angle plus 49.09.

Figure 7. Graph. Relationship between friction and dilation angles.

FUTURE TESTING

Additional laboratory testing is planned at TFHRC to further characterize the engineering properties of both open- and well-graded aggregates and to develop a database of material variability. In addition to LSDS testing, large-diameter (6-inch) TX testing is underway for open-graded aggregates. The impact of compaction on strength and dilation will be investigated. Commonly used well-graded aggregates will also be tested in both the LSDS and TX devices. The primary objective of this research is to encourage designers to employ more realistic strength values in design when using these engineered fills.

ACKNOWLEDGEMENTS

The authors would like to acknowledge the hard work of geotechnical technician, Jan Li, who prepared and tested many of the samples for this study. Special thanks also go to Dr. Phillip Ooi for his feedback throughout the project. Finally, the authors are grateful to Justice Maswoswe and Khalid Mohamed for their review of this testing program and report.

References

  1. AASHTO. (2005). M 43: Standard Specification for Sizes of Aggregate for Road and Bridge Construction. American Association of State Highway and Transportation Officials.

  2. Ooi, P.S.K. and Selvarajah, P. (2010). "Use of the Parallel Gradation Technique to Assess the Shear Strength of Reclaimed Asphalt Pavement in Direct Shear." Proceedings, International Conference on Sustainable Built Environment, pp. 219226.

  3. Verdugo, R. and de la Hoz, Karem. (2006). "Strength and Stiffness of Coarse Granular Soils." Geotechnical Symposium in Rome, March 16–17, 2006.

  4. ASTM D3080. (2004). "Standard Test Method for Direct Shear Test of Soils Under Consolidated Drained Conditions." Annual Book of ASTM Standards, ASTM International, West Conshohocken, PA.

  5. ASTM D5321. (2008). "Standard Test Method for Determining the Coefficient of Soil and Geosynthetic or Geosynthetic and Geosynthetic Friction by the Direct Shear Method." Annual Book of ASTM Standards, ASTM International, West Conshohocken, PA.

  6. Simoni, A. and Houlsby, G.T. (2006). "The Direct Shear Strength and Dilatancy of Sand-Gravel Mixtures." Journal of Geotechnical and Geological Engineering, Vol. 24, pp. 523 549.

  7. Bolton, M.D. (1986). "The Strength and Dilatancy of Sands." Géotechnique, Vol. 36(1), pp. 65–78.

  8. Houlsby, G.T. (1991). "How the Dilatancy of Soils Affects Their Behavior." Proceedings, Tenth European Conference on Soil Mechanics and Foundation Engineering, Soil Mechanics Report No. 121/91, Florence, Italy.

  9. Paikowsky, S.G., Canniff, M.C., Lesny, K., Kisse, A., Amatya, S. and Muganga, R. (2010). LRFD Design and Construction of Shallow Foundations for Highway Bridges. NCHRP Report 651, Transportation Research Board, Washington, DC.



Researchers —This research was conducted at Turner-Fairbank Highway Research Center by Jennifer Nicks and Mike Adams of FHWA with the help of geotechnical technician Jan Li of ESC, Inc.

Distribution —This TechBrief is being distributed according to a standard distribution. Direct distribution is being made to the Divisions and Resource Center.

Availability —This TechBrief may be obtained from the FHWA Product Distribution Center by e-mail to report.center@dot.gov, fax to (814) 239-2156, phone to (814) 239-1160, or online at https://www.fhwa.dot.gov/research.

Key Words—aggregates, laboratory testing, large-scale direct shear, AASHTO, materials, friction angle, dilation angle

Notice —This document is disseminated under the sponsorship of the U.S. Department of Transportation in the interest of information exchange. The U.S. Government assumes no liability for the use of the information contained in this document. The U.S. Government does not endorse products or manufacturers. Trademarks or manufacturers' names appear in this report only because they are considered essential to the objective of the document.

Quality Assurance Statement —The Federal Highway Administration (FHWA) provides high-quality information to serve the Government, industry, and public in a manner that promotes public understanding. Standards and policies are used to ensure and maximize the quality, objectivity, utility, and integrity of its information. FHWA periodically reviews quality issues and adjusts its programs and processes to ensure continuous quality improvement.
