Characterization of Bridge Foundations Workshop Report

SUMMARY OF THE FIRST PLENARY SESSION: FEDERAL RESEARCH PROGRAMS—NATIONAL PERSPECTIVE

INTRODUCTION TO THE PLENARY SESSION

The workshop began with a series of presentations that were designed to focus the participants on key issues relevant to characterization of bridge foundations. Specifically, the participants were tasked to identify and define the key factors and actions related to unknown foundations, foundation characterization, and reuse of bridge foundations. The presentations are available on the TRB Committee on Soil and Rock Properties (AFP30) Web site.(2) It is accessible at https://sites.google.com/site/trbcommitteeafp30/characterization-of-bridge-foundations/May-2013-workshop-fhwa---presentations.1

WELCOME, OBJECTIVE OF WORKSHOP, FHWA PERSPECTIVE

Welcoming remarks were provided by Mr. Louis Triandafilou, Acting Assistant Director, on behalf of Mr. Jorge E. Pagán-Ortiz, Director of the FHWA Office of Infrastructure R&D. Mr. Triandafilou highlighted the following:

OVERVIEW OF FHWA´S CHARACTERIZATION OF BRIDGE FOUNDATION PROGRAM

Frank Jalinoos, Research Engineer at the FHWA Office of Infrastructure R&D, provided a comprehensive overview of the draft CBF program. The Schoharie Creek Bridge failure in April 1987 started the national bridge scour program; the failure also involved an unknown foundation. What was started as a program for pre-event vulnerability assessment for scour has expanded to include other hazards with unknown foundations, changes in service loads and foundation reuse, and available tools and technology for the characterization of bridge foundations.

As of December 2011, the NBI includes over 600,000 structures with a span greater than 20 ft (6 m).(1) FHWA provided guidance in January 2008 and June 2009 to eliminate bridges with unknown foundations, with a target date of November 2010.(4) The number of bridges in the NBI database coded as unknown foundation has steadily decreased over the years, from 104,000 in 1996 to approximately 36,000 as of December 2012.(1) FHWA guidance on unknown foundations can be found on the FHWA Web site.(4)

The engineering risk associated with bridge foundations can be summarized as:

Examples of each risk were shown.

The engineering problems associated with foundation characterization include foundation type, pile type, embedment depth, geometry and material, foundation integrity, and load carrying capacity. Figure 1 illustrates the complexity in evaluating unknown foundation conditions. Available geophysical and NDE techniques are a common means of identifying these characteristics and were briefly reviewed. Although initially the emphasis has been on identifying unknown foundation characteristics for scour issues, recent efforts have also focused on identification for reuse of foundations.

A number of tools and technology exist for identification and characterization of bridge foundations including geophysical tools, NDE, destructive material sampling, load testing, numerical modeling, site investigation, and risk-based analysis. A tentative research plan was proposed that included testing of existing bridges from State agencies and the Long-Term Bridge Performance (LTBP) Program, load testing of decommissioned bridges, and integrity testing of a small testbed constructed with defective foundation types.

Research deliverables will include reports and technical briefs, guidance documents, and tools and technologies.

This figure shows a three-dimensional drawing of an idealized bridge element and is meant to convey the variability of unknowns that are involved in a bridge foundation investigation. On the top of the drawing, a block is drawn and is labeled superstructure on the left hand side with an arrow pointing up. On the right hand side, it is labeled variable bridge superstructure: steel, concrete, wood, or combination. Below the superstructure, a three-dimensional drawing of a column supported on a pile cap with piles is shown with an arrow pointing down and is labeled substructure (considered the unknown bridge foundation). The three-dimensional figure is further broken down with the column labeled bridge pier or abutment. The pile cap is labeled shallow footing or pile cap. The piles are labeled deep foundations: steel, concrete, or timber piles; or concrete drilled shafts. The bridge is shown embedded in water, riprap, and soil. The water is shown midway around the column and is labeled dry, marsh, or water. The pile cap is shown topped by rocks and is labeled riprap, soil, or mud. The label around the piles reads subsurface soil or bedrock.

Figure 1. Diagram. Typical foundation conditions.(5)

HYDRAULICS RESEARCH

Dr. Kornel Kerenyi, Hydraulics Laboratory Manager at the FHWA Office of Infrastructure Research and Development at Turner Fairbank Highway Research Center (TFHRC), presented an overview of the physical modeling experiments conducted at the TFHRC Hydraulics Laboratory, and the high performance computing simulation conducted at Argonne National Laboratory (ANL). Presently, physical experiments are used to calibrate numerical models, and the vision for the future is to move away from physical modeling towards computational modeling. Dr. Kerenyi showed the current bridge scour research conducted utilizing the hydraulic loading-bridge pier turbulence and soil erosion testing devices.(6) See figure 2 and figure 3. Videos were shown of the Computational Fluid Dynamics model calibration experiments and validation/comparisons, illustrating the importance of matching loading with soil type and the sour associated with fluctuating flow stresses.

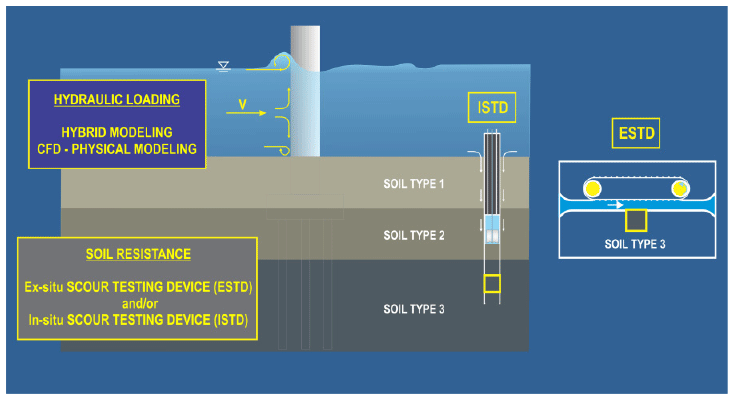

The figure shows a schematic of hydraulic loading-bridge pier turbulence. A cylindrical pier is shown on top of three different soil types. The pier is also partially embedded in water with arrows indicating eddy current in front of the pier, and wake currents in the back. A box is shown labeled hydraulic loading, which is computed by a hybrid computational fluid dynamics and physical modeling approach. Another box is shown labeled Soil Resistance, which is computed by an ex-situ scour testing device (ESTD) and/or in-situ scour testing device (ISTD).
On the right hand side, a schematic of the ISTD is shown, consisting of a piston-like device that is pushed in the soil types. Another box is drawn illustrating the ESTD device with the soil specimen shown in a rectangular box placed under flowing water on top. A schematic consisting of two separate equal-sized circles that are connected on top depicts a moving belt and a pump to propel the flow in a channel underneath the belt.
The ESTD device mimics the near-bed flow of open channel reproducing hydrodynamic forces on bed soils. Specimens are mounted on a sensor disk that is servo controlled. The reaction forces of the servo controlled direct force gauge equals the erosion forces acting on the soil specimens.

Figure 2. Diagram. Hydraulic Loading—Soil Resistance Approach.(6)

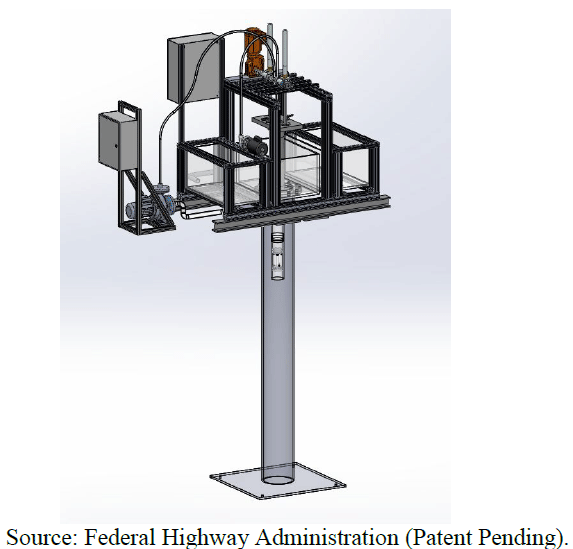

. The figure shows a three-dimensional schematic of the in-situ scour testing device (ISTD). ISTD is used for in-situ measurement of river bed material erodibility, potentially providing more accurate information than lab tests. The figure shows the device that was built with Plexiglas and modular machine-building components made of aluminum. The lower box holds sufficient water to fill the upper box. The upper box is filled with uniform sand. The remaining space of the upper box is filled with still water. The boxes are supported by a surrounding frame. On the top of the frame and above the upper box is a driving system consists of a motor connected to a pair of screw jacks. This system pushes the model ISTD into the sand, while the internal stream of ISTD removes the bed material. A pipeline allows drainage and refilling of the upper tank using the storage of the lower tank. A valve system can switch the connection between the boxes and the pump to allow the pump to serve both as the water source for ISTD operation, as well as the water source for filling the upper tank. A flexible bellow-pipe supplies the ISTD with water from the pump, while allowing for vertical movement.

Figure 3. Diagram. In-situ scour testing device for a 10-ft-deep erosion test.

Dr. Steven Lottes of ANL provided an overview of their Transportation Research and Analysis Computing Center (TRACC). The TRACC cluster computing capabilities are available to all transportation researchers and analysts, with universities and government making up the bulk of the cluster user groups. Example uses include traffic modeling, bridge hydraulics, bridge structural analysis, and vehicle occupant safety and crashworthiness. Dr. Lottes reported on modeling soil-structure interaction with large deformations using the Oat Ditch bridge failure (figure 4) as well as simulation of soil penetration tests and bridge pier failure. A model of fluid structure interaction for the onset of motion for riprap was presented.

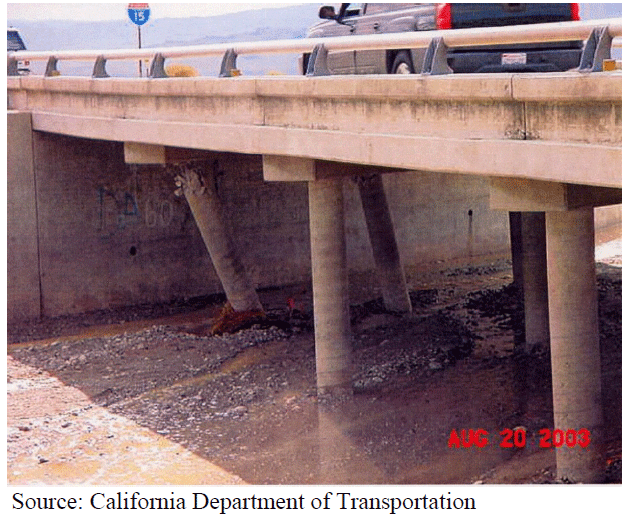

The figure is a picture of the Oat Ditch Bridge on Interstate (I)-15 in California in 2003 after a flash flood. Bridge ID 54-0270R was a 5-span continuous reinforced concrete slab on four reinforced concrete bent columns. Each column was supported by an individual rectangular footing. Although analyzed for scour in 2000 and found not to be scour critical, three columns at bent 5 of the bridge failed during the flood on August 19–20, 2003.

Figure 4. Photo. Failure of Oat Ditch Bridge on I-15 in California.

OVERVIEW OF PAST, CURRENT, AND PLANNED GEOTECHNICAL RESEARCH AT TFHRC

Dr. Jennifer Nicks, Research Geotechnical Engineer at the FHWA Office of Infrastructure R&D, presented an overview of the Geotechnical Research Program at TFHRC, beginning with background information on bridge foundations, including type, cost, and common State concerns. She then described the FHWA Foundation Engineering Research Program (FERP) initiated in the late 1970s. Five FERP projects were detailed: structural consequences of foundation movements, predicting behavior of piles and foundation soils under structural loads (see figure 5 and figure 6), improved design and construction techniques for drilled shafts, innovative load test methods, and improved design for shallow foundations. Past research projects related to bridges were also described. Dr. Nicks indicated that current research efforts are focused on deformation analysis of shallow foundations, performance of Geosynthetic Reinforced Soil (GRS) as a bridge foundation system, steel corrosion in Mechanically Stabilized Earth (MSE) structures, long-term GRS dead load tests, retaining wall asset management, and design and load testing of large diameter driven pipe piles. Important topics for future research include geophysics for reliable determination of soil and rock design parameters, risk analysis for geotechnical structures, and reuse of geotechnical features.

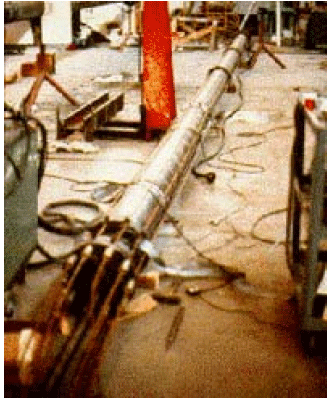

The figure shows a full-scale pipe pile being instrumented in the laboratory prior to field installation for testing in clay. The pipe pile is laid down on the floor with sensors and wires around the perimeter.

Figure 5. Photo. Laboratory instrumentation of a pipe pile for field load testing.(7)

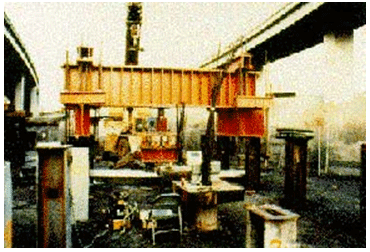

The figure shows a full-scale load test set-up in California, which was designed to study the engineering behavior of individual micropiles and micropile groups and/or systems under axial and transverse load response modes. The set-up includes a large reaction frame.

Figure 6. Photo. Predicting the behavior of micropiles and foundation soils under structural loads.(7)

FHWA LTBP PROGRAM – REPORT ON THE WORKSHOP ON BRIDGE SUBSTRUCTURE ISSUES AND OVERVIEW OF THE GEOTECH TOOLS

Professor Vern Schaefer of Iowa State University provided an overview of the LTBP Workshop and the GeoTechTools system. In March 2010, approximately 60 participants from State transportation departments, FHWA, domestic universities, and industry, met in Orlando, FL, to identify bridge substructure performance issues.(8) The bridge performance issues were grouped into three areas: geotechnical bridge performance issues, data needs and gaps, and tools, technology development and monitoring. The participants were divided into three groups to discuss each of these areas and then reconvened to further discuss them. The geotechnical bridge performance issues included abutment/approach settlement; foundations in terms of measuring loads, unknown foundations, and tolerable movements; hydraulic issues of scour and drainage; materials, in particular corrosion/deterioration; and construction quality control, see table 1. The key data needs and gaps identified included existing capacity and integrity of foundation elements; and design scour and measured scour, see table 2. Less emphasis was placed on the tools, technology development, and monitoring, with a simple delineation of what is currently available, what will be available in the near future and what is needed in the long term, see table 3.

Dr. Schaefer also provided a brief overview of the GeoTechTools system, which is a comprehensive web-based information and guidance system for embankment, ground improvement and pavement applications that was developed through the Strategic Highway Research Program (SHRP 2). The system provides guidance on the use of 46 technologies for ground improvement and geoconstruction in transportation infrastructure. For each technology, there are eight products available including technology fact sheets, photographs, case histories, design procedures, quality control/quality assurance procedures, cost estimating, specifications, and a bibliography. A live demonstration of the system was made.

Table 1. FHWA LTBP Workshop Breakout Session 1: Summary of priority geotechnical performance issues identified by each group.(8)

Group 1

Group 2

Group 3

  • Abutments: Bump at end of bridge, integral abutments, piles
  • Foundations: Measured loads, widening, unknown foundations, tolerable movements
  • Hydraulics: Scour, drainage
  • Materials: Corrosion
  • Construction: Quality control
  • Approaches: Settlement, global stability
  • Piers: Scour, total-differential settlement, horizontal movement
  • Abutments: Vertical and horizontal movement, differential settlement, scour, pile performance
  • Abutment walls: Corrosion, drainage failure, scour, soil restraint
  • Corrosion/deterioration (MSE walls, steel in piles, embankment material)
  • Bump at end of bridge (significant)
  • Fatigue/integral abutment/lateral stress
  • Drainage, runoff, erosion
  • Remaining service life—long-term performance

Table 2. FHWA LTBP Workshop Breakout Session 2: Data needs and gaps related to performance issues for bridges.(8)

Performance Issue

Data Needs

Construction Records

Inspection and Maintenance History

Characterization of Service Environment

Post-Construction Monitoring

Approach-bridge interface

  • As-built plans
  • Foundation report
  • Inspection reports
  • Photos
  • Voids under slabs
  • Winter maintenance practices
  • Climate data
  • Traffic
  • Loads
  • Settlement
  • Rideability
  • Deformations
  • Vibrations

Material degradation

  • As-built plans
  • Inspection reports
  • Winter maintenance practices
  • Climate data
  • Groundwater info
  • Soil characteristics
  • Corrosion detection
  • Condition of foundation elements

MSE Walls

  • As-built plans



  • Visual identification of corrosion
  • Climate data
  • Indications of salt intrusion from poor surface drainage
  • Soil pH
  • Water pH



Hydraulics

  • As-built plans
  • Abutment/pier type
  • Channel capacity
  • Type of scour countermeasures
  • Predicted scour
  • Inspection reports



  • Flood data/records
  • Climate data
  • Ice data
  • Stream velocity



  • Scour depth
  • Actual scour versus predicted scour



Table 3. FHWA LTBP Workshop Breakout Session 3: Needed tools, technology development, and monitoring.(8)

Geotechnical
Performance Issue

Tools
Currently Available

Short-Term
Technology Development

Long-Term
Technology Development

Bump at the end of the bridge

  • Ground-penetrating radar
  • Survey
  • Inclinometer
  • TDR moisture sensors
  • Settlement points at depth
  • Road profiler
  • Airborne LIDAR
  • User feedback (phone calls)
  • Accident data
  • Maintenance records
  • Peak particle velocity for vibration monitoring
  • Quality geotechnical data
  • In situ geotechnical testing
  • Tiltmeters
  • High-speed pavement profilers
  • Smart pavement to capture loading
  • Earth pressure cells
  • Smart soils with MEMS embedded

Foundations

  • Strain gauges
  • Load cells
  • Survey
  • Inclinometer
  • Settlement points at depth
  • Laser scanning
  • Maintenance records
  • Quality geotechnical data
  • In situ geotechnical testing
  • Tiltmeters
  • Bridge response WIM
  • Crack meters
  • TDR cables embedded in foundation
  • Settlement of foundation
  • Load test data
  • Embedded GPS reference points in foundations
  • Smart foundation elements
  • Technique to measure existing load on foundation
  • Laser/radar interferometry monitoring of deflection
  • Earth pressure cells
  • Energy piles/geothermal heating for heating of decks

Deterioration

  • Half cell potential
  • Resistivity
  • Sacrificial steel and inspection
  • Concrete coring
  • Concentrations of chloride and sulfate in concrete
  • Concrete cover measurements
  • Ultrasonics
  • Optical TDR
  • Laser/radar interferometry monitoring of deflection
  • Shear/p-wave velocity (for elemental stiffness)
  • Smart paint/coating (to measure stress, corrosion)
  • Self-healing steel
  • Self-healing concrete
  • Maintaining compatibility of strains in repair materials
  • Embedded biosensors

Earth-retaining
structures

  • Strain gauges
  • Load cells
  • Survey
  • Inclinometer
  • TDR moisture sensors
  • Settlement points at depth
  • Laser scanning
  • Airborne LIDAR
  • Maintenance records
  • Quality geotechnical data
  • In situ geotechnical testing
  • Tiltmeters
  • Crack meters
  • Piezometers
  • Inspect drains
  • TDR cables
  • Smart concrete/ structure members to capture loading
  • Electro-conductivity of wall
  • Earth pressure cells
  • New technique to measure water height behind wall face
  • Smart soils
  • Harnessing movement on bridge to capture energy to power sensors

Hydraulics (scour)

  • Sonar
  • Plumb bobs
  • Float out device
  • TDR vertical and horizontal
  • Sub-bottom profiler
  • Ground-penetrating radar
  • Flow monitoring
  • Visual inspection/diver
  • Embedded GPS reference points in countermeasures
  • In-place sonar
  • Float out device attached to structure
  • Vibrations of pier structure
  • Smart particles
  • Satellite/airborne imagery to detect scour holes
GPS = Global Positioning System.
MEMS = Microelectromechanical systems.
WIM = Weigh in motion.
LIDAR = Light detection and ranging.
TDR = Time domain reflectometry.
