Splice Length of Prestressing Strand in Field-Cast Ultra-High Performance Concrete Connections

PDF Version (1.17 MB)

PDF files can be viewed with the Acrobat® Reader®


FHWA Publication No.: FHWA-HRT-14-041

FHWA Contact: Ben Graybeal, HRDI-40, (202) 493-3122, benjamin.graybeal@dot.gov.

This document is a technical summary of the Federal Highway Administration report, Splice Length of Prestressing Strands in Field-Cast UHPC Connections (FHWA-HRT-14-047), available through the National Technical Information Service at www.ntis.gov.(1)

NTIS Accession No. of the report covered in this TechBrief: PB2014-103454.


The objective of this research was to determine the lap splice length of untensioned prestressing strand in field-cast ultra-high performance concrete (UHPC).


The development length of reinforcements embedded into UHPC can be significantly shorter than the lengths normally associated with conventional concrete. Shortening the development length of prestressing strand can allow for a redesign of some structural systems, including spliced girder and continuous-for-live-load bridges. UHPC, when used in field-cast connections between prefabricated bridge elements, can create robust connections that emulate monolithic components.

UHPC is a cementitious composite material composed of an optimized gradation of granular constituents, a water-to-cementitious materials ratio less than 0.25, and a high percentage of discontinuous internal fiber reinforcement. The mechanical properties of UHPC include a compressive strength greater than 21.7 ksi (150 MPa) and sustained post-cracking tensile strength greater than 0.72 ksi (5 MPa). UHPC has a discontinuous pore structure that reduces liquid ingress, significantly enhancing durability compared with conventional concrete.(1,2,3)

Connecting adjacent pretensioned elements to one another affords the opportunity to increase the efficiency of the structural design, accelerate the construction, and enhance the serviceability of the structure. Connections engaging prestressing strands extending from the components are rarely designed or implemented due to the need for expensive mechanical connectors or long lengths of strand (and thus geometrically large connections). Critical connections in which splicing of existing strands might have been appropriate have traditionally been completed using either post-tensioning systems or supplemental mild steel reinforcement.

UHPC-class materials have been demonstrated to significantly decrease the development length of embedded reinforcing elements. As such, UHPC may afford a new opportunity to reconsider the traditional methods for connecting prestressed elements, including the splicing of prestressing strands. It may be possible to reduce the embedment length of prestressing strands to the point that splicing of pretensioned elements becomes a viable design concept and construction technique. Most notably, this concept could advance the state-of-the-practice for multispan continuous structures and for spliced girder structures.

Test Program

This study investigated the development length of 0.5- and 0.6-inch (12.7- and 15.2-mm) diameter untensioned prestressing strands embedded in steel fiber and polyvinyl alcohol (PVA) fiber reinforced UHPC. The volumetric fiber content was 2 percent. The compressive strength of the steel fiber reinforced UHPC at the time of strand splice testing was approximately 23.5 ksi (162 MPa). As is common when reduced stiffness fibers are used in UHPC, the compressive strength of the PVA fiber reinforced UHPC was reduced to a value of approximately 19.5 ksi (134 MPa).

A development length test was designed that allowed for the replication of the tension— tension stress state that could occur when two strands were lap spliced within a connection between two linear elements. The specimen geometry and test setup are shown in figure 1. The non-contact lap lengths tested ranged from 8 to 24 inches (20.3 to 61.0 cm) for the 0.5- and 0.6-inch (12.7- and 15.2-mm) diameter prestressing strands embedded in steel fiber reinforced UHPC. The non-contact lap lengths ranged from 8 to 36 inches (20.3 to 91.4 cm) for the 0.5-inch (12.7-mm) diameter prestressing strands embedded in the PVA fiber reinforced UHPC. Specimens were cast and cured in an ambient laboratory environment. Figure 2 shows the casting of 1 of the 18 test specimens.

The tests were completed under displacement control in a servo-hydraulic testing machine as shown in figure 3. The load resisted by the specimen and the slippage of the dead end of the single prestressing strand were captured throughout each test. Tests were continued until well after the peak resistance was achieved or until the strand ruptured. Each test was completed between 28 and 32 days after casting of the UHPC.

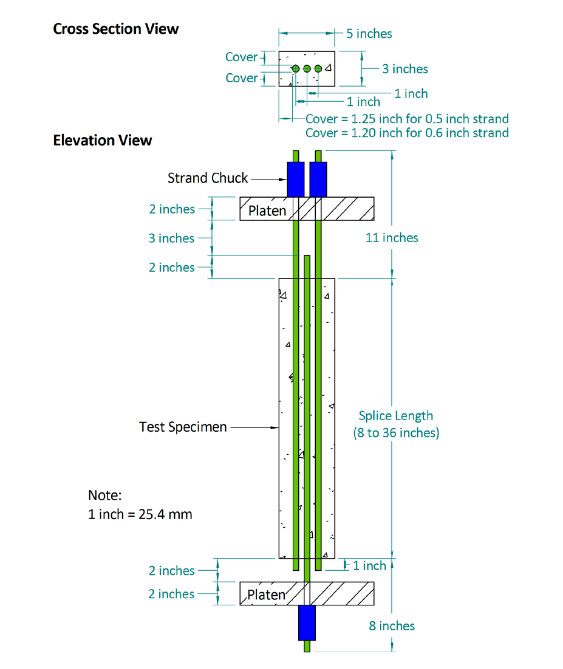

This line drawing shows the dimensions of the test specimen, the locations of the strands, and the loading configuration used to test the specimens. The specimens had a 5-inch (12.7-cm) by 3-inch (7.6-cm) cross section and contained two strands lap spliced with a third strand.

Figure 1. Test specimen geometry and loading setup.

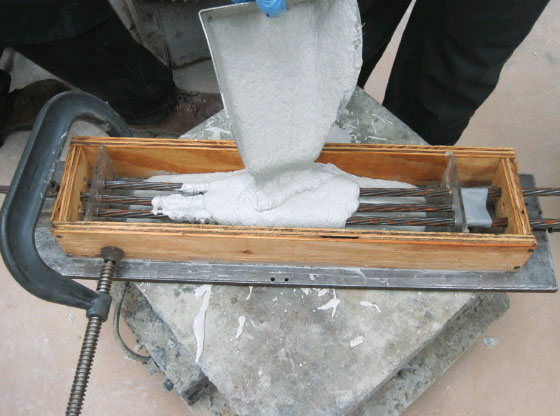

This figure shows the placement of ultra-high performance concrete (UHPC) into the formwork for an individual test specimen. The three strands are visible as the UHPC is deposited into the form.

Figure 2. Casting of a 20-inch (50.8-cm) long test specimen


Test Results

The implemented test method proved capable of demonstrating the different behaviors that could be exhibited by unstressed prestressing strands embedded into field-cast UHPC. Longer embedment lengths correlated with higher strand stresses at peak resistance. Figure 4 provides the test results with the nominal strand strength of 270 ksi (1,860 MPa) shown as a dotted line. The three types of specimens are shown with the range of embedment lengths tested.

The behavior of each specimen can be described as follows. Initially, the response appeared elastic, with the single strand effectively transferring all applied load through the UHPC into the lapped strands. If the lap length was long enough, transverse tensile cracks appeared in the UHPC. Next, most specimens began to exhibit splitting cracks that began at the loaded end of the single strand and ran along the length of the specimen. In nearly all cases, this crack eventually extended along the entire length of the specimen, resulting in a loss of confinement of the strand and a reduced resistance to continued loading. In two cases with the 0.5-inch (12.7-mm) diameter strand and longer embedment lengths in the steel fiber reinforced UHPC, the prestressing strands ruptured prior to the generation of a full-length splitting crack.

Visual observations during and after the tests indicate that the steel fiber-reinforced UHPC specimens exhibited tighter cracks, in particular, the splitting crack that tended to run the length of the specimen immediately prior to the attainment of peak resistance. Cracks in the PVA fiber reinforced specimens were wider. This is likely due to the lower elastic modulus of the PVA fibers, resulting in a reduced crack opening stiffness. The PVA specimens would then generate less clamping force on the strands and thus, as observed, would require a long embedment length to fully develop the strand.

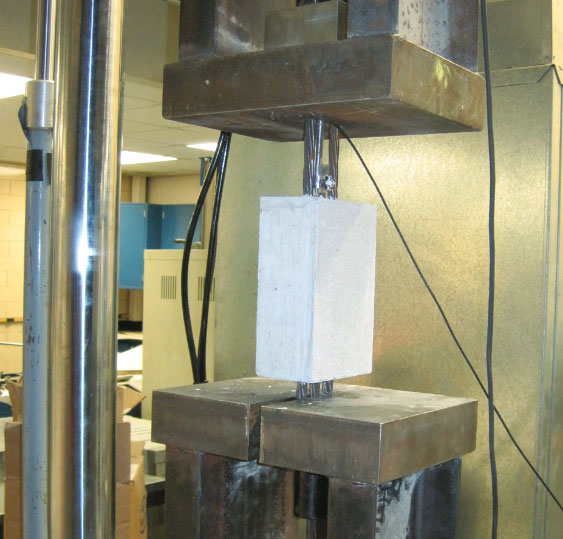

This figure shows the testing of an 8-inch (20.3 cm) long test specimen. The upper and lower loading platens are visible along with the strand chucks and the displacement transducer that measured strand slippage.

Figure 3. Test specimen in load frame.

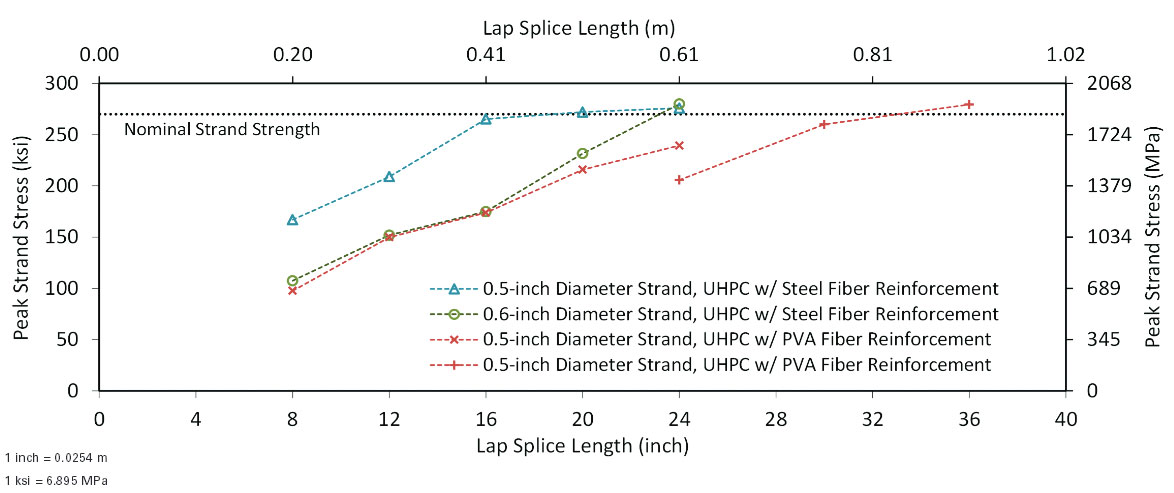

This figure shows the results obtained from the four sets of test specimens. All 18 test specimen results are plotted as lap splice length versus peak stress observed in the strand. The 0.5-inch (12.7-mm) diameter strands embedded in ultra-high performance concrete (UHPC) with steel fiber reinforcement achieved the nominal strand strength at approximately 18 inches (45.7-cm) of lap splice length. The 0.6-inch (15.2-mm) diameter strands embedded in UHPC with steel fiber reinforcement achieved the nominal strand strength at approximately 23 inches (58.4 cm) of lap splice length. The 0.5 inch (12.7-mm) diameter strands embedded in UHPC with polyvinyl alcohol fiber reinforcement achieved the nominal strand strength at approximately 33 inches (83.8 cm) of lap splice length.

Figure 4. Peak strand stress versus lap splice length.


The objective of this research was to determine the lap splice length of untensioned prestressing strand in field-cast UHPC. The results suggest that, for the steel fiber reinforced UHPC, the 0.5-inch (12.7-mm) diameter strands can be fully developed within 20 inches (0.51 m), and the 0.6-inch (15.2-mm) diameter strands can be fully developed in approximately 24 inches (0.61 m). The 0.5-inch (12.7-mm) diameter strands can be fully developed in the PVA fiber reinforced UHPC in approximately 36 inches (0.91 m). In all cases, greater or lesser confinement of the strands would result in changes in the development length. Confinement parameters of interest include cover; fiber reinforcement type, volume, and efficiency; passive transverse reinforcement; and concrete tensile response.
