LTBP Bridge Performance Primer

PDF Version (788 KB)

PDF files can be viewed with the Acrobat® Reader®

FOREWORD

This study was conducted as part of the Federal Highway Administration’s Long-Term Bridge Performance (LTBP) Program. The LTBP Program is a minimum 20-year research effort to collect scientific performance field data, from a representative sample of bridges nationwide, that will help the bridge community better understand bridge deterioration and performance. The products from this program will be a collection of data-driven tools, including predictive and forecasting models that will enhance the abilities of bridge owners to optimize their management of bridges.

This report is intended to provide a comprehensive definition of bridge performance that will be the foundation for carefully designed research studies in the LTBP Program. The report describes the barriers and complications that hinder the understanding of bridge performance and identifies the measures by which bridge performance is currently defined. The report divides bridge performance into specific issues, identifies the most critical issues, and describes the types of data necessary to analyze these issues. This report will be of interest to engineers involved with research, design, construction, inspection, maintenance, and management of bridges as well as to decisionmakers at all levels of management in public highway agencies.

Jorge Pagán-Ortiz
Director, Office of Infrastructure
Research and Development



Notice

This document is disseminated under the sponsorship of the U.S. Department of Transportation in the interest of information exchange. The U.S. Government assumes no liability for the use of the information contained in this document. This report does not constitute a standard, specification, or regulation.

The U.S. Government does not endorse products or manufacturers. Trademarks or manufacturers’ names appear in this report only because they are considered essential to the objective of the document.



Quality Assurance Statement

The Federal Highway Administration (FHWA) provides high-quality information to serve Government, industry, and the public in a manner that promotes public understanding. Standards and policies are used to ensure and maximize the quality, objectivity, utility, and integrity of its information. FHWA periodically reviews quality issues and adjusts its programs and processes to ensure continuous quality improvement.

TECHNICAL REPORT DOCUMENTATION PAGE

1. Report No.
FHWA-HRT-13-051
2. Government Accession No. 3 Recipient's Catalog No.
4. Title and Subtitle
LTBP Bridge Performance Primer
5. Report Date
December 2013
6. Performing Organization Code
7. Author(s) FHWA-HRT-13-047
John Hooks (JM Hooks & Associates) and Dan M. Frangopol, Sc.D. h.c. (Lehigh University)
8. Performing Organization Report No.
9. Performing Organization Name and Address
Rutgers, The State University of New Jersey
The Center for Advanced Infrastructure and Transportation
100 Brett Road
Piscataway, NJ 08854-8058
10. Work Unit No.
11. Contract or Grant No.
DTFH61-07-R-00136
12. Sponsoring Agency Name and Address
Office of Infrastructure Research and Development
Turner-Fairbank Highway Research Center
Federal Highway Administration
6300 Georgetown Pike
McLean, VA 22101-2296
13. Type of Report and Period Covered
Final Report
14. Sponsoring Agency Code
HRDI-60
15. Supplementary Notes
The FHWA Contracting Officer’s Technical Representative (COTR) was Dr. Hamid Ghasemi, HRDI-60
16. Abstract
The performance of bridges is critical to the overall performance of the highway transportation system in the United States. However, many critical aspects of bridge performance are not well understood. The reasons for this include the extreme diversity of the bridge infrastructure, the widely varying conditions under which bridges serve, and the lack of reliable data needed to understand performance. The Long-Term Bridge Performance (LTBP) Program was created to identify, collect, and analyze research-quality data on the most critical aspects of bridge performance. This report describes the bridge infrastructure in the United States and explains why reliable indicators of bridge performance are necessary. Current methods of measuring performance are described, and the need for more precisely targeted performance indicators is discussed. The report explains bridge performance in terms of the aspects that have the most impact on the ability of the bridge to serve its intended purpose in a safe, efficient, and economical manner. The purpose of this report is to provide an understanding of what bridge performance means and the factors that influence bridge performance. It describes the various ways in which bridge owners measure and report bridge performance. It also describes how the LTBP Program will create new measures to allow deeper analysis and understanding, which will lead to ways to improve long-term bridge performance.
17. Key Words
Bridge, Bridge performance, Performance measures, Long-term bridge performance
18. Distribution Statement
No restrictions. This document is available to the public through the National Technical Information Service, Springfield, VA 22161
19. Security Classification (of this report)
Unclassified
20. Security Classif. (of this page)
Unclassified
21. No. of Pages
67
22. Price
N/A
Form DOT F 1700.7 (8-72) Reproduction of completed page authorized

SI* (Modern Metric) Conversion Factors

TABLE OF CONTENTS


LIST OF FIGURES

Figure 1. Graph. Age Distribution of All Bridges in the United States
Figure 2. Illustration. Main Categories of Bridge Performance Issues
Figure 3. Equation. Federal SR
Figure 4. Equation. California Bridge Health Index
Figure 5. Equation. Finnra’s Repair Index
Figure 6. Equation. Finnra’s Rehabilitation Index
Figure 7. Equation. South Africa’s Condition Index
Figure 8. Equation. South Africa’s BCI.
Figure 9. Equation. Sweden’s LCV
Figure 10. Chart. Integrated Life-Cycle Bridge Management Framework
Figure 11. Equation. Range of NBI Condition Ratings
Figure 12. Equation. Range of AASHTOWare Bridge Managementâ„¢ Condition States
Figure 13. Equation. Margin of Safety.
Figure 14. Equation. Time-Dependent Margin of Safety
Figure 15. Equation. Instantaneous Probability of Failure
Figure 16. Equation. Probability of Survival
Figure 17. Equation. Reliability Index.
Figure 18. Equation. Probability of Failure for Normally Distributed Independent Variables
Figure 19. Equation. Expected Life-Cycle Cost
Figure 20. Equation. Expected Life-Cycle Cost with SHM
Figure 21. Equation. Expected Cost of Monitoring
Figure 22. Equation. Benefit of the Monitoring System
Figure 23. Equation. Safety Factor in ASD
Figure 24. Equation. Inequality for Safety Check in LRFD
Figure 25. Equation. Load Modifier Factor in LRFD for Ductility, Redundancy, and Operational Importance
Figure 26. Equation. Load Modifier Factor for Maximum Value of i
Figure 27. Equation. Load Modifier Factor for Minimum Value of i
Figure 28. Equation. Collapse Load Multiplier for Proportional Loading
Figure 29. Equation. Collapse Load Multiplier for Combined Loading
Figure 30. Equation. Collapse Load Multiplier for Arbitrary Loading
Figure 31. Equation. Return Period for Loads Due to Natural Phenomena
Figure 32. Equation. Average Duration Between Consecutive Occurrences of an Event
Figure 33. Equation. Cumulative Time Probability of Failure, One Random Variable
Figure 34. Equation. Cumulative Time Probability of Failure, Time-Variant Resistance and Load
Figure 35. Equation. Cumulative Time Probability of Survival
Figure 36. Equation. Reserve Strength Factor
Figure 37. Equation. Residual Strength Factor
Figure 38. Equation. Redundancy Factor
Figure 39. Equation. Damage Factor
Figure 40. Equation. Probabilistic Redundancy Index 1
Figure 41. Equation. Probabilistic Redundancy Index 2
Figure 42. Equation. Probabilistic Redundancy Index 3
Figure 43. Equation. Time-Variant Redundancy Index 1
Figure 44. Equation. Time-Variant Redundancy Index 2
Figure 45. Equation. Vulnerability
Figure 46. Equation. Damage Tolerance.
Figure 47. Equation. Ductility
Figure 48. Equation. Risk
Figure 49. Graph. Reasons for Bridge Rating of SD or FO
Figure 50. Graph. Deck Area (m2) of Bridges by Owners
Figure 51. Graph. Numbers of Bridges Built in 5-Year Periods by Material

LIST OF TABLES

Table 1. Diversity of Bridge Characteristics
Table 2. Types of Entities with Bridge Maintenance Responsibility
Table 3. Main Categories of Bridge Performance and General Contributing Factors
Table 4. Finnra Condition Rating
Table 5. Finnra ADT Weighting Factor
Table 6. Classification of Structural Performance Indicators
Table 7. Durability and Serviceability Performance Data
Table 8. Functionality, Cost, Structural Integrity, and Organizational Data
Table 9. Diversity of Bridge Characteristics, Parameters, and Operating Conditions
Table 10. Bridges by Functional Classification Weighted by Number, ADT, and Deck Area
Table 11. Numbers and Percentages of Bridges and Deck Area by Owner
Table 12. Design Type of Main Span (NBI Item Number 43B)
Table 13. Kind of Material Main Span (NBI Item Number 43A)
Table 14. Numbers of FO Bridges and Deck Area of FO Bridges by Owner
Table 15. Numbers of SD Bridges and Deck Area of SD Bridges by Owner

LIST OF ACRONYMS

AASHTO American Association of State Highway and Transportation Officials
ADTAverage daily traffic
ASDAllowable Stress Design
BCIBridge condition index
FHWAFederal Highway Administration
FinnraFinnish National Road Administration
FOFunctionally Obsolete
LCVLack of capital value
LRFDLoad and Resistance Factor Design
LTBP Long-Term Bridge Performance
NBISNational Bridge Inspection Standards
NBINational Bridge Inventory
NHSNational Highway System
SDStructurally Deficient
SHMStructural health monitoring
SRSufficiency Rating
STRAHNETStrategic Highway Network

CHAPTER 1. THE BASICS OF BRIDGE PERFORMANCE

The United States is more dependent than ever on its transportation system to consistently support a thriving economy and to afford its citizens a satisfactory quality of life. The system must provide for rapid response in case of personal or public emergencies; ensure a high level of national security, safety, and resilience; and provide the ability to respond quickly in times of attack or natural disaster. However, the engineered components of the transportation infrastructure, including bridges, have aged. Some are deteriorated, and many have exhausted their capacity to meet the ever-expanding operational demands in urban areas and along major freight routes. The system has also become more interdependent on other transportation modes and on financial, telecommunication, and cyber infrastructures for its operational and structural safety and security.

The transportation user community expects and deserves a system that routinely provides the highest quality service in terms of safety, efficiency, and economy while having the least possible impact on the local and global environment. Optimal operation of public highway systems is dependent on many factors. Bridges are critical nodes in the highway infrastructure, and poor performance of any bridge has the potential to reduce the operating capacity of the highway system it is a part of. Under current circumstances, most bridges will eventually reach a state where work is necessary to return the bridge or some of its components to a satisfactory level of condition or safety. The true criticality of bridges is often only apparent when work is necessary to maintain, rehabilitate, or replace an existing bridge or series of bridges; a bridge is closed due to conditions or service below acceptable levels; or a bridge collapses with attendant damage to property, disruption to service, or loss of life. Work zones where bridge work is underway usually involve one or more conditions that result in disruption to safe, efficient, and economical traffic flow. These conditions include narrowed or closed lanes, live load restrictions, speed reductions, inefficient detours, and safety hazards that result from these conditions. Negative impacts on local and regional economies and environments can often result from loss of productive time due to traffic delays and detours, work-zone accidents, or increased consumption of fuel and engine emissions, among other issues.

In the United States, the current knowledge base of inventory and condition data on bridges is among the best in the world. Current programs and methods of bridge inspection and the tools used for managing bridge programs are also among the best in the world. Yet the level of understanding of how bridges perform and how to satisfactorily measure their performance falls well short of desirable. Many attempts at performance assessment rely on expert opinion combined with significant assumptions and generalizations.

This bridge performance primer is intended to provide a clear and comprehensive perspective on the concept of bridge performance and to present a path to a better and deeper understanding of bridge performance, including how it can be reliably measured and used to improve the highway transportation system. This report describes the various ways in which bridge owners can and do currently measure and report bridge performance. It also describes how the Long-Term Bridge Performance (LTBP) Program will create new measures of performance that will allow a deeper analysis and understanding of performance, which will lead to ways to improve long-term bridge performance.

THE HIGHWAY BRIDGE INFRASTRUCTURE

The highway bridge infrastructure in the United States is very large and diverse. In this report, the term bridge is defined by the National Bridge Inspection Standards (NBIS): “a structure including supports erected over a depression or obstruction such as water, highway, or railway and having a track or passageway for carrying traffic or other moving loads and having an opening measured along the center of the roadway of more than 20 ft.”(1) A brief look at data from the National Bridge Inventory (NBI) provides a revealing picture of this vital public asset.

The 2011 NBI contains records for 605,098 bridges, of which 132,150 are classified as tunnels or culverts.(2) The remaining 472,948 are single- or multi-span bridges separating vehicular traffic from other traffic or some topographical feature, usually a stream or river. These bridges range from the average highway overpass structure to “signature bridges” such as the Golden Gate Bridge, the Brooklyn Bridge, or the Sunshine Skyway. Within this range, the diversity of the bridge infrastructure in terms of age and design parameters (including structural type, materials of construction, width, and length) is exceptionally broad. NBI records describe bridges using many different attributes or parameters. Table 1 provides an abbreviated list of these characteristics and indicates how many different types there are in the NBI for each.(1)

Table 1. Diversity of Bridge Characteristics.(1)

NBI Item Number of Types
Kind of material, main span and/or approach span 10
Structure type, main span and/or approach span 23
Design load 10
Bridge posting 6
Deck structure type 9
Wearing surface 9
Membrane 5
Protective system 9

In addition to these mostly fixed attributes or parameters, there are wide variations in the ages of bridges and the service conditions under which they perform. Figure 1 illustrates the diversity in bridge ages by providing a histogram of bridges still in service grouped in 5-year increments. The average age of all bridges in the NBI is 41.0 years. One of the oldest bridges in the NBI is in Sackets Harbor, NY, carrying Military Road over Mill Creek. It is a concrete arch bridge with a deck that is 44.9 ft long and 21.6 ft wide. The bridge was built in 1800 and underwent a complete rehabilitation in 2003. As of 2011, the bridge was rated in excellent condition and was open to traffic with no load restrictions.(2)

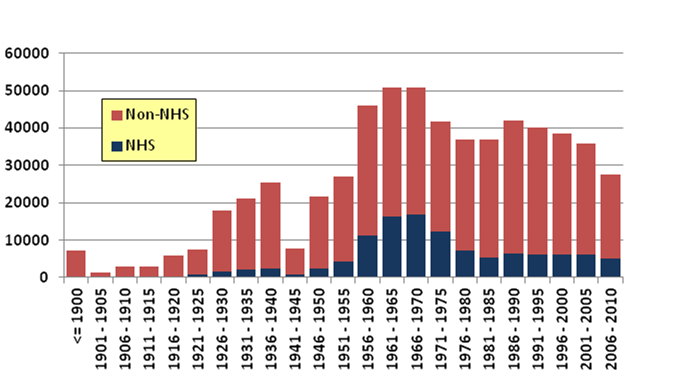

Figure 1. Graph. Age Distribution of All Bridges in the United States. This bar graph presents data on the numbers of bridges built in the United States since before 1900. The x-axis shows categories for 5-year periods beginning with 1901–1905 and continuing to 2001–2005. A category for the combined number of all bridges built prior to 1901 is also provided. Each bar of the graph is further broken down between bridges on the National Highway System (NHS) and bridges not on the NHS. The y-axis shows number of bridges and ranges from 0 to 60,000. The data for the chart was extracted from the 2011 NBI database.
Figure 1 . Graph. Age Distribution of All Bridges in the United States.(2)

The National Highway System (NHS) of the United States comprises approximately 160,000 mi of roadway, including the Interstate Highway System and other roads, which are important to the nation’s economy, defense, and mobility. The total mileage of the NHS includes only 4 percent of the nation’s roads, but it carries more than 40 percent of all highway traffic, 75 percent of heavy truck traffic, and 90 percent of tourist traffic. About 90 percent of the U.S. population lives within 5 mi of an NHS road. All urban areas with a population of more than 50,000 and 93 percent of areas with a population of between 5,000 and 50,000 are within 5 mi of an NHS road. Counties that contain NHS highways also host 99 percent of all jobs in the nation, including 99 percent of manufacturing jobs, 97 percent of mining jobs, and 93 percent of agricultural jobs. There are 116,523 bridges on the NHS.(2,3)

The age of a bridge serves as a rudimentary measure of the aggregate service provided during its service life as well as a harbinger of the level of degradation and damage the bridge may have experienced without consideration of periodic interventions for preservation, maintenance, repair, or major reconstruction. Age data can also be meaningful in terms of understanding the bridge materials, design standards and specifications, and construction processes used in construction of a bridge. The overall performance of bridges of a certain age might be expected to be poorer than that of bridges built after more recent advancements. Advancements generally correlate with better current and future performance, though this is never a certainty.

Service conditions for bridges vary dramatically in terms of traffic volume; truck loading (including overweight permit loads); level of vulnerability to natural events such as floods, ice, impact of waterborne debris, wind, and seismic loading; and susceptibility to long-term effects of climate and the service environment. Often, there is also the potential for significant damage from manmade hazards such as impacts by waterborne vessels or vehicular traffic, fires, explosions, chemical spills, or other events not considered ordinary service factors. In regions where snow and ice control is necessary, routine winter deicing operations result in application of chemicals that are known agents of deterioration of bridge elements.

Other critical factors affecting bridge performance are the types, frequency, and effectiveness of preservation, maintenance, repair, or rehabilitation actions performed on bridges by the owner. In a few States, the transportation department owns and is responsible for maintenance of all bridges on public roads. However, in most States, a significant percentage of the bridges on public highways are owned by other types of agencies, including agencies at the county and city levels of government, railroad companies, toll authorities, and other semiprivate or private entities. Table 2 shows the numbers of different types of entities that have maintenance responsibilities for bridges on public highways. Bridge performance is impacted significantly by the policies and procedures at any bridge-owning agency as well as by the agency’s culture, the knowledge and experience of bridge personnel, the priorities of the agency, the revenues available for bridge programs, and the agency’s funding mechanisms.

Table 2 . Types of Entities with Bridge Maintenance Responsibility.(1)

Entity Category Number of Different Types
State and local highway agencies 4
Other State and local agencies 4
Private owners 4
Federal agencies 15

The cumulative effect of these factors may vary. At the level of State transportation departments, performance is generally good to very good, whereas at the level of local agencies, where resources are limited, performance may be fair to poor. More detailed information on the demographics of the bridge infrastructure in the United States, as recorded in the 2011 NBI, can be found in the appendix.

The Federal Highway Administration (FHWA) has initiated the LTBP Program, which was authorized in the Safe, Accountable, Flexible, and Efficient Transportation Equity Act: A Legacy for Users, signed into law in August 2005. The LTBP Program is a minimum 20-year, multifaceted research effort that is strategic in nature and has both specific short-term and long-range goals. Its concept is similar to the Long-Term Pavement Performance program that has been underway for more than 20 years. The overall objective of the LTBP Program is to inspect, evaluate, and periodically monitor representative samples of bridges nationwide in order to collect, document, maintain, and manage high-quality, quantitative performance data over an extended period of time. The program will employ sensing technologies and non-destructive evaluation and testing tools in addition to typical bridge inspection approaches. It will also require close collaboration among stakeholders, including public agencies, academia, and industry. Data collected under the LTBP Program will help in the performance evaluation of certain critical elements or features of bridges such as decks. Tools such as the Bridge Portal, data-driven deterioration models, life-cycle cost models, and a bridge condition index (BCI) will be developed to help engineers analyze the long-term performance of individual bridges.

THE MEANING OF "BRIDGE PERFORMANCE"

One simple definition of performance is that performance equates to accomplishment of a specified purpose or set of purposes. For the purposes of the LTBP Program, the following definition is used: Bridge performance encompasses how bridges function and behave under the complex and interrelated factors they are subjected to day in and day out – traffic volumes, loads, deicing chemicals, freeze-thaw cycles, rains, or high winds. Bridge design, construction, materials, age, and maintenance history also play roles in performance. Performance is usually associated with some set of standards, whether absolute or relative, and performance can be measured against those standards. In baseball, for example, one purpose of a batter is to hit safely, and a measure of the batter’s performance is the batting average – the number of hits divided by the number of at-bats. A batter hitting over 0.300 is considered to be performing very well.

The purpose of a bridge is inherent in the NBIS definition: to carry vehicular traffic or other moving loads over a depression or obstruction such as water, highway, or railroad.

Transportation users expect a given bridge to accomplish its purpose in a satisfactory manner as measured against several objectives. Bridges should do the following:

As a performance indicator for a baseball batter, batting average is a simple index with a range of 0.000-1.000. The batting average is a useful measure, but it does not reflect the value of the batter to the baseball team in a complete manner. Other related factors are also important, including hits with runners in scoring position; number of bases reached via singles, doubles, triples, and home runs; percentage of times reaching base safely; or even the outcome of at-bats in which the batter does not hit safely. In the same manner, the overall performance of a bridge cannot be described by any one rating, index value, or other individual parameter.

The differences in batters’ levels of performance are analogous to the differences in bridges’ levels of performance. Imagine bridge A is located in an arid (dry, no-freeze) climate and bridge B is located in a northern (wet, freeze) climate. The bridges are steel multigirder simple span bridges that were built in the same year. The girders on bridge A are rated 8 on the NBI scale, nearly new condition. The girders on bridge B are rated 4, for poor condition with advanced section loss and deterioration. In comparing the relative performance of each bridge, factors such as annual snowfall, amount of deicing salts applied, and condition of the joints must be considered. Also of importance are the type and frequency of preservation treatments applied to the bridge (e.g., sealing joints, washing the superstructure, etc.). Continuing the analogy, baseball factors such as hits with runners in scoring position could be the equivalent of traffic and heavy trucks carried on the bridges.

There are many different ways to measure bridge performance. Some of these measures are in the form of an index value calculated from a defined formula using input data such as NBI condition ratings and traffic volumes. As detailed later in this report, numerical indices such as the Federal Sufficiency Rating (SR), California Bridge Health Index, and Finnish National Road Administration (Finnra) Repair Index have been used for quite some time to define bridge performance.(2,4,5) For example, SR is an index calculated from an established formula and has a range of 100 (representing an entirely sufficient bridge) to 0 (representing an entirely insufficient or deficient bridge). An SR value of less than 50 indicates a low level of performance but does not reveal the specific characteristics of the bridge that render it deficient.

Other measures are based on whether or not a bridge meets some defined criteria. These include classification as Structurally Deficient (SD) or Functionally Obsolete (FO) and whether a bridge meets or exceeds defined deflection limits. Still other measures reflect a level of operational capacity or service, including posted load, load rating, rideability of the bridge wearing surface, traffic congestion near or on the bridge, number of accidents on the bridge, and percentage of rain events and floods that overtop the bridge. Most of these measures can be applied to an individual bridge or to a population of bridges, such as bridges on the NHS or bridges of a certain type and material.

Chapter 2 and chapter 3 provide insight into some of these measures, including measures for special considerations related to bridge safety and stability. Each measure has value depending on the person using the measures and the purpose for using it. For example, commercial interests, shippers, and drivers can use simple measures of posted weight limits or geometrical dimension limitations to weigh performance in terms of durability, operational capacity, and roadway safety, all important factors in supporting a free flow of goods and services. In contrast, chapter 4 shows that these measures do not readily support a better understanding of bridge performance because it is difficult to correlate changes in these measures with underlying causes of changes in performance. Chapter 4 discusses what needs to be done to better understand and develop solutions to improve bridge performance.

Experience has shown that the performance of any specific bridge is dependent on complex interactions of multiple factors, many of which are closely linked, including the following:

All of these factors combine to affect the condition and operational capacities of the bridge and its structural elements at any given point in the life of the bridge. While simple measures such as those described in this chapter are currently used to evaluate overall performance, a better performance measure would be an indicator of the qualitative or quantitative impact of a parameter or set of parameters on some specific aspect of bridge performance.

Because bridge performance is a complex issue, it is useful to organize the primary issues relating to bridge performance into general categories. As shown in figure 2, the primary issues in bridge performance can be divided into four general categories: structural condition (for durability and serviceability), functionality (safety and traffic capacity), structural integrity and risk (for safety and stability), and costs to the user and to the agency.

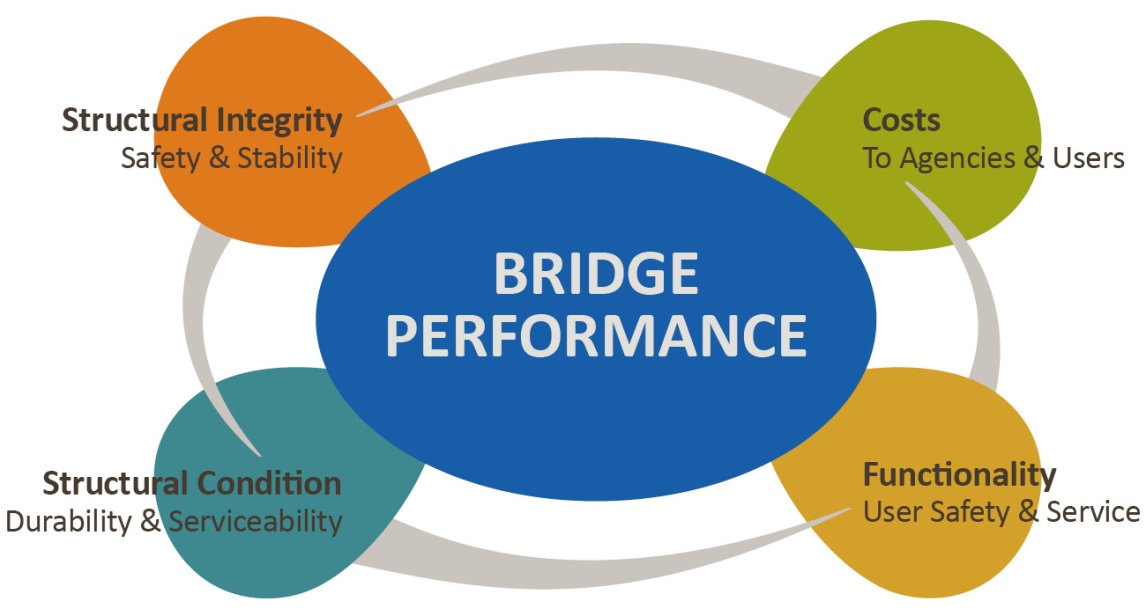

Figure 2. Illustration. Main Categories of Bridge Performance Issues. This graphic shows the four main categories of bridge performance. The four categories are structural condition (durability and serviceability), functionality (user safety and service), structural integrity (safety and stability), and costs (to agencies and users).
Figure 2 . Illustration. Main Categories of Bridge Performance Issues.

Many relevant factors combine to affect performance under each of these four main categories. Table 3 lists the relevant factors that might impact various aspects of bridge performance. Within these categories are many specific performance issues that are of importance to the bridge community and that could be studied over the long term to achieve better understanding. For each of these specific performance issues, there are multiple data items that could be gathered to assist in the evaluation of performance.

Table 3. Main Categories of Bridge Performance and General Contributing Factors.

Category Important Data or Factor
Structural condition – durability and serviceability Structure type
Structural materials and material specifications
Structure age
As-built material qualities and current conditions
As-built construction qualities and current conditions
Truck loads and other live loads
Environment – climate, air quality, and marine atmosphere
Snow and ice removal operations
Type, timing, and effectiveness of preventive maintenance
Type, timing, and effectiveness of restorative maintenance and minor and major rehabilitation
Flooding, hydraulic design, and scour mitigation measures
Subsurface soil characteristics – settlement
Functionality – user safety and level of service Structure geometry – clear deck width, skew, and approach roadway alignment
Skid resistance and ride quality of riding surface
Vertical clearances – over and under
Traffic volumes and percentage of trucks
Posted speed
Structural integrity – safety and stability in all failure modes Seismic performance
Hurricane and flood resistance
Collision impacts
Blast impacts
Fire resistance
Structural redundancy and load redistribution
Costs to users and agency Users: Accident costs
Users: Detour and delay costs
Agency: Initial construction costs
Agency: Maintenance, repair, and rehabilitation costs
Agency: Traffic maintenance costs

WHY MEASURE BRIDGE PERFORMANCE?

Bridge performance is an issue that is of some concern to virtually everyone in the country, including people in the following roles:

Bridge performance measures may have multiple uses depending on the perspective and responsibilities of those using the measures. The average everyday user seeks congestion-free travel, reassurance about highway safety, and rapid assistance from first responders. Less apparent but also of great importance to the everyday user is minimization of the use of public resources to keep bridges safe and at a satisfactory level of service.

Engineers and planners should factor performance into future planning, design, and construction of bridges by applying lessons learned from the performance of previously built bridges. Bridge maintenance and bridge management personnel use measures of performance to evaluate the policies, practices, techniques, and materials that they employ to prolong bridge service at a satisfactory level and to project future bridge needs.

Consultants and commercial entities use performance indicators to make critical business decisions on what technology, equipment, materials, and services to develop or improve and to provide to bridge owners.

News outlets use simple performance measures and statistics to inform the general public and key transportation constituencies about critical issues related to the transportation system.

Engineers, planners, and bridge maintenance and management personnel have the most immediate use for reliable bridge performance measures because they can have the most immediate impact on changing the factors that influence bridge performance. These individuals and their organizations need reliable bridge performance measures in order to do the following:

CHAPTER 2. CURRENT APPROACHES TO MEASURING BRIDGE PEFORMANCE

Making useful and reliable assessments of bridge performance is a challenging task. Many complex factors contribute to the difficulty of measuring bridge performance, including the following:

The last point is an issue of considerable importance in the assessment of bridge performance. Bridge engineering is not a static art or science. As new materials and techniques are developed and implemented on bridges, the assessment of performance, particularly of structural condition and integrity, is altered. Examples over the history of bridges include the following: Many aspects of performance are moving targets and present considerable difficulty in making reliable and consistent measurements. Regardless of the difficulties involved, developing and implementing reliable bridge performance measures is of paramount importance. The array of consumers of bridge performance knowledge is broad, and critical social, economic, commercial, and political decisions hinge on those measurements. Every State transportation department has developed a set of performance measures for its highway system. These performance measures address a wide variety of objectives, covering issues such as the following: Many of these performance measures are dependent on the condition and functional operation of the owner’s bridges. But evaluating the impact of bridges on the achievement of most of these objectives is difficult at best, requiring intuitive reasoning and significant assumptions about cause and effect.

Most States that have established overall agency and system performance measures have also established more specific measures related to bridges. Some transportation departments use measures related to the percentage of bridges at a certain defined level of condition, such as good or excellent. Often, these performance measures relate to numbers or deck areas of bridges that are deficient or involve some index calculated based on data in the NBI or on element-level inspection data collected for bridge management databases. Examples of measures in use include the following:

NBI CONDITION AND APPRAISAL RATINGS

For almost four decades, as required by NBIS, bridge owners in the United States have compiled a complete inventory of bridge information and condition data, and many State transportation departments have several years of experience compiling comprehensive bridge databases for use in their bridge management systems. Despite these multiyear efforts, the availability of high-quality, useful data on many of the factors impacting bridge performance varies significantly from State to State. Much of the fixed data (e.g., structure type, construction materials, dimensions, clearances, scour protection, functional classification) are well documented and easily accessible. Current and historical data on the physical condition of bridge elements are also readily accessible; however, these data have shortcomings that are discussed later in this report. Beyond these two types of data, the availability and accessibility of high-quality, useful data on factors impacting bridge performance are generally poor to fair.

In the United States, most of the effort in bridge performance assessment has concentrated on measuring, recording, analyzing, and using bridge condition data. Collection of detailed information and condition data about bridges in the United States started with implementation of NBIS in 1971 and has continued in a consistent, systematic, and computerized format for four decades. While these data have been and still are used to assess bridge performance, the NBI does not represent a complete basis for documenting and assessing long-term bridge performance with proper consideration of all relevant factors. A proper assessment of bridge performance over time requires systematic correlation of changes in bridge conditions and functional capacities with key policies, programs, and actions that affect those conditions and capacities.

The collapse of the Silver Bridge at Point Pleasant, WV, in December 1967 was the defining moment in the development of bridge inspection programs, bridge data collection, formal bridge improvement programs, and, ultimately, modern bridge management systems. Prior to this event, knowledge of bridges was poor. Immediately after the collapse, crucial questions about the bridge population arose: How many bridges are there in the United States? What types of structures? Of what materials were they constructed? Where are they located? What are their current conditions? How vulnerable are they to failure? What are the immediate improvement priorities? What is the required scale of effort and associated cost to address significant deficiencies? There were virtually no useful answers immediately available. As a consequence, there was no basis for assessing the condition of individual bridges or the overall bridge population. There was certainly no basis for assessing the performance of bridges over time.

The NBI was created to address the absence of knowledge about the bridge inventory and bridge conditions. However, the NBI was neither envisioned, nor structured, to support the assessment of bridge performance over the long term. Guidance on meeting the requirements of the NBI was published in 1971, and by the end of 1973, the States had inventoried most of the bridges on the Federal-Aid Highway systems. Over time, the NBI has become a current and historical database, comprising a consistent set of data on almost every bridge over 20 ft long on all public highways in the United States. As a comprehensive database of information about bridges spanning the majority of a continent, the NBI remains unique in the world. Inventory and condition data have been collected on a large population of individual bridges for almost four decades, and the guidelines for collecting, reporting, checking, editing, and storing these data have been consistent over the life of the NBI. The guidelines were carefully written, were accepted and used by all domestic transportation agencies, and have only been modified slightly when needed. In particular, the system of evaluating and recording the key appraisal and condition data on each bridge has remained virtually unchanged over the full life of the NBI. A full explanation of the data and the guidelines for collecting and recording data can be found in the current issue of Recording and Coding Guide for the Structure Inventory and Appraisal of the Nation’s Bridges, published by FHWA.(1)

NBI data are categorized by type, as follows:

With regard to supporting performance assessment, the key NBI data are structure type and material, condition ratings, and appraisal ratings. Fields that are less important but still useful are traffic volume data, location information (indicative of climate and environmental factors and potential for corrosion), and load ratings. NBI condition and appraisal ratings are generally attributed according to a scale of 0 – 9. In practice, ratings in the range of 4 – 7 are most common for bridges in service. As an example, applicable NBI codes and associated definitions for the condition rating of deck, superstructure, and substructure (NBI items 58 – 60) are as follows: Applicable NBI codes and definitions for the appraisal rating of the same items are as follows: While these performance measures have served well when used for condition evaluation and apportionment of funds, these measures do not cover all of the variables that researchers would like to evaluate.


PERFORMANCE MEASURES BASED ON BRIDGE DEFICIENCIES

The NBI condition ratings are well established after almost four decades of use in assessing the current condition of the major components of bridges being inventoried and inspected. The same is true of NBI appraisal ratings for assessing functional capacities. Changes in these ratings over time reflect the general performance of the bridge. The ratings are used to classify bridges as deficient or not deficient.

Bridges with low NBI condition or appraisal ratings are flagged and classified as follows:

The two classifications of deficient bridges provide simple tools for agencies to describe the overall performance of their bridge populations and the overall effectiveness of their bridge programs. An unpublished 1999 FHWA study described various ways in which State transportation departments use these two classifications in their measurement of bridge performance. Several agencies use only the number of deficient bridges as a measure, whereas others use a combination of SR and the number of deficient bridges. When determining the proportion of a bridge population flagged as deficient, some agencies take into consideration the relative size of deficient bridges, represented by the cumulative square footage of deck the structures carry, rather than a simple count of structures. This approach is intended to discourage the practice of repairing small structures to improve the metrics while deferring repairs on larger structures that carry significant traffic for which repair would incur greater expense. Oftentimes, agencies will consider both metrics in their assessment of program performance.

THE FEDERAL SR

SR is an index that was devised by FHWA and used to evaluate the eligibility of bridges for Federal highway bridge rehabilitation and replacement funds. The SR formula is a method of evaluating highway bridge data by calculating and summing four separate factors to obtain a numeric value indicative of bridge sufficiency to remain in service. On the resulting rating scale, 100 represents an entirely sufficient bridge and 0 represents an entirely insufficient or deficient bridge.

SR is calculated using a complex formula wherein weighting factors are assigned to several bridge parameters and attributes in order to arrive at the numerical index for each bridge. The basic formula is shown in figure 3.

Figure 3. Equation. Federal SR. SR equals S subscript 1 plus S subscript 2 plus S subscript 3 minus S subscript 4.
Figure 3. Equation. Federal SR.(1)

Where:
S1 = Structural adequacy and safety (maximum value = 55 percent).
S2 = Serviceability and functional obsolescence (maximum value = 30 percent).
S3 = Essentiality for public use (maximum value = 15 percent).
S4 = Special reductions (maximum value = 6 percent).

These four factors provide consideration and weight to the following:

A complete description of the SR formula is available in Recording and Coding Guide for the Structure Inventory and Appraisal of the Nation’s Bridges.(1)


THE HEALTH INDEX

To further its goal of preserving the bridge inventory, the California Department of Transportation has adopted a bridge health index as a performance measure. The health index is a single number indicator of the structural health of the bridge. This indicator is expressed as a value from 0 to 100 percent, corresponding to the worst and best possible conditions, respectively. The health index is calculated as a function of the fractional distribution of the bridge’s element-level information across the range of applicable condition states, as shown in figure 4.

Figure 4. Equation. California Bridge Health Index. HI equals open parenthesis sum of QCS subscript i times WF subscript i close parenthesis divided by open parenthesis sum of TEQ times We close parenthesis times 100 percent. Worst equals 0 percent and best equals 100 percent.
Figure 4 . Equation. California Bridge Health Index.(4)

Where:
HI = Health index.
QCSi = Quantity in condition state i.
WFi = Weighting factor for condition i.
TEQ = Total element value i.
We = Element indicator cost of other important indicator for each element

Other State transportation departments also use health indices. The California Department of Transportation’s index is cited here as an example.

BRIDGE PERFORMANCE MEASURES USED IN OTHER COUNTRIES

In the interest of understanding what other nations use to evaluate their bridge inventories, FHWA sponsored an international scan that resulted in the report Bridge Preservation in Europe and South Africa.(5) The following discussion of performance measures used in Finland, South Africa, and Sweden includes excerpts from that report.

Finland

Finland uses two performance indicators: one for repairs that improve a bridge’s physical condition and one for rehabilitation, which encompasses improvements related to functional deficiencies. Details of these indicators are as follows:

The following discussion of performance measures used in Finland is representative of the findings in the international report and is excerpted directly:

“Finland has a reference group of 106 bridges and 26 steel culverts. The performance of the group is closely monitored to improve knowledge of bridge behavior and durability, calibrate [bridge management system] deterioration models, and evaluate methods for field testing. Reference bridges are used in training and annual recertification of bridge inspectors...

Finnra computes performance measures for defects, repair needs, and rehabilitation needs. A repair index is computed for the set of defects at a bridge. A rehabilitation index is computed for functional deficiencies. A repair index contributes to priorities for repair, unless the rehabilitation index indicates that a repair project should be set aside in favor of a rehabilitation project.

Defects in a bridge are assigned ratings in each of four categories: weight (importance in the load path...), condition of the structural part (apart from this defect), urgency of the repair (rate of growth of defect), and damage class (severity of the defect). For each bridge, a repair index, KTI, is computed for the set of defects, with the greatest weight placed on the worst defect. [See figure 5. Higher values indicate more important and urgent repairs.]

Figure 5. Equation. Finnra’s Repair Index. KTI equals the maximum of open parenthesis Wt subscript i times C subscript i times U subscript i times D subscript i close parenthesis plus k times the sum of open parenthesis Wt subscript j times C subscript j times U subscript j times D subscript j close parenthesis.
Figure 5. Equation. Finnra’s Repair Index.(5)

[Where:]
KTI = Repair Index.
Wt = Weight (importance) of the damaged structural part.
C = Condition of the structural part.
U = Urgency of the repair.
D = Class (severity) of damage.
k = A weighting factor for damage summation. The default value is 0.2.
i = Worst defect.
j = Other defects.”(5)

The importance of the various structural parts is weighted from 0.20 for expansion joints to 1.00 for the superstructure. Condition points are assigned on a sliding scale as shown in table 4.

Table 4. Finnra Condition Rating.(5)

Condition Rating Condition Points
0. New or like new 1
1. Good 2
2. Satisfactory 4
3. Poor 7
4. Very poor 11

Urgency of the necessary repair is classified with a point system of 10 points for repairs needed during the next 2 years, 5 points for repairs needed during the next 4 years, and 1 point for repairs not needed within 4 years. The severity of the deterioration or damage is also classified using a point system with 1 point for mild severity, 2 points for moderate severity, 4 points for serious severity, and 7 points for very serious severity. Finally, a weighting factor based on ADT is assigned for the essentiality of the repair, as shown in table 5.

Table 5. Finnra ADT Weighting Factor.(5)

ADT (vehicles /day) Factor
> 6,000 1.15
3,000 - 6,000 1.10
1,500 - 3,000 1.00
350 - 1,500 0.90
< 350 0.85

Finnra’s rehabilitation index, UTI, is calculated as shown in figure 6.

Figure 6. Equation. Finnra’s Rehabilitation Index. UTI equals kp times kl times open parenthesis Condition plus Load Capacity plus Functionality close parenthesis.
6 . Equation. Finnra’s Rehabilitation Index.(5)

Where:
kp = Factor for bridge total area.
kl = Factor for ADT.

The authors of the FHWA report also note, “The rehabilitation and reconstruction index, UTI, combines deterioration, bridge load capacity, and functionality to determine whether a bridge should be rehabilitated or replaced rather than repaired.”(5) Finland sets annual goals for reducing severe deterioration in structures.

South Africa

In South Africa, performance measures are expressed as a condition index, Ic, for each defect and in terms of BCI for each bridge. The BCI combines the individual defect indices to provide an overall measure for the bridge. Figure 7 shows the formula used to calculate Ic.

Figure 7. Equation. South Africa’s Condition Index. I subscript c equals 100 times open bracket 1 minus open parenthesis D plus E close parenthesis times R divided by 32 close bracket.
Figure 7. Equation. South Africa’s Condition Index.(5)

Where:
D = Degree of defect.
E = Extent of defect.
R = Relevancy of defect.

D, E, and R are each assigned on a scale of 0 – 4, with 0 indicating no defect or that the defect is of no significance to the structural condition and 4 indicating the worst case in terms of severity, extent, or impact.The authors of the FHWA report note: “Ic equals 100 when there is no defect, and equals 0 when D and E and R are all equal to 4. A defect is critical if the Ic is below 40.”(5) Figure 8 shows the formula for BCI.

Figure 8. Equation. South Africa’s BCI. BCI subscript n equals open parenthesis sum subscript j times sum of Ic subscript j close parenthesis times ADT subscript n divided by sum subscript i ADT subscript i.
Figure 8. Equation. South Africa’s BCI.(5)

Where:
BCIn = BCI for structure n.
Ic = Sum of condition index values for all relevant defects in structure n.
ADTn = ADT for structure n.
ADTi = Sum of values of ADT for all structures in the prioritization process.

BCI gives a combined indicator of the importance of defects and the importance of the bridge. A high BCI value indicates a good bridge, and a low value indicates a poor bridge. The further scaling by traffic volume will tend to increase BCI for heavily traveled bridges. The BCI for each bridge is computed, and a linear model is used for the decrease of the BCI with time.

The following discussion of performance measures used in South Africa is representative of the findings in the international report and is excerpted directly:

“The index, Ic, is the dependent variable in the ... deterioration model. Straight-line deterioration is proposed with the Ic declining at about 5 points per year...

Priorities for repairs are developed from two considerations. First is structural adequacy, as indicated by BCI values. Second is functional importance, an evaluation computed from road class, bridge load capacity, detour length, etc. Generally, network-level optimization seeks the set of projects that offers the greatest reduction in defect relevancy, R, for a given budget.

Automated optimization yields a first list of repair projects. Next, projects for bridges are coordinated with projects for pavements in the same road section. Usually, a repair project at a bridge will attempt to remedy all relevant defects, not merely those with the highest priority values.”(5)

Priorities for repairs in South Africa are determined by BCI and ADT.

Sweden

In Sweden, the preferred performance measure, lack of capital value (LCV), is defined as a fraction of the bridge replacement cost. The following discussion of performance measures used in Sweden is representative of the findings in the international report and is excerpted directly:

“Deterioration models consider structures in groupings determined by age and structural type. Deterioration is forecast as a continuing loss in capital value. The general form is [given by figure 9].

Figure 9. Equation. Sweden’s LCV. LCV equals a subscript 0 plus a subscript 1 times e superscript rt.
Figure 9. Equation. Sweden’s LCV.(5)

[Where:]
LCV = Lack of capital value.
t = time.
ao, a1 , r = parameters of the model.

Parameters ao, a1, and r are specified by the user, or calibrated to historical trends in loss of capital value. This exponential model can represent both accelerating and decelerating change in capital value.”(5)

The various formulae are used in different countries around the world for calculating bridge performance measures for individual bridges and for inventories of bridges. The measures can be calculated to describe the performance of an individual bridge relative to a fixed numeric scale, often 0–100. In each formula, the purpose is to calculate the sum of several weighted factors that relate to the performance of the bridge. Factors that are commonly used include the following:

Essentiality of the bridge is often represented by volume of traffic carried or type of traffic carried (e.g., emergency responders, school vehicles, commercial traffic, military traffic, etc.).

When the performance measure is calculated for a group of bridges, the distribution of the performance measure values describes the performance of the group as a whole. These measures can be used to establish the order of priority for corrective or improvement actions or programs. Also, the bridge owner or agency can look at trends in bridge performance measures (rising or falling over time) and evaluate the effectiveness of bridge programs or the need to commit more resources to those programs. These formulae are very useful for their intended purposes.


CHAPTER 3. BRIDGE PERFORMANCE INDICATORS TO ADDRESS SPECIFIC CONCERNS

Highway bridges are normally expected to provide acceptable service for extended periods of time. Thus, most existing highway bridges have to be maintained in service for extended periods of time in spite of deterioration due to aggressive environmental stressors, aging of materials, and traffic increases. The safety and capacity of these bridges are highly influenced by their deterioration. In order to avoid the consequences of loss of serviceability or failure, maintenance programs are carried out by the responsible authorities. To make these programs cost-efficient, bridge life-cycle performance must be accurately predicted.(6-8) However, difficulties arise in the prediction of life-cycle performance because of the complexity and high uncertainty of deterioration mechanisms such as cracking, corrosion, and fatigue. Consequently, proper performance indicators are essential to evaluating bridge performance in a quantitative manner.

Many studies have focused on quantifying bridge performance by using deterministic, semi-probabilistic, and probabilistic indicators such as safety factors, partial safety factors, and the reliability index. Modern bridge design codes take uncertainty into account by including specific factors (i.e., load and resistance factors) in the computation of structural resistance and load effects with Load and Resistance Factor Design (LRFD) methods. However, prediction of bridge performance with deterioration requires the simultaneous use of several performance indicators. For example, the reliability index may be an adequate measure for quantifying the safety of a bridge component or system for ultimate capacity, but the redundancy index is required to evaluate the availability of warning before collapse.

Moreover, for bridges with deterioration and local damage, it is essential to consider performance indicators related to damage tolerance, such as reserve strength factor, residual strength factor, and vulnerability, together with the indicators for ultimate capacity. To obtain a desired bridge safety level, the values of performance indicators under consideration should not drop below prescribed minimum threshold levels.

The life-cycle cost of bridges is another measure that decisionmakers have to balance with appropriate safety indicators. In recent years, life-cycle performance, safety, reliability, and risk of civil infrastructure systems have become emergent and key issues due to recurring natural and manmade disasters, the infrastructure crisis, sustainability issues, and global warming. Uncertainties are unavoidable in dealing with these problems. (See references 6 and 9-11.) Management of aging civil infrastructure involves significant expenditures. At a time of constrained public resources, difficult decisions are required to establish priorities for maintenance, rehabilitation, and replacement. Decisions regarding requirements for design, continued service, rehabilitation, or replacement should be based on multicriteria optimization under uncertainty, in order to balance conflicting requirements such as cost and performance. This can only be achieved through proper integrated risk management planning in a comprehensive life-cycle framework. Such a framework is shown in figure 10.

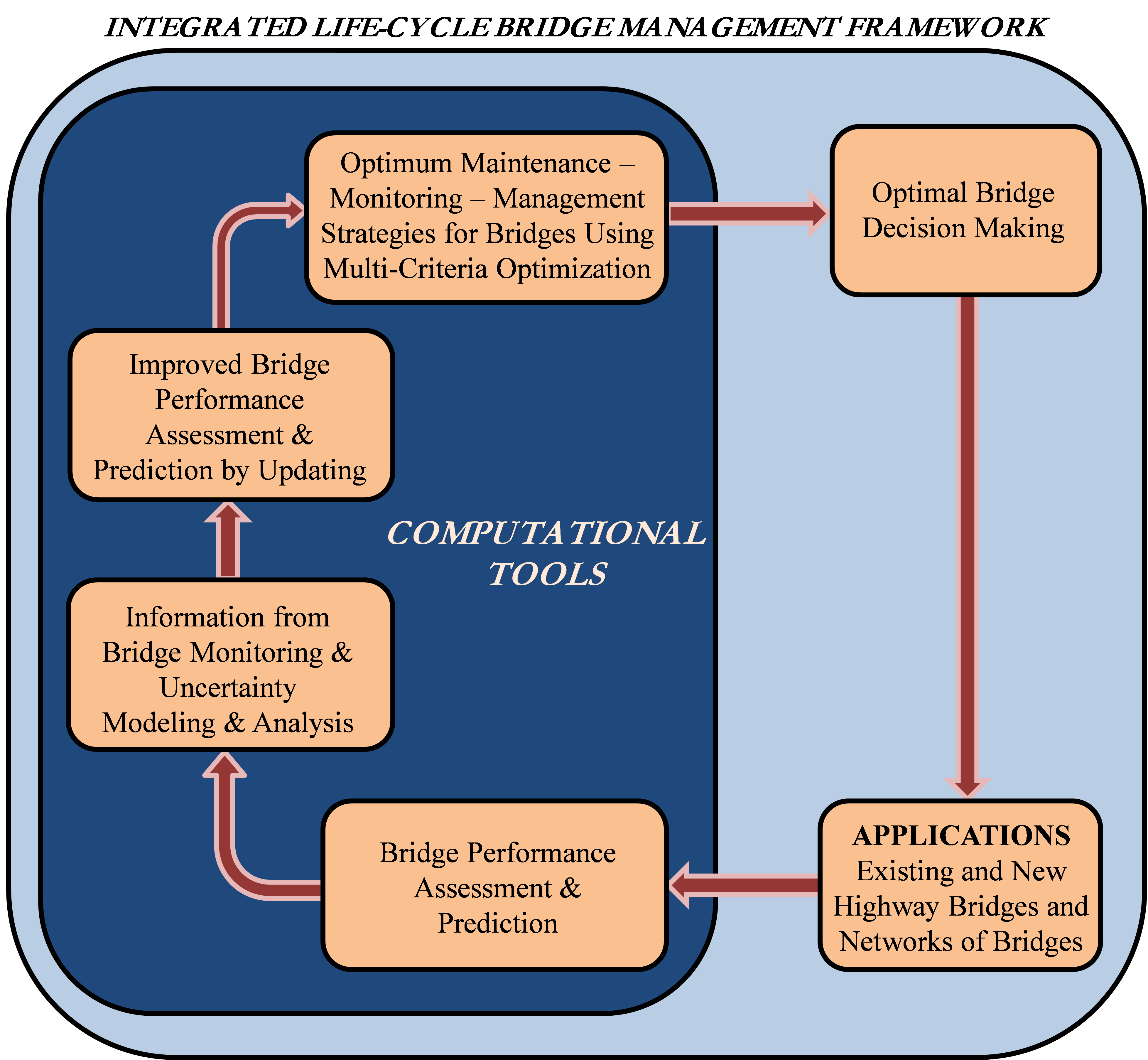

Figure 10. Chart. Integrated Life-Cycle Bridge Management Framework. This graphic shows a conceptual framework for the life-cycle of integrated bridge management for bridges. The computational tools shown are Bridge Performance Assessment and Prediction, Information from Bridge Monitoring and Uncertainty Modeling and Analysis, Improved Bridge Performance Assessment and Prediction by Updating, and Optimum Maintenance—Monitoring—Management Strategies for Bridges Using Multi-Criteria Optimization. Application of these tools and strategies leads to Optimal Bridge Decisionmaking with applications for Existing and New Highway Bridges and Networks of Bridges.
Figure 10 . Chart. Integrated Life-Cycle Bridge Management Framework.(12)

The purpose of this study is to review several performance indicators used to evaluate bridge performance. These indicators are briefly presented. In addition, a classification of bridge performance indicators is made depending on the approach (deterministic, semi-probabilistic (LRFD), or probabilistic) and level of concern (cross-section, component, or system level).

STRUCTURAL PERFORMANCE INDICATORS

Condition Rating (CR)

Condition ratings, CR, are used in the NBI to describe the existing, in-place bridge as compared to the as-built condition. Evaluation is for the materials, physical condition of the deck, superstructure, and substructure components of a bridge. Condition rating codes are properly used when they provide an overall characterization of the general condition of the entire component being rated. The load-carrying capacity is used in evaluating condition items. The fact that a bridge was designed for less than current legal loads and may be posted has no influence on condition ratings. The general condition ratings shown in chapter 2 are used as a guide in evaluating deck, superstructure, and substructure. The range of values possible for CR is shown in figure 11.

Figure 11. Equation. Range of NBI Condition Ratings. 1 is less than or equal to CR which is less than or equal to 9.
Figure 11. Equation. Range of NBI Condition Ratings.(1)

Condition State (CS)

Based on visual inspection, AASHTOWare Bridge Managementâ„¢, the bridge management system of the American Association of State Highway and Transportation Officials (AASHTO), assigns condition states, CS, for bridge components. The condition states vary between 1 and 5, with each increasing condition state indicating a higher damage level. The range of values possible for CS is shown in figure 12.

Figure 12. Equation. Range of AASHTOWare Bridge Managementâ„¢ Condition States. 1 is less than or equal to CS which is less than or equal to 5.
Figure 12 . Equation. Range of AASHTOWare Bridge Managementâ„¢ Condition States.(13)

Margin of Safety (M)

The margin of safety, M, represents how much of the bridge cross-section, component, or overall bridge system capacity is held in reserve at a point in time. It can be expressed as shown in figure 13.

Figure 13. Equation. Margin of Safety. M equals R minus Q.
Figure 13 . Equation. Margin of Safety.(14)

Where:
R = Random variable representing the resistance effect.
Q = Random variable representing the load effect.

Time-Dependent Margin of Safety (M(t))

The time-dependent margin of safety, M(t), is shown in figure 14.

Figure 14. Equation. Time-Dependent Margin of Safety. M open parenthesis t close parenthesis equals R open parenthesis t close parenthesis minus Q open parenthesis t close parenthesis.
Figure 14. Equation. Time-Dependent Margin of Safety.(14)

Where:
t = Time.
R = Time-dependent variable representing the resistance effect.
Q = Time-dependent variable representing the load effects.

Probability of Failure (Pf)

Making the assumption that R and Q are statistically independent random variables, the instantaneous probability of failure, Pf, is shown in figure 15.

Figure 15. Equation. Instantaneous Probability of Failure. P subscript f equals P open parenthesis M open parenthesis t close parenthesis less than or equal to 0 close parenthesis equals the integral from 0 to infinity of F subscript R open parenthesis x close parenthesis times f subscript Q open parenthesis x close parenthesis dx.
Figure 15 . Equation. Instantaneous Probability of Failure.(15,16)

Where:
R = Random resistance in a certain failure mode.
Q = Random load effect in the same failure mode.
FR(x) = Cumulative distribution function of R.
fQ(x) = Probability density function of load effect Q.

In many cases, it is impossible to evaluate Pf by analytical methods. Therefore, numerical methods such as the first-order reliability method, second-order reliability method, and Monte Carlo simulation are used.

Probability of Survival (Reliability) (Ps)

Failure and survival are complementary events. Therefore, the probability of survival, Ps, (also called reliability) is defined as shown in figure 16.

Figure 16. Equation. Probability of Survival. P subscript S equals 1 minus P subscript f.
Figure 16. Equation. Probability of Survival.(15,16)

Reliability Index (β)
The reliability of a bridge can be expressed in terms of either Pf or its corresponding reliability index, β. For normal (Gaussian) distributed independent variables, β can be calculated as shown in figure 17.

Figure 17. Equation. Reliability Index. beta equals E open parenthesis R close parenthesis minus E open parenthesis Q close parenthesis divided by the square root of sigma superscript 2 open parenthesis R close parenthesis plus sigma superscript 2 open parenthesis Q close parenthesis.
Figure 17. Equation. Reliability Index.(15,16)

Where:
E(R) = Mean value of the resistance effect.
E(Q) = Mean value of the load effect.
σ(R) = Standard deviation of the resistance effect.
σ(Q) = Standard deviation of the load effect.

For normally distributed independent variables, Pf and β are related as shown in figure 18.

Figure 18. Equation. Probability of Failure for Normally Distributed Independent Variables. P subscript f equals 1 minus Phi open parenthesis beta close parenthesis.
Figure 18. Equation. Probability of Failure for Normally Distributed Independent Variables.(15,16)

Where:
Φ ( ) = Standard normal distribution function.

For the calibration of the Strength I limit state in AASHTO LRFD Bridge Design Specifications, β = 3.5 was used.(14)

Life-Cycle Cost
One of the most important measures in the evaluation of bridge performance is life-cycle cost. The proper allocation of resources can be achieved by minimizing the total expected cost while keeping structural safety at a desired level. The expected life-cycle cost can be expressed as shown in figure 19.

Figure 19. Equation. Expected Life-Cycle Cost. C subscript ET equals the sum of C subscript T plus C subscript PM plus C subscript INS plus C subscript REP plus C subscript F.
Figure 19. Equation. Expected Life-Cycle Cost.(6)

Where:
CET = Expected life-cycle cost.
CT = Initial design/construction cost.
CPM = Expected cost of routine maintenance.
CINS = Expected cost of performing inspections.
CREP = Expected cost of repairs.
CF = Expected cost of failure.

CF is the cost of removal and replacement of an individual member or the cost of demolition of the existing bridge and replacement, if necessary, with a new bridge. Within this framework, all future costs are converted to their net present value. In the case of structural health monitoring (SHM), the expected life-cycle cost is as shown in figure 20, with figure 21 defining the expected cost of monitoring, CMON.

Figure 20. Equation. Expected Life-Cycle Cost with SHM. C superscript 0 subscript ET equals the sum of C superscript 0 subscript T plus C superscript 0 subscript PM plus C superscript 0 subscript INS plus C superscript 0 subscript REP plus C superscript 0 subscript F plus C subscript MON.
Figure 20. Equation. Expected Life-Cycle Cost with SHM.(17,18)

Figure 21. Equation. Expected Cost of Monitoring. C subscript MON equals the sum of M subscript T plus M subscript OP plus M subscript INS plus M subscript REP.
Figure 21 . Equation. Expected Cost of Monitoring.(17,18)

Where:
MT = Expected initial design/construction cost of the monitoring system.
MOP = Expected operational cost of the monitoring system.
MINS = Expected inspection cost of the monitoring system.
MREP = Expected repair cost of the monitoring system.

Using this approach, the benefit of the monitoring system, BMON, can be determined through a comparison of the expected life-cycle total cost with and without monitoring, as shown in figure 22.

Figure 22. Equation. Benefit of the Monitoring System. B subscript MON equals C subscript ET minus C superscript 0 subscript ET.
Figure 22. Equation. Benefit of the Monitoring System.(17,18)

Using figure 22, monitoring is economically beneficial if BMON > 0. A monitoring benefit may be realized through better treatment of maintenance and repair activities as well as a lower level of risk over the life of the structure. Bridge managers can prevent or reduce adverse consequences by using monitoring data.

Safety Factor in Allowable Stress Design (SF)

Allowable Stress Design (ASD) is based on the concept that the maximum stress in a component should not exceed a certain allowable stress under normal service conditions. The limiting stress, which can be yield stress or stress at instability or fracture, is divided by a safety factor to provide the allowable stress. The safety factor, SF, is used to provide a design margin over the theoretical design capacity and is defined as shown in figure 23.

Figure 23. Equation. Safety Factor in ASD. SF equals sigma subscript u divided by sigma subscript all.
Figure 23. Equation. Safety Factor in ASD.(19)

Where:
σ u = Maximum usable stress, which can be the yield stress, buckling stress, or ultimate stress.
σ all = Allowable stress.

Partial Factors Used in LRFD (φ , γ)

In LRFD, resistance R and load Q are considered statistically independent random variables. If R is greater than Q, a margin of safety exists. On the other hand, since R and Q are random variables, there is a probability that R is smaller than Q. The typical inequality for safety checks in LRFD is shown in figure 24.

Figure 24. Equation. Inequality for Safety Check in LRFD. phi times R subscript n is greater than or equal to gamma subscript D times Q subscript Dn plus gamma subscript L times Q subscript Ln.
Figure 24 . Equation. Inequality for Safety Check in LRFD.(14)

Where:
φ = Resistance factor associated with nominal resistance Rn.
γD, γL = Partial load factors associated with the dead and live loads effects QDn and QLn.

In LRFD, resistance Rn is reduced by resistance factor φ, and loads are amplified or reduced by load factors.

Load Modifier Factor Used in LRFD (ηi)

In AASHTO LRFD Bridge Design Specifications, an additional load modifier factor, ηi , relating to ductility, redundancy, and operational importance is used, as shown in figure 25.(14)

Figure 25. Equation. Load Modifier Factor in LRFD for Ductility, Redundancy, and Operational Importance. phi times R subscript n is greater than or equal to the sum of eta subscript i times gamma subscript i times Q subscript i.
Figure 25. Equation. Load Modifier Factor in LRFD for Ductility, Redundancy, and Operational Importance.(14)

In figure 25, ηi , is defined by figure 26 for loads for which a maximum value of γi is appropriate and by figure 27 for loads for which a minimum value of γi is appropriate.

Figure 26. Equation. Load Modifier Factor for Maximum Value of γi. eta subscript i equals eta subscript D times eta subscript R times eta subscript I and is greater than or equal to 0.95.
Figure 26. Equation. Load Modifier Factor for Maximum Value of γi.(14)

Figure 27. Equation. Load Modifier Factor for Minimum Value of γi. eta subscript i equals 1 divided by the product of eta subscript D times eta subscript R times eta subscript I and is  less than or equal to 1.0.
Figure 27. Equation. Load Modifier Factor for Minimum Value of γi.(14)

Where:
ηD = Factor relating to ductility.
ηR = Factor relating to redundancy.
ηi = Factor relating to operational importance.

Collapse Load Multiplier ( λ )

In the plastic analysis of structures, collapse load multiplier, λ, is a theoretical factor by which a set of loads acting on the structure must be multiplied just enough to cause the structure to collapse. The load can be taken as the service load conditions, and the strength of the structure can be determined from idealized plastic material strength properties. Three main loading histories are considered.

Proportional loading implies that the applied load can be defined at all stages by a single parameter, λ , which amplifies the service load, Q = QD + QL, so that the ultimate load, QU, is as shown in figure 28.

QU = λO ( QD+ Q L),
Figure 28. Equation. Collapse Load Multiplier for Proportional Loading.(20)

This extension of ASD practice is used in the plastic design of steel structures but is an unrealistic concept because dead loads are not subject to the same variations as live loads.

Combined loading assumes that the dead load is fixed and the live load only is variable, as shown in figure 29.

QU = QD + λL Q L,
Figure 29 . Equation. Collapse Load Multiplier for Combined Loading.(20)

Arbitrary loading assumes that the dead and live loads vary independently in both magnitude and time. The dead load first reaches its full factored value, λ DQD, before the live load is applied from zero to its full value, λLQL, as shown in figure 30.

Figure 30. Equation. Collapse Load Multiplier for Arbitrary Loading. Q subscript U equals lambda subscript D times Q subscript D plus lambda subscript L times Q subscript L.
Figure 30 . Equation. Collapse Load Multiplier for Arbitrary Loading.(20)

The inequality RUQU has to be satisfied at the limit, where RU is the plastic resistance of the structure.

Return Period ( T with macron )

The loads due to natural phenomena such as earthquakes, storms, and high winds have randomness not only in space but also in time. The randomness in time can be considered in terms of return period, T with macron. Return period is an average duration between consecutive occurrences of an event. It should be noted that the actual time between the occurrences is T, which is a random variable, and T with macron is only average duration. T with macron can be expressed as shown in figure 31.

Figure 31. Equation. Return Period for Loads Due to Natural Phenomena. T bar equals E open parenthesis T close parenthesis equals p open parenthesis 1 plus 2 times q plus 3 times q squared plus ellipsis close parenthesis.
Figure 31. Equation. Return Period for Loads Due to Natural Phenomena.(21)

Where:
p = Probability of occurrence of the event.
q = Corresponding probability of nonoccurrence (therefore, q = 1 – p).

The infinite series inside the parentheses yields 1/p2. Therefore, the average duration between consecutive occurrences of an event is as shown in figure 32.

Figure 32. Equation. Average Duration Between Consecutive Occurrences of an Event. T bar equals 1 divided by p.
Figure 32. Equation. Average Duration Between Consecutive Occurrences of an Event.(21)

Existing bridge design codes use different return periods for different hazards. For example, the calibration of the live load factors in AASHTO LRFD Bridge Design Specifications is based on the 75-year maximum load effect, while a 1,000-year return period has been proposed for seismic hazards, and 100- and 500-year flood levels are used for scour.(14)

Cumulative Time Probability of Failure(F(t))

The probability of failure within a certain period of time is called the cumulative time probability of failure, F(t). There are two approaches for computing cumulative probability of failure.

In the first approach, F(t) is computed considering only one random variable, the time Tf at which the component or system fails. Probability concepts are applied to compute F(t). In this approach, F(t) up to time tf can be calculated as shown in figure 33.

Figure 33. Equation. Cumulative Time Probability of Failure, One Random Variable. F open parenthesis t subscript f close parenthesis equals P open parenthesis T subscript f less than or equal to t subscript f close parenthesis equals the integral from 0 to t subscript f of f open parenthesis u close parenthesis times du.
Figure 33. Equation. Cumulative Time Probability of Failure, One Random Variable.(22)

Where:
F(tf) = Area under the probability density function f(u) of the time to failure from t0 to tf.

In the second approach, F(t) is computed considering changes in both time-variant resistance and load. The cumulative time probability of failure of a component whose resistance is deteriorating subjected to time-variant load is shown in figure 34.

Figure 34. Equation. Cumulative Time Probability of Failure, Time-Variant Resistance and Load. F open parenthesis t close parenthesis equals 1 minus the integral from zero to infinity of exponential open bracket negative lambda times t open bracket 1 minus 1 divided by t times the integral from 0 to t subscript L of F subscript s open curly bracket r times g open parenthesis zeta close parenthesis close curly bracket close bracket close bracket times f subscript R subscript 0 open parenthesis r close parenthesis times dr.
Figure 34. Equation. Cumulative Time Probability of Failure, Time-Variant Resistance and Load.(22)

Where:
λ = Mean occurrence rate of stochastic load event in a Poisson process.
Fs( ) = Cumulative time distribution function used to define the load intensity.
fRo(r) = Probability density function of the initial resistance R0.
g(t) = Mean value of G(t).
G(t) = Resistance degradation function.

Enright and Frangopol extended the formulation in figure 34 and determined F(t) of weakest-link and fail-safe systems with applications to bridges.(23,24)

Cumulative Time Probability of Survival (S(t))

Cumulative time probability of survival, S(t), also called survival function, is the probability that a component or system survives until time t. It is equal to the reliability function, which is the probability that a component or system is still functioning at time t. S(t) is the complement of the F(t) and can be expressed as shown in figure 35.

Figure 35. Equation. Cumulative Time Probability of Survival. S open parenthesis t close parenthesis equals 1 minus F open parenthesis t close parenthesis equals P open parenthesis T greater than t close parenthesis equals the integral from t subscript f to infinity of f open parenthesis u close parenthesis times du.
Figure 35 . Equation. Cumulative Time Probability of Survival.(22)

Where:
S(t) = Area under the probability density function f(u) of the time to failure of tf to infinity.

Reserve strength factor (R1)

Reserve strength factor, R1, is defined as the ratio of the load-carrying capacity of the intact structure (or component), C, to the applied load on the structure (or component), Q, as shown in figure 36.

Figure 36. Equation. Reserve Strength Factor. R subscript 1 equals C divided by Q.
Figure 36 . Equation. Reserve Strength Factor. (See references 25-29.)

R1 varies from a value of infinity, when the intact structure (or component) has no load, to a value of 1.0, when the nominal load on the intact structure (or component) equals its capacity.

Residual Strength Factor (R2)

The residual strength factor, R2, provides a measure for the strength of the system in a damaged condition compared to the intact system. It is defined as the ratio of the capacity of the damaged structure (or component), Cd, to the capacity of the intact structure (or component), C, and can be expressed as shown in figure 37.

Figure 37. Equation. Residual Strength Factor. R subscript 2 equals C subscript D divided by C.
Figure 37. Equation. Residual Strength Factor. (See references 25-29.)

R2 takes values between 0, when the damaged structure has zero capacity, and 1.0, when the damaged structure does not have any reduction in load-carrying capacity.

Redundancy Factor(R0)

Redundancy factor, R0, is defined as shown in figure 38.

Figure 38. Equation. Redundancy Factor. R subscript 0 equals 1 divided by 1 minus R subscript 2.
Figure 38 . Equation. Redundancy Factor. (See references 25-29.)

R0 varies between 1.0, when the damaged structure has zero capacity, and 0, when the damaged structure does not have any reduction in load-carrying capacity.

Damage Factor (D)

Damage factor, D, is used to represent the loss in cross-sectional area of a bridge component. It is defined as shown in figure 39.

Figure 39. Equation. Damage Factor. D equals 1 minus a subscript d divided by a.
Figure 39. Equation. Damage Factor.(19,20)

Where:
ad = Cross-sectional area of the damaged portion of the bridge component.
a = Intact cross-sectional area of the bridge component.

Redundancy Index (RI)

Redundancy, which is a measure of reserve capacity, can be defined as the availability of warning before structural collapse occurs. The failure of a single member will not cause failure of a redundant structure. There are several measures for probabilistic redundancy index, RI, including those shown in figure 40 through figure 42.

Figure 40. Equation. Probabilistic Redundancy Index 1. RI subscript 1 equals beta subscript intact minus beta subscript damaged.
Figure 40 . Equation. Probabilistic Redundancy Index 1. (25,30,31)

Figure 41. Equation. Probabilistic Redundancy Index 2. RI subscript 2 equals beta subscript intact divided by beta subscript intact minus beta subscript damaged.
Figure 41. Equation. Probabilistic Redundancy Index 2. (25,30,31)

Figure 42. Equation. Probabilistic Redundancy Index 3. RI subscript 3 equals P subscript f open parenthesis dmg close parenthesis end subscript minus P subscript f open parenthesis sys close parenthesis end subscript all divided by P subscript f open parenthesis sys close parenthesis end subscript.
Figure 42 . Equation. Probabilistic Redundancy Index 3.(25,30,31)

Where:
βintact = RI of the intact system.
βdamaged = RI of the damaged system.
Pf(dmg) = Probability of damage occurrence to the system.
Pf(sys) = Probability of system failure.

To account for member ductility, system redundancy, and operation importance, AASHTO LRFD Bridge Design Specifications applies a load modifier factor ηi relating to ductility ( ηD ), redundancy (ηR ), and operational importance (ηI ) (see figure 27).(14)

Time-Variant Redundancy Index (RI(t))

Frangopol and Okasha investigated several time-variant redundancy indices, RI(t), based on point-in-time β and Pf. It was shown that the redundancy indices shown in figure 43 and
figure 44 are most consistent.(32,33)

Figure 43. Equation. Time-Variant Redundancy Index 1. RI subscript 1 open parenthesis t close parenthesis equals P subscript y open parenthesis sys close parenthesis end subscript open parenthesis t close parenthesis minus P subscript f open parenthesis sys close parenthesis end subscript open parenthesis t close parenthesis all divided by P subscript f open parenthesis sys close parenthesis end subscript open parenthesis t close parenthesis.
Figure 43 . Equation. Time-Variant Redundancy Index 1.(32,33)

Figure 44. Equation. Time-Variant Redundancy Index 2. RI subscript 2 open parenthesis t close parenthesis equals beta subscript f open parenthesis sys close parenthesis end subscript open parenthesis t close parenthesis minus beta  subscript y open parenthesis sys close parenthesis end subscript open parenthesis t close parenthesis.
Figure 44 . Equation. Time-Variant Redundancy Index 2.(32,33)

Where:
Py(sys)(t) = System probability of first yield at time t.
Pf(sys)(t) = Probability of system failure at time t.
βy(sys)(t), βf(sys)(t) = Reliability indices with respect to first yield and system failure at time t.

An increase in the value of RI indicates a higher system redundancy. A structural system is considered non-redundant if RI = 0.

Vulnerability (V)
Vulnerability, V, is one of the key measures used to capture the essential feature of damage-tolerant structures. A probabilistic measure of V can be defined as the ratio of the failure probability of the damaged system to the failure probability of the undamaged system, as shown in figure 45.

Figure 45. Equation. Vulnerability. V equals P open parenthesis r subscript d comma Q close parenthesis divided by P open parenthesis r subscript 0 comma Q close parenthesis.
Figure 45 . Equation. Vulnerability.(34)

Where:
rd = A particular damaged state.
r0 = An undamaged system state.
Q = Prospective loading.
P(rd, Q) = Probability of failure of the system in the damaged state.
P(r0, Q) = Probability of failure of the system in the pristine state.

V refers to vulnerability of the system in state rd for prospective loading Q. The value of V is 1.0 if the probabilities of failure of the damaged and intact systems are the same.

Damage Tolerance (Dt)

Damage tolerance, Dt, can be defined as the reciprocal of V, as shown in figure 46.

Figure 46. Equation. Damage Tolerance. D subscript t equals 1 divided by V equals P open parenthesis r subscript 0 comma Q close parenthesis divided by P open parenthesis r subscript d comma Q close parenthesis.
Figure 46 . Equation. Damage Tolerance.(34)

Ductility ( Δ )

Ductility, Δ , is generally defined as the ability of a bridge component or the entire bridge to sustain large deformations without collapse. A ductility index could be defined as shown in figure 47.

Figure 47. Equation. Ductility. Delta equals Delta subscript c minus Delta subscript el.
Figure 47 . Equation. Ductility.(34)

Where:
Δ c = Deformation at collapse.
Δ el = Deformation associated with the limit of elastic range.

Robustness(RO)

Robustness, RO, is one of the key measures in the field of progressive collapse and damage-tolerant structures. Although robustness is recognized as a desirable property in structures and systems, there is not a widely accepted theory on robust structures.(35) In general, RO is defined as insensitivity of the safety of a structure to local failure or the ability of a structure to prevent failure progression.

Resilience (RE)

Resilient structures respond well to extreme events. They reduce the probabilities of failure, the consequences of failure, and the time for recovery. Resilience, RE, can be measured by the functionality of an infrastructure system after a disaster and by the time it takes for a system to return to predisaster levels of performance.(36) Despite several RE measures proposed in the literature, a standard measure for bridge resilience has yet to be specified.

Risk (R)

Risk, R, may be expressed as a function of the probability of occurrence of adverse event A, P(A), and the consequence of this event, K (typically expressed in monetary terms). Often, R is defined as the product of P(A) and K, as shown in figure 48.

Figure 48. Equation. Risk. R equals P open parenthesis A close parenthesis times K.
Figure 48 . Equation. Risk.(34)

The uncertainties in both P(A) and K will carry over in calculating R.

Minimizing risk is one of the main objectives of bridge management. This can be achieved by minimizing the probability of occurrence of the adverse event (e.g., probability of bridge collapse), minimizing the consequences associated with this event, or minimizing both. Low-probability, high-consequence events are of particular relevance in risk-informed decisionmaking and management of aging bridges.

CLASSIFICATION OF STRUCTURAL PERFORMANCE INDICATORS

A classification of the defined structural performance indicators depending on the approach (deterministic, semi-probabilistic (LRFD), or probabilistic) and level of concern (cross section, component, or system level) is presented in table 6. More than one checkmark in the same category indicates that the performance measure can be classified in each section depending on the situation.

Risk-informed assessment and management of the highway bridge infrastructure in the United States requires a set of reliability-based performance indicators and decision tools. Consideration of multiple performance indicators in the evaluation of structural performance is inevitable. The indicators that should be considered depend on the priorities and objectives of the decisionmakers. The main remaining challenge lies in the implementation of reliability-based performance indicators that account for the presence of both natural randomness (i.e., aleatory uncertainty representing the natural variability or randomness of nature) and imperfect knowledge (i.e., epistemic uncertainty representing our imperfect ability to model reality) in bridge engineering. The indicators for evaluating bridge performance are not limited to those mentioned in this study.

Table 6. Classification of Structural Performance Indicators.

Performance Indicator Notation Approach Level
Deterministic Semi-Probabilistic (LRFD) Probabilistic Section Level Component Level System Level
Condition rating CR
Condition state CS
Margin of safety M
Time-dependent margin of safety M(t)
Probability of failure Pf
Probability of survival Ps
Reliability index β
Life-cycle cost LCC
Safety factor in ASD SF
Partial load factors in LRFD φ , γ
Load modifier factor in LRFD η i
Collapse load multiplier λ
Return period T with macron
Cumulative time probability of failure F(t)
Cumulative time probability of survival S(t)
Hazard rate h(t)
Cumulative hazard rate H(t)
Reserve strength factor R1
Residual strength factor R2
Redundancy factor R0
Damage factor D
Redundancy index RI
Time-variant redundancy index RI(t)
Vulnerability V
Damage tolerance Dt
Ductility Δ
Robustness RO
Resilience RE
Risk R
√ Checkmark indicates performance indicator meets classification; blank cells indicate performance indicator does not meet classification.

CHAPTER 4. IMPROVING BRIDGE PERFORMANCE

KEYS TO IMPROVING BRIDGE PERFORMANCE

Bridges are a critical part of the transportation system. The bridge infrastructure is a vast and valuable asset that must be properly managed in the interests of efficiency, safety, economy, national security, and protection of local and global environments. The need for useful, reliable bridge performance measures is clear. Additionally, there is a need for methods to evaluate the impact of different scenarios of funding, maintenance practices and priorities, design methodologies, and new technologies on future bridge performance. The performance measures described in chapter 2 are consistently applied and well-tested in practice. However, they do not lend themselves to predictive efforts nor to analysis of various “What if ... ?” scenarios. The LTBP Program will concentrate on collecting information and data that will allow exploration of scenarios that have actually happened. This will lead to tools such as better deterioration models, allowing better predictions of bridge performance.

The performance indices described in this report generally attempt to address the bridge as a whole entity and aggregate values among a population of bridges. However, bridges are composed of several unique elements that work as a system. Each of these elements responds to a different set of factors that govern its performance. Even when the same factor affects the performance of more than one element, the manner and degree to which that factor impacts each element may vary considerably. Many aspects of bridge performance are not well understood, and current indices of bridge performance are usually based on objectives that are imprecise and data that are not consistent or well documented. Many attempts at assessment of performance (of the complete structure or key elements) rely on expert opinion and significant assumptions and generalizations. Yet, decisions at many different levels and for many important purposes are based on these performance assessments.

The keys to improving bridge performance measures are as follows:

BETTER DATA ON BRIDGE PERFORMANCE IN THE UNITED STATES

The primary sources of data on bridges are the NBI and bridge management databases used by many States. Many transportation departments also have databases for recording bridge maintenance actions and for management and planning purposes. The NBI was created to fill the knowledge gap in bridge inventory and condition information but not to support the assessment of bridge performance over time. Various parties have been able to use the NBI to produce results and products that have implications for the assessment of bridge performance. When using NBI data to assess bridge performance, the following characteristics must be considered:

The most common bridge management system in the United States is the AASHTOWareTM Bridge Management software. The developers of this system incorporated a detailed condition assessment approach. An element-level inspection system was developed to track both the severity and the extent of different problems.

AASHTOWareTM Bridge Management addresses deterioration as a probabilistic, rather than deterministic, process and is able to automatically update previous deterioration predictions as more cycles of historical inspection data are input. The initial probabilities of transition from one condition state to the next were determined from consensus of expert opinion. These can be modified by the licensing agency if desired.

Under the element-level inspection system, condition data are recorded on the individual elements of the bridge rather than on the general elements of deck, superstructure, and substructure. This expands the data collected while allowing the use of specific guidance and employing precise engineering language for inspectors to rate the elements. Thus, the severity of any deterioration is defined, and the extent is estimated and recorded. While the element-level data system provides more granular information than the NBI condition ratings, it is still based mostly on visual inspection of surface conditions and relies on inspector training and experience for data quality. It does not, for the most part, document latent defects, such as initial corrosion of reinforcing bars that could soon change the observed condition at the surface level.

The NBI and element-level databases can be used as a fundamental resource in evaluating bridge performance. The past, current, and future data contained in these two resources are helpful for the following:

Bridge owners may also possess other useful data, such as the following: Beyond these current resources, the data needed to properly evaluate the important aspects of bridge performance can be quite extensive. Table 7 and table 8 show the breadth of data that may be necessary to better understand bridge performance in the four main categories.

Table 7. Durability and Serviceability Performance Data.

Category Data
Design and construction Design plans and specifications
Critical design details
Change orders
Inspection notes
Construction quality assurance and quality control
Corrosion protection measures
Operating conditions Local climate
Snow and ice removal practices
Freeze – thaw cycles
Rainfall and runoff; drainage control
Marine environment
Industrial pollutants
Dynamic loadings Traffic volume
Truck volumes and weights
Weigh-in-motion data
Overload permits
Debris, ice
Impact loads
Flexibility, vibrations
Corrosion protection measures Concrete cover over reinforcement
Corrosion resistant reinforcement
Deck overlays, membranes, and sealers
Other concrete sealers
Steel coatings – high-performance or weathering steel
Concrete qualities – high-performance concrete
Material conditions Concrete
Steel
Reinforcing bars
Prestressing steel
Deck
Concrete superstructure
Steel superstructure
Concrete substructure
Geometric data Deflections
Rotations
Settlements
Loss of camber
Horizontal alignment and skew
Components Bearings
Joints
Approach slabs
Details requiring inspection by non-destructive evaluation

Table 8. Functionality, Cost, Structural Integrity, and Organizational Data.

Categories Data
Functionality:
User safety and service
Operational efficiency Traffic volumes
Congestion and delay times
Safety hazards
Accident rates and types
Network-level performance Route redundancy
Detour lengths and costs
Other bridges in the corridor
Intersection/interconnection Military route
Multimodal interconnections
Accommodation of other infrastructure
Societal/environmental impacts Fuel usage
Environmental issues Air quality
Water quality
Toxic wastes
Costs:
Agency and user
Original construction Design costs
Construction costs
Life-cycle costs Inspection and condition assessment
Preservation
Maintenance, repairs
Rehabilitation
Demolition, removal, and disposal
Work zone maintenance of traffic
Structural integrity:
Safety and stability
Safety and stability Global
Member
Redistribution
Resilience
Structural redundancy
Extreme events Foundation type
Accident risks-fire, impact
Soil and hydraulic conditions
Scour vulnerability
Scour mitigation measures
Seismicity
Seismic design considerations
Hazard return periods
Organizational issues Asset management policies
Revenue sources
Distribution decision authority
Organizational structure and culture
Knowledge management
Human resources
Quality of education
Incentives for growth

The steps to obtaining better data for performance assessments are as follows:

  1. Isolate specific aspects of bridge performance that have the potential to significantly increase the costs associated with bridges (these costs may be in terms of dollars for bridge maintenance and rehabilitation; damage to the environment; property damage, injuries, or fatalities in bridge-related accidents; or delays associated with congestion at narrow bridges or bridges under repair).

  2. Establish working hypotheses as to the cause of poor performance.

  3. Identify the parameters that have the most impact on performance.

  4. Identify the critical data needed to prove or disprove the hypotheses.

  5. Identify the data collection methodologies that best balance effectiveness and data quality with the costs of data collection. The focus should be on obtaining the best available data rather than on trying to obtain perfect data.

This process will support the ability to design, implement, and complete statistically sound experimental studies to prove or disprove the hypotheses. The result will be better understanding of bridge performance and the knowledge necessary to implement policies, programs, and specific actions that will result in improved performance.

An example of how this process would work for the issue of performance of FO bridges is described in the following section.

Example: Performance of FO Bridges

Objective

The objective of the study is to examine the performance of bridges classified as FO and evaluate the frequency and severity of negative impacts (e.g., accidents, vehicle-bridge collisions, and instances where the bridge route does not function adequately) as a result of alignment disparities.

What Effect Does Inadequate Roadway Alignment Have on Road Safety and Traffic Flow?

Hypotheses: The following hypotheses are developed concerning inadequate roadway alignment:

Data: Data requirements for this study are as follows:

The effort to analyze and better understand various aspects of bridge performance should not be confused with the need to continue collecting required NBI data and the element-level data now collected to support bridge management systems. No recommendations are being made to expand the volume or enhance the quality of the data currently collected for these purposes.

BETTER UNDERSTANDING OF CAUSE AND EFFECT

Bridge performance measures should be able to provide a link between a specific parameter (or set of parameters) and the level of some desirable quality or characteristic of bridges or bridge elements. For example, a traffic safety measure should provide a link between accident experience and geometric characteristics such as bridge width. However, the performance of any single bridge element is dependent on complex interactions of multiple and often interrelated factors, including the original design parameters and specifications (bridge type, materials, geometries, and load capacities); the initial quality of materials and of the as-built construction; varying environmental conditions of climate and air quality; corrosion and other deterioration processes; traffic volumes and percentage of truck traffic; and the type, timing, and effectiveness of preventive maintenance, minor and major rehabilitation actions, and ultimately, replacement actions. Realistically, it is usually impossible to isolate one specific parameter as the governing parameter for a specific quality. Even in the simple example of accident history, several different factors are linked to safety, including bridge and roadway geometry, traffic volumes and vehicle types, travel speeds, weather conditions and winter maintenance operations, night visibility, and pavement and deck riding surface condition.

Analysis of the 2011 NBI data shows that the primary cause for a bridge to be flagged as SD or FO is related to deck geometry—a bridge is FO because the roadway width is considered too narrow for the traffic volumes currently using the bridge.(2) Figure 49 provides the top 10 reasons why a bridge is rated as deficient.

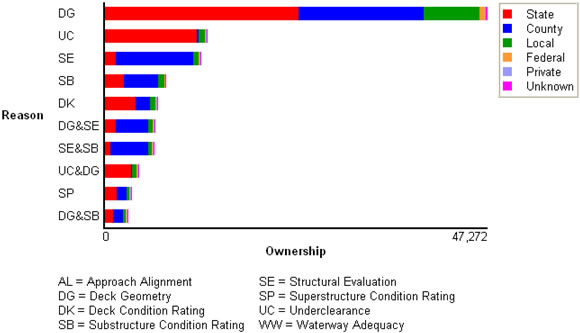

Figure 49. Graph. Reasons for Bridge Rating of SD or FO. This horizontal bar chart shows the top ten reasons why bridges are rated Structurally Deficient (SD) or Functionally Obsolete (FO) based on National Bridge Inventory (NBI) condition ratings. It also breaks down the data by bridge owners classified as State, county, local, Federal, private, and unknown. The y-axis shows classifications AL (approach alignment), DG (deck geometry), DK (deck condition rating), SB (substructure condition rating), SE (structural evaluation), SP (superstructure condition rating), UC (underclearance) and WW (waterway adequacy). The x-axis shows ownership and ranges from 0 to 47,273. The DG classification shows a significantly higher number than all the other classifications.
Figure 49. Graph. Reasons for Bridge Rating of SD or FO.(2)

Calculation of Federal SR for a given bridge, particularly the part of SR dependent on functional characteristics, is based on somewhat arbitrary definitions and significant assumptions. For bridges whose geometry does not meet currently accepted standards, many of the criteria used to calculate SR are not well documented and may not be well understood by bridge engineers. Traffic safety in the vicinity of bridges is an important parameter of bridge performance, yet there are no proven relationships that relate safety to bridge characteristics such as clear deck width, clearances, or approach roadway alignment. The Recording and Coding Guide for the Structure Inventory and Appraisal of the Nation’s Bridges presents a table for evaluating deck geometry that considers traffic volumes, lane widths, direction of traffic, and type of highway system.(1) No apparent research supports these numbers, and the method ignores possibly causative or complicating factors such as climatic conditions, percent of trucks in the traffic stream, approach roadway alignment, and posted speed.

Therefore, a study to examine the cause-and-effect relationships between bridge and traffic parameters and accident history near and on bridges would be useful. The data in the NBI and other available databases can be mined to create a subset of bridges that reflects a range of the key variables, including traffic volumes, truck traffic, deck widths, and perhaps other causative factors such as climatic conditions, approach roadway alignment, and posted speed.

The FHWA Bridge Management Information Systems Laboratory was established to identify and analyze causes and trends of deficiencies within the Nation’s bridge inventory. The laboratory has developed or acquired the tools to support sophisticated analytical research on existing disparate data sources through a geographical information system platform combined with relational database management systems software and advanced mathematical and statistical software. Under a program such as LTBP, data about type and frequency of accidents can be monitored, and analysis of long-term accident experience can be used to correlate accident potential with the most relevant bridge parameters. Ultimately, the findings could be used to better understand the bridge deficiencies that most affect functional characteristics of bridges.

The preceding discussion is one example of an aspect of bridge performance that could be improved by a better understanding of cause-and-effect relationships supported by accurate, reliable data. This principle of establishing and proving cause-and-effect relationships using high-quality research data is one of the major goals of the LTBP Program. With more relevant and reliable data and improved understanding of key cause-and-effect relationships, the knowledge necessary to improve bridge performance can be obtained.

CRITICAL ASPECTS OF BRIDGE PERFORMANCE

As previously noted, it is possible to characterize bridge performance issues under four broad categories: structural condition, functionality, structural integrity, and costs to the user and the agency. Within each of these categories are specific issues that may be considered higher priorities than others, including consideration of one or more of the following:

Because owner agency resources are often severely limited, it is necessary to examine each issue of bridge performance and weigh the costs of poor performance against the costs of actions necessary to improve performance. This assumes that the causes of poor performance have been determined and solutions are available.

Under the LTBP Program, research has been done on evaluating the highest priorities in bridge performance. A consensus has emerged based on expert opinion from owner agencies and other bridge experts. The future results of the LTBP Program will provide knowledge to assist owners in properly making necessary analyses. High-priority performance issues will be outlined in a forthcoming program report, which will identify specific research to be undertaken in terms of objectives, key questions, working hypotheses, and critical data needed.



CONCLUSIONS

One simple definition of performance is that performance equates to accomplishment of a specified purpose or set of purposes. For the purposes of the LTBP Program, the following definition is used: Bridge performance encompasses how bridges function and behave under the complex and interrelated factors they are subjected to day in and day out – traffic volumes, loads, deicing chemicals, freeze-thaw cycles, rains, or high winds. Bridge design, construction, materials, age, and maintenance history also play roles in performance. Virtually everyone in the United States, from bridge maintenance engineers to the everyday road user, has a stake in ensuring that the performance of bridges is good or excellent in terms of durability, operational capacity, roadway safety, resistance against failure, environmental neutrality, and life-cycle costs. Each group needs to have confidence in their understanding of the indicators by which they measure bridge performance. For the everyday commuter or casual user, an indicator such as Federal SR may suffice. For commercial interests, shippers, and drivers, a simple measure of bridges with posted weight limits or geometrical dimensions may suffice. These groups also need assurance that satisfactory bridge performance is being provided at reasonable costs, as reflected in gasoline taxes, tolls, other roadway fees, and other revenue sources devoted to maintaining performance.

Members of the bridge community such as designers, construction engineers, inspectors, maintenance engineers, and bridge management personnel who are responsible for maintaining performance must be able to properly and effectively evaluate bridge performance in more precise and targeted manners. They must break down bridge performance into very specific issues that can be adequately evaluated in terms of cause and effect. This will allow them to identify actions or programs that will ensure a high level of performance at a reasonable cost. This report describes a breakdown of bridge performance issues into four categories of performance: structural condition (for durability and serviceability), functionality (safety and traffic capacity), structural integrity (for safety and stability), and risk and costs to the user and to the agency. This breakdown helps isolate the most critical aspects of bridge performance and provides the basis for long-term research studies that will improve understanding of these issues.

Making a proper evaluation of bridge performance can be a formidable task given the many factors that can govern performance under different circumstances. The LTBP Program is being implemented to identify the most critical aspects of bridge performance and conduct studies that will result in the high-quality data necessary to better understand how multiple, variable factors govern those aspects of performance. This effort should ultimately lead to the ability to implement policies and actions for bridge programs that will improve performance and extend the life of bridges at minimum cost.

APPENDIX. DETAILS OF THE HIGHWAY BRIDGE INFRASTRUCTURE

Each bridge in the 2011 NBI is described by an extensive set of characteristics, parameters, and operating conditions, all of which have some impact on some aspect of the performance of the bridge. Table 9 provides a list of the most important of these items.

Table 9 . Diversity of Bridge Characteristics, Parameters, and Operating Conditions.(1)

Item NBI Item Numbers
Kind of material, main span and/or approach span 43A, 43A
Structure type, main span and/or approach span 43B, 44B
Horizontal geometry and skew 47, 51, 52, 55A, 55B, 56
Vertical clearances over and under the bridge 53A, 54A, 54B
Design load 31
Bridge posting 70
Deck structure type 107
Wearing surface 108A
Membrane 108B
Protective system 108C
Type of joints and bearings Data not available in NBI
Type of foundation Data not available in NBI
Local environment Data not available in NBI
Local climate patterns Data not available in NBI
Maintenance, repair, and rehabilitation history Data not available in NBI
Permit loads history Data not available in NBI
Annual ADT and truck traffic 29, 109
Safety features 33, 36
Maintenance responsibility, owner 21, 22
Functional class of inventory route 26
Channel and channel protection 61
Critical feature inspection 92A, 92B, 92C
Scour critical 113

In addition, the age of the bridge is an important contributing factor to the current and future performance of the bridge. However, the simple age in years does not represent a precise measure of the impact of age on performance. The chronological age does not accurately reveal important knowledge about cumulative degradation of material properties, cumulative amount of damage from live loads, and past maintenance and repair history. The average age of all NHS bridges in the NBI is 36.3 years; the average age of all non-NHS bridges is 42.3 years; and the average age of all bridges is 41.0 years. Figure 1 in chapter 1 shows the diversity in age of bridges with a histogram of bridges still in service that were built within 5-year periods.

Other critical factors affecting bridge performance are the type, frequency, and effectiveness of preservation, maintenance, repair, and rehabilitation actions performed on bridges by the owner or entity charged with maintenance responsibility. Bridges on public highways are owned by a variety of agency types at different levels of government and by railroads, toll authorities, and other private entities. Table 2 in chapter 1 shows the number of different types of entities that have maintenance responsibilities for bridges on public highways.

Based on the 2011 NBI data, the bridge infrastructure in the United States can be further described by table 10, table 11, and figure 50.

Table 10. Bridges by Functional Classification Weighted by Number, ADT, and Deck Area.(2)

Functional Class Number Percent Deck Area (ft 2) Percent
Rural, interstate 20,434 4.32 261,976,842 7.35
Rural, other arterial 51,304 10.84 540,109,441 15.16
Rural, collector 104,701 22.13 446,633,350 12.53
Rural, local 173,573 36.68 339,994,461 9.54
Subtotal, rural 350,012 73.97 1,588,714,083 44.58
Urban, interstate 26,774 5.66 697,385,694 19.57
Urban, other arterial 59,782 12.63 1,031,374,442 28.94
Urban, collector 14,812 3.13 117,799,536 3.31
Urban, local 21,785 4.60 128,570,034 3.61
Subtotal, urban 123,153 26.03 1,975,129,705 55.42
Total, rural and urban 473,165 100.00 3,563,843,788 100.00

Table 11 . Numbers and Percentages of Bridges and Deck Area by Owner.(2)

Bridge Owner Number of Bridges Percent of All Bridges Deck Area (ft2) Percent of All Deck Area
State highway agency 214,058 45.23 2,589,978,541 72.66
State park, forest, or reservation agency 884 0.19 1,944,059 0.05
Other State agencies 1,080 0.23 10,281,397 0.29
State toll authority 6,861 1.45 127,080,287 3.57
Total, State Bridges 222,883 47.09 2,729,284,284 76.57
Other Federal agencies (not listed below) 52 0.01 1,308,741 0.04
Indian tribal government 1 0.00 312 0.00
Bureau of Indian Affairs 704 0.15 2,291,701 0.06
Bureau of Fish and Wildlife 278 0.06 371,064 0.01
U.S. Forest Service 3,579 0.76 4,647,426 0.13
National Park Service 1,150 0.24 6,227,557 0.17
Tennessee Valley Authority 35 0.01 1,072,268 0.03
Bureau of Land Management 1 0.00 1,518 0.00
Bureau of Reclamation 321 0.07 797,735 0.02
Corps of engineers (Civil) 441 0.09 5,438,014 0.15
Corps of engineers (Military) 17 0.00 659,440 0.02
Air Force 24 0.01 21,765 0.00
Navy/Marines 151 0.03 1,260,518 0.04
Army 556 0.12 2,149,574 0.06
National Aeronautics and Space Administration 0 0.00 0 0.00
Metropolitan Washington Airports Service 23 0.00 268,839 0.01
Total, Federal bridges 7,333 1.55 26,516,484 0.74
County highway agency 187,902 39.70 464,876,596 13.04
Town or township highway agency 23,563 4.98 41,438,795 1.16
City or municipal highway agency 27,998 5.92 235,181,884 6.60
Local park, forest, or reservation agency 64 0.01 139,285 0.00
Other local agencies 1,162 0.25 15,556,768 0.44
Local toll authority 582 0.12 37,121,035 1.04
Total, local bridges 241,271 50.98 794,314,352 22.28
Private (other than railroad) 433 0.09 6,549,226 0.18
Railroad 896 0.19 4,320,332 0.12
Total, private/railroad bridges 1,329 0.28 10,869,440 0.30
Unknown 363 0.08 1,901,929 0.05
Unclassified 89 0.02 1,597,300 0.04
Total, unknown/unclassified bridges 452 0.10 3,499,229 0.10

Note: Table does not include culverts and tunnels.

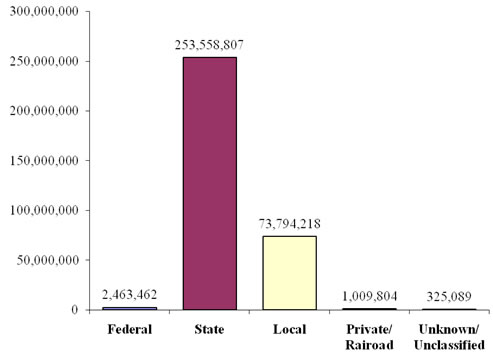

Figure 50. Graph. Deck Area (m2) of Bridges by Owners. This bar chart shows the deck area of bridges by their owner. The x-axis shows categories of ownership. The y-axis shows area of bridge deck and ranges from 0 to 300,000,000 m2. The data shown are as follows: Federal, 2,463,462 m2; State, 253,558,807 m2; local, 73,794,218 m2; private entities and railroads, 1,009,804 m2; and unknown or unclassified, 325,089 m2.
1 m2 = 10.76 ft2
Figure 50. Graph. Deck Area (m2) of Bridges by Owners.(2)

These tables and chart show that while ownership of the vast majority bridges by number is roughly split between State- and local-level agencies, the State-level agencies are responsible for almost 3.5 times as much deck area of bridges.

Table 12, table 13, and figure 51 show the variety of bridge types and materials that make up the Nation’s bridge inventory.

Table 12. Design Type of Main Span (NBI Item Number 43B).(2)

Design Type Number of Bridges Design Type Number of Bridges
Slab

80,239 Arch – thru 377
Stringer/multibeam girder 247,902 Suspension 97
Girder and floorbeam system 7,415 Stayed girder 46
Tee beam 35,749 Moveable lift 189
Box beam or girders – multiple 50,510 Moveable bascule 457
Box beam or girders – single or spread 9,201 Moveable swing 202
Frame (except frame culverts) 5,331 Tunnel 40
Orthotropic 472 Culverts 132,110
Truss – deck 465 Mixed types 22
Truss – thru 10,601 Segmental box girder 259
Arch – deck 6,794 Channel beam 14,442



Table 13. Kind of Material Main Span (NBI Item Number 43A).(2)

Design Type Number of Bridges Design Type Number of Bridges
Concrete 176,800 Prestressed concrete continuous 22,733
Concrete continuous 74,796 Wood or timber 23,461
Steel 133,839 Masonry 1,706
Steel continuous 49,860 Aluminum, wrought or cast iron 1,470
Prestressed concrete 119,789 Moveable bascule 644

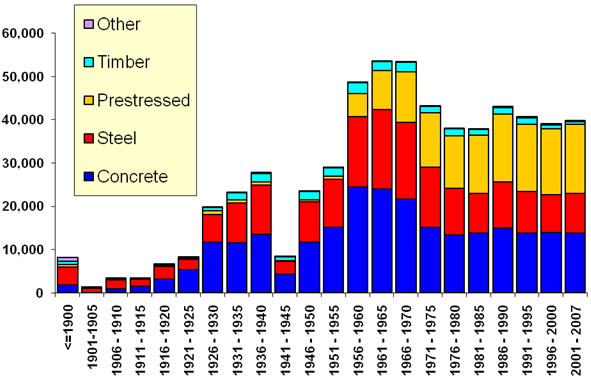

Figure 51. Graph. Numbers of Bridges Built in 5-Year Periods by Material. This bar graph shows the number of bridges built in the United States by material since before 1900. The x-axis shows categories for 5-year periods beginning with 1901–1905 and continuing to 2001–2005. A category for the combined number of all bridges built prior to 1901 is also provided. Each bar of the graph is further broken down by type of material used in the main span of the bridge, with segments for timber, prestressed, steel, concrete, and other. The y-axis shows number of bridges and ranges from 0 to 60,000. The data for the chart was extracted from the 2011 National Bridge Inventory (NBI) database.
Figure 51 . Graph. Numbers of Bridges Built in 5-Year Periods by Material.(2)

Table 14 and table 15 show the number and deck area of bridges classified as FO and SD by ownership category.

Table 14 . Numbers of FO Bridges and Deck Area of FO Bridges by Owner.(2)

Bridge Owner Number of Bridges Percent of All Bridges Deck Area (ft2) Percent of All Deck Area
State highway agency 40,502 49.87 433,803,372 67.74
State park, forest, or reservation agency 190 0.23 471,169 0.07
Other State agencies 346 0.43 3,543,619 0.55
State toll authority 2,409 2.97 37,278,080 5.82
Total, State bridges 43,447 53.49 475,096,240 74.18
Total, Federal bridges 1,423 1.75 4,908,580 0.77
County highway agency 23,409 28.82 51,244,157 8.00
Town or township highway agency 2,424 2.98 3,551,628 0.55
City or municipal highway agency 8,160 10.05 70,987,020 11.08
Local park, forest, or reservation agency 22 0.03 51,914 0.01
Other local agencies 192 0.24 9,887,168 1.54
Local toll authority 190 0.23 15,963,805 2.49
Total, local bridges 35,820 44.10 156,594,273 24.45
Private (other than railroad) 110 0.14 1,920,572 0.30
Railroad 278 0.34 1,344,412 0.21
Total, private/railroad bridges 388 0.48 3,264,985 0.51
Unknown 141 0.17 559,433 0.09
Unclassified 0 0.00 0 0.00
Total, unknown/unclassified bridges 141 0.17 559,433 0.09

Note: Table does not include culverts and tunnels.


Table 15. Numbers of SD Bridges and Deck Area of SD Bridges by Owner.(2)

Bridge Owner Number of Bridges Percent of All Bridges Deck Area (ft2) Percent of All Deck Area
State highway agency 23,103 31.86 224,635,480 66.71
State park, forest, or reservation agency 161 0.22 256,558 0.08
Other State agencies 204 0.28 1,502,050 0.45
State toll authority 308 0.42 5,154,697 1.53
Total, State bridges 23,776 32.78 231,548,785 68.76
Total, Federal bridges 684 0.94 2,184,912 0.65
County highway agency 38,958 53.72 59,812,887 17.76
Town or township highway agency 3,972 5.48 4,603,498 1.37
City or municipal highway agency 4,391 6.05 31,643,905 9.40
Local park, forest, or reservation agency 12 0.02 24,273 0.01
Other local agencies 112 0.15 718,190 0.21
Local toll authority 38 0.05 3,610,226 1.07
Total, local bridges 47,483 65.48 100,412,979 29.82
Private (other than railroad) 61 0.08 479,543 0.14
Railroad 439 0.61 1,747,295 0.52
Total, private/railroad bridges 500 0.69 2,226,838 0.66
Unknown 78 0.11 382,011 0.11
Unclassified 0 0.00 0 0.00
Total, unknown/unclassified bridges 78 0.11 382,011 0.11

Note: Table does not include culverts and tunnels.



References

  1. Office of Engineering (1995). Recording and Coding Guide for the Structure Inventory and Appraisal of the Nation’s Bridges, Report No. FHWA-PD-96-001, Federal Highway Administration, Washington, DC.


  2. Federal Highway Administration (2011). National Bridge Inventory, 2011 data, Washington, DC. Accessed online: August 7, 2012. (https://www.fhwa.dot.gov/bridge/nbi.htm)


  3. Slater, R.E. (1996). “The National Highway System: A Commitment to the Nation’s Future.” Public Roads, Vol. 59, No. 4, Federal Highway Administration, Washington, DC.


  4. Shepard, R.W. and Johnson, M.B. (1999).“California Bridge Health Index.” Presented at the 8th International Bridge Management Conference, Transportation Research Board, Washington, DC.


  5. Office of International Programs (2005). Bridge Preservation in Europe and South Africa, Report No. FHWA-PL-05-002, Federal Highway Administration, Washington, DC.


  6. Frangopol, D.M., Lin, K-Y., and Estes, A.C. (1997). “Life-Cycle Cost Design of Deteriorating Structures.” Journal of Structural Engineering, Vol. 123, No. 10, pp. 1390–1401, American Society of Civil Engineers, Reston, VA.


  7. Frangopol, D.M., Kong, J.S., and Gharaibeh, E.S. (2001). “Reliability-Based Life-Cycle Management of Highway Bridges.” Journal of Computing in Civil Engineering, Vol. 15, No. 1, pp. 27–34, American Society of Civil Engineers, Reston, VA.


  8. Estes, A.C. and Frangopol, D.M. (2005). “Chapter 36: Life Cycle Evaluation and Condition Assessment of Structures.” Handbook of Structural Engineering, Second Edition, W.F. Chen and E.M. Lui (eds.), CRC Press, Boca Raton, FL.


  9. Ang, A.H-S. and DeLeon, D. (2005). “Modeling and Analysis of Uncertainties for Risk-Informed Decisions in Infrastructures Engineering.” Structure and Infrastructure Engineering, Vol. 1, Issue 1, pp. 19–31, Taylor & Francis, Oxford, UK.


  10. Ellingwood, B.R. (2005). “Risk-Informed Condition Assessment of Civil Infrastructure: State of Practice and Research Issues.” Structure and Infrastructure Engineering, Vol. 1, No. 1, pp. 7–18, Taylor & Francis, Oxford, UK.


  11. Frangopol, D.M. and Liu, M. (2007). “Maintenance and Management of Civil Infrastructure Based on Condition, Safety, Optimization, and Life-Cycle Cost.” Structure and Infrastructure Engineering, Vol. 3, No. 1, pp. 29–41, Taylor & Francis, Oxford, UK.


  12. Frangopol, D.M. (2011). “Life-Cycle Performance, Management, and Optimization of Structural Systems under Uncertainty: Accomplishments and Challenges.” Structure and Infrastructure Engineering, Vol. 7, No. 6, pp. 389–413, Taylor & Francis, Oxford, UK.


  13. American Association of State Highway and Transportation Officials (2011). AASHTO Guide Manual for Bridge Element Inspection, First Edition, Washington, DC.


  14. American Association of State Highway and Transportation Officials (2007). AASHTO LRFD Bridge Design Specifications, Fourth Edition, Washington, DC.


  15. Enright, M.P. and Frangopol, D.M. (1998). “Service-Life Prediction of Deteriorating Concrete Bridges.” Journal of Structural Engineering, Vol. 124, No. 3, pp. 309–317, American Society of Civil Engineers, Reston, VA.


  16. Enright, M.P. and Frangopol, D.M. (1998). “Failure Time Prediction of Deteriorating Fail-Safe Structures.” Journal of Structural Engineering, Vol. 124, No. 12, pp. 1448–1457, American Society of Civil Engineers, Reston, VA.


  17. Frangopol, D.M. and Messervey, T.B. (2009). “Life-Cycle Cost and Performance Prediction: Role of Structural Health Monitoring.” Frontier Technologies for Infrastructures Engineering, S–S. Chen and A.H-S. Ang (eds.), CRC Press, Boca Raton, FL.


  18. Frangopol, D.M. and Messervey, T.B. (2009). “Maintenance Principles for Civil Structures.” Encyclopedia of Structural Health Monitoring, Vol. 4, C. Boller, F-K. Chang, and Y. Fujino (eds.), John Wiley & Sons Ltd, Chicester, UK.


  19. American Association of State Highway and Transportation Officials (2002). AASHTO Standard Specifications for Highway Bridges, 17th Edition, Washington, DC.


  20. Cohn, M.Z. (1980). Nonlinear Design of Concrete Structures: Problems and Prospects, University of Waterloo Press, Ontario, Canada.


  21. Ang, A.H-S. and Tang, W.H. (2007). Probability Concepts in Engineering. Emphasis on Applications to Civil and Environmental Engineering, Second Edition, John Wiley & Sons, Hoboken, NJ.


  22. Mori, Y. and Ellingwood, B. (1993). “Reliability-Based Service-Life Assessment of Aging Concrete Structures.” Journal of Structural Engineering, Vol. 119, No. 5, pp. 1600–1621, American Society of Civil Engineers, Reston, VA.


  23. Enright, M.P. and Frangopol, D.M. (1998). “Service-Life Prediction of Deteriorating Concrete Bridges.” Journal of Structural Engineering, Vol. 124, No. 3, pp. 309–317, American Society of Civil Engineers, Reston, VA.


  24. Enright, M.P. and Frangopol, D.M. (1998). “Failure Time Prediction of Deteriorating Fail-Safe Structures.” Journal of Structural Engineering, Vol. 124, No. 12, pp. 1448–1457, American Society of Civil Engineers, Reston, VA.


  25. Frangopol, D.M. and Curley, J.P. (1987). “Effects of Damage and Redundancy on Structural Reliability.” Journal of Structural Engineering, Vol. 113, No. 7, pp. 1533–1549, American Society of Civil Engineers, Reston, VA.


  26. Frangopol, D.M. and Klisinski, M. (1989). “Material Behavior and Optimum Design of Structural Systems.” Journal of Structural Engineering, Vol. 115, No. 5, pp. 1054–1075, American Society of Civil Engineers, Reston, VA.


  27. Frangopol, D.M. and Klisinski, M. (1989). “Weight-Strength-Redundancy Interaction in Optimum Design of Three-Dimensional Brittle-Ductile Trusses.” Computers and Structures, Vol. 31, Issue 5, pp. 775–787, Pergamon Press, Oxford, UK.


  28. Frangopol, D.M. and Klisinski, M. (1992). “Design for Safety, Serviceability and Damage Tolerability.” Designing Concrete Structures for Serviceability and Safety, Document No. SP133–12, American Concrete Institute, Farmington Hills, MI.


  29. Frangopol, D.M., Klisinski, M., and Lin K.Y. (1996). “Incorporating Damage Control in Structural Design.” Building an International Community of Structural Engineers, Vol. 1, pp. 598–605, American Society of Civil Engineers, Reston, VA.


  30. Fu, G. (1987). Modeling of Lifetime Structural System Reliability, Report No. 87–9, Department of Civil Engineering, Case Western Reserve University, Cleveland, OH.


  31. Frangopol, D.M. and Nakib, R. (1991). “Redundancy in Highway Bridges.” Engineering Journal, Vol. 28, No. 1, pp. 45–50, American Institute of Steel Construction, Chicago, IL.


  32. Frangopol, D.M. and Okasha, N.M. (2008). “Life-Cycle Performance and Redundancy of Structures.” Proceedings of the Sixth International Probabilistic Workshop, pp. 1–14, Darmstadt, Germany.


  33. Okasha, N.M. and Frangopol, D.M. (2010). “Time-Variant Redundancy of Structural Systems.” Structure and Infrastructure Engineering, Vol. 6, Nos. 1–2, pp. 279–301, Taylor & Francis, Oxford, UK.


  34. Lind, N.C. (1994). “A Measure of Vulnerability and Damage Tolerance.” Reliability Engineering and System Safety, Vol. 43, No. 1, pp. 1–6, Elsevier, Amsterdam, Netherlands.


  35. Ghosn, M., Moses, F., and Frangopol, D.M. (2010). “Redundancy and Robustness of Highway Bridge Superstructures and Substructures.” Structure and Infrastructure Engineering, Vol. 6, Nos. 1–2, pp. 257–278, Taylor & Francis, Oxford, UK.


  36. Tierney, K. and Bruneau, M. (2007). “Conceptualizing and Measuring Resilience.” TR News, No. 250, pp. 14–17, Transportation Research Board, Washington, DC.



Federal Highway Administration | 1200 New Jersey Avenue, SE | Washington, DC 20590 | 202-366-4000
Turner-Fairbank Highway Research Center | 6300 Georgetown Pike | McLean, VA | 22101
