In-Vehicle Display Icons and Other Information Elements: Volume I

PDF Version (8.33 MB)

PDF files can be viewed with the Acrobat® Reader®

Chapter 8

Icon Details by Icon Type

1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18

Function: Safety and Warning Information

Airbag status/information

General



Function: Safety and Warning Information

Airbag status/information

General

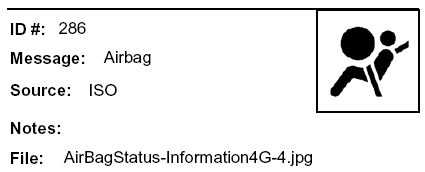

Message: An icon of an airbag Message: Inform driver that aid had been requested

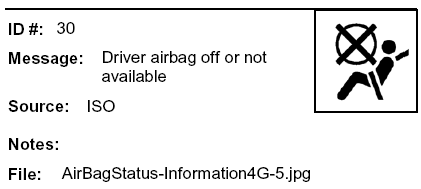

Message: Icon of a Driver airbag off or not available

Function: Safety and Warning Information

Immediate hazard warning

General



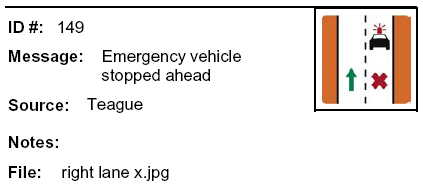

Message: Emergency vehicle stopped on the right lane. Left lane is only passable
Message: An icon of an Airbag with a number 2 below

Function: Safety and Warning Information

Parking aids

General



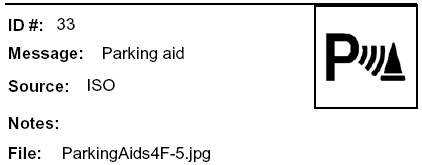

Message: Parking aid available

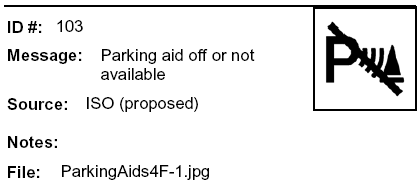

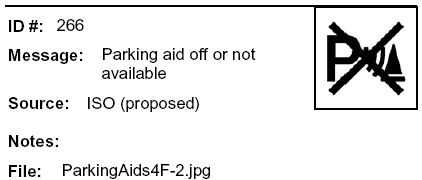

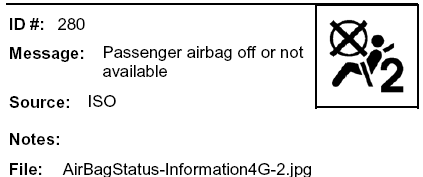

Message: An icon of Passenger airbag off or not available Message: Parking aid off or not available

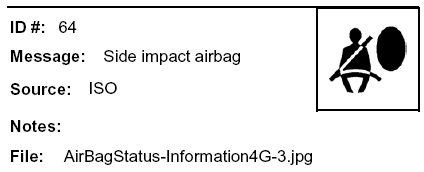

Message: Side impact airbag



Function: Safety and Warning Information

Parking aids

General



Function: Safety and Warning Information

Parking aids

General



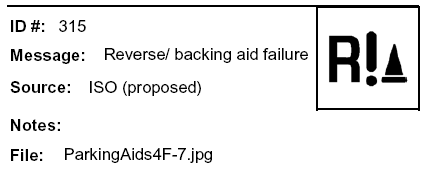

Message: Parking adi off or not avaiable Message: Reverse/backing aid failure

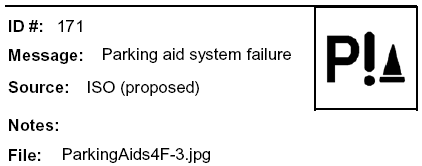

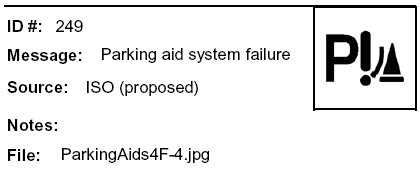

Message: Parking aid system failure

Function: Safety and Warning Information

Road condition information

General



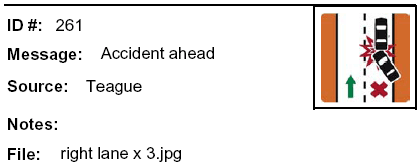

Message: Accident ahead on the right lane. Left lane is passable

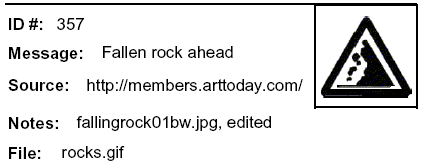

Message: Another icon of Parking aid system failure Message: Road sign of Fallen rock ahead

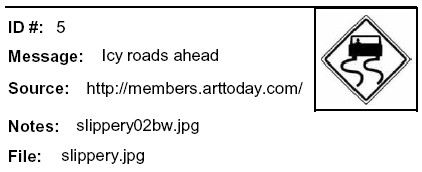

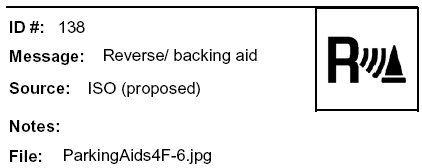

Message: Reverse/backing aid Message: Road sign of Icy roads ahead

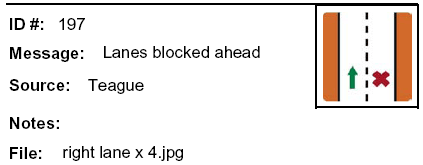

Message: Another icon of Reverse/backing aid failure Message: Right lane blocked. Left lane passable



Function: Safety and Warning Information Road

condition information General



Function: Safety and Warning Information

Road condition information

General

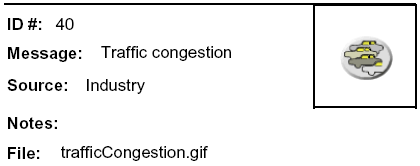

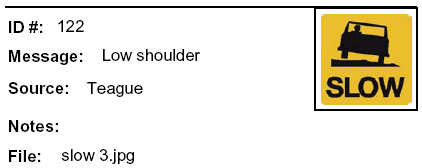

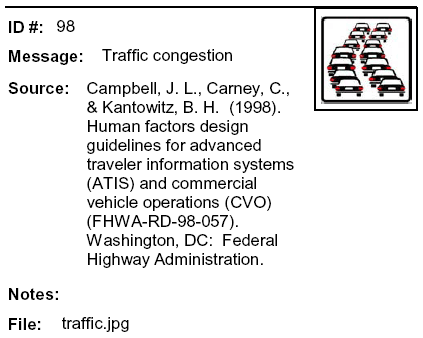

Message: Road sign SLOW Message: Traffic congestion

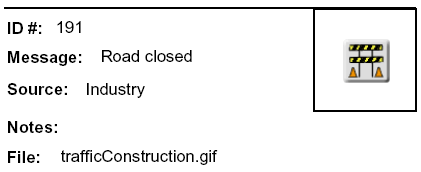

Messsage: A sign for Road closed Message: Another icon for Traffic congestion

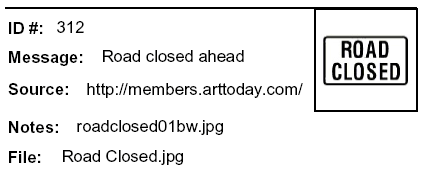

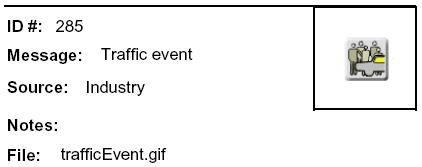

Message: A road sign that reads Road Closed Message: A road sign of Traffic event

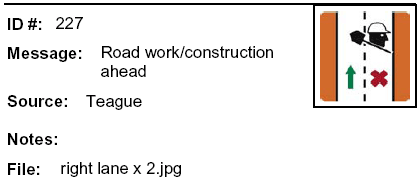

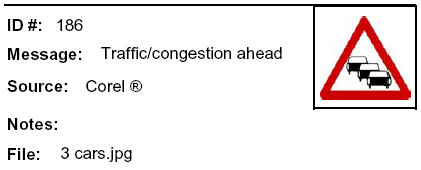

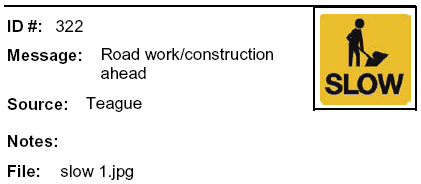

Message: Icon for Road work/construction ahead Message: Icon for Traffci/congestion ahead
Message: Icon for Slow - Road work/construction ahead
