Measured Variability Of Southern Yellow Pine - Manual for LS-DYNA Wood Material Model 143

PDF Version (2.92 MB)

PDF files can be viewed with the Acrobat® Reader®

APPENDIX B. QUADRATIC EQUATIONS FIT TO MOISTURE CONTENT DATA

click on the image for Section 508 compliancy text

Figure 36.

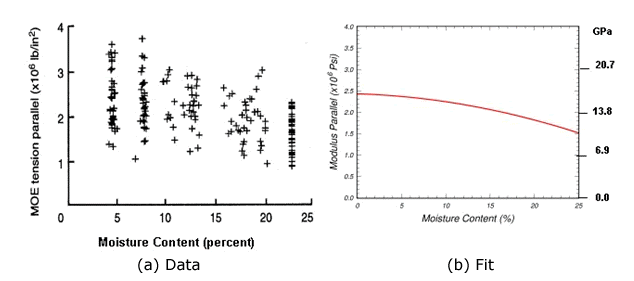

Effect of moisture content on tensile modulus parallel to the grain.

Source: Forest Products Laboratory (14).

click on the image for Section 508 compliancy text

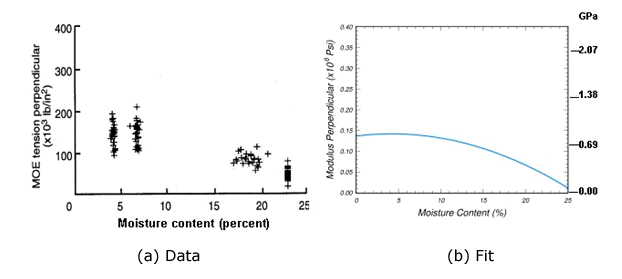

Figure 37.

Effect of moisture content on tensile modulus perpendicular to the grain.

Source: Forest Products Laboratory (14).

click on the image for Section 508 compliancy text

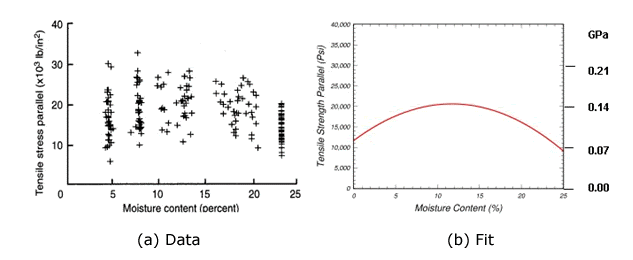

Figure 38.

Effect of moisture content on tensile strength parallel to the grain.

Source: Forest Products Laboratory (14).

click on the image for Section 508 compliancy text

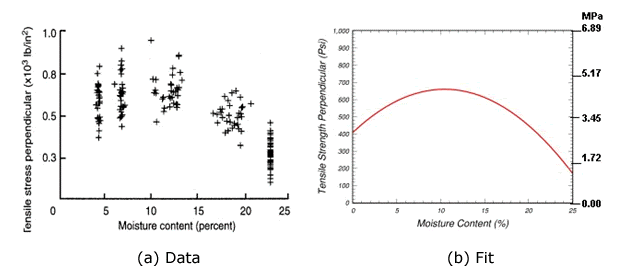

Figure 39.

Effect of moisture content on tensile strength perpendicular to the grain.

Source: Forest Products Laboratory (14).

click on the image for Section 508 compliancy text

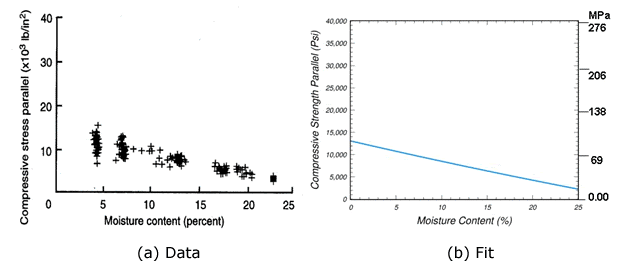

Figure 40.

Effect of moisture content on compressive strength parallel to the grain.

Source: Forest Products Laboratory (14).

click on the image for Section 508 compliancy text

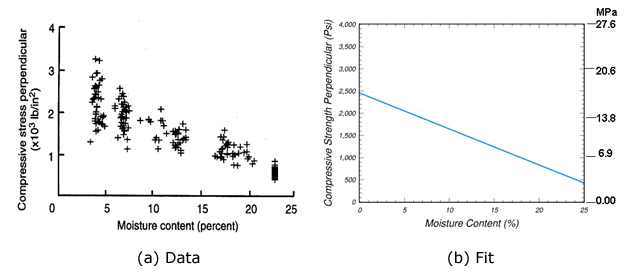

Figure 41.

Effect of moisture content on compressive strength perpendicular to the grain.

Source: Forest Products Laboratory (14).

click on the image for Section 508 compliancy text

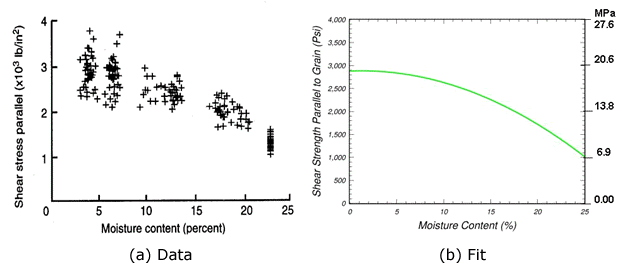

Figure 42.

Effect of moisture content on shear strength parallel to the grain.

Source: Forest Products Laboratory (14).

No measurements were made for shear strength perpendicular to the grain.

click on the image for Section 508 compliancy text

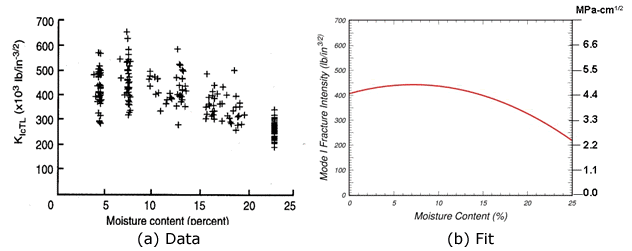

Figure 43.

Effect of moisture content on mode I fracture intensity.

Source: Forest Products Laboratory (14).

click on the image for Section 508 compliancy text

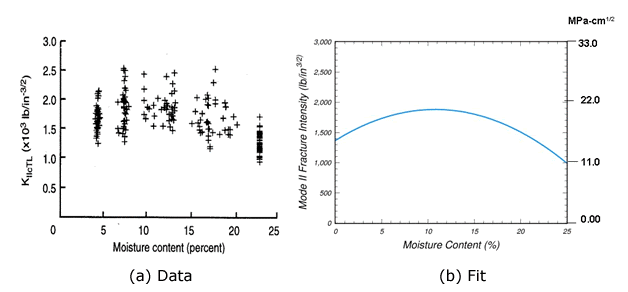

Figure 44.

Effect of moisture content on mode II fracture intensity.

Source: Forest Products Laboratory (14).
