Applications of ISAT, Interchange Safety Analysis Tool (ISAT): User Manual

PDF Version (777 KB)

PDF files can be viewed with the Acrobat® Reader®

Applications of ISAT

ISAT was developed for a wide range of applications. This section highlights several interchange analysis applications for which ISAT can be used, including:

Application 1—Estimating the safety performance of an existing interchange.

Application 2—Predicting the safety performance of design alternatives for a new interchange.

Application 3—Predicting the safety performance of design alternatives for an existing interchange.

This section also explains how ISAT can be applied to several common interchange types.

Types of Analysis applications

Application 1—Estimating the Safety Performance of an Existing Interchange

The first, and most basic, application of ISAT is to estimate the safety performance of an existing interchange. This is done by applying Steps 1 through 8 as described in the Basis Analysis Procedures section of this manual. Estimating the safety performance of an existing interchange can be useful for determining the need and priority for reconstruction of the interchange. In some instances, agencies simply do not have crash data to conduct a safety assessment of an existing interchange. In these instances ISAT provides the means to do so based upon its predictive capabilities. In situations where agencies have crash data available for an existing interchange, the crash data can be combined with the safety experience of similar types of interchanges through state-of-the-art statistical techniques to develop a more accurate safety assessment for the interchange.

Application 1 can be useful to highway agencies in their safety management of interchanges. By applying this application to a number of existing interchanges, highway agencies can identify sites with sufficient crashes (actual or estimated) to provide an opportunity for safety improvement. In this way agencies can better determine the priorities for interchange reconstruction projects in their jurisdiction.

Application 2—Predicting the Safety Performance of Design Alternatives for a New Interchange

Prior to ISAT, no tools were available to design engineers to assess the safety performance of design alternatives for a new interchange. Design alternatives for interchange projects have typically been compared on the basis of cost and traffic operational measures. ISAT fills this void and provides the capability to include safety as one of the primary measures when comparing design alternatives for a new interchange.

ISAT was developed to include those geometric, traffic control, and traffic volume components most critical to the overall safety of an interchange, as determined through valid statistical models. By controlling certain components and varying others, engineers can assess the safety consequences of different design alternatives. With ISAT, design engineers now have the capability to assess the safety performance of different design alternatives which can be useful in selecting the final design for a new interchange.

Application 3—Predicting the Safety Performance of Design Alternatives for an Existing Interchange

This application is very similar to Application 2, except that this application focuses on design alternatives for an existing interchange rather than a new interchange. ISAT provides the capability to include safety as one of the primary measures when comparing design alternatives for an existing interchange. ISAT was developed to include those geometric, traffic control, and traffic volume components most critical to the overall safety of an interchange. By controlling certain components, and varying others, engineers can assess the safety consequences of different design alternatives. With this being an application for an existing interchange, ISAT also provides the capability to compare the predicted safety performance of proposed design alternatives to the safety performance of the existing interchange design (i.e., the no-build scenario).

APPLICATION OF ISAT TO SPECIFIC INTERCHANGE CONFIGURATIONS

This section explains how ISAT can be applied to four common interchange types: full diamond, partial cloverleaf, full cloverleaf, and directional. Figures 5 through 8 illustrate these interchange types. These examples provide sufficient information to guide the user in applying the tool to other, less standard, interchange configurations.

In applying ISAT to any interchange, study area boundaries must be established at each mainline freeway leg and each arterial crossroad leg. These study area boundaries should be far enough from the ramps that the entire interchange influence area on the mainline freeway is included within the study area boundaries. If the safety performance of an existing and proposed interchange design is being compared, or if several proposed design alternatives for the interchange are being compared, the same study area boundaries must be used for all design alternatives, and the study area must be large enough to include all of the alternatives.

Figure depicts a full diamond interchange with one-way diagonal ramps in each quadrant. The interchange is divided into individual components to illustrate how a full diamond interchange would be divided for analysis purposes with I-S-A-T. This example contains 10 mainline freeway segments, 4 ramps (and 2 acceleration lanes), 2 crossroad ramp terminals, and 6 arterial crossroad segments.

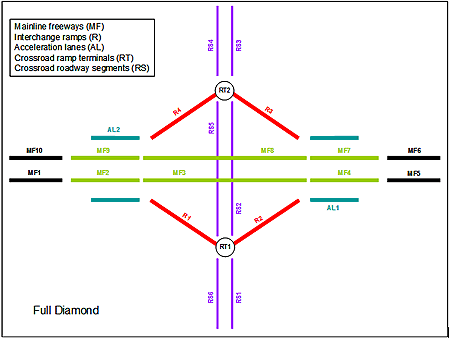

Figure 5. Sample application of ISAT to a full diamond interchange.

Figure depicts a two quadrant, partial cloverleaf interchange. In the upper right quadrant there is one parclo loop on-ramp and one diamond off-ramp. In the lower right quadrant there is one parclo loop off-ramp and one diamond on-ramp. The interchange is divided into individual components to illustrate how a typical partial cloverleaf interchange would be divided for analysis purposes with I-S-A-T. The entire analysis area contains 10 mainline freeway segments, 4 ramps— (2 with acceleration lanes), 2 crossroad ramp terminals, and 6 arterial crossroad segments.

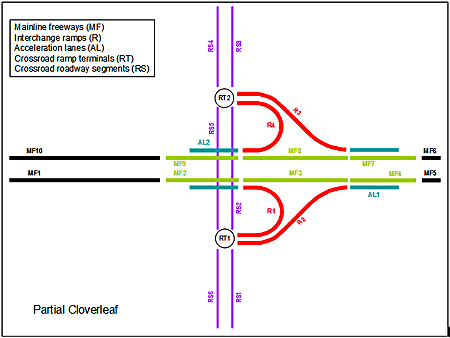

Figure 6. Sample application of ISAT to a partial cloverleaf interchange.

Figure depicts a full cloverleaf interchange. Each quadrant contains a free-flow loop ramp and an outer connection ramp. The interchange is divided into individual components to illustrate how a typical full cloverleaf interchange would be divided for analysis purposes with I-S-A-T. The entire analysis area contains 14 mainline freeway segments, 8 ramps—with (4 acceleration lanes), 0 crossroad ramp terminals, and 10 arterial crossroad segments.

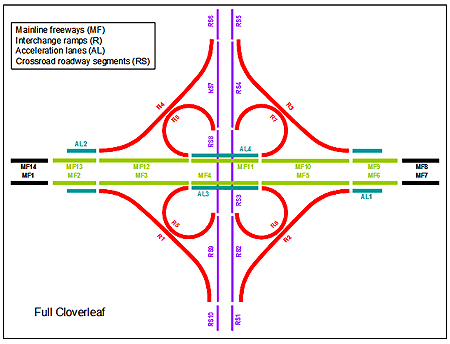

Figure 7. Sample application of ISAT to a full cloverleaf interchange.

Figure depicts a directional interchange. Each quadrant contains one outer connection ramp and two semi-directional ramps. The semi-directional ramps connect to the outer connection ramp in the opposite quadrant, for example, (lower left to upper right or lower right to upper left). The interchange is divided into individual components to illustrate how a typical directional interchange would be divided for analysis purposes with I-S-A-T. The entire analysis area contains 20 mainline freeway segments, 8 ramps—with (4 acceleration lanes), 0 crossroad ramp terminals, and 0 arterial crossroad segments.

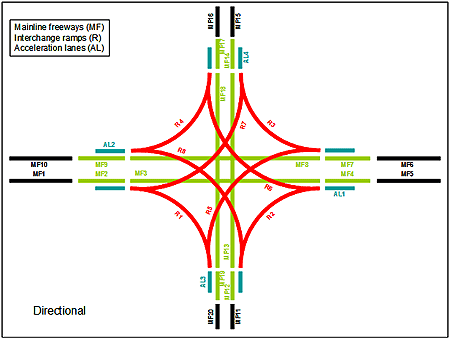

Figure 8. Sample application of ISAT to a directional interchange.

Full Diamond Interchange

The full diamond interchange in figure 5 would be subdivided for analysis purposes as follows:

  • Mainline freeway segments MF1, MF5, MF6, and MF10 are located outside the interchange influence area.
  • Mainline freeway segments MF2, MF3, MF4, MF7, MF8, and MF9 are located within the interchange influence area. (Note: there are segment breaks at the off- and on-ramp gore areas because the traffic volumes change at those points.)
  • Diamond off-ramps R1 and R3 have no acceleration lanes adjacent to the associated mainline freeway segments
  • Diamond on-ramps R2 and R4 have acceleration lanes (i.e., AL1 and AL2) adjacent to the associated mainline freeway segments.
  • Crossroad ramp terminals RT1 and RT2 are treated as four-leg intersections.
  • Crossroad segments RS1, RS2, RS3, RS4, RS5, and RS6 break at the ramp terminals because the traffic volumes change at those points.

Partial Cloverleaf Interchange

The partial cloverleaf interchange in figure 6 would be subdivided for analysis purposes as follows:

  • Mainline freeway segments MF1, MF5, MF6, and MF10 are located outside the interchange influence area.
  • Mainline freeway segments MF2, MF3, MF4, MF7, MF8, and MF9 are located within the interchange influence area. (Note: there are segment breaks at the off- and on-ramp gore areas because the traffic volumes change at those points.)
  • Parclo loop off-ramp R1 has no acceleration lane adjacent to the associated mainline freeway segment.
  • Diamond on-ramp R2 has an acceleration lane (i.e., AL1) adjacent to the associated mainline freeway segment.
  • Diamond off-ramp R3 has no acceleration lane adjacent to the associated mainline freeway segment.
  • Parclo loop on-ramp R4 has an acceleration lane (i.e., AL2) adjacent to the associated mainline freeway segment.
  • Crossroad ramp terminals RT1 and RT2 are treated as three-leg intersections.
  • Crossroad segments RS1, RS2, RS3, RS4, RS5, and RS6 break at the ramp terminals because the traffic volumes change at those points.

Full Cloverleaf Interchange

Full cloverleaf interchanges can, at present, be represented only imperfectly in ISAT. Research to develop additional safety prediction models so that ISAT can address full cloverleaf interchanges completely is needed. The full cloverleaf interchange in figure 7 would be subdivided for analysis purposes as follows:

  • Mainline freeway segments MF1, MF7, MF8, and MF14 are located outside the interchange influence area.
  • Mainline freeway segments MF2, MF3, MF4, MF5, MF6, MF9, MF10, MF11, MF12, and MF13 are located within the interchange influence area. (Note: there are segment breaks at the off- and on-ramp gore areas because the traffic volumes change at those points.)
  • Outer-connection off-ramps R1 and R3 have no acceleration lanes adjacent to the associated mainline freeway segments. (Note: ISAT contains no existing models for cloverleaf outer-connection ramps; until more research is completed, it is recommended that cloverleaf outer-connection off-ramps be classified as diamond off-ramps. Furthermore, ISAT does not address acceleration lanes on arterial roadways, so unless the crossroad is also a mainline freeway, acceleration lanes should not be specified for ramps R1 and R3.)
  • Outer-connection on-ramps R2 and R4 have acceleration lanes (i.e., AL1 and AL2) adjacent to the associated mainline freeway segments. (Note: ISAT contains no existing models for cloverleaf outer-connection ramps; until more research is completed, it is recommended that cloverleaf outer-connection on-ramps be classified as diamond on-ramps)
  • Free-flow loop on-ramps R5 and R7 have acceleration lanes (i.e., AL3 and AL5) adjacent to the associated mainline freeway segments. [Note: ISAT has no explicit safety prediction models for freeway weaving areas, so the weaving areas between the loop ramps on the mainline freeway (R5/R6 and R7/R8) can only be treated as acceleration lanes at present.]
  • Free-flow loop off-ramps R6 and R8 have no acceleration lanes adjacent to the associated mainline freeway segments. [Note: ISAT has no explicit safety prediction models for arterial weaving areas or arterial acceleration lanes, so the weaving areas between the loop ramps on the mainline freeway (R6/R7 and R8/R5) cannot be evaluated at present.]
  • Crossroad segments RS1, RS2, RS3, RS4, RS5, RS6, RS7, RS8, RS9, and RS10 break at the ramp terminals because the traffic volumes change at those points.

A full cloverleaf interchange has no crossroad ramp terminals. It should also be noted that ISAT, at present, has no capability to estimate the safety performance of any collector-distributor roads that may be present in cloverleaf interchanges.

Directional Interchange

The directional freeway-to-freeway interchange in figure 8 would be subdivided for analysis purposes as follows:

  • Mainline freeway segments MF1, MF5, MF6, and MF10 are located outside the interchange influence area on one freeway, and mainline freeway segments MF11, MF15, MF16, and MF20 are located outside the interchange influence area on the other freeway.
  • Mainline freeway segments MF2, MF3, MF4, MF7, MF8, and MF9 are located within the interchange influence area on one freeway, and mainline freeway segments MF12, MF13, MF14, MF17, MF18, and MF19 are located within the interchange influence area on the other freeway. (Note: there are segment breaks at the off- and on-ramp gore areas because the traffic volumes change at those points.)
  • Direct connection ramps R1, R2, R3, and R4 have acceleration lanes (i.e., AL1, AL2, AL3, and AL4) adjacent to the associated mainline freeway segments.
  • Semidirect connection ramps R5, R6, R7, and R8 join other ramps and, therefore, do not have acceleration lanes on the mainline freeways.

A directional freeway-to-freeway interchange has no crossroad ramp terminals or crossroad segments.

Extended Roadway Networks Near Interchanges

Some users may wish to apply ISAT to estimate the safety performance for extended roadway networks near interchanges. For example, ISAT can be applied to evaluate two or more interchanges in sequence along a freeway or arterial roadway networks that connect interchanges to one another or to nearby development. To evaluate two or more interchanges in sequence along a freeway, all of the mainline freeway segments, ramps, crossroad ramp terminals and intersections, and crossroad segments for the interchanges should be included in the ISAT input data. In addition, the entire mainline freeway between the interchanges should be included in one or more mainline freeway segments in the ISAT input data.

The arterial roadway network surrounding a freeway that connects the interchanges to one another or to nearby development can be evaluated with ISAT. Additional arterial crossroad roadway segments and intersections on the network of interest can be included in the ISAT input data, together with the data for the interchanges themselves. Data for all intersections on arterial roadways in the network should be included in the ISAT input data for crossroad ramp terminals, and data for arterial roadway segments in the network should be included in the ISAT input data for crossroad segments.

The number of interchanges and the extent of the network considered is constrained only by the limit of 50 mainline freeway segments, 50 ramps, 50 crossroad ramp terminals and intersections, and 50 crossroad segments in the ISAT software.
