Development of Human Factors Guidelines for Advanced Traveler Information Systems and Commercial Vehicle Operations: Task Analysis of ATIS/CVO Functions



APPENDIX C. HIERARCHICAL TASK DESCRIPTIONS



PRIVATE VEHICLE OPERATIONS

COMMERCIAL VEHICEL OPERATIONS



PRIVATE VEHICLE OPERATIONS

1 PRE–DRIVE

2 DRIVE

5 IRANS

6 IMSIS

7 ISIS

8 IVSAWS



1 PRE–DRIVE

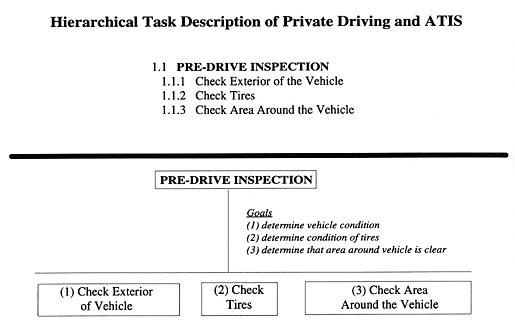

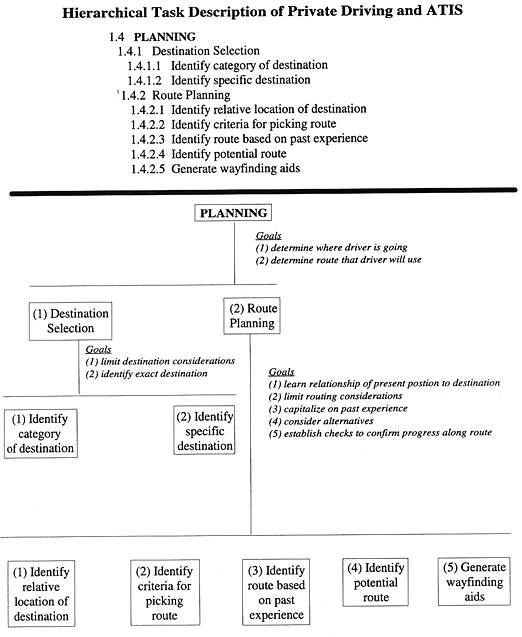

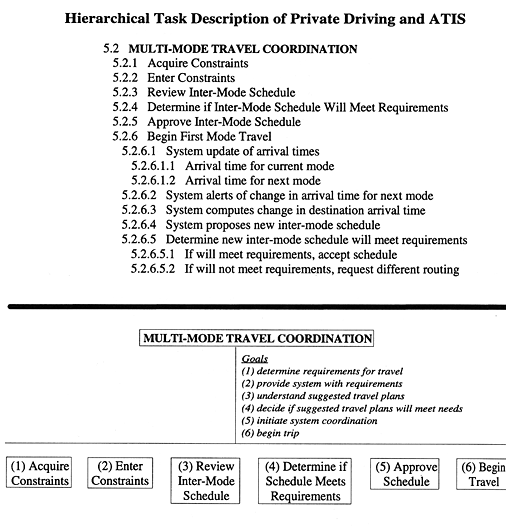

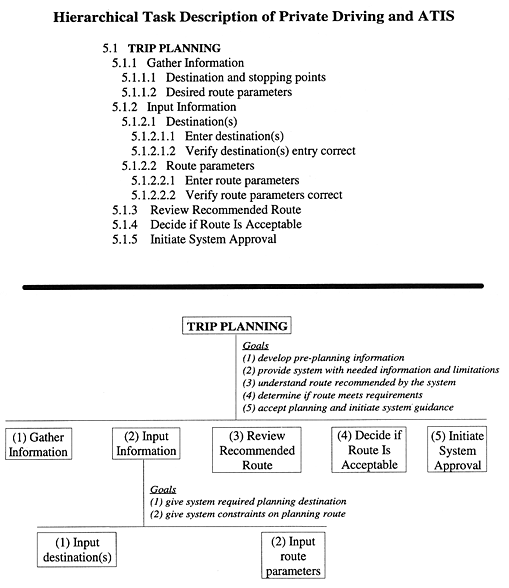

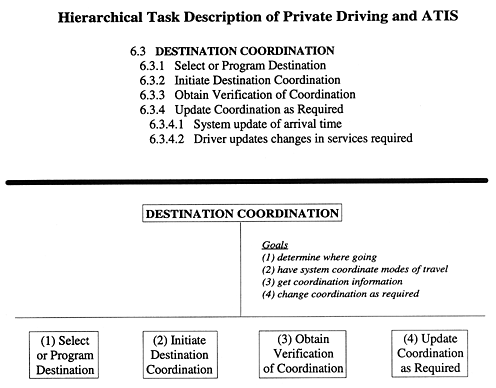

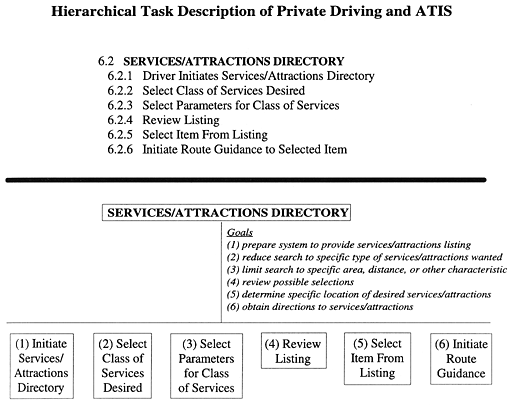

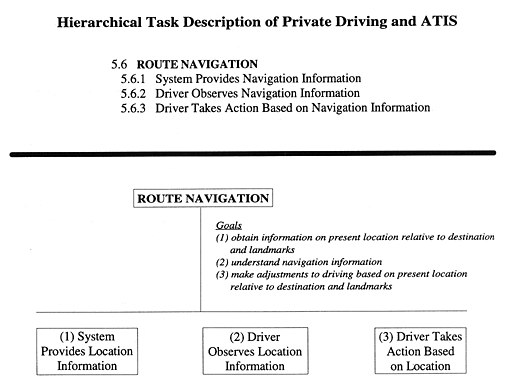

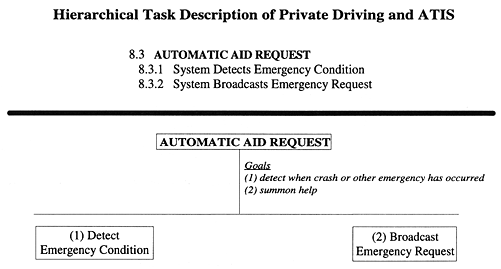

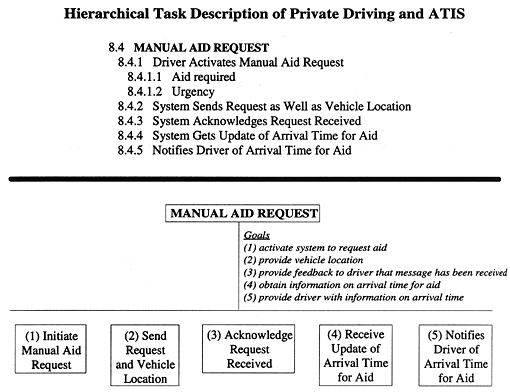

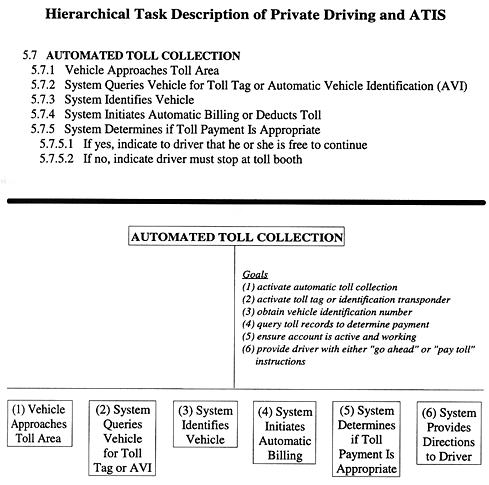

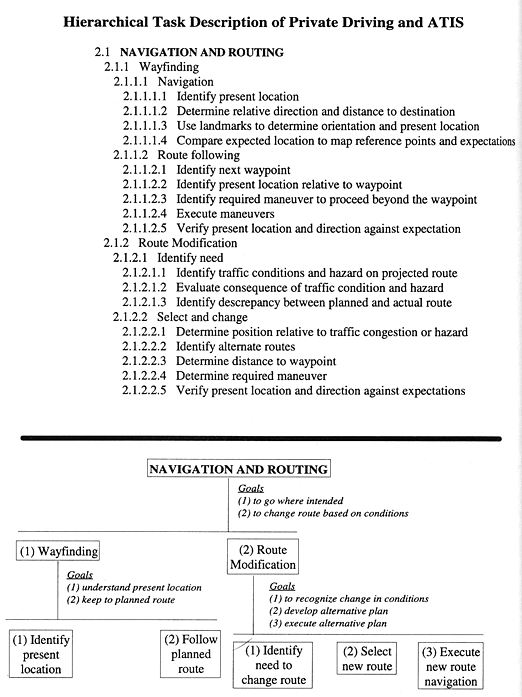

Hierarchical Task Description of Private Driving and ATIS figure 1

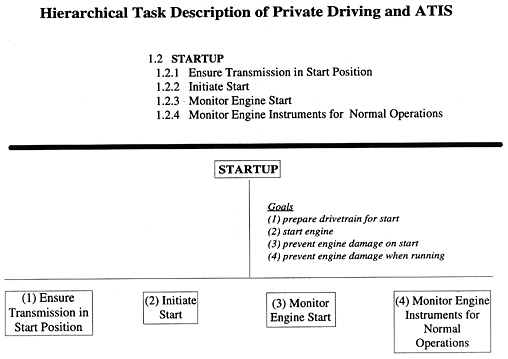

Hierarchical Task Description of Private Driving and ATIS figure 2

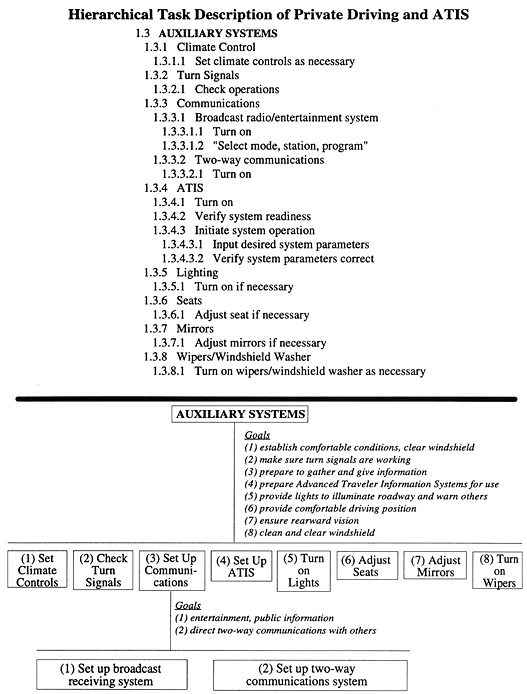

Hierarchical Task Description of Private Driving and ATIS figure 3

Hierarchical Task Description of Private Driving and ATIS figure 4



Private Vehicle Operations



Top



2 DRIVE

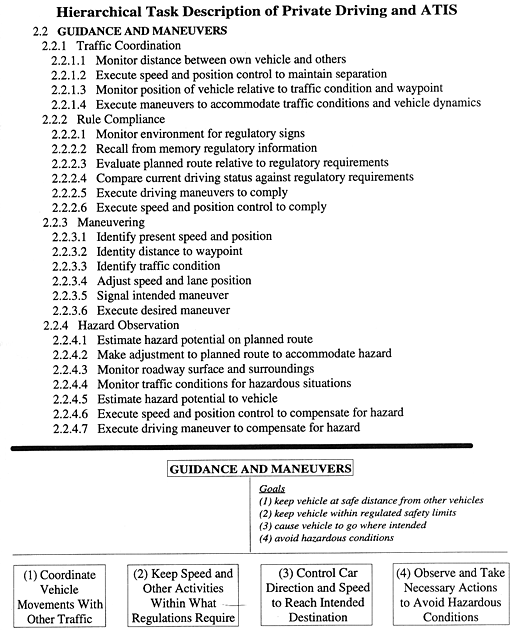

Hierarchical Task Description of Private Driving and ATIS figure 4

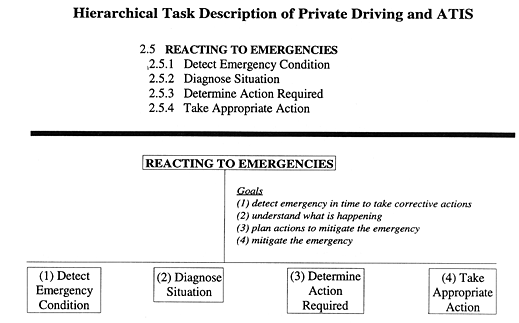

Hierarchical Task Description of Private Driving and ATIS figure 5

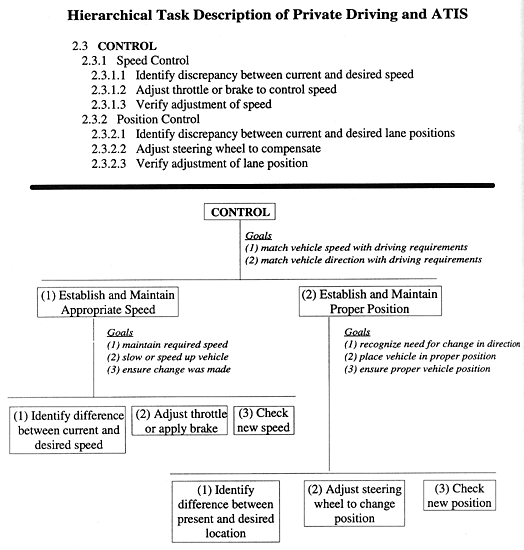

Hierarchical Task Description of Private Driving and ATIS figure 6

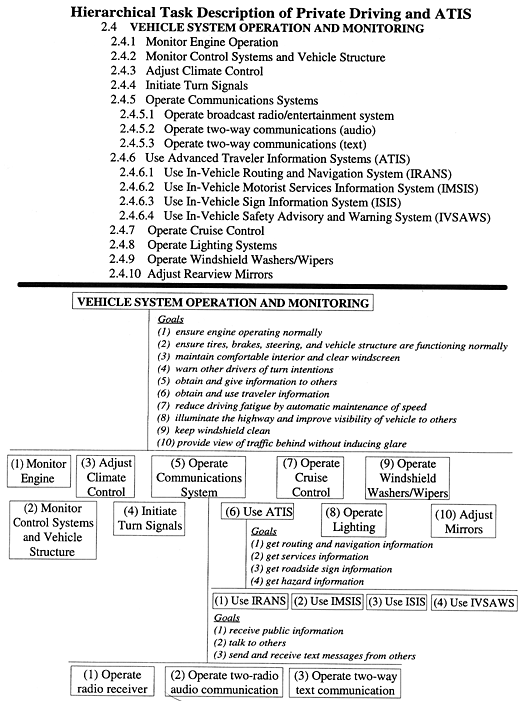

Hierarchical Task Description of Private Driving and ATIS figure 7



Hierarchical Task Description of Private Driving and ATIS figure 8



Private Vehicle Operations



Top

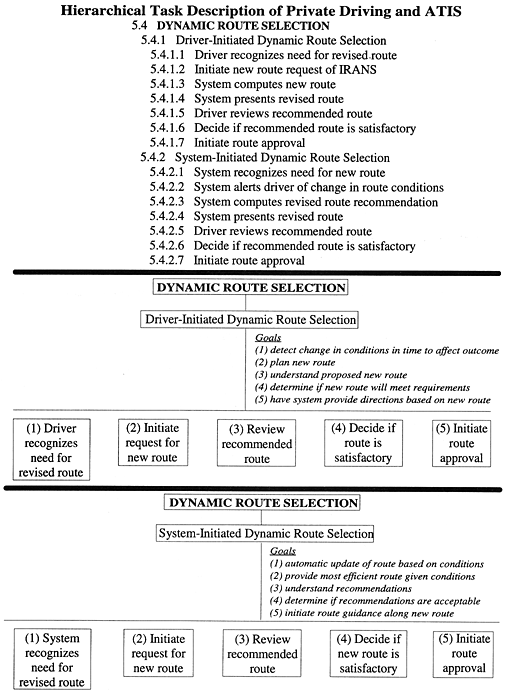

5 IRANS

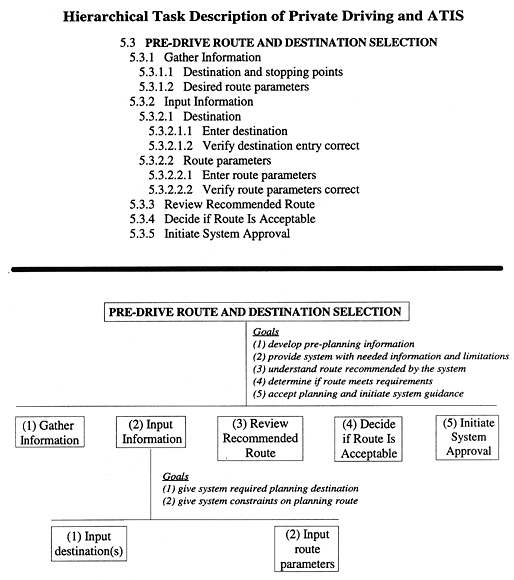

Hierarchical Task Description of Private Driving and ATIS figure 9

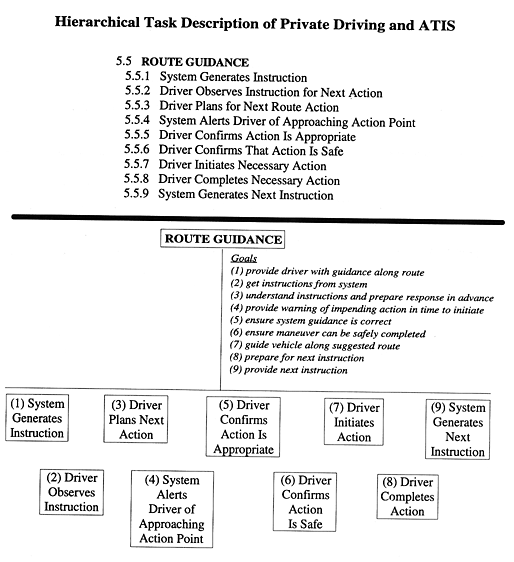

Hierarchical Task Description of Private Driving and ATIS figure 10

Hierarchical Task Description of Private Driving and ATIS figure 11

Hierarchical Task Description of Private Driving and ATIS figure 12



Hierarchical Task Description of Private Driving and ATIS figure 13



Hierarchical Task Description of Private Driving and ATIS figure 14



Hierarchical Task Description of Private Driving and ATIS figure 15



Private Vehicle Operations



Top



IMSIS

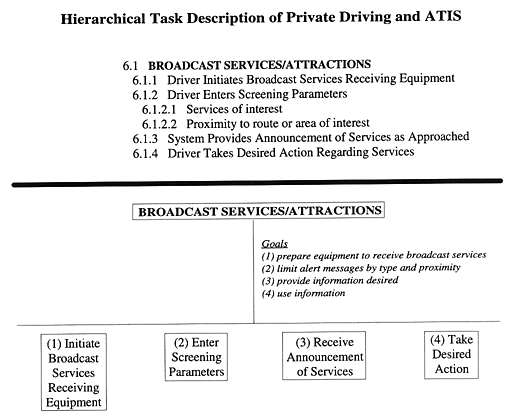

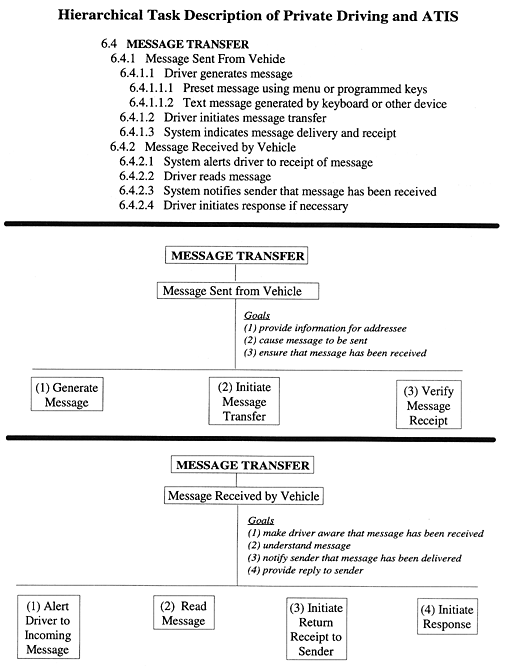

Hierarchical Task Description of Private Driving and ATIS figure 16



Hierarchical Task Description of Private Driving and ATIS figure 17



Hierarchical Task Description of Private Driving and ATIS figure 18



Hierarchical Task Description of Private Driving and ATIS figure 19



Private Vehicle Operations



Top



7 ISIS

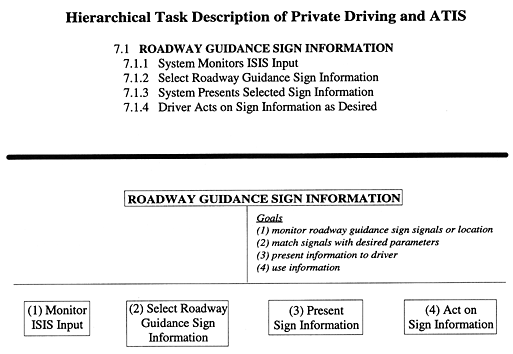

Hierarchical Task Description of Private Driving and ATIS figure 20

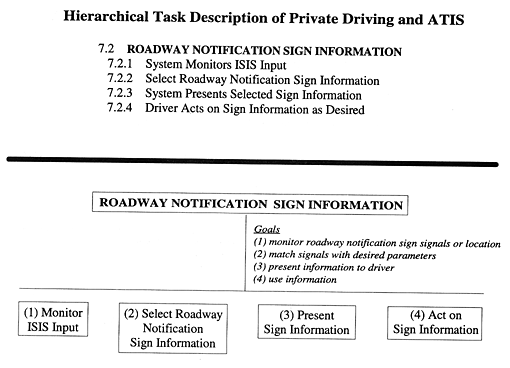

Hierarchical Task Description of Private Driving and ATIS figure 21

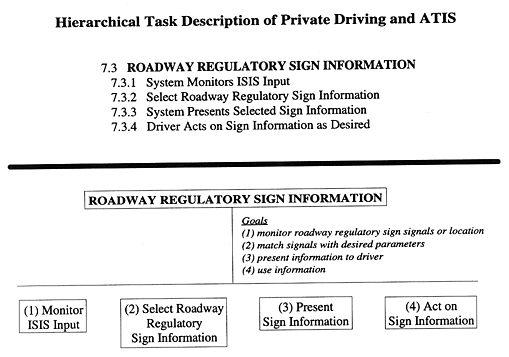

Hierarchical Task Description of Private Driving and ATIS figure 22



Private Vehicle Operations



Top



8 IVSAWS

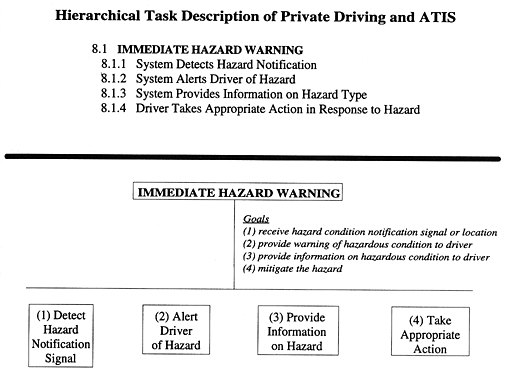

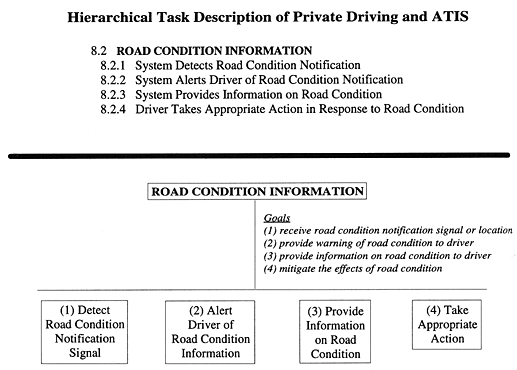

Hierarchical Task Description of Private Driving and ATIS figure 23



Hierarchical Task Description of Private Driving and ATIS figure 24



Hierarchical Task Description of Private Driving and ATIS figure 25



Hierarchical Task Description of Private Driving and ATIS figure 26



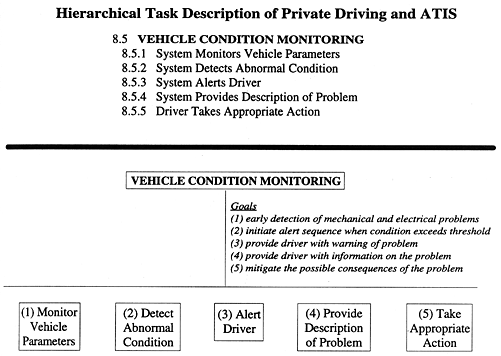

Hierarchical Task Description of Private Driving and ATIS figure 27



Private Vehicle Operations



Top



FHWA-RD-95-176



Previous | Table of Contents | Next
