Development of Human Factors Guidelines for Advanced Traveler Information Systems and Commercial Vehicle Operations: Task Analysis of ATIS/CVO Functions



APPENDIX C. HIERARCHICAL TASK DESCRIPTIONS



COMMERCIAL VEHICLE OPERATIONS

1 PRE–DRIVE

2 DRIVE

5 IRANS

6 IMSIS

7 ISIS

8 IVSAWS

9 CVO FUNCTIONS



1 PRE–DRIVE

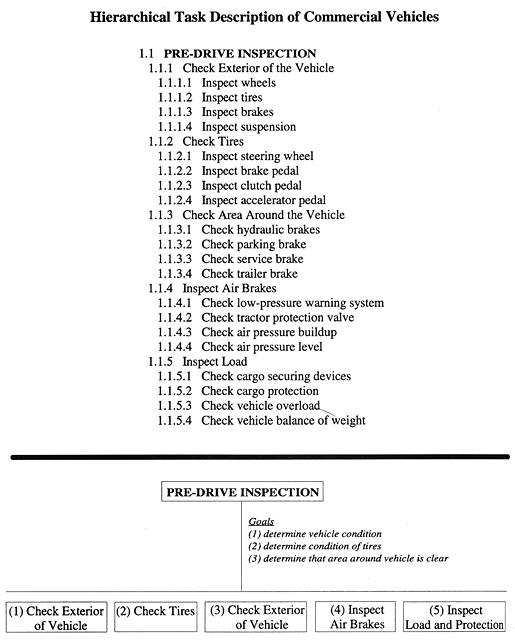

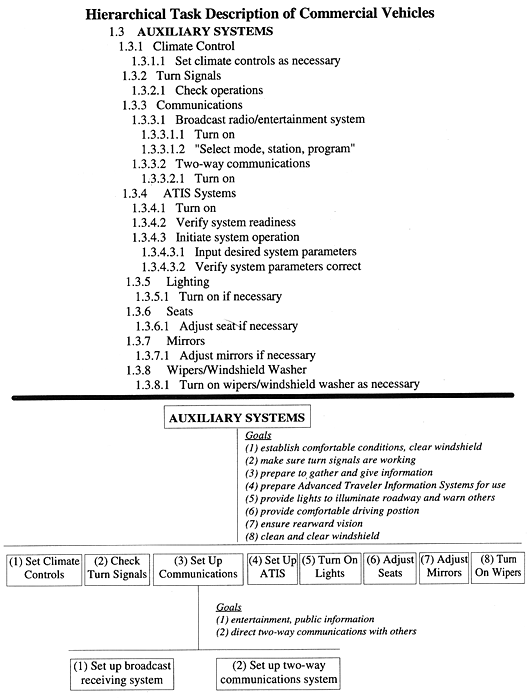

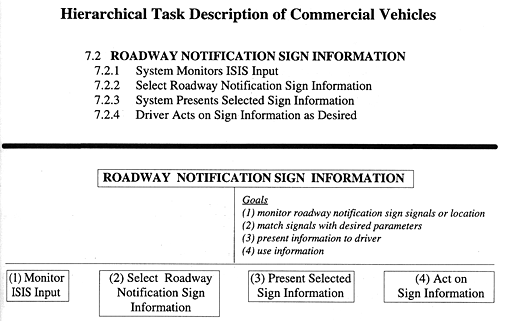

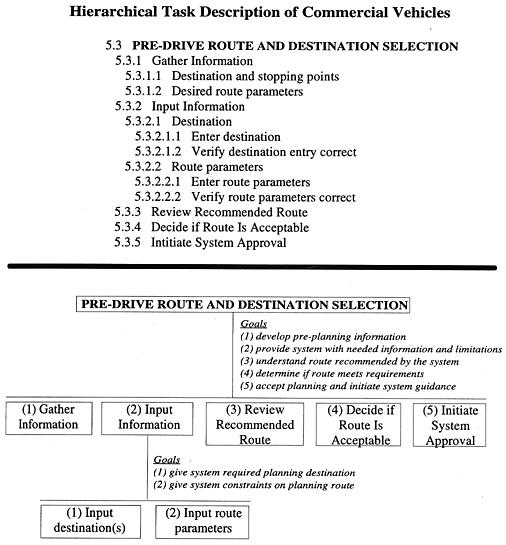

Hierarchical Task Description of Commercial Vehicles figure 1



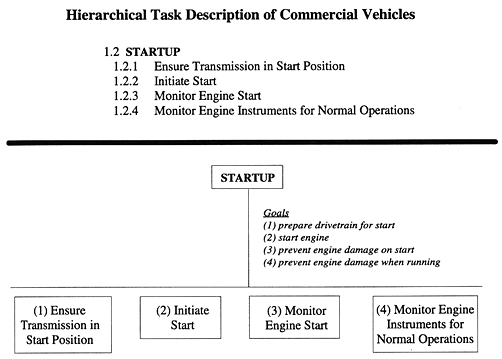

Hierarchical Task Description of Commercial Vehicles figure 2



Hierarchical Task Description of Commercial Vehicles figure 3

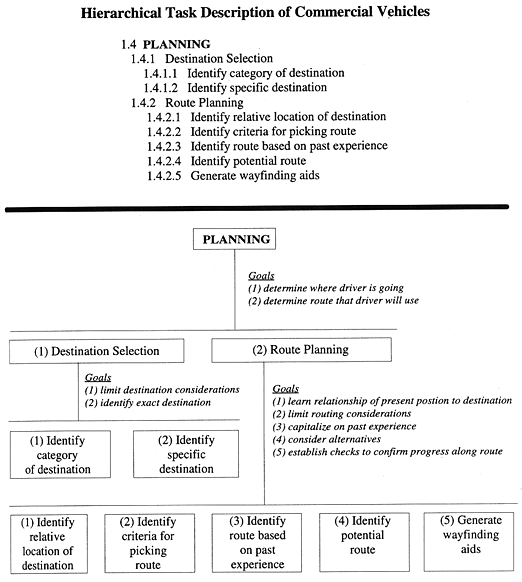

Hierarchical Task Description of Commercial Vehicles figure 4



Commercial Vehicle Operations



Top



2 DRIVE

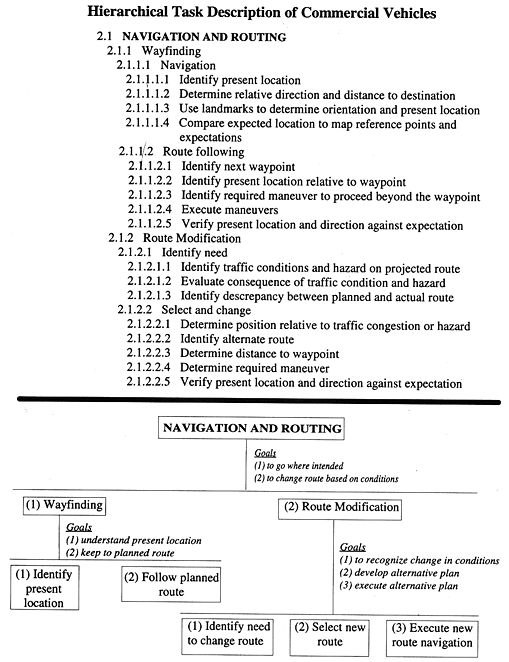

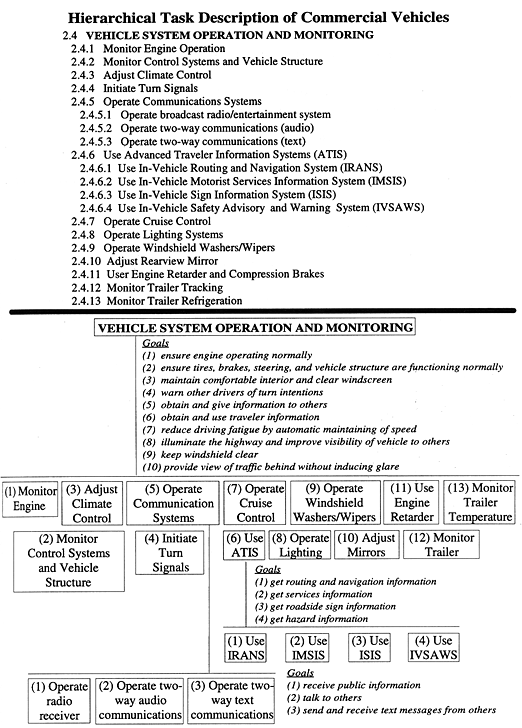

Hierarchical Task Description of Commercial Vehicles figure 5



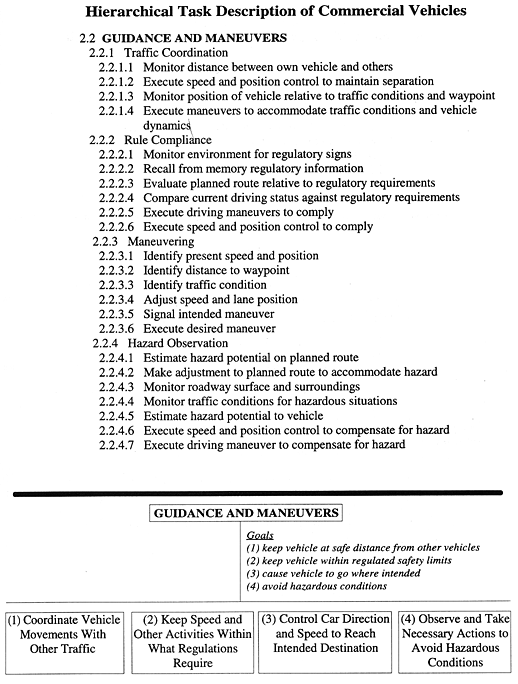

Hierarchical Task Description of Commercial Vehicles figure 6

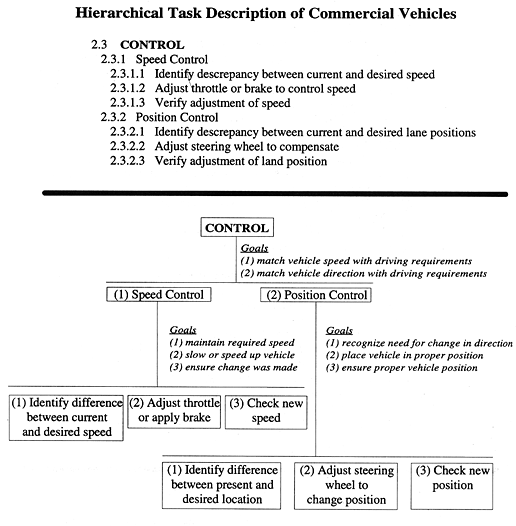

Hierarchical Task Description of Commercial Vehicles figure 7



Hierarchical Task Description of Commercial Vehicles figure 8



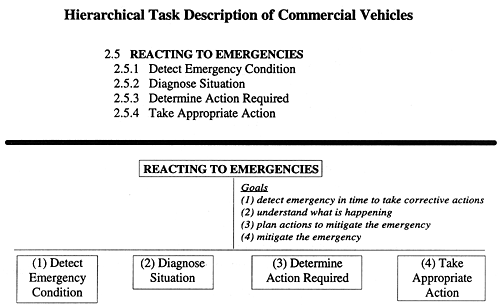

Hierarchical Task Description of Commercial Vehicles figure 9



Commercial Vehicle Operations



Top



5 IRANS

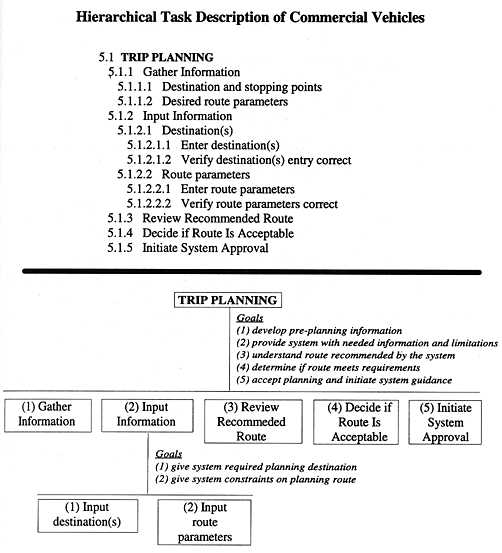

Hierarchical Task Description of Commercial Vehicles figure 10

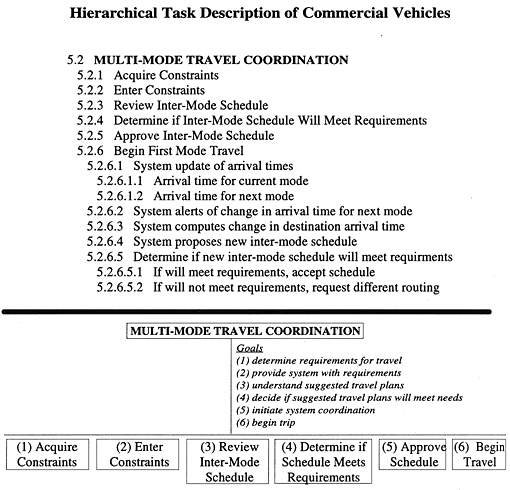

Hierarchical Task Description of Commercial Vehicles figure 11



Hierarchical Task Description of Commercial Vehicles figure 12

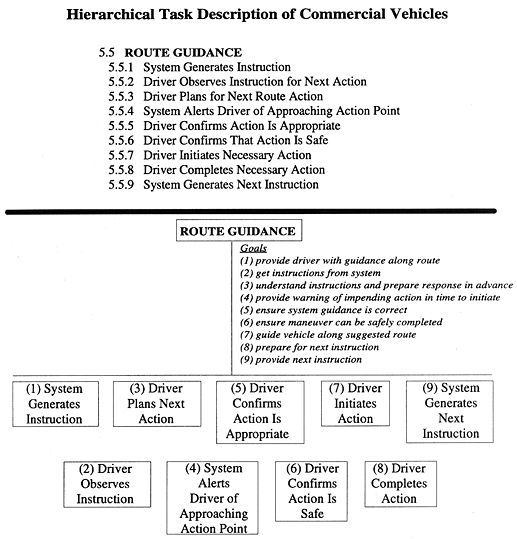

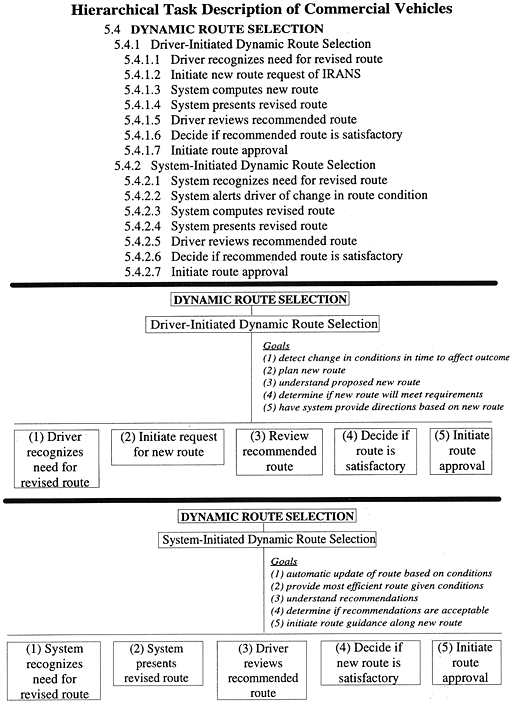

Hierarchical Task Description of Commercial Vehicles figure 13

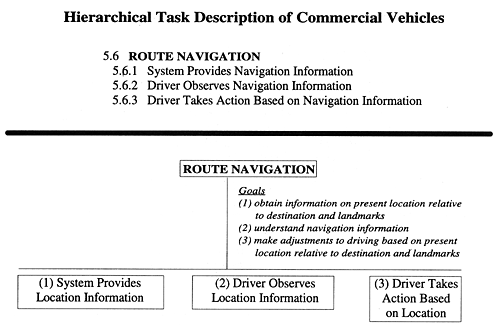

Hierarchical Task Description of Commercial Vehicles figure 14



Hierarchical Task Description of Commercial Vehicles figure 15



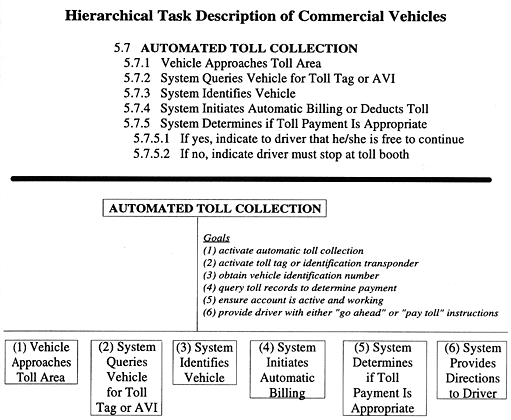

Hierarchical Task Description of Commercial Vehicles figure 16



Commercial Vehicle Operations



Top



6 IMSIS

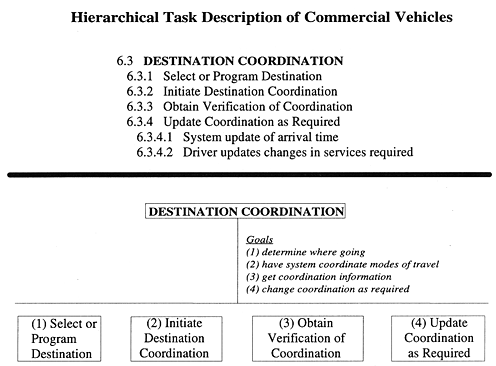

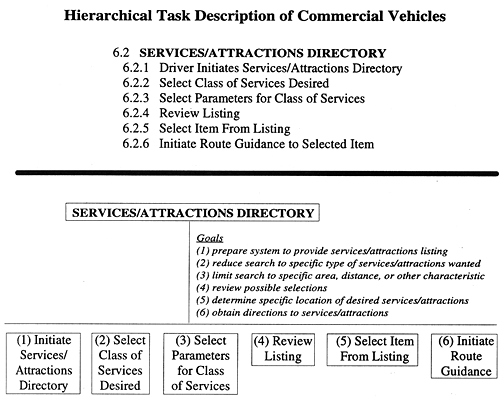

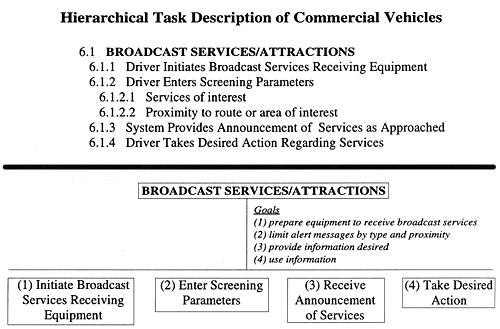

Hierarchical Task Description of Commercial Vehicles figure 17

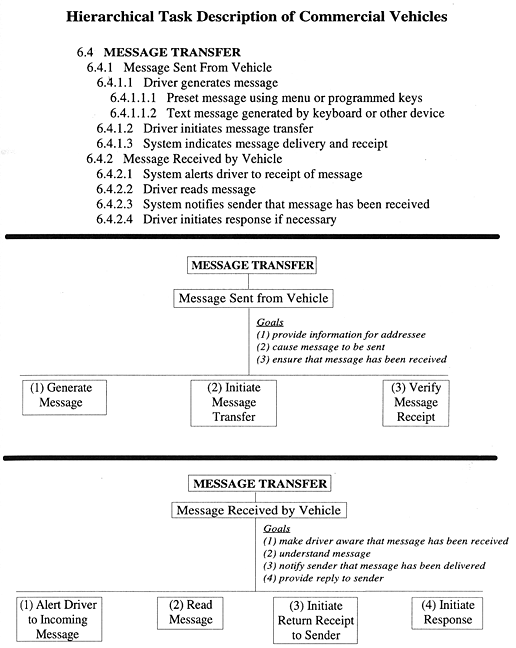

Hierarchical Task Description of Commercial Vehicles figure 18



Hierarchical Task Description of Commercial Vehicles figure 19



Hierarchical Task Description of Commercial Vehicles figure 20



Commercial Vehicle Operations



Top



7 ISIS

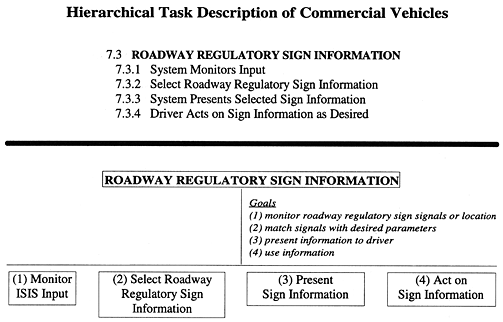

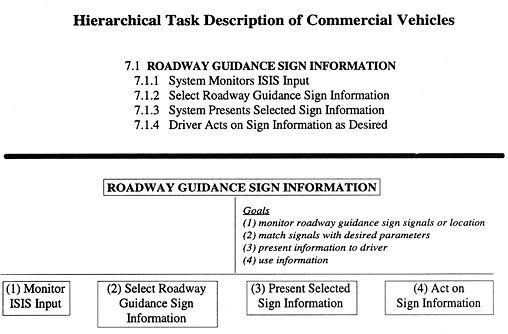

Hierarchical Task Description of Commercial Vehicles figure 21



Hierarchical Task Description of Commercial Vehicles figure 22



Hierarchical Task Description of Commercial Vehicles figure 23

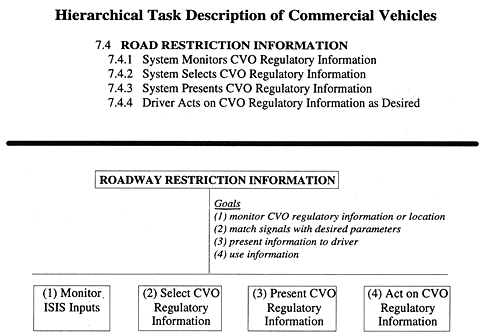

Hierarchical Task Description of Commercial Vehicles figure 24



Commercial Vehicle Operations



Top



8 IVSAWS

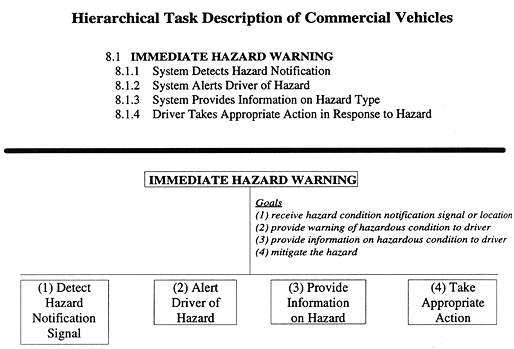

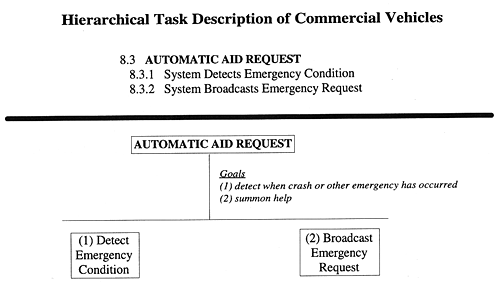

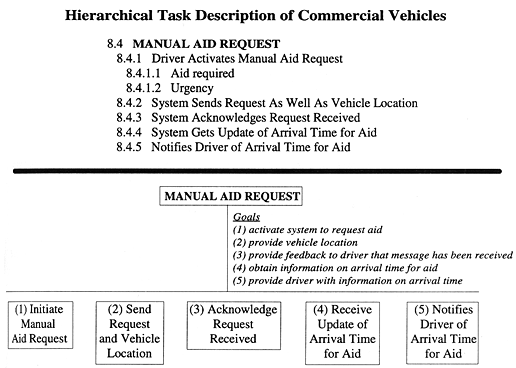

Hierarchical Task Description of Commercial Vehicles figure 25

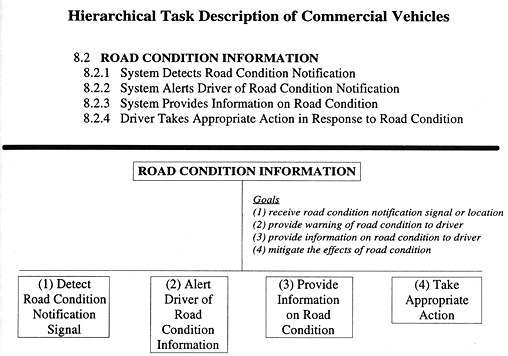

Hierarchical Task Description of Commercial Vehicles figure 26



Hierarchical Task Description of Commercial Vehicles figure 27



Hierarchical Task Description of Commercial Vehicles figure 28



Hierarchical Task Description of Commercial Vehicles figure 29

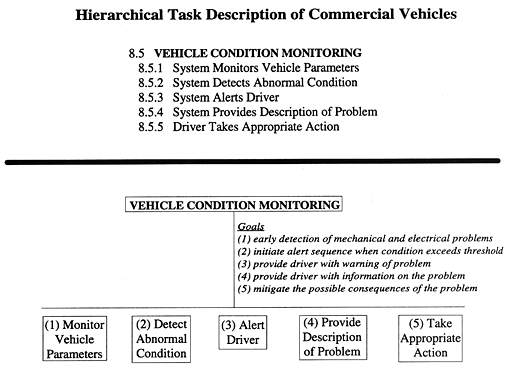

Commercial Vehicle Operations



Top



9 CVO FUNCTIONS

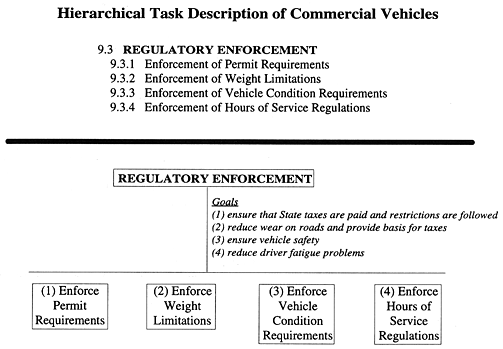

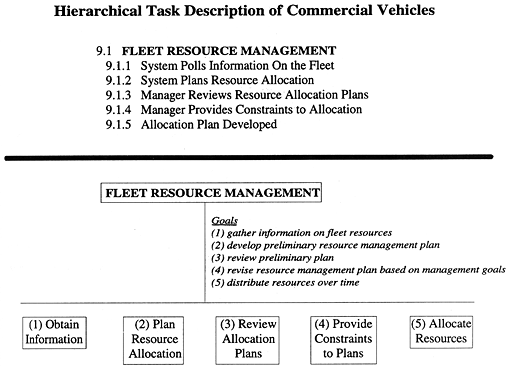

Hierarchical Task Description of Commercial Vehicles figure 30

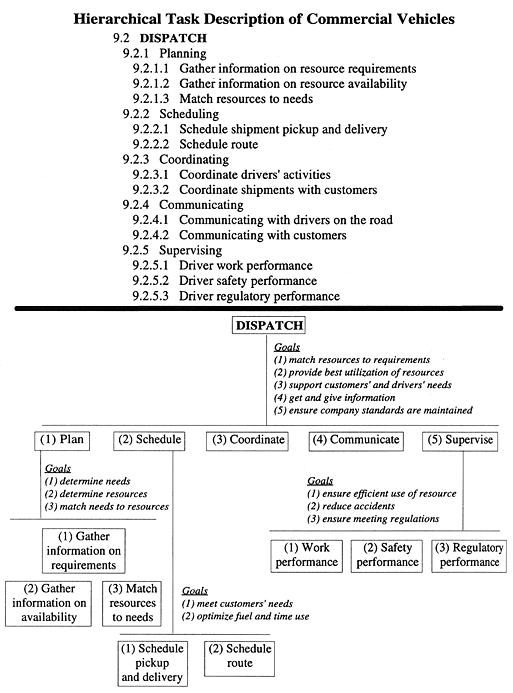

Hierarchical Task Description of Commercial Vehicles figure 31



Hierarchical Task Description of Commercial Vehicles figure 32



Commercial Vehicle Operations



Top
