Report
This report is an archived publication and may contain dated technical, contact, and link information
Publication Number: FHWA-RD-96-143
 Date: April 1997

Development of Human Factors Guidelines for Advanced Traveler Information Systems and Commercial Vehicle Operations: Definition and Prioritization of Research Studies



APPENDIX E: EXPERIMENT 2 RESULTS



SUBECTIVE RATING FIGURES

ANOVA TABLES



SUBJECTIVE RATINGS FIGURES

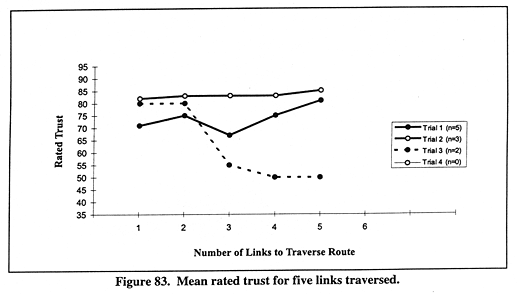

Mean rated trust for five links traversed.

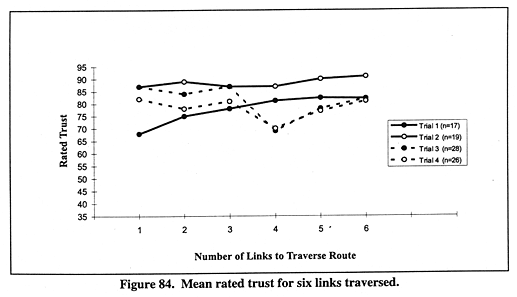

Mean rated trust for six links traversed.

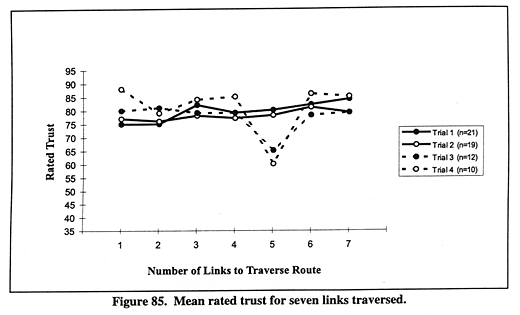

Mean rated trust for seven links traversed.

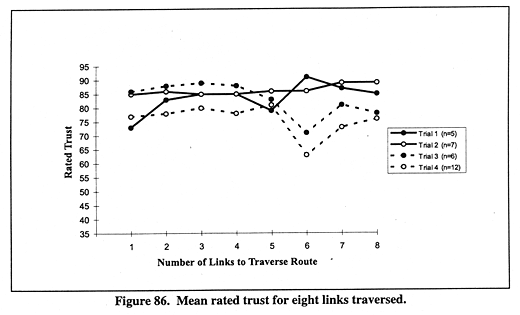

Mean rated trust for eight links traversed.

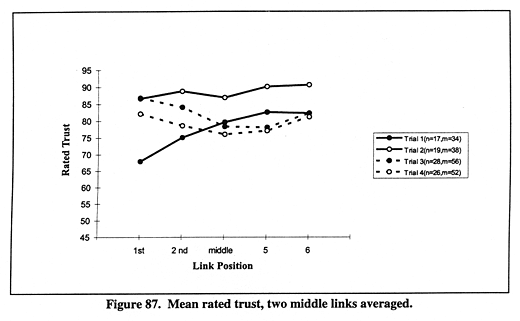

Mean rated trust, two middle links averaged.



Mean rated trust, three middle links averaged.

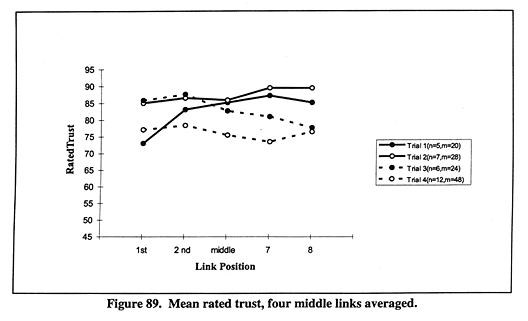

Mean rated trust, four middle links averaged.

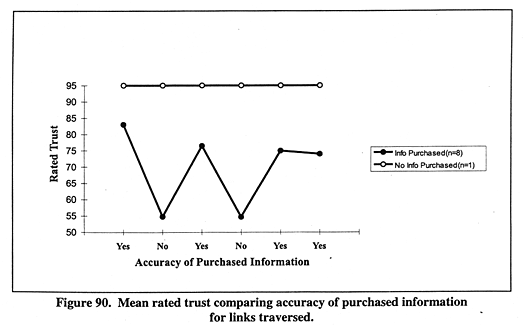

Mean rated trust comparing accuracy of purchased information for links traversed.

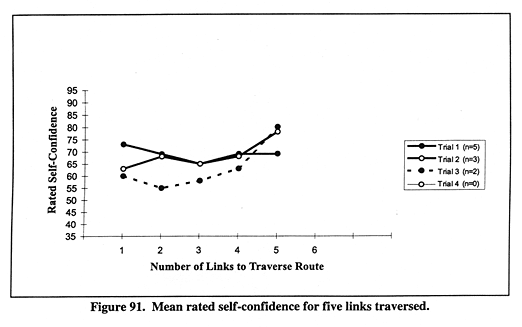

Mean rated self-confidence for five links traversed.

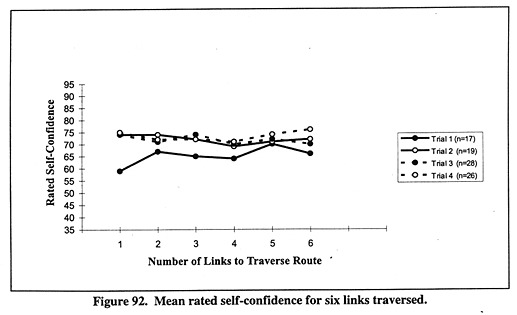

Mean rated self-confidence for six links traversed.

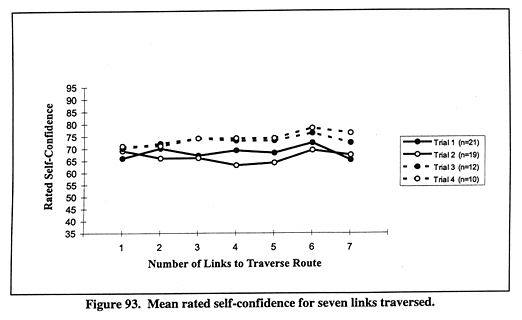

Mean rated self-confidence for seven links traversed.

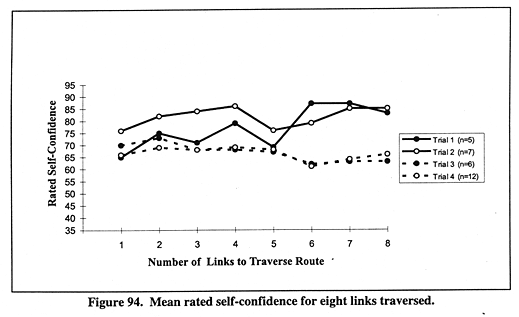

Mean rated self-confidence for eight links traversed.

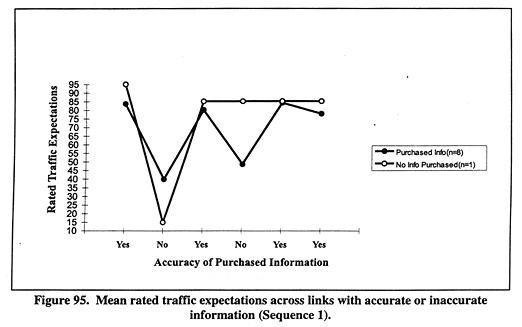

Mean rated traffic expectations across links with accurate or inaccurate information (Sequence 1).

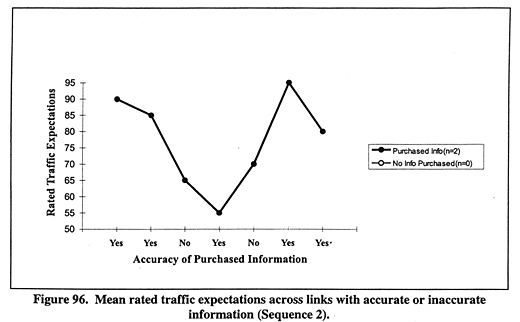

Mean rated traffic expectations across links with accurate or inaccurate information (Sequence 2).

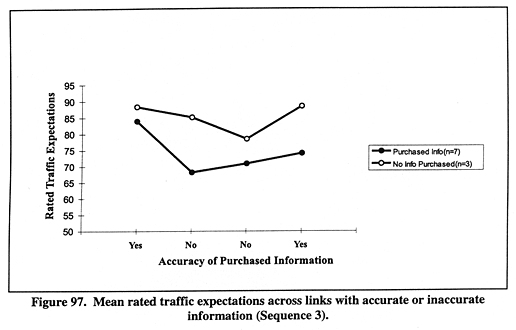

Mean rated traffic expectations across links with accurate or inaccurate information (Sequence 3).



Top



ANOVA TABLES



Table 97. Analysis of variance for information cost.

independent variable df MS F p
Age 1 0.61 1.41 0.242
S(Age) 46 0.43
Accuracy 1 0.07 0.41 0.523
Age X Accuracy 1 0.01 0.05 0.831
Accuracy X S(Age) 46 0.16
Repetition 1 0.35 3.1 0.085
Age X Repetition 1 0.13 1.15 0.289
Repetition X S(Age) 46 0.11
Accuracy X Repetition 1 0.78 9.65 0.003
Age X Accuracy X Repetition 1 0.08 0.94 0.338
Accuracy X Repetition X S(Age) 46 0.08



Table 98. Analysis of variance for penalty cost.

independent variable df MS F p
Age 1 44.68 4.53 0.039
S(Age) 46 9.86
Accuracy 1 294.87 32.42 < 0.001
Age X Accuracy 1 96.02 10.56 0.002
Accuracy X S(Age) 46 9.10
Repetition 1 15.97 1.51 0.225
Age X Repetition 1 21.08 2.0 0.164
Repetition X S(Age) 46 10.56
Accuracy X Repetition 1 68.57 5.03 0.03
Age X Accuracy X Repetition 1 12.95 0.95 0.335
Accuracy X Repetition X S(Age) 46 13.63



Table 99. Analysis of variance for convergence.

independent variable df MS F p
Age 1 542.04 0.59 0.445
S(Age) 46 914.28
Accuracy 1 16608.31 11.93 0.001
Age X Accuracy 1 11.46 0.01 0.928
Accuracy X S(Age) 46 1392.69
Repetition 1 241.79 0.21 0.650
Age X Repetition 1 709.33 0.61 0.438
Repetition X S(Age) 46 1157.40
Accuracy X Repetition 1 1885.26 2.55 0.117
Age X Accuracy X Repetition 1 547.63 0.74 0.394
Accuracy X Repetition X S(Age) 46 738.32



Table 100. Analysis of variance for trust in the route guidance system.

independent variable df MS F p
Age 1 1631.30 0.69 0.409
S(Age) 46 2350.03
Accuracy 1 613.20 1.73 0.195
Age X Accuracy 1 390.47 1.10 0.300
Accuracy X S(Age) 46 354.84
Repetition 1 938.95 6.21 0.016
Age X Repetition 1 382.01 2.53 0.119
Repetition X S(Age) 46 151.14
Link Position 4 316.96 4.00 0.004
Age X Link Position 4 58.01 0.73 0.571
Link Position X S(Age) 184 79.20
Accuracy X Repetition 1 2859.76 22.51 < 0.001
Age X Accuracy X Repetition 1 25.11 0.20 0.659
Accuracy X Repetition X S(Age) 46 127.03
Accuracy X Link Position 4 1378.82 16.12 < 0.001
Age X Accuracy X Link Position 4 22.91 0.27 0.898
Accuracy X Link Position X S(Age) 184 85.52
Repetition X Link Position 4 71.10 0.92 0.452
Age X Repetition X Link Position 4 49.12 0.64 0.637
Repetition X Link Position X S(Age) 184 77.10
Accuracy X Repetition X Link Position 4 364.45 6.11 < 0.001
Age X Accuracy X Repetition X Link Position 4 70.81 1.19 0.318
Accuracy X Repetition X Link Position X S(Age) 184 59.65



Table 101. Analysis of variance for trust in the route guidance system:
Purchased link information.

source of variation df MS F p
Linkpurc 1 65.021 0.263 0.608
Age 1 1267.701 5.125 0.024
Linkpurc X Age 1 2228.529 9.009 0.003
Residual 1260 247.380
Total 1263 249.606



Table 102. Analysis of variance for trust in the route guidance system:
Information type.

source of variation df MS F p
Age 1 335.653 1.292 0.256
Type 3 9514.599 36.619 0.000
Age X Type 3 203.231 0.782 0.504
Residual 624 259.825
Total 631 303.454



Table 103. Analysis of variance for self-confidence: Purchased link information.

source of variation df MS F p
Linkpurc 1 509.189 1.443 0.230
Age 1 3993.028 11.314 0.001
Linkpurc X Age 1 9093.660 25.767 0.000
Residual 1260 352.914
Total 1263 362.871



Table 104. Analysis of variance for self-confidence: Information type.

source of variation df MS F p
Age 1 2854.894 8.131 0.004
Type 3 1501.729 4.277 0.005
Age X Type 3 700.298 1.995 0.114
Residual 624 351.103
Total 631 362.160



Table 105. Analysis of variance for traffic expectations:
Purchased link information.

source of variation df MS F p
Linkpurc 1 956.198 2.646 0.104
Age 1 5402.856 14.950 0.000
Linkpurc X Age 1 5963.995 16.503 0.000
Residual 1260 361.394
Total 1263 370.246



Table 106. Analysis of variance for traffic expectations: Information type.

source of variation df MS F p
Age 1 1908.180 5.872 0.016
Type 3 14436.522 44.422 0.000
Age X Type 3 1140.610 3.510 0.015
Residual 624 324.985
Total 631 397.857



Table 107. Analysis of variance for trust minus self–confidence:  Purchased link information.

source of variation df MS F p
Linkpurc 1 210.298 0.588 0.443
Age 1 9760.491 27.291 0.000
Linkpurc X Age 1 2318.748 6.483 0.011
Residual 1260 357.648
Total 1263 366.560



Table 108. Analysis of variance for trust minus self-confidence: Information type.

source of variation df MS F p
Age 1 5148.357 12.703 0.000
Type 3 4944.875 12.201 0.000
Age X Type 3 243.330 0.600 0.615
Residual 624 405.299
Total 631 432.619
