CHAPTER 7. ANALYSIS REPORTS

PBCAT provides limited analysis functions within the software for production of simple data summaries. Analysis options are available through the Reports menu. (See figure 81.) Additionally, any reports created may be exported to Excel with the click of a button for additional analyses or the creation of graphics. For more sophisticated analyses, the entire database can be exported to another software application. (See chapter 8.)



Analysis options are available through the Reports menu.

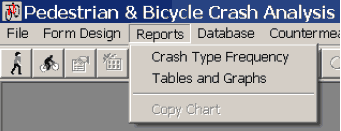

Figure 81. Image. Select analysis options.



CRASH TYPE FREQUENCY

Crash type frequency reports may be created by selecting this option in the Reports menu. The report produced from this analysis includes a count of crashes by either crash type or crash group. The steps to create this type of report are as follows:

(1) Select the Data Source. This step includes selecting the database from the list of available databases in the dropdown list and choosing the data type (either pedestrian or bicyclist). The database shown when the reports window appears will be the default database that was set in Preferences.



The crash type frequency report produces a listing of crash types or crash groups in order of frequency

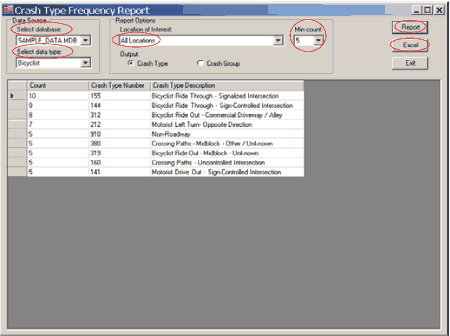

Figure 82. Image. Produce a list of crash types or crash groups in order of frequency.



(2) Set the Report Options. The user has several options for the report being produced. First,choose the Location of Interest. Reports may be produced for all locations, intersections and intersection-related locations, nonintersection locations, or nonroadway locations. Next, set the Min count value, which will be the threshold that must be met in order for a crash type or crash group to be included in the table. As shown in figure 82, a minimum of five crashes were required for any given crash type. Finally, specify whether the results should be produced for individual crash types or for crash groups.

(3) After specifying the report parameters, click Report to produce the table.

(4) If desired, click the Excel button to export the results to an Excel workbook.



TABLES AND GRAPHS

To create single–variable tables or cross–tabulations of two variables, select the Tables and Graphs option from the Reports menu. The steps for creating customized tables or charts are shown in figure 83. All but the last step are done on the Data Selection tab. The last step is done on the Crash Type tab.

(1) Select the Data Source. This step includes selecting the database from the list of available databases in the dropdown list and choosing the data type (either pedestrian or bicyclist). The database shown when the reports window appears will be the default database that was set in Preferences.



To produce a single-variable table, select a row variable (such as light conditions) and click Report

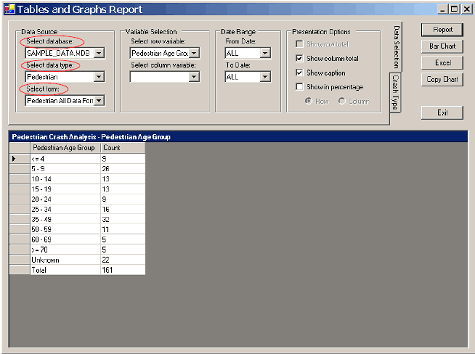

Figure 83. Image. Produce single-variable and multivariate tables.



(2) Make theVariable Selection. For a single–variable (one–way) table, choose a row variable only. For two–way tables, choose a row variable and a column variable. The variables available will be those present on the form selected in step 1.

(3) Specify a date range (month/year in the dropdown list) if desired.

(4) Choose other Presentation Options, such as row and column totals, captions, and percentages (either row or column).

(5) Click on the Crash Type tab if the report should only be produced for a specific set of crash types or crash groups. Note: the default setting will include all crashes in the database, irrespective of the crash type or crash group. However, there may be times when a user wants to look specifically at a characteristic (such as age) for a certain type of crash.

(6) After specifying the report parameters, click Report to produce the table. For one-way tables,a graphical presentation of the report can be produced by clicking Bar Chart. To return to the table, click Report a second time.

(7) If desired, click the Excel button to export the results to an Excel workbook.



EXAMPLES

Following are two examples that illustrate report production. One of the databases installed with the PBCAT application is named SAMPLE_DATA.MDB. The user is encouraged to use this database and experiment with creating reports.



Example 1–Bicyclist Crashes–Light Conditions

Step 1: Set Data Source parameters. Using each dropdown list, set database to "SAMPLE_DATA.MDB," data type to "Bicyclist," and form to "Bicyclist All Data Form."

Step 2: Make the Variable Selection. Choose "Light Conditions" from the dropdown list as the row variable. Leave the column variable blank.

Step 3: Specify Date Range. Be sure the date entries are set to "All."

Step 4: Choose thePresentation Options. Check "Show column total" and "Show caption."

Step 5: Produce the report Click the Report button. The table shown in figure 84 will appear with the caption showing the type of analysis and variable chosen. The number of crashes in each light condition category is presented in the second column, along with the total.



To produce a single-variable table, select a row variable (such as light conditions) and click Report.

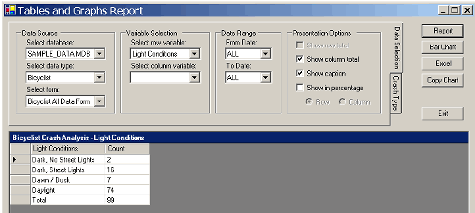

Figure 84. Image. Produce a single-variable table.



Step 6: Produce a graph. Click the Bar Chart button to present the results in a graph. (See figure 85.)



A graph of any single-variable table can be produced with a click on the Bar Chart button

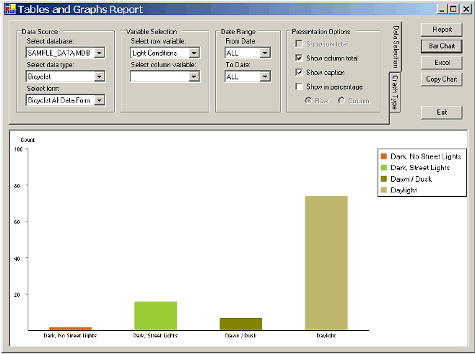

Figure 85. Image. Produce a graph of a single-variable table.



Step 7: Export results. Click Excel to export the results to a Microsoft Excel workbook. (See figure 86.)



Example 2–Pedestrian Crashes–Crash Types and Pedestrian Age

Step 1: Set Data Source parameters. Using each dropdown list, set database to "SAMPLE_DATA.MDB," data type to "Pedestrian," and form to "Pedestrian All Data Form."



The results can be exported to Excel with a click on the Excel button

Figure 86. Image. Export results to Excel.



Step 2: Make the Variable Selection. Choose "Crash Type Description"from the dropdown list as the row variable. Choose "Pedestrian Age Group" as the column variable. Note: the age groups used in the report will be those set on the Age Groups tab in Preferences.

Step 3: Specify Date Range. Be sure the date entries are set to "All."

Step 4: Choose the Presentation Options. Check "Show row total," "Show column total," and "Show caption."

Step 5: Produce report. Click the Report button. The table shown in figure 87 will appear with the caption showing the type of analysis and variables chosen. The number of crashes for each crash type is shown as distributed across the age groups. Totals are shown for both rows (each crash type) and columns (each age group).



To produce a multivariate table, select a row variable and a column variable; click on the Report button

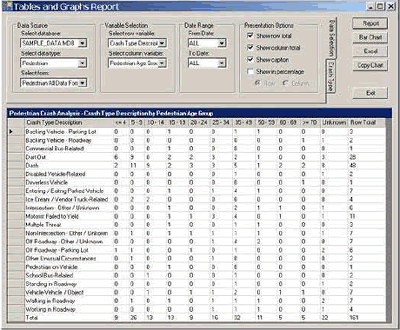

Figure 87. Image. Produce a multivariate table.



Step 6: Change Presentation Options. Check the "Show in percentage" box and click on the "Column" radio button.

Step 7: Produce new report. Click the Report button to produce the report shown in figure 88.The table will appear as before with the caption showing the type of analysis and variables chosen. However, the cells will be filled with column percentages as opposed to frequencies.



The results of any table can be shown as percentages by checking the show in percentage box in presentation options

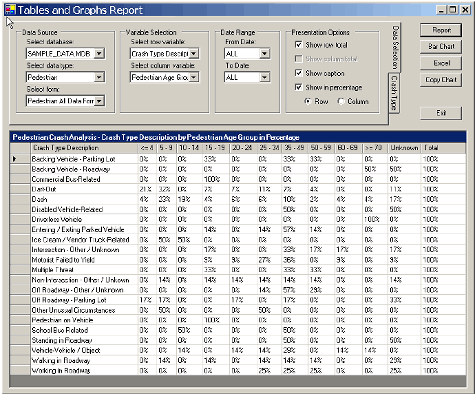

Figure 88. Image. Present results as percentages.
