TECHNICAL ADVISORY

GUARDRAIL TRANSITIONS

T 5040.34
June 8, 1993

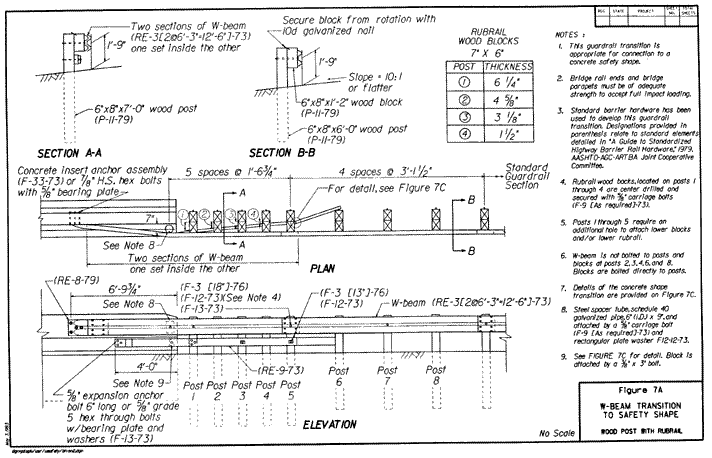

Figure 7A: W-BEAM TRANSITION TO SAFETY SHAPE (Wood Post With Rubrail)

Figure 7A: W-Beam Transition to Safety Shape (Wood Post With Rubrail )(Diagram)
