TECHNICAL ADVISORY

GUARDRAIL TRANSITIONS

T 5040.34
June 8, 1993

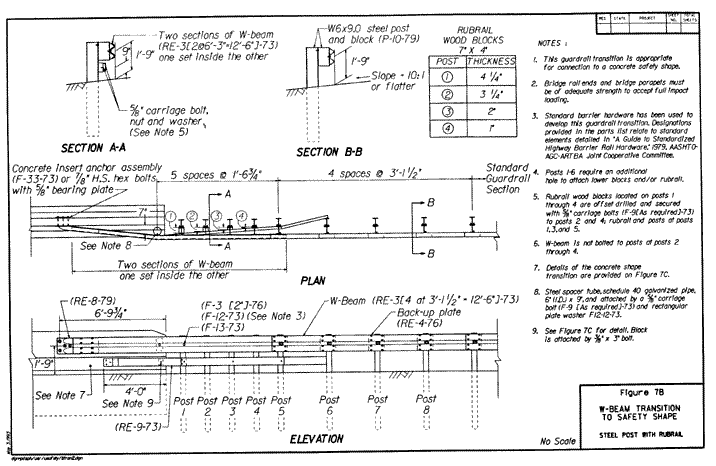

Figure 7B: W-BEAM TRANSITION TO SAFETY SHAPE (Steel Post With Rubrail)

Figure 7B: W-Beam Transition to Safety Shape (Steel Post with Rubrail)(Diagram)
