Reactive Solutions - An FHWA Technical Update on Alkali-Silica Reactivity

Volume 4, Issue 3

Welcome to the newest edition of Reactive Solutions, a Technical Update on Alkali-Silica Reactivity (ASR) issues. This periodical disseminates important ASR subject matter from a variety of sources, including the Federal Highway Administration’s ASR Program. The program’s goal is to deploy methods that state highway agencies can use to prevent and mitigate ASR. This goal is being achieved through technology transfer, including real-world field trials, demonstration projects, and tools for practitioners to address ASR in their state. This periodical helps achieve the program’s goal by providing readers with the tools and information needed to address this complex concrete distress problem.

Inside this Issue:

An Update on Ongoing Field Trials

Part 2 of 2

The Federal Highway Administration’s (FHWA) ASR activities include a multi-year program termed the ASR Development and Deployment Program. The program includes field trials of real-world ASR prevention and mitigation. To date, there are a total of eight field trials. This issue of Reactive Solutions is the second of a two-part update on the progress of the field trials.

Leominster, Massachusetts

In October 2005, a section of Jersey barriers along Route 2 in Leominster, Massachusetts, was treated with lithium nitrate applied topically and using vacuum impregnation, and also with a series of silane solutions. (These treatments were applied as part of a prior FHWA program termed the FHWA Lithium Implementation Program, which evaluated the use of lithium nitrate as a preventative and mitigative method for ASR.) To compare the efficacy of these treatments, several untreated barriers were chosen as control sections. Later in 2005, the Massachusetts Department of Transportation (MassDOT) treated the barriers surrounding the treatment section with a 40% silane solution in order to mitigate the ASR distress. Figure 1 shows the condition of the untreated barriers in 2005, alongside a section that was treated with the 40% silane solution.

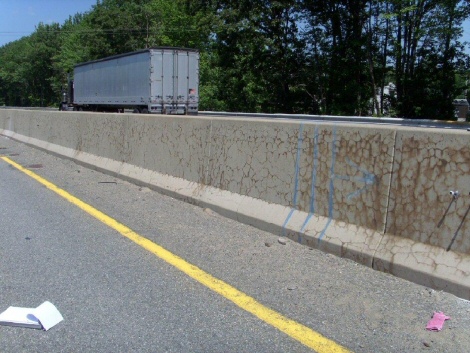

This image shows a section of stained, cracked concrete barriers. Three lines and an arrow that have been spray-painted on the surface is visible, and is shown to separate two areas of the barrier section. The barriers to the right of the lines show more cracking than the barriers located to the left of the lines.
Figure 1. Barriers treated with 40% silane in 2005 (left of the spray painted arrow and lines); control section can be seen right of the spray-painted lines.

Five years later, this field site was chosen by the ASR Development and Deployment Program for additional treatment and continued monitoring. The purpose of these additional treatments was to compare three types of coating materials to the original treatments under the 2005 FHWA project and to collect data in order to determine the best mitigative option for this entire treatment section. In October 2010, a one-mile section of the barriers previously treated by MassDOT was treated with three additional types of coatings - a 40% silane solution, a 100% silane solution, and an elastomeric paint. These treatments were completed by MassDOT at the end of October 2010.

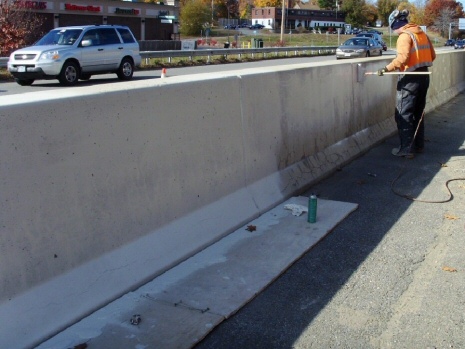

This image shows a worker applying a white-looking paint on a section of concrete barriers using a paint roller. Half of the barriers shown in this image have been painted white.
Figure 2. Application of elastomeric paint on ASR-affected barriers.

The site was visited in May 2011 to collect expansion, humidity and cracking data, which is currently being analyzed. The next monitoring trip is anticipated in the fall of 2011.

Wetumpka, Alabama

In December 2009, a historic bridge in Wetumpka, Alabama was evaluated and visually surveyed to determine its potential as a field trial candidate for this program. The Bibb Graves Bridge, shown in Figure 3, has several arched elements; however, only one of the arches displayed distresses similar to ASR. Locations in this arch were selected to extract cores for petrographic analysis in order to confirm ASR.

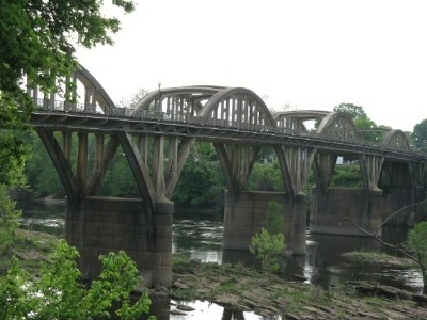

This image shows a multi-arched concrete bridge located over a river.
Figure 3. View of Bibb Graves Bridge.

The extracted cores were analyzed and a petrographic report was submitted to FHWA and Alabama DOT in June 2010, confirming ASR in the distressed bridge arch. Discussions were held during the summer to determine viable mitigation options for the bridge, and in November 2010, a treatment plan was finalized between FHWA and the DOT. Later that same month, the bridge arch elements were treated by the DOT with a 40% silane solution (see Figure 4). In addition, sections of the arched elements were instrumented for expansion, humidity and cracking measurements in order to evaluate the effectiveness of the treatment in reducing the rate of distress in the affected arch element. Data was collected immediately after instrumentation for baseline measurement purposes.

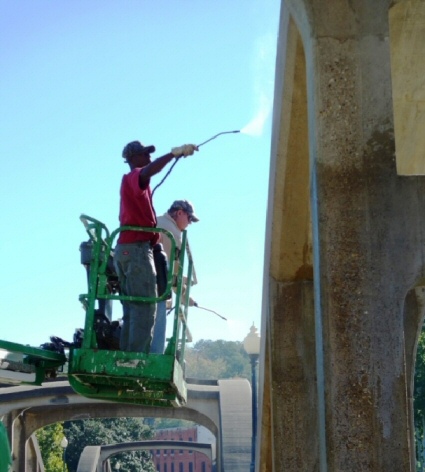

This image shows two workers topically applying a material on a concrete bridge element.
Figure 4. Application of 40% silane by DOT employee.

In April 2011, a monitoring visit was conducted to collect expansion, cracking and humidity data; since then, three additional monitoring visits have taken place. The next is anticipated to take place at the end of this summer.

Bangor, Maine

In early 2010, a series of concrete structures in Bangor, Maine was selected to undergo mitigative measures using various treatment methods under this program. A total of five bridge structures along I-395 were selected, and the treatment details for each element can be seen in Table 1.

Bridge Structure Elements Selected for Treatment Type of Treatment
I-395 over Main Street Eastbound and westbound abutments and wing walls 100% and 40% silane solution
I-395 over Penobscot River Two columns 100% and 40% silane solution
5th Parkway over I-395 Eastbound and westbound abutments and wing walls 100% and 40% silane solution, and an elastomeric coating
South Parkway over I-395 Three columns Carbon-fiber-reinforced polymer (CFRP), electrochemical treatment with lithium nitrate, and 100% silane solution
Green Point Road over I-395 Eastbound and westbound abutments and wing walls 100% and 40% silane solution, and an elastomeric coating

Table 1. Treatment details for each bridge element.

Several sections of each element were instrumented in late May 2010 to evaluate the efficacy of the treatments and monitor expansion, cracking and internal humidity of the structure. In June 2010, two cylindrical columns located under the South Parkway Bridge were treated using lithium nitrate via electrochemical methods and a carbon fiber reinforced polymer wrap.

In June of 2011, the wingwalls and abutments of three bridge structures were treated with the two different silane products and an elastomeric paint. In addition, one cylindrical column under the South Parkway Bridge was treated with only the 40% silane product.

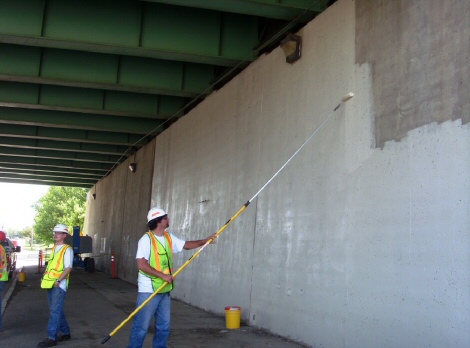

This image shows a worker applying a white paint to a large concrete wall located under a bridge. The worker is using a long paint roller to apply the material.
Figure 5. Application of elastomeric paint on bridge abutment.

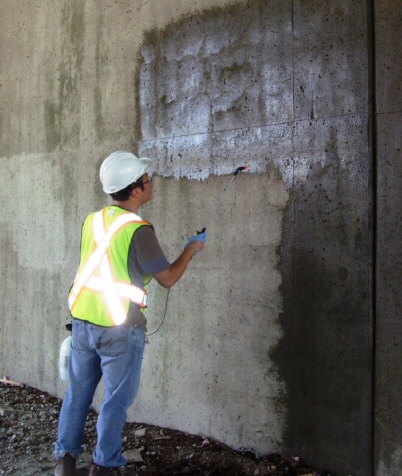

This image shows a worker topically applying a material onto a concrete wall using a handheld garden sprayer.
Figure 6. Application of silane on bridge abutment.

Maine DOT's maintenance crew provided traffic control and assisted in applying the materials. Moreover, expansion, cracking and humidity data was collected from the original instrumentation sections. Two large columns under the Penobscot River Bridge are expected to be treated by the end of summer 2011.

The next monitoring trip for data collection is anticipated to occur later this fall 2011.

This field trial was first published in an earlier version of Reactive Solutions. To read the earlier publication, click here.

Oahu, Hawaii

In the summer of 2009, Hawaii DOT expressed interest in participating in the FHWA ASR Development and Deployment Program. Although the DOT has not observed ASR in any of their transportation structures, interest was expressed in evaluating local materials for potential reactivity. In addition, since Hawaii imports most supplementary cementitious materials and some aggregates into the state for their use, the DOT was also interested in developing expertise to evaluate these imported materials that may be used in Hawaii. Consequently, Hawaii DOT provided a number of aggregates to test for ASR susceptibility in the laboratory. In the summer of 2010, a report detailing the results of the American Society of Testing and Materials (ASTM) test procedures C1260 and ASTM C1293 was distributed to Hawaii DOT, FHWA, and interested parties at the University of Hawaii and the industry at-large. Conflicting reactivity test results for some aggregates led to the decision to construct an outdoor exposure block site using aggregates common to the islands of Oahu, Kauai, Maui and Hawaii (The Big Island) in an attempt to capture more reliable, long-term monitoring data. Additionally, some "known reactive" aggregates were imported to prove that conditions in Hawaii can initiate production of ASR products. In March 2011, a testing plan to construct the exposure site using mix designs with these various aggregates was finalized.

A total of 30 exposure blocks were mixed, cast, and transported to the exposure site located on the University of Hawaii campus during a period of two weeks in June 2011.

The blocks, once stripped of their molds, are approximately 1 ft x 1 ft x 2 ft in size. The formwork for the blocks was instrumented with steel pins which then remained in the blocks for expansion measurements (see Figure 7).

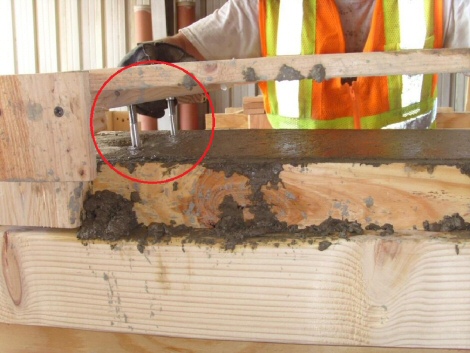

This image shows a worker placing steel pins into the surface of a fresh concrete blocks. The steel pins are held by wooden formwork that fits perfectly on top of the fresh concrete block.
Figure 7. Placing wood formwork with steel pins into the top of the fresh concrete. The pins will be used to monitor the expansion of the block.

Baseline expansion measurements were taken after the blocks were placed and leveled on the site. The next set of expansion measurements are anticipated to be recorded in the fall of 2011.

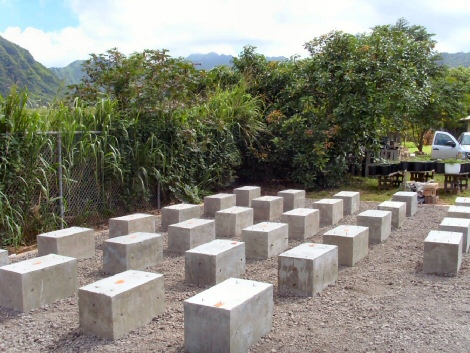

This image shows twenty-eight large concrete blocks placed outside on a layer of gravel.
Figure 8. Overview of completed exposure site located in the Magoon Research and Instruction Facilities campus (University of Hawaii).
