Bridges & Structures

Comprehensive Design Example for Prestressed Concrete (PSC) Girder Superstructure Bridge

Comprehensive Design Example for Prestressed
Concrete (PSC) Girder Superstructure Bridge


3. Flow Charts

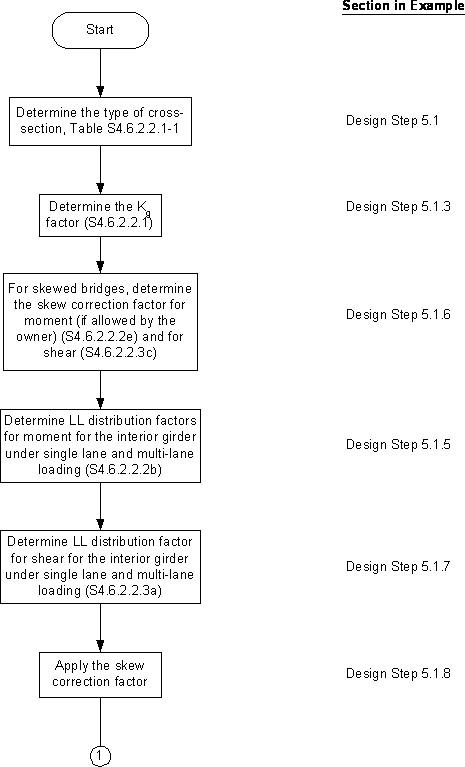

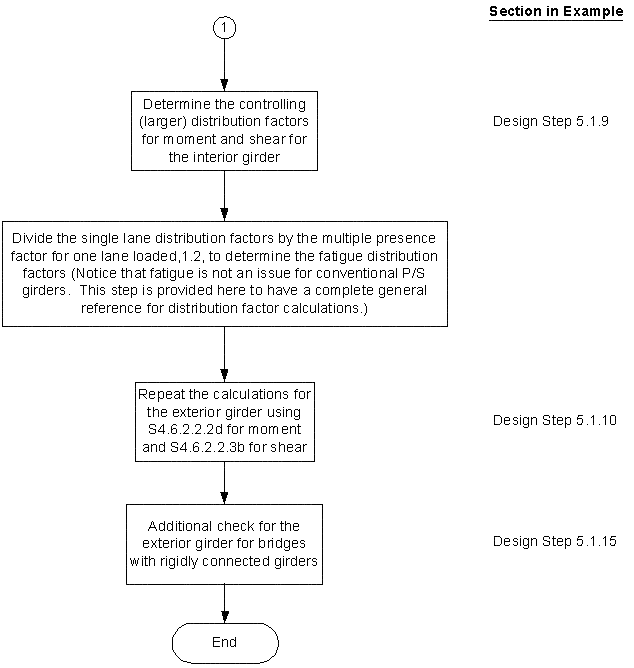

General Superstructure Design Flow Chart

General Superstructure Design Flow Chart. Click for details.

General Superstructure Design Flow Chart. Click for details.
