Fact Sheet
This fact sheet is an archived publication and may contain dated technical, contact, and link information
Publication Number: FHWA-HRT-09-058
Date: October 2009

Quadrant Roadway Intersection

FHWA Contact: Joe Bared,
HRDS-05, (202) 493-3314, joe.bared@dot.gov

PDF Version (1 MB)

PDF files can be viewed with the Acrobat® Reader®

This document is a technical summary of the Federal Highway Administration report, Alternative Intersections/Interchanges: Information Report (AIIR) (FHWA-HRT-09-060).


Today's transportation professionals, with limited resources available to them, are challenged to meet the mobility needs of an increasing population. At many highway junctions, congestion continues to worsen, and drivers, pedestrians, and bicyclists experience increasing delays and heightened exposure to risk. Today's traffic volumes and travel demands often lead to safety problems that are too complex for conventional intersection designs to properly handle. Consequently, more engineers are considering various innovative treatments as they seek solutions to these complex problems

The corresponding report, Alternative Intersections/Interchanges: Informational Report (AIIR) (FHWA-HRT-09-060), covers four intersection designs and two interchange designs that offer substantial advantages over conventional at–grade intersections and grade separated diamond interchanges. The AIIR provides information on each alternative treatment covering salient geometric design features, operational and safety issues, access management, costs, construction sequencing, environmental benefits, and applicability. This TechBrief summarizes information on one of these alternative intersection designs–the quadrant roadway (QR) intersection (see figure 1).

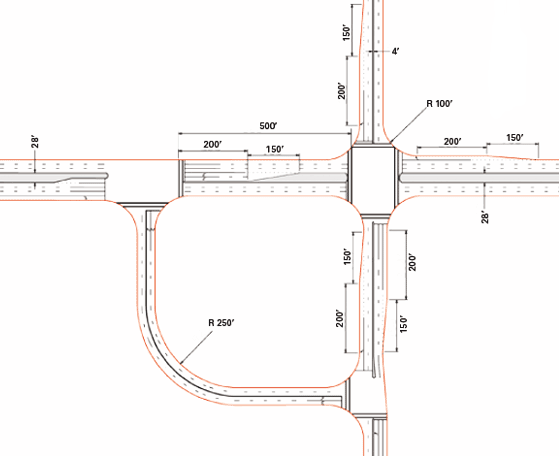

In the figure, there are two intersecting roads which make up a plus sign or four quadrants. In the southwest quadrant just before reaching the intersection, a road connects the eastbound approach to the northbound approach. This effectively creates three intersections which is called the quadrant roadway (QR) intersection. The connecting road can be in any of the quadrants, and the intersection is named based on the quadrant in which the connecting road exists. Here, the intersection is a southwest QR intersection. No left turns are allowed at the main intersection.

Figure 1. Illustration. QR intersection geometry.


A QR intersection is a promising design for an intersection of two busy suburban or urban roadways. The intersection works by rerouting all four left–turn movements at a four–legged intersection onto a road that connects the two intersecting roads. Figure 1 shows the geometry of a QR intersection where the connection road is placed in the southwest quadrant. The location of the connector road depends on traffic flow and availability of right–of–way. Figure 2 shows how all four of the left–turning movements are rerouted over the connector road. This design prohibits all left turns at the main intersection and therefore allows a simple two–phase signal to process the remaining through and right–turn movements. Both junctions of the connector road are typically signalized.

The QR intersection concept was first published in 2000.(1,2) Since then, its design has been explored by others, including the Federal Highway Administration (FHWA). However, as of July 2009, no known highway agency has implemented a QR intersection in the United States.

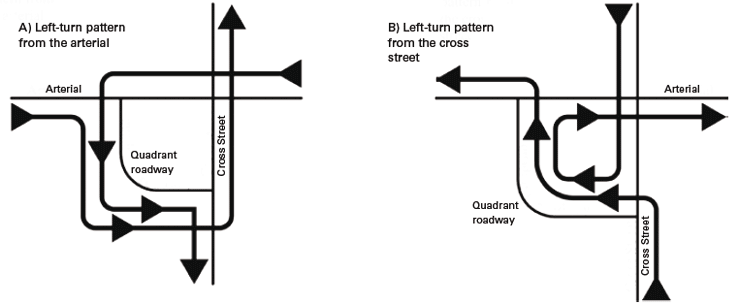

The figure shows left-turn movements for each of the streets in a quadrant roadway (QR) intersection. Figure A represents a left-turn pattern from arterial with arrows to represent the movement. Figure B represents a left-turn pattern from the cross street with arrows representing the movement.

Figure 2. Illustration. Movements in a QR intersection.

Geometric Design

The primary design considerations of the QR intersection are as follows:

  • The location of the connector road should be primarily determined by the left-turn volume at the intersection. As seen in figure 2, drivers seeking to make a left turn who approach from the cross street opposite the quadrant are required to travel through the main intersection, make three right turns, then travel back through the main intersection. These drivers travel the longest distance to make the left turn. Conversely, drivers turning left who approach from the cross street on the same side of the quadrant are not required to travel through the main intersection at all, and their travel distance is about the same as at a conventional intersection. Therefore, if right-of-way is available, the connector roadway should be located to allow the highest volume of left-turn traffic and the most direct path.
  • U-turns are not permitted at the main intersection and are rerouted similar to left turns.
  • Distance of the secondary intersections from the main intersection should provide adequate storage for vehicles, signing, and sight distance. Reid recommended spacing the secondary intersections ±500 ft from the main intersection.(1)
  • If permitted, driveways from the connecting road to the parcel inside the connecting road may be placed in the curve of the connecting road or near one of the secondary intersections. If driveways are not permitted, then the parcel inside the connecting roadway can be accessed via driveways off one or both of the intersecting streets.
  • At a QR intersection, some pedestrians will need to cross an extra street; however, others who follow the curved connection roadway or the main intersection crosswalks will have shorter walking distances. Also, the shorter cycle lengths at QR intersections benefit pedestrians.
  • A QR with more than one connection road can be implemented if right-of-way is available and if left-turn volumes justify it. Geometric principles remain largely the same for QRs with one or more connection roadways.

Traffic Signal Control

A QR intersection needs three sets of signal controlled junctions–the main intersection with two signal phases and two secondary intersections at the ends of the connecting road with three signal phases each. These junctions are shown in figure 3.

The figure shows typical quadrant roadway (QR) intersection signal locations. There are three typical signal locations which are denoted by three green circles with the numbers 1, 2, and 3. A QR intersection is made up of three intersections, and the signals are placed on these three places. The main intersection is intersection 1, and intersections 2 and 3 are the corresponding intersections.

Figure 3. Illustration. Typical QR intersection signal locations.

Operational Performance

The traffic simulation software VISSIM was used to compare the operational performance of QR intersections to conventional intersections. Four intersection geometric design cases of QR and conventional intersections were simulated under four traffic volumes scenarios. The findings for throughput showed a 5- to 15-percent increase for travel time and a 5– to 20–percent reduction compared to conventional intersections.

Safety Performance

Since a complete QR intersection has not yet been built, safety data are not available. Nonetheless, the QR has 28 conflict points more widely spread out than compared to 32 at a conventional intersection. This reduction in conflict points suggests the QR may be safer, although a definitive relationship between conflicts and safety has not yet been established.


QR intersections will typically be spot treatments. They are most applicable where the following exists:

  • A roadway in the road network can be used as a connection roadway.
  • There are heavy left turns and through volumes on the major and minor roads.
  • The minor road total volume to total intersection volume ratio is typically less than or equal to 0.35.


The QR intersection increases operational efficiency through a congested intersection by moving the left turns away from the main intersection and allowing a two–phase signal at the main intersection. While additional right–of way would be needed in the connection road quadrant, and extra cost would be necessary to build the connecting roadway, the QR intersection could be used to reduce congestion at a busy intersection in a developing area. It could also serve as a temporary congestion reliever until a grade–separated solution can be built. In addition, the QR intersection accommodates pedestrians well. More details can be found in the full AIIR available from the FHWA.


  1. Reid, J.D. (2000). "Using Quadrant Roadways to Improve Arterial Intersection Operations," ITE Journal, 70(6), 34–45.
  2. Reid, J.D. and Hummer, J.E. (2001). "Travel Time Comparisons Between Seven Unconventional Arterial Intersection Designs," Transportation Research Record 1751, 56–66.

Researchers—This study was performed by Principal Investigators Warren Hughes and Ram Jagannathan. For more information about this research, contact Joe Bared, FHWA Project Manager, HRDS-05 at(202) 493–3314, joe.bared@dot.gov.

Distribution—This TechBrief is being distributed according to a standard distribution. Direct distribution is being made to the Divisions and Resource Center.

Availability—The TechBrief may be obtained from the FHWA Product Distribution Center by e–mail to report.center@dot.gov, fax to (814) 239–2156, phone to (814) 239–1160, or online at http://www.fhwa.dot.gov/research/tfhrc/programs/safety/index.cfm.

Key Words—Quadrant roadway intersection, QRI, QR, and Alternative intersection.
