Evaluation of Pedestrian Hybrid Beacons and Rapid Flashing Beacons

CHAPTER 6. pHB STUDY

INTRODUCTION

This chapter describes the methodology and results from a study that examined driver and pedestrian behavior at PHBs. The PHB, or HAWK as it is known in Tucson, AZ, is a traffic control device used at pedestrian crossings. The crossing typically has the crosswalk across only one of the major road approaches. The PHB's vehicular display faces are typically located on mast arms over the major approaches to an intersection and in some locations on the roadside. An example is shown in figure 53 for an installation in Tucson, AZ, and in figure 54 for an installation in Austin, TX. The face of the PHB consists of two red indications above a single yellow indication. It rests in a dark mode, but when activated by a pedestrian, it first displays a few seconds of flashing yellow followed by a steady yellow change interval and then displays a steady red indication to drivers, which creates a gap for pedestrians to cross the major roadway. During the flashing pedestrian clearance interval, the PHB displays an alternating flashing red indication to allow drivers to proceed after stopping if the pedestrians have cleared their half of the roadway, thereby reducing vehicle delays.

Figure 53. Photo. Example of PHB installation in Tucson, AZ. This photo shows a pedestrian hybrid beacon (PHB) at a crosswalk in Tucson, AZ. The beacon is mounted on a mast arm, and the face of the beacon is composed of two red signal indications side by side and one yellow signal indication centered below the red signal indications. The signals are placed on a black back plate with a yellow border. The mast arm also has a R10-23 STOP ON RED regulatory sign next to the beacon and an illuminated pedestrian crossing sign hanging from the mast arm.

Figure 53. Photo. Example of PHB installation in Tucson, AZ.

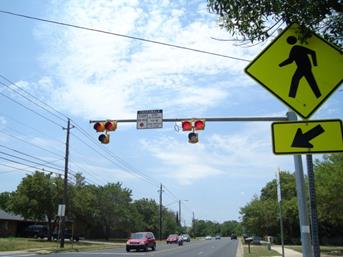

Figure 54. Photo. Example of PHBs being used in Austin, TX. This photo shows pedestrian hybrid beacons (PHBs) at a crosswalk in Austin, TX. Two PHBs are mounted on a mast arm. The faces of the PHBs are two red signal indications side by side with a yellow signal indication centered below them. The signals do not have a back plate. Between the PHBs there is a STOP ON RED sign. In the foreground upstream of the mast arm and pole there is a W11-2 pedestrian crossing sign with a W16-7 arrow sign pointing to the left.

Figure 54. Photo. Example of PHBs being used in Austin, TX.

The PHB has shown great potential for improving pedestrian safety; however, questions remain regarding under what roadway conditions—such as crossing distance (i.e., number of lanes) and posted speed limit—should it be considered for use.(26,27) In addition, there are questions about the device's operations. For example, a current topic of discussion within the profession is the way drivers treat a PHB when it is dark. PHBs dwell in a dark mode for drivers until activated by a pedestrian. A concern among some is that drivers will see a dark PHB and treat it as a Stop sign, similar to the required behavior for a dark traffic signal that has experienced a power outage.

The STC of the NCUTCD assists in developing language for chapter 4 of the MUTCD.(1) It is interested in research and/or assistance in refining material on the PHB. The PHB was first included in the 2009 MUTCD, which discusses the design and operations of the device along with guidance for installation categorized by low speed (roadways where speeds are 35 mi/h or less) and high speed (roadways where speeds are more than 35 mi/h).(1) The 2009 MUTCD also indicates that the PHB "...should be installed at least 100 ft from side streets or driveways that are controlled by Stop or Yield signs"(1) (pg. 449) In 2011, the STC recommended to remove that statement because it was a significant change from what was reviewed and approved by the National Committee in 2007 and what was proposed in the Notice of Proposed Amendment (NPA) for the 2009 MUTCD.(50) The statement was added to the PHB 2009 MUTCD discussion just prior to publication. The STC provided the following concerns with the 100-ft distance (with additional details added by this study's research team based on reviewer comments):

Because of the questions being asked regarding driver and pedestrian behaviors with PHBs, FHWA sponsored a study to record behaviors at existing sites.

Study Objective

The objective of this study was to determine actual driver and pedestrian behaviors at locations with a PHB.

STUDY SITES

Through existing contacts and research team knowledge along with responses to requests, the research team compiled a preliminary list of PHB locations. Data for key variables (posted speed limit, number of through lanes, and the type of median treatment) were gathered and added to the list for the PHBs in communities with multiple installations. Pedestrian crossings on higher speed roadways and with wider crossings have historically experienced lower driver yielding, so posted speed limit and crossing distance (as reflected by number of lanes) were selected as key variables. The goal was to have at least eight sites with higher posted speed limits (defined for this study as being 40 mi/h or higher) and four sites with lower posted speed limits (defined for this study as being 35 mi/h or lower). The presence of a median can provide refuge for a crossing, which may affect the measures of effectiveness considered for this study, so it was also included in the original study matrix. Because of efficiencies in data collection, data were collected for a total of 20 sites. Roadway and traffic characteristics for the sites are listed in table 61.

Table 61. Site characteristics.
Site Namea Roadway Configuration Number of Approach Legs Posted Speed Limit (mi/h) ADT Pedsetrians/Hourb Number of Through Lanes Park Lane/ Bike Lane Width (ft) Median Type Median Width (ft) Total Crossing Distance (ft)
TU-003 Intersection 4 35 7,400 4.8 4 NA/6 TWLTL 13 69
TU-004 Intersection 3 40 7,600 9.3 4 NA/6 TWLTL 13 82
TU-007 Intersection 3 40 8,700 8.9 4 NA/6 TWLTL 13 69
TU-021 Intersection 4 40 31,000 8.2 4 NA/5 TWLTL 12 83
TU-037 Intersection 4 35 27,500 11.1 4 NA/5 TWLTL 11 75
TU-042 Intersection 4 30 5,100 14.2 4 NA/NA Raised 8 88
TU-059 Intersection 4 40 28,400 3.1 4 NA/4 Raised 8 89
TU-070 Intersection 3 40 29,900 3.6 4 NA/4 Raised 7 80
TU-072c Intersection 4 40 41,300 7.6 6 NA/6 Raised 10 119
TU-073 Intersection 4 40 13,800 13.3 6 NA/6 Raised 8 93
TU-090 Intersection 4 40 10,100 1.1 4 NA/7 Raised 8 92
TU-091 Intersection 3 35 5,200 2.5 4 13/5 Raised 11 112
AU-04 Intersection 4 35 26,600 11.5 4 NA/NA Raised 10 50
AU-07c Midblock (50)d 2 35 24,600 23.3 4 NA/NA Raised 8 57
AU-11 Intersection 3 40 26,900 6.4 4 8/NA TWLTL 12 90
AU-16 Intersection 4 35 28,500 18.5 4 NA/NA TWLTL 12 60
AU-21 Midblock (60)d 2 35 27,100 20.0 4 NA/NA None NA 40
AU-22 Midblock (70)d 2 45 19,600 38.3 4 NA/6 TWLTL 12 68
AU-24 Intersection 4 35 14,100 20.7 4 NA/NA Raised 6 68
AU-27 Midblock (80)d 2 35 21,200 10.7 4 NA/6 Raised 6 80

NA = Not applicable.
aSite name is denoted as AA-XXX, where AA represents the two-letter city code and XXX represents the number assigned to the site.
bNumber of pedestrians per hour did not include any research team member crossings. They were observed during data collection (typically over a 4-h daytime period).
cPHB is located within coordinated corridor where the timing of when the PHB is active is influenced by the nearby coordinated corridor.
dFor midblock roadway configuration, the number in parentheses shows the distance (ft) measured from center of crossing to center of nearest driveway/intersection to the nearest intersection or major driveway.

The cities of Tucson, AZ and, Austin, TX, had the greatest variety in site characteristics of interest to this project and were selected for the study. Differences in practices between the two cities include the following:

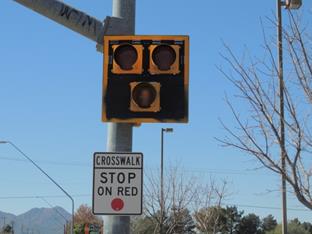

Figure 55. Photo. Example of sign used in Tucson, AZ. This photo shows a pedestrian hybrid beacon mounted on a signal pole in Tucson, AZ. The face of the beacon is composed of two red signal indications side by side and one yellow signal indication centered below the red signals. The signals are placed on a black back plate with a yellow border. Below the beacon there is a R10-23 crosswalk stop on red sign.

Figure 55. Photo. Example of sign used in Tucson, AZ.

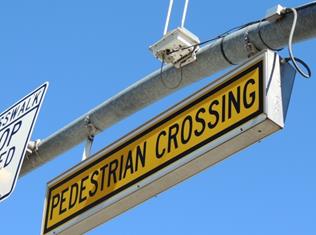

Figure 56. Photo. Example of internally illuminated sign used in Tucson, AZ. This photo shows a yellow sign hanging from the mast arm. The sign has a yellow background with a black border that reads, "Pedestrian Crossing" in black letters.

Figure 56. Photo. Example of internally illuminated sign used in Tucson, AZ.

Figure 57. Photo. Sign used in Austin, TX. This photo shows a STOP ON RED sign used in Austin, TX. The sign is a rectangle with a white retroreflective background and a black border. The top part of the sign is black with "CROSSWALK" in white letters. Below that there are two boxes. The box on the left reads "STOP ON RED" in black letters with a red circle below the lettering. The right box reads "STOP ON FLASHING RED THEN PROCEED IF CLEAR."

Figure 57. Photo. Sign used in Austin, TX.

The currently preferred format for the type of sign shown in figure 57 is shown in figure 58.

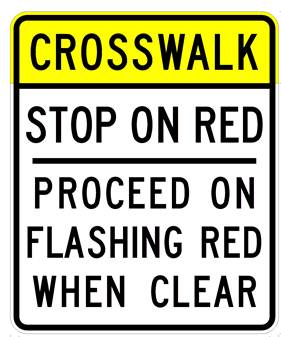

Figure 58. Photo. Sign recommended by FHWA to address comprehension issues with the flashing red phase. This photo shows a white rectangular sign with black borders. The top of the sign has a yellow header with black letters that read "CROSSWALK." The rest of the sign reads, "STOP ON RED PROCEED ON FLASHING RED WHEN CLEAR" in black lettering.

Figure 58. Photo. Sign recommended by FHWA to address comprehension issues with the flashing red phase.

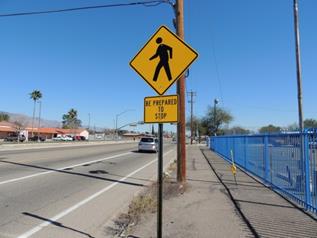

Figure 59. Photo. Example of advance warning sign used in Tucson, AZ. This photo shows a W11-2 pedestrian crossing warning sign mounted on a post. Below the sign there is a rectangular plaque with a yellow background and a black border. In black lettering it reads "BE PREPARED TO STOP."

Figure 59. Photo. Example of advance warning sign used in Tucson, AZ.

The crosswalk markings were always located on only one side of the intersection. The PHBs had between 3 and 4 s of flashing yellow and between 3 and 4 s of steady yellow, consistent with city policies regarding clearance intervals at signalized intersections. For both cities, the flashing red duration varied based on the site's crossing width and ranged from 15 to 29s.

DATA COLLECTION AND REDUCTION

Data using a multiple video camera setup were collected in November 2014 for the Austin, TX, sites and in February 2015 for the Tucson, AZ, sites. All observations were collected during daytime dry weather conditions between 6:30 a.m. and 6:30 p.m. The observers and the video recording device were placed to be inconspicuous from the pedestrians, bicyclists, and motorists. The goal was to record a minimum of 50 pedestrian crossing events or 4 h of data (the smaller of the two) at each location, where each crossing event consisted of one or more pedestrian(s) crossing the entire width of the street. If it appeared that fewer than 50pedestrian crossing events would occur within the 4-h block, research team members would cross the street to increase the sample size of pedestrian crossings. Additional information on the staged pedestrian protocol is available in Characteristics of Texas Pedestrian Crashes and Evaluation of Driver Yielding at Pedestrian Treatments.(35) The research team members sought to complete data collection efforts at two sites per day, accounting for travel time between sites and the need to notify local stakeholders (e.g., school personnel) of their activity. Hence, the periods of peak vehicle and pedestrian volumes were not necessarily observed.

The video footage was reviewed in several rounds to extract the required observations for analysis. After the first two rounds, a list of vehicle arrivals, pedestrian arrivals, pedestrian departures, and PHB actuations was assembled and sorted by site and time. The beacons and pedestrian signal indications were determined for each event in this list through a series of computations using the timestamps and the known timing parameters for each PHB.

In the next rounds of video footage review, the computed beacon indications were verified, and additional detailed observations were extracted including the following:

Additional efforts were also undertaken to record any instances of major street vehicles stopping while the beacon indication was dark as well as to identify minor road driver behaviors during a beacon actuation. The final dataset reflected over 78 h of video data and included 1,149 PHB actuations and 1,979 pedestrians who crossed the street.

DRIVER BEHAVIOR FINDINGS

Driver Behavior During Dark Indication

Selected videos were reviewed to identify each occurrence when a vehicle stopped at the crossing when the PHB was displaying a dark indication. There were several events; however, in almost all cases, it was because of congestion. There were a few cases where the driver stopped because of a bus or truck loading/unloading or because a pedestrian was in the crosswalk. Therefore, none of the drivers who stopped at the crossing when the PHB was dark appeared to be confused regarding the device.

Driver Position Relative to Pedestrian Position During Steady or Flashing Red Indications When the Driver Drove Across the Crosswalk

The position of the driver and the pedestrian for each driver that drove across the crosswalk during a steady or flashing red indication was identified. Figure 60 provides an illustration of driver and pedestrian positions for a crossing. For each cycle and for each approach, the number of cycles by approach where a given pedestrian-vehicle position combination occurred was counted. Table 62 summarizes the findings for the 1,252 cycle approaches (1,149 cycles plus 103cycles where pedestrians were crossing in both directions) for the 20 sites included in the study. The pedestrian positions were (1) edge of the street clearly indicating the desire to cross, (2) within the crosswalk on the initial approach (or first half of the crossing), or (3) within the crosswalk on the second approach (or second half of the crossing). The vehicle was either on the same approach as the pedestrian or the other approach relative to the pedestrian.

As an example, if a pedestrian was crossing a street that was oriented north and south and was on the initial approach (say the southbound approach), and if the vehicle was on the other approach, then the vehicle would be on the northbound approach. In this example, the northbound vehicle can legally enter the crosswalk during the flashing red portion of the cycle while the pedestrian is walking eastbound and crossing the southbound approach. Both Arizona and Texas State laws indicate that vehicles must yield the right-of-way to pedestrians within a crosswalk that are in the same half of the roadway as the vehicle. So drivers in cases A to F in table 62 would be considered as not yielding to the pedestrian. Both States also indicate that vehicles are to yield right-of-way if a pedestrian is approaching closely enough from the opposite side of the roadway to constitute a danger. Cases G and H in table 62 could possibly fit this situation; however, in the opinion of those reducing the data, these observations did not have the pedestrian that close to the vehicle approaching from the other approach. For all those observations, the vehicle on the other approach entered the crosswalk shortly after the steady red indication had started and the pedestrian had recently left the curb. A driver entering the intersection during the steady red indication would be in violation of the beacon indication. Cases A, C, E, G, and I reflect combinations when the driver would be in violation of the beacon.

For those cases when the driver should yield, the combination with the most yielding violations was when the pedestrian was at the edge of the street and the drivers entered the crosswalk on the steady red indication. Case A occurred for 7.7 percent of the observed cycle approaches (96 of 1,252). Most of these non-yielding (and violation) events occurred soon after the beacon changed to steady red. While it could be argued that a vehicle was not required to yield to the pedestrian in this situation since the pedestrian was not on the pavement, in the research team's opinion the pedestrians in these situation were clearly communicating the intent to cross and were not on the pavement due to safety concerns. Of course, these drivers were clearly in violation of the steady red indication. While the research team included cases A and B in the non-yielding counts, the counts are shown in table 62 so readers can draw their own conclusions. Few, but not zero as preferred, cycles had a driver entering the crosswalk when the pedestrian was on the same approach (see cases B to F). Reviewing the situations when a vehicle enters the crosswalk when the pedestrian is in the second half of their crossing (see cases E and F) revealed several occurrences when the vehicles entered the crosswalk soon after the pedestrian departed the lane.

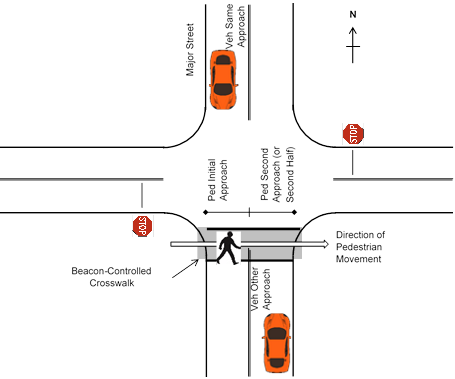

Figure 60. Illustration. Pedestrian and driver positions when the pedestrian is on the initial approach and vehicles are present on the same approach and on the other approach. This illustration shows an aerial view of a four-legged intersection showing pedestrian and driver positions when the pedestrian is on the initial approach and vehicles are present on the same approach and on the other approach. A pedestrian is illustrated crossing the south approach of the intersection crossing from west to east, with vehicles yielding at the north and south approach of the intersection.

Figure 60. Illustration. Pedestrian and driver positions when the pedestrian is on the initial approach and vehicles are present on the same approach and on the other approach.

Table 62. Pedestrian position and vehicle approach during steady or flashing red indications.
Case Pedestrian Position Vehicle Approacha Beacon Indication Percent of Cycles Approachesb Non-Yielding and/or Violation
A Initial approach, edge of street Same Steady red 7.7 Non-yieldingd; violation
B Initial approach, edge of street Same Flashing red 0.0 Non-yielding
C Initial approach, moving within crosswalk Same Steady red 0.4 Non-yielding; violation
D Initial approach, moving within crosswalk Same Flashing red 0.2 Non-yielding
E Second approach, moving within crosswalk Same Steady red 0.2 Non-yielding; violation
F Second approach, moving within crosswalk Same Flashing red 1.7 Non-yielding
G Initial approach, moving within crosswalk Other Steady red 8.8 Violation
H Initial approach, moving within crosswalk Other Flashing red 0.2 Neither
I Second approach, moving within crosswalk Other Steady red 1.0 Violation
J Second approach, moving within crosswalk Other Flashing red 23.6 Neither

aPedestrian and vehicle positions are relative to where the pedestrian started the crossing (see figure 60 for an example).
bResults reflect the percent of the 1,252 cycle approaches when the combination of pedestrian and vehicle position occurred. The total number of cycle approaches (1,252) reflect 1,149 cycles plus 103 cycles when pedestrians were crossing in both directions for the 20 sites included in the study.
cDemonstrates whether this case reflects a non-yielding driver and/or a violation of the red indication.
dWhile it could be argued that a vehicle is not required to yield to the pedestrian in this situation since the pedestrian was not "on the pavement," the pedestrians in these situation were clearly communicating the intent to cross and remained on the curb rather than on the pavement due to safety concerns. These drivers were in violation of the steady red indication.

Driver Yielding Behavior During Steady or Flashing Red Indications

For each pedestrian crossing when the PHB was showing steady or flashing red, the number of drivers that yielded and did not yield was determined. The driver yielding rates reflected all available pedestrian crossings regardless of whether the pedestrian was a member of the research team. A driver was considered to have not yielded to the pedestrian if the driver crossed the crosswalk markings when the PHB was in either the steady red or flashing red indications and the pedestrian was at the edge of the street clearly communicating to drivers the intent to cross or was walking on the same approach as the driver. When the crossing pedestrian was a member of the research team, the team member would place a foot on the pavement to clearly communicate the intent to cross. Using only staged pedestrian crossings would have required a much longer data collection period per site because of the large number of pedestrians crossing at the intersections. Therefore, the study included non-staged pedestrians. If it appeared that the non-staged pedestrian was not clearly communicating the intent to cross, perhaps by not standing near the edge of the sidewalk, the pedestrian crossing was not included in the study.

Counting the number of vehicles that did or did not yield to a crossing pedestrian was easier with video data when compared to gathering the data in the field. The video could be replayed to determine the exact position of a vehicle when the signal indication changed. In addition, the video allowed for greater consistency between data collectors, as an event could be reviewed by more than one person. Table 63 provides the driver yielding values for the 20 sites. Overall, driver yielding for these 20 sites averaged 96 percent. In almost all of the crossings, drivers appropriately yielded to the crossing pedestrians.

Table 63. Driver yielding values for all 20 sites.
Site Number of PHB Actuations Number of Drivers Yielding Number of Drivers Not Yielding Driver Yielding (Percent)a
TU-003 19 54 3 95
TU-004 49 162 4 98
TU-007 60 183 5 97
TU-021 52 131 7 95
TU-037 74 248 8 97
TU-042 71 187 6 97
TU-059 55 151 0 100
TU-070 52 159 4 98
TU-072 51 230 5 98
TU-073 70 368 19 95
TU-090 28 61 0 100
TU-091 30 67 4 94
AU-04 62 147 9 94
AU-07 95 256 11 96
AU-11 60 169 26 87
AU-16 71 195 6 97
AU-21 52 139 5 97
AU-22 70 171 4 98
AU-24 97 182 9 95
AU-27 31 99 10 91
Total 1,149 3,359 145 96

aDriver yielding = Percent of approaching drivers who should have yielded and did so.

When reviewing the results by city, Tucson, AZ, had an average yielding rate of 97 percent while Austin, TX, had an average yielding rate of 94 percent. Affecting the average result for Austin, TX, were two sites: AU-11 and AU-27. Almost all of the non-yielding vehicles at AU-11 were northbound vehicles that crossed the crosswalk very soon after the PHB turned steady red and frequently moved at lower speeds due to high vehicle volumes present or due to an active reduced speed limit for the school zone. At AU-27, about half of the non-yielding vehicles entered the crosswalk very soon after the PHB turned to steady red (six vehicles), with the remaining non-yielding vehicles (four vehicles) entering the crosswalk before the pedestrian completely cleared that half of the roadway. Other potential differences between Austin, TX, and Tucson, AZ, that could affect yielding rates could be the length of time the PHB treatment has been used in the city (they have been in Tucson, AZ, for many more years than Austin, TX), the use of back plates (common in Tucson, AZ, not in Austin, TX), beacon face mounting locations (Tucson, AZ, typically mounted one face over the approach, one to the right of the approach, and one in the median if a raised median was present, while Austin, TX, typically mounted two faces over the approach), and the use of supplemental signs on the mast arm (Tucson, AZ, sites typically included a CROSSWALK or PEDESTRIAN CROSSWALK sign in addition to the regulatory CROSSWALK STOP ON RED (symbolic circular red) (R10-23) sign while Austin, TX, used a combination sign that provided the additional information of STOP ON FLASHING RED (symbolic flashing circular red) THEN PROCEED IF CLEAR).

There were different driver behaviors within those situations when drivers did not yield to the pedestrians. Reviewing the conditions when drivers were non-compliant revealed that several of the non-compliant drivers entered the crossing just after the PHB changed from steady yellow to steady red and the pedestrian was at the edge of the street. Given that these drivers were provided with at least 7 to 8 s of warning by way of the flashing and steady yellow indications, and based on the posted speed limits for these sites (30 to 45 mi/h), the drivers did have sufficient warning to stop upstream of the crossing but decided not to stop. In a few of the cases, the driver proceeded through the crosswalk just after the pedestrian had cleared the lane.

Driver Behavior During Flashing Red Indication

For about 20 percent of the observed PHB actuations, vehicles were not present during the flashing red indication. When a queue of vehicles was present during the flashing red indication, about half of the crossing actuations included at least one driver who did not completely stop prior to entering the crosswalk. About 5 percent of the actuations included at least one driver who stopped on the flashing red indication and remained stopped until the dark indication. This behavior was observed at about the same frequency in both cities. In some cases, these drivers might not have realized that they could proceed after stopping if their half of the crosswalk was clear of pedestrians. However, there were many cases where the stopped drivers could not proceed for one or more of the following reasons:

Impact of PHB Actuation on Minor Movement Drivers

Interested practitioners have raised questions about how PHBs affect minor movements that do not pass through the beacon-controlled crosswalk. These movements may include one left-turn movement originating from the major street (LT), up to two through movements on the minor-street approaches (TH1 and TH2), a left-turn movement originating from the minor street (LT1), and a right-turn movement originating from the minor street (RT2). These movements are illustrated in figure 61. Specifically, the following questions have been asked:

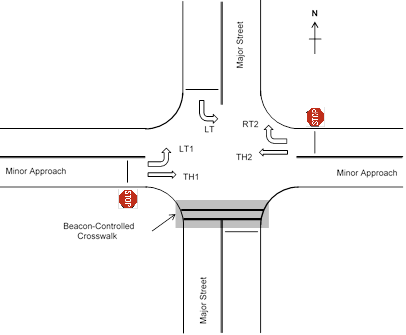

Figure 61. Illustration. Minor movements at a PHB-controlled crosswalk. This illustration shows an aerial view of a four-legged intersection showing minor movements at a pedestrian hybrid beacon (PHB)-controlled crosswalk. The east and west approaches are the minor approaches of the intersection; the north and south approaches are the major approaches. On the south approach, there is a beacon-controlled crosswalk. The graphic outlines traffic movements on the west approach, with vehicles turning left labeled LT1, and vehicles going through from the west approach are labeled TH1. Vehicles turning right from the east approach are labeled RT2, and vehicles traveling through are labeled TH2. Vehicles on the north approach turning left are labeled LT.

Figure 61. Illustration. Minor movements at a PHB-controlled crosswalk.

The research team conducted a review of the video footage to answer these questions. The review included 17 of the 20 PHB sites. Sites TU-091, AU-07, and AU-27 were excluded because they lacked the relevant movements due to site layout (midblock crossing, stop line located well downstream of the movement, or the movement is prohibited) or the movements existed but were negligible in volume. Not all minor movements were present at every site because some of the sites were three-legged intersections or the fourth leg was a driveway with minimal traffic (e.g., TU-070). The minor movements permitted at the sites are listed in table 64.

Table 64. Minor movements permitted at the sites.
Movements Present Sites
LT, LT1, TH1, TH2, and RT2 (four-legged intersection) TU-003, TU-021, TU-037, TU-042, TU-059, TU-072, TU-073, TU-090, AU-04, AU-16, and AU-24
LT and LT1 (three-legged intersection) TU-004, TU-070, and AU-11
LT and RT2 (midblock site with nearby driveway) AU-21 and AU-22

A total of 850 minor movement vehicles were observed. This set of vehicles includes only those that arrived and/or departed while the PHB was active (i.e., not displaying the dark indication). The vehicle distribution by site and movement code is provided in table 65. Note that the pairing of the LT and RT2 movements represents a significant portion of the sample size, particularly at sites TU-042, TU-072, TU-073, AU-21, and AU-22. These movements at these sites represent about 62 percent of the sample size (525 of 850 vehicles). Additional turning movements were possible but not included in the minor movement analysis. Turning vehicles that originated from the minor approaches and passed through the crosswalk are included in the other analyses documented in this chapter.

Table 65. Minor movement vehicle distribution by site.
Site Movement Code
LT LT1 RT2 TH1 TH2 Total
TU-003 2 1 0 0 0 3
TU-004 10 0 7 0 0 17
TU-007 3 0 3 0 0 6
TU-021 3 13 8 4 6 34
TU-037 4 7 10 4 1 26
TU-042 154 2 116 11 0 283
TU-059 9 34 3 6 3 55
TU-070 0 10 0 0 0 10
TU-072 30 7 18 5 3 63
TU-073 27 3 46 1 0 77
TU-090 0 13 1 2 0 16
AU-04 8 17 9 2 0 36
AU-11 0 21 0 0 0 21
AU-16 0 8 0 0 0 8
AU-21 13 0 42 0 0 55
AU-22 28 0 51 0 0 79
AU-24 12 42 2 2 3 61
Grand Total 303 178 316 37 16 850

The vehicle distribution by movement code and PHB indication on vehicle arrival is provided in table 66. Arrival is defined as the time that the vehicle stopped at the stop line on its approach or the time that the vehicle crossed the stop line if it did not stop. The vehicle distribution by movement code and PHB indication on its departure is provided in table 67. Departure is defined as the time that the vehicle exited the intersection.

Table 66. Minor movement vehicle distribution upon vehicle arrival.
Movement Code PHB Indication
Dark Flashing Yellow Steady Yellow Steady Red Flashing Red Total
LT 31 1 14 85 172 303
LT1 41 3 12 54 68 178
RT2 32 4 15 79 186 316
TH1 14 1 2 8 12 37
TH2 7 0 1 3 5 16
Grand Total 125 9 44 229 443 850
Table 67. Minor movement vehicle distribution upon vehicle departure.
Movement Code PHB Indication
Dark Flashing Yellow Steady Yellow Steady Red Flashing Red Total
LT 33 0 3 107 160 303
LT1 22 0 0 89 67 178
RT2 39 0 1 111 165 316
TH1 4 0 0 22 11 37
TH2 1 0 0 11 4 16
Grand Total 99 0 4 340 407 850

As shown by the total count numbers in the rightmost columns of table 66 and table 67, the turning movements were the most commonly observed movements, especially movements LT and RT2, which were complementary. The through movements were less common, partly because these movements did not exist at the three-legged intersection sites.

The total count numbers in the bottom rows of table 66 and table 67 generally reflect the proportion of time that the PHB was active. The number of vehicles arriving or departing on the dark indication is small because vehicles that both arrived and departed on the dark indication were excluded from this analysis.

The distribution of minor movement vehicles by PHB indication upon arrival and PHB indication upon departure is shown in table 68. As shown, most vehicles departed on either steady red or flashing red regardless of when they arrived. However, a small number of vehicles experienced notable delay because they arrived while the PHB was active but could not depart until the next dark indication. Specifically, nine vehicles arrived during flashing red but did not depart until the steady yellow or steady red indication during the next PHB actuation. These long delays occurred during periods when the major street volume was sufficiently high enough that no acceptable turning or crossing gaps were available during the dark indication, and the major street drivers were aggressive during the flashing red indication such that they either did not stop consistently or stopped briefly and proceeded without waiting for other drivers' movements to proceed.

Table 68. Minor movement vehicle distribution by PHB indication.
PHB Indication Upon Arrival PHB Indication Upon Departure
Dark Flashing Yellow Steady Yellow Steady Red Flashing Red Total
Dark 0 0 0 108 17 125
Flashing yellow 0 0 0 8 1 9
Steady yellow 0 0 0 39 5 44
Steady red 5 0 0 180 44 229
Flashing red 94 0 4 5 340 443
Grand Total 99 0 4 340 407 850

To examine stop compliance, drivers were classified as violators under the following conditions:

Each driver in the database was thus classified as a violator or non-violator, and violation rates were computed for each site based on the amount of video footage that was collected at the site (i.e., violations per hour). These findings are shown in table 69. The percentage of drivers not stopping varied widely, from 30.8 to 89.9 percent. Many of these percentages were computed based on the small number of minor movement vehicles that were observed while the PHBs were active. In terms of rate, violations at most sites were less common than five violations/h (or one violation every 12 min).

Table 69. Minor-movement violation rates by site.
Site Number of Vehicles Percent Not Stopping Violation Rate (Violations/h)
TU-003 3 33 0.4
TU-004 17 65 2.6
TU-007 6 33 0.5
TU-021 34 32 2.2
TU-037 26 31 1.9
TU-042 283 72 46.7
TU-059 55 60 7.2
TU-070 10 60 1.5
TU-072 63 33 3.9
TU-073 77 42 7.5
TU-090 16 44 1.6
AU-04 36 64 6.3
AU-11 21 52 3.0
AU-16 8 38 0.8
AU-21 55 49 10.2
AU-22 79 90 40.6
AU-24 61 39 5.4

The following seven sites were found to have violation rates in excess of five violations/h: TU-042, TU-059, TU-073, AU-04, AU-21, AU-22, and AU-24. A more focused examination of these sites was conducted by computing violation rates for each movement. The results of this examination are shown in table 70. Similar computations were performed for all movements at all sites, but none of the movements omitted from table 70 had violation rates higher than four violations/h.

Table 70. Selected minor-movement violation rates by site and movement code.
Site Movement Code Number of Vehicles Percent Not Stopping Violation Rate (Violations/h) Notes
TU-042 LT 154 72 25.4 Entering a collector near a high school campus
RT2 116 77 20.4 Exiting a collector near a high school campus
TU-059 LT1 34 56 4.2 Exiting a residential neighborhood with a nearby elementary school campus
TU-073 RT2 46 46 4.9 Exiting a residential neighborhood with a nearby high school campus
AU-04 LT1 17 88 4.1 Exiting a collector near a supermarket
AU-21 RT2 42 48 7.8 Exiting a supermarket
AU-22 LT 28 96 15.4 Entering a supermarket
RT2 51 86 25.2 Exiting a supermarket
AU-24 LT1 42 43 4.1 Exiting a supermarket

All of the movements listed in table 70 were located close to major traffic generators such as schools or supermarkets. In fact, the majority of the violations observed at site TU-042 occurred in the morning period before classes began for the day. Violations were also frequent at site AU-22; however, it should be noted that the LT movement at this site occurred from a TWLTL, and the stop line for the PHB was marked in the adjacent through lanes but not in the TWLTL, suggesting that the stopping requirement might not have been intended for this movement. This marking practice differed from the practice at other Austin, TX, sites, where stop lines were extended through all approach lanes. Sites AU-21 and AU-22 were similar in that their LT and RT2 movements went into or out of supermarkets, but the LT movement at site AU-22 did not have a high violation rate. The major street at this site was a four-lane undivided city arterial, so left-turning drivers did not have a turn bay and were often blocked from completing the LT movement while the PHB was active.

Based on the preceding information, the following observations could be made:

These trends may occur at any type of unsignalized pedestrian crossing treatment while pedestrians are present. They are likely not unique to PHB-controlled crossings.

PEDESTRIAN BEHAVIORS FINDINGS

Pedestrian Departures by Indication

Of the 1,979 pedestrians crossing the street, 290 were research team members who always crossed when the beacons showed steady or flashing red to the motorists. Most of the remaining 1,689 general public pedestrians departed when the beacon showed a steady red indication to the drivers. As shown in table 71, 80 percent departed during the steady red or flashing red indications. Approximately 13 percent of the pedestrians departed while the PHB was still in the vehicle clearance intervals.

Table 71. Pedestrian departures by indication.
Site Dark Flashing Yellow Steady Yellow Steady Red Flashing Red Total
TU-003 0 1 1 11 1 14
TU-004 0 1 13 58 5 77
TU-007 1 0 5 47 3 56
TU-021 3 1 6 53 1 64
TU-037 6 0 5 66 5 82
TU-042 22 2 18 101 12 155
TU-059 0 1 4 21 4 30
TU-070 3 0 2 18 3 26
TU-072* 16 0 9 57 0 82
TU-073 1 1 0 77 12 91
TU-090 2 0 3 3 0 8
TU-091 4 0 0 10 0 14
AU-04 6 4 4 44 5 63
AU-07a 20 6 22 132 18 198
AU-11 0 0 2 47 22 71
AU-16 1 2 2 86 3 94
AU-21 1 3 20 73 7 104
AU-22 7 10 28 123 22 190
AU-24 28 10 16 130 25 209
AU-27 3 1 3 46 8 61
Grand Total (Percent) 124 (7) 43 (3) 163 (10) 1,203 (71) 156 (9) 1,689 (100)

aThe PHB was located within the coordinated corridor where the timing of when the PHB was active was influenced by the nearby coordinated signals.

For the pedestrian crossings observed that did not include the research team member crossings, only 124 pedestrians (7 percent) left during the dark indication. For the majority of these pedestrians, the roadway volume was such that the pedestrian was able to find sufficient gaps to cross. The volume per minute per lane was less than fourvehicles/min/lane for the majority of these crossings. Figure 62 shows the cumulative distributions of the 1 min/lane volume for those pedestrians that departed during the dark indication (i.e., blue dashed line) and those that departed during an active indication (i.e., red solid line). Pedestrians were more likely to wait for the PHB to be active before starting to cross at the higher roadway volumes, as shown by the location of the red solid line to the right of the blue dashed line. For example, the cumulative distributions reached the value of 80 percent at volumes of about six vehicles/min/lane for the blue dashed line and about eight vehicles/min/lane for the red solid line. This trend shows that only 20 percent of non-compliant pedestrians were still willing to cross if the roadway volume exceeded six vehicles/min/lane (i.e., 1,440 vehicles/h at a four-lane site). Less than 5 percent of non-compliant pedestrians crossed when the roadway volume exceeded 10 vehicles/min/lane. Conversely, roughly half of the compliant pedestrians crossed at roadway volumes exceeding six vehicles/min/lane.

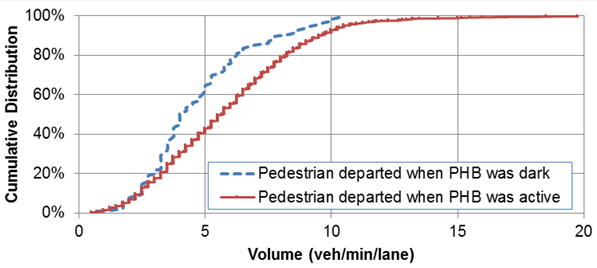

Figure 62. Graph. Volume cumulative distribution when pedestrian started the crossing. This graph shows the volume cumulative distribution when the pedestrian started the crossing. The y-axis shows cumulative distribution from 0 to 100 percent, and the x-axis shows the volume of vehicles per minute per lane from 0 to 20 vehicles/min/lane. There are of two S curves representing two cumulative distributions. One curve is shown in solid red and represents data when pedestrians departed when the pedestrian hybrid beacon (PHB) was active. The cumulative distribution increased with volume and plateaued at 100 percent when the volume equaled 15 vehicles/min/lane. The other curve represents data when pedestrians departed when the PHB was dark; the cumulative distribution reached 100 percent at a volume of 10 vehicles/min/lane.

Figure 62. Graph. Volume cumulative distribution when pedestrian started the crossing.

Two of the PHB sites were located within coordinated corridors where the timing of PHB activation was influenced by the nearby coordinated signals. The other 18 sites were at "hot button" sites, where the PHB sequence starts following the push of the pushbutton. About one-third of the pedestrians (36 of 124) who departed during the dark indication were at the sites where the PHB is coordinated with nearby signals. While a large value, there were other sites with more pedestrians departing during the dark indication, both in terms of number of pedestrians and proportion of pedestrians observed at the site. The percentage of pedestrians departing during the dark indication was 13 percent at the coordinated sites and 6 percent at the hot button sites. Departures on dark were much less frequent at the coordinated site that had pedestrian pushbuttons with red lights that illuminate when the button is pressed. The coordinated site with the red-lighted buttons had 10 percent of pedestrians departing on dark, while the coordinated site with the non-lighted buttons had 20 percent of pedestrians departing on dark.

Pedestrian Actuation of the PHB

Of the 1,979 pedestrians crossing the street, 290 were research team members who crossed using a staged pedestrian protocol and always activated the PHB. The remaining 1,689 general public pedestrians were coded by whether they pushed the pedestrian pushbutton or did not push the pushbutton subdivided by whether the PHB was already active or not active when they arrived to the crossing. Table 72 shows the number of pedestrians by action. Overall, most pedestrians (average of 91 percent) who could have activated the PHB did. As can be seen in table 72, there were some sites with lower percent actuations (e.g., AU-04) and other sites where every pedestrian crossed with an activated PHB (e.g., TU-03, TU-04, and AU-11).

Table 72. Number of pedestrians by site who pushed, did not push, or did not push because PHB was active.
Site Pushed Did Not Push Did Not Push; Already Active Total Number of Pedestrians Percenta
TU-003 13 0 1 14 100
TU-004 73 0 4 77 100
TU-007 55 1 0 56 98
TU-021 61 2 1 64 97
TU-037 75 6 1 82 93
TU-042 116 21 18 155 85
TU-059 29 1 0 30 97
TU-070 21 3 2 26 88
TU-072b 66 14 2 82 83
TU-073 62 13 16 91 83
TU-090 6 2 0 8 75
TU-091 12 2 0 14 86
AU-04 43 14 6 63 75
AU-07b 165 14 19 198 92
AU-11 49 0 22 71 100
AU-16 90 1 3 94 99
AU-21 97 2 5 104 98
AU-22 147 11 32 190 93
AU-24 162 25 22 209 87
AU-27 55 3 3 61 95
Grand Total 1,397 135 157 1,689 91

aPercent = Percentage reflecting the ratio of the number of pedestrians that pushed the button to the number of pedestrians that if they would have pushed the button would have triggered a change in the device (i.e., those that pushed and those that did not when the device was dark). In other words, this column does not include those pedestrians who arrived when the PHB was active.
bThe PHB was located within coordinated corridor where the timing of when the PHB was active was influenced by the nearby coordinated signals.

A plot of the percentage of pedestrians who activated the PHB when arriving to the crossing when the PHB was not already active is shown by posted speed limit in figure 63, by crossing distance in figure 64, and by hourly volume in figure 65 . A review of these plots shows trends for the highest values. A high number of pedestrians (93 percent) activated the device on the 45-mi/h posted speed limit road. For the 40-mi/h or less roads, a large range of actuation was observed—between 75 and 100 percent. The percentage of pedestrians pushing the button was always greater than 83 percent for the longer crossing distances (i.e., longer than 110 ft).

The 1-min volume count nearest to the arrival time of the pedestrian was determined. The number of pedestrians by their action was summed for each 1-min count value for all 20 sites. The 1-min counts with less than 20 pedestrians crossing were omitted for the plot shown in figure 65. The 1-min count was adjusted to an hourly equivalent value by multiplying the 1-min count by 60. When the hourly volume for both approaches was 1,500 vehicles/h or more, the percent of pedestrians activating the PHB was always 92 percent or more.

Figure 63. Graph. Percentage of pedestrians pushing button, by posted speed limit. This graph shows the percentage of pedestrians pushing the button, by posted speed limit. The
y-axis shows the average percentage of pedestrians pushing the button at each site from 70 to 100 percent, and the x-axis shows the posted speed limit from 25 to 50 mi/h. For a site where the speed limit was 30 mi/h, the percent of pedestrians pushing the button was 85 percent. For a site where the speed limit was 45 mi/h, the rate was around 93 percent. There were many sites where the speed limit was 35 mi/h, and the rate ranged from 75 to 99 percent. There were many sites were the speed limit was 40 mi/h, and the percent of pedestrians pushing the button ranged from 75 to 100 percent.

Figure 63. Graph. Percentage of pedestrians pushing the button, by posted speed limit.

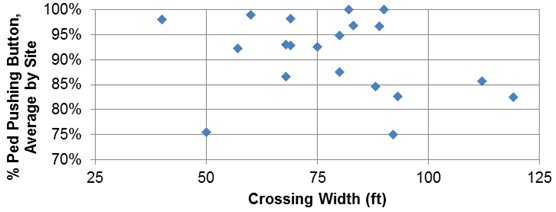

Figure 64. Graph. Percentage of pedestrians pushing the button, by crossing distance. This graph shows the percentage of pedestrians pushing the button, by crossing distance. The y-axis shows the average percentage of pedestrians pushing the button at each site from 70 to 100 percent, and the x-axis shows crossing width ranging from 25 to 125 ft. Most sites were between 50 and 100 ft in crossing width with more than 80 percent of pedestrians pushing the button.

Figure 64. Graph. Percentage of pedestrians pushing the button, by crossing distance.

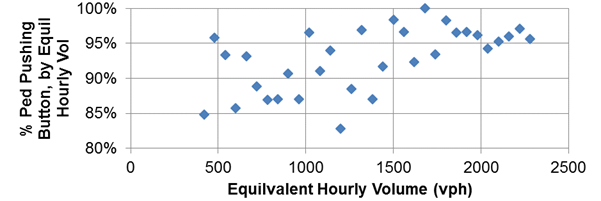

Figure 65. Graph. Percentage of pedestrians pushing the button, by 1-min volume counts adjusted to hourly counts. This graph shows the percentage of pedestrians pushing the button, by 1-min volume counts adjusted to hourly counts. The y-axis shows the percentage of pedestrians pushing the button by equivalent hourly volume from 80 to 100 percent, and the x-axis shows the equivalent hourly volume from 0 to 2,500 vehicles/h. The percentage of pedestrians pushing the button ranged from 83 to 100 percent, with the percentage generally increasing as volume increased.

Figure 65. Graph. Percentage of pedestrians pushing the button, by 1-min volume counts adjusted to hourly counts.

Some of the pedestrians who activated the PHB departed prior to the walk indication. The beacon indication when the pedestrian departed is shown in table 73. Most of the pedestrians who departed after pushing the pushbutton either left during the steady red (82 percent) or the flashing red (2 percent). About 1 percent of those who activated the device left while the device was still dark, with most occurring at the two locations where the PHB was within a coordinated corridor (sites TU-072 and AU-07).

Table 73. Indication when pedestrian departed for those that activated the PHB.
Site

Dark Flashing Yellow Steady Yellow Steady Red Flashing Red Total
TU-003 0 1 1 11 0 13
TU-004 0 1 13 58 1 73
TU-007 0 0 5 47 3 55
TU-021 0 1 6 54 0 61
TU-037 0 0 5 66 4 75
TU-042 0 2 18 96 0 116
TU-059 0 1 4 21 3 29
TU-070 0 0 2 18 1 21
TU-072a 5 0 8 53 0 66
TU-073 0 1 0 60 1 62
TU-090 0 0 3 3 0 6
TU-091 2 0 0 10 0 12
AU-04 0 4 4 35 0 43
AU-07a 6 6 22 129 2 165
AU-11 0 0 2 47 0 49
AU-16 0 2 2 86 0 90
AU-21 0 3 20 70 4 97
AU-22 1 9 28 109 0 147
AU-24 3 10 16 129 4 162
AU-27 0 1 3 46 5 55
Grand Total (Percent) 17 (1.2) 42 (3.0) 162 (11.6) 1,148 (82.2) 28 (2.0) 1,397 (100)

aThe PHB was located within coordinated corridor where the timing of when the PHB was active was influenced by the nearby coordinated signals.

CONFLICTS FINDINGS

All occurrences of pedestrian/vehicle conflicts and erratic maneuvers were noted when observed in the video footage. A conflict is defined based on the following criteria:

In the 78 h of video footage, 54 conflicts were observed. The distribution of the conflicts categorized by vehicle maneuver was 38 for through vehicles, 10 for left-turning vehicles, and 6 for right-turning vehicles. Distribution by vehicle maneuver was analyzed because of concerns about turning traffic operations while the PHB was serving pedestrians. While major street through vehicles were stopped by the PHB, turning drivers originating from the minor approaches could see significant gaps form on the major street and may have taken this opportunity to turn, possibly leading to conflicts with pedestrians in the crosswalk.

The conflicts were tabulated by vehicular beacon indication and vehicle maneuver, as shown in table 74. Beacon indication can be used to classify pedestrians as compliant (i.e., they departed the corner on a steady red indication while the walk indication was displayed) or non-compliant (i.e., they departed on one of the other beacon indications while the flashing or steady do not walk indication was displayed). Slightly less than half of the observed conflicts occurred during the dark beacon indication and involved a through vehicle. These conflicts usually involved pedestrians who either crossed without pushing the button or pushed the button but did not wait for the walk indication and then paused in the raised curb median while crossing. The latter case occurred most frequently at site TU-072 (14 conflicts), which had 6 lanes and operated in coordinated mode.

Table 74. Vehicle and pedestrian conflicts by beacon indication and vehicle maneuver.
Beacon Indication Vehicle Maneuver
Through Left Turn Right Turn Total
Darka 25 2 0 27
Flashing yellowa 0 0 0 0
Steady yellowa 0 1 0 1
Steady red 8 7 6 21
Flashing reda 5 0 0 5
Total 38 10 6 54

aIndicates pedestrians who were not in compliance with signal indication.

A notable number of conflicts involving left-turning vehicles was observed at site AU-21. This site was located near a well-patronized supermarket and a bus stop, with a driveway located about 45 ft away from the crosswalk. At that distance, drivers making left turns out of the supermarket parking lot would be able to turn onto the major street but would still be oriented diagonally when encountering the crosswalk. Many of these drivers encroached on the crosswalk while attempting to complete their turning maneuvers, leading to conflicts if pedestrians were present. A similar geometric layout was present at site AU-22, but this site did not exhibit conflicts because the driveway was located farther away from the crosswalk (about 60 ft) and afforded left-turning drivers more room to complete their turning maneuvers and wait for pedestrians to clear.

To account for exposure differences across the sites, conflict rates were computed using three conflict rate measures, as provided in table 75. The measure of conflicts per pedestrian-vehicle accounted for the influence of both pedestrian and vehicle exposure. For all three rate measures, the conflict rate was found to be higher for non-compliant pedestrians than for compliant pedestrians. These rates were interpreted in terms of total exposure (pedestrians or vehicles or pedestrian and vehicles). That is, at a site that experiences 100 pedestrians crossing per hour, it is expected that 2.73 conflicts would be observed per hour, of which 1.06 would involve compliant pedestrians and 1.67 would involve non-compliant pedestrians.

Table 75. Pedestrian-vehicle conflict rates.
Pedestrian Group Conflicts per 100 Observed Pedestrians Conflicts per 10,000 Vehicles
All 2.73 4.15
Compliant 1.06 1.61
Non-compliant 1.67 2.54

Notable conflict rates were observed at site TU-072 because of the high number of non-compliant pedestrians. This site operated in coordinated mode with buttons that did not provide audible or visual cues indicating that the button press had been registered. As a result, many pedestrians pushed the button but may have believed that the PHB was malfunctioning or may have grown impatient while waiting for service and crossed the major street before the walk indication was displayed. Similar behavior was not observed at site AU-07, which operated in coordinated mode but with buttons that had small red lights that illuminated when the button was pressed.

Notable conflict rates for both compliant and non-compliant pedestrians were also observed at several sites where the PHBs were located near supermarkets and multiple bus stops. At these sites, many bus riders walked through the supermarket parking lots or ran across the major street while transferring between bus lines. The presence of bus stops near an access point with significant turning vehicle volumes tended to result in higher conflict rates.





Federal Highway Administration | 1200 New Jersey Avenue, SE | Washington, DC 20590 | 202-366-4000
Turner-Fairbank Highway Research Center | 6300 Georgetown Pike | McLean, VA | 22101
