511: Case Study Overview – The State of Arizona

511 Logo

This overview report is also available as an Adobe PDF file at, requiring Adobe Acrobat Reader

Five government sponsored phone-based traveler information systems have been identified to be operating in Arizona. The 888-411-ROAD toll-free phone system, Voice Remote Access System (VRAS), operated by Arizona DOT (ADOT) is the most relevant in terms of near-term 511 services. The VRAS is an automated interactive voice response (IVR) system that handled over 100,000 phone calls in 2000, more than a 100% increase from 1999. The VRAS often becomes overloaded with demand during inclement weather or holiday weekends.

The Roadway Closures and Restrictions System (RCRS) provides this information to the VRAS. The RCRS collects information about construction locations, traffic-related maintenance activities, weather-related road closures, and traffic incidents from various authorized agencies for both local arterial streets and urban/rural highways statewide. Presently, data is inserted from 89 locations ranging from ADOT Districts, several cities, the Highway Patrol, National Forest and Weather Services, Grand Canyon National Park as well as neighboring states. The RCRS software is available to other public agencies through a free license from Arizona DOT.

511 Vision

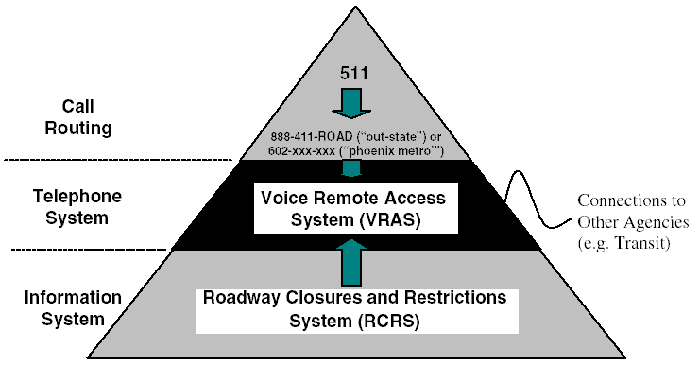

Graphic of a pyramid divided into 3 horizontal sections, labeled from top to bottom as Call Routing, Telephone System, and Information System. The top third contains 511 and an arrow pointing toward the middle section, as well as the telephone numbers 888-411-ROAD for out-state areas and 602-523-0244 for the Phoenix metro area. The middle section contains the Voice Remote Access System or VRAS. The bottom third of the pyramid contains the Roadway Closures and Restrictions System or RCRS, and an arrow pointing toward the middle section. Outside the right edge of the pyramid is a curved line indicating connections to other agencies, such as transit

At least in the near-to-mid-term, Arizona DOT will continue to operate the VRAS as the gateway to traveler information in the state. The service will continue to be free to callers. Key elements of the Vision of the Arizona 511 approach are:

Ongoing Activities

An Arizona 511 Task Force has been established to coordinate the conversion of existing phone systems to 511 and facilitate their functional expansion. The Task Force identified several key issues and steps needed to roll out 511 services, with an initial focus on wireline calls. However, Qwest, the largest wireline carrier, has not been as responsive as hoped to work out the necessary technical and financial agreements to enable call routing.

Lessons Learned

For full report, in Adobe PDF format, go to:
