In 2016 the United States Department of Transportation (USDOT) Federal Highway Administration (FHWA) published a Guidebook for Developing Pedestrian and Bicycle Performance Measures that presents methods for measuring walking and bicycling performance and activities and embedding them into the transportation planning and decisionmaking process (U.S. Department of Transportation 2016). Building on the 2016 guidebook, this resource focuses on pedestrian and bicycle network connectivity and provides information on incorporating connectivity measures into state, metropolitan, and local transportation planning processes. Connectivity measures can help transportation practitioners identify high priority network gaps, implement cost-effective solutions that address multiple needs, optimize potential co-benefits, and measure the long-term impacts of strategic pedestrian and bicycle investments on goals such as improving safety, system efficiency, network performance, and access to key destinations. Toward that end, this resource should be used in conjunction with self-evaluation and transition plans to evaluate needs for pedestrians with disabilities.
Connectivity is one of several concepts commonly used in transportation performance measurement to describe the ease with which people can travel across the transportation system. At its simplest level, network connectivity addresses the question, "Can I get where I want to go easily and safely?" Multimodal network connectivity adds the dimension of travel choices to the picture: "Can I get where I want to go easily and safely in whatever way I choose-for example, walking, bicycling, using transit, or driving?" A connected multimodal network allows people to travel by whatever mode they choose, including people who do not drive or do not have access to a motor vehicle.
This guidebook outlines five core components of multimodal network connectivity, as listed below, with a focus on pedestrians and bicyclists. While these components are all related, the distinctions between them provide a framework for selecting connectivity measures that address specific questions. The guidebook describes analysis methods and supporting measures associated with each of these components.
These analysis methods involve assessments of one or more types of performance measures, such as average trip lengths and the numbers of jobs accessible within a given distance of a multimodal route. The FHWA Guidebook for Developing Pedestrian and Bicycle Performance Measures (2016) provides detailed discussions of these and many other measures. It is a useful companion to this guidebook, which focuses on connectivity analyses, by providing technical information on computing a broad range of bicycle and pedestrian performance measurements.
Although connectivity analysis methods and measures are still evolving, a growing body of research points to the key role of high-quality, connected networks in making bicycling and walking safer, more convenient, and more prevalent (Buehler and Dill 2016; Tal and Handy 2012). Since connectivity has a strong influence on the likelihood of achieving these types of outcomes, planners can use ongoing connectivity assessments as leading indicators of the potential for the outcomes to ultimately occur, even though actual changes in travel behavior or safety impacts may take time to become fully evident.
The outputs generated by connectivity analyses enhance accountability by helping decisionmakers weigh the potential outcomes of planned multimodal connectivity investments. Connectivity assessments can help transportation agencies and stakeholders examine questions such as: If we make it easier for pedestrians and bicyclists to cross busy streets, will the roadways be safer for all users? Or if we make sure every neighborhood has bike paths to schools and jobs, would more people bike to these destinations? Multimodal connectivity measurement can inform the iterative, comprehensive process of planning and implementing complete multimodal networks shown in Figure 1. Table 1 identifies relevant questions that connectivity analyses can inform at each step of the planning process.
While this guide can be informative for people involved in all aspects of transportation decisionmaking, the material is targeted to planners and analysts who conduct the analyses that support the decisionmaking process. For those who desire a broad understanding of the concepts and methods involved in assessing connectivity, Chapter 1 offers a high-level overview of the analysis process. Readers are introduced to concepts of bicycle and pedestrian networks common to all measures of connectivity.
For those who want a deeper understanding of the technical process, Chapter 2 provides a step-by- step approach for conducting a connectivity analysis, supplemented in Chapter 3 by a series of fact sheets on analysis methods and measures. Chapter 4 summarizes lessons learned from practitioners in case study communities, and the Appendix provides descriptions of five case study assessments conducted as part of the research to develop this guide. Referenced throughout the report, these case studies highlight opportunities, challenges, and notable practices as well as illustrations of different ways of implementing the connectivity analysis steps.

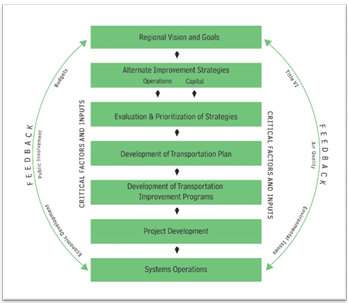

| Planning Process Step | Relevant Planning Tasks |
Questions Informed by Connectivity Analysis |
|---|---|---|
| Vision and Goals | Monitoring and Benchmarking | · What are the needs, priorities, and desires of community members and stakeholders? How and where do they want to see connections that will support their everyday needs and their bigger-picture goals, such as economic revitalization and job growth? · How has multimodal network connectivity changed over time? · How does connectivity in one area compare to other similar communities, regions, or states? |
| Alternate Improvement Strategies | Gap Identification Needs Assessment |
· Where are missing or low-quality connections in existing facilities? · Where are fixes needed? |
| Evaluation and Prioritization of Strategies | Scenario Analysis Project Prioritization | · How do different projects or strategies compare when it comes to improving the connectivity of the network? · What small but important improvements, such as connecting a bike route bisected by a highway intersection or fixing broken sidewalks, could make a big difference in achieving local goals for access to jobs, training, and essential services for all users? |
| Development of Transportation Plan | Scenario Analysis Gap Identification Needs Assessment Project Prioritization | · What destinations can people reach by biking and walking? · Which neighborhoods have higher or lower accessibility to the network or to specific destinations? · How does multimodal connectivity relate to other planning issues such as safety, system use, job growth, and equity? |
| Development of Transportation Improvement Programs | Project Prioritization | · How can the most cost-effective connectivity improvement be achieved while still advancing other high-priority needs? · How can funding be leveraged to best improve connectivity and achieve multiple agency goals for economic revitalization and job growth? |
| Project Development and System Operations | Feedback loop to inform iterative plan updates | · How can multimodal connectivity be maintained or improved during project construction? · How can multimodal connectivity be preserved and enhanced during routine system maintenance and operation? |

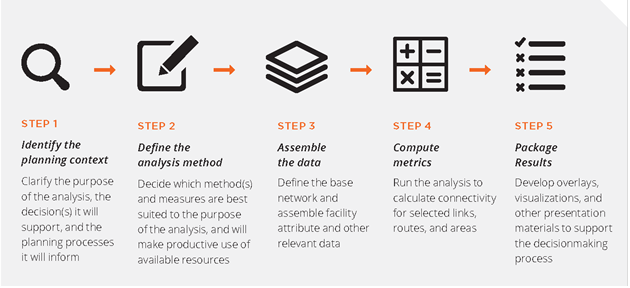

This guide provides a step-by-step framework for selecting and applying connectivity measures to help make decisions that are grounded in a comprehensive vision, supported by clearly defined goals and measurable objectives. Organized around the five steps shown in Figure 2, this chapter describes the terminology and procedures, while highlighting practical examples in each step.
In many real-world applications, the steps above will require an iterative process; for example, initial connectivity calculations might highlight errors or other deficiencies in underlying data that need to be corrected. As part of the development of this guidebook, five communities participated in case study applications of the analysis tools and measures discussed (Table 2). References to the case study results appear illustratively throughout the guidebook and are summarized in the Appendix.
| Analysis Step | Atlanta | Baltimore | California | Fort Collins | Portland |
|---|---|---|---|---|---|
| Step 1: Identify Planning Context | Identify potential bicycle projects that would improve access to local centers in urban and suburban locations, using a regionally consistent approach that can inform regional funding decisions | Develop more sensitive pedestrian network connectivity measure for citywide planning, benchmarking, and accessibility to destinations | Measure bicycle mobility across high speed state highway corridors for project planning, prioritization, funding, and benchmarking | Analyze bicycle network quality and connectivity, repeatable over time for citywide planning and benchmarking | Identify bike/ walk connectivity gaps and evaluate how well Regional Transportation Plan (RTP) projects address the gaps |
| Step 2: Define Analysis Method | Access to destinations (centers) via Bicycle networks: a) Facility-based b) Quality-weighted (level of stress) | Network completeness: a) Facility-based (sidewalks) b) Quality-weighted (level of stress) | Directness of routes crossing the highway that use facilities that meet a minimum quality | Network completeness and access to destinations via low-stress network | Selected facility based Measures developed as part of RTP update, as well as two statistically consolidated measures |
| Step 3: Assemble Data | Planned and existing routable networks, designated bicycle facilities, level of traffic stress segment ratings, population, community centers/ boundaries | Centerline network, posted speed, number of lanes, sidewalks, curb ramps, bicycle facilities, land use, traffic signals, number of lanes, parking | Routable network open to bikes, roadway functional class, state highway corridor centerlines | Routable network, bicycle facilities, lane widths, turn lanes, parking, posted speeds, trails, traffic signals, topography, and land use | Existing and planned bicycle and pedestrian facilities, on-street and trail, transportation and equity planning areas |
| Step 4: Compute Metrics | 3-mile travelsheds along low-stress networks calculated in GIS | Sidewalk presence and two quality-weighted scores for each network link | Level of traffic stress rating for each segment, and shortest paths along lower-stress network at regular intervals | Level of traffic stress, route directness from Census blocks to schools on low stress network, and link centrality | Seven form-based metrics computed at traffic analysis zone (TAZ) level; two consolidated measures derived from factor analysis |
| Step 5: Package Results | Travelshed maps, population within travelshed by area | Network link maps and tabular result summaries aggregated to neighborhood | Route directness ratings along corridors, and tabular summaries by corridor | Connectivity island (network gap) maps, and equity overlays | Current and percent change maps by TAZ; overall change by metric and equity-focus area |
As an initial step, agencies need to identify the planning context and specific steps or questions that a network connectivity analysis will inform. Analysis performed without this context in mind is unlikely to provide the right information. Further, many connectivity measures are technically complex, and results can be challenging to understand and communicate in isolation. The analysis goal should be to provide answers to questions posed by specific planning tasks, while acknowledging and coordinating with the broader agency planning and policy context where possible.
Once defined, the specific analysis purpose will guide the rest of the connectivity analysis. As the case study examples in Table 2 illustrate, some key parameters to consider when defining the planning context include mode (bikes, pedestrians, or both); analysis scale (local areas, corridors, or regionwide); and the role of the agency (local or state network ownership/ operation, regional planning and technical assistance). Specifically, the questions discussed below will help define the analysis context.
The specific planning context will, to a large extent, define connectivity analysis parameters, including the mode focus (pedestrian, bicycle, or both), scale, and key outputs. The Atlanta Regional Commission (ARC) case study, for example, focused on local analysis of bicycle network gaps around specific locations, while the Portland Metro case study sought to inform region-wide connectivity for pedestrians and bicyclists without specific destinations in mind. Measures, data, and summarization techniques will naturally vary between such different cases.
In addition to the specific analysis context, an agency's broader planning context can provide useful input into the design of connectivity analyses and the selection of specific methods. Aligning measures with existing plans and policies can help decisionmakers interpret results or allow agencies to substitute simpler measures that more efficiently capture the implementation of current plans and policies. For example, the Portland Metro case study connectivity analysis borrowed aggregation areas and equity definitions from their broader regional planning context. This helped to align connectivity findings with related regional plan data and policies. The City of Lincoln (Nebraska) developed an interactive network gap analysis tool that could be used to support specific planning tasks throughout their broader Complete Streets program (Lincoln/Lancaster County Planning Department 2015). The tool is updated and used regularly by staff and can be pulled up in any agency planning meeting to provide connectivity information.
Relevant plans and policies to consider in identifying connections to broader policy or planning context include the following:
Current bicycle and pedestrian plans: One simple way to analyze connectivity is to measure the percentage of planned facilities that have been built. This approach can be meaningful when a community has developed a detailed, consensus-based bicycle and/or pedestrian plan, but it is less meaningful if the plan is dated or has only received limited stakeholder feedback or approval. It also doesn't account for the fact that some projects will have a relatively more important impact on the overall network than others and that this isn't necessarily determined by the size of the project.
Other transportation policies: Connectivity measures can also capture the extent to which other transportation policies are being implemented. For example, in communities that have adopted complete streets standards, it may be useful to measure the percentage of street-miles with bicycle and pedestrian facilities. Some communities have minimum street spacing standards that could serve as a basis for assessing the density of the bicycle and pedestrian network.
Precedent: In communities that have previously conducted a connectivity analysis, it may be useful to be consistent with the measures used before for benchmarking purposes.
Since connectivity analyses are inherently tied to bicycle and pedestrian networks, identifying the relevant network or networks is a necessary part of identifying the planning context. For example, in the California case study analysis, Caltrans was interested only in network connectivity across specific highway corridors. This informed method selection in subsequent steps; for instance, a method meant to summarize connectivity across an entire network or within areas (e.g. on either side of the highway) would not have been suitable. In the Portland Metro case study example, all bicycle and pedestrian facilities were included as attributes of the base year network, but planned projects included only those identified in the 10-year regional Active Transportation Plan (ATP). The ATP was the primary process the connectivity analysis was meant to inform. Method selection then focused on measures of system completeness and density to capture the impact of ATP projects on the bicycle and walking networks. More detailed discussion of defining analysis networks is provided under Step 3.
The agency conducting the connectivity analysis does not always own or have primary planning responsibility for the network. And, even for those that do have planning or jurisdictional authority, connectivity assessments that consider only the roadways and facilities within an agency's control will often not be as useful as ones that consider the function of those facilities within the larger network.
Agencies without direct control over network facilities may still wish to provide technical support, help to secure funding to network owners for project implementation, or simply consider how their own facilities interface with others. For example, metropolitan planning organizations (MPOs) and transit agencies may provide connectivity analysis data or tools to local jurisdictions. In the Atlanta case study example, one goal of the MPO was to further development of a standardized, repeatable bicycle network connectivity analysis that could be conducted by local jurisdictions for grant funding applications. The California case study analysis recognized that the state highway system posed barriers to bicycle and pedestrian connectivity, so Caltrans focused their analysis on assessing directness of nonmotorized routes that crossed their facilities. The text box on the previous page provides further examples from transit agencies that produced tools or analysis for use by owners of bicycle and pedestrian networks that provided access to transit facilities.
The scale of analysis is affected by the specific purpose and context of the analysis. Is the planning need a high-level sketch of the network as a whole, with limited details on the characteristics and quality of individual links? Should connectivity be summarized to specific areas? For example, will the study overlay with supporting data to measure progress toward equity goals? Or does the planning context require more in-depth descriptions of the quality of routes that connect specific origins and destinations?
Data availability is another consideration when determining the scale of an analysis. Some agencies find that required data is hosted in various departments or across different jurisdictions, all with different standards and maintenance procedures. Data can be maintained at varying levels of detail and one department or agency's database may omit specific attributes that another department needs. In other instances, data may not be readily available and will need to be collected or purchased to conduct the analysis.
When analysis is based on facility quality (e.g. level of service or perceived stress/attractiveness) or specific destinations, it is possible to collect more detailed data and conduct a more sophisticated analysis than larger-scale assessments with limited data availability. Typically, larger-scale analyses and tools have relied on simpler measures due to limited data availability. However, larger scale does not necessitate simpler measures. If data are available, large-scale measures can be more fine-grained and facilitate reuse for smaller-scale assessment as part of the planning process. For example, the Atlanta case study was able to reuse region-wide network link quality scores for a new analysis of local access to specific local centers. Had the regional analysis been done with simpler or coarser measures, the old analysis would not have been useful at the new, smaller analysis scale. With these tradeoffs in mind, the scale-and complexity-of the analysis is ultimately driven by both the specific planning context as well as the resources available for data collection, agency and jurisdiction coordination, GIS and related analysis, and data maintenance.
Chapter 3 of this guidebook provides brief fact sheets about analysis types and specific metrics and tools that can be used to assess connectivity at a variety of scales and at varying levels of complexity. The fact sheets in Chapter 3 identify potential scales of application and key questions each analysis type might help an agency to answer.
After establishing the planning context and analysis goals in Step 1, the next step is to define an appropriate analysis method including the specific measures to be used and data required. Often, there will be many ways to answer the planning questions at hand. A connectivity analysis might include multiple measures that are aggregated or summarized in a variety of ways in order to visualize the information comprehensively. Complex analyses and measures can provide more nuanced results, but this must be balanced against increasing data and resource requirements.
This guide focuses on five fundamental connectivity analysis methods, as listed below, summarized in Table 3, and illustrated in Figure 3.
Three of the methods-completeness, density, and directness-focus on the efficacy of the network's design. There is considerable overlap among the three categories, and recent work has shown that systematically combining measures from each may provide a more complete view of network connectivity (Schoner and Levinson 2014). The fourth method, access to destinations, incorporates the land use context in order to illustrate the level to which the network facilitates movement to, from, and between important origins and destinations. Finally, network quality analyses enable planners to consider the experiences of nonmotorized network users, such as safety, convenience, and comfort, which can make a critical difference in the overall usefulness and performance of the system.
| Analysis Method | Key Question | Example Measures | Scale | Planning Task |
|---|---|---|---|---|
| Network Completeness | How complete is the planned bicycle and pedestrian network? | · Percent of planned nonmotorized facility-miles that are complete · Miles of planned nonmotorized facilities that have been built |
· Small area · Large area |
Monitoring and Benchmarking |
| What portion of streets contain nonmotorized facilities? | · Percent of street-miles with nonmotorized facilities · Percent of street-miles that meet level of service or low-stress thresholds |
· Small area · Large area |
Needs Assessment, Scenario Analysis | |
| Network Density | Does the street network allow for travel between destinations via a number of routes? | · Intersection density · Connected node ratio · Block length · Network density (street-miles per square mile) |
· Route · Small area · Large area |
Needs Assessment; Scenario Analysis |
| Do designated bicycle and pedestrian facilities allow people to travel between destinations via a number of routes? | · Network density of nonmotorized facilities (lane miles per square mile) · Intersection density of nonmotorized facilities |
· Small area · Large area |
Scenario Analysis, Project Prioritization | |
| Route Directness | Do nonmotorized facilities allow users to travel throughout a community via direct routes? | · Out of direction travel as a percentage of shortest path route · Network permeability |
· Corridor · Small area · Large area |
Scenario Analysis, Gap Identification, Project Prioritization, Benchmarking |
| Access to Destinations | How well do bicycle facilities connect to key destinations? | · Nonmotorized travelshed size · Number of homes/jobs accessible by bike/foot · Accessibility indices (e.g. Walk Opportunity Index) · Number of homes/jobs accessible by bike/foot using a certain level of network quality |
· Corridor · Small area · Large area |
Needs Assessment, Gap Identification, Project Prioritization |
| Network Quality | What is the objective quality of connectivity provided by an existing or planned network? | · Percent or area of network with high ratings for nonmotorized Level of Service, Bicycle Route Quality, or Pedestrian Index of Environment · Percent or area of network with low ratings for Level of Traffic Stress |
· Link · Route · Small area · Large area |
Needs Assessment, Gap Identification, Scenario Analysis |
Analysis methods can be supported by a number of different measures, each of which presents specific data requirements, advantages, and disadvantages. In general, the connectivity assessment methods for density and completeness have the lowest data and computation needs. Data can often be assembled from existing sources, either within an agency or via U.S. Census or other public network data. Route directness and destination access typically will require network path analysis with routable network data (i.e. with defined connections) and place data that may be more difficult to assemble. Network quality-based analyses generally require more detailed data describing on- and off-street facilities, such as street configurations, traffic volumes and/or speeds, and more specific bicycle and pedestrian facility details. Table 3 provides an overview of the connectivity analysis methods and methods described in this guidebook. Chapter 3 includes fact sheets with more information about the five analysis methods and a selected array of measures.
A fundamental element of conducting a multimodal network connectivity analysis is determining the types and characteristics of transportation facilities to be included in the base network. This decision has a strong bearing on the metrics and conclusions that can be drawn from the analysis. The types of networks that are typically assessed include all roadways (and perhaps trails), roadways and trails that have designated bicycle and pedestrian facilities, or roadways and trails that have specific combinations of attributes (especially adequate separation from motor vehicle traffic). Often, the latter classification is based on thresholds meant to be comfortable for all users. Incorporating network quality into the definition of bicycle and pedestrian network connectivity is consistent with assessing other types of modal connectivity. For example, unimproved roadways or alleyways may be removed from assessment of many motor vehicle networks, and the available clearance afforded by overpass height is incorporated into the assessment of freight route connectivity. In the Baltimore case study, pedestrian network completeness was initially measured based on whether each link had sidewalks or not. This initial result was then compared with a completeness measure based on a quality rating metric that took into account a variety of attributes related to perceptions of stress. Many links that appeared "complete" in the initial analysis did not meet quality thresholds for low-stress connectivity, and area scores by each metric varied greatly.
In addition to the binary approach of including or removing links based on quality thresholds as portrayed in Figure 3, recent preference-based weighting techniques include all available links but assign relative quality weights based on the characteristics of each link. However applied, including elements of network quality as an assessment method produces a more robust and nuanced understanding of the physical network. Both facility-based and quality-weighted networks and supporting data are discussed more fully in Step 3.

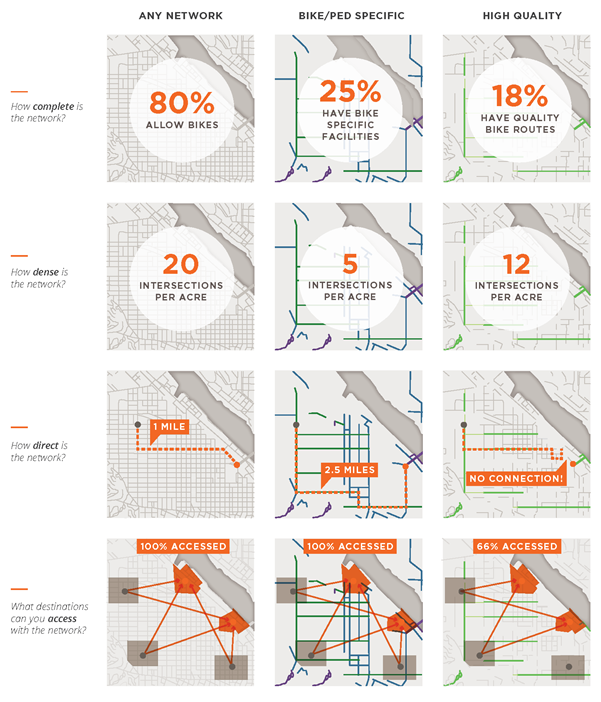

Figure 3: Connectivity Analysis Methods
This graphic depicts differences that can result from selecting different base networks for a connectivity analysis. The rows depict four of the five analysis methods (excluding the Network Quality method). The columns represent connectivity analyses conducted for three different base networks: 1) All streets; 2) Designated pedestrian and bicycle facilities; and 3) High-quality facilities identified through a Network Quality assessment.
Agencies sometimes find that existing measures or data definitions do not fit the local context. In other cases, an agency may determine that specific data requirements cannot be met nor can the agency find a suitable alternative measure. In such cases, existing measures have sometimes been modified, or, less commonly, agencies have developed a new measure. There are significant downsides to these approaches, most notably in weakening links to research support and validation, comparability to other applications, and the often significant development and testing time required to modify or create new metrics. In some cases, the benefits of a localized measure may outweigh the costs. Examples of measure (Montgomery County, MD) and data (Alameda County, CA) adaptations are provided in this chapter. The case study applications for Baltimore, Atlanta, Portland Metro, and California each involved adapting data or methods to suit local planning needs, data availability, and local context.
Once the purpose of the analysis is clarified and the method is selected, it is time to assemble data, which includes spatial definitions of the bicycle and pedestrian network(s) as well as the data required to rate the components of the network using one or more measures (Step 4), and then to aggregate, summarize, and visualize the results (Step 5), potentially overlaying other data, in order to inform the key planning questions and analysis goals (Step 5).
The process illustrated in Figure 4 and in the following discussion represents a simplified, linear version of Steps 3 to 5. In practice, the process will be iterative, and multiple metrics may be applied in the same analysis. The Fort Collins case study example started with a broad network of all links open to bicycling, measured connectivity at the link level using a measure of traffic stress, and then used the results to narrow the analysis network to only those segments meeting a minimum quality threshold. The reduced network was then used in three additional steps to identify gaps (via map visualization), access to schools (via route directness scores), and link importance (via a link centrality metric). The Fort Collins example highlights the way that a single metric (level of traffic stress) can be summarized and overlaid in different ways to address planning questions in a larger connectivity analysis framework.
Central to every connectivity analysis is the mapping of the network. The output of this step is a defined network consisting of a set of links and nodes as well as data on the attributes required by the selected technique. The building blocks of connectivity are the links (street or trail segments) and nodes (intersections or junctions) that define the bicycle and pedestrian network, as well as attributes that describe the facilities on and characteristics of each link and node. Key considerations when defining the network include the following:

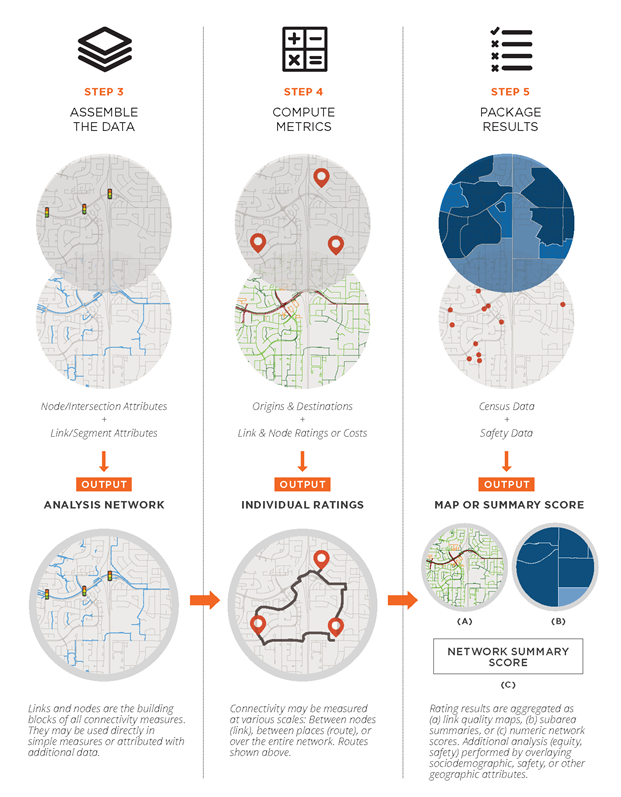

Figure 4: Illustration of Steps 3-5

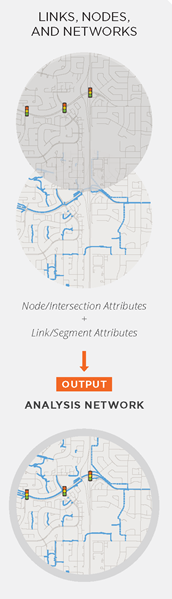

Figure 5: Network Representations
The choice of which links, nodes, and attributes to include is jointly determined by a selected measure's requirements and the planning question or application at hand. In some cases, an agency might choose to include only links within its jurisdiction or planning process (e.g. only state-owned roadways for a state DOT, or bicycle facilities in the Regional Transportation Plan); however, depending on the question, other facilities may need to be considered where they interact with the selected system. For example, an analysis of state highways might consider where local bikeways and walkways interact with state highways. Similarly, a local analysis might consider where state owned highways present barriers to connectivity. In the Portland Metro case study example, the lack of future local facilities that were not in the RTP network was identified as a limitation of the resulting analysis. Ideally, the analysis network will closely match the one actually considered by pedestrians and bicyclists.
Some measures are only defined or suited for a specific subset of links, such as arterial streets (e.g. Bicycle Level of Service), links with sidewalks (e.g. Sidewalk Density or Completeness), links with designated bicycle facilities (Bicycle Network Density or Completeness), or links where walking or cycling is permitted (Route Directness Index). Other measures, particularly simple, form based measures such as intersection or link density, connected node ratio, or similar, can be applied to all streets. While it is unreasonable to assume that all streets are equally suitable for bicycle and pedestrian travel, it is also important to note that cyclists and pedestrians are not limited to streets with designated facilities. Fifty to ninety percent of cycling in the U.S. has been found to take place on streets without separate space for cycling; that is, in mixed traffic (Buehler and Dill 2016). Priority or low-stress networks often include both links with facilities and links with low traffic or slower vehicle speeds. To date, node (intersection) attributes have been applied less frequently to bicycle and pedestrian network analyses, but their importance to connectivity is increasingly recognized (Buehler and Dill 2016). An otherwise high-quality bicycle or walking facility will be of limited use if there is a major barrier along the route, such as an unsignalized crossing of a high traffic volume street.
As noted in the call-out box on network data sources, some information, such as crowdsourced data or commercially produced inventories, change rapidly, so practitioners should check them frequently for updated content and availability.
Analysis networks are typically defined as either facility-based or quality-weighted networks:
Facility-based networks are defined as networks that typically consist of designated bicycle and pedestrian facilities but may sometimes include all streets open to walking and bicycling. These may be separated facilities for nonmotorized users, or shared facilities that have been designed to accommodate pedestrians and/or bicyclist as well as other users.
Quality-weighted networks are defined using an objective rating system for links and nodes that accounts for the quality of the facility. After scoring, the rated network can be used in further analysis, or a minimum rating threshold can be applied to create a restricted network for analysis. For example, a low-stress network might include only segments assumed to be safe and comfortable for bicyclists of a certain ability level or age, based on a maximum Level of Traffic Stress (LTS) rating or similar.

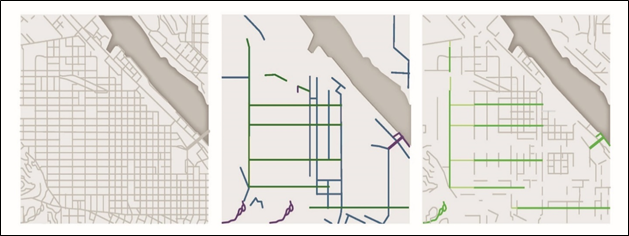

Figure 5 illustrates three representations of the same underlying network: an all-streets network that only omits facilities where walking and cycling are prohibited; a facility-based network of designated multimodal systems; and a quality-based network of facilities that exhibit certain desired characteristics such as low Level of Traffic Stress ratings. The connectivity within a given study area appears quite different depending on the decision of which networks to include in the assessment.
Defining networks by facility type is a common approach. For some simple, form-based measures, it may be appropriate to include all parts of a network that allow bicycling and walking. Distinguishing facility types in more detail gives agencies the ability to exclude inadequate facilities from their networks and conduct more meaningful connectivity analyses. For example, shared lane markings or even conventional bike lanes on higher speed or higher volume streets may be considered inadequate for most bicyclists. Table 4 provides a list of facility types and definitions that can be used to help define network elements and characteristics.
Quality-weighted network definitions, such as Level of Service (LOS) or Level of Traffic Stress (LTS), rate or quantify the quality of links and intersections based on separation from motor vehicle traffic and other attributes by applying standardized weighting schemes.
Level of Service models have been developed primarily from stated preferences for different facility configurations (Landis, Vattikuti, and Brannick 1997; Landis et al. 2001; Petritsch et al. 2008; Foster et al. 2015). Mirroring motor vehicle LOS ratings, bicycle and pedestrian LOS ratings generally apply to major streets (arterials and above) and rate at the segment level without regard to intersection or midblock crossing features.
Level of Traffic Stress ratings are subjective scales based on different classes of potential users. Lower stress categories represent facilities that would be comfortable for a wider range of users, including less experienced users, children, and older adults. While numerous versions and adaptations have been applied in planning and research settings, all draw from original work on bicycling by Mekuria, Furth, and Nixon (2012). Subsequent work has expanded the original model to apply to walking, including accessibility attributes (e.g. Baltimore case study).
| Facility Type | Definition |
|---|---|
| Sidewalk | That portion of a street or highway right-of-way, beyond the curb or edge of roadway pavement, which is intended for use by pedestrians* |
| Sidepath | A shared use path located immediately adjacent and parallel to a roadway* |
| Shared Use Path | A bikeway physically separated from motor vehicle traffic by an open space or barrier and either within the highway right-of-way or within an independent right-of-way* |
| Bike Lane | A portion of roadway that has been designated for preferential or exclusive use by bicyclists by pavement markings and, if used, signs* |
| Buffered Bike Lane | Conventional bicycle lanes paired with a buffer space designated by markings that separates the bicycle lane from the adjacent motor vehicle travel lane and/or parking lane |
| One-Way Separated Bike Lane / One-Way Protected Bike Lane / One-Way Cycle Track | An exclusive one-way facility for bicyclists that is located within or directly adjacent to the roadway and that is physically separated from motor vehicle traffic with a vertical element |
| Contraflow Bike Lane | A portion of the roadway that has been designated to allow for bicyclists to travel in the opposite direction from traffic on a roadway that allows traffic to travel in only one direction |
| Contraflow Buffered Bike Lane |
A buffered bike lane that has been designated to allow for bicyclists to travel in the opposite direction from traffic on a roadway that allows traffic to travel in only one direction |
| Contraflow Separated Bike Lane / Protected Bike Lane / Cycle Track | A separated bike lane that has been designated to allow for bicyclists to travel in the opposite direction from traffic on a roadway that allows traffic to travel in only one direction |
| Two-Way Separated Bike Lane / Two-Way Protected Bike Lane / Two-Way Cycle Track | An exclusive two-way facility for bicyclists that is located within or directly adjacent to the roadway and that is physically separated from motor vehicle traffic with a vertical element |
| Bike Boulevard / Neighborhood Greenway | A street segment, or series of contiguous street segments, that has been modified to accommodate through bicycle traffic and minimize through motor vehicle traffic* |
| Paved Shoulder | The portion of the roadway contiguous with the traveled way that accommodates stopped vehicles, emergency use, and lateral support of subbase, base, and surface courses. Shoulders, where paved, are often used by bicyclists* |
* American Association of State Highway and Transportation Officials, 2012, Guide for the Development of Bicycle Facilities, 4th ed.
Preference models developed from observed behavior have mainly been used in academic research applications to date. Their direct link to observed behavior is potentially useful. MPOs including Portland Metro (Oregon), San Francisco County Transportation Authority (California), Los Angeles County Metropolitan Transportation Authority (California), Lane Council of Governments (Oregon), and Puget Sound Regional Council (Washington) have either applied or are working toward applying these more complex connectivity models within their planning processes. Models of bicyclist route choice in Portland and San Francisco have served as the basis for most of these efforts (Broach, Dill, and Gliebe 2012; Hood, Sall, and Charlton 2011). Route choice findings have been further validated against bicycle use data (Broach and Dill 2016; Broach and Dill 2017).
Defining a quality-weighted network is considerably more data-intensive than defining a facility-based network Quality Data Challenges Agencies often lack the data needed to analyze network quality according to research-based methods. In some cases, agencies customize these rating systems to the data that are available. Table 5 provides a snapshot of typical pedestrian and bicycle network facility data that support the most common types of network quality assessments.
Agencies often lack the data needed to analyze network quality according to research-based methods. In some cases, agencies customize these rating systems to the data that are available. Table 5 provides a snapshot of typical pedestrian and bicycle network facility data that support the most common types of network quality assessments.
| Level of Service Models | Traffic Stress Ratings | Preference Models | |
|---|---|---|---|
| Bicycle and pedestrian facility data | |||
| Bike lanes | X | X | X |
| Shared-use paths | X | X | X |
| Bicycle boulevards | - | - | (X) |
| Sidewalks | X | - | X |
| Signed routes | - | (X) | (X) |
| Intersection features | X | X | X |
| Slope | (X) | X | |
| Supporting data | |||
| Number of lanes | X | X | - |
| Traffic volume | X | X | (X) |
| Traffic speed | X | X | - |
| Functional class | - | - | (X) |
| Street / lane widths | X | X | X |
| Presence of on-street parking | X | X | - |
| Heavy vehicle traffic | X | - | - |
| Potential obstacles (driveways, blockages, right turn lanes, bridge crossings) | - | X | - |
(X) For each type of quality rating scheme, a number of specific measures have been developed. Parentheses around a data item indicate that a particular attribute is not required by all measures in a class. In other words, agencies lacking such data might still find a measure of this type that can be applied.
Connectivity is ultimately about enabling travel between places, not just around a network, and adding place data to network scoring metrics can add valuable information to an analysis. Place data can be as simple as calculating population (see Atlanta case study) or employment within areas scored differently by a connectivity metric (e.g. all those within a certain [weighted] distance of a destination, or all those within an area in a given connectivity score range). Quality-weighted network measures lend themselves to route scoring, or estimating the relative connection quality between sets of origin-destination pairs. Route scoring is explained in more detail in subsequent sections. This additional analysis can provide a better idea of the effectiveness of network connections. Table 6 provides examples of place data that have been used to measure network connectivity between sets of locations.
| Analysis Purpose | Primary Measure | Origin Data (People) | Destination Data (Places) |
|---|---|---|---|
| Assessing community-wide bikeability* | Community-wide access to destinations | Census Blocks | Census/LEHD: Population, Employment OpenStreetMap: Education, health/medical, recreation/community, retail, transit |
| Assessing community wide bikeability (M. Lowry et al. 2012) | Community-wide access to destinations | Regularly spaced points representing residential origins | Commercial parcels (weighted by square footage and distance from origin) |
| Predicting bicycle commuting patterns (Broach and Dill 2017) | Connectivity to employment | Census Block Group centroids (weighted by population) | Census Block centroids (weighted by number of jobs) |
| Identifying low-stress streets (Mekuria, Furth, and Nixon 2012) | Overall connectivity | Census Block vertices | Census Block vertices |
| Prioritizing bicycle network improvements (M. B. Lowry, Furth, and Hadden Loh 2016) | Home-based access to destinations | Residential parcels | Selected groups or ''baskets" of important and/or desirable types of destinations (21 types) |
| Quantifying local access to destinations (Kuzmyak, Baber, and Savory 2007) | Home-based access to destinations | Traffic Analysis Zones (TAZs, weighted by number of households) | TAZs (weighted by jobs and distance) |
| Assessing bicycle access to regional centers** | Home-based access to destinations | Census Blocks | Centers designated by the community, such as Livable Centers Initiative communities in the Atlanta region |
| Assessing bicycle access to local K-12 schools *** | Home-based school access | Census Block centroids | K-12 Schools |
* https://bna.peopleforbikes.org/#/methodology
** Atlanta case study
*** Ft. Collins case study
Once the network is defined and links and nodes are assigned attributes, connectivity is scored at one (or more) of three scales: link, route, or area/ network, as shown in Figure 6.
Link: The smallest unit of analysis is the connection between two nodes along a single link. The quality of the connection provided by a link is defined by attributes of the link, and, possibly, the approach to the end node or intersection. A numeric score or derived rating is assigned to the link by weighting the attributes relative to one another or by applying a classification scheme. In this case, the output is a single score for each link in the analysis network (sometimes a score for each direction of travel). Common examples of metrics that score at link-level are Bicycle/Pedestrian Level of Service (BLOS/PLOS) and Level of Traffic Stress (LTS).
Route: Measures can also be computed at the route or corridor level, defined as the set of available routes connecting two places along a series of links connecting locations of interest. There are typically multiple routes of travel in a given corridor. The highest quality or least-cost connection can be defined using available data, but for bicycle and pedestrian networks it may be more appropriate to consider a range of routes, given varying user behavior. Different people may take different routes in the same general corridor due to slight variations in origins and destinations, variability in comfort at using different facilities, knowledge of available bicycle and pedestrian facilities, and random chance. Route-based scores reflect both the quality of individual links and how those links fit together. Output in this case is a score or rating representing the quality of connection for each pair of places along the "best" route provided by the current or planned network. Any link-based metric can be applied at the route scale as long as routes can be identified. Measuring quality along the immediate path of a given route is valuable, as it reflects the end goal of connecting people and places. To measure the full connectivity of the area served by the route, however, an analyst needs to identify specific origins and destinations associated with the route. For specific planning applications, such as access to transit stops or schools, it may be enough to specify all points within a reasonable distance of the given destinations (sometimes referred to as travelshed analysis). In other cases, a more varied sample of origins and destinations is required. Table 6 in the previous section provides examples of place data that have been used for route level connectivity analysis.
Area/Network: Form-based metrics such as Block Length Analysis, Connected Node Ratio, Sidewalk Density, and Route Directness typically work only at the scale of entire networks or areas. Links and nodes or attributes of interest are counted, or techniques are applied to calculate general measures such as density, directness, or fragmentation of the network. The output in this case is a single area or network-wide score. Subareas or subnetworks can be defined and scored for different areas within the same planning region or locale.
The final step in the process is to relate the results of the analysis to the planning context that was articulated in Step 1. If the purpose of the analysis is to inform regional or subarea plans or project prioritization, for example, data on thousands of individual links and routes must be aggregated into map(s), charts, and other visualization tools that help decisionmakers to understand the results at the scale relevant to their needs. The aggregation process would ideally occur as a result of scaling the analysis to suit the planning context, but planners must often do some post-processing in order to create maps and graphics that summarize the information in an understandable way. In these cases, analysts and planners need to work carefully in order to avoid "burying" essential details or otherwise distorting the results of the analysis.
Overlaying the aggregated results with other maps and data on topics such as equity, safety, or economic growth will help planners and stakeholders prioritize the projects that are going to produce the greatest benefit for bicyclists and pedestrians and help to achieve additional community goals. Again, it is important for planners and analysts to work together in order to ensure that the messages conveyed by overlays help to enrich, rather than skew or obscure, the key points identified in the connectivity analysis.
The simplest way to aggregate link scores is to display them on a map, representing quality with colors or symbols to help stakeholders visualize routes of interest, gaps, barriers, and relative connectivity across areas. Figure 7 shows an example of a weighted link/node quality measure displayed as a connectivity map. The map visualizes routes and areas with higher or lower connectivity, as well as apparent gaps and barriers.
With route-scale outputs, the average route quality score for all origins or destinations in the subarea might be calculated (perhaps weighted by population, jobs, or some other measure of importance). Typically, the aggregate route-based scores take the form of an index, percentage, average, or some other relative indicator. For example, Bicycle Level of Traffic Stress is often summarized as the percent of origin-destination pairs connected at a reference traffic stress level or better (Mekuria, Furth, and Nixon 2012).
In another example, Bicycle Route Quality Index (RQI) can be normalized by equivalent distance on an "adequate" or "average" facility such as an on-street bike lane (Broach and Dill 2017). These ratings can then be compared with one another to assess the relative level of need in different subareas or measure changes in connectivity over time.
As a final example, the PeopleForBikes' Bicycle Network Analysis (BNA) tool is a new connectivity measure based on Bicycle Level of Traffic Stress. It has been applied in a number of cities and small towns throughout the U.S. The BNA score ranges from 0 to 100, based on access to a destination basket along bicycling routes meeting a specific quality and distance threshold.[1] Each of these measures is described in more detail in Chapter 3. Connectivity ratings can also be aggregated to an entire community, or to subareas within the larger community, using measures such as the average quality of all links or the percentage of links of a given quality. Figure 8 provides an example of a connectivity measure (sidewalk completeness) measured at the link level and aggregated to small areas.

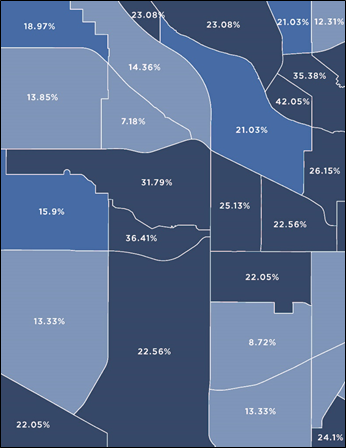

In this map of sidewalk connectivity analysis results, darker colors show Traffic Analysis Zones (TAZs) with greater sidewalk coverage.
Overlaying is an optional step that involves combining connectivity results with data that represent complementary policy goals. Connectivity results are overlaid or joined with other geographic data to support analysis on topics such as equity, safety, and system usage.
Safety analyses can be overlaid with connectivity results. Crash data can be overlaid on connectivity scores to help planners understand the relationship between high-crash locations and poor connectivity. This could be done by area or for specific locations. An area, segment, or node with a low connectivity score and high crash rate might reflect an important gap with high demand and few alternative options. Critical network gaps can be prioritized.
Motor vehicle volume data could be joined to connectivity scores, especially for future scenarios, where bicyclists or pedestrians are likely to come into conflict with other road users. This could help identify areas for proactive treatments to reduce crash risks in those locations.

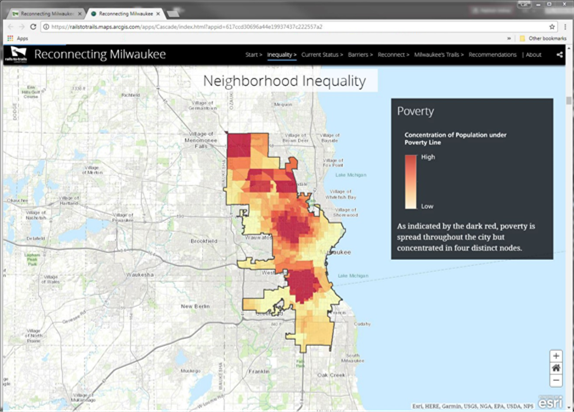

Equity analyses can be performed to determine how network connectivity is distributed across different parts of a planning region and across different socioeconomic groups. As an example, overlaying income or race/ethnicity data on a connectivity map could be used to identify disadvantaged communities in low connectivity parts of the network and to prioritize projects that will improve conditions for people that may be more likely to rely on bicycling and walking for transportation. In the Portland Metro case study example, connectivity results were overlaid with areas meeting targeted equity criteria in the regional plan to better understand how planned projects were contributing to equity goals.
System usage relationships have been validated for a few connectivity measures. Overlaying land-use data with connectivity scores can support prediction of rates or changes in the rate of bicycling and walking. For example, the impact of a new connection or a series of quality improvements could be related to expected increases in use. The overall change could help inform project selection and determine whether existing plans are sufficient to meet targets for walking and cycling.
Connectivity maps or scores can help planners and stakeholders identify priorities for projects or further study in a variety of ways. Perhaps most importantly, connectivity analysis brings a fresh set of objective information "to the table." For example, during an analysis of bicycle connectivity, transit agency TriMet (Portland, Oregon) realized that prioritizing bicycle access in low-density areas served by transit might be effective because the walk distance to transit stops was too far for many residents. This was challenging to communicate to stakeholders but an important result that guided future planning.
Communicating connectivity effectively involves not only presenting the analysis methods clearly, but also responding to concerns that come up during the planning process. In Seattle, Washington, advocates felt that connectivity was not effectively evident or prioritized in the city's bicycle plan update, partly because evaluation metrics were mileage weighted. Mileage weighting pushed the discussion toward the strategy of adding mileage in outlying locations, where it was cheaper, even if the goal of connectivity might be better served by filling gaps in urban areas.
It is important to not lose sight of the specific analysis purpose defined in Step 1. Results should be summarized at a scale, level of detail, and with overlays appropriate for answering the key questions that drove the connectivity analysis in the first place.
Chapters 1 and 2 defined multimodal connectivity analysis, described its importance in general terms and outlined a process for measurement. This chapter provides summaries of technical information about commonly applied connectivity analysis methods and measures, with references to more materials that can help practitioners to assemble data and calculate results. Detailed descriptions of many of the methods and measures presented here, along with other analysis measures and tools, can be found in the FHWA Guidebook for Developing Bicycle and Pedestrian Performance Measures (2016).
The first part of this chapter consists of a set of fact sheets about each of the five types of analysis methods described in Chapters 1 and 2, as follows:
Each fact sheet describes the following information:
The second part of this chapter consists of a set of fact sheets about the following selected measures that can inform one or more of the connectivity analysis methods listed above:
All of the selected measures described in the fact sheets are fundamental to network quality assessments. The other types of connectivity analyses (network density, completeness, route directness, and access to destinations) can be conducted by assessing existing or planned network conditions without developing the quality-related measures presented in these fact sheets. The data collected and analyzed for these measures can, however, significantly enrich an agency's ability to make fully informed transportation investment decisions.
The connectivity measure fact sheets are organized similarly to the connectivity analysis method fact sheets, with slight variations to incorporate more in-depth discussions of elements such as inputs, outputs, and relevant research. Topics addressed in each fact sheet include the following:
How complete is the planned bicycle and pedestrian network?
Network density measures assess whether the street grid provides options for travel between locations for people who walk and bike. Research shows that areas with high street density have higher rates of walking and lower rates of driving. More dense networks are also more resilient - a closure of one street will be less likely to inhibit travel.

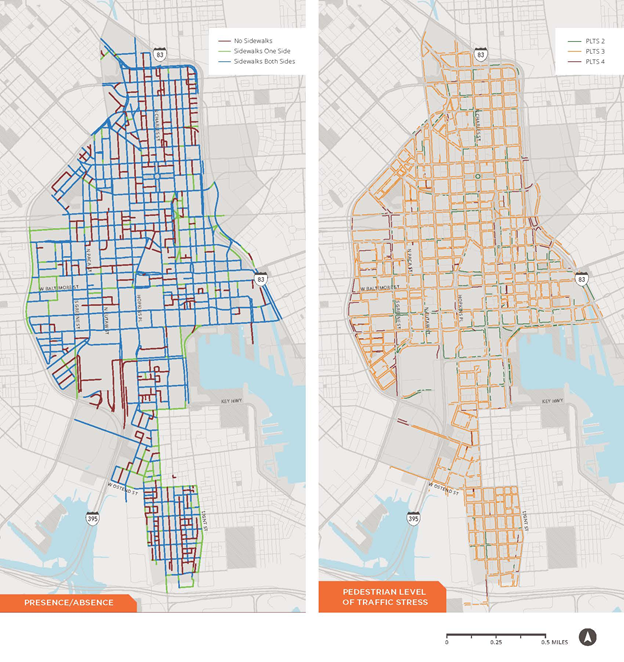

The Baltimore case study assessed the level of completeness for sidewalks within the downtown area based on several different metrics. The analysis first considers presence or absence of sidewalks, regardless of quality, based on neighborhoods and roadway type. However, in areas with built-out networks, completeness can be measured instead based on the completeness of high-quality (or low-stress) facilities.
Does the multimodal network provide a variety of direct route options for those who travel by bike or on foot?
A network completeness analysis reveals either the proportion of the network with designated bicycle or pedestrian facilities, or the extent to which the planned bicycle or pedestrian network has been built out. In the first case, it captures the availability of the street network for bicycling and walking. Completeness may be compared between stages of build out. When measuring only the percent of a planned network that is built, this method assumes that the design of the planned network is built on robust community and stakeholder input and analyses of existing conditions.

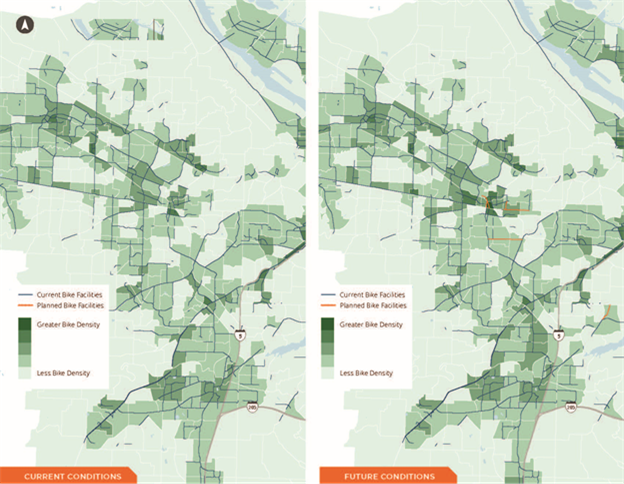

The Portland Metro case study assessed system density for sidewalk, bicycle, and trail networks. This application considered the difference in density between the current network and the future network based on the current ATP for both the regional scale and Historically Marginalized Communities. This assessment found that at the regional level, the impact of projects appears to be minimal, while at a more focused neighborhood level, this metric reveals greater changes.
Do bicycle and pedestrian facilities allow users to travel throughout a community via direct routes?
Route directness considers the variation in trip distance between the route a bicyclist or pedestrian will actually travel versus the shortest available path. Directness may be used to characterize the network in terms of obstacles impeding direct travel. This method is often used for specific destinations but can be used on a network level by computing an average score across a set of generalized origins and destinations.

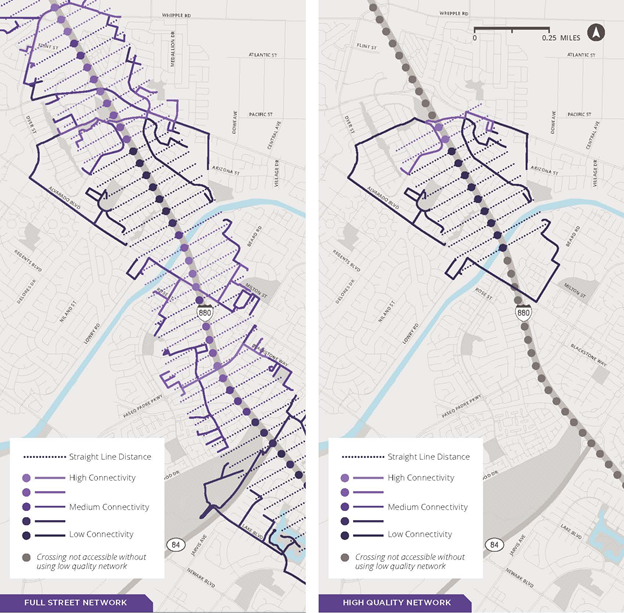

The Caltrans District 4 Case Study assesses network permeability along state highways to understand the barrier that major highways may create. Permeability was assessed considering both the entire roadway network and only a low-stress network (determined by LTS) to determine the level of out-of-direction travel required to cross the highway via low-stress crossings.
Do bicycle and pedestrian facilities connect people to key destinations?
This measure addresses whether people can use the bicycle and pedestrian network to reach important destinations like jobs, training, shopping, or transit stations.
To inform plans or policies calling for bikeable/walkable development around designated centers or transit stations. For example, the City of Portland has a policy calling for 20-minute neighborhoods in which residents can walk to grocery stores and other commercial services via high-quality pedestrian facilities. Some transit agencies have policies to prioritize bicycle and pedestrian projects within a certain distance of stations.
The Atlanta Regional Council (ARC) case study assesses access to destinations by calculating the number of homes and jobs accessible near existing and planned low-stress networks. Travelsheds were created for each network scenario using a three-mile distance threshold and overlaid with Census Data to calculate the number of households and jobs within the travelshed.
What is the quality of the users' experience provided by an existing or planned network?
Research shows that people walking or biking are more sensitive to the physical attributes of a facility than a person driving a motor vehicle. Assessing the physical qualities of bicycle and pedestrian facilities and providing a score for each roadway and intersection (or route) can provide robust information about the user experience provided and capture the types of users that feel comfortable on specific facility types.

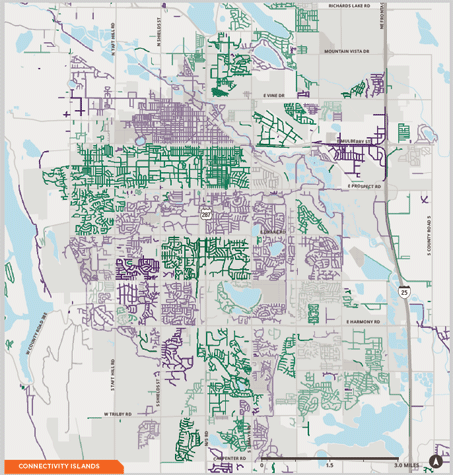

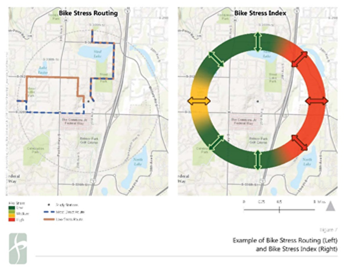

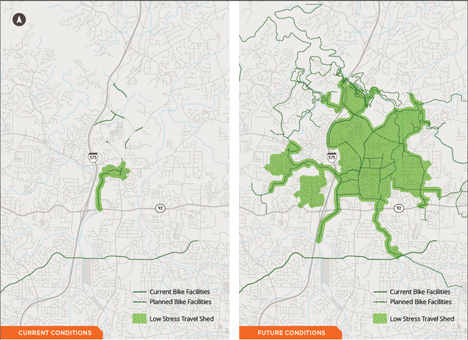

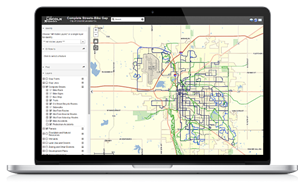

The Fort Collins case study considers network quality based on both Level of Traffic Stress and Low-Stress Network Connectivity. These measures were then used to define low-stress networks for input in subsequent measures, including route directness considerations. Display methods were also explored to identify gaps in the existing low-stress network.
Note: The colors on this map are intended to convey geographic distinctions between various connectivity islands; however, the colors do not have a relative value associated with them.
| Data | Source |
|---|---|
| Network | OpenStreetMaps |
| Population | US Census |
| Employment | US Census LEHD |
| Destinations | OpenStreetMaps |
In 2016, PeopleForBikes launched a national effort to measure bicycle network connectivity as part of their PlacesForBikes city ratings. At the core of their approach is a measure of bicycle network quality based on level of traffic stress (Mekuria, Furth, and Nixon 2012). Their Bicycle Network Analysis (BNA) tool applies the stress network to a basket of destinations meant to cover most everyday travel needs. Origins and destinations are considered connected if they are within about 10 minutes by bicycle (one and two-thirds miles) via a low-stress connection requiring at most a 25% detour.[8] The maximum stress level chosen is meant to appeal to a broad range of typical adults. Based on the number of destinations reachable in different categories, scores from 0 to 100 are assigned to each census block origin. The scores have also been aggregated to city level (on the same 0 to 100 scale) by weighting each block score by population. Figure 9 shows examples of network, block, and city level scoring. Scores were initially tabulated for nearly 300 cities.[9] The source code is publicly available.[10]
The BNA tool relies on network, population, and destination data from OpenStreetMaps (OSM) and the US Census Bureau (Table 7). Specific network data used to calculate stress level include the following attributes:
Destinations are measured across six major categories comprised of 16 sub-categories, including indicators such as the following:
Destination access is scored based on both the number of destinations that can be reached in each subcategory, as well as the ratio of places reachable along low- versus high-stress routes. As shown in Table 7, much of the data comes from OSM, a crowdsourced, public database of street network and place data. Data quality and coverage varies by location, and PeopleForBikes has encouraged cities to update and improve local data by providing an OSM editing toolbox for commonly used ArcMap GIS software.
PeopleForBikes' BNA tool represents an important effort to make connectivity analysis available to a wide audience and to simplify and standardize data and measurement. Although PeopleForBikes cautions that the scores and methodology are preliminary and subject to errors and future modifications, the tool is an exciting new option in the connectivity landscape.
This guidebook explains how a measure such as BNA is chosen, constructed, and applied, while situating it within the broader spectrum of techniques available to measure pedestrian and bicycle networks.
How well does network infrastructure support bicycle travel, including interaction with other modes, based on perceived bicyclist comfort levels?
Bicycle LOS (BLOS) indicates the overall quality of the network in terms of bicyclist comfort levels. BLOS is an adaptation of a standard measure of motorized road quality. The initial research was supported by a stated preference study of a broad range of facility attributes (Landis, Vattikuti, and Brannick 1997), with additional stated preference data incorporated into an updated version (Petritsch et al. 2008). Additional research has extended BLOS to include separated (protected) bike lanes (Foster et al. 2015). The original link quality measure has been extended into a measure of connectivity by using BLOS as a link weight in order to solve routes between sets of origins and destinations (Lowry et al. 2012). Bicycle LOS is also referenced in the Highway Capacity Manual (HCM).
Florida Department of Transportation: LOS standards are used in the review of actions that directly impact the State Highway System for all planning and permitting processes; methods are outlined in the Quality/Level of Service Handbook (2013).

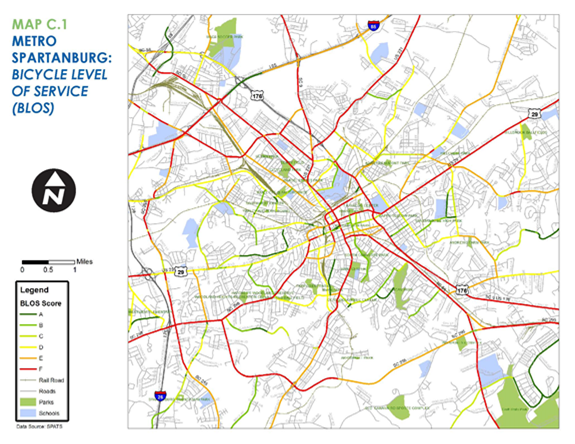

Spartanburg, SC: The City Bicycle & Pedestrian Master Plan (2009) utilizes a Bicycle Level of Service measure to help identify the bicycle network updates.

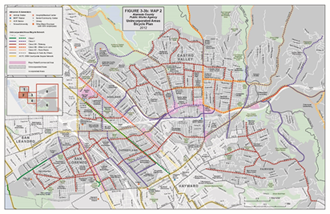

A variety of large and mid-size agencies assess BLOS including the Memphis MPO, Community Planning Association of Southern Idaho (COMPASS), City of Winston-Salem, NC, and Omaha-Council Bluffs Metropolitan Area Planning Agency (MAPA).
What is the extent to which bicyclists feel safe and comfortable using the network, particularly on streets where they share space with motorized traffic?

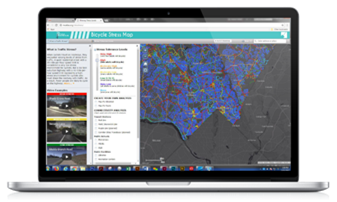

Measures and rates traffic stress for street segments and intersections, based on different types of cyclists' presumed comfort level near motor vehicle traffic. The components of the network are scored on a four-point scale relating to user types and confidence levels. Links and intersections are classified based on their most stressful feature, and routes are classified by the most stressful link or intersection between a given origin and destination.

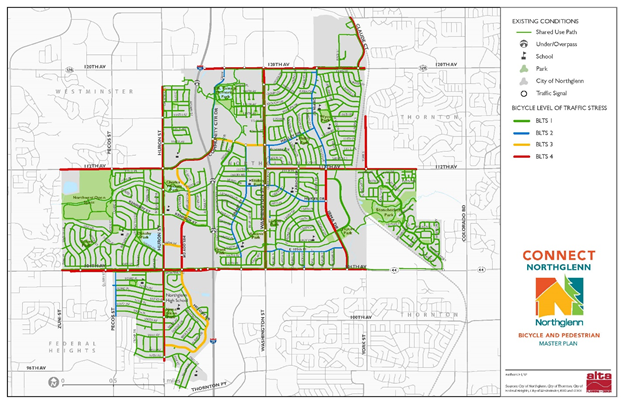

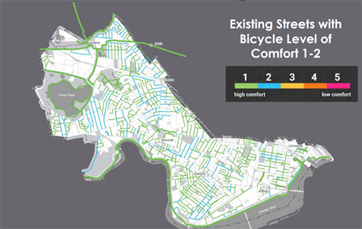

Bicycle Level of Traffic Stress (Bicycle LTS) is based on the concept of the maximum level of traffic stress that will be tolerated by specific groups of existing and potential cyclists (Mekuria, Furth, and Nixon 2012). The classification scheme is loosely based on both the Types of Cyclist (not interested, interested but concerned, enthused and confident, and strong and fearless) line of research from Portland, Oregon (Dill and McNeil 2013), and also on Dutch age-group based bicycle facility planning standards. Most analysis has focused on LTS 2, a level thought to be acceptable to many interested adult cyclists. The Bicycle LTS measure is extended to capture connectivity through route selection and maximum detours using approximations from empirical studies of cyclist route choice.
In Oregon, the State Department of Transportation calls for Bicycle LTS as the preferred measure for Regional Transportation Plans and Transportation System Plans. It can also be used on a screening-level basis for project development and development review. The methodology is outlined in the State's most recent update of its Analysis Procedures Manual, which includes strategies for rural applications that consider shoulder width as well as traffic volumes and speeds.[11]
What is the quality of bicycle connections between origins and destinations?
Bicycle low-stress connectivity measures help planners to assess access to key destinations and to identify the importance of specific network links. Low-stress Bicycle Connectivity was designed specifically to prioritize and evaluate bicycle infrastructure projects. The measure combines elements of Level of Traffic Stress (LTS) and Route Quality Index (RQI) in a new way to gauge the quality of routes connecting origins and destinations. A key element is a defined "basket" of destinations. Positive points are awarded if destinations can be reached using routes of acceptable stress levels (accounting for traffic stress and terrain). Outputs include parcel-level accessibility scores and a measure of each planned project's "centrality," a measure of importance related to the expected number of cycling trips that would use links related to the project.
Where are the best bicycle available routes between given origins and destinations, considering elements such as directness, trip purpose, and supporting infrastructure?

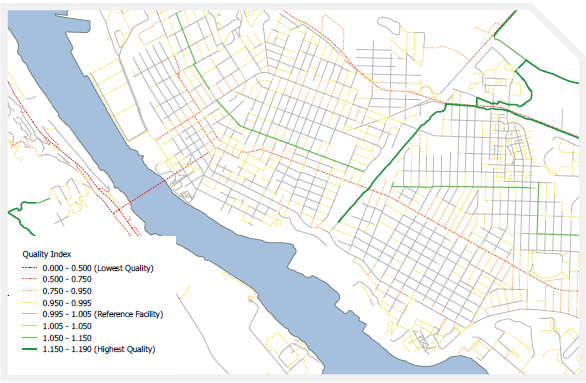

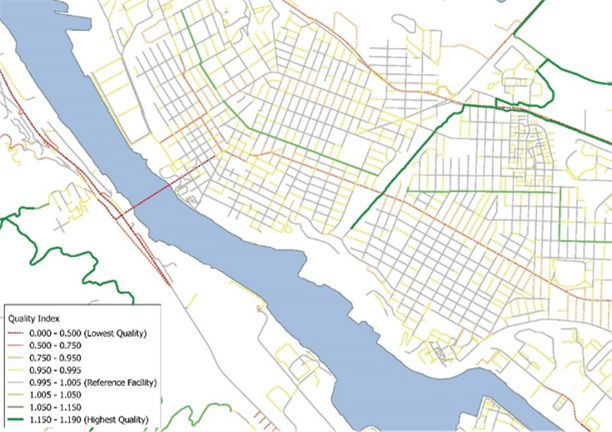

Bicycle RQI is an emerging measure that is still largely in the research phase. Portland, OR has been the leader in developing and applying RQI measures. It allows for a more nuanced, complex assessment of quality compared to other measures because it takes into account additional variables such as trip purpose (e.g. commute versus noncommute), roadway slope, and detailed intersection attributes. Several variations of a Route Quality Index (RQI) have been applied, all of them based on route choice models developed at Portland State University (Broach, Dill, and Gliebe 2012) in conjunction with Portland Metro MPO.
The route choice models provide weights for a range of network attributes, including separation from traffic, delay factors, intersection crossing aids and traffic volumes, and terrain. The weights can be used to generate lowest cost or "best" routes to represent the connectivity between a given origin point and some defined set of destination points. Individual routes are typically aggregated and standardized to create an indexed score for use in planning applications. A related technique was developed using a different route choice model developed in San Francisco, CA (Hood et al., 2011).
The primary use of RQI-type measures has been in regional bicycle travel demand models. However, recent extensions have applied RQI as a standalone connectivity measure to test scenarios and predict bicycle use.
Portland Metro MPO (Oregon) uses a version of RQI to measure bicycle connectivity in its regional travel model. Various research applications have been reported as well (Broach and Dill 2016; Broach and Dill 2017).
Where are the most walkable areas ("zones") of a city?
PIE measures indicate the quality and attractiveness of the walking environment based on facilities and the presence of pedestrian destinations/amenities (Clifton et al. 2013). PIE is somewhat unusual among walkability indicators in that it starts with locating pedestrian oriented destinations and works backwards to define walkability. PIE is a composite index of various form-based measures, combined in a weighted equation that was developed and validated against travel survey data. Data needs are relatively low, with the exception of specific business types, and all of the measures can be calculated using simple GIS analysis techniques. PIE was developed as one component of a Regional Pedestrian Travel Model. PIE is not widely used at this time, though it has the potential to effectively describe improvements to pedestrian networks in terms of network use.

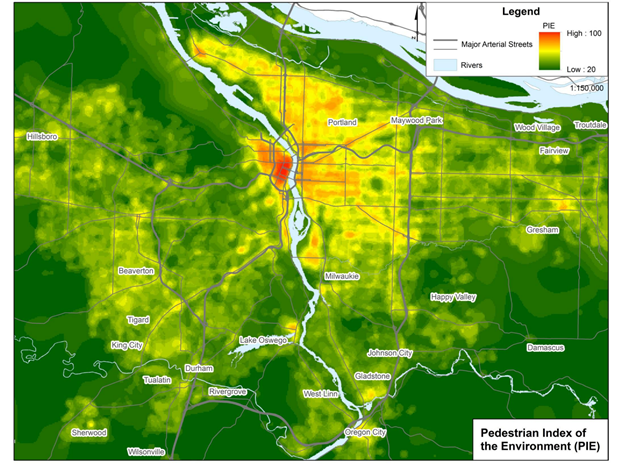

Portland Metro MPO (Oregon) is in the process of implementing PIE as part of their regional travel demand model. A related project to gauge transferability to other regions is also underway.
How well does network infrastructure support pedestrian travel, including interaction with other modes, based on perceived pedestrian comfort levels?
Similar to Bicycle Level of Service (BLOS), PLOS is an attempt to adapt a commonly applied measure of motorized network performance to pedestrian facilities (Landis et al. 2001). PLOS measures indicate the level to which the infrastructure supports pedestrian travel, and how well pedestrian travel interacts with other modes, based on perceived pedestrian comfort levels. PLOS variables and thresholds are supported by stated preference assessments of perceived comfort and safety on various road segments. Originally developed to support a statewide evaluation tool in Florida, PLOS measures include formula driven weights for links, intersections, and "segments" (combined, directional links and intersection approaches).
Despite relatively high data requirements, PLOS has been a popular measure in planning practice. It is supported by the original stated preference data and a version has been included in the Highway Capacity Manual. Several versions (many simplified) have been developed across a range of planning applications, mostly related to documenting existing conditions, identifying connectivity gaps, and evaluating network-wide quality.

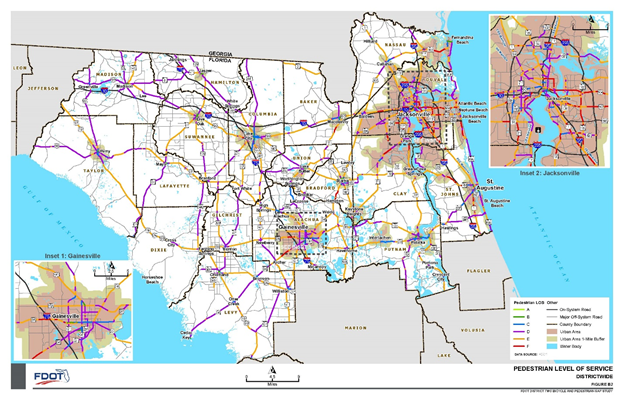

PLOS standards are used by the Florida Department of Transportation in the review of actions that directly impact the State Highway System for all planning and permitting processes. Methods are outlined in the Quality/Level of Service Handbook (2013).
What is the extent to which pedestrians feel safe and comfortable using the network?
Pedestrian LTS measures indicate the relative level of comfort for pedestrians using a given network, taking into account the variety of abilities and trip purposes among different types of people. The categories of pedestrian traveler characteristics, including user types and trip purposes, are similar to those developed for Bicycle LTS measures. Criteria and thresholds are customized for pedestrians, as described in the Oregon Department of Transportation's Analysis Procedures Manual (2016). Links are classified based on their most stressful feature, including the impact of crossings. Application to measures of connectivity are done best in conjunction with form-based.

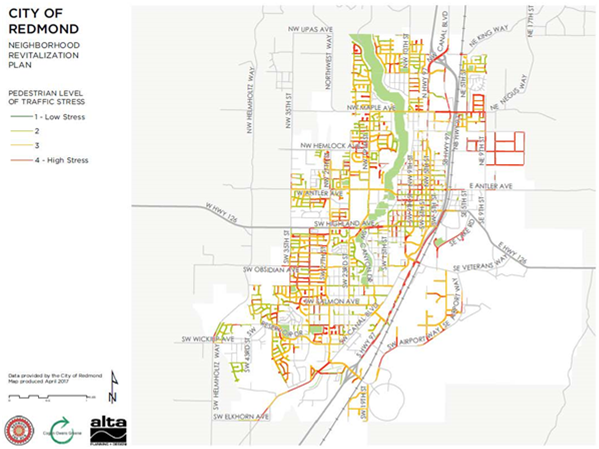

In Oregon, Pedestrian LTS is the preferred method defined by the DOT for Regional Transportation Plans and Transportation System Plans. It can also be used on a screening-level basis for project development and development review. The recommended PLTS measurement methodology will be outlined in the updated ODOT Analysis Procedures Manual.[12]
To support the development of this guide, FHWA reached out to numerous transportation planners through webinars, interviews, and focus groups for input and advice about their experiences with analyzing multimodal connectivity. The research team also worked directly with five agencies to conduct assessments that involved the methods and measures described in this guide. The comments in this chapter are a synthesis of reflections and suggestions from both the case study participants and other peer participants in this research. More specific details on the processes conducted and lessons learned by each case study agency are included as an appendix to this guide.
Alameda County Transportation Commission. 2012. "Alameda County Bicycle and Pedestrian Plan for Unincorporated Areas." https://www.acpwa.org/s/Bike-Ped-Plan-for-Unincorporated-Final.pdf.
Atlanta Regional Commission. 2014. "Bicycle Pedestrian Plan -- Walk. Bike. Thrive!" http://atlantaregional.org/plans-reports/bike-pedestrian-plan-walk-bike-thrive/.
Broach, Joseph, and Jennifer Dill. 2016. "Using Predicted Bicyclist and Pedestrian Route Choice to Enhance Mode Choice Models." Transportation Research Record: Journal of the Transportation Research Board, no. 2564: 52-59. doi:10.3141/2564-06.
---. 2017. "Bridging the Gap : Using Network Connectivity and Quality Measures to Predict Bicycle Commuting." In 96th Annual Meeting of the Transportation Research Board. Washington, DC.
Broach, Joseph, Jennifer Dill, and John Gliebe. 2012. "Where Do Cyclists Ride? A Route Choice Model Developed with Revealed Preference GPS Data." Transportation Research Part A: Policy and Practice 46 (10). Elsevier Ltd: 1730-40. doi:10.1016/j.tra.2012.07.005.
Buehler, Ralph, and Jennifer Dill. 2016. "Bikeway Networks: A Review of Effects on Cycling." Transport Reviews 36 (1). Taylor & Francis: 9-27. doi:10.1080/01441647.2015.1069908.
City of Beavertion. 2017. "Active Transportation Plan." https://www.beavertonoregon.gov/DocumentCenter/View/21012.
City of Cambridge. 2015. "Cambridge Bicycle Plan." http://www.cambridgema.gov/CDD/Transportation/bikesincambridge/bicyclenetworkplan.
City of Kansas City Missouri. 2003. "Kansas City Walkability Plan." http://kcmo.gov/wp-content/uploads/2013/07/walkability.pdf.
City of Minneapolis. 2009. "Minneapolis Pedestrian Plan." http://www.minneapolismn.gov/www/groups/public/@publicworks/documents/webcontent/convert_286149.pdf.
City of Spartanburg. 2009. "Bicycle and Pedestrian Master Plan." http://www.cityofspartanburg.org/planning-zoning/bicycle-ped-plan.
Clifton, Kelly J, Patrick Allen Singleton, Christopher Devlin Muhs, Robert J Schneider, and Peter Lagerwey. 2013. "Improving the Representation of the Pedestrian Environment in Travel Demand Models, Phase I." Oregon Transportation Research and Education Consortium (OTREC-RR-510). doi:10.2172/875800.
Dill, Jennifer, and Nathan McNeil. 2013. "Four Types of Cyclists?" Transportation Research Record: Journal of the Transportation Research Board 2387 (2387): 129-38. doi:10.3141/2387-15.
Florida Department of Transportation. 2013. "2013 Quality / Level of Service Handbook." State of Florida: Department of Transportation.
Foster, Nick, Christopher M. Monsere, Jennifer Dill, and Kelly Clifton. 2015. "Level-of-Service Model for Protected Bike Lanes." Transportation Research Record: Journal of the Transportation Research Board 2520: 90-99. doi:10.3141/2520-11.
Hood, Jeffrey, Elizabeth Sall, and Billy Charlton. 2011. "A GPS-Based Bicycle Route Choice Model for San Francisco, California." Transportation Letters: The International Journal of Transportation Research 3 (1): 63-75. doi:10.3328/TL.2011.03.01.63-75.
King County Metro, and Sound Transit. 2014. "Non-Motorized Connectivity Study." http://metro.kingcounty.gov/programs-projects/nmcs/pdf/nmcs-report-091214.pdf.
Kuzmyak, J. Richard, Charles Baber, and David Savory. 2007. "Use of Walk Opportunities Index to Quantify Local Accessibility." Transportation Research Record: Journal of the Transportation Research Board 1977 (1977): 145-53. doi:10.3141/1977-19.
Landis, Bruce, Venkat Vattikuti, and Michael Brannick. 1997. "Real-Time Human Perceptions: Toward a Bicycle Level of Service." Transportation Research Record 1578 (1): 119-26. doi:10.3141/1578-15.
Landis, Bruce, Venkat Vattikuti, Russell Ottenberg, Douglas McLeod, and Martin Guttenplan. 2001. "Modeling the Roadside Walking Environment: Pedestrian Level of Service." Transportation Research Record: Journal of the Transportation Research Board 1773 (1): 82-88. doi:10.3141/1773-10.
Lincoln/Lancaster County Planning Department. 2015. "Complete Streets Gap Analysis and Prioritization Strategy." https://lincoln.ne.gov/city/plan/reports/GapAnalysis.pdf.
Lowry, Michael B., Peter Furth, and Tracy Hadden-Loh. 2016. "Prioritizing New Bicycle Facilities to Improve Low-Stress Network Connectivity." Transportation Research Part A: Policy and Practice 86. Elsevier Ltd: 124-40. doi:10.1016/j.tra.2016.02.003.
Lowry, Michael, Daniel Callister, Maureen Gresham, and Brandon Moore. 2012. "Assessment of Communitywide Bikeability with Bicycle Level of Service." Transportation Research Record: Journal of the Transportation Research Board 2314: 41-48. doi:10.3141/2314-06.
Mekuria, Maaza C., Peter G. Furth, and Hilary Nixon. 2012. "Low-Stress Bicycling and Network Connectivity." http://transweb.sjsu.edu/project/1005.html.
Montgomery County. 2014. "Montgomery County Bicycle Planning Guidance."
Petritsch, Theodore a., Bruce W. Landis, Herman F. Huang, Peyton S. McLeod, Daniel Lamb, Waddah Farah, and Martin Guttenplan. 2008. "Bicycle Level of Service for Arterials." Transportation Research Record 2031: 34-42. doi:10.3141/2031-05.
Schoner, Jessica E., and David M. Levinson. 2014. "The Missing Link: Bicycle Infrastructure Networks and Ridership in 74 US Cities." Transportation 41 (6): 1187-1204. doi:10.1007/s11116-014-9538-1.
Tal, Gil, and Susan Handy. 2012. "Measuring Nonmotorized Accessibility and Connectivity in a Robust Pedestrian Network." Transportation Research Record: Journal of the Transportation Research Board 2299: 48-56. doi:10.3141/2299-06.
TriMet. 2011. "Pedestrian Network Analysis." Portland, OR. https://trimet.org/projects/pedestrian-network.htm.
---. 2016. "Bike Plan." http://trimet.org/bikeplan/bikeplan-web.pdf.
U.S. Department of Transportation. 2016. "Guidebook for Developing Pedestrian and Bicycle Performance Measures." https://www.fhwa.dot.gov/environment/bicycle_pedestrian/publications/performance_measures_guidebook/.
As part of the development of this guidebook, the following five transportation planning agencies volunteered to test one or more of the connectivity analysis methods and measures described:
Each agency worked with the project team through the five-step process of identifying the planning context, defining the analysis method, assembling data, computing metrics, and packaging the results. Illustrations throughout the guidebook include maps and insights provided by the case study communities, and Chapter 4 summarizes advice to practitioners based on the lessons learned from the case studies. A full description of the case studies is available in the Appendix.[13]
1 https://bna.peopleforbies.org/#/methodology
2 https://www.fhwa.dot.gov/environment/bicycle_pedestrian/publications/performance_measures_guidebook/
3 https://www.fhwa.dot.gov/environment/bicycle_pedestrian/publications/performance_measures_guidebook/
4 https://www.fhwa.dot.gov/environment/bicycle_pedestrian/publications/performance_measures_guidebook/
5 Mekuria, Furth, and Nixon (2012); M. B. Lowry, Furth, and Hadden-Loh (2016)
6 Landis, Vattikuti, and Brannick (1997); Landis et al. (2001); Petritsch et al. (2008); M. Lowry et al. 2012; Foster et al. (2015)
7 Broach and Dill (2016); Broach and Dill (2017)
8 https://bna.peopleforbikes.org/#/methodology
9 http://peopleforbikes.org/blog/we-scored-the-bike-networks-in-299-u-s-cities-heres-what-we-found/
10 https://github.com/azavea/pfb-network-connectivity
11 http://www.oregon.gov/ODOT/Planning/Pages/APM.aspx
