This appendix provides State maps containing the analysis test sections for each of the participating agencies. These maps and the tables link the geographic location of test sections to the climatic setting and aid in evaluating environmental variation within a State. This appendix also contains information on the pavement structure of each GPS test section.
Figure 83 shows geographic locations of analysis test sections in Alaska, and table 57 lists the environmental and pavement structure information for the Alaska test sections.

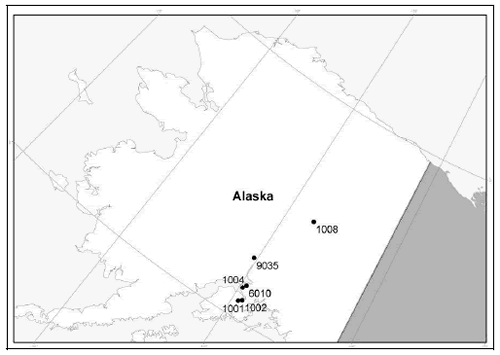

Figure 83. Map. Alaska geographic location of analysis test sections.
| Site | FTC | FI | CI | PRECIP | SN | ACTHICK | D | LESN | LEDT | AC/PC |
|---|---|---|---|---|---|---|---|---|---|---|
| 1002 | 112 | 794 | 0 | 2020 | 3.4 | 4.3 | NA | 1.4 | NA | AC |
| 1001 | 124 | 890 | 0 | 1116 | 2.2 | 3.0 | NA | 2.0 | NA | AC |
| Average | 118 | 841 | 0 | 1568 | 2.8 | 3.7 | NA | 1.7 | NA | NA |
| 1004 | 87 | 1110 | 2 | 420 | 4.1 | 4.5 | NA | 1.2 | NA | AC |
| 6010 | 92 | 1248 | 1 | 413 | 2.9 | 3.8 | NA | 1.7 | NA | AC |
| 9035 | 106 | 1513 | 3 | 729 | 2.7 | 3.0 | NA | 1.7 | NA | AC |
| 1008 | 74 | 2584 | 23 | 317 | 2.9 | 3.1 | NA | 1.6 | NA | AC |
| Average | 90 | 1614 | 7 | 470 | 3.2 | 3.6 | NA | 1.5 | NA | NA |
Figure 84 shows the geographic locations for the analysis test sections in Idaho, and table 58 lists the environmental and pavement structure information for test sections in Idaho.

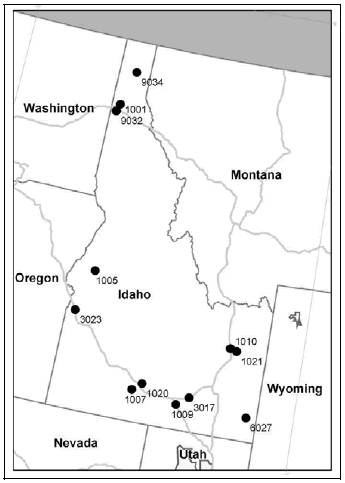

Figure 84. Map. Idaho geographic location of analysis test sections.
| Site | FTC | FI | CI | PRECIP | SN | ACTHICK | D | LESN | LEDT | AC/PC |
|---|---|---|---|---|---|---|---|---|---|---|
| 1001 | 113 | 217 | 158 | 693 | 2.2 | 3.7 | NA | 2.3 | NA | AC |
| 9032 | 111 | 259 | 121 | 718 | 5.8 | 6.1 | NA | 0.9 | NA | AC |
| 3023 | 107 | 278 | 400 | 295 | NA | NA | NA | NA | 0.7 | PC |
| 9034 | 117 | 316 | 89 | 807 | 6.5 | 9.2 | NA | NA | NA | AC |
| 1007 | 121 | 326 | 271 | 254 | 5.0 | 5.5 | NA | NA | NA | AC |
| 1020 | 128 | 328 | 331 | 280 | 4.0 | 3.8 | NA | 1.2 | NA | AC |
| 1009 | 137 | 351 | 221 | 262 | 5.9 | 10.6 | NA | 0.9 | NA | AC |
| 3017 | 125 | 356 | 344 | 342 | NA | NA | 10.3 | NA | 0.6 | PC |
| 1005 | 121 | 399 | 339 | 627 | NA | 3.8 | NA | 1.6 | NA | AC |
| Average | 120 | 314 | 253 | 475 | NA | 6.1 | NA | 1.2 | 0.6 | NA |
| 1021 | 129 | 622 | 149 | 342 | 3.2 | 5.9 | NA | 1.6 | NA | AC |
| 1010 | 136 | 665 | 144 | 303 | 5.5 | 10.9 | NA | 1.0 | NA | AC |
| 6027 | 162 | 817 | 57 | 380 | 4.6 | 5.6 | NA | 1.2 | NA | AC |
| Average | 142 | 702 | 116 | 342 | 4.4 | 7.5 | NA | 1.2 | NA | NA |
Figure 85 shows geographic locations for the analysis test sections in Illinois, and table 59 lists environment and pavement structure information for the Illinois test sections.

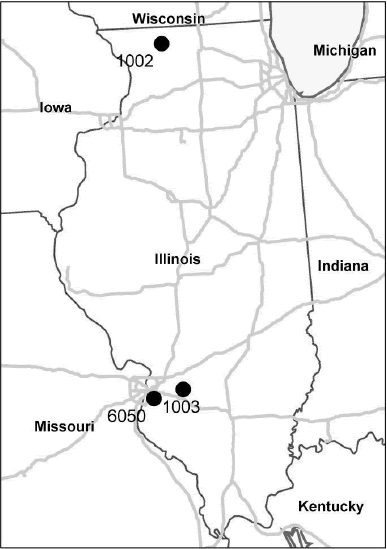

Figure 85. Map. Illinois geographic location of analysis test sections.
| Site | FTC | FI | CI | PRECIP | SN | ACTHICK | D | LESN | LEDT | AC/PC |
|---|---|---|---|---|---|---|---|---|---|---|
| 79 | 212 | 742 | 1052 | 5.9 | 12.10 | NA | 0.8 | NA | AC | NA |
| 78 | 239.4 | 747 | 995 | 4.9 | 7.00 | NA | 1.0 | NA | AC | NA |
| 79 | 225.7 | 745 | 1024 | 5.4 | 9.55 | NA | 0.9 | NA | NA | NA |
| 96 | 651.8 | 383 | 871 | 5.8 | 13.20 | NA | 0.9 | NA | AC | NA |
Figure 86 shows geographic locations of analysis test sections in Indiana, and table 60 lists environment and pavement structure information for the Indiana test sections.

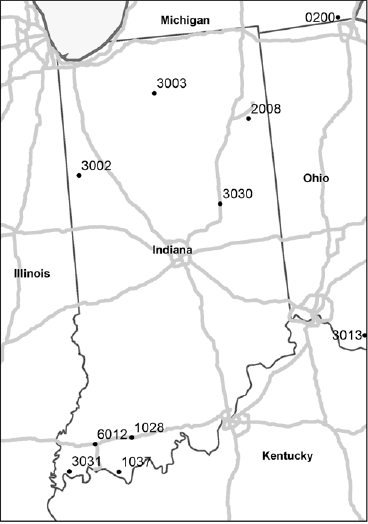

Figure 86. Map. Indiana geographic location of analysis test sections.
| Site | FTC | FI | CI | PRECIP | SN | ACTHICK | D | LESN | LEDT | AC/PC |
|---|---|---|---|---|---|---|---|---|---|---|
| 1037 | 73 | 152 | 821 | 1186 | 6.3 | 14.4 | NA | 0.88 | NA | AC |
| 6012 | 71 | 215 | 798 | 1165 | 8.6 | 20.2 | NA | 0.69 | NA | AC |
| 1028 | 80 | 217 | 696 | 1209 | 6.7 | 15.3 | NA | 0.84 | NA | AC |
| 3031 | 70 | 230 | 772 | 1165 | NA | NA | 10.0 | NA | 0.53 | PC |
| 3030 | 88 | 386 | 476 | 1017 | NA | NA | 8.0 | NA | 0.72 | PC |
| 2008 | 84 | 399 | 471 | 963 | 7.0 | 12.9 | NA | 0.76 | NA | AC |
| Average | 78 | 267 | 672 | 1118 | 7.2 | 15.7 | 9.1 | 0.79 | 0.63 | NA |
| 3002 | 84 | 451 | 520 | 950 | NA | NA | 9.5 | NA | 0.58 | PC |
| 3003 | 88 | 454 | 453 | 1005 | NA | NA | 10.0 | NA | 0.58 | PC |
| Average | 86 | 453 | 487 | 978 | NA | NA | 9.9 | NA | 0.58 | NA |
Figure 87 shows geographic locations of analysis test sections in Michigan, and table 61 lists environment and pavement structure information for Michigan test sections.
Figure 87. Map. Michigan geographic location of analysis test sections.
| Site | FTC | FI | CI | PRECIP | SN | ACTHICK | D | LESN | LEDT | AC/PC |
|---|---|---|---|---|---|---|---|---|---|---|
| 0200 | 86 | 382 | 443 | 866 | NA | NA | NA | NA | NA | PC |
| 0100 | 105 | 510 | 324 | 870 | NA | NA | NA | NA | NA | AC |
| 1010 | 91 | 532 | 309 | 825 | 3.7 | 2.2 | NA | 1.3 | NA | AC |
| 1013 | 109 | 568 | 251 | 915 | 5.0 | 6.7 | NA | 1.1 | NA | AC |
| 1012 | 115 | 612 | 230 | 931 | 4.9 | 6.1 | NA | 1.1 | NA | AC |
| 3068 | 109 | 670 | 215 | 827 | NA | NA | 9.0 | 0.6 | 0.6 | PC |
| 1001 | 109 | 759 | 174 | 790 | 2.2 | 2.2 | 2.3 | NA | AC | |
| 6016 | 100 | 787 | 173 | 751 | 4.5 | 4.6 | 10.3 | 1.1 | 0.6 | AC |
| Average | 105 | 634 | 239 | 844 | 4.1 | 4.4 | 9.7 | 1.3 | 0.6 | NA |
| 1004 | 77 | 960 | 131 | 878 | 2.5 | 4.2 | NA | 2.1 | NA | AC |
Figure 88 shows geographic locations for analysis test sections in New York.

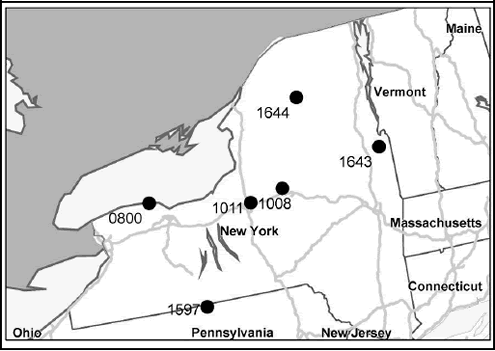

Figure 88. Map. New York geographic location of analysis test sections.
Table 62 lists environment and pavement structure information for analysis test sections in New York.
| Site | FTC | FI | CI | PRECIP | SN | ACTHICK | D | LESN | LEDT | AC/PC |
|---|---|---|---|---|---|---|---|---|---|---|
| 0800 | 87 | 437 | 319 | 891 | NA | NA | NA | NA | NA | AC |
| 1011 | 90 | 505 | 298 | 1007 | 7.4 | 12.0 | NA | 0.7 | NA | AC |
| 1008 | 87 | 582 | 257 | 1133 | 5.6 | 1.8 | NA | 0.9 | NA | AC |
| 1643 | 99 | 618 | 270 | 1006 | 5.8 | 3.7 | NA | 1.0 | NA | AC |
| Average | 91 | 536 | 286 | 1009 | 6.3 | 5.8 | NA | 0.9 | NA | NA |
| 1644 | 109 | 990 | 111 | 1110 | 3.7 | 3.0 | NA | 1.3 | NA | AC |
Figure 89 shows geographic location of analysis test sections in North Carolina. Table 63 lists environment and pavement structure information for analysis test sections in Nort Carolina.

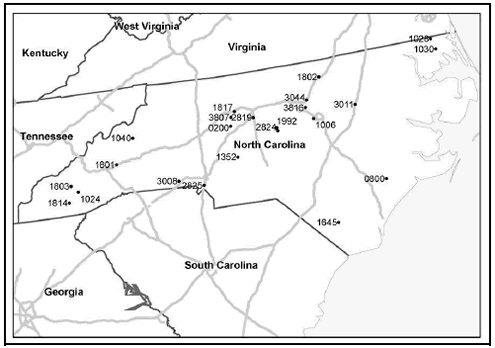

Figure 89. Map. North Carolina geographic location of analysis test sections.
| Site | FTC | FI | CI | PRECIP | SN | ACTHICK | D | LESN | LEDT | AC/PC |
|---|---|---|---|---|---|---|---|---|---|---|
| 0800 | 47 | 14 | 998 | 1343 | NA | NA | NA | NA | NA | AC |
| 1645 | 57 | 19 | 975 | 1260 | 5.2 | 8.9 | NA | 1.1 | NA | AC |
| 1030 | 50 | 24 | 951 | 1192 | 3.6 | 4.0 | NA | 1.4 | NA | AC |
| 2825 | 52 | 28 | 965 | 1093 | 3.9 | 4.6 | NA | 1.2 | NA | AC |
| 1352 | 69 | 32 | 876 | 1232 | 3.7 | 6.6 | NA | 1.4 | NA | AC |
| 1028 | 54 | 32 | 870 | 1186 | 4.6 | 2.9 | NA | 1.1 | NA | AC |
| 3008 | 67 | 33 | 815 | 1212 | NA | NA | 7.9 | NA | 0.7 | PC |
| 1006 | 60 | 35 | 887 | 1153 | NA | 10.1 | NA | 1.0 | NA | AC |
| 2819 | 69 | 43 | 799 | 1139 | NA | 7.0 | NA | 1.0 | NA | AC |
| 3816 | 71 | 44 | 830 | 1141 | NA | NA | 9.3 | NA | 0.6 | PC |
| 3011 | 71 | 45 | 867 | 1151 | NA | NA | 10.0 | NA | 0.6 | PC |
| 3807 | 77 | 46 | 772 | 1142 | NA | NA | 9.4 | NA | 0.6 | PC |
| 1817 | 74 | 46 | 779 | 1126 | 3.9 | 6.7 | NA | 1.4 | NA | AC |
| 0200 | 83 | 47 | 773 | 1151 | NA | NA | NA | NA | NA | PC |
| 3044 | 77 | 49 | 784 | 1161 | NA | NA | 9.0 | NA | 0.7 | PC |
| Average | 65 | 36 | 863 | 1179 | 4.5 | 6.4 | 9.1 | 1.2 | 0.6 | NA |
| 1992 | 73 | 53 | 779 | 1221 | 4.7 | 2.4 | NA | 1.1 | NA | AC |
| 2824 | 73 | 54 | 780 | 1224 | 4.0 | 5.8 | NA | 1.3 | NA | AC |
| 1802 | 82 | 58 | 775 | 1110 | 3.3 | 4.9 | NA | 1.6 | NA | AC |
| 1024 | 93 | 59 | 475 | 1308 | 5.0 | 7.6 | NA | 1.0 | NA | AC |
| 1814 | 100 | 70 | 446 | 1477 | 4.2 | 7.1 | NA | 1.3 | NA | AC |
| 1803 | 107 | 86 | 407 | 1371 | 3.8 | 6.3 | NA | 1.3 | NA | AC |
| 1801 | 88 | 116 | 323 | 1205 | 4.6 | 8.5 | NA | 1.2 | NA | AC |
| 1040 | 109 | 141 | 218 | 1441 | 3.9 | 6.2 | NA | 1.3 | NA | AC |
| Average | 91 | 80 | 526 | 1245 | 4.2 | 6.1 | NA | 1.3 | NA | NA |
Figure 90 shows the geographic locations of the analysis test sites in Ohio, and table 64 shows the environment and pavement structure information for the analysis test sections in Ohio..

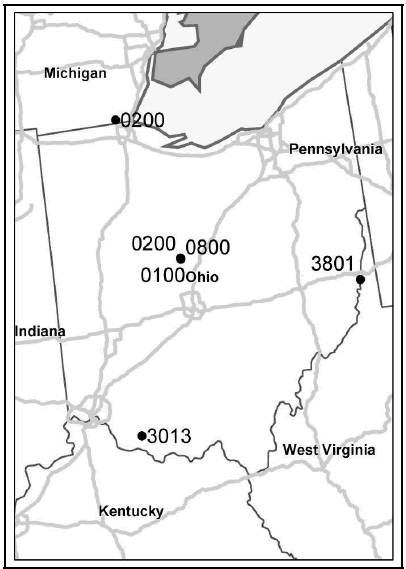

Figure 90. Map. Ohio geographic locations of analysis test sections.
| Site | FTC | FI | CI | PRECIP | SN | ACTHICK | D | LESN | LEDT | AC/PC |
|---|---|---|---|---|---|---|---|---|---|---|
| 3801 | 89 | 249 | 480 | 1037 | NA | NA | 9.2 | NA | 0.6 | PC |
| 3013 | 89 | 250 | 533 | 1140 | NA | NA | 8.3 | NA | 0.6 | PC |
| Average | 89 | 250 | 507 | 1088 | NA | NA | 8.8 | NA | 0.6 | NA |
| 0100 | 96 | 375 | 414 | 972 | NA | NA | NA | NA | NA | AC |
| 0200 | 96 | 375 | 414 | 972 | NA | NA | NA | NA | NA | PC |
| 0800 | 96 | 375 | 414 | 972 | NA | NA | NA | NA | NA | AC |
| Average | 96 | 375 | 414 | 972 | NA | NA | NA | NA | NA | NA |
Figure 91 shows the geographic locations for analysis test sections in Pennsylvania.

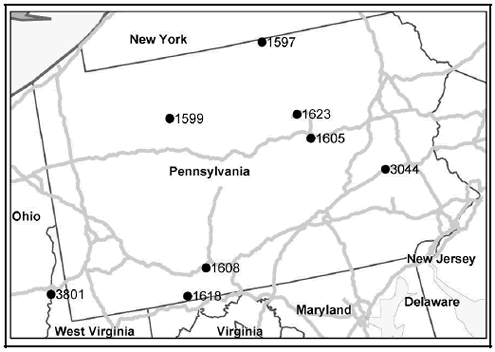

Figure 91. Map. Pennsylvania geographic locations of analysis test sections.
Table 65 lists environment and pavement structure information for analysis test sections in Pennsylvania.
| Site | FTC | FI | CI | PRECIP | SN | ACTHICK | D | LESN | LEDT | AC/PC |
|---|---|---|---|---|---|---|---|---|---|---|
| 3044 | 99 | 269 | 433 | 1164 | NA | NA | 12.7 | NA | 0.5 | PC |
| 1623 | 95 | 309 | 415 | 1004 | NA | NA | 9.3 | NA | 0.6 | PC |
| 1608 | 107 | 311 | 334 | 944 | 3.7 | 5.0 | NA | 1.1 | NA | AC |
| 1605 | 107 | 331 | 339 | 1092 | 6.4 | 9.5 | NA | 0.9 | NA | AC |
| 1618 | 100 | 343 | 270 | 1028 | 3.6 | 5.1 | NA | 1.5 | NA | AC |
| Average | 102 | 313 | 358 | 1047 | 4.6 | 6.5 | 11.0 | 1.2 | 0.6 | NA |
| 1597 | 111 | 514 | 196 | 865 | 5.6 | 8.7 | NA | 0.9 | NA | AC |
| 1599 | 124 | 546 | 141 | 1121 | 6.7 | 12.3 | NA | 0.8 | NA | AC |
| Average | 118 | 530 | 169 | 993 | 6.2 | 10.5 | NA | 0.9 | NA | NA |
