Product Brief: Pavement Profile Viewer and Analyzer

PDF Version (120 KB)

PDF files can be viewed with the Acrobat® Reader®


Pavement Profile Viewer and Analyzer, or ProVAL, is a software package that imports, displays, and analyzes the characteristics of pavement profiles from many different sources. ProVAL can analyze pavement profiles using several methods, including International Roughness Index, Ride Number, Profile Index, California profilograph, and rolling straightedge, and other more complex filters such as Butterworth band pass filters and power spectral density. ProVAL also can perform American Society for Testing and Materials (ASTM) E 950 precision and bias tests and crosscorrelation to find recurring patterns in pavement profiles.

ProVAL Applications

ProVAL software uses a new standard file format that is fast, compact, and portable. Profile and project files can be transferred easily to ProVAL installations on other computers.

The software can help State highway engineers, contractors, and quality control managers improve the quality of pavement construction by analyzing a given profile quickly and providing results in a number of formats. In addition, researchers can use ProVAL to analyze large numbers of profiles of virtually any length, frequency of data collection, and number of longitudinal traces.

Although the software was completed recently, State departments of transportation (DOT) already are applying it in the field. For example, the Ohio DOT is conducting an informal study of pavement smoothness immediately after construction and how pavement smoothness affects a contractor's ability to achieve full payment or bonus, especially as smoothness relates to the warranty and quality control/quality assurance specifications.

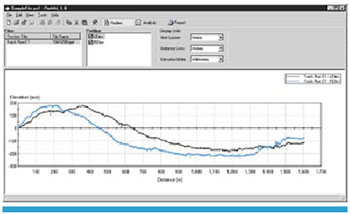

screen capture from the ProVAL software program, showing a chart of pavement profile characteristics
Figure 1. A screen capture from the ProVAL software program shows pavement profile characteristics at different elevations and distances.

FHWA also is using ProVAL as part of its recently initiated Inertial Profile Data for Pavement Performance Analysis project. The project aims to identify practices that will minimize the harmful effects of curling and warping in concrete pavement slabs.

FHWA conducted a presentation on the software for the Road Profiler User Group and the Transportation Research Board's Long-Term Pavement Performance (LTPP) subcommittee on Product Development and Delivery. FHWA also sponsored a workshop that was piloted in December 2002.

Compatible Profile Formats

Currently, three profile formats are compatible with ProVAL: the industry-standard University of Michigan Transportation Research Institute Engineering Research Division (ERD) profiler; the Texas DOT profiler; and the K.J. Law profiler. Other formats may be added to the import functionality of the software as manufacturers work with the developers of ProVAL to include new capabilities.

As ProVAL evolves, more users are expected to apply its solutions to real-world problems. FHWA expects that this software and its new file format will become an industry standard.

For Copies of ProVAL 1.0 Software, Contact:

Mark Swanlund, P.E.
Pavement Design Engineer
400 7th St., SW
Washington, DC 20590

Antonio Nieves
LTPP Midwest and West Regions
Turner-Fairbank Highway
Research Center, HRDI-13
6300 Georgetown Pike, Rm. F-209
McLean, VA 22102

Mike Moravec
LTPP Northeast and South Regions
FHWA Resource Center,
Baltimore, HRC-EA
10 S. Howard St., Ste. 4000
Baltimore, MD 21201-2819

Software updates and other information is available on the ProVAL Web site, http://www.roadprofile.com.
