A systemic approach helps agencies save the people behind the numbers
A new generation of cementitious composite materials, ultra-high performance concrete (UHPC) gets credit for expanding use of PBEs to accelerate bridge projects. Field-cast UHPC creates connections between PBEs that use less concrete and provide better long-term performance than typical connections. Promotion through FHWA’s Every Day Counts program helped quadruple UHPC use to more than 200 bridge projects nationwide, in most cases to provide strong, long-lasting connections for PBEs.
“Using UHPC to cast simpler, more durable connections between prefabricated bridge elements is the ‘killer app’ that has emerged as the entry point for owners, consultants, and contractors to begin using this new class of concrete,” said Benjamin Graybeal, bridge engineering research team leader in FHWA’s Office of Infrastructure Research and Development.

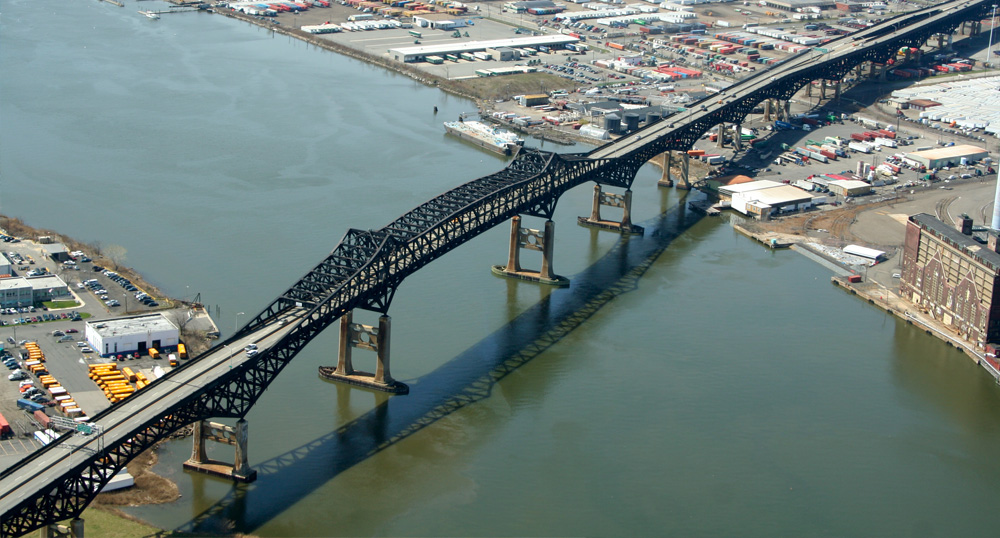

New Jersey’s Pulaski Skyway deck replacement is the largest application of UHPC to date. The project featured precast deck panels connected with UHPC, stainless steel rebar, and a polyester concrete overlay to maximize durability. The New Jersey Department of Transportation chose this system to minimize future repairs and traffic disruption on the heavily traveled bridge.
Another ABC technique many agencies use successfully is slide-in bridge construction, in which crews construct a bridge on temporary supports next to the existing structure and move the new bridge into position during a road closure. Glenwood Springs, CO, used the technique on its 27th Street Bridge project to reduce traffic and economic impacts while replacing this vital downtown link over the Roaring Fork River.

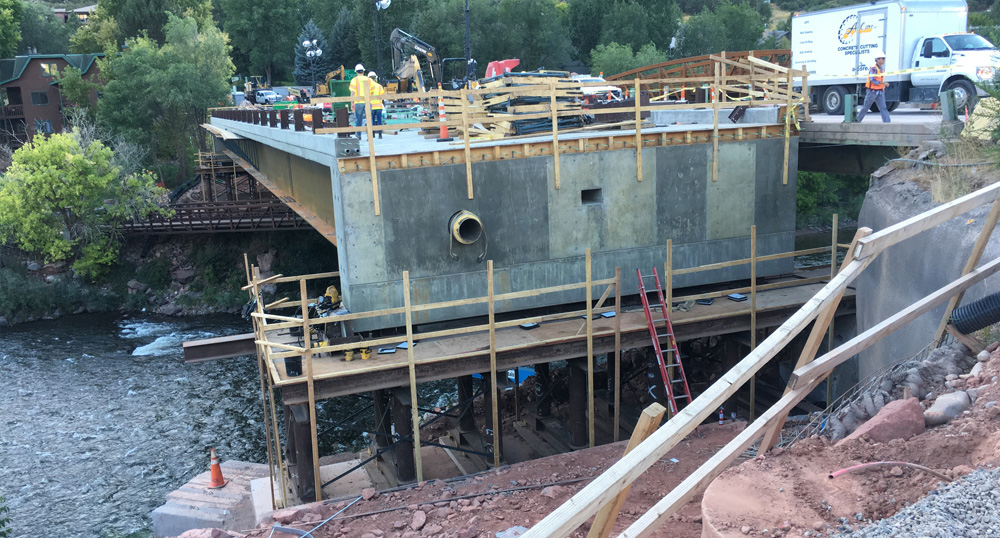

Crews built the replacement bridge near the existing bridge while it remained open to traffic, then demolished the old bridge and slid the new one into place during a week-long road closure in September. “The Glenwood Springs project is an exciting example of ABC moving from implementation at the State level to local and county agencies,” said Elkaissi.
Also growing in popularity is geosynthetic reinforced soil-integrated bridge system (GRS-IBS) technology, a cost-effective, rapid-construction, high-quality method of bridge support that blends the roadway into the superstructure. GRS-IBS can be built with simple and readily available materials, equipment, and labor. “Time and cost savings result from the simplicity of the design and construction procedures as well as the materials selected for construction,” said Daniel Alzamora, senior technical engineer at the FHWA Resource Center.

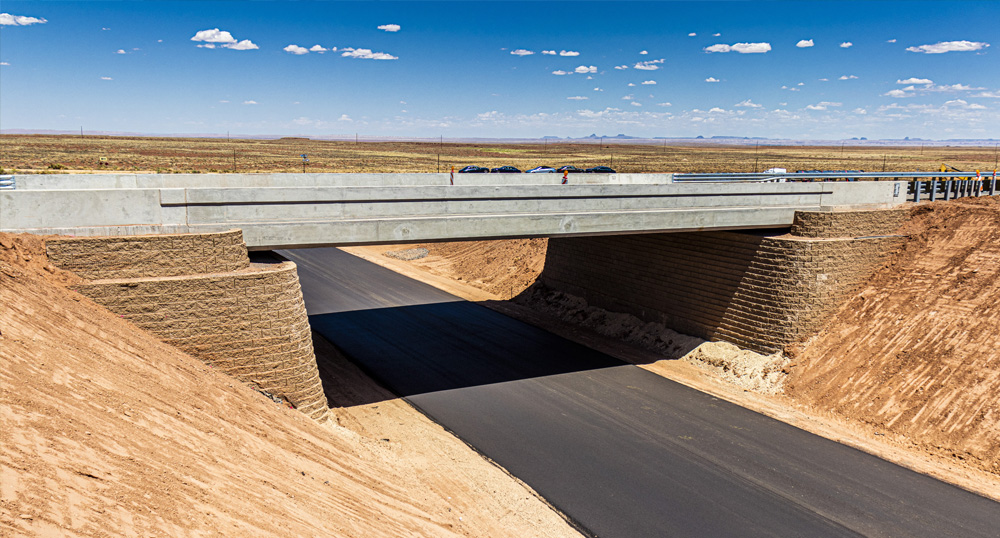

An Arizona Department of Transportation (ADOT) project to replace the Interstate 40 bridge at Meteor City Road used GRS-IBS to get the work done faster, limit inconvenience for motorists, and reduce long-term maintenance costs. The 2019 project, ADOT’s first use of this technique, made it possible for a bridge replacement that ordinarily would take about 6 months to wrap up in a third of the time. State Transportation Innovation Council Incentive funds enabled ADOT to develop GRS-IBS specifications for use on this and future projects.
Many transportation departments now use a programmatic approach to ABC, developing standard practices and evaluating potential ABC use early in project processes. UDOT created an ABC Decision-Making Process template to evaluate every bridge project at the concept stage. “Our matrix is very simple,” said Swanwick. “Other States have adapted it to the way they do business and added different criteria, which is great.”
Using the UDOT matrix as a starting point, the Connecticut Department of Transportation (CTDOT) developed its own ABC Decision Matrix and adopted it as a bridge design standard practice. The matrix helps CTDOT assess the viability of ABC during the preliminary design phase of projects to replace bridge decks, superstructure spans, or entire bridges.
CTDOT’s methodology determines the effect of ABC on the overall cost of the bridge, including bid price, project management costs, and road user impacts. Preliminary road user impacts are assessed by estimating and comparing road user delay time for conventional construction to a proposed ABC construction method.
“What drove the decision methodology was the need for more uniformity in how we analyzed the ABC potential for a bridge project,” said Timothy Fields, CTDOT transportation principal engineer. “It was to create a more objective way of assessing ABC.”
The Federal Highway Administration promoted various aspects of accelerated bridge construction (ABC) in the first four rounds of Every Day Counts (EDC), including prefabricated bridge elements and systems, ultra-high performance concrete connections, slide-in bridge construction, and geosynthetic reinforced soil-integrated bridge system technology. Outreach and technical assistance from EDC deployment teams, peer exchanges with States experienced in ABC use, and demonstration projects encouraged many transportation agencies to adopt ABC.
In 2018, the American Association of State Highway and Transportation Officials (AASHTO) published the LRFD Guide Specifications for Accelerated Bridge Construction, which compiles recommended design and construction specifications for ABC technologies. “The fact that AASHTO published guidance forward gives ABC a lot of credibility and could make States more willing to use it,” said Carmen Swanwick, Utah Department of Transportation Region Two deputy director.
The second Strategic Highway Research Program (SHRP2)—a collaborative effort of FHWA, AASHTO, and the Transportation Research Board—yielded several ABC resources. They include a widely distributed ABC toolkit that features a guidebook, standard design details, and specifications and a SHRP2 training class that reached more than 850 people in the past year.
As a result of these efforts, ongoing research, and agencies’ sharing of best practices and lessons learned, ABC implementation continues to accelerate. “Today, ABC technologies are widely used across the country,” said Romeo Garcia, bridge construction engineer in the FHWA Office of Infrastructure. Agencies are changing the way they do business, moving from project to programmatic deployment of ABC and using game-changing technologies to produce safer, more durable bridges than those built conventionally.
Visit the FHWA ABC web page for an overview, publications, and technical contacts.
See the FHWA SHRP2 Innovative Bridge Designs for Rapid Renewal web page for an ABC toolkit and case studies and the AASHTO SHRP2 ABC web page for project videos and State reports.
For ABC information and technical assistance, contact Romeo Garcia of the FHWA Office of Infrastructure or Jamal Elkaissi of the FHWA Resource Center.
