The Exploratory Advanced Research Program Fact Sheet: Scanning and Convening Activities

Exploring Bridge Maintenance and Asset Management - Workshop Addresses Use of Nondestructive Evaluation Tools

PDF version (382 KB)

PDF files can be viewed with the Acrobat® Reader®

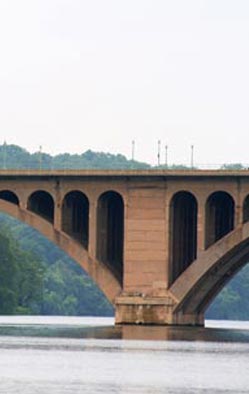

Figure 2. Photo. A side, ground-level view of an arch-type bridge spanning a river. A wooded area is in the background.
Photo credit, other side:
Federal Highway Administration fibers spanning nano/micro crack in a cementitious composite.

With over 600,000 bridges across the United States averaging 42 years of age, annual Federal repair and rehabilitation costs for fiscal year 2010 were in the region of $7 billion.1 Following significant public sector investment developing nondestructive evaluation (NDE) and structural health monitoring (SHM) tools for objective condition assessment, a recent workshop supported by the Federal Highway Administration’s (FHWA) Exploratory Advanced Research (EAR) Program addressed the use of NDE as an effective and efficient bridge maintenance and asset management tool.

Discussing NDE Development

The Workshop on Nondestructive Evaluation for Bridge Maintenance was held January 2011, at the Transportation Research Board’s 90th Annual Meeting in Washington, D.C. Over 60 attendees, representing the research community, bridge owners, regulators, and policy makers, listened to presentations from a variety of speakers, including State department of transportation (DOT) representatives, university researchers, and international experts.

Sreenivas Alampalli of New York State DOT began by addressing challenges in implementing new technology, “There have been many advances in sensing and information technology that have great promise for improving infrastructure management. However, there are many challenges to overcome relating to technology use, and there is a need for better collaboration between technology producers and infrastructure owners.” Alampalli continued, “It is critical to develop national guidelines and protocols for employing a sensor technology in the field for monitoring, testing, and evaluating highway infrastructure. In addition, advancement has to be made to incorporate decisionmaking tools to assist owners as new infrastructure monitoring technology is developed.”

Tools and Technologies

Many techniques used to assess bridge deck condition were discussed at the workshop, with an objective of keeping bridges open. These included the half-cell potential method, anode ladder system, ground penetrating radar, induction thermography, elastic waves, chain drag and hammer sounding methods, and impact echo devices. Other monitoring systems included sonar equipment to monitor scour and fiber optic sensors to monitor strain and temperature.

Jurgen Krieger, of Germany’s Federal Highway Research Institute, provided insight into techniques implemented on some of the 38,000 bridges in Germany, 60 percent of which were built before 1985. “Bridge inspection and management is very important under these conditions. We have to ensure all information from a bridge inspection is used to create the appropriate maintenance program,” explained Krieger. “Bridge inspectors in Germany have access to over 2,000 examples of typical damage and damage ratings. Additionally, there is a direct link from the inspection software to a database offering relevant nondestructive testing methods.”

Attendees were also given a detailed overview of bridge management in Japan, which has over 150,000 bridges with a span over 15 m (49 ft). Hitoshi Furata of Japan’s Kansai University explained the lack of budget to take care of Japan’s aging infrastructure. Ming Wang of Northeastern University then explained his research into roadway monitoring using traffic-embedded sensing. The project involves implementing state-of-the-art technology into vehicles to detect pavement condition at traffic speed, using tire-excited acoustic sensing and tire-pressure sensors.

Implementing Solutions

Jonathan Porter of FHWA concluded the workshop, saying: “Several speakers picked out the severity and complexity of the problem—over 600,000 bridges, combined with an aging infrastructure, and less money for maintenance. However, all that is a rich opportunity for technology to do more with less, and faster.” Porter continued, “It is clear that there is not one tool for all problems. The solution will be a suite of multiple devices and sensors to build a comprehensive picture. The key is to enable decisionmaking and transition technology, tools, and techniques into practical solutions and high quality data.”

EAR Program Support

Traditionally researchers have relied on reading peer reviewed papers and attending conference presentations to learn about advanced research in their field, however the EAR Program seeks new methods for accelerating research. It can enable multiple institutions and fields to collaborate on NDE for highway structures through a virtual laboratory that promotes the use of standard testing samples, fully documents research processes, allows for sharing and reuse of research data, and provides analysis and visualization tools that can be applied to collected data. These types of collaborative research tools have had a dramatic impact moving research from science into applied technology.

Prior to the NDE workshop, the EAR Program sponsored a project entitled “Nondestructive Evaluation for Corrosion Detection in Reinforced Concrete Structures Incorporating Time-Resolved Thermography Combined with Three-Dimensional Microwave Imaging.” The project focused on reducing the estimated $121 billion per year spent on corrosion control methods and demonstrated the power of collaboration on critical and persistent research questions.

Learn More

For more information on the EAR Program and NDE, contact Rebecca Curtis, NDE Laboratory Manager, at 202-493-3066 (email: rebecca.curtis@dot.gov) or Hamid Ghasemi, Long-Term Bridge Performance Program Manager, at 202-493-3042 (email: hamid.ghasemi@dot.gov).

1“Highway Bridge Program: Condition of Nation’s Bridges Shows Limited Improvement, but Further Actions Could Enhance the Impact of Federal Investment,” Phillip R. Herr, U.S. Government Accountability Office (GAO-10-930T), Washington, DC, 2010, p.2.

What Is the Exploratory Advanced Research Program?

FHWA's Exploratory Advanced Research (EAR) Program focuses on long–term, high–risk research with a high payoff potential. The program addresses underlying gaps faced by applied highway research programs, anticipates emerging issues with national implications, and reflects broad transportation industry goals and objectives.

To learn more about the EAR Program, visit the Exploratory Advanced Research Web site at www.fhwa.dot.gov/advancedresearch. The site features information on research solicitations, updates on ongoing research, links to published materials, summaries of past EAR Program events, and details on upcoming events. For additional information, contact David Kuehn at FHWA, 202–493–3414 (email: david.kuehn@fhwa.dot.gov), or Terry Halkyard at FHWA, 202–493 –3467 (email: terry.halkyard@fhwa.dot.gov).
