TECHBRIEF
This report is an archived publication and may contain dated technical, contact, and link information
Back to Publication List
Publication Number:  FHWA-HRT-13-027    Date:  May 2013
Publication Number: FHWA-HRT-13-027
Date: May 2013



Guidelines for Sampling, Assessing, and Restoring Defective Grout in Prestressed Concrete Bridge Post-Tensioning Ducts

PDF Version (144 KB)

PDF files can be viewed with the Acrobat® Reader®



FHWA Publication No.: FHWA-HRT-13-027

FHWA Contact: Paul Virmani, HRDI-60, (202) 493-3052, paul.virmani@dot.gov and
Hamid Ghasemi, HRDI-60, (202) 493-3042, hamid.ghasemi@dot.gov

This document is a technical summary of the Federal Highway Administration report, Guidelines for Sampling, Assessing, and Restoring Defective Grout in Prestressed Concrete Bridge Post-Tensioning Ducts (FHWA-HRT-13-028).



INTRODUCTION

The objectives of this study were to provide recommended guidance for grout sampling, testing, data analysis, and interpretation of results and to propose courses of action by State transportation departments where grout deficiencies are identified. Grout is a cementitious material typically used to provide corrosion protection to the prestressing strands used in post-tensioned (PT) concrete bridges. Based on collected information and data analysis, State transportation departments can evaluate if grout deficiencies are present in the tendons of their PT bridges and determine the significance of those deficiencies.

Durability concerns associated with PT tendons were raised as early as 1999. Tendon failures were seen in some PT bridges as a result of strand corrosion due to the collection of bleed water in grout voids at tendon profile locations like anchorages and crest areas. While the development of prepackaged thixotropic grout was thought to provide a solution to the bleed water problem, corrosion-caused tendon failures on relatively new PT bridges have occurred, and the forensic studies performed to-date have revealed separation and segregation of grout materials as well as the presence of soft material, free water, and high chloride, and sulfate content in some instances.(1–3) Consequently, it is important to examine the overall quality of materials and construction for some in-place grouts in existing PT bridges. The product of this study is a guide for State transportation departments to employ in sampling in-place grouts from tendons in PT bridges.

APPROACH

A review is provided for different types of PT tendons, bridge design, and construction approaches. In addition to discussing the role of chlorides and other chemical deficiencies in causing strand corrosion and tendon failure, the main report also covers other deficiencies such as lack of consistency and consolidation, segregation, and presence of free water. Specific issues and topics addressed in the main report include the following:

SAMPLING METHODOLOGY AND RISK PROJECTION

It is important that the number and location of acquired grout samples are statistically representative of the overall PT tendons. Factors to be considered in this regard include the number of grout lots employed, the availability of a grouting log, and the quality of workmanship. There are two grout sampling options: option 1 involves sampling for chlorides only, and option 2 tests for all grout deficiencies. Under each option, there are two levels of grout sampling: level 1 provides an initial indication of grout condition via preliminary screening tests, and level 2 involves the following steps, as shown in figure 1: (1) review the as-built plans, PT shop drawings, specifications, and construction records; (2) conduct a walk-through visual inspection for the length of the bridge; (3) examine and document the grout condition, obtain grout samples, and inspect for any indications of tendon defects; and (4) analyze and evaluate the grout samples.

Each tendon is classified as being of low, medium, or high risk of failure. This classification is defined as the product of an indicator of defect probability and a consequence of failure indicator (see figure 2). The indicator of defect probability is comprised of the following four factors:

  1. Bridge condition.

  2. Availability of construction records.

  3. Visual condition evaluation.

  4. Tendon geometry and length.

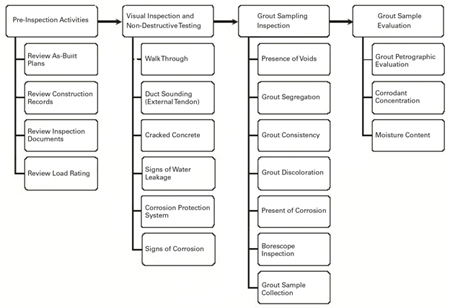

Figure 1. Flowchart. Grout inspection processes. This flow chart lists the sequential inspection steps for pre-inspection activities, visual inspection and non-destructive testing, grout sampling inspection, and grout sample evaluation. Pre-inspection activities include review.

Figure 1. Flowchart. Grout inspection processes.

Figure 2. Graph. Risk matrix. This figure shows a risk matrix where probability of a defect indicator is plotted on the y-axis ranging from 1 to 5, and consequence of a failure indicator is plotted on the x-axis ranging from 1 to 5. For both axes, 1 indicates low and 5 indicates high. For low combinations of axes, risk is low and vice versa.

Figure 2. Graph. Risk matrix.

EXAMPLES

In order to show how the proposed guidelines can be implemented, example analyses are provided for four different types of PT bridges including a typical precast balanced cantilever segmental bridge, a typical PT spliced girder bridge, a typical span-by-span segmental bridge, and a typical PT bridge with draped internal tendons. The precast segmental balanced cantilever and PT spliced girders are from actual projects, whereas the other two cases were conceived as examples.

Analysis of Grout Samples

Grout sampling should be performed during the overall bridge and tendon inspection process and can be performed at an opened end cap or at an intermediate coupling location. Grout sampling can also be performed by cutting away a section of duct, which involves concrete excavation due to internal tendons. Researchers should collect free water and corrosion products, if present, and acquire samples of each grout type (i.e., segregated, soft, etc.).

Grout characterization requires that both composition and structure (macro and micro) be determined. Composition should be determined by wet chemistry analysis for total chlorides and soluble chlorides and by analytical techniques such as ion chromatography (solution only), X-ray florescence (solid or powdered samples only), and energy dispersive spectroscopy (solid or powdered samples only).(4) The structure should be determined by petrographic methodologies, electron microscopy, and X-ray diffraction.

Minimally, X-ray florescence and wet chemistry analysis for total chlorides should be performed. Petrographic analysis should be performed in accordance with the applicable ASTM standard.(5) If strand corrosion is ongoing, then corrosion state and rate can be assessed by appropriate electrochemical methods.(6–8)

Sampling Locations

After the number of randomly selected tendons to be sampled is determined, sampling locations should be strategically located. Typically, grout chemical and physical deficiencies are found at high elevations along tendons, so the most straightforward approach is to collect grout samples from cap internal areas. Duct or coupler removal, as is required for access to grout at intermediate locations, has a greater chance of causing distress. It is not always possible to remove grout samples from a cut window in a duct away from anchorages of internal tendons because of strand configuration. For both option 1 and option 2 inspections, at least one grout sample should be collected from each preselected tendon.

Restoration Methods

Proper restoration of tendon damage that results from inspection and grout sampling is critical because paths for ingress of corrosives into the PT system may result, and long-term durability may be compromised. Restoration can either be temporary or permanent, where temporary restoration is due to short-term adverse weather or unexpected findings (or both). Conversely, permanent restoration meets the original design life.

Materials and methods should be included in a work plan for the restoration and be approved by the bridge owner. Methods and materials may vary for external versus internal tendons.

Interpretation of Results and Courses of Action

Table 1 lists chemical deficiency (CD) classifications for option 1 inspections in terms of four chloride (Cl-) levels. Based on the findings, individual tendons are assigned a grade from 1 to 10, where a higher grade indicates a more problematic tendon condition. This in turn defines the recommended courses of action(s) (A). Table 2 shows the CD classification for option 2 in terms of the same four chloride levels as in option 1 as well as six degrees of physical deficiency (PD) (note that it is six degrees since PD0 has no deficiency).

Table 1. CD classifications as determined by grout Cl- levels from an option 1 inspection and resultant recommended actions.

CDa

CD1

Cl− ≤ 0.08

X







CD2

0.08 < Cl− ≤ 0.20



X





CD3

0.08 < Cl− ≤ 0.20b





X



CD4

Cl− > 0.50b







X

Action

Grade

1

5

7

9

A1

None







A2

Expand sampling





 X

A3

Reinspect in 5 years







A4

Reinspect in 2 years





X

X

A5

Tendon monitoring





X

X

a Chloride concentration units are weight percent cement.
b If strand corrosion or fracture(s) are found (PD5 or PD6 under option 2 in table 2), then grade 9 or 10 should be assigned as appropriate per option 2 actions.



Table 2. CD and PD classifications as determined by grout Cl- levels and in-place grout structure by an option 2 inspection and resultant recommended actions.

CDa

CD1

Cl− ≤ 0.08

X

X

X

X



CD2

0.08 < Cl− ≤ 0.20



X

X



CD3

0.02 < Cl− ≤ 0.50



X

X



CD4

Cl− > 0.50



X

X

PD

PD0

Sound grout

X



PD1

Grout air pocket



X

X

X

X

X

X

X

X

X

PD2

Exposed strand/tendon



X

X

X

X

X

X

X

X

PD3

Soft or segregated grout



X

X

X

X

X

X

X

PD4

Tendon surface corrosion (no section loss)



X

X

X

X

X

PD5

Tendon surface corrosion (< 5 percent section loss)



X

X

X

PD6

Tendon with partial or full fracture (≥ 5 percent section loss)



X

Action

Grade

1

2

3

4

5

6

7

8

9

10

A1

None

X

X



A2

Expand sampling



X

X

X

X

A3

Reinspect in 5 years



X

X

X



A4

Reinspect in 2 years



X

X

X

X

A5

Tendon monitoring



X

X

X

X

A6

Consider repairing deficiency as necessaryb



X

X

X

X

X

X

X

X

X

A7

Structural evaluation/load rating



X

A8

Tendon replacement



X

a Chloride concentration units are weight percent cement.
b This applies to PD1, PD2, and PD3.

REFERENCES

  1. Merrill, B.D. (2011). TxDOT PT/Grout Issues, Presentation at the American Segmental Bridge Institute 23d Annual Convention, Washington, DC. Obtained from: http://ftp.dot.state.tx.us/pub/txdot-info/brg/0212_webinar/merrill.pdf.

  2. Bertolini, L. and Carsana, M. (2011). “High pH Corrosion of Prestressing Steel in Segregated Grout,” Modeling of Corroding Concrete Structures, RILEM Series, 5, 147–158. Cedex, France.

  3. Lau, K., Lasa, I., and Parades, M. (2011). Corrosion Development of PT Tendons with Deficient Grout: Corrosion Failure in Ringling Causeway Bridge, Draft, Florida Department of Transportation State Materials Office, Gainesville, FL.

  4. AASHTO T 260-97. (2009). Sampling and Testing for Chloride Ion in Concrete and Concrete Raw Materials, American Association of State Highway and Transportation Officials, Washington, DC.

  5. ASTM C856-11. (2011). “Standard Practice for Petrographic Examination of Hardened Concrete,” Book of Standards Volume 04.02, ASTM International, Conshohocken, PA.

  6. ASTM G59-97(2009). (2009). “Standard Test Method for Conducting Potentiodynamic Polarization Resistance Measurements,” Book of Standards Volume 03.02, ASTM International, Conshohocken, PA.

  7. ASTM G102-89(2010). (2010). “Standard Practice for Calculation of Corrosion Rate and Related Information from Electrochemical Measurements,” Book of Standards Volume 03.02, ASTM International, Conshohocken, PA.

  8. ASTM C876-09. (2009). “Standard Test Method for Corrosion Potentials of Uncoated Reinforcing Steel in Concrete,” Book of Standards Volume 03.02, ASTM International, Conshohocken, PA.

Researchers—Researchers for this project include Mr. Teddy S. Theryo of Parsons Brinkerhoff, Inc. and Dr. William H. Hartt of Florida Atlantic University.

Distribution—This TechBrief is being distributed according to a standard distribution. Direct distribution is being made to the Divisions and Resource Center.

Availability—This TechBrief may be obtained from the FHWA Product Distribution Center by e-mail to report.center@fhwa.dot.gov, fax to (814) 239-2156, phone to (814) 239-1160, or online at https://www.fhwa.dot.gov/research. The full report is available online at: https://www.fhwa.dot.gov/research.

Key Words—Bridges, Post-tensioning, Grout, Chlorides, Corrosion, Fracture, Inspection, Sampling, Repair.

Notice—This document is disseminated under the sponsorship of the U.S. Department of Transportation in the interest of information exchange. The U.S. Government assumes no liability for the use of the information contained in this document. The U.S. Government does not endorse products or manufacturers. Trademarks or manufacturers’ names appear in this report only because they are considered essential to the objective of the document.

Quality Assurance Statement—The Federal Highway Administration (FHWA) provides high-quality information to serve the Government, industry, and public in a manner that promotes public understanding. Standards and policies are used to ensure and maximize the quality, objectivity, utility, and integrity of its information. FHWA periodically reviews quality issues and adjusts its programs and processes to ensure continuous quality improvement.
