To increase pavement life by investigation of various designs of pavement structures and rehabilitated pavement structures, using different materials and under different loads, environments, subgrade soil, and maintenance practices.

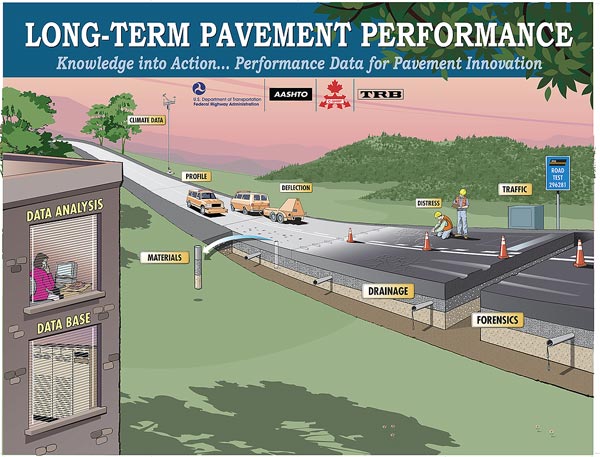

Started in 1987 as part of the Strategic Highway Research Program (SHRP) and managed by the Federal Highway Administration (FHWA) since 1992, the Long-Term Pavement Performance (LTPP) program studies the performance of in-service pavements. The primary goal of the LTPP program is to understand how and why pavements perform as they do. To accomplish this goal, researchers collect pavement performance data using standard data collection procedures and protocols on a variety of pavement types. This information is stored in a database that can be used by pavement engineers and researchers worldwide to advance the science of pavement engineering.
Since 1989, the LTPP database has grown exponentially and includes electronic information collected from 2,509 pavement test sections throughout the United States and Canada. The LTPP program has two sets of experiments, the General Pavement Studies (GPS) and the Specific Pavement Studies (SPS), detailed in table 1. The GPS test sections were established on existing pavements. An experimental matrix was used to guide the selection of GPS test sections that would cover, to the greatest extent possible, the range of factors required to explain pavement performance. Test sections for SPS experiments were built to specific designs and thicknesses, as defined in the experimental plans.
Today, the LTPP program continues to collect performance data for over 700 test sections. Approximately 50 percent of the remaining test sections are GPS experiments with the majority falling into the GPS-6 experiment that evaluates asphalt concrete overlay of asphalt concrete pavement. Many GPS-3 experiment sections that evaluate jointed plain concrete pavements also remain. The remaining 50 percent are SPS experiments. The majority of the test sections are in the SPS-2 experiment, which is the study of structural factors for rigid pavements, followed by the SPS-8 experiment, which is the study of environmental effects on the pavement in the absence of heavy loads.
Data Collection and Management
Collecting Quality Data |

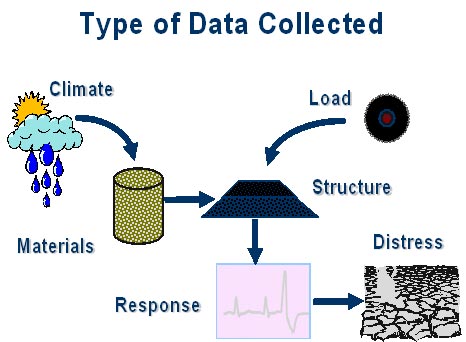

From its inception, the LTPP program has sought to collect data believed to be most important in characterizing factors that affect pavement performance. The types of data collected are shown in the figure. Ensuring consistency and accuracy in the collection of data are vitally important from site-to-site and across States and Provinces. Extensive quality assurance processes ensure that the database is populated with the highest quality data possible (LTPP Information Management System Quality Control Checks, September 2013). Quality control checks include detailed data collection protocols; personnel training and certification requirements applied to ensure consistency in data collection and test results; a schedule for regular calibration and maintenance of all data collection equipment; and a variety of post-collection data checks.
Collected pavement performance data are stored in the LTPP database, which currently resides on several high-capacity servers and in the Amazon Cloud. As computer technology changes, the LTPP database also changes so that it remains current with technology and accessible to data users. The LTPP InfoPave™ system, which made its debut in January 2014, is an interactive Web-based system capable of providing users with performance and supporting data for LTPP test sections. Users of LTPP InfoPave have several new options to access, view, and download LTPP data.
Data Analysis
Over the past two decades, data from the LTPP program have proven to be useful in advancing pavement engineering technology. The Strategic Plan for LTPP Data Analysis identifies and prioritizes projects, tracks projects to completion, and documents future research needs. The identified projects are pursued by the LTPP program as resources permit. LTPP data are also regularly applied in research sponsored by individual State highway agencies, the Transportation Research Board, and others to address pavement performance-related issues. For instance, the SHRP2 R23 project uses performance data from LTPP test sections to focus on pavement renewal alternatives for both flexible and rigid pavements. LTPP field performance data, in conjunction with other data sources, are being used to develop products for the SHRP2 R23 project.
Product Development
Products developed from the LTPP program take many forms, including data collection guides, test methods, protocols, software, and technical guidance. The program's most valuable product is its comprehensive database because it is the foundation for understanding pavement performance.
For more than two decades, the value of LTPP data has been amply demonstrated. For example, the LTPP database served as a critical resource in developing the American Association of State Highway and Transportation Officials (AASHTO) Mechanistic-Empirical Pavement Design Guide (MEPDG), the first new pavement design procedure in a generation. Data from LTPP test sections were used to calibrate national default models used in the guide. Developers of the MEPDG have said that the guide would not be possible if it were not for the data and information available on a nationwide basis from the LTPP program.
Other products of the LTPP program include the Distress Identification Manual for the Long-Term Pavement Performance Program (FHWA-HRT-13-092); AASHTO's R32-09 procedure, Standard Practice for Calibrating the Load Cell and Deflection Sensors for a Falling Weight Deflectometer; guidelines for collectingreliable traffic loading data; and ProVAL, a software applicationused to view and analyze pavement profiles. Additional informationabout LTPP products is available in Long-Term Pavement Performance Program Highlights: Accomplishments and Benefits 1989–2009 (FHWA-HRT-10-071).
The LTPP program will yield additional benefits as data are added to the database and as data analysis efforts—some currently planned and some yet to be identified—are completed. Continued monitoring of the test sections that remain in service is needed to obtain data encompassing their full performance period. In addition, key LTPP stakeholders recognize the necessity of strategically establishing new LTPP experiments. In light of rapid growth in the use of warm-mix asphalt, an LTPP Warm-Mix Asphalt Overlay experiment (SPS-10) is underway, and the establishment of an LTPP Pavement Preservation experiment is under development. Through these efforts, the LTPP program will continue to play a critical role in answering the primary question, "How and why do pavements perform as they do?"
Table 1. List of General Pavements Studies and Specific Pavements Studies
General Pavement Studies (GPS) | Specific Pavement Studies (SPS) |
GPS-1: Asphalt Concrete on Granular Base | SPS-1: Strategic Study of Structural Factors for Flexible Pavements |
GPS-2: Asphalt Concrete on Bound Base | SPS-2: Strategic Study of Structural Factors for Rigid Pavements |
GPS-3: Jointed Plain Concrete Pavement | SPS-3: Preventive Maintenance Effectiveness of Flexible Pavements |
GPS-4: Jointed Reinforced Concrete Pavement | SPS-4: Preventive Maintenance Effectiveness of Rigid Pavements |
GPS-5: Continuously Reinforced Concrete Pavement | SPS-5: Rehabilitation of Asphalt Concrete Pavements |
GPS-6: Asphalt Concrete Overlay of Asphalt Concrete Pavement | SPS-6: Rehabilitation of Jointed Portland Cement Concrete Pavements |
GPS-7: Asphalt Concrete Overlay of Portland Cement Concrete | SPS-7: Bonded Portland Cement Concrete Overlays on Concrete Pavements |
GPS-9: Unbonded Portland Cement Concrete Overlays on Portland Cement Concrete Pavements | SPS-8: Study of Environmental Effects in the Absence of Heavy Loads |
SPS-9: Validation of Strategic Highway Research Program Asphalt Specification and Mix Design (Superpave) | |
SPS-10: Warm-Mix Asphalt Overlay of Asphalt Pavements |
The LTPP Customer Support Service Center, located at FHWA's Turner-Fairbank Highway Research Center in McLean, Virginia, is committed to providing superb and timely service with LTPP data requests and other information. Some of the services provided by customer support include:
LTPP data and program information can also be accessed directly using the LTPP InfoPave Web site.
LTPP Customer Support Service Center
6300 Georgetown Pike, HRDI-30
McLean, Virginia 22101-2296
(202) 493-3035
