Measured Variability Of Southern Yellow Pine - Manual for LS-DYNA Wood Material Model 143

PDF Version (2.92 MB)

PDF files can be viewed with the Acrobat® Reader®

APPENDIX A. MEASURED VARIABILITY OF SOUTHERN YELLOW PINE

click on the image for Section 508 compliancy text

Figure 34.

Measured load displacement curves of southern yellow pine exhibit variability in tension parallel to the grain.

Source: Forest Products Laboratory (14).

click on the image for Section 508 compliancy text

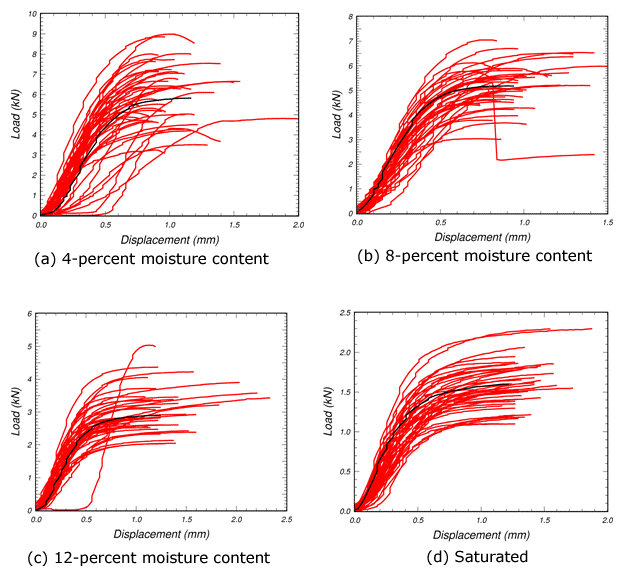

Figure 35.

Measured load displacement curves of southern yellow pine exhibit variability in compression perpendicular to the grain.

Source: Forest Products Laboratory (14).
