TECHBRIEF
This techbrief is an archived publication and may contain dated technical, contact, and link information
Back to Publication List
Publication Number:  FHWA-HRT-15-041    Date:  May 2015
Publication Number: FHWA-HRT-15-041
Date: May 2015



Comparison of Driver Yielding for Three Rapid-Flashing Patterns Used With Pedestrian Crossing Signs

PDF Version (470 KB)

PDF files can be viewed with the Acrobat® Reader®



FHWA Publication No.: FHWA-HRT-15-041
FHWA Contact: Ann Do, HRDS-30, (202) 493-3319, ann.do@dot.gov

INTRODUCTION

Flashing traffic control devices can help draw drivers’ attention to the traffic control device and to the area around the device. An example of a device that has resulted in significant improvements in increasing driver yielding to crossing pedestrians is the rectangular rapid-flashing beacon (RRFB). Studies have been conducted in several locations, including Florida, Texas, Oregon, Michigan, Arizona, Wisconsin, and Calgary, AB. (See references 1 through 10.) These studies show a large range in the number of driver yielding responses for the RRFBs, extending from a low of 22 percent to a high of 98 percent. This wide range in yielding indicates that device, site, or roadway characteristics are potentially affecting the driver’s decision to yield. Even with this wide range, the use of RRFBs has resulted in more drivers yielding to crossing pedestrians.

Although the RRFB is allowed under interim approval from the Federal Highway Administration (FHWA), there is growing interest in adding it to the Manual on Uniform Traffic Control Devices (MUTCD).(11,12) The Signals Technical Committee (STC) of the National Committee on Uniform Traffic Control Devices (NCUTCD), which assists in developing language for chapter 4 of the MUTCD, is interested in research and/or assistance in developing materials on the design, application, and effectiveness of the RRFB. The initial research studies did not address certain issues that the STC believes are important in crafting language suitable for the MUTCD. For example, will other flash patterns be just as effective as the initial flash pattern that was evaluated and approved by FHWA?

This TechBrief describes the methodology and results from an open-road study sponsored by FHWA that examined driver yielding behavior at crosswalks with three different flash patterns used with yellow, rapid-flashing beacons.



FHWA Interim Approval of RRFB

On July 16, 2008, FHWA issued Interim Approval 11 (IA-11) for the optional use of the RRFB at uncontrolled pedestrian and school crosswalks.(11) As defined in IA-11, the RRFB should consist of two rapidly and alternately flashing rectangular yellow indicators with light-emitting diode array-based pulsing light sources.(11) When IA-11 was issued, the only flash pattern that had been tested was a pattern commonly called the 2-5 pattern as part of the initial evaluations conducted in Florida.(1) The name of the 2-5 pattern was developed based on the flash cycle of the beacon, which pulses two times on one side followed by five faster pulses on the other side. Because the 2-5 pattern appears to the human eye to be a 2-3 flash pattern, the IA-11 contained language describing a 2-3 pattern. Therefore, several devices were installed with the 2-3 pattern rather than the 2-5 pattern. Only after looking at the flash pattern using an oscilloscope were university researchers able to determine that the original devices had a 2-5 pattern, which led to FHWA changing the flash pattern from a 2-3 pattern to a 2-5 pattern in Official Interpretation 4(09)-21.(13)

Study Objective

An inability to accurately determine the number of pulses within the 2-5 RRFB pattern was later confirmed in a closed-course study.(14) The same study found that certain flash patterns—those that could be characterized as having limited or no dark periods within the flash pattern—negatively influenced the amount of time participants needed to identify a pedestrian’s direction of travel at night. Participants needed more time to identify the pedestrian walking direction when a pattern had limited or no dark periods. Before developing the proposed provisions for incorporating a rapid-flashing beacon traffic control device into the MUTCD, it is important to determine which flash patterns are acceptable from the perspectives of driver yielding and flash pattern simplicity.(12) This study sought to determine whether less complicated flash patterns and flash patterns with different proportions of dark and light periods can be equally or more effective than the 2-5 pattern during daytime conditions. A reason for investigating patterns with increased dark periods is to study the effect that increased dark periods would have on driver yielding compliance.

Study Development

Study Sites

Based on a statistical analysis of past driver yielding data at RRFB locations in Texas, the research team estimated that it would take between 7 and 13 sites to obtain a sufficient sample of data to permit detection of at least a 5-percent difference in driver yielding.(5) Given available resources for the study, a total of eight sites were selected for testing.

The Texas cities of College Station and Garland, along with Texas A&M University, agreed to participate in the study by providing locations where the research team could install temporary equipment. Table 1 lists the sites included in this study. A goal was to try to match the distribution of site characteristics used in the original FHWA study on RRFBs.(1) For example, the research team preferred locations on multilane roads so that yielding behavior associated with the “multiple threats” issue could be observed. Because of limited ability to mount temporary beacons on overhead mast arms, the research team did not consider locations where the existing RRFBs are located on mast arms over the roadway.

Temporary Light Bar

To conduct an in-field evaluation of multiple flash patterns, the research team needed to be able to set the flash pattern and brightness of the beacons at the study sites in a quick, reliable, and consistent manner. Because of the difficulties with working with different equipment in different cities and unknown characteristics of the beacons at these locations (such as brightness), the research team designed temporary controllers for use with temporary light bars. In the field, the temporary light bars were mounted in front of existing RRFB light bars.

The temporary light bar setup was designed so that it was not obvious that the beacons being observed during the staged pedestrian crossings were any different from the permanent RRFB equipment. Figure 1 shows an example of the installed light bar being used by a staged pedestrian. Findings from a closed-course study indicate that brightness of the beacons can influence how quickly a participant can detect a pedestrian within a crosswalk.(14) Findings from another open-road study revealed that brightness affects driver yielding decisions.,(7) Therefore, the same brightness level was used for all three flash patterns tested.

Flash Patterns

The study budget and parameters made it possible to test three different flash patterns at each study site with one of the patterns reserved for the baseline 2-5 flash pattern. To determine flash patterns for the other two conditions, a flash pattern workshop was held consisting of a selection of licensed transportation engineering professionals, representatives of FHWA, and Texas A&M Transportation Institute research staff. Several predeveloped patterns were shown to the participants. Based on participant comments, new patterns were developed. For example, some flash patterns were changed to have longer dark periods within the cycle, and some were changed to have periods where both beacons were on. Based on the meeting participants’ comments, two potential patterns in addition to the 2-5 pattern were selected. These two patterns were demonstrated to FHWA representatives, and final approval was given.

Table 1. List of sites for rapid-flash pattern study.
Site ID Posted Speed Limit (mi/h) Number of Lanes Median Crossing Distance (ft)
CS-02 40 4 TWLTL 56
CS-03 30 2 TWLTL 37
GA-02 40 4 LTL 58
GA-06 40 4 Raised 80
GA-07 45 4 Raised 82
GA-10 40 4 Raised 62
GA-11 40 4 Raised 62
GA-13 40 4 Raised 55
LTL = Left-turn lane.
TWLTL = Two-way, left-turn lane.

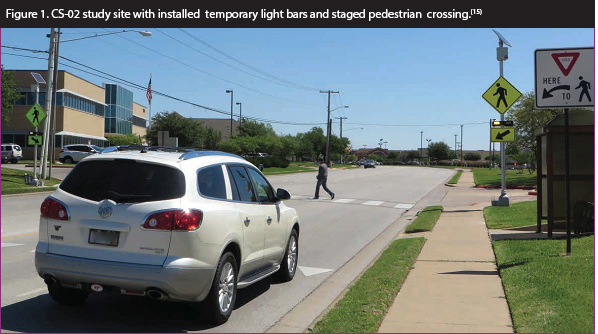

Figure 1. Photo. CS-02 study site with installed temporary light bars and staged pedestrian crossing. This photo shows a pedestrian dressed in blue jeans and a gray sweatshirt crossing at a marked crosswalk. An active rectangular rapid-flashing sign assembly is on the right side and left side of the roadway. A car has yielded to the crossing pedestrian.

Figure 1. CS-02 study site with installed temporary light bars and staged pedestrian crossing.(15)
Source: Fitzpatrick.

Figure 2 shows the three patterns selected for testing in the field using the temporary light bars. The three conditions considered in this study include the following:

  • Pattern using a combination of long and short flashes (called Blocks).
  • Pattern using a combination of wig-wag and simultaneous flashes (called WW+S).
  • The 2-5 pattern (called 2-5).

The order in which treatments are presented could have an effect on results; therefore, flash pattern order for the sites was randomized.

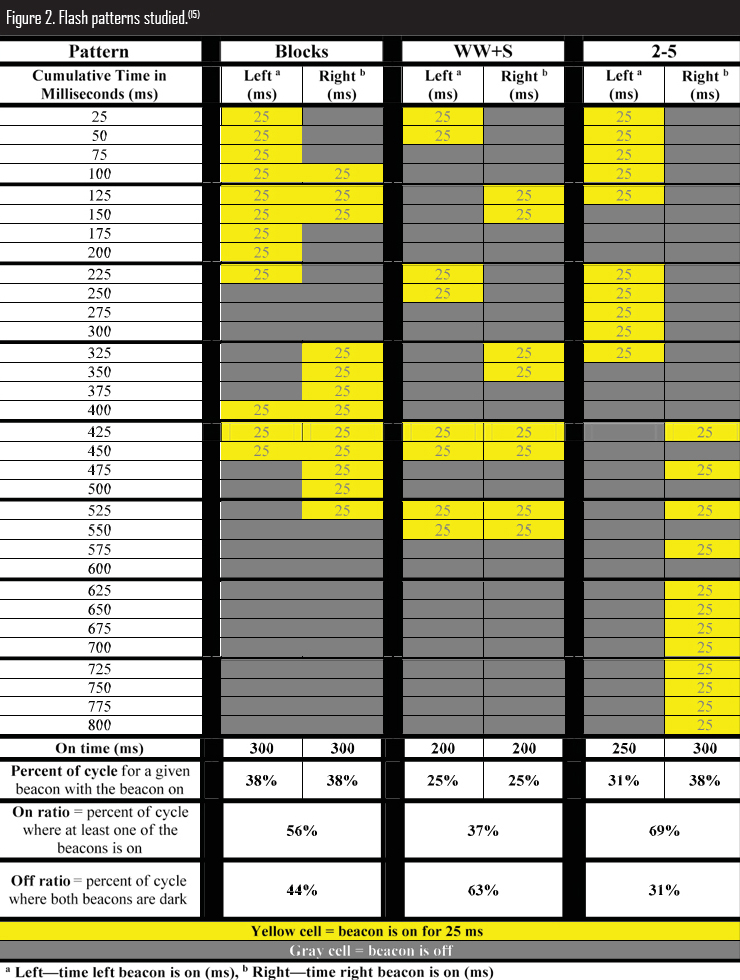

Figure 2. Graphic. Flash patterns studied. The graphic illustrates when the left and right beacons are "on" and "off" during a typical cycle for the Blocks, wig-wag and simultaneous (WW+S), and 2-5 flash patterns. The cycle is 800 ms long. For the Blocks pattern, the left beacon is on for 225 ms, and the right beacon is on for 75 ms in the middle of that time period and off for the other time periods. Both beacons are off for the next 75 ms. Next, the right beacon is on 225 ms, and the left beacon is on for the 75 ms in the middle of that time period and off for the other time periods. Both beacons are off for the remainder of the cycle. For the WW+S pattern, the left beacon is on for 50 ms, both beacons are off for 50 ms, the right beacon is on for 50 ms, and then both beacons are off for 50 ms. This pattern repeats, and then both beacons are on for 50 ms, off for 50 ms, on for 50 ms, and then off for 250 ms. For the 2-5 pattern, which is also known as rapid flash, the left beacon is illuminated for two pulses of 125 ms each, with 75 ms between the initial two pulses, and then is dark for the remaining 475 ms. The right beacon is illuminated for four pulses of 25 ms each followed by no illumination for 25 ms. The right beacon is then illuminated for 200 ms. The left beacon is not illuminated when the right beacon is illuminated and vice versa. The graphic also provides information on the amount of on time for each beacon: Blocks left beacon is on 300 ms of the cycle, Blocks right beacon is on 300 ms of the cycle, WW+S left beacon is on 200 ms of the cycle, WW+S right beacon is on 200 ms of the cycle, 2-5 left beacon is on 250 ms of the cycle, and 2-5 right beacon is on 300 ms of the cycle. The graphic also provides information on the percent of cycle when beacon is on: Blocks left beacon is on for 38 percent of the cycle, Blocks right beacon is on for 38 percent of the cycle, WW+S left beacon is on for 25 percent of the cycle, WW+S right beacon is on for 25 percent of the cycle, 2-5 left beacon is on for 31 percent of the cycle, and 2-5 right beacon is on for 38 percent of the cycle.The graphic also provides information for the on ratio, which is the percent of cycle where at least one of the beacons is on. The Blocks pattern is on for 56 percent, WW+S is on for 37 percent, and 2-5 is on for 69 percent of the cycle. The graphic also provides information for the off ratio which is the percent of cycle where both beacons are dark. The Blocks pattern is dark for 44 percent, the WW+S pattern is dark for 63 percent, and the 2-5 pattern is dark for 31 percent of the cycle.

Figure 2. Flash patterns studied.(15)
Source: Adapted from Fitzpatrick.

Data Collection

The data were collected during daytime conditions in February and March 2014. The research team used a staged pedestrian protocol to collect driver-yielding data to present oncoming drivers with a consistent presentation of approaching pedestrians. Under this protocol, a member of the research team acted as a pedestrian using the crosswalk. Each staged pedestrian wore similar clothing (gray T-shirt, blue jeans, and gray tennis shoes) and followed specific instructions in crossing the roadway. A second researcher accompanied the staged pedestrian and was responsible for observing and recording the yielding data on datasheets. Additional details regarding the protocol are available elsewhere.(6)

The protocol specified the completion of a minimum of 20 staged crossing maneuvers in each direction of travel for each condition, which is a minimum of 40 total crossings for each condition and 120 total crossings at each study site. Observation periods were chosen so that vehicle traffic was heavy enough to create frequent yielding situations but not heavy enough for congestion to affect vehicle speeds. Researchers only collected data during daylight and in good weather, with a focus on avoiding rain, wet pavement following rain, dusk or dawn, or other conditions that affect a driver’s ability to see and react to a waiting, staged pedestrian. In situations where a nonstaged pedestrian approached the crosswalk, data collection would stop momentarily, and the researcher would activate the temporary beacons for the pedestrian crossing.

Results

After completing the data collection, researchers returned to the office and entered the crossing data and the site characteristics data from the field worksheets into an electronic database. The average yielding rate for each flash pattern was calculated; however, data for individual crossings were used in the statistical evaluation. The average driver yielding rates for each flash pattern were as follows:

  • Blocks: 80 percent.
  • WW+S: 80 percent.
  • 2-5: 78 percent.

When a driver approaches a crossing, the driver either yields and stops the vehicle or does not yield to the waiting staged pedestrian.This binary behavior (yield or no yield) can be modeled using logistic regression. A significant advantage of using logistic regression is that it permits consideration of individual crossing data rather than reducing all the data at a site to only one value.

From the preliminary review of the results above, it appears that there are only minor, if any, differences between the tested flash patterns. Because a previous study on RRFBs found that posted speed limit, crossing distance, and city influenced driver yielding, this analysis also considered those variables.(5)

The statistical analyses conducted using individual crossing data found that there are no significant differences between the tested flash patterns.

Conclusions

This study investigated whether different flash patterns used with an RRFB are associated with different driver yielding. For the three patterns tested (see figure 2), no statistically significant differences were found. A closed-course study found that drivers are better at judging pedestrian direction when there are more or longer dark periods within a flash pattern, suggesting an advantage in using a flash pattern with more or longer dark period(s).(14) The findings of this study indicated that the advantages of longer or more dark periods are not offset by a reduction in driver yielding (at least during the daytime conditions because data were only collected during daytime for this study). These findings suggest that the profession should consider using a flash pattern with increased dark periods when specifiying the pattern for RRFBs.

The findings from these research efforts were presented to the NCUTCD STC during its June 2014 meeting. STC recommended that the WW+S pattern be used with future rapid-flashing pedestrian treatments. Based on the findings from this research, FHWA issued an official interpretation on July 25, 2014, to permit agencies to use either the previously approved 2-5 flash pattern or the optional WW+S flash pattern.(16)

Although both flash patterns are available for use, the official interpretation mentions that FHWA favors the WW+S flash pattern because it has a greater percentage of dark time when both beacons of the RRFB are off and because the beacons are on for less total time. The greater percentage of dark time is important because drivers will be able to read the sign and to see the waiting pedestrian more easily, especially under nighttime conditions. The lesser total on time will make the RRFB more energy efficient, which is important because they are usually powered by solar energy.

References

1. Shurbutt, J., and Van Houten, R. (2010), Effects of Yellow Rectangular Rapid-Flashing Beacons on Yielding at Multi-lane Uncontrolled Crosswalks, FHWA- HRT-10-043, FHWA, Washington, DC.

2. Pécheux, K., Bauer, J., and McLeod, P. (2009), Pedestrian Safety Engineering and ITS-Based Countermeasures Program for Reducing Pedestrian Fatalities, Injury Conflicts, and Other Surrogate Measures Final System Impact Report, FHWA, U.S. Department of Transportation, Washington, DC.

3. Hunter, W.W., Srinivasan, R., and Martell, C.A. (2009), Evaluation of the Rectangular Rapid Flash Beacon at a Pinellas Trail Crossing in St. Petersburg, Florida, Florida Department of Transportation, Tallahassee, FL.

4. Brewer, M.A., Fitzpatrick, K., Larson, G.W., and Minter, H. (2011), Before-and-After Study of the Effectiveness of Rectangular Rapid-Flashing Beacons Used With School Sign in Garland, Texas, Technical Memorandum to City of Garland Department of Transportation, TTI, College Station, TX.

5. Fitzpatrick, K. et al. (2014), Characteristics of Texas Pedestrian Crashes and Evaluation of Driver Yielding at Pedestrian Treatments, FHWA/TX-14/0- 6702-1, TTI, College Station, TX.

6. Fitzpatrick, K., Brewer, M., and Avelar, R. “Driver Yielding to Traffic Control Signals, Pedestrian Hybrid Beacons, and Rectangular Rapid Flashing Beacons in Texas,” Journal of the Transportation Research Board, 2463, October 2013.

7. Fitzpatrick, K. et al. (2014), Investigating Improvements to Pedestrian Crossings with an Emphasis on the Rectangular Rapid-Flashing Beacon, Draft, FHWA- HRT-15-043, FHWA, Washington, DC.

8. Ross, J., Serpico, D., and Lewis, R. (2011), Assessment of Driver Yielding Rates Pre- and Post-RRFB Installation, Bend, Oregon, Oregon Department of Transportation, Salem, OR.

9. Bennett, M.K., Manal, H., Van Houten, R., “A Comparison of Gateway In-Street Sign Configuration to Other Driver Prompts to Increase Yielding to Pedestrians at Crosswalks,” Journal of Applied Behavior Analysis, 47 (1), Spring 2014.

10. Domarad, J., Grisak, P., and Bolger, J. (2013), “Improving Crosswalk Safety: Rectangular Rapid-Flashing Beacons (RRFB) Trial in Calgary,” Canada Institute of Transportation Compendium, http://www.cite7.org/conferences/compendium/2013_Pedestrian_ImprovingCrosswalkSafety.pdf.

11. Furst, A. (20 08), MUTCDInterim Approval for Optional Use of Rectangular Rapid Flashing Beacons (IA-11), U.S. Department of Transportation, FHWA Memorandum, July 16, Washington, DC.

12. Federal Highway Administration (2009), Manual on Uniform Traffic Control Devices, last accessed January 5, 2011, http://mutcd.fhwa.dot.gov/kno_2009.htm.

13. Kehrili, M. (2012), 4(09)-21 (I)— Clarification of RRFB Flashing Pattern, U.S. Department of Transportation, FHWA Memorandum, June 13, Washington, DC.

14. Fitzpatrick, K. Avelar, R., and Robertson, J. (2014), Rapid-Flash Yellow LEDs Impact on Detecting Pedestrians in a Closed-Course Setting, Technical Memorandum to FHWA.

15. Fitzpatrick, K., Avelar, R., Robertson, J., Miles, J. (2014), Driver Yielding Results for Three Rectangular Rapid-Flash Patterns, Executive Summary, Texas A&M Transportation Institute website, last accessed on October 7, 2014, http://d2dtl5nnlpfr0r.cloudfront.net/tti.tamu. edu/documents/TTI-2014-5.pdf.

16. Kehrili, M. (2014). 4(09)-41 (I)—Additional Flash Pattern for RRFBs, U.S. Department of Transportation, FHWA Memorandum, July 25, Washington, DC.

Researchers —This study was performed by Principal Investigator Kay Fitzpatrick along with Raul Avelar, James Robertson, and Jeff Miles. For more information about this research, contact Dr. Kay Fitzpatrick, Texas A&M Transportation Institute, 2935 Research Parkway, College Station, TX 77845-3135, k-fitzpatrick@tamu.edu.

Distribution —This TechBrief is being distributed according to a standard distribution. Direct distribution is being made to the Divisions and Resource Center.

Availability —This TechBrief may be obtained from the FHWA Product Distribution Center by e-mail to report.center@dot.gov, fax to (814) 239-2156, phone to (814) 239-1160, or online at https://www.fhwa.dot.gov/research.

Key Words —Rectangular rapid-flashing beacon, flash patterns, pedestrian crossing, driver yielding to pedestrians.

Notice —This document is disseminated under the sponsorship of the U.S. Department of Transportation in the interest of information exchange. The U.S. Government assumes no liability for the use of the information contained in this document. The U.S. Government does not endorse products or manufacturers. Trademarks or manufacturers’ names appear in this report only because they are considered essential to the objective of the document.

Quality Assurance Statement —The Federal Highway Administration (FHWA) provides high-quality information to serve the Government, industry, and public in a manner that promotes public understanding. Standards and policies are used to ensure and maximize the quality, objectivity, utility, and integrity of its information. FHWA periodically reviews quality issues and adjusts its programs and processes to ensure continuous quality improvement.
