Identification of High Pedestrian Crash Locations

PDF Version (130 KB)

PDF files can be viewed with the Acrobat® Reader®


FHWA Publication No.: FHWA-HRT-17-108
FHWA Contact: Ann Do, HRDS-30, (202) 493-3319, ann.do@dot.gov

This document is a technical summary of the Federal Highway Administration report, Guidebook on Identification of High Pedestrian Crash Locations, Report No. FHWA-HRT-17-106.



One of the U.S. Department of Transportation’s top priorities is the improvement of pedestrian and bicyclist safety. The Federal Highway Administration (FHWA) promotes safe, comfortable, and convenient walking for people of all ages and abilities. Part of this effort has been to encourage a data-driven approach to identifying and mitigating safety problems. An initial step in reducing the frequency of pedestrian crashes is identifying where they occur or where there is a concern that they are likely to occur. As part of an FHWA project, the Guidebook on Identification of High Pedestrian Crash Locations was developed to assist State and local agencies in identifying high pedestrian crash locations, such as intersections (points), segments, facilities, and areas.(1) The process of identifying high pedestrian crash locations resulted in a prioritized list of potential locations on the roadway system that could benefit from safety improvement projects.

Study Approach

Several cities and States were contacted to determine the criteria they used to identify and rank high pedestrian crash locations. In all cases, crash data were being used. In some cases, other variables were considered, especially when developing the list of sites for treatments. For example, Los Angeles used a score that considered the age of the pedestrian and a health and equity index in addition to the number of injury crashes and the number of fatal crashes. Several of the cities created unique lists for intersections, facilities, and areas, recognizing that treatment selection would be different for these element types.

Process to Identify High pedestrian Crash Locations

Several agencies were contacted to gather information about how they identify high pedestrian crash locations. This information coupled with findings from a review of the literature generated the process shown in figure 1. The steps were as follows:

  1. Select approach. The Guidebook focuses on the traditional (also known as reactive) approach. If a proactive approach is preferred, the Guidebook gives suggestions about other references.
  2. Gather data. The typical data needed consist of crash data (including severity, crash type, contributing factors, and importantly, the location of the crash, preferably stated as latitude and longitude coordinates) and roadway characteristics (e.g., the number of lanes or traffic control devices present). Exposure data in the form of vehicle counts, pedestrian counts, and/or turning and crossing movement counts for specific locations may also be desired.
  3. Plan assessment. The substeps within this step are to select the scale (e.g., intersection, segment, or area), performance measures (e.g., crash frequency or crash rate), and the screening method (e.g., a simple ranking or a more complex approach that requires a software application).
  4. Conduct assessment. Several tools are available to assist in conducting the assessment, with most having data in addition to crash data. Some of the tools may require additional training or a skill set in geographic information systems (GISs) before an assessment can be conducted.
  5. Prioritize locations. After the selected performance measure(s) and screening method(s) are applied to the study network, the resulting list of sites can be arranged using a simple ranking or by considering adjustments or community priorities.

Details about completing each of these steps are discussed in the Guidebook. The Guidebook concludes with supporting materials grouped within the following sections:

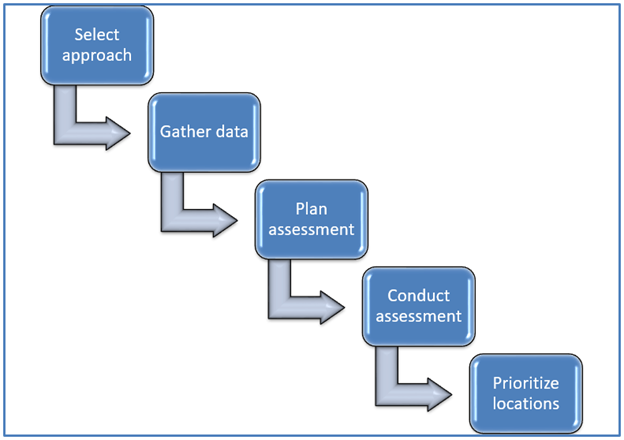

This graphic shows the incremental steps (each step is illustrated as blue box with rounded corners and contains a step name) to identify high pedestrian crash locations. The steps begin at the top left of the figure and end at the bottom right. An arrow from the first step, “Select approach,” is directed down and to the right to the “Gather data” step, which has an arrow that is pointed down and to the right to the “Plan assessment” step. An arrow from the “Plan assessment” step is pointed down and to the right to the “Conduct assessment” step. An arrow from the “Conduct assessment” step points down and to the right to the final step, which is “Prioritize locations.”

©Texas A&M Transportation Institute

Figure 1. Steps to identify high pedestrian crash locations.

Lessons Learned During Development of the Guidebook

Most agencies now have the geographic coordinates of crashes, making it possible to quickly demonstrate visually where crashes are occurring. Each of the interviewed agencies uses a GIS to identify high crash locations. The agencies generally start with identifying high crash intersections and then group the intersections. GIS tools aid in the grouping; however, several agencies noted that visually confirming the grouping is how they set the limits for their corridors and areas.

Agencies have considered surrogates, such as activity centers, walk scores, or citizens’ comments, to identify locations of concern. Pedestrian-exposure data were typically not used to identify sites because of the lack of good data for significant portions of their network. The analysis period ranged between 1 and 3 yr. The agencies noted that pedestrian and bicycle crashes are different from motor-vehicle crashes and require unique efforts.

The current skill set needed to work with crash data includes familiarity with GIS, the ability to work with attribute tables, and programming skills. Key lessons learned include the following:

Some of the cities suggested that the list of sites and plans should be shared with the public so residents know where the city is performing work and how those decisions were made.

Examples of approaches used and lessons learned from previous studies include the following:

The methods used to identify and evaluate sites with a high crash frequency have evolved, in recent decades, in the following ways:

Recent advances in statistical techniques have provided several methods and tools, other than reviewing crash data, that can be used to identify locations with concerns for pedestrians. These techniques include safety performance functions, the Highway Safety Manual,and systemic analyses.(2) These techniques provide the opportunity to allow comparisons between a city’s data and national trends. The growth of better statistical techniques also permits the profession to better handle regression to the mean and low sample challenges.


Researchers—This study was performed by Principal Investigator Kay Fitzpatrick along with Raul Avelar and Shawn Turner. For more information about this research, contact Dr. Kay Fitzpatrick, Texas A&M Transportation Institute, 2935 Research Parkway, College Station, TX 77845-3135, k-fitzpatrick@tamu.edu.

Distribution—This TechBrief is being distributed according to a standard distribution. Direct distribution is being made to the Divisions and Resource Center.

Availability—This TechBrief may be obtained from the FHWA Product Distribution Center by email to report.center@dot.gov, fax to (814) 239-2156, phone to (814) 239-1160, or online at http://www.fhwa.dot.gov/research.

Key Words—Pedestrian, crashes, safety process, high crash locations.

Notice—This document is disseminated under the sponsorship of the U.S. Department of Transportation in the interest of information exchange. The U.S. Government assumes no liability for the use of the information contained in this document. The U.S. Government does not endorse products or manufacturers. Trademarks or manufacturers’ names appear in this report only because they are considered essential to the objective of the document.

Quality Assurance Statement—The Federal Highway Administration (FHWA) provides high-quality information to serve Government, industry, and the public in a manner that promotes public understanding. Standards and policies are used to ensure and maximize the quality, objectivity, utility, and integrity of its information. FHWA periodically reviews quality issues and adjusts its programs and processes to ensure continuous quality improvement.
