SH 66 over Mitchell Gulch: Construction Photos
|

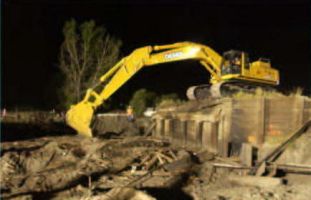

At about 7:30 PM, Friday, demolition began. The old bridge was rapidly ripped apart and moved out of the way.
|
Existing timber pile piers are broken off, abutments and wingwalls are torn out.
|
|

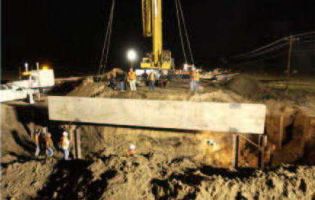

The first precast member, the west "hide wall" is delivered shortly after midnight.
|

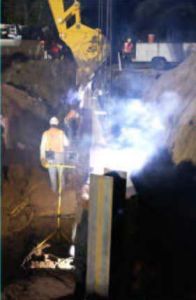

The hidewall is welded to the previously driven piles.
|
|

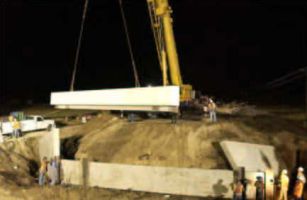

The abutment cap is brought in to complete the abutment.
|

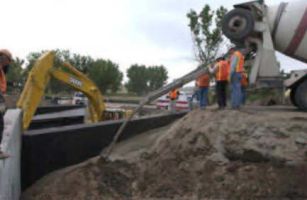

After both abutments were placed, the backface was lined with geofabric and flowfilled.
|
|

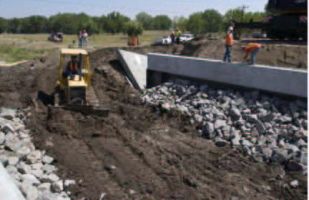

Rip-rap was placed concurrently with the flowfill and partially burie.
|

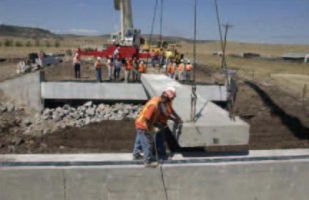

The first girder was placed mid-morning.
|
|

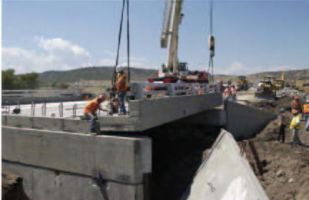

The outside girders were precast with the curb in place and the bridge rail was attached beforehand.
|

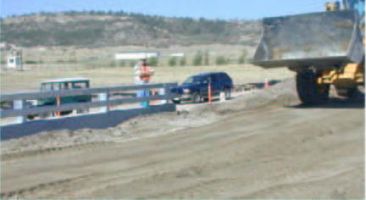

After the girders were post-tensioned together, grouted, and welded to the abutment, aggregate base course (ABC) was placed and compacted.
|
|
The bottom layer of hot bituminous pavement (HBP) was placed on the ABC, followed by geotextile with a heavy tack coat for waterproofing and abutment reinforcement.
|

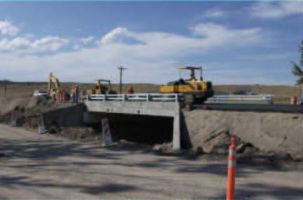

Another lift of HBP was placed before opening the road to traffic Sunday at 5PM.
|
|
|
