Composite Bridge Decking, Final Project Report

APPENDIX E: DRAWINGS FOR PROOF-OF-CONCEPT BRIDGE

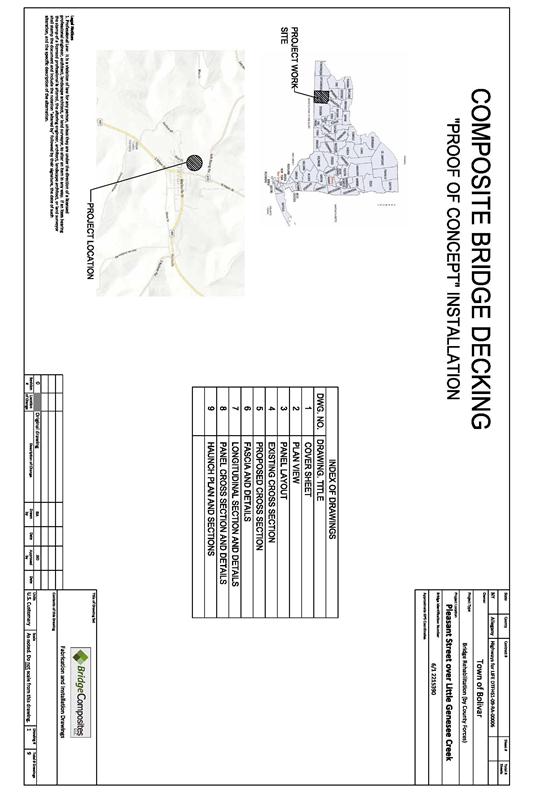

Figure 54. Diagram. Proof-of-concept installation drawings—cover sheet.

Figure 54. Diagram. Proof-of-concept installation drawings—cover sheet.

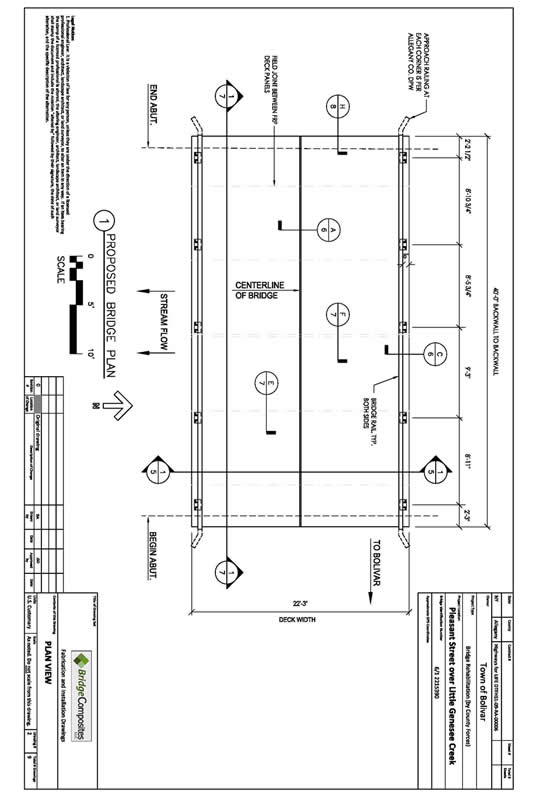

Figure 55. Diagram. Plan view.

Figure 55. Diagram. Plan view.

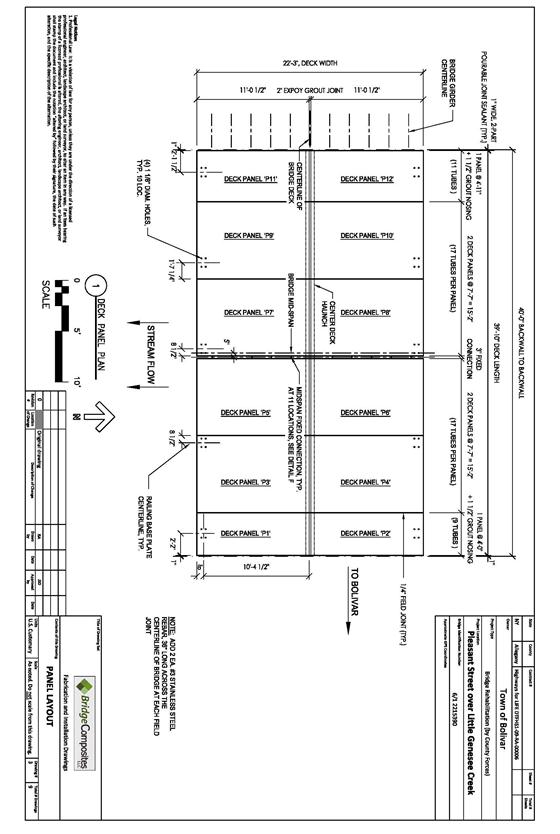

Figure 56. Diagram. Panel layout.

Figure 56. Diagram. Panel layout.

Figure 57. Diagram. Existing cross-section.

Figure 57. Diagram. Existing cross-section.

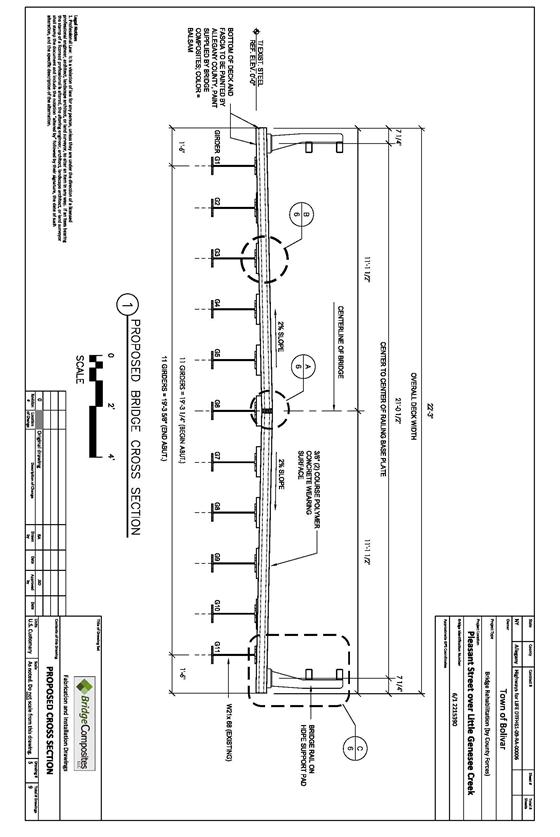

Figure 58. Diagram. Proposed cross-section.

Figure 58. Diagram. Proposed cross-section.

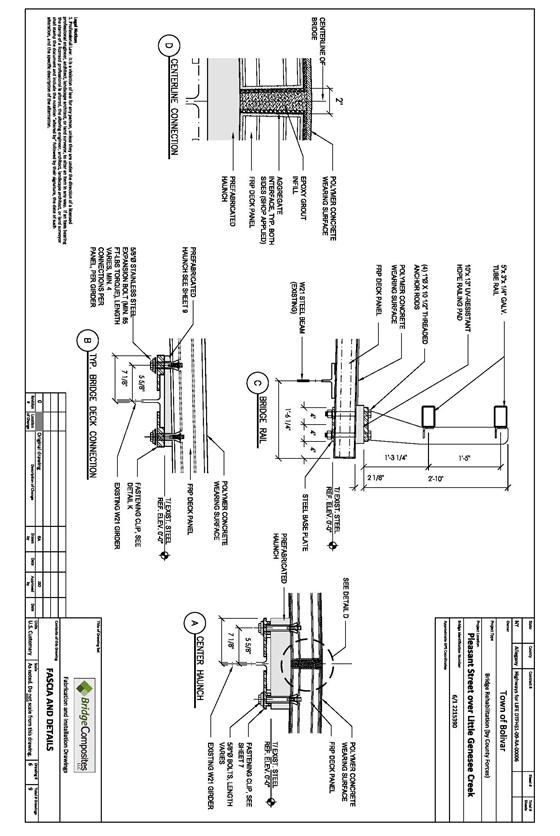

Figure 59. Diagram. Fascia and details.

Figure 59. Diagram. Fascia and details.

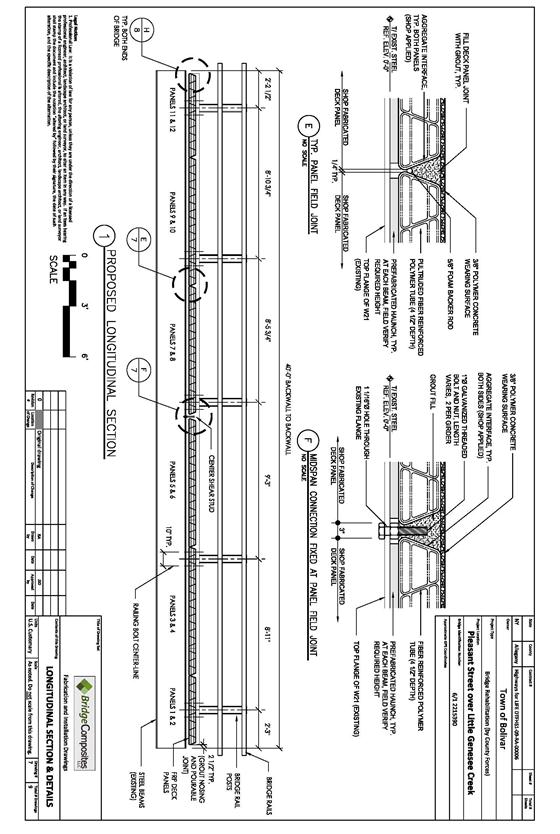

Figure 60. Diagram. Longitudinal section and details.

Figure 60. Diagram. Longitudinal section and details.

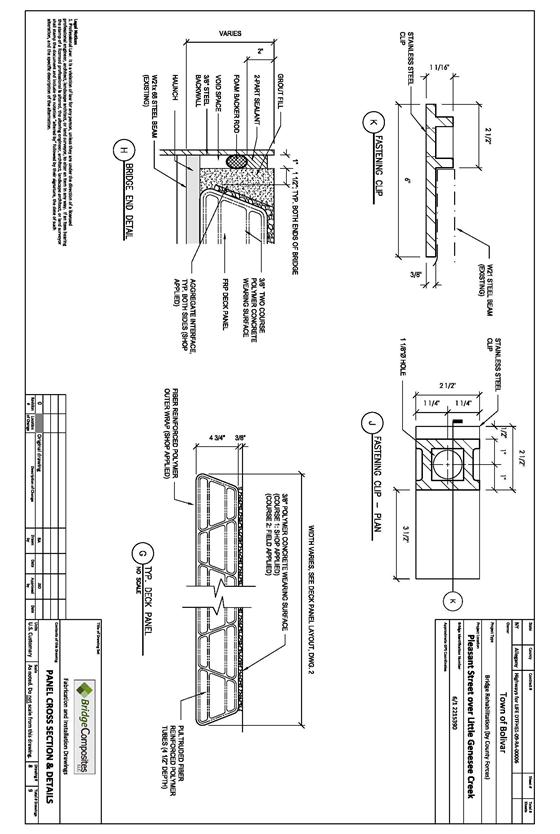

Figure 61. Diagram. Panel cross-section and details.

Figure 61. Diagram. Panel cross-section and details.

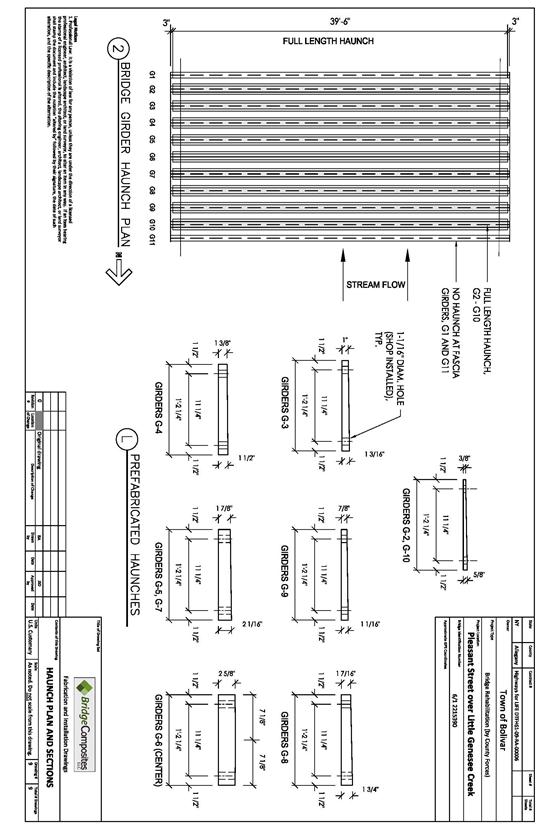

Figure 62. Diagram. Haunch plan and sections.

Figure 62. Diagram. Haunch plan and sections.
