Methods

The research team used three analytical approaches in the study: a mail and telephone survey; activity-based modeling of respondents’ choice of travel modes, based on the survey results; and agent-based modeling of commuters and their preferences regarding cost, travel time, and safety considerations. The agent-based model, calibrated with data from the four neighborhoods, was developed by first using parameters from the travel behavior literature and then incorporating parameters from the study’s activity-based model. Commuters in the model choose transportation options based on their preferences, characteristics of the environment, and the travel modes available to them.

Household Survey

The research team conducted a survey of at least 150 respondents in each of the four neighborhoods. Respondents lived within 1.5 mi (2.4 km) and worked within 3 mi (4.8 km) of a CTA rail station. The research team designed the household survey to collect information about the household, the respondent’s current travel behavior, mode preferences under the potential transportation and design improvements, and perceptions of mode cost, convenience, time, and safety.

Staff from the Survey Research Laboratory at the University of Illinois at Chicago used a multimode design for the household survey. The staff used address-based sampling from the Delivery Sequence File constructed by the U.S. Post Office to obtain an initial 7,700 addresses within the A and B focus areas of the four neighborhoods. The staff divided sampling equally among the neighborhoods, and carried out recruitment in eight repetitions of the same experimental conditions during March–April 2012. Because of the low responses in Cicero, Pilsen, and Skokie, the survey staff added an additional 8,998 addresses in those neighborhoods in two additional samplings, with recruitment occurring during May–June and December 2012. Thus, 16,698 households received the initial recruitment contact.

The team conducted the survey in three steps:

1. Recruitment mailing to random sample:

• Advance letter describing the survey and inviting participation.
• Response form and postage-paid return envelope.

2. Study packet mailing to eligible respondents:

• Cover letter and consent information form.
• Travel diary covering 1 day, to be completed on a randomly assigned weekday.
• Booklet containing seven color images illustrating the status quo and potential improvements (customized to the address of the respondent) accompanied by six worksheets to be used in the telephone interview.

3. Telephone interview (30 minutes):

• To elicit the respondent’s modal preferences through a process of completing the six illustrated survey worksheets and to elicit perceptions of cost, safety, quickness, and convenience.

The recruitment mailing asked for participation in the study and offered a cash incentive to eligible respondents who completed the written survey and the followup telephone interview. Anyone living in the household and over the age of 18 who spoke either English or Spanish (interviews and survey materials were available in either language) was eligible to return the response form, which asked whether the respondent works or goes to school outside the home, his or her work or school address, and how many times during the week the person travels to his or her nearest CTA rail station or within a half-mile (0.8 km) of that station.

The survey team used a screening process to eliminate respondents who did not work or go to school outside the home, did not travel at least once a week to their CTA rail station area, or did not work or attend school within 3 mi (4.8 km) of the CTA system. The team sent the survey study packet containing the travel diary and booklet only to respondents deemed eligible. At least 1 day after the date assigned to the respondent to complete the travel diary, the survey team telephoned to conduct the followup interview.

The overall returns to the recruitment mailings were 10.1 percent, and the final participation rate—respondents who completed the telephone interview—was 3.8 percent and ranged from 2.0 percent in Cicero to 9.2 percent in Evanston.

Travel Diary

The travel diary centered on the respondent’s travels on a randomly selected weekday. The questionnaire devoted three pages to the main tour of the day (e.g., the series of trip segments between home and a destination or from a destination to home), with up to three segments, and contained space to add additional tours. Questions involved destination, travel times, travel modes, length of trip, and number of stops. The travel mode options offered were private vehicle as driver, private vehicle as passenger, bus, train, walking, cycling, and car-sharing. Questions also included any costs for parking or highway tolls.

Survey Booklet and Telephone Interview

The telephone interview had four parts:

• Collecting information about the household.
• Collecting the travel diary entries, which represented the respondent’s current travel behavior.
• Gathering the respondent’s perceptions of the safety, convenience, quickness, and cost of the main trip with and without potential improvements.
• Recording the respondent’s travel preferences under the six potential levels of transportation and design improvements.

The survey booklet that was mailed as part of the study packet contained six worksheets covering the transit station approach with which the respondent’s address was associated. Each worksheet was illustrated with one of six “improved” scenarios (a sample is shown in figure 4). These worksheets were completed one by one during the telephone interviews, which were conducted by using CASES, the Computer-Assisted Survey Execution System Program, version 5.4.⁽⁷⁾ The interviewer supplied travel times and costs for each travel mode based on the times, starting point, and destination data for the main trip in the respondent’s travel diary. Survey software generated the values for the interviewer. The interviewer then asked the respondent to reflect on the worksheet information and image and select the mode of transportation that they would prefer to use for the trip recorded in the diary.

Limitations of the Survey

Although the survey team sent the initial recruitment mailing to a random sample within the defined geographic areas, the survey respondents were a self-selected sample, and their participation likely reflects a greater interest in transit, cycling, and walking as alternatives to driving than that of the general population. As a result, the survey results cannot be used to make population inferences. The assumed positive bias, however, is in line with the mission of the study, which was to estimate a best-case scenario for the community shuttle.

© University of Michigan

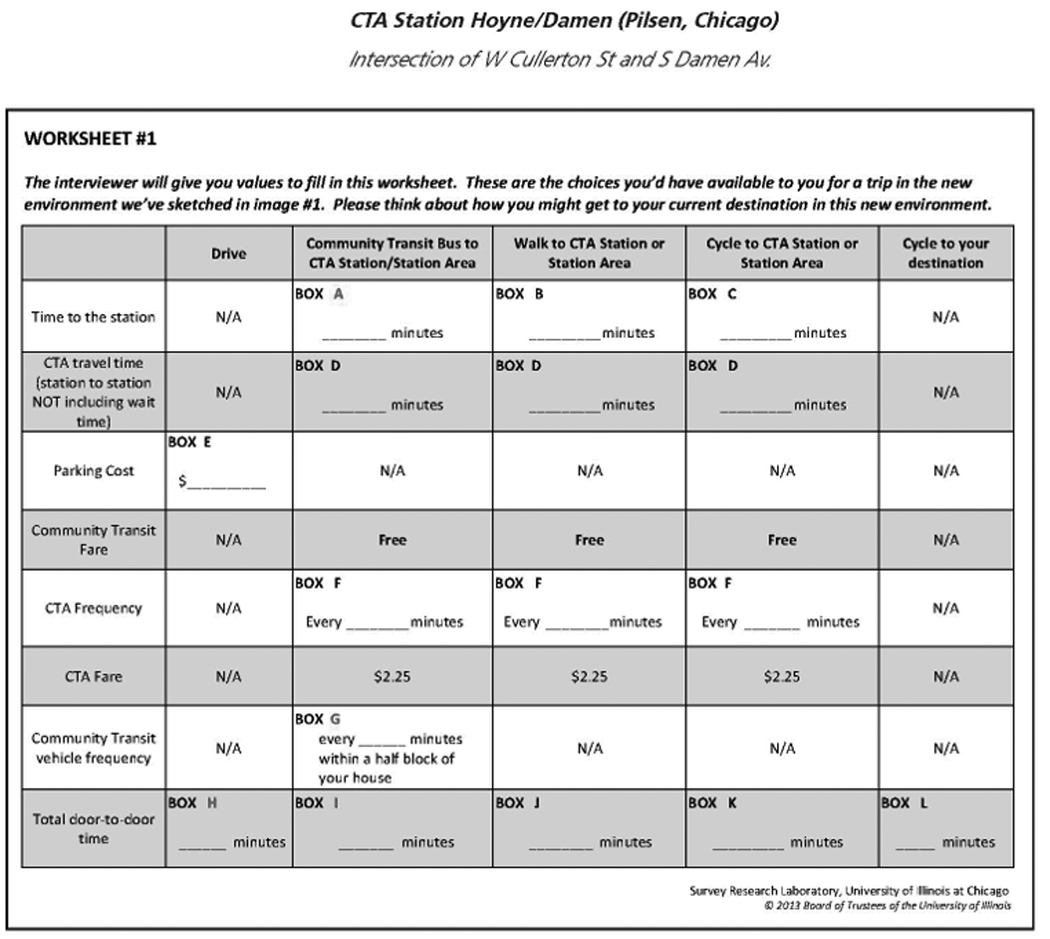

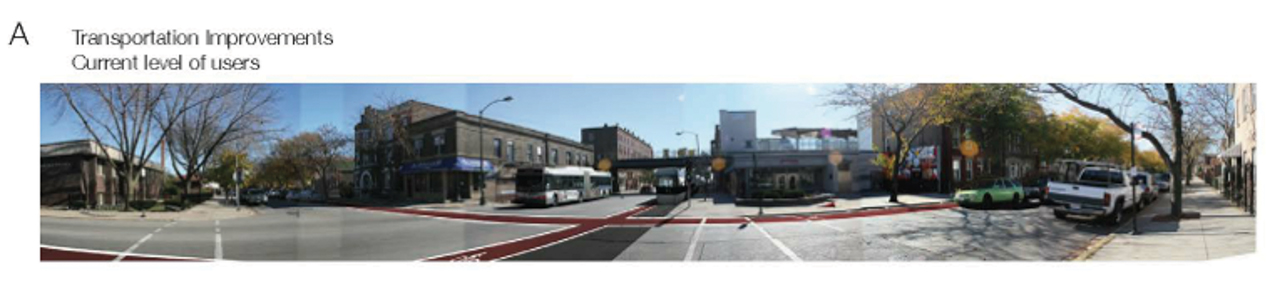

Figure 4. Sample worksheet with illustration of transportation improvements at the West Cullerton Street and South Damen Avenue approach to Pilsen's Hoyne/Damen CTA Station.

Modeling and Simulations

Data from the neighborhood surveys were the basis of the activity-based model. The survey incorporated both the respondents’ current travel patterns and their stated preferences after potential implementation of the improvements, as described and illustrated in the survey materials. The stated preference portion of the data was used to estimate an activity-based model of mode choice. Utilities from this model were then used to revise initial parameters used in the agent-based model. In this way, the empirical estimation of the activity-based model was combined with the capacity of the agent-based model to simulate changes over time.

In the stated-preference survey, respondents chose from five travel modes:

• Drive.
• Community shuttle to the transit station.
• Walk to the transit station.
• Cycle to the transit station.
• Cycle to destination.

Information presented about the travel options included travel time to the CTA station by shuttle, time between shuttles, driving time to the destination, parking cost at the destination, CTA train frequency, station-to-station travel time, and fare. Some variables changed according to the residential location of the respondent but did not vary among the hypothetical scenarios. These variables included: walk time to the CTA station, cycle time to the CTA station, cycle time to the destination, CTA travel time from station to station, and CTA train frequency. The respondents’ actual choices were compared against their stated preferences.

The research team built a prototype agent-based model to represent commuters living within a 1.5-mi (2.4-km) radius of a transit station in their neighborhood and work or study in the downtown area, making transit a feasible commuting choice. As part of a larger metropolitan area, commuters have a choice of various transportation modes, and they base their decisions on their preference for travel time, transportation cost, and perceived safety. The neighborhoods, commuting modes, and parameters were modeled after the four Chicago neighborhoods in the study. The agent-based model incorporated parameters from the activity-based model, and the simulations were run on this integrated model.
