Publication Number:  FHWA-HRT-16-058    Date:  December 2016
Publication Number: FHWA-HRT-16-058
Date: December 2016



Cooperative Adaptive Cruise Control Human Factors Study: Experiment 3—The Role of Automated Braking and Auditory Alert in Collision Avoidance Response



CHAPTER 3. RESULTS



CRASHES

Table 3 shows the number of crashes, the number of crashes avoided by each group, the maximum likelihood estimates of crash probability, and the 95-percent confidence limit (CL) for those estimates. The probability of a crash was reduced for the full CACC system (both braking and alarm enabled) compared to the other groups. This effect was tested using a generalized linear model (GLM) with a binomial distribution and logit link function. The effect of condition was significant ( χ2(3) = 10.6, p = 0.01). Post hoc testing showed that only the CACC-AB significantly differed from the ACC control (p = 0.003).

Table 3. Crash results by experimental group
Condition No. of Avoided Crash No. of Crashed Crash Probability Lower
95-Percent CL
Upper
95-Percent CL
ACC 13 15 0.54 0.35 0.71
CACC-AB 24 4 0.14 0.05 0.32
CACC-A 13 15 0.54 0.35 0.71
CACC-B 14 14 0.50 0.32 0.68
Total 64 48 0.43 nc nc
nc = Not computed.



REACTION TIME

The reaction times to the onset of the crash event are shown in figure 2, which displays the mean reaction times and 95-percent CLs about the means for the four conditions. Three participants in the CACC-B group never reacted and therefore were not included in the reaction time analysis. A GLM with normal response distribution and identity link function showed the condition effect significant (χ2(3) = 59.2, p < 0.0001). Post hoc testing showed that the ACC group mean reaction time did not differ significantly from the CACC-AB group mean but that all the other group mean comparisons yielded significant differences.

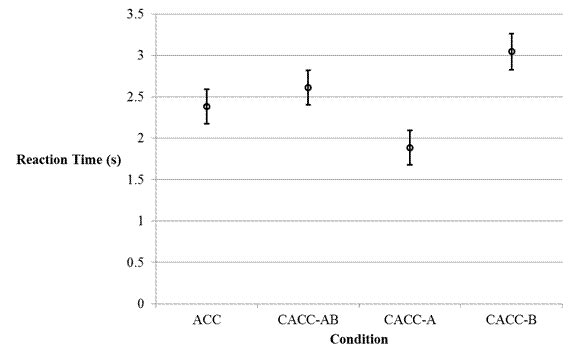

In this graph, means and 95 percent confidence limits (CLs) are shown for each of the four experimental conditions. The x-axis shows condition, and the data labels are, from left to right, ACC, CACC-AB, CACC-A, and CACC-B. The y-axis shows reaction time and ranges from 0 to 3.5 s. The ACC mean is 2.4 s with CLs of 2.2 to 2.6 s, the CACC-AB mean is 2.6 s with CLs of 2.4 to 2.8 s, the CACC-A mean is 1.9 s with CLs of 1.7 to 2.1 s, and the CACC-B mean is 3.0 s with CLs of 2.8 to 3.3 s.

Figure 2. Graph. Reaction time from onset of braking by platoon-lead vehicle.

ADJUSTED TTC

The TTC findings are displayed in figure 3, which shows the adjusted TTC means and 95-percent CLs about the means for the fourconditions. Figure 3 is based on a sample size of 92 participants. The remaining 20participants had uninterpretable adjusted TTC estimates; 3 of those 20 are the same participants who had no reaction time and never applied the brakes. The remaining 17participants had uninterpretable adjusted TTC values because they were decelerating at a rate less than that of the lead vehicle (also decelerating) at the time of impact, thereby generating adjusted minimum TTC values of negative infinity. Table4 shows that the ACC and CACC-A groups had the highest frequency of such values. Although the frequency of negative infinity occurrence is too low to enable meaningful statistical tests for group differences, the trend seems to suggest that automated braking contributed to mitigating the probability of inadequate braking responses.

In this graph, means and 95 percent confidence limits (CLs) are shown for adjusted time to collision (TTC) for each of the four experimental conditions. The x-axis shows condition, and the data labels are, from left to right, ACC, CACC-AB, CACC-A, and CACC-B. The y-axis shows mean adjusted TTC and ranges from -0.6 to 1.0 s. The ACC mean is -0.07 s with CLs of -0.47 to 0.33 s, the CACC-A mean is 0.29 s with CLs of -0.13 to 0.72 s,  the CACC-AB mean is 0.56 s with CLs of 0.21 to 0.91 s, and the CACC-B mean is -0.11 s with CLs of -0.49 to 0.27 s.

Figure 3. Graph. TTC results.



Table 4. Frequency of drivers for whom precise values of adjusted TTC could not be calculated.

Group Number of Subjects with Minimum
TTC Values of Negative Infinity
ACC 7
CACC-AB 0
CACC-A 9
CACC-B 1

GLM models with normal response distribution and identity link function showed the effect of condition significant (χ2(3) = 8.54, p = 0.04). As can be seen in figure 3, the CACC-AB group had a substantial positive adjusted TTC (i.e., on average, members of this group have almost 0.6 s extra to respond to the collision event). The ACC and CACC-B groups had significantly lower mean adjusted TTC values than the CACC-AB group. The CACC-A group mean was not significantly different from any of the other three group means.
