Crosswalk Marking Field Visibility Study



CHAPTER 5. DATA REDUCTION



PARTICIPANT DEMOGRAPHICS

RESPONSE TIME

DETECTION DISTANCE

APPEARANCE AND PREFERENCE RATINGS

POSTDRIVE RANKINGS



PARTICIPANT DEMOGRAPHICS

Table 7 lists the demographic information for the 78 participants. The original goal was to have 32 participants age 55 or older. That goal was exceeded, with 35 older participants in the study. The large number that selected retired for employment (33 percent) is a reflection of the emphasis on having half of the participants over 55 years of age.

Table 7. Demographic information for 78 participants.

Characteristics Number (Percent) Characteristics Number (Percent)
Age < 24 7 (9) Eye Height 40–45 inch 26 (33)
24–33 10 (13) 45–50 inch 14 (18)
34–43 10 (13) 50–55 inch 33 (42)
44–53 16 (21) > 55 inch 5 (6)
54–63 14 (18) Gender Female 41 (53)
64–73 15 (19) Male 37 (47)
74–83 6 (8) Education Some high school 3 (4)
Age groups < 55 43 (55) High school graduate 8 (10)
≥ 55 35 (45) Some college/vocational 29 (37)
Race African American 2 (3) College graduate 11 (14)
Asian 3 (4) Some graduate school 1 (1)
Hispanic 3 (4) Graduate degree 26 (33)
Other 2 (3) Number of
miles driven per year
Less than 12,000 17 (22)
White 68 (87) 12,000–15,000 35 (45)
Employment Full time 33 (42) More than 15,000 26 (33)
Part time 5 (6) Normal driving conditions All 12 (15)
Student 7 (9) Freeways 3 (5)
Homemaker 4 (5) City streets 51 (65)
Retired 26 (33) Rural roads 12 (15)



Top



RESPONSE TIME

The response lag times were determined for each subject. Two experimenters collected all the data, with one experimenter always in the SUV and the other experimenter always in the sedan. Initial effort determined the average response time by experimenter for all the participants. A review of the data revealed several outliers, such as when the response was more the 3 s. To eliminate these outliers, responses of more than 3 s or less than 0.4 s were removed from the data set. The long response times were deemed to be caused by some distraction on the part of the participant or the experimenter, which happened occasionally in the intake room. The very short response times were eliminated because they were cases in which the experimenter accidentally pressed the button before the participant spoke. In addition, data were eliminated if the response time was greater than two standard deviations of the subject's average. These steps removed 177 responses (about 10 percent). Table 8 lists the average response time by experimenter before and after removing data. In general, the response time was about 1 s for either experimenter.

Table 8. Response time by experimenter.

Condition Experimenter/
Vehicle
Number of Responses Average Response Time (s) Standard Deviation (s)

All data

Sedan

860 1.184 1.398

SUV

760 1.059 0.641

Remove errors and data greater than two standard deviations of subject’s average

Sedan

783 0.985 0.218

SUV

686 0.908 0.206

A more detailed review of the response time data indicated that adjusting the detection distance should occur uniquely for each participant rather than using a per–experimenter average response time. Figure 38 shows the plot of the responses measured for each participant before eliminating the outliers. Figure 39 shows the plot of the responses measured after eliminating the outliers. As can be seen in the plots, some participants had average response times below 0.8 s while other participants' response times averaged above 1.2 s. Therefore, the average response time by participant rather than by experimenter was used to adjust the detection distance.

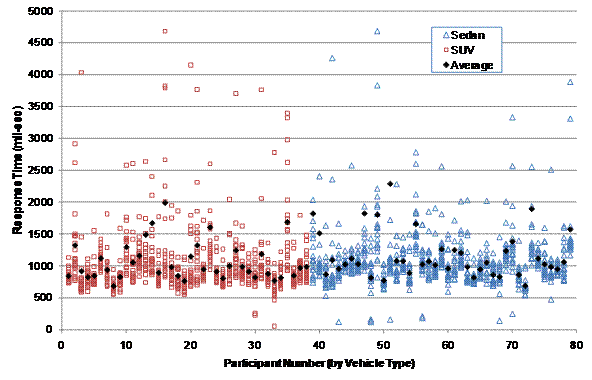

This graph shows the measured response times by vehicle/experimenter and participant. The y-axis represents the response time in milliseconds on a scale from 0 to 5,000. The x-axis represents the assigned participant identification number on a scale from 0 to 80. Data points for the sedan are represented by blue triangles, and data points for the SUV are represented by red squares. The graph also shows average response times for each participant marked with black diamonds. The majority of the data points are located toward the bottom of the graph, between 500 and 1,500 ms.

Figure 38. Graph. Measured response times by vehicle/experimenter and participant.



This graph shows the response times by vehicle/experimenter and participant after removing outliers. The y-axis represents the response time in milliseconds on a scale from 400 to 1,600 ms. The x-axis represents the assigned participant identification number on a scale from 0 to 80. Data points for the sedan are represented by blue triangles, and data points for the SUV are represented by red squares. The graph also shows average response times for each participant, marked with black diamonds. The data points are spread out on the graph, with the highest concentrations between 600 and 1,200 ms for the SUV and between 800 and 1,200 ms for the sedan.

Figure 39. Graph. Response times by vehicle/experimenter and participant after removing outliers.

The measured detection distance was adjusted using the average response time for the participant and the speed of the vehicle at the point when the participant said "crosswalk." The resulting adjustments ranged from 0 to 41 ft. Figure 40 illustrates the adjustments by participant number. The very low adjustments were for the crosswalks at stop-controlled intersections. To illustrate the type of adjustments used at the subject intersections, the minimum and maximum adjustments used for the higher speed F&B crosswalks are shown in figure 41 . As shown, the minimum adjustment for the F&B crosswalks was 15 ft and the maximum was 41 ft. For the nine crosswalks installed for this study, the adjustments ranged from 8 to 41 ft on detection distances that averaged 318 ft.

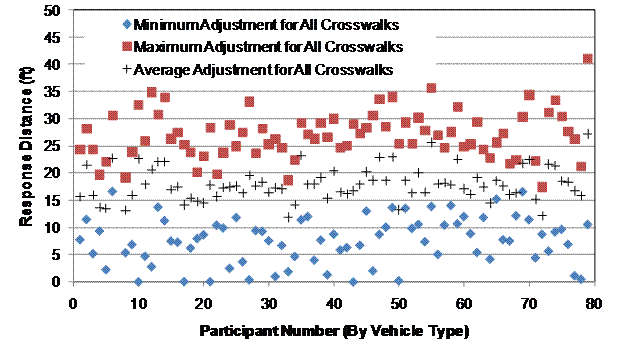

This graph shows the response distance with minimum, maximum, and average adjustment for each participant for all crosswalks. The y-axis represents the response distance on a scale from 0 to 50 ft, and the x-axis represents the assigned participant identification number on a scale from 0 to 80. The minimum adjustments are shown as blue diamonds and range from 0 to about 16 ft. The average adjustments are shown as black crosses and range from about 11 to about 27 ft. The maximum adjustments are shown as red squares and range from about 16 to 41 ft.

Figure 40. Graph. Response distance for all crosswalks.

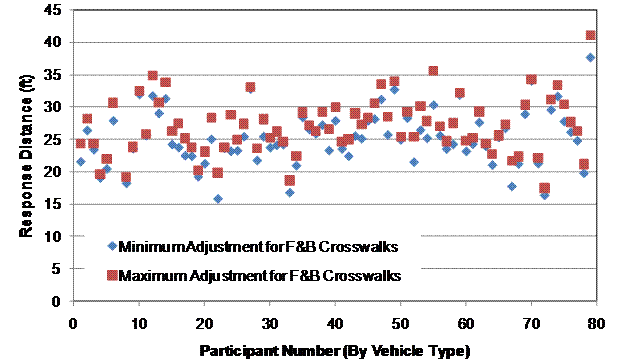

This graph shows the response distance adjustments for F&B crosswalks. The y-axis represents the response distance on a scale from 0 to 45 ft, and the x-axis represents the assigned participant identification number on a scale from 0 to 80. The minimum adjustments are shown as blue diamonds and range from about 15 to about 38 ft. The maximum adjustments are shown as red squares and range from about 17 to 41 ft.

Figure 41. Graph. Response distance for F&B crosswalks.



Top



DETECTION DISTANCE

The Dewesoft software package synchronizes the GPS and video data stream records. The synchronized data were used to determine several items of interest such as the number of pedestrians and bicyclists in the participant's view and the velocity and GPS coordinates when he or she identified crosswalks. The response time determined for each participant was used along with the DAS data to obtain the detection distances. Data reduction included several steps.

Dewesoft Exports

The GPS data from the Dewesoft program were exported into spreadsheets. The time and GPS coordinates when the participant said "crosswalk" were identified within the data streams. The GPS location of each crosswalk was recorded before the study began. The detection distance was determined by subtracting this distance from the location marked by the experimenter in the vehicle. This calculated distance was then adjusted to account for the response time of the experimenter and participant. Average response time of the experimenter for that subject was multiplied by the velocity at the time of crosswalk identification to obtain the response distance. The response distance was added to the detection distance to obtain the adjusted detection distance.

Pedestrian, Bicyclist, and Influencing Vehicular Traffic Presence

The number of pedestrians and bicyclists in the participant's view when approaching a crosswalk was determined using the video data. The number of pedestrians was subdivided into whether the pedestrian was moving toward the crosswalk or away from the crosswalk and if the pedestrian was in between the crosswalk and the vehicle. The view for recording the number of pedestrians was subdivided into the following three areas:

  • Roadway driving surface (both directions).

  • Right of the driving surface (sidewalk area or approximately 10 ft).

  • Left of the driving surface (sidewalk area or approximately 10 ft).

During data reduction, the experimenter also judged whether surrounding vehicular traffic was affecting the participant's ability to see the crosswalk.

Table 9 shows the basic format for the data reduction sheet.

Table 9. Sample data reduction sheet for number of pedestrians.

CrosswalkNumber Traffic? Number of Pedestrians Number of Bikes
Left of Driving Surface Roadway Driving Surface Right of Driving Surface
Toward Away Within Crosswalk Between Driver and Crosswalk Toward Away
# y/n x x x x x x x
# y/n x x x x x x x
# y/n x x x x x x x
# = Crosswalk number.
Traffic? = Traffic affecting the participant's view of the crosswalk (e.g., lead vehicle is within approximately 300 ft).
y/n = Yes or no.
x = Count.



Top



APPEARANCE AND PREFERENCE RATINGS

The appearance rating given for each crosswalk site was recorded on the participant's data sheet. Participant comments were also recorded (when provided) to aid in understanding the reason for a participant's response.



Top



POSTDRIVE RANKINGS

The order of the photographs as indicated in the postdrive ranking task was also recorded on the participant's data sheet. These rankings were transferred from the data sheets into spreadsheets to facilitate evaluations during data reduction. Because the number of participants within a group (e.g., day versus night or sedan versus SUV) was not exact, the frequencies were converted into proportions.



Top
